Overview

D3 normalizes the data it ingests into its own data model: a fixed set of D3 fields, each with a display name and an internal name. Field mapping tells D3 which field of an integration's data goes into which D3 field. This article shows where field mapping is configured in 18.6, what the mapping windows contain, and lists the built-in D3 fields. For a step-by-step guide to mapping, see Field Mappings.

Where Field Mapping Is Configured

Field mapping belongs to an integration's data-intake commands. On the integration's page (see Integrations), open the Fetch Events or Fetch Incidents card to open the command. Its Settings sub-tab ends with the mapping buttons:

a Fetch Event command has EVENT FIELD MAPPING > Setup Event Field Mapping;
a Fetch Incident command has INCIDENT FIELD MAPPING > Setup Incident Field Mapping, and also EVENT FIELD MAPPING > Setup Event Field Mapping.

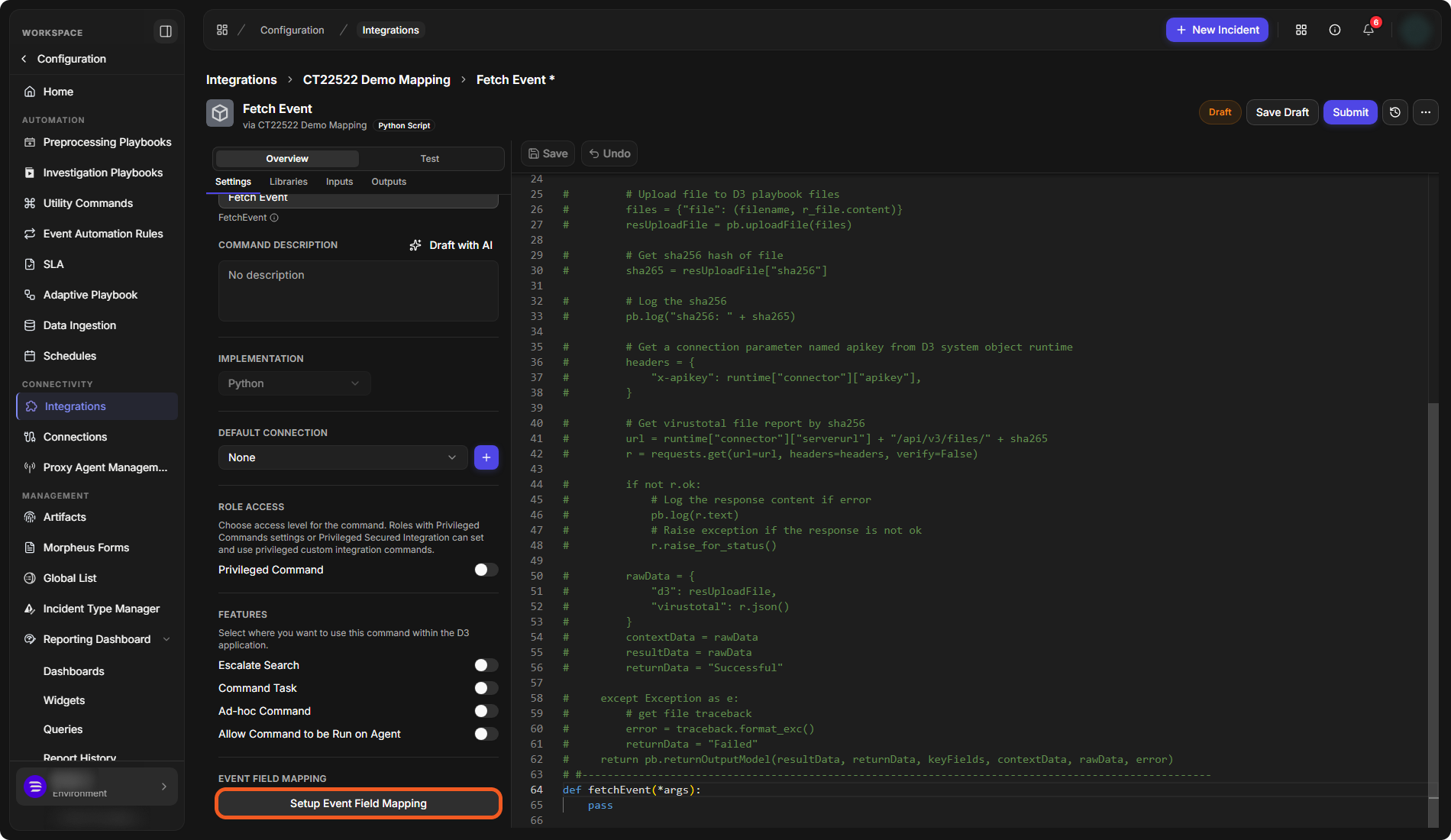

The mapping button on a Fetch Event command

Event Field Mapping

The Event Field Mapping window has:

Event Root Path: the JSON path, from the fetched data, of the events to map. It starts as $. Select Edit to change it.
Field Mapping Sets: the sets of mappings, starting with (Default Event Source), marked System. As the window says, you reorder the mapping sets to set their priority when multiple conditions are met.
The mappings of the selected set, each from Source fields from the integration to Destination fields in D3, with Show in Incident details.
Add Mapping, to add a mapping to the set.
Learn about D3 Field Mapping, a link to the documentation.

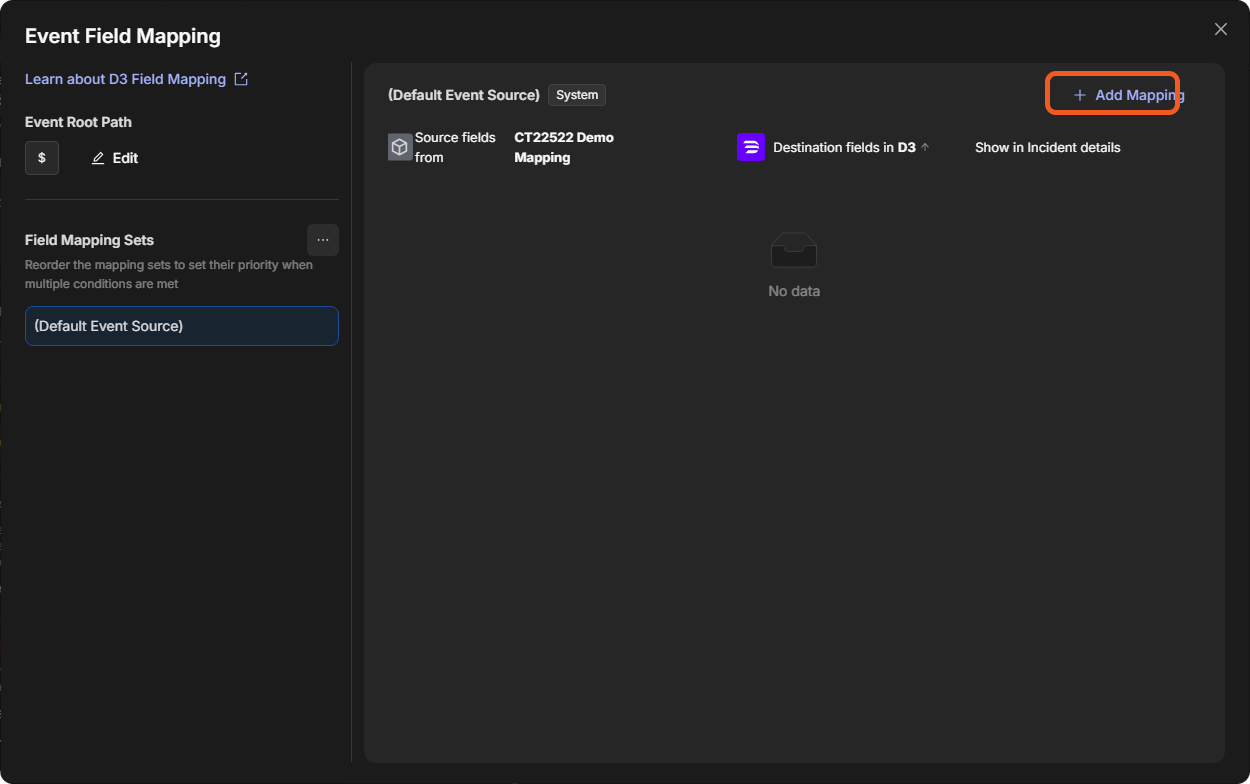

The Event Field Mapping window

Adding a Mapping

Select Add Mapping. The Add Mapping window asks for:

Source fields from the integration: Select a source field, with a source type selector in front of it.
Destination fields in D3: Select destination field opens the list of D3 fields (see below).
Refine mapped value with Regex.
Enable artifact extraction: "If enabled, the value mapped from this field will become artifacts through this integration".
Show in Incident Details.

Select Save to add the mapping, or Cancel.

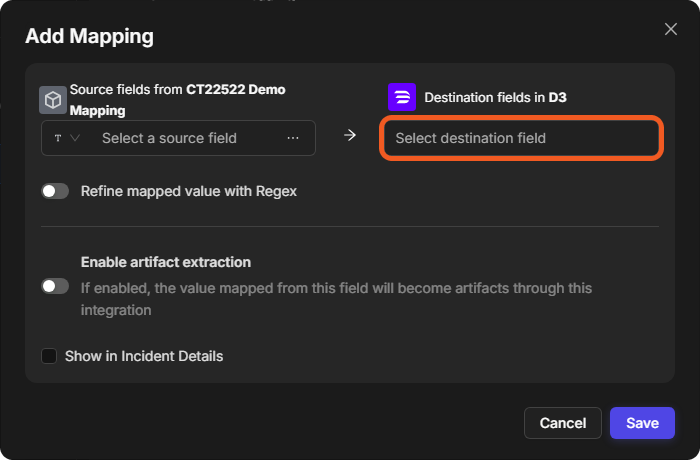

The Add Mapping window

Choosing a D3 Field

Select destination field opens Select a destination field from D3: a table of every D3 field with its Display Field Name and Internal Field Name. Search field name filters it, the pages and / page setting move through it, and Select picks a field.

The D3 field list

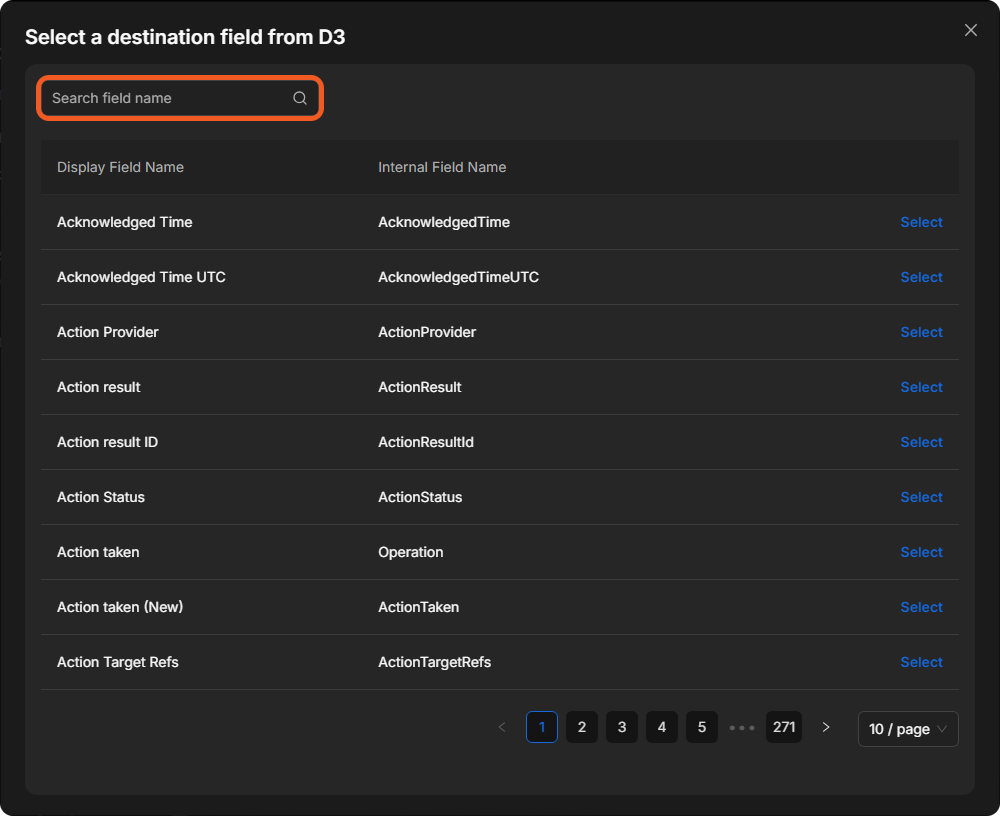

The Select a destination field from D3 window with Search field name, the Display Field Name and Internal Field Name columns, Select links and the page controls

Incident Field Mapping

The Incident Field Mapping window has:

Main JSON Path: the JSON path of the incidents in the fetched data, $ by default.
A site selector (Default Site) and a source selector (Default Incident Source), with Add Source to add an incident source.
System Fields: one row per incident field, with its Field Name, Source Field, Source Type and Regex. The list starts with Title, Description, Severity, Incident Type (required), Incident Creator, Incident Owner, Investigation Playbook, Due In Date, Origin ID, Unique Key, Tactics, Techniques and Assignment Group.

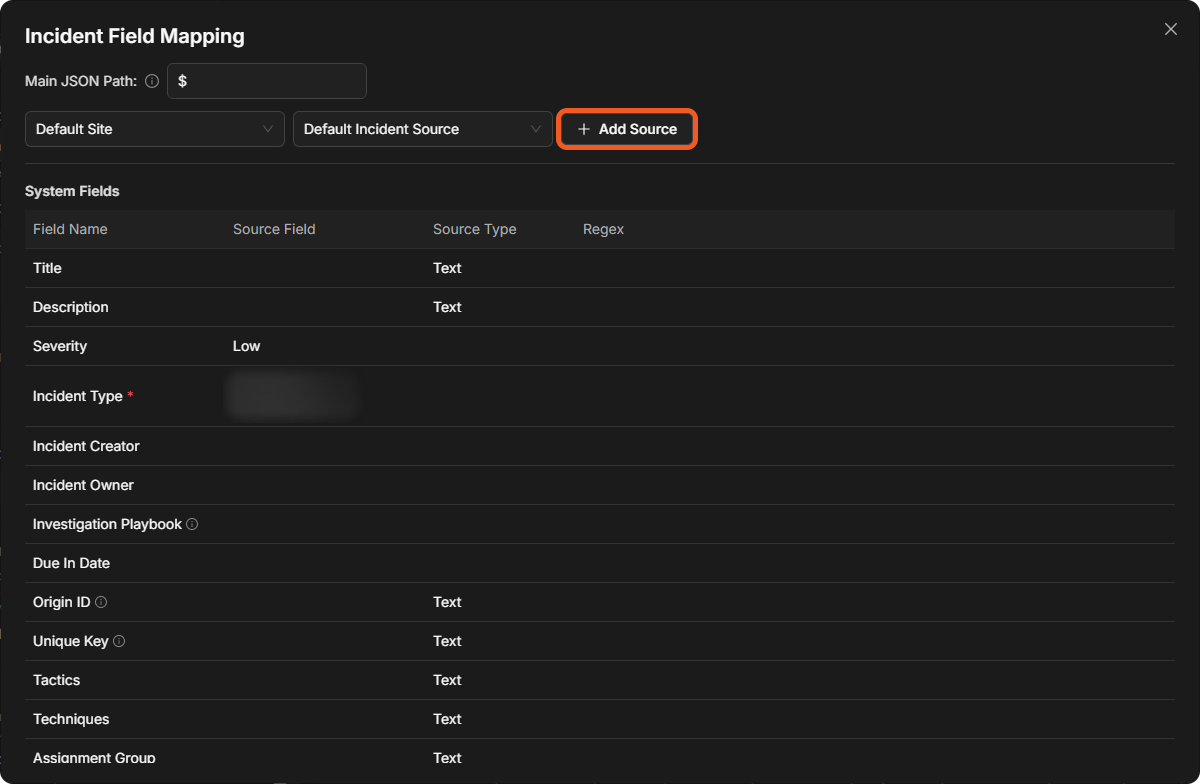

The Incident Field Mapping window

D3 Data Model Fields

The list below holds the built-in D3 fields of the 18.5 field reference that 18.6 still lists under Select a destination field from D3, with their 18.6 display names. The 18.6 list has about 2,700 fields in all; search it by name in the window above for the rest.

Display name	Internal name
Action result	ActionResult
Action result ID	ActionResultId
Action taken	Operation
Aggregated / Correlated Event count	EventCount
Alert Name	AlertName
Alert Raw Log	RawLog
Alert Timestamp	AlertTimestamp
Alert type	AlertType
Alert URI	AlertURI
App	App
Application layer protocol	ApplicationProtocol
bodyPreview	bodyPreview
Bytes Count	BytesCount
Bytes in	BytesIn
Bytes out	BytesOut
Call trace	CallTrace
CcRecipients	CcRecipients
CERT	VulnerabilityCert
Certificate expiry time	CertEndTimeLocal
Certificate hash	CertHash
Certificate is valid	CertIsValid
Certificate issuer common name	CertIssuerCommonName
Certificate issuer distinguished name	CertIssuer
Certificate issuer email address	CertIssuerEmail
Certificate issuer locality	CertIssuerLocality
Certificate issuer organization	CertIssuerOrganization
Certificate issuer's organizational unit	CertIssuerUnit
Certificate issuer's state (address)	CertIssuerState
Certificate issuer's street (address)	CertIssuerStreet
Certificate name	CertName
Certificate policies	CertPolicies
Certificate public key algorithm	CertPublicKeyAlgorithm
Certificate serial number	CertSerial
Certificate session ID	CertSessionId
Certificate signature algorithm	CertSignatureAlgorithm
Certificate signature engine	CertEngine
Certificate start time	CertStartTimeLocal
Certificate subject common name	CertSubjectCommonName
Certificate subject distinguished name	CertSubject
Certificate subject email address	CertSubjectEmail
Certificate subject locality	CertSubjectLocality
Certificate subject organization	CertSubjectOrganization
Certificate subject organizational unit	CertSubjectUnit
Certificate subject state (address)	CertSubjectState
Certificate subject street (address)	CertSubjectStreet
Certificate validity length (second)	CertValidityWindow
Certificate version	CertVersion
Certificate's public key	CertPublicKey
Change type	ChangeType
Configuration File Hash	ConfigurationFileHash
Configuration File Hash MD5	ConfigurationFileHashMD5
Configuration File Hash SHA1	ConfigurationFileHashSHA1
Configuration File Hash SHA256	ConfigurationFileHashSHA256
Configuration filename	Configuration
Content	Content
CVE	VulnerabilityCVE
CVSS	VulnerabilityCvss
Defanged URL	DefangedUrl
Delay (ms)	Delay
Description	LogDescription
Destination	Dest
Destination business unit	DestBunit
Destination category	DestCategory
Destination Device	DestinationDvcHostName
Destination Device IP address	DestinationDvcIPAddress
Destination FQDN	DestFQDN
Destination hostname	DestinationHostname
Destination interface	DestInterface
Destination IP address	DestinationIPAddress
Destination is IPv6 address	DestinationIsIpv6
Destination MAC	DestMac
Destination NT domain	DestNtDomain
Destination port	DestinationPort
Destination port name	DestinationPortName
Destination priority	DestPriority
Destination translated IP address	DestTranslatedIPAddress
Destination Translated Port	DestTranslatedPort
Destination zone	DestZone
Device	DvcHostName
Device business unit	DvcBunit
Device category	DvcCategory
Device DAT version	DvcDatVersion
Device detection method	DvcDetectionMethod
Device engine version	DvcEngineVersion
Device IP address	DvcIPAddress
Device MAC address	DvcMac
Device priority	DvcPriority
Device Product	DvcProduct
Device product name	DvcProductName
Device product version	DvcProductVersion
Device volume	Device
Device zone	DvcZone
DLP type	DlpType
DNS query name	DNSQueryName
DNS query results	DNSQueryResults
DNS query status	DNSQueryStatus
Document ID	DocumentId
Driver base address	DriverBaseAddr
Driver company	DriverCompany
Driver description	DriverDescription
Driver Hash	DriverHash
Driver Hash MD5	DriverHashMD5
Driver Hash SHA1	DriverHashSHA1
Driver Hash SHA256	DriverHashSHA256
Driver image path	DriverImagePath
Driver name	DriverName
Driver product	DriverProduct
Driver signature	DriverSignature
Driver signature is verified	DriverSignatureVerified
Driver version	DriverVersion
Duration	Duration
Email subject	Subject
End Time	EndTimeLocal
Event category	EventCategory
Event code	EventID
Event level	EventLevel
Event name	EventName
Event Type	EventType
Existence of driver signature	DriverSignatureExists
Existence of module signature	ModuleSignatureExists
Existence of process signature	ProcessSignatureExists
Existence of service signature	ServiceSignatureExists
Extra Data	ExtraData
File access control	FileAccessControl
File access time	FileAccessTimeLocal
File Content	FileContent
File create time	FileCreateTimeLocal
File Hash	FileHash
File Hash MD5	FileHashMD5
File Hash SHA1	FileHashSHA1
File Hash SHA256	FileHashSHA256
File modify time	FileModifyTimeLocal
Filename	Filename
Filepath	FilePath
Filesize	FileSize
Filter action	FilterAction
Filter score	FilterScore
Granted Access	GrantedAccess
Host FQDN	HostFQDN
Hostname	HostName
HTTP content type	HttpContentType
HTTP cookie	HttpCookie
HTTP method	HttpMethod
HTTP referrer	HttpReferrer
HTTP user agent	HttpUserAgent
HTTP user agent length	HttpUserAgentLength
IDS type	IdsType
Image module version	ModuleVersion
Inbound interface	InboundInterface
Initiated	Initiated
Initiating Command	Command
Instance ID	InstanceId
Instance Name	InstanceName
Internal message ID	InternalMessageId
Log username	LogUser
Logon GUID	LogonGuid
Logon ID	LogonId
Message	Message
Message body	Body
Message ID	MessageId
Message info	MessageInfo
Message size	MessageSize
MFA Used	MFAUsed
Module base address	ModuleBaseAddr
Module company	ModuleCompany
Module Description	ModuleDescription
Module Hash	ModuleHash
Module Hash MD5	ModuleHashMD5
Module Hash SHA1	ModuleHashSHA1
Module Hash SHA256	ModuleHashSHA256
Module image path	ModuleImagePath
Module name	ModuleName
Module product	ModuleProduct
Module signature	ModuleSignature
Module signature is verified	ModuleSignatureVerified
MSFT security advisory	VulnerabilityMSFT
MSKB	VulnerabilityMSKB
Network Lease duration (seconds)	LeaseDuration
Network Lease scope	LeaseScope
New registry path	NewRegistryPathName
New thread ID	NewThreadId
Number of retries	Retries
object	Object
object attributes	ObjectAttrs
object category	ObjectCategory
object ID	ObjectId
object path	ObjectPath
Operating system	Os
Original destination	OrigDest
Original event ID	EventRecordID
Original recipient	OrigRecipient
Original sender	OrigSender
Original source	OrigSrc
Outbound interface	OutboundInterface
Packet direction	Direction
Packets count	PacketsCount
Packets in	PacketsIn
Packets out	PacketsOut
Parent process commandline	ParentProcessCommandLine
Parent process GUID	ParentProcessGuid
Parent process ID	ParentProcessId
Parent process image path	ParentProcessFilePath
Parent process name	ParentProcessName
Pipe name	PipeName
Previous file create time	PreviousCreationTimeLocal
Process command line	ProcessCommandLine
Process company	ProcessFileCompany
Process current directory	ProcessCurrentDirectory
Process Description	ProcessDescription
Process file path	ProcessFilePath
Process file version	ProcessVersion
Process GUID	ProcessGuid
Process Hash	ProcessHash
Process Hash SHA256	ProcessHashSHA256
Process Hashes MD5	ProcessHashMD5
Process Hashes SHA1	ProcessHashSHA1
Process ID	ProcessId
Process integrity level	ProcessIntegrityLevel
Process Name	ProcessName
Process product	ProcessFileProduct
Process signature	ProcessSignature
Process signature is verified	ProcessSignatureVerified
Protocol info	ProtocolInfo
Raw event data	RawEvent
Receipt time	ReceiptTimeLocal
Recipient	Recipient
Recipient count	RecipientCount
Recipient status	RecipientStatus
Registry details	RegistryDetails
Registry hive	RegistryHive
Registry key name	RegistryKey
Registry path	RegistryPath
Registry value data	RegistryValueData
Registry value name	RegistryValueName
Registry value text	RegistryValueText
Registry value type	RegistryValueType
Response time	ResponseTime
Return address	ReturnAddr
Rule name	RuleName
Sender	Sender
Service company	ServiceFileCompany
Service description	ServiceFileDesc
Service Hash	ServiceHash
Service Hash MD5	ServiceHashMD5
Service Hash SHA1	ServiceHashSHA1
Service Hash SHA256	ServiceHashSHA256
Service ID	ServiceId
Service image path	ServiceFilePath
Service name	ServiceName
Service product	ServiceFileProduct
Service signature	ServiceSignature
Service signature is verified	ServiceSignatureVerified
Service start mode	ServiceStartMode
Service status	ServiceStatus
Service version	ServiceFileVersion
Session ID	TerminalSessionId
Session Name	SessionName
Severity	Severity
Severity numeric ID	SeverityId
Signature	Signature
Signature extra	SignatureExtra
Signature ID	SignatureID
Signature Type	SignatureType
Signature version	SignatureVersion
Source	Src
Source business unit	SrcBunit
Source category	SrcCategory
Source Device	SourceDvcHostName
Source Device IP address	SourceDvcIPAddress
Source host FQDN	SrcHostFQDN
Source hostname	SourceHostname
Source interface	SrcInterface
Source IP address	SourceIPAddress
Source is IPv6 address	SourceIsIpv6
Source MAC address	SrcMac
Source NT domain	SrcNtDomain
Source port	SourcePort
Source port name	SourcePortName
Source Priority	SrcPriority
Source Product	SourceProduct
Source product version	SourceVersion
Source thread ID	SourceThreadId
Source translated IP address	SrcTranslatedIPAddress
Source translated port	SrcTranslatedPort
Source type	SourceType
Source user business unit	SrcUserBunit
Source user category	SrcUserCategory
Source user priority	SrcUserPriority
Source username	SrcUserName
Source vendor name	Source
Source vendor product name	SourceVendorProduct
Source zone	SrcZone
SSID	Ssid
Start function	StartFunction
Start memory address	StartAddress
Start module	StartModule
Start Time	LocalTime
Status	Status
Sub Event	SubEvent
Sysmon config version	SchemaVersion
Sysmon service state	SysmonServiceState
Sysmon version	SysmonVersion
Tactics	Tactics
Tag	tag
Target image	TargetImage
Target process GUID	TargetProcessGuid
Target process ID	TargetProcessId
Target process name	TargetProcessName
TCP flags	Flags
Techniques	Techniques
Threat action taken	ThreatAction
Threat category	ThreatCategory
Threat event ID	ThreatEventId
Threat handled	ThreatHandled
Threat name	ThreatName
Threat severity	ThreatSeverity
Threat type	ThreatType
toRecipients	toRecipients
Tos (type of service)	Tos
Transport layer protocol	TransportProtocol
Ttl (time to live)	Ttl
Unique Event Key	EventKey
URL	Url
User business unit	UserBunit
User category	UserCategory
User Identify Invoked By	UserIdentifyInvokedBy
User priority	UserPriority
User security ID	UserSID
Username	UserName
VLAN	Vlan
Vulnerbility category	VulnerabilityCategory
Vulnerbility name	VulnerabilityName
Wifi standard	Wifi
WMI consumer commandline	WmiConsumerCommandLine
WMI consumer name	WMIConsumerName
WMI consumer path	WmiConsumerPath
WMI consumer type	WMIConsumerType
WMI Event namespace	EventNamespace
WMI filter	Filter
WMI filter name	FilterName
WMI filter query	Query
xdelay	Xdelay
Xref	Xref
