D3 Data Model and Normalization

Last Updated: Oct 5, 2024

Introduction

In today's rapidly evolving security landscape, efficiently managing and organizing alert data is crucial for effective incident response and threat management. D3 Security's data model provides a robust framework for normalizing and structuring external alert data, enhancing the adaptability and efficiency of your security operations.

Why Normalization?

Normalization ensures that your data structure is well-organized, eliminating redundancy and enabling more efficient data handling. In the context of D3's data model, normalization offers several key benefits:

Enhanced Playbook Adaptability: By organizing data consistently, playbooks become more flexible and can be applied across various scenarios, improving the effectiveness of automated response processes.
Effective Cross Security Stack Correlation: Normalized data structures simplify integration and analysis across different security tools, enabling more effective search and correlation within your security tool stack.
Streamlined Data Handling: Reducing redundancy in your data allows for faster processing and easier management, saving time and resources.

D3's 3-Tier Data Model

D3's data model is designed with a flexible three-tier structure:

Subevent
Event
Incident

This hierarchical model provides the flexibility to map external events or flows into D3 in various ways, depending on your desired structure and the importance of the events or flows. The three levels facilitate a systematic categorization of information at varying degrees of detail.

Mapping External Systems to D3

Example with QRadar Integration:

Option 1
- QRadar Offenses → D3 Events
- QRadar Events or Flows → D3 Subevents
This approach allows you to effectively leverage the D3 pipeline to filter out false positives and dismiss offenses as events. By maintaining a granular level of detail, you can identify and handle false positives before they escalate, ensuring that only significant threats are elevated in the incident response process.
Option 2
- QRadar Offenses → D3 Incidents
- QRadar Events or Flows → D3 Events
This approach is suitable when all offenses are confirmed as true positives and should be classified directly as incidents. By mapping offenses directly to incidents, you acknowledge their significance and proceed immediately with incident response workflows, omitting the subevent level for a streamlined process.

Benefits of the 3-Tier Model

The flexibility provided by D3's 3-tier model offers several advantages:

Adaptability to Various Systems: Easily accommodates different external alert structures and systems without sacrificing clarity or efficiency.
Scalable Data Organization: Supports both granular and high-level data structuring, allowing you to choose the level of detail that best suits your operational needs.
Improved Incident Response: Facilitates more effective incident tracking and management by providing a clear hierarchy of information.
Enhanced Playbook Effectiveness: The structured data model allows playbooks to be more adaptable, increasing their effectiveness across different scenarios.
Efficient Cross-Tool Integration: Normalization enables more effective search and correlation across your security tool stack, simplifying integration and analysis.

Field Mapping in D3 SOAR: Aligning with D3 Data Model and Normalization

Effective data ingestion and normalization are crucial for incident management and response in today's complex security environments. D3 Security's SOAR platform utilizes a flexible 3-tier data model—Subevent, Event, and Incident—to structure and process incoming data from various sources. Field mapping serves as a vital bridge between external data points and how they are represented within this model on the D3 SOAR investigation dashboard.

This document outlines how field mapping works in the context of the 3-tier data model and explains the inheritance of mappings between event sources and the main JSON field mapping.

The 3-Tier Data Model

1. Subevent

Definition: The most granular level, representing individual data points or raw alerts from integrated systems.
Source: Raw data from systems like SIEMs, EDRs, email protection tools, etc.
Purpose: Subevents are undetermined data points that haven't yet been assessed for potential security risks.

2. Event

Definition: A collection of subevents that are related or grouped together based on predefined criteria.
Source: Aggregated subevents that share common attributes or are correlated through rules.
Purpose: Events help in organizing and making sense of multiple subevents by grouping them logically.

3. Incident

Definition: A higher-level aggregation of events that require investigation and response.
Source: One or more events that are flagged as potentially malicious.
Purpose: Incidents are actionable items that the security team needs to address, often triggering playbooks and workflows.

Why Field Mapping?

Field mapping ensures that data from integrated sources is accurately represented within the D3 SOAR platform's 3-tier data model. It provides a standardized data format for consistency, facilitating data correlation, efficient automation, and streamlined incident handling.

How Field Mapping Works

Field mappings are configured for commands that retrieve data from external sources:

Fetch Event: Retrieves data and inputs them as events into D3 SOAR.
Fetch Incident: Retrieves data and inputs them as incidents into D3 SOAR.

READER NOTE

For Fetch Event commands, you need to configure Event Field Mapping, which also allows mapping subEvents.
For Fetch Incident commands, both Event and Incident Field Mappings need to be configured.

Field Mapping Configuration

Event Field Mapping

For built-in integrations, D3 provides a set of default event field mappings. However, D3 offers flexibility for you to modify and add mappings to suit your needs. Event field mapping can be configured by navigating to:

Configuration > Integrations > [Your Desired Integration] > Event Intake > Setup Event Field Mapping

Event Sources

Some third-party platforms, like SIEM or XDR, offer different types of retrievable data. Most built-in integrations come with a single default event source that covers most data ingestion needs, but there are exceptions. For example, Microsoft Sentinel SIEM provides various data types for ingestion, such as incidents, events, and alerts. Each of these requires a separate event source, and data schemas can differ significantly, like between network events and user events, even though they all come from Microsoft Sentinel.

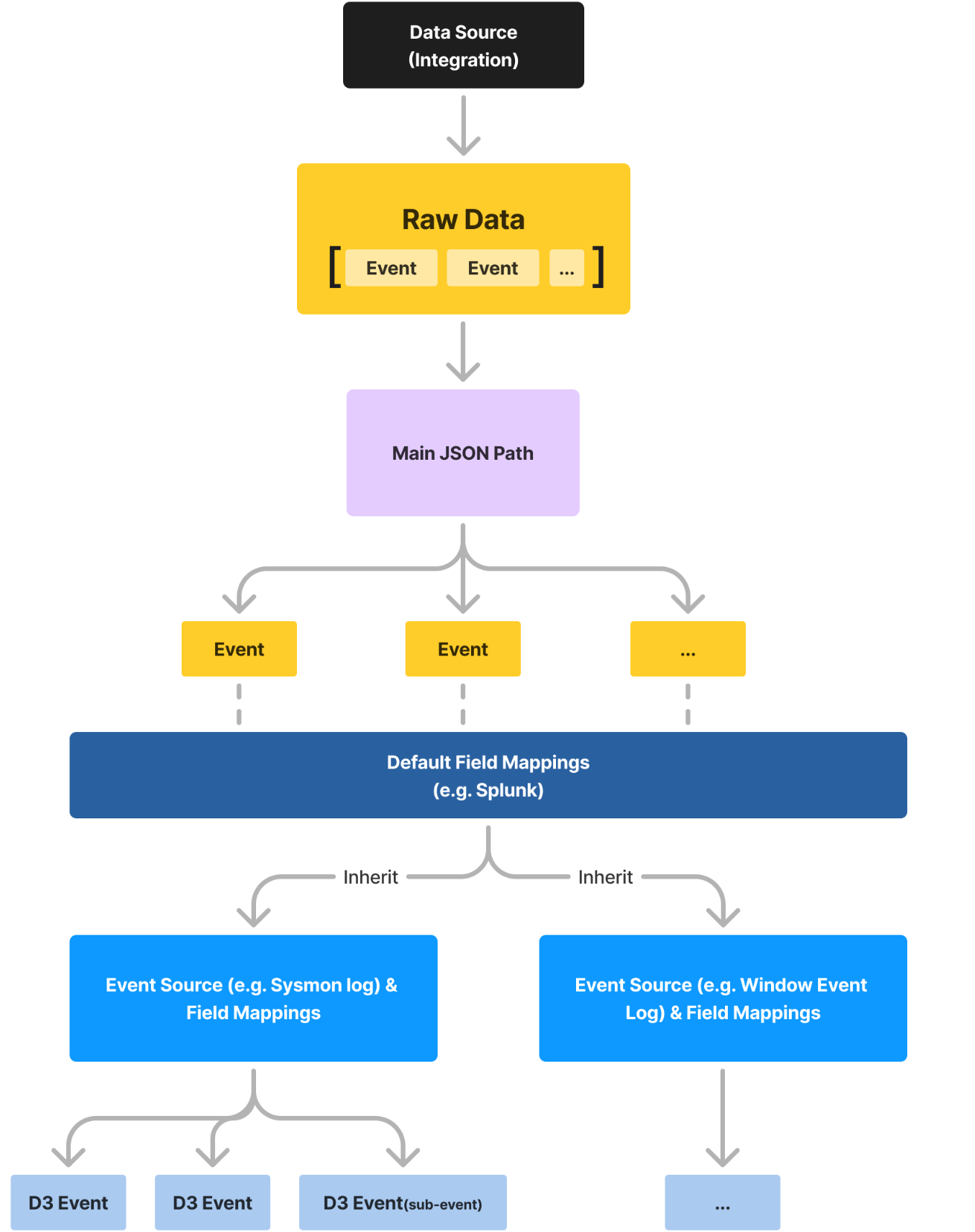

Inheritance of Mappings

Field mappings are inherited between default event source field mapping and the additional event sources mapping. When you define mappings at the default event source level, they are automatically applied to all events within that source unless overridden. This inheritance ensures consistency and simplifies the configuration process.

Main Event JSON Path

The Main Event JSON Path specifies the parent JSON array in the ingested data's structure for the event source. By configuring this path, the system knows where to look for the relevant data.

Example Consider the following condensed JSON structure representing event data:

JSON

{
    "@odata.context": "https://graph.microsoft.com/v1.0/$metadata#...",
    "value": [
        {
            "id": "AAMkAGI5ODVlN...",
            "createdDateTime": "2021-05-13T21:48:49Z",
            "subject": "Phishing1",
            // Additional fields...
        }
    ]
}

The most relevant event data resides under the key $.value. By setting the Main Event JSON Path to $.value, you can simplify field mappings by referencing fields directly (e.g., .id, .subject) without repeating the full JSON path.

Inheritance

The Main Event JSON Path is inherited by all event sources under the fetch command. This means that once set, it applies to all mappings within that event source.

Search String

The Search String feature enables an event source to be added by sifting through ingested data, focusing solely on specific values or based on regular expressions.

Format

Search strings can be specified using one of the following formats:

{jsonpath}=value
{jsonpath}={{regex}}
jsonpath=value

Example To capture only events from Office 365 with a "high" importance level found at the path $.value.importance, set the search string to $.value.importance=high.

Order Priority

When several event sources are set up for a fetch command, the system gives precedence to the event source with the lowest Order Priority number, especially in cases of overlapping field mappings.

Mapped Fields

Event sources have fields that map the relationship between ingested data and an event field in D3 SOAR.

Source Field: The JSONPath of the key to specify the desired field to map from the ingested JSON data. If a Main Event JSON Path is set, you can reference fields relative to this path.
Source Type: The data type of the mapped field, such as Text, Datetime, Regex, or Placeholder.

Source Types Explained

Text: Formatted as plain text.
Datetime: Formatted as a datetime field (default format: yyyy-MM-dd HH:mm:ss).
Regex: Applies a regular expression to filter the field value.
Placeholder: Concatenates values from multiple mapped fields into a single text field.

Unique Key Field Mapping

The Unique Key field mapping tells D3 SOAR how to distinguish each event or incident upon ingestion and prevent duplicates.

Behavior

If the Unique Key Field is Mapped:
- Only data with a unique key value is ingested.
- New data containing an existing unique key with different raw event data will not be ingested.
If the Unique Key Field is NOT Mapped:
- Only data containing unique raw data is ingested.
- Data with identical raw event data as any existing data in the system will not be ingested.

Incident Field Mapping

Incident field mapping is available for Fetch Incident commands. It allows you to map incident-specific fields from the ingested data to D3 SOAR incident fields.

Configuration

Incident field mapping can be configured by navigating to:

Configuration > Integrations > [Your Desired Integration] > Incident Intake > Setup Incident Field Mapping

Required Mappings

Both Event and Incident Field Mappings need to be configured for Fetch Incident commands.

Incident Fields

You can map the following incident-specific system fields:

Title
Description
Severity
Incident Type

Incident Creator
Incident Owner
Incident Playbook
Due Date

Unique Key
Tactics
Techniques

Main JSON Path for Incidents

Some systems offer incidents with embedded sub-events. The Main JSON Path specifies where the incident data starts in the JSON structure. If not specified, it defaults to the root path.

Inheritance

When you set a Main JSON Path for incidents, it is universally applied to all incident sources within the Fetch Incident command.

Site-Specific Mappings

Each site can have its own unique incident field mappings, allowing various sites to have distinct incident sources and associated mappings. By default, all sites utilize the "Default Site" mappings.

Customization Steps

Choose the desired site.
View or adjust its "Default Incident Source."
Modify mappings as needed.

Incident Sources

For each site, multiple incident sources can be configured. Unless you need a customized search string, adding a new incident source is optional.

Search String and Order Priority

Similar to event sources, incident sources can utilize Search Strings and Order Priority to filter and prioritize data ingestion.

Unique Key Field Mapping for Incidents

The Unique Key field mapping for incidents functions similarly to that for events.

Behavior

If the Unique Key Field is Mapped:
- Incidents with a unique key value are ingested.
- If an incoming incident shares the same unique key as an existing one but presents different data, the original incident is replaced with the updated data.
If the Unique Key Field is NOT Mapped:
- Only incidents containing unique raw data are ingested.
- Incidents with identical raw data to what's already in the system will be excluded.

D3 Data Model Fields

The D3 SOAR data model includes a comprehensive set of built-in fields designed to standardize and organize event and incident data within the platform.

Built-In fields

Show / Hide Built-In Fields

Display Name	Internal Name	Data Type	Description	Special behavior
Source vendor name	Source	Text	The name of the vendor providing the source.
Source type	SourceType	Text	The type of source from which the event originated.
Source vendor product name	SourceVendorProduct	Text	The product name from the vendor associated with the source.
Source product version	SourceVersion	Text	The version of the source product.
Operating system	Os	Text	The operating system on which the event occurred.
Original event ID	EventRecordID	Text	The unique identifier for the original event.
Event code	EventID	Text	The code that identifies the specific event.
Rule name	RuleName	Text	The name of the rule that triggered the event.
Severity	Severity	Text	The severity level assigned to the event.
Severity numeric ID	SeverityId	Text	The numeric identifier for the severity level.
Event name	EventName	Text	The name assigned to the event.
Event category	EventCategory	Text	The category that classifies the event.
Event Type	EventType	Text	The classification of the event type.
Action taken	Operation	Text	The action that was taken during the event.
Delay (ms)	Delay	Text	The delay in milliseconds for the event processing.
Action result	ActionResult	Text	The outcome of the action taken during the event.
Action result ID	ActionResultId	Text	The identifier for the action result.
Status	Status	Text	The current status of the event or process.
Description	LogDescription	Text	A descriptive text detailing the event.	Event Description
Application layer protocol	ApplicationProtocol	Text	The protocol used at the application layer for the event.
Transport layer protocol	TransportProtocol	Text	The protocol used at the transport layer.
Protocol info	ProtocolInfo	Text	Additional information about the protocol used.
Pipe name	PipeName	Text	The name of the communication pipe used in the event.
Tag	tag	Text	A label or tag associated with the event.
Start time (UTC)	UtcTime	DateTime	The original start time of the event in UTC.	The original UTC Start time of the event UtcTime populate 'Time of Occurrence (UTC)'
End time (UTC)	EndTimeUtc	DateTime	The original end time of the event in UTC.	The original UTC End time of the event
Receipt time	ReceiptTimeLocal	DateTime	The local time when the event was received.
Aggregated / Correlated Event count	EventCount	Text	The total number of events that were aggregated or correlated.
Event level	EventLevel	Text	The severity or level of the event.
Alert type	AlertType	Text	The type or category of alert generated by the event.
Change type	ChangeType	Text	The type of change that occurred during the event.
DLP type	DlpType	Text	The type of Data Loss Prevention (DLP) classification.
IDS type	IdsType	Text	The type of Intrusion Detection System (IDS) involved.
Raw event data	RawEvent	Text	The unprocessed raw data from the event.
Host FQDN	HostFQDN	Text	The fully qualified domain name of the host involved in the event.	SourceProcessGuid --> Internal Endpoints/External Endpoints
Hostname	HostName	Text	The name of the host associated with the event.	SourceProcessGuid --> Internal Endpoints/External Endpoints
Source	Src	Text	The source involved in the event.
Source host FQDN	SrcHostFQDN	Text	The fully qualified domain name of the source host.	SourceProcessGuid --> Internal Endpoints/External Endpoints
Source hostname	SourceHostname	Text	The hostname of the source entity.	create artifacts --> External Endpoint / Internal Endpoint External Endpoint Domain Name, IP
Source MAC address	SrcMac	Text	The MAC address of the source device.
Source IP address	SourceIPAddress	Text	The IP address of the source involved in the event.	create artifacts --> External IP/Internal IP/ External Endpoint / Internal Endpoint, IP
Source is IPv6 address	SourceIsIpv6	Text	Indicates whether the source IP address is IPv6.
Source port	SourcePort	Text	The port number used by the source.
Source port name	SourcePortName	Text	The name of the service associated with the source port.
Source business unit	SrcBunit	Text	The business unit associated with the source.
Source category	SrcCategory	Text	The category of the source involved in the event.
Source Priority	SrcPriority	Text	The priority level assigned to the source entity.
Source NT domain	SrcNtDomain	Text	The NT domain of the source entity.
Source zone	SrcZone	Text	The network zone associated with the source.
Source interface	SrcInterface	Text	The network interface used by the source.
Source translated IP address	SrcTranslatedIPAddress	Text	The translated IP address of the source (e.g., after NAT).
Source translated port	SrcTranslatedPort	Text	The translated port number of the source.
Original source	OrigSrc	Text	The original source before any translation occurred.
Destination	Dest	Text	The destination involved in the event.
Destination FQDN	DestFQDN	Text	The fully qualified domain name of the destination.	SourceProcessGuid --> Internal Endpoints/External Endpoints
Destination hostname	DestinationHostname	Text	The hostname of the destination entity.	Create artifacts --> External Endpoint / Internal Endpoint, External Endpoint Domain Name, IP
Destination MAC	DestMac	Text	The MAC address of the destination device.
Destination IP address	DestinationIPAddress	Text	The IP address of the destination.	Create artifacts --> External IP/Internal IP/ External Endpoint / Internal Endpoint, IP
Destination is IPv6 address	DestinationIsIpv6	Text	Indicates whether the destination IP address is IPv6.
Destination port	DestinationPort	Text	The port number used by the destination.
Destination port name	DestinationPortName	Text	The name of the service associated with the destination port.
Destination translated IP address	DestTranslatedIPAddress	Text	The translated IP address of the destination (e.g., after NAT).
Destination translated port	DestTranslatedPort	Text	The translated port number of the destination.
Destination interface	DestInterface	Text	The network interface used by the destination.
Destination business unit	DestBunit	Text	The business unit associated with the destination.
Destination category	DestCategory	Text	The category of the destination entity.
Destination priority	DestPriority	Text	The priority level assigned to the destination.
Destination NT domain	DestNtDomain	Text	The NT domain of the destination entity.
Destination zone	DestZone	Text	The network zone associated with the destination.
Original destination	OrigDest	Text	The original destination before any translation occurred.
Device	DvcHostName	Text	The device involved in the event.	create artifacts --> External Endpoint / Internal Endpoint, External Endpoint Domain Name, IP
Device business unit	DvcBunit	Text	The business unit associated with the device.
Device category	DvcCategory	Text	The category of the device involved in the event.
Device priority	DvcPriority	Text	The priority level assigned to the device.
Device zone	DvcZone	Text	The network zone associated with the device.
Device IP address	DvcIPAddress	Text	The IP address of the device involved in the event.	create artifacts --> External IP/Internal IP/ External Endpoint / Internal Endpoint, IP
Device MAC address	DvcMac	Text	The MAC address of the device involved in the event.
Source username	SrcUserName	Text	The username associated with the source.
Source user business unit	SrcUserBunit	Text	The business unit of the source user.
Source user category	SrcUserCategory	Text	The category of the source user.
Source user priority	SrcUserPriority	Text	The priority level assigned to the source user.
Original recipient	OrigRecipient	Text	The original recipient of the message.
Recipient	Recipient	Text	The recipient of the message.	create artifacts --> Email Address
Recipient count	RecipientCount	Text	The total number of recipients.
Recipient status	RecipientStatus	Text	The current status of the recipient.
Original sender	OrigSender	Text	The original sender of the message.
Sender	Sender	Text	The sender of the message or email.	create artifacts --> Email Address
Log username	LogUser	Text	The username associated with the log entry.
Username	UserName	Text	The username associated with the event.	create artifacts --> User/Username
User business unit	UserBunit	Text	The business unit of the user involved in the event.
User category	UserCategory	Text	The category or role of the user.
User priority	UserPriority	Text	The priority level assigned to the user.
Logon ID	LogonId	Text	The identifier for the logon session.
Logon GUID	LogonGuid	Text	The GUID associated with the logon session.
User security ID	UserSID	Text	The security identifier (SID) of the user.	create artifacts --> User/Username
Content	Content	Text	The content associated with the event.
Duration	Duration	Text	The duration of the event or process.
TCP flags	Flags	Text	The TCP flags set on the packet.
Packets count	PacketsCount	Text	The total number of packets transferred.
Packets in	PacketsIn	Text	The number of incoming packets.
Packets out	PacketsOut	Text	The number of outgoing packets.
Bytes Count	BytesCount	Text	The total number of bytes transferred.
Bytes in	BytesIn	Text	The number of incoming bytes.
Bytes out	BytesOut	Text	The number of outgoing bytes.
Response time	ResponseTime	Number	The time taken to receive a response.
Initiated	Initiated	Text	Indicates if the action was initiated.
Packet direction	Direction	Text	The direction of the network packet (inbound or outbound).
Inbound interface	InboundInterface	Text	The interface used for incoming traffic.
Outbound interface	OutboundInterface	Text	The interface used for outgoing traffic.
TTL (time to live)	Ttl	Text	The time-to-live value for a network packet.
Type of service	Tos	Text	The type of service field from the IP header.
VLAN	Vlan	Text	The Virtual LAN associated with the event.
Wifi standard	Wifi	Text	The Wi-Fi standard used (e.g., 802.11ac).
SSID	Ssid	Text	The SSID of the wireless network.
Process Name	ProcessName	Text	The name of the process involved in the event.	create artifacts --> Process
Process file path	ProcessFilePath	Text	The file path of the process executable.	create artifacts --> File/Process (if processpath is empty)
Process file version	ProcessVersion	Text	The version of the process executable.
Process Description	ProcessDescription	Text	A description of the process.
Process product	ProcessFileProduct	Text	The product name associated with the process.
Process company	ProcessFileCompany	Text	The company that produced the process executable.
Process Hash	ProcessHash	Text	The hash of the process executable.	create artifacts --> Process
Process Hash SHA256	ProcessHashSHA256	Text	The SHA256 hash of the process executable.	create artifacts --> File Hash SHA256
Process Hash SHA1	ProcessHashSHA1	Text	The SHA1 hash of the process executable.	create artifacts --> File Hash SHA1
Process Hash MD5	ProcessHashMD5	Text	The MD5 hash of the process executable.	create artifacts --> File Hash MD5
Process GUID	ProcessGuid	Text	The GUID of the process.	create artifacts --> Process
Process ID	ProcessId	Number	The identifier of the process.
Process command line	ProcessCommandLine	Text	The command line used to start the process.	create artifacts Extract the url, file hash sha256, file hash sha1, file hash md5, file path, email, ip, Domain, CVE vulnerability from the body by regular expression and create the corresponding type of Artifact Extract Artifact by matching the exact Cmd
Process current directory	ProcessCurrentDirectory	Text	The current working directory of the process.
Process integrity level	ProcessIntegrityLevel	Text	The integrity level of the process.
Process signature	ProcessSignature	Text	The digital signature of the process executable.
Existence of process signature	ProcessSignatureExists	Text	Indicates whether a process signature exists.
Process signature is verified	ProcessSignatureVerified	Text	Indicates whether the process signature is verified.
Driver name	DriverName	Text	The name of the driver associated with the event.
Driver image path	DriverImagePath	Text	The file path of the driver executable.
Driver version	DriverVersion	Text	The version of the driver executable.
Driver description	DriverDescription	Text	A description of the driver.
Driver product	DriverProduct	Text	The product name associated with the driver.
Driver company	DriverCompany	Text	The company that produced the driver.
Driver Hash	DriverHash	Text	The hash of the driver executable.
Driver Hash SHA256	DriverHashSHA256	Text	The SHA256 hash of the driver executable.
Driver Hash SHA1	DriverHashSHA1	Text	The SHA1 hash of the driver executable.
Driver Hash MD5	DriverHashMD5	Text	The MD5 hash of the driver executable.
Driver base address	DriverBaseAddr	Text	The base memory address of the driver.	create artifacts --> Driver
Driver signature	DriverSignature	Text	The digital signature of the driver executable.
Existence of driver signature	DriverSignatureExists	Text	Indicates whether a driver signature exists.
Driver signature is verified	DriverSignatureVerified	Text	Indicates whether the driver signature is verified.
Source thread ID	SourceThreadId	Text	The identifier for the source thread.
Target process GUID	TargetProcessGuid	Text	The GUID of the target process.	create artifacts --> Process
Target process ID	TargetProcessId	Number	The identifier for the target process.
Target image	TargetImage	Text	The image or executable targeted by the event.	create artifacts --> Process
Service name	ServiceName	Text	The name of the service involved in the event.
Service image path	ServiceFilePath	Text	The file path of the service executable.
Service version	ServiceFileVersion	Text	The version of the service executable.
Service description	ServiceFileDesc	Text	A description of the service file.
Service product	ServiceFileProduct	Text	The product name associated with the service.
Service company	ServiceFileCompany	Text	The company that produced the service executable.
Service Hash	ServiceHash	Text	The hash of the service executable.
Service Hash SHA256	ServiceHashSHA256	Text	The SHA256 hash of the service executable.
Service Hash SHA1	ServiceHashSHA1	Text	The SHA1 hash of the service executable.
Service Hash MD5	ServiceHashMD5	Text	The MD5 hash of the service executable.
Service signature	ServiceSignature	Text	The digital signature of the service executable.
Existence of service signature	ServiceSignatureExists	Text	Indicates whether a service signature exists.
Service signature is verified	ServiceSignatureVerified	Text	Indicates whether the service signature is verified.
Service start mode	ServiceStartMode	Text	The startup mode of the service (e.g., automatic, manual).
Service status	ServiceStatus	Text	The current status of the service (e.g., running, stopped).
Service ID	ServiceId	Text	The identifier of the service.
Parent process name	ParentProcessName	Text	The name of the parent process.	create artifacts --> Process
Parent process ID	ParentProcessId	Number	The identifier for the parent process.
Parent process GUID	ParentProcessGuid	Text	The GUID of the parent process.	create artifacts --> Process
Parent process image path	ParentProcessFilePath	Text	The file path of the parent process.	create artifacts --> Process
Parent process commandline	ParentProcessCommandLine	Text	The command line used to start the parent process.	Create artifacts Extract the url, file hash sha256, file hash sha1, file hash md5, file path, email, ip, Domain, CVE vulnerability from the body by regular expression and create the corresponding type of Artifact Extract Artifact by matching the exact Cmd
Module name	ModuleName	Text	The name of the module involved in the event.
Module image path	ModuleImagePath	Text	The file path of the module.
Image module version	ModuleVersion	Text	The version of the module involved in the event.
Module Description	ModuleDescription	Text	A description of the module.
Module product	ModuleProduct	Text	The product name associated with the module.
Module company	ModuleCompany	Text	The company that produced the module.
Module Hash	ModuleHash	Text	The hash of the module executable.
Module Hash SHA256	ModuleHashSHA256	Text	The SHA256 hash of the module executable.
Module Hash SHA1	ModuleHashSHA1	Text	The SHA1 hash of the module executable.
Module Hash MD5	ModuleHashMD5	Text	The MD5 hash of the module executable.
Module base address	ModuleBaseAddr	Text	The base memory address of the module.	Create artifacts --> Module
Module signature	ModuleSignature	Text	The digital signature of the module executable.
Existence of module signature	ModuleSignatureExists	Text	Indicates whether a module signature exists.
Module signature is verified	ModuleSignatureVerified	Text	Indicates whether the module signature is verified.
App	App	Text	The application associated with the event.
Message body	Body	Text	The body content of the message.	create artifacts Extract the url, file hash sha256, file hash sha1, file hash md5, file path, email, ip, Domain, CVE vulnerability from the body by regular expression and create the corresponding type of Artifact
Email subject	Subject	Text	The subject line of the email.
Signature	Signature	Text	The signature associated with the event.	create artifacts --> SignatureIdentity
Signature Type	SignatureType	Text	The type of the signature used.
Signature ID	SignatureID	Text	The unique identifier for the signature.
Signature version	SignatureVersion	Text	The version of the signature used.
Signature extra	SignatureExtra	Text	Additional information related to the signature.
Certificate expiry time (UTC)	CertEndTime	DateTime	The expiry time of the certificate in UTC.
Certificate signature engine	CertEngine	Text	The engine used for signing the certificate.
Certificate hash	CertHash	Text	The hash value of the certificate.
Certificate is valid	CertIsValid	Text	Indicates whether the certificate is valid.
Certificate issuer distinguished name	CertIssuer	Text	The distinguished name of the certificate issuer.
Certificate issuer common name	CertIssuerCommonName	Text	The common name of the certificate issuer.
Certificate issuer email address	CertIssuerEmail	Text	The email address of the certificate issuer.
Certificate issuer locality	CertIssuerLocality	Text	The locality of the certificate issuer.
Certificate issuer organization	CertIssuerOrganization	Text	The organization name of the certificate issuer.
Certificate issuer's state (address)	CertIssuerState	Text	The state or province of the certificate issuer.
Certificate issuer's street (address)	CertIssuerStreet	Text	The street address of the certificate issuer.
Certificate issuer's organizational unit	CertIssuerUnit	Text	The organizational unit of the certificate issuer.
Certificate name	CertName	Text	The name of the certificate.
Certificate policies	CertPolicies	Text	The policies associated with the certificate.
Certificate's public key	CertPublicKey	Text	The public key contained in the certificate.
Certificate public key algorithm	CertPublicKeyAlgorithm	Text	The algorithm used for the certificate's public key.
Certificate serial number	CertSerial	Text	The serial number assigned to the certificate.
Certificate session ID	CertSessionId	Text	The session ID associated with the certificate.
Certificate signature algorithm	CertSignatureAlgorithm	Text	The algorithm used for the certificate's signature.
Certificate start time (UTC)	CertStartTime	DateTime	The start time of the certificate's validity in UTC.
Certificate subject distinguished name	CertSubject	Text	The distinguished name of the certificate subject.
Certificate subject common name	CertSubjectCommonName	Text	The common name of the certificate subject.
Certificate subject email address	CertSubjectEmail	Text	The email address of the certificate subject.
Certificate subject locality	CertSubjectLocality	Text	The locality of the certificate subject.
Certificate subject organization	CertSubjectOrganization	Text	The organization name of the certificate subject.
Certificate subject state (address)	CertSubjectState	Text	The state or province of the certificate subject.
Certificate subject street (address)	CertSubjectStreet	Text	The street address of the certificate subject.
Certificate subject organizational unit	CertSubjectUnit	Text	The organizational unit of the certificate subject.
Certificate validity length (seconds)	CertValidityWindow	Text	The duration of the certificate's validity in seconds.
Certificate version	CertVersion	Text	The version of the certificate.
Object	Object	Text	The object involved in the event.
Object attributes	ObjectAttrs	Text	The attributes of the object involved in the event.
Object category	ObjectCategory	Text	The category of the object involved in the event.
Object ID	ObjectId	Text	The unique identifier of the object involved in the event.
Object path	ObjectPath	Text	The path to the object involved in the event.
Initiating Command	Command	Text	The command that initiated the event.
Device volume	Device	Text	The device volume involved in the event.
Filename	Filename	Text	The name of the file involved in the event.	create artifacts --> Filename, File
Filepath	FilePath	Text	The path to the file involved in the event.	create artifacts --> File
File Hash	FileHash	Text	The hash value of the file involved in the event.
File Hash SHA256	FileHashSHA256	Text	The SHA256 hash of the file involved in the event.	create artifacts --> File / File Hash SHA256
File Hash SHA1	FileHashSHA1	Text	The SHA1 hash of the file involved in the event.	create artifacts --> File / File Hash SHA1
File Hash MD5	FileHashMD5	Text	The MD5 hash of the file involved in the event.	create artifacts --> File / File Hash MD5
File size	FileSize	Number	The size of the file in bytes.	create artifacts --> File
File access time (UTC)	FileAccessTimeUtc	DateTime	The time when the file was last accessed in UTC.
File create time (UTC)	CreationUtcTime	DateTime	The creation time of the file in UTC.
Previous file create time (UTC)	PreviousCreationUtcTime	DateTime	The previous creation time of the file in UTC.
File modify time (UTC)	FileModifyTimeUtc	DateTime	The time when the file was last modified in UTC.
File access control	FileAccessControl	Text	The access control settings of the file.
Registry hive	RegistryHive	Text	The root key in the registry (e.g., HKEY_LOCAL_MACHINE).
Registry path	RegistryPath	Text	The full path to the registry key.	create artifacts --> Registry / Registry Key
New registry path	NewRegistryPathName	Text	The new path of the registry key.
Registry key name	RegistryKey	Text	The name of the registry key.	create artifacts --> Registry / Registry Key
Registry value name	RegistryValueName	Text	The name of the registry value.
Registry details	RegistryDetails	Text	Additional details about the registry operation.
Registry value type	RegistryValueType	Text	The data type of the registry value.
Registry value data	RegistryValueData	Text	The data stored in the registry value.
Registry value text	RegistryValueText	Text	The text representation of the registry value.
Internal message ID	InternalMessageId	Text	An internal identifier for the message.
Message ID	MessageId	Text	The identifier for the message.
Message info	MessageInfo	Text	Information related to the message.
Number of retries	Retries	Number	The number of times an action or message was retried.
Return address	ReturnAddr	Text	The return address associated with an email or message.
Message size	MessageSize	Number	The size of the message.
URL	Url	Text	The URL involved in the event.	create artifacts --> Url if url contains IP, the External IP/Internal IP artifacts be created
Defanged URL	DefangedUrl	Text	The sanitized version of the URL to prevent exploitation.
xdelay	Xdelay	Text	The delay experienced, often in email delivery.
Xref	Xref	Text	Cross-reference information related to the event.
Filter action	FilterAction	Text	The action taken by the filter during the event processing.
Filter score	FilterScore	Number	The score assigned by the filter based on its evaluation.
Network Lease duration (seconds)	LeaseDuration	Number	The duration of the network lease in seconds.
Network Lease scope	LeaseScope	Text	The scope of the network lease.
Session ID	TerminalSessionId	Text	The identifier for the terminal session.
Vulnerability name	VulnerabilityName	Text	The name of the vulnerability identified.
Vulnerability category	VulnerabilityCategory	Text	The category to which the vulnerability belongs.
CVE	VulnerabilityCVE	Text	The Common Vulnerabilities and Exposures (CVE) identifier.
CERT	VulnerabilityCert	Text	The CERT advisory associated with the vulnerability.
CVSS	VulnerabilityCvss	Text	The Common Vulnerability Scoring System (CVSS) score.
MSFT security advisory	VulnerabilityMSFT	Text	The Microsoft security advisory related to the vulnerability.
MSKB	VulnerabilityMSKB	Text	The Microsoft Knowledge Base article number.
HTTP cookie	HttpCookie	Text	The HTTP cookie data associated with the event.
HTTP content type	HttpContentType	Text	The content type of the HTTP response.
HTTP method	HttpMethod	Text	The HTTP method used (e.g., GET, POST).
HTTP referrer	HttpReferrer	Text	The referrer URL from the HTTP request.
HTTP user agent	HttpUserAgent	Text	The user agent string from the HTTP request.
HTTP user agent length	HttpUserAgentLength	Number	The length of the user agent string.
Sysmon service state	SysmonServiceState	Text	The state of the Sysmon service at the time of the event.
Sysmon version	SysmonVersion	Text	The version of Sysmon running on the device.
Sysmon config version	SchemaVersion	Text	The version of the Sysmon configuration schema.
Configuration filename	Configuration	Text	The filename of the configuration used.
Configuration File Hash	ConfigurationFileHash	Text	The hash of the configuration file.
Configuration File Hash SHA256	ConfigurationFileHashSHA256	Text	The SHA256 hash of the configuration file.
Configuration File Hash SHA1	ConfigurationFileHashSHA1	Text	The SHA1 hash of the configuration file.
Configuration File Hash MD5	ConfigurationFileHashMD5	Text	The MD5 hash of the configuration file.
New thread ID	NewThreadId	Text	The identifier for the new thread created.
Start memory address	StartAddress	Text	The starting memory address of the process or module.
Start module	StartModule	Text	The module that initiated the start of the event.
Start function	StartFunction	Text	The function that initiated the event.
Granted Access	GrantedAccess	Text	The access rights granted to the process.
Call trace	CallTrace	Text	The sequence of function calls leading to the event.
WMI Event namespace	EventNamespace	Text	The namespace in which the WMI event occurred.
WMI filter name	FilterName	Text	The name of the WMI filter applied during the event.
WMI filter query	Query	Text	The query associated with the WMI filter.
WMI consumer name	WMIConsumerName	Text	The name of the WMI consumer.
WMI consumer type	WMIConsumerType	Text	The type of WMI consumer.
WMI consumer commandline	WmiConsumerCommandLine	Text	The command line of the WMI consumer.
WMI consumer path	WmiConsumerPath	Text	The file path of the WMI consumer.
WMI filter	Filter	Text	The WMI filter applied during the event processing.
DNS query name	DNSQueryName	Text	The name queried in the DNS request.
DNS query status	DNSQueryStatus	Text	The status of the DNS query result.
DNS query results	DNSQueryResults	Text	The results obtained from the DNS query.
Device Product	DvcProduct	Text	The product associated with the device involved in the event.
Device DAT version	DvcDatVersion	Text	The DAT version of the device.
Device detection method	DvcDetectionMethod	Text	The method used for detecting the device.
Device engine version	DvcEngineVersion	Text	The version of the engine used by the device.
Device product name	DvcProductName	Text	The name of the device product.
Device product version	DvcProductVersion	Text	The version of the device product.
Target process name	TargetProcessName	Text	The name of the target process involved in the event.	create artifacts --> Process
Threat action taken	ThreatAction	Text	The action taken in response to a detected threat.
Threat category	ThreatCategory	Text	The category of the detected threat.
Threat event ID	ThreatEventId	Text	The event ID associated with the detected threat.
Threat handled	ThreatHandled	Text	Indicates whether the detected threat was handled.
Threat name	ThreatName	Text	The name of the detected threat.
Threat severity	ThreatSeverity	Text	The severity level assigned to the detected threat.
Threat type	ThreatType	Text	The type of threat detected.
Unique Event Key	EventKey	Text	The unique key that identifies the event.	If the EventKey is mapped, the system treats any matching value as the same event and won't create duplicates. If it's not mapped, the data be hashed to check if it's a duplicate event.
toRecipients	toRecipients	Text	The list of recipients for the message.	create artifacts --> Email Address
CcRecipients	CcRecipients	Text	The list of carbon copy recipients for the message.	create artifacts --> Email Address
bodyPreview	bodyPreview	Text	A preview of the body content of the message.
Tactics	Tactics	Text	The tactics involved in the event.	Map to Dashboard Tactics & Techniques
Techniques	Techniques	Text	The techniques used in the event.	Map to Dashboard Tactics & Techniques
Alert Raw Log	RawLog	Text	The raw log data associated with the alert.
Alert Timestamp	AlertTimestamp	Text	The timestamp for when the alert was generated.
Source Product	SourceProduct	Text	The product name associated with the source.
Alert Name	AlertName	Text	The name of the alert generated.
Alert URI	AlertURI	Text	The URI associated with the alert.
File Content	FileContent	Text	The content of the file involved in the event.	create artifacts --> File
MFA Used	MFAUsed	Boolean	Indicates whether Multi-Factor Authentication was used.
User Identify Invoked By	UserIdentifyInvokedBy	Text	The user identity that invoked the action.
Session Name	SessionName	Text	The name of the session involved in the event.
Source Device	SourceDvcHostName	Text	The hostname of the source device.	create artifacts --> External Endpoint / Internal Endpoint, IP
Source Device IP address	SourceDvcIPAddress	Text	The IP address of the source device.	create artifacts --> External IP/Internal IP/ External Endpoint / Internal Endpoint, IP
Destination Device	DestinationDvcHostName	Text	The hostname of the destination device.	create artifacts --> External Endpoint / Internal Endpoint, IP
Destination Device IP address	DestinationDvcIPAddress	Text	The IP address of the destination device.
Message	Message	Text	The message content associated with the event.
Start Time	LocalTime	DateTime	The local start time of the event.
Start time time zone	LocalTimeTimezone	Text	The timezone for the start time of the event.	The original Start Time Timezone of Event Start time time zone map to Dashboard Column 'Start Time Time Zone'
End Time	EndTimeLocal	DateTime	The local end time of the event.	The original End time of the event
End time time zone	EndTimeLocalTimezone	Text	The timezone for the end time of the event.	The Original End Time Timezone of Event
Receipt time (UTC)	ReceiptTimeUtc	DateTime	The receipt time of the event in UTC.
Receipt time time zone	ReceiptTimeLocalTimezone	Text	The timezone for the receipt time of the event.
Certificate start time	CertStartTimeLocal	DateTime	The local start time of the certificate.
Certificate start time time zone	CertStartTimeLocalTimezone	Text	The timezone for the certificate start time.
Certificate expiry time	CertEndTimeLocal	DateTime	The local expiry time of the certificate.
Certificate expiry time time zone	CertEndTimeLocalTimezone	Text	The timezone for the certificate expiry time.
File access time	FileAccessTimeLocal	DateTime	The local access time of the file.
File access time time zone	FileAccessTimeLocalTimezone	Text	The timezone for the file access time.
File create time	FileCreateTimeLocal	DateTime	The local creation time of the file.
File create time time zone	FileCreateTimeLocalTimezone	Text	The timezone for the file creation time.
Previous file create time	PreviousCreationTimeLocal	DateTime	The local previous creation time of the file.
Previous file create time time zone	PreviousCreationTimeLocalTimezone	Text	The timezone for the previous file creation time.
File modify time	FileModifyTimeLocal	DateTime	The local modification time of the file.
File modify time time zone	FileModifyTimeLocalTimezone	Text	The timezone for the file modification time.
Sub Event	SubEvent	Text	Additional details or sub-events related to the main event.	Event SubEvent
Extra Data	ExtraData	Text	Additional data associated with the event.
Document ID	DocumentId	Text	The unique identifier for the document.
Instance ID	InstanceId	Text	The unique identifier for the instance.
Instance Name	InstanceName	Text	The name of the instance.
