Overview

IBM QRadar is a security information and event management (SIEM) product. It collects log data from an enterprise, its network devices, host assets and operating systems, applications, vulnerabilities, and user activities and behaviors, and provides intelligent insights to respond to the incidents

D3 SOAR is providing REST operations to function with IBM QRadar.

IBM QRadar is available for use in:

D3 SOAR	V14.5.109.0+
Category	SIEM
Deployment Options	Option I, Option III

Connection

To connect IBM QRadar from D3 SOAR, please follow this part to collect the required information below:

Parameter	Description	Example
Server URL	The URL of the Qradar server to establish a connection.	https://*...*
Token	The token to authenticate the API connection.	e87c831d-**-415e-**-2f7eb188f162
API Version	The API version to use for the connection.	9.0

Permission Requirement

A connector with an admin role and an admin security profile is required for all commands in this integration. As IBM QRadar requires both user role and security profile configure when creating users. The command permissions are inherited from the user account’s settings. Users need to configure their user profile from the IBM QRadar console for each command in this integration.

READER NOTE

IBM QRadar’s default user roles (sorted from the most permissions to the least) are as follows:

Admin
All
WinCollect
Disabled

IBM QRadar’s default security profile as follows:

Admin: includes access to all networks, log sources, and domains.

Before you add user accounts, you must select user roles and security profiles to meet the specific access requirements of your users. Only use default Admin for user roles, and default admin for Security Profiles can work for all D3 commands. For additional information about user roles and security profiles, please refer to User Roles and Security profiles.

Configuring IBM QRadar to Work with D3 SOAR

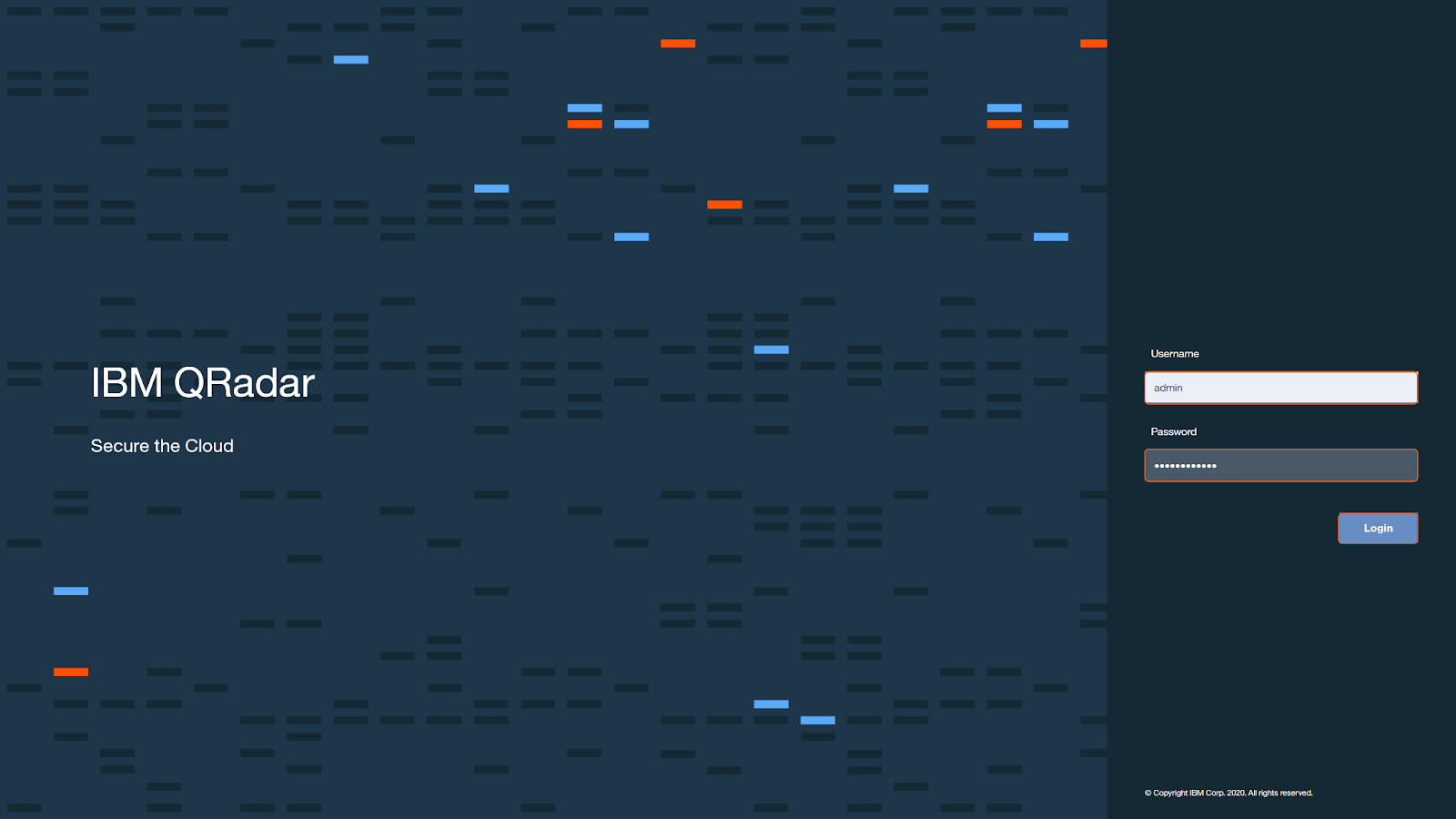

Log in to your IBM QRadar environment with your account credentials.

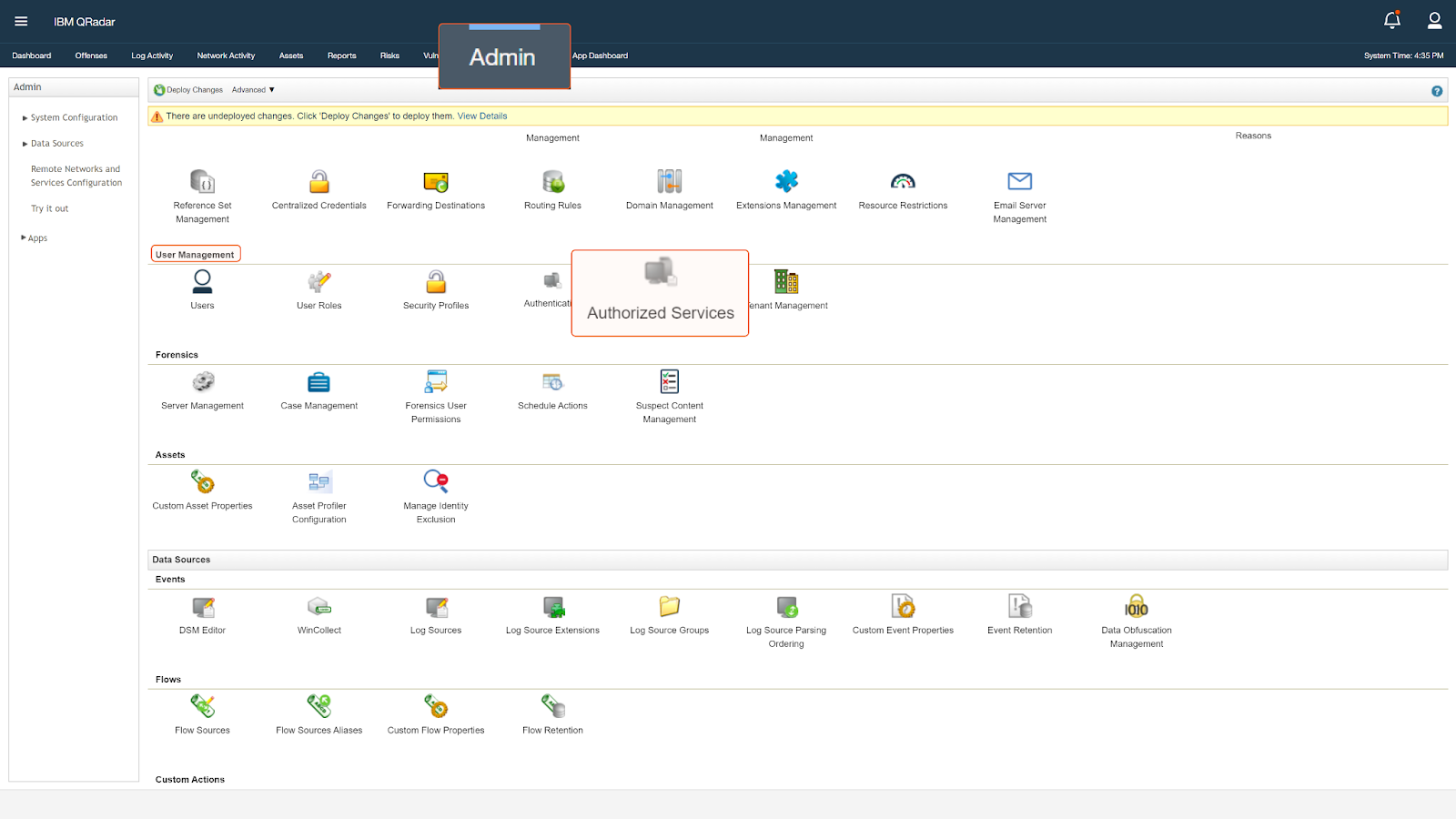

Navigate to the Admin Tab, then click Authorized Services under User Management.

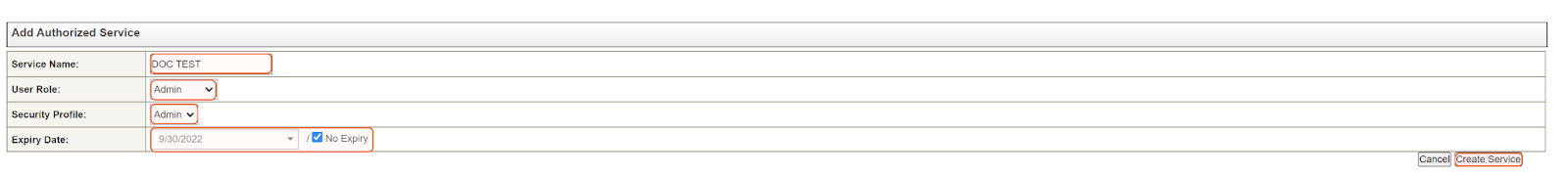

Enable the Add Authorized Service at the top.
Enter a Service Name. Select Admin for both User Role and Security Profile. Specify the Expiry Date or check No Expiry if you want the Authorized Service token to be effective permanently. Please note if the token expires, you will be unable to access QRadar services. You will need to renew your authorized service token before the Expiry Date.
Copy and save the Authentication Token you created. It will be required as the SEC token required to build the integration connection in D3 SOAR.

READER NOTE

You can always go back and check the authentication token by expanding the Authentication Token column. Note: The token cannot be modified.

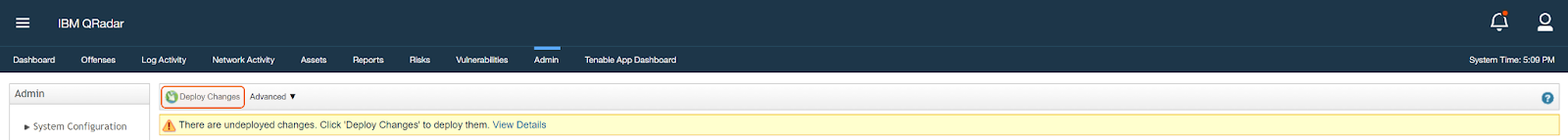

Return to the Admin page, then click Deploy Changes to deploy the newly created authorized service.

Creating New Users

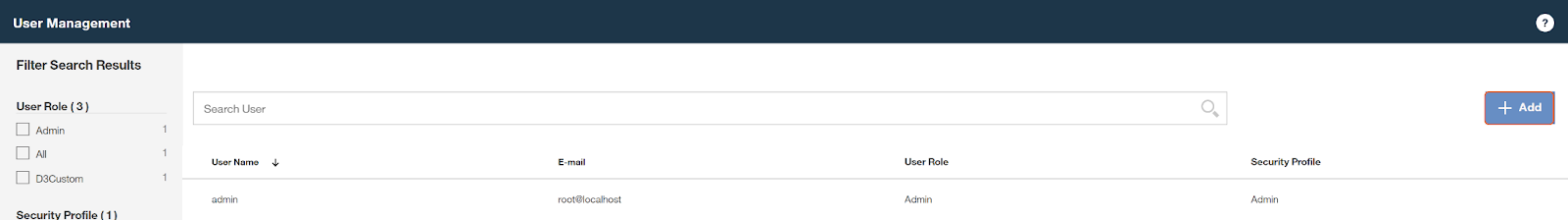

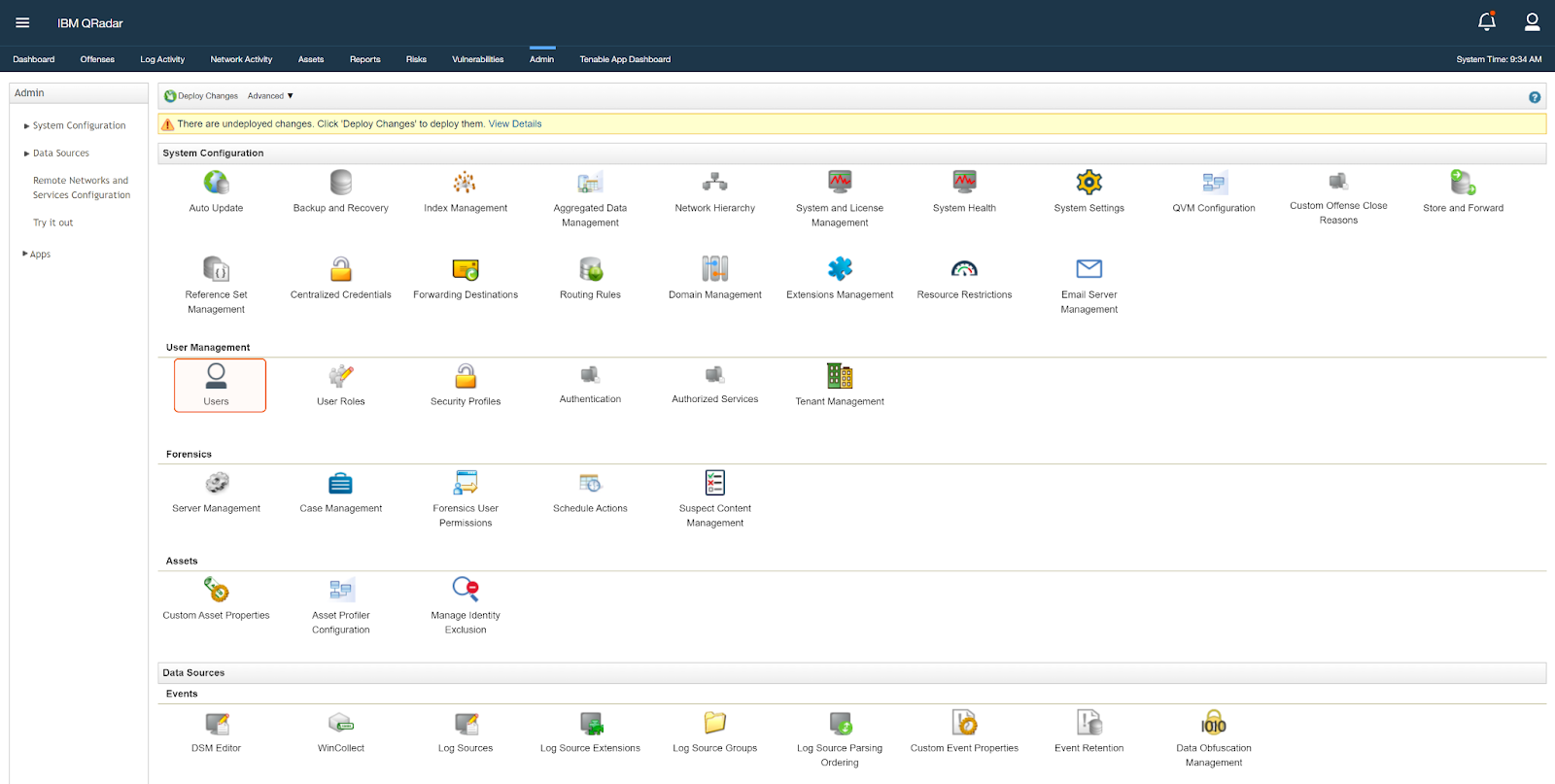

Navigate to Admin > User Management > Users.
Click + Add.

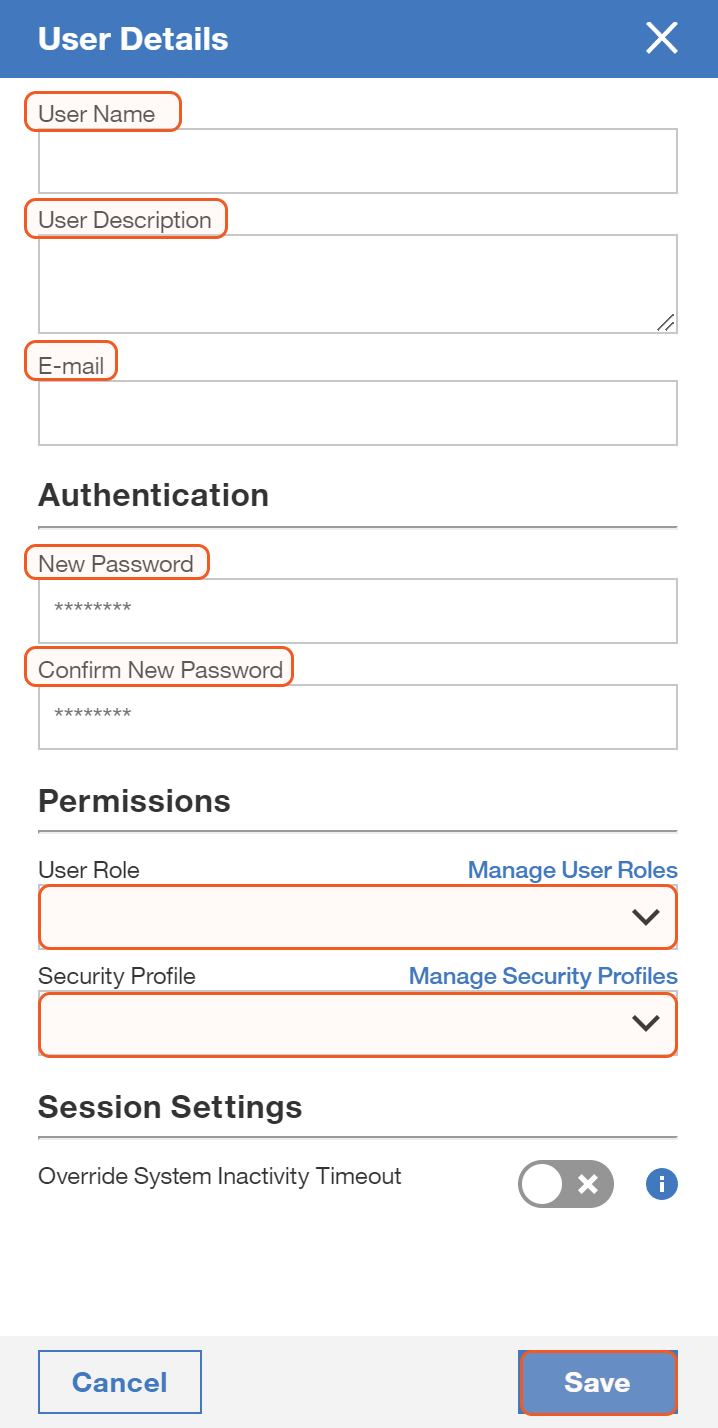

Input a User Name, User Description, and E-mail. Create a new user password. Select Admin for both User Role and Security Profile. Finish your configurations by clicking Save.

Configuring D3 SOAR to Work with IBM QRadar

Log in to D3 SOAR.
Find the IBM QRadar integration.

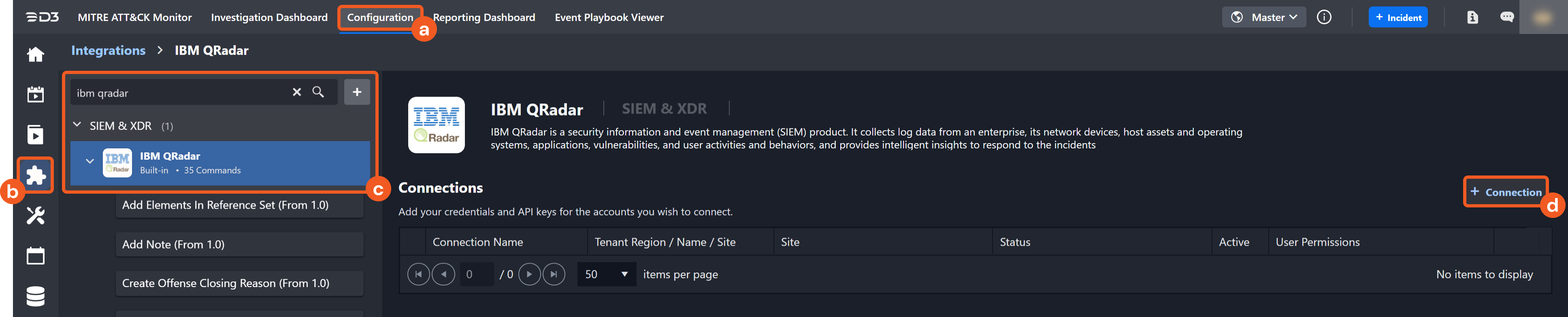

1. Navigate to Configuration on the top header menu.
2. Click on the Integration icon on the left sidebar.
3. Type IBM QRadar in the search box to find the integration, then click it to select it.
4. Click + New Connection, on the right side of the Connections section. A new connection window will appear.

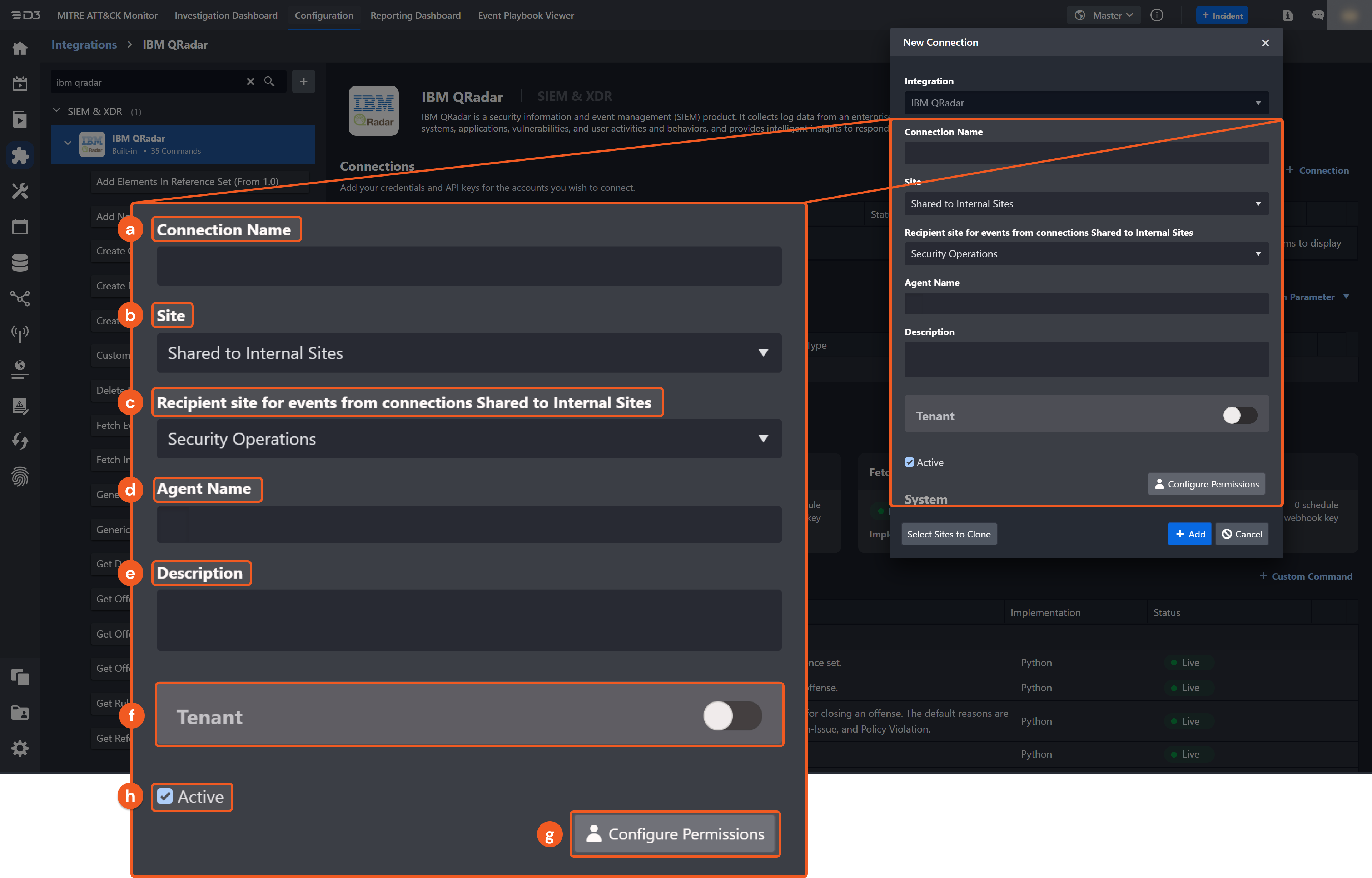

Configure the following fields to create a connection to IBM QRadar.
1. Connection Name: The desired name for the connection.
2. Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
3. Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.
4. Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
5. Description (Optional): Add your desired description for the connection.
6. Tenant (Optional): When configuring the connection from a master tenant site, you have the option to choose the specific tenant sites you want to share the connection with. Once you enable this setting, you can filter and select the desired tenant sites from the dropdowns to share the connection.
7. Configure User Permissions: Defines which users have access to the connection.
8. Active: Check the tick box to ensure the connection is available for use.

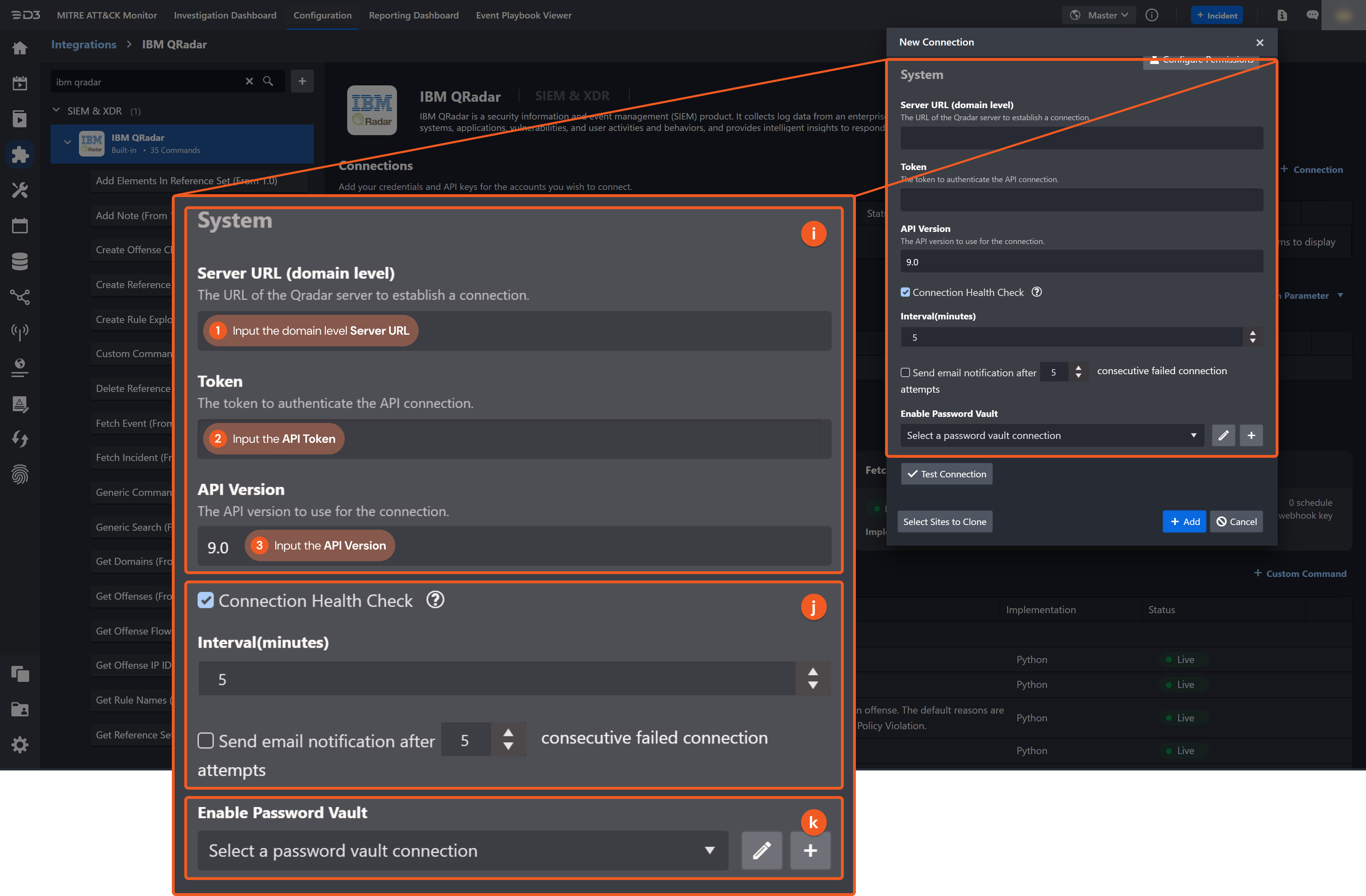

9. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
  1. Input the domain-level Server URL from the IBM QRadar platform.
  2. Input the Token you generated from step 5 of Configuring IBM QRadar to Work with D3 SOAR.
  3. Input API Version. The default value is 9.0. Please always check QRadar API endpoint documentation and supported versions for the supported API Version. Input deprecated API Version might result in errors in some commands.
10. Connection Health Check: Updates the connection status you have created. A connection health check is done by scheduling the Test Connection command of this integration. This can only be done when the connection is active.
  To set up a connection health check, check the Connection Health Check tickbox. You can customize the interval (minutes) for scheduling the health check. An email notification can be set up after a specified number of failed connection attempts.
11. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Please refer to the password vault connection guide if needed.
Test the connection.
1. Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green checkmark appear beside the Test Connection button. If the test connection fails, please check your connection parameters and try again.
2. Click OK to close the alert window.
3. Click + Add to create and add the configured connection.

Commands

IBM QRadar includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the IBM QRadar API, please refer to IBM QRadar API reference.

READER NOTE

Certain permissions are required for each command. Please refer to the Permission Requirement and Configuring IBM QRadar to Work with D3 SOAR for detailed information.

Note for Time-related parameters

The input format of time-related parameters may vary based on your account settings. As a result, the sample data provided in our commands is different from what you see. To set your preferred time format, follow these steps:

Navigate to Configuration > Application Settings. Select Date/Time Format.
Choose your desired date and time format.

After that, you will be able to view your preferred time format when configuring the DateTime input parameters for commands.

Add Elements In Reference Set

Adds elements to a reference set.

READER NOTE

Reference Set Name is a required parameter to run this command.

Run the List Reference Sets command to obtain the Reference Set Name command. Reference Set Names can be found in the returned raw data at the path $.[*].name.

When creating a reference set, you can specify the Time to Live (TTL) for the added elements. To check the TTL of an existing reference set, you can use the List Reference Set command and look for the "time_to_live" key. Note: You cannot set the TTL for elements using this command.

Input

Input Parameter	Required/Optional	Description	Example
Reference Set Name	Required	The name of the reference set to add elements. Reference set names can be obtained using the List Reference Sets command.	Test Reference Set
Element Values	Required	The values of the elements to add to the specified reference set.	[ "000.00.00.000"]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "time_to_live": "0 years 0 mons 1 days 0 hours 0 mins 0.00 secs",
    "timeout_type": "LAST_SEEN",
    "number_of_elements": 9,
    "creation_time": 1628032077835,
    "name": "*** Test***",
    "element_type": "ALNIC"
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 converts the value under key “CreationTime” from milliseconds to UTC Date time.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

{
    "time_to_live": "0 years 0 mons 1 days 0 hours 0 mins 0.00 secs",
    "timeout_type": "LAST_SEEN",
    "number_of_elements": 9,
    "creation_time": "2021-08-03T23:07:57.835Z",
    "name": "*** Test***",
    "element_type": "ALNIC"
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

{
    "TimeToLive": "0 years 0 mons 3 days 0 hours 0 mins 0.00 secs",
    "TimeoutType": "FIRST_SEEN",
    "NumberOfElements": 6,
    "CreationTime": "2021-08-03T23:07:57.835Z",
    "Name": "Test ***",
    "ElementType": "IP"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

time_to_live	0 years 0 mons 1 days 0 hours 0 mins 0.00 secs
timeout_type	LAST_SEEN
number_of_elements	9
creation_time	2021-08-03T23:07:57.835Z
name	* Test*
element_type	ALNIC

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Add Elements In Reference Set failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The reference set does not exist.

Error Sample Data

Add Elements In Reference Set failed.

Status Code: 404.

Message: The reference set does not exist.

Add Note

Creates a note about an offense.

READER NOTE

Offense ID is a required parameter to run this command.

You should already have your desired Offense IDs on hand to run this command. If you don’t, you may use the Fetch Incident command with defined filters to retrieve the desired Offense IDs. The Offense IDs can be found in the raw data at the path $.[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Offense ID	Required	The ID of the offense to add the note to. Offense IDs can be obtained using the Fetch Incident command.	129
Note Text	Required	The contents of the note. Note can have a maximum of 2,000 characters.	test129001
Fields	Optional	The list of fields to return in the response. Fields that are not specified will be excluded. Separate fields with a comma. The valid fields are id, create_time, username, and note_text. Note: Leave this field empty to return all fields in the response.	id

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "id": ***
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 converts the value under key “create_time” from milliseconds to UTC Date time.

SAMPLE DATA

{
    "id": ***
}

Key Fields

SAMPLE DATA

{
    "Offense ID": [
        ***
    ],
    "Note ID": [
        ***
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

***

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Add Note failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The value for parameter (Offense ID) is invalid.

Error Sample Data

Add Note failed.

Status Code: 400.

Message: The value for parameter (Offense ID) is invalid.

Create Offense Closing Reason

Creates a custom reason for closing an offense. The default reasons are False-Positive, Tuned, Non-Issue, and Policy Violation.

Input

Input Parameter	Required/Optional	Description	Example
Reason	Required	The text field to indicate the offense closing reason. Note: A valid input must be 5 - 60 characters in length.	[ "closeduetosomereason" ]
Fields	Optional	The list of fields to return in the response. Fields that are not specified will be excluded. Separate fields with a comma. The valid fields are id, text, is_deleted, and is_reserved. Note: Leave this field empty to return all fields in the response.	is_deleted,is_reserved,text,id

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "is_deleted": false,
    "is_reserved": false,
    "text": "closeduetosomereason",
    "id": ***
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

SAMPLE DATA

{
    "description": "The primary response data from the API request.",
    "data": {
        "is_deleted": false,
        "is_reserved": false,
        "text": "closeduetosomereason",
        "id": ***
    }
}

Key Fields

SAMPLE DATA

{
    "ID": [
        ***
    ],
    "Reason": [
        "closeduetosomereason"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

is_deleted	False
is_reserved	False
text	closeduetosomereason
id	***

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create Offense Closing Reason failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: A request parameter is not valid. Closing reason text must be between 5 and 60 characters.

Error Sample Data

Create Offense Closing Reason failed.

Status Code: 422.

Message: A request parameter is not valid. Closing reason text must be between 5 and 60 characters.

Create Reference Set

Creates a reference set.

WARNING

Please note the following for the format of the Time To Live input parameter:

The format of a valid input for this parameter is [numerical digit] [time unit]. For instance, if you want to set the input value to five minutes, the valid input is 5 minutes. Any other formats are invalid (e.g. 5minutes or five minutes).
You must use a space to separate a combination of input time values. For instance, if you want to set the value to one month and five minutes, the valid input is 1 month 5 minutes. Please note that spaces between the numerical digit and time unit are still required.
Invalid input values will return an error. If your input value is partially valid (e.g. 1month 5 minutes), the invalid portion of the input value will be ignored (the system will read the input as five minutes for the given example).
Some abbreviations of time units are accepted, including mos, mins, and secs.

ALERT

An existing Reference Set cannot be updated using this command. An input of an existing Reference Set Name will result in an error. Ensure the input Reference Set Name is unique. You can use the List Reference Sets command to check the existing Reference Set Names.

Input

Input Parameter	Required/Optional	Description	Example
Reference Set Name	Required	The name for the reference set to create.	Test Reference Set
Element Type	Required	The element type for the values allowed in the reference set. The valid inputs are ALN (alphanumeric characters), ALNIC (alphanumeric characters ignoring case), IP (IP addresses), NUM (numeric characters), PORT (port numbers) or DATE. Please note that date values must be represented by the number of milliseconds since the Unix epoch (January 1st, 1970).	IP
Time To Live	Optional	The amount of time that the elements of the reference set will live. The valid time units are years, months, days, hours, mins, and secs. Some examples of valid inputs are 1 month, 5 minutes, or 2 years. If this field is undefined, the default value will be Lives Forever.	1 month 5 minutes
Timeout Type	Optional	The timeout type of the reference set. The valid values are FIRST_SEEN, LAST_SEEN, and UNKNOWN. The default value is UNKNOWN, which indicates that the time_to_live interval is based on when the data was first seen or last seen.	UNKNOWN

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "time_to_live": "0 years 0 mons 3 days 0 hours 0 mins 0.00 secs",
    "timeout_type": "FIRST_SEEN",
    "number_of_elements": 0,
    "creation_time": 1626911872663,
    "name": "Test***",
    "element_type": "IP"
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 converts the value under key “creation_time” from milliseconds to UTC Date time.

SAMPLE DATA

{
    "time_to_live": "0 years 0 mons 2 days 0 hours 0 mins 0.00 secs",
    "timeout_type": "UNKNOWN",
    "number_of_elements": 0,
    "creation_time": "2021-08-03T22:37:54.669Z",
    "name": "*** Test***",
    "element_type": "ALNIC"
}

Key Fields

SAMPLE DATA

{
    "CreationTime": "2021-08-03T22:12:12.087000Z"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

time_to_live	0 years 0 mons 2 days 0 hours 0 mins 0.00 secs
timeout_type	UNKNOWN
number_of_elements	0
creation_time	2021-08-03T22:37:54.669Z
name	* Test*
element_type	ALNIC

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create Reference Set failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 409.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The reference set could not be created, the name provided is already in use. Please change the name and try again.

Error Sample Data

Create Reference Set failed.

Status Code: 409.

Message: The reference set could not be created, the name provided is already in use. Please change the name and try again.

Delete Reference Sets

Deletes a given list of reference sets.

READER NOTE

The input parameter Reference Set Names is required to run this command.

Run the List Reference Sets command to obtain the Reference Set Names. Reference Set Names can be found in the returned raw data at the path $.[*].name.

Input

Input Parameter	Required/Optional	Description	Example
Reference Set Names	Required	The name(s) of the reference set(s) to delete. Reference set names can be obtained using the List Reference Sets command.	[“Test Reference Set”, “Test Reference Set2”]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "created_by": "wincollect",
        "created": 1628031686498,
        "name": "Reference Data Deletion Task",
        "modified": 1628031689636,
        "started": null,
        "completed": null,
        "id": *****,
        "message": "Searching for items that depend on the Reference Data.",
        "status": "QUEUED"
    },
    {
        "http_response": {
            "code": 404,
            "message": "We could not find the resource you requested."
        },
        "code": 1002,
        "description": "The reference set does not exist.",
        "details": {},
        "message": "*** Test***** does not exist"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 converts the value under key “created” and “modified” from milliseconds to UTC Date time.

SAMPLE DATA

[
    {
        "created_by": "wincollect",
        "created": "2021-08-03T23:01:26.498Z",
        "name": "Reference Data Deletion Task",
        "modified": "2021-08-03T23:01:29.636Z",
        "started": null,
        "completed": null,
        "id": *****,
        "message": "Searching for items that depend on the Reference Data.",
        "status": "QUEUED"
    },
    {
        "http_response": {
            "code": 404,
            "message": "We could not find the resource you requested."
        },
        "code": 1002,
        "description": "The reference set does not exist.",
        "details": {},
        "message": "*** Test*** does not exist"
    }
]

Key Fields

SAMPLE DATA

{
    "Messages": [
        "Initializing Reference Data Deletion."
    ],
    "Statuses": [
        "QUEUED"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CREATED_BY	CREATED	NAME	MODIFIED	STARTED	COMPLETED	ID	MESSAGE	STATUS	HTTP_RESPONSE	CODE	DESCRIPTION	DETAILS
***	2021-08-03T23:01:26.498Z	Reference Data Deletion Task	2021-08-03T23:01:29.636Z	None	None	***	Searching for items that depend on the Reference Data.	QUEUED
							***** does not exist		{'code': 404, 'message': 'We could not find the resource you requested.'}	1002	The reference set does not exist.	{}

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Delete Reference Sets failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: We could not find the Reference Set Names you requested.

Error Sample Data

Delete Reference Set failed.

Status Code: 404.

Message: We could not find the Reference Set Names you requested.

Fetch Event

Returns Event(s) from the IBM QRadar platform based on specified criteria.

READER NOTE

If the Is Offenses Query input parameter is set to True, the command will fetch QRadar offenses. In this case, only Offense field mapping can be used. If the Is Offenses Query input parameter is set to False or undefined, the command will only fetch QRadar events. In this case, only the default event field mapping will be used.
Offenses may also contain event data. If the Is Offenses Query input parameter is True, Offenses are ingested with the QRadar event data returned as keys in the response data. In this case, offenses are extracted as individual events in D3 SOAR. If the Is Offenses Query input parameter is False, event data in QRadar will be ingested as individual events in D3 SOAR.
The Fetch Event command can ingest Offenses as events in D3 SOAR; the Fetch Incident command will ingest Offenses as incidents in D3 SOAR directly with the correlated QRadar event data as events in D3 SOAR. D3 events need to be escalated to incidents that prompt further investigation. Use the appropriate command to ingest data based on your use case.
For event queries, the valid input value for the Query Time Type input parameter is Start Time.
- For event queries, D3 will always default to Start Time regardless of the selected option for the Query Time Type parameter.
For offenses queries, the valid input values for the Query Time Type input parameter are First Persisted Time, Last Persisted Time, Start Time, Close Time, and Last Updated Time. Please refer to the details below for the difference between the input options for the Query Time Type parameter.
- First Persisted Time - The time when the offense was created. This option can only be selected if your connection API Version is 13.1 or later.
- Last Persisted Time - The last updated time of an offense field. This option only can be selected for your connection API Version is 13.1 or later.
- Start Time - The time when the offense or event was started. For offenses, this is the time when the first event contributing to the offense was seen. Please note that there is a chance that the offense has not been created yet. For events, this is the event start time.
- Close Time - The time when the offense was closed.
- Last Updated Time - The time when the last event contributing to the offense was seen.

It is recommended to use the Last Updated Time input option to fetch offenses as it provides the latest event timestamps added to offenses.

Start Time is the first event time added to an offense, and may be earlier than the offense creation time. In this case, data loss may occur.

To avoid fetching offenses before the offenses are fully created in IBM QRadar, use Last Updated Time to fetch offenses.

Input

Input Parameter	Required/Optional	Description	Example
Start Time	Required	The start time of the time range to fetch events in UTC time format.	2022-10-01 00:00
End Time	Optional	The end time of the time range to fetch events in UTC time format.	2022-11-25 00:00
Number of Event(s) Fetched	Optional	The maximum number of events to return in a single fetch. If the input is 0, negative, or not specified, all events within the specified time range will be returned. Otherwise, the number provided in the input will be returned.	10
Search Condition	Optional	The Ariel Query Language (AQL) query to retrieve the specified event data from the Ariel database. Please do NOT put time-related fields(START/STOP/LAST) and LIMIT in the search condition. Note: If this input parameter is left undefined, the following AQL statement will be used by default: select , qid as 'QID',* QidName(qid) AS 'EventName', CategoryName(category) AS 'LowLevelCategory', CategoryName(highlevelcategory) AS 'HighlevelCategory', QIDDESCRIPTION(qid) AS 'EventDescription', severity AS 'Severity', userName AS 'Username', DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StartTime', DOMAINNAME(domainID) AS 'Domain', eventDirection AS 'EventDirection', sourceip AS 'SourceIP', destinationip AS 'DestinationIP', HOSTNAME(logsourceid) AS 'LogSourceHostname', geographiclocation AS 'GeographicLocation' from events For more information on the AQL syntax, see Sample AQL queries from IBM’s documentation. Using the provided sample data as a template is recommended to build your query by modifying the WHERE clauses as needed. If you need to filter out the events based on specific criteria such as Severity or LowLevelCategory, you can apply additional operators in WHERE clauses of a query (i.e. =, <>, <, >, <=, and >=) in addition to operators such as AND, LIKE, ILIKE, IS NULL, AND, TEXT SEARCH, or IN. For example, Severity > 9 AND LowLevelCategory = ‘Firewall Permit’.	select *, qid AS 'QID', QidName(qid) AS 'EventName', category AS 'LowLevelCategoryID', CategoryName(category) AS 'LowLevelCategory', highlevelcategory AS 'HighlevelCategoryID', CategoryName(highlevelcategory) AS 'HighlevelCategory', QIDDESCRIPTION(qid) AS 'EventDescription', magnitude AS 'Magnitude', relevance AS 'Relevance', severity AS 'Severity', credibility AS 'Credibility', userName AS 'Username', starttime AS 'StartTime (timestamp)', DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StartTime', endTime AS 'StorageTime (timestamp)', DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StorageTime', duration AS 'Duration', devicetime AS 'LogSourceTime(timestamp)', DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss Z') AS 'LogSourceTime', domainID AS 'DomainID', DOMAINNAME(domainID) AS 'Domain', eventDirection AS 'EventDirection', sourceip AS 'SourceIP', ASSETHOSTNAME(sourceip) AS 'SourceAssetName', sourceport AS 'SourcePort', preNatSourceIP AS 'PreNATSourceIP', preNatSourcePort AS 'PreNATSourcePort', postNatSourceIP AS 'PostNATSourceIP', postNatSourcePort AS 'PostNATSourcePort', sourcev6 AS 'SourceIPv6', sourceMAC AS 'SourceMAC', sourceaddress AS 'SourceAddress', sourcegeographiclocation AS 'SourceGeographicLocation', NetworkName(sourceip) AS 'SourceNetworkName', destinationip AS 'DestinationIP', ASSETHOSTNAME(destinationip) AS 'DestinationAssetName', destinationPort AS 'DestinationPort', preNatDestinationIP AS 'PreNATDestinationIP', preNatDestinationPort AS 'PreNATDestinationPort', postNatDestinationIP AS 'PostNATDestinationIP', postNatDestinationPort AS 'PostNATDestinationPort', destinationv6 AS 'DestinationIPv6', destinationMAC AS 'DestinationMAC', destinationaddress AS 'DestinationAddress', destinationgeographiclocation AS 'DestinationGeographicLocation', NetworkName(destinationip) AS 'DestinationNetworkName', payload AS 'Payload(base64)', UTF8(payload) AS 'Payload(UTF)', protocolid AS 'ProtocolID', ProtocolName(protocolid) AS 'Protocol', logsourceid AS 'LogSourceID', LOGSOURCENAME(logsourceid) AS 'LogSource', HOSTNAME(logsourceid) AS 'LogSourceHostname', deviceGroupList AS 'DeviceGroupListID', LOGSOURCEGROUPNAME(deviceGroupList) AS 'DeviceGroupListName', deviceType AS 'DeviceTypeID', LOGSOURCETYPENAME(deviceType) AS 'DeviceTypeName', eventcount AS 'EventCount', creeventlist AS 'CustomRuleIDs', RULENAME(creeventlist) AS 'CustomRules', partialmatchlist AS 'CustomRulesPartiallyMatchedIDs', RULENAME(partialmatchlist) AS 'CustomRulesPartiallyMatched', geographiclocation AS 'GeographicLocation', hasOffense AS 'HasOffense', isCREEvent AS 'IsCustomRuleEvent', isduplicate AS 'IsDuplicateevent', isunparsed AS 'EventIsUnparsed', pcappacket AS 'PCAPpacket', processorId AS 'EventProcessorID', PROCESSORNAME(processorid) AS 'EventProcessorName', adekey AS 'AdeKey', adevalue AS 'AdeValue', identityip AS 'IdentityIP', identityhostname AS 'IdentityHostName', hasIdentity AS 'HasIdentity' from events where SourceIP = '192.168.85.65' AND LowLevelCategory IN ('Information','Firewall Permit')
Offenses Search Condition	Optional	The filter conditions to query offenses. This parameter only applies when the Is Offenses Query parameter is set to True. The available fields to enable filtering are id, assigned_to, categories, category_count, policy_category_count, security_category_count, close_time, closing_user, closing_reason_id, credibility, relevance, severity, magnitude, destination_networks, device_count, event_count, flow_count, inactive, last_updated_time, local_destination_count, offense_type, protected, follow_up, remote_destination_count, source_count, start_time, status, username_count, source_address_ids, local_destination_address_ids, domain_id, rules, log_sources. For more information on the filter syntax, refer to Filter Syntax from IBM's documentation.	inactive = true
Is Offenses Query	Optional	Select True to query offenses and related events. Select False to only query events. The default value is False.	True
Tolerance Scope	Optional	The tolerance scope (in minutes) for the query to fetch events between the specified start and end time to avoid event loss or fetch failure. The events will be fetched between {Start Time - Tolerance Scope, End Time}. The default value is 0.	10
Query Time Type	Required	The time type to query results. Note: For offense queries, the valid inputs are First Persisted Time, Last Persisted Time, Start Time, Close Time, and Last Updated Time. For event queries, the valid input is Start Time.	First Persisted Time

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "events": [
            {
                "QID": ***,
                "EventName": "Session Allowed",
                "LowLevelCategoryID": ***,
                "LowLevelCategory": "Firewall Permit",
                "HighlevelCategoryID": ***,
                "HighlevelCategory": "Access",
                "EventDescription": "Session was allowed by policy",
                "Magnitude": 3,
                "Relevance": 1,
                "Severity": 5,
                "Credibility": 5,
                "Username": null,
                "StartTime (timestamp)": 1638172799640,
                "StartTime": "2021-11-28 23:59:59 -0800",
                "StorageTime (timestamp)": 1638172799640,
                "StorageTime": "2021-11-28 23:59:59 -0800",
                "Duration": 0,
                "LogSourceTime(timestamp)": 1638173733000,
                "LogSourceTime": "2021-11-29 00:15:33 -0800",
                "DomainID": 0,
                "Domain": "Default Domain",
                "EventDirection": "L2L",
                "SourceIP": "1.1.1.1",
                "SourceAssetName": null,
                "SourcePort": ***,
                "PreNATSourceIP": "0.0.0.0",
                "PreNATSourcePort": 0,
                "PostNATSourceIP": "0.0.0.0",
                "PostNATSourcePort": 0,
                "SourceIPv6": "0:0:0:0:0:0:0:0",
                "SourceMAC": "00:00:00:00:00:00",
                "SourceAddress": "1.1.1.1",
                "SourceGeographicLocation": "other",
                "SourceNetworkName": "Net_100_000_0_0",
                "DestinationIP": "1.1.1.1",
                "DestinationAssetName": null,
                "DestinationPort": *****,
                "PreNATDestinationIP": "0.0.0.0",
                "PreNATDestinationPort": 0,
                "PostNATDestinationIP": "0.0.0.0",
                "PostNATDestinationPort": 0,
                "DestinationIPv6": "0:0:0:0:0:0:0:0",
                "DestinationMAC": "00:00:00:00:00:00",
                "DestinationAddress": "1.2.3.4",
                "DestinationGeographicLocation": "other",
                "DestinationNetworkName": "Net_100_000_0_0",
                "Payload(base64)": "***",
                "Payload(UTF)": "<14>Nov 29 00:15:34 ***-220 1,2021/11/29 00:15:33,012801170140,TRAFFIC,end,2561,2021/11/29 00:15:33,1.1.1.1,1.2.3.4,0.0.0.0,0.0.0.0,intrazone-default,,,ike,***,L3-***,L3-***,***/4.85,***/4.86,log,2021/11/29 00:15:33,18503,1,58422,500,0,0,0x4019,udp,allow,1530,1530,0,3,2021/11/29 00:05:30,4,any,,7022489198772850042,0x0,192.168.0.0-192.168.255.255,192.168.0.0-192.168.255.255,,3,0,aged-out,0,0,0,0,,PA-220,from-policy,,,0,,0,,N/A,0,0,0,0,7df3bbe7-0ca2-4dc6-8491-0d244b79a4cb,0,0,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,2021-11-29T00:15:34.448-08:00,,,encrypted-tunnel,networking,client-server,2,\"has-known-vulnerability,tunnel-other-application,pervasive-use\",ipsec,ike,no,no,0",
                "ProtocolID": ***,
                "Protocol": "UDP",
                "LogSourceID": ***,
                "LogSource": "PaSeries @ ***-220",
                "LogSourceHostname": "Unknown Host 314",
                "DeviceGroupListID": [
                    0
                ],
                "DeviceGroupListName": [
                    "Other"
                ],
                "DeviceTypeID": ***,
                "DeviceTypeName": "Palo Alto PA Series",
                "EventCount": 1,
                "CustomRuleIDs": [
                    ***,
                    ***
                ],
                "CustomRules": [
                    "BB:ProtocolDefinition: Windows Protocols",
                    "BB:CategoryDefinition: Firewall or ACL Accept",
                    "Context is Local to Local",
                    "Test_Login",
                    "D3 Test internal",
                    "Source Asset Weight is Low",
                    "Destination Asset Weight is Low",
                    "BB:DeviceDefinition: IDS / IPS",
                    "BB:DeviceDefinition: FW / Router / Switch",
                    "Load Basic Building Blocks"
                ],
                "CustomRulesPartiallyMatchedIDs": [],
                "CustomRulesPartiallyMatched": [
                    "null"
                ],
                "GeographicLocation": "other",
                "HasOffense": true,
                "IsCustomRuleEvent": false,
                "IsDuplicateevent": false,
                "EventIsUnparsed": false,
                "PCAPpacket": false,
                "EventProcessorID": ***,
                "EventProcessorName": "eventprocessor0",
                "AdeKey": null,
                "AdeValue": null,
                "IdentityIP": "0.0.0.0",
                "IdentityHostName": null,
                "HasIdentity": false
            }
        ],
        "type": "event"
    },
    {
        "events": [
            {
                "username_count": 0,
                "description": "Session Allowed\n",
                "rules": [
                    {
                        "id": ***,
                        "type": "CRE_RULE"
                    }
                ],
                "event_count": 1,
                "flow_count": 0,
                "assigned_to": null,
                "security_category_count": 1,
                "follow_up": false,
                "source_address_ids": [
                    85
                ],
                "source_count": 1,
                "inactive": true,
                "protected": false,
                "closing_user": null,
                "destination_networks": [
                    "other"
                ],
                "source_network": "Net-10-***.Net_***_0_0",
                "category_count": 1,
                "close_time": null,
                "remote_destination_count": 1,
                "start_time": 1637230073981,
                "magnitude": 2,
                "last_updated_time": 1637230073981,
                "credibility": 2,
                "id": ***,
                "categories": [
                    "Firewall Permit"
                ],
                "severity": 5,
                "policy_category_count": 0,
                "closing_reason_id": null,
                "device_count": 1,
                "offense_type": 1,
                "relevance": 0,
                "domain_id": 0,
                "offense_source": "52.*****0",
                "local_destination_address_ids": [],
                "local_destination_count": 0,
                "status": "OPEN",
                "source_ips": [
                    "1.1.1.1"
                ],
                "local_destination_ips": [
                    "1.1.1.1"
                ],
                "events": [
                    {
                        "QID": *****,
                        "EventName": "Session Allowed",
                        "LowLevelCategoryID": *****,
                        "LowLevelCategory": "Firewall Permit",
                        "HighlevelCategoryID": *****,
                        "HighlevelCategory": "Access",
                        "EventDescription": "Session was allowed by policy",
                        "Magnitude": 3,
                        "Relevance": 1,
                        "Severity": 5,
                        "Credibility": 5,
                        "Username": null,
                        "StartTime (timestamp)": 1638172799640,
                        "StartTime": "2021-11-28 23:59:59 -0800",
                        "StorageTime (timestamp)": 1638172799640,
                        "StorageTime": "2021-11-28 23:59:59 -0800",
                        "Duration": 0,
                        "LogSourceTime(timestamp)": 1638173733000,
                        "LogSourceTime": "2021-11-29 00:15:33 -0800",
                        "DomainID": 0,
                        "Domain": "Default Domain",
                        "EventDirection": "L2L",
                        "SourceIP": "1.2.3.4",
                        "SourceAssetName": null,
                        "SourcePort": *****,
                        "PreNATSourceIP": "0.0.0.0",
                        "PreNATSourcePort": 0,
                        "PostNATSourceIP": "0.0.0.0",
                        "PostNATSourcePort": 0,
                        "SourceIPv6": "0:0:0:0:0:0:0:0",
                        "SourceMAC": "00:00:00:00:00:00",
                        "SourceAddress": "1.2.3.4",
                        "SourceGeographicLocation": "other",
                        "SourceNetworkName": "Net_100_000_0_0",
                        "DestinationIP": "1.2.3.4",
                        "DestinationAssetName": null,
                        "DestinationPort": *****,
                        "PreNATDestinationIP": "0.0.0.0",
                        "PreNATDestinationPort": 0,
                        "PostNATDestinationIP": "0.0.0.0",
                        "PostNATDestinationPort": 0,
                        "DestinationIPv6": "0:0:0:0:0:0:0:0",
                        "DestinationMAC": "00:00:00:00:00:00",
                        "DestinationAddress": "1.2.3.4",
                        "DestinationGeographicLocation": "other",
                        "DestinationNetworkName": "Net_100_100_0_0",
                        "Payload(base64)": "*****",
                        "Payload(UTF)": "<14>Nov 29 00:15:34 PA-220 1,2021/11/29 00:15:33,012801170140,TRAFFIC,end,2561,2021/11/29 00:15:33,1.1.1.1,1.2.3.4,0.0.0.0,0.0.0.0,intrazone-default,,,ike,***,L3-***,L3-***,ethernet1/4.85,***/4.86,log,2021/11/29 00:15:33,18503,1,58422,500,0,0,0x4019,udp,allow,*****,0,3,2021/11/29 00:05:30,4,any,,***,0x0,192.168.0.0-1.1.1.1,1.1.0.0-1.2.3.4,,3,0,aged-out,0,0,0,0,,***-220,from-policy,,,0,,0,,N/A,0,0,0,0,***-***-***-***-***,0,0,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,2021-11-29T00:15:34.448-08:00,,,encrypted-tunnel,networking,client-server,2,\"has-known-vulnerability,tunnel-other-application,pervasive-use\",ipsec,ike,no,no,0",
                        "ProtocolID": 17,
                        "Protocol": "UDP",
                        "LogSourceID": 314,
                        "LogSource": "PaSeries @ PA-220",
                        "LogSourceHostname": "Unknown Host 314",
                        "DeviceGroupListID": [
                            0
                        ],
                        "DeviceGroupListName": [
                            "Other"
                        ],
                        "DeviceTypeID": ***,
                        "DeviceTypeName": "Palo Alto PA Series",
                        "EventCount": 1,
                        "CustomRuleIDs": [
                            ***,
                            ***
                        ],
                        "CustomRules": [
                            "BB:ProtocolDefinition: Windows Protocols",
                            "BB:CategoryDefinition: Firewall or ACL Accept",
                            "Context is Local to Local",
                            "Test_Login",
                            "D3 Test internal",
                            "Source Asset Weight is Low",
                            "Destination Asset Weight is Low",
                            "BB:DeviceDefinition: IDS / IPS",
                            "BB:DeviceDefinition: FW / Router / Switch",
                            "Load Basic Building Blocks"
                        ],
                        "CustomRulesPartiallyMatchedIDs": [],
                        "CustomRulesPartiallyMatched": [
                            "null"
                        ],
                        "GeographicLocation": "other",
                        "HasOffense": true,
                        "IsCustomRuleEvent": false,
                        "IsDuplicateevent": false,
                        "EventIsUnparsed": false,
                        "PCAPpacket": false,
                        "EventProcessorID": 8,
                        "EventProcessorName": "eventprocessor0",
                        "AdeKey": null,
                        "AdeValue": null,
                        "IdentityIP": "0.0.0.0",
                        "IdentityHostName": null,
                        "HasIdentity": false
                    }
                ]
            }
        ],
        "type": "offense"
    }
]

Key Fields

SAMPLE DATA

{
    "EventIDs": [
        ***
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

EVENTS	TYPE
[{'QID': *, 'EventName': 'Session Allowed', 'LowLevelCategoryID': , 'LowLevelCategory': 'Firewall Permit', 'HighlevelCategoryID': *, 'HighlevelCategory': 'Access', 'EventDescription': 'Session was allowed by policy', 'Magnitude': 3, 'Relevance': 1, 'Severity': 5, 'Credibility': 5, 'Username': None, 'StartTime (timestamp)': 1638172799640, 'StartTime': '2021-11-28 23:59:59 -0800', 'StorageTime (timestamp)': 1638172799640, 'StorageTime': '2021-11-28 23:59:59 -0800', 'Duration': 0, 'LogSourceTime(timestamp)': 1638173733000, 'LogSourceTime': '2021-11-29 00:15:33 -0800', 'DomainID': 0, 'Domain': 'Default Domain', 'EventDirection': 'L2L', 'SourceIP': '1.2.3.4', 'SourceAssetName': None, 'SourcePort': *, 'PreNATSourceIP': '0.0.0.0', 'PreNATSourcePort': 0, 'PostNATSourceIP': '0.0.0.0', 'PostNATSourcePort': 0, 'SourceIPv6': '0:0:0:0:0:0:0:0', 'SourceMAC': '00:00:00:00:00:00', 'SourceAddress': '1.2.3.4', 'SourceGeographicLocation': 'other', 'SourceNetworkName': 'Net_100_100_0_0', 'DestinationIP': '1.2.3.4', 'DestinationAssetName': None, 'DestinationPort': *, 'PreNATDestinationIP': '0.0.0.0', 'PreNATDestinationPort': 0, 'PostNATDestinationIP': '0.0.0.0', 'PostNATDestinationPort': 0, 'DestinationIPv6': '0:0:0:0:0:0:0:0', 'DestinationMAC': '00:00:00:00:00:00', 'DestinationAddress': '1.2.3.4', 'DestinationGeographicLocation': 'other', 'DestinationNetworkName': 'Net_100_100_0_0', 'Payload(base64)': '*', 'Payload(UTF)': '<14>Nov 29 00:15:34 PA-220 1,2021/11/29 00:15:33,012801170140,TRAFFIC,end,2561,2021/11/29 00:15:33,1.2.3.4,1.1.1.1,0.0.0.0,0.0.0.0,intrazone-default,,,ike,vsys1,L3-D3CyberLabDmzZone,L3-D3CyberLabDmzZone,ethernet1/4.85,ethernet1/4.86,log,2021/11/29 00:15:33,18503,1,58422,500,0,0,0x4019,udp,allow,1530,1530,0,3,2021/11/29 00:05:30,4,any,,-100.100.000.000,100.100.0.0-1.2.3.4,,3,0,aged-out,0,0,0,0,,PA-220,from-policy,,,0,,0,,N/A,0,0,0,0,**,0,0,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,2021-11-29T00:15:34.448-08:00,,,encrypted-tunnel,networking,client-server,2,"has-known-vulnerability,tunnel-other-application,pervasive-use",ipsec,ike,no,no,0', 'ProtocolID': , 'Protocol': 'UDP', 'LogSourceID': , 'LogSource': 'PaSeries @ -', 'LogSourceHostname': 'Unknown Host 314', 'DeviceGroupListID': [0], 'DeviceGroupListName': ['Other'], 'DeviceTypeID': 206, 'DeviceTypeName': 'Palo Alto PA Series', 'EventCount': 1, 'CustomRuleIDs': [, ], 'CustomRules': ['BB:ProtocolDefinition: Windows Protocols', 'BB:CategoryDefinition: Firewall or ACL Accept', 'Context is Local to Local', 'Test_Login', 'D3 Test internal', 'Source Asset Weight is Low', 'Destination Asset Weight is Low', 'BB:DeviceDefinition: IDS / IPS', 'BB:DeviceDefinition: FW / Router / Switch', 'Load Basic Building Blocks'], 'CustomRulesPartiallyMatchedIDs': [], 'CustomRulesPartiallyMatched': ['null'], 'GeographicLocation': 'other', 'HasOffense': True, 'IsCustomRuleEvent': False, 'IsDuplicateevent': False, 'EventIsUnparsed': False, 'PCAPpacket': False, 'EventProcessorID': *, 'EventProcessorName': 'eventprocessor0', 'AdeKey': None, 'AdeValue': None, 'IdentityIP': '0.0.0.0', 'IdentityHostName': None, 'HasIdentity': False}]	event

EVENTS

TYPE

[{'QID': ***, 'EventName': 'Session Allowed', 'LowLevelCategoryID': ***, 'LowLevelCategory': 'Firewall Permit', 'HighlevelCategoryID': ****, 'HighlevelCategory': 'Access', 'EventDescription': 'Session was allowed by policy', 'Magnitude': 3, 'Relevance': 1, 'Severity': 5, 'Credibility': 5, 'Username': None, 'StartTime (timestamp)': 1638172799640, 'StartTime': '2021-11-28 23:59:59 -0800', 'StorageTime (timestamp)': 1638172799640, 'StorageTime': '2021-11-28 23:59:59 -0800', 'Duration': 0, 'LogSourceTime(timestamp)': 1638173733000, 'LogSourceTime': '2021-11-29 00:15:33 -0800', 'DomainID': 0, 'Domain': 'Default Domain', 'EventDirection': 'L2L', 'SourceIP': '1.2.3.4', 'SourceAssetName': None, 'SourcePort': *****, 'PreNATSourceIP': '0.0.0.0', 'PreNATSourcePort': 0, 'PostNATSourceIP': '0.0.0.0', 'PostNATSourcePort': 0, 'SourceIPv6': '0:0:0:0:0:0:0:0', 'SourceMAC': '00:00:00:00:00:00', 'SourceAddress': '1.2.3.4', 'SourceGeographicLocation': 'other', 'SourceNetworkName': 'Net_100_100_0_0', 'DestinationIP': '1.2.3.4', 'DestinationAssetName': None, 'DestinationPort': *****, 'PreNATDestinationIP': '0.0.0.0', 'PreNATDestinationPort': 0, 'PostNATDestinationIP': '0.0.0.0', 'PostNATDestinationPort': 0, 'DestinationIPv6': '0:0:0:0:0:0:0:0', 'DestinationMAC': '00:00:00:00:00:00', 'DestinationAddress': '1.2.3.4', 'DestinationGeographicLocation': 'other', 'DestinationNetworkName': 'Net_100_100_0_0', 'Payload(base64)': '*****', 'Payload(UTF)': '<14>Nov 29 00:15:34 PA-220 1,2021/11/29 00:15:33,012801170140,TRAFFIC,end,2561,2021/11/29 00:15:33,1.2.3.4,1.1.1.1,0.0.0.0,0.0.0.0,intrazone-default,,,ike,vsys1,L3-D3CyberLabDmzZone,L3-D3CyberLabDmzZone,ethernet1/4.85,ethernet1/4.86,log,2021/11/29 00:15:33,18503,1,58422,500,0,0,0x4019,udp,allow,1530,1530,0,3,2021/11/29 00:05:30,4,any,,***-100.100.000.000,100.100.0.0-1.2.3.4,,3,0,aged-out,0,0,0,0,,PA-220,from-policy,,,0,,0,,N/A,0,0,0,0,*****,0,0,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,2021-11-29T00:15:34.448-08:00,,,encrypted-tunnel,networking,client-server,2,"has-known-vulnerability,tunnel-other-application,pervasive-use",ipsec,ike,no,no,0', 'ProtocolID': ***, 'Protocol': 'UDP', 'LogSourceID': ***, 'LogSource': 'PaSeries @ ***-***', 'LogSourceHostname': 'Unknown Host 314', 'DeviceGroupListID': [0], 'DeviceGroupListName': ['Other'], 'DeviceTypeID': 206, 'DeviceTypeName': 'Palo Alto PA Series', 'EventCount': 1, 'CustomRuleIDs': [***, ***], 'CustomRules': ['BB:ProtocolDefinition: Windows Protocols', 'BB:CategoryDefinition: Firewall or ACL Accept', 'Context is Local to Local', 'Test_Login', 'D3 Test internal', 'Source Asset Weight is Low', 'Destination Asset Weight is Low', 'BB:DeviceDefinition: IDS / IPS', 'BB:DeviceDefinition: FW / Router / Switch', 'Load Basic Building Blocks'], 'CustomRulesPartiallyMatchedIDs': [], 'CustomRulesPartiallyMatched': ['null'], 'GeographicLocation': 'other', 'HasOffense': True, 'IsCustomRuleEvent': False, 'IsDuplicateevent': False, 'EventIsUnparsed': False, 'PCAPpacket': False, 'EventProcessorID': ***, 'EventProcessorName': 'eventprocessor0', 'AdeKey': None, 'AdeValue': None, 'IdentityIP': '0.0.0.0', 'IdentityHostName': None, 'HasIdentity': False}]

event

Fetch Event Field Mapping

READER NOTE

The Unique Event Key field mapping is used to prevent duplicate event ingestions. D3 SOAR will check if the value of a selected JSON path matches any Unique Event Key of previously ingested events. If a match is found, the event will be dismissed. If no match is found, an event will be created. However, if no Unique Event Key is mapped, then the hash value from the event pending ingestion will be used to check for any matches with existing events. If no match is found, the event will be created.

Unlike most other D3 SOAR integrations, the IBM QRadar integration’s Fetch Event command’s Event Sources mapping does not include Unique Event Key in order to fetch the same fetched target with multiple updates.

Please note that Fetch Event commands require event field mapping. Field mapping plays a key role in the data normalization process part of the event pipeline. Field mapping converts the original data fields from the different providers to the D3 fields which are standardized by the D3 Model. Please refer to Event and Incident Intake Field Mapping for details.

If you require a custom field mapping, click +Add Field to add a custom field mapping. You may also remove built-in field mappings by clicking x. Please note that two underscore characters will automatically prefix the defined Field Name as the System Name for a custom field mapping. Additionally, if an input Field Name contains any spaces, they will automatically be replaced with underscores for the corresponding System Name.

The IBM QRadar integration in D3 SOAR has some pre-configured field mappings for event-related events and offense-related events, which correspond to the Default Event Source and Event Source for Offenses mappings:

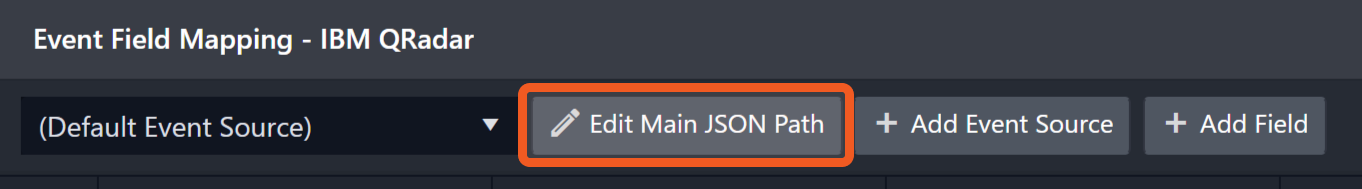

Default Event Source

Configures the field mapping which are specific to the event-related events. If a source field in the field mapping is not found, the corresponding field mapping will be ignored. The default event source has a “Main Event JSON Path” (i.e., $.events) that is used to extract a batch of events from the response raw data. Click Edit Main JSON Path to view the “Main Event JSON Path”.
- Main Event JSON Path: $.events

  The Main Event JSON Path determines the root path where the system starts parsing raw response data into D3 event data. The JSON path begins with $, representing the root element. The path is formed by appending a sequence of child elements to $, each separated by a dot (.). Square brackets with nested quotation marks ([‘...’]) should be used to separate child elements in JSON arrays.

  For example, the root node of a JSON Path is events. The child node denoting the Event Code field would be .rule.id. Putting it together, the JSON Path expression to extract the Event Code is $.events.rule.id.

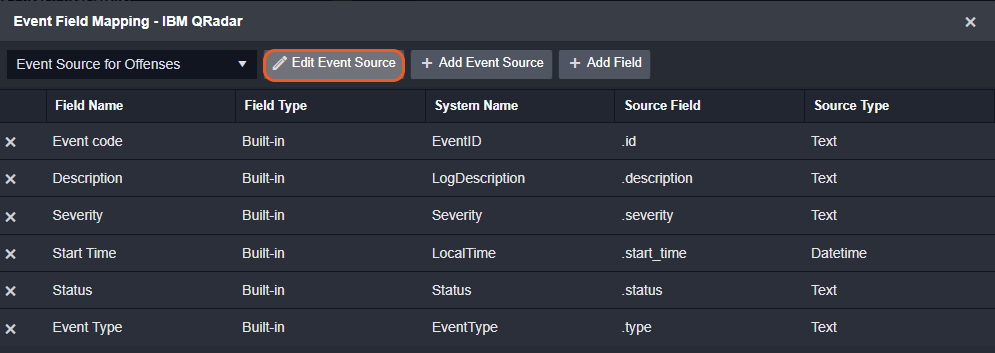

Event Source for Offenses

Configures the field mapping which are specific to the offense-related events. If a source field in the field mapping is not found, the corresponding field mapping will be ignored. As the data of the offense-related events have a character that the value of the type field is offense, the offense-related events can be defined by the Search String: {$.type}=offense. Click Edit Event Source to view the Search String.

The pre-configured field mappings are detailed below:

Field Name	Source Field
Default Event Source (Main Event JSON Path: $.events)
Event code	.QID
Severity	.Severity
Event name	.EventName
Low Level Category	.LowLevelCategory
High Level Category	.HighLevelCategory
Description	.EventDescription
Start Time	.StartTime
Domain	.Domain
Event Direction	.EventDirection
Source IP address	.SourceIP
Destination IP address	.DestinationIP
Log Source Hostname	.LogSourceHostname
Geographic Location	.GeographicLocation
Username	.Username
Event Type	.LowLevelCategory
Event Source for Offenses (Search String: {$.type}=offense) The search string format is {jsonpath}=value. If the value of the type key is offense in the event object under raw data, then the offense-related events will use the field mapping below.
Event code	.id
Description	.description
Severity	.severity
Start Time	.start_time
Status	.status
Event Type	.type

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Fetch Event failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The query_expression contains invalid AQL syntax.

Error Sample Data

Fetch Event failed.

Status Code: 422.

Message: The query_expression contains invalid AQL syntax.

Fetch Incident

Returns offense incident(s) from the IBM QRadar platform based on specified criteria.

READER NOTE

Please refer to the details below for the difference between the input options for the Query Time Type parameter.

First Persisted Time - The time when the offense was created. This option can only be selected if your connection API Version is 13.1 or later.
Last Persisted Time - The last updated time of an offense field. This option only can be selected for your connection API Version is 13.1 or later.
Start Time - The time when the offense was started. This is the time when the first event contributing to the offense was seen. Please note that there is a chance that the offense has not been created yet.
Close Time - The time when the offense was closed.
Last Updated Time - The time when the last event contributing to the offense was seen.

It is recommended to use the Last Updated Time input option to fetch incidents since it provides the latest time of events added to offenses.

Start Time is the first event time added to an offense, and maybe earlier than the offense creation time. In this case, data loss may occur.

To avoid fetching offenses before the offenses are fully created in IBM QRadar, use Last Updated Time to fetch offenses.

Input

Input Parameter	Required/Optional	Description	Example
Start Time	Required	The start time of the time range to fetch incidents in UTC time.	2022-10-01 00:00
End Time	Optional	The end time of the time range to fetch incidents in UTC time.	2022-11-25 00:00
Number of Incident(s) Fetched	Optional	The maximum number of the most recent events to fetch. The default value is 10.	10
Search Condition	Optional	The filter conditions to query offenses. The available fields to enable for filtering are id, assigned_to, categories, category_count, policy_category_count, security_category_count, close_time, closing_user, closing_reason_id, credibility, relevance, severity, magnitude, destination_networks, device_count, event_count, flow_count, inactive, last_updated_time, local_destination_count, offense_type, protected, follow_up, remote_destination_count, source_count, start_time, status, username_count, source_address_ids, local_destination_address_ids, domain_id, rules, log_sources. For more information on the filter syntax, refer to Filter Syntax from IBM's documentation.	inactive = true
Tolerance Scope	Optional	The tolerance scope (in minutes) for the query to fetch incidents between the specified start and end time to avoid incident loss or fetch failure. The events will be fetched between {Start Time - Tolerance Scope, End Time}. The default value is 0.	10
Events Limit for an Incident	Optional	The maximum number of events to return per incident. The default value is 0.	10
Search Condition for Event	Optional	The Ariel Query Language (AQL) query to retrieve the specified event data from the Ariel database. Please do NOT put time related fields(START/STOP/LAST) and LIMIT in the search condition for event. Note: If this input parameter is left undefined, the following AQL statement will be used by default: select , qid AS 'QID', QidName(qid) AS 'EventName',CategoryName(category) AS 'LowLevelCategory', CategoryName(highlevelcategory) AS 'HighlevelCategory', QIDDESCRIPTION(qid) AS 'EventDescription', severity AS 'Severity', userName AS 'Username', DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StartTime', DOMAINNAME(domainID) AS 'Domain', eventDirection AS 'EventDirection', sourceip AS 'SourceIP', destinationip AS 'DestinationIP', HOSTNAME(logsourceid) AS 'LogSourceHostname', geographiclocation AS 'GeographicLocation' from events* For more information on the AQL syntax, see Sample AQL queries from IBM’s documentation. Using the provided sample data as a template is recommended to build your query by modifying the WHERE clauses as needed. If you need to filter out the events based on specific criteria such as Severity or LowLevelCategory, you can apply additional operators in WHERE clauses of a query (i.e. =, <>, <, >, <=, and >=) in addition to operators such as AND, LIKE, ILIKE, IS NULL, AND, TEXT SEARCH, or IN. For example, Severity > 9 AND LowLevelCategory = ‘Firewall Permit’.	select *, qid AS 'QID', QidName(qid) AS 'EventName', category AS 'LowLevelCategoryID', CategoryName(category) AS 'LowLevelCategory', highlevelcategory AS 'HighlevelCategoryID', CategoryName(highlevelcategory) AS 'HighlevelCategory', QIDDESCRIPTION(qid) AS 'EventDescription', magnitude AS 'Magnitude', relevance AS 'Relevance', severity AS 'Severity', credibility AS 'Credibility', userName AS 'Username', starttime AS 'StartTime (timestamp)', DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StartTime', endTime AS 'StorageTime (timestamp)', DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StorageTime', duration AS 'Duration', devicetime AS 'LogSourceTime(timestamp)', DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss Z') AS 'LogSourceTime', domainID AS 'DomainID', DOMAINNAME(domainID) AS 'Domain', eventDirection AS 'EventDirection', sourceip AS 'SourceIP', ASSETHOSTNAME(sourceip) AS 'SourceAssetName', sourceport AS 'SourcePort', preNatSourceIP AS 'PreNATSourceIP', preNatSourcePort AS 'PreNATSourcePort', postNatSourceIP AS 'PostNATSourceIP', postNatSourcePort AS 'PostNATSourcePort', sourcev6 AS 'SourceIPv6', sourceMAC AS 'SourceMAC', sourceaddress AS 'SourceAddress', sourcegeographiclocation AS 'SourceGeographicLocation', NetworkName(sourceip) AS 'SourceNetworkName', destinationip AS 'DestinationIP', ASSETHOSTNAME(destinationip) AS 'DestinationAssetName', destinationPort AS 'DestinationPort', preNatDestinationIP AS 'PreNATDestinationIP', preNatDestinationPort AS 'PreNATDestinationPort', postNatDestinationIP AS 'PostNATDestinationIP', postNatDestinationPort AS 'PostNATDestinationPort', destinationv6 AS 'DestinationIPv6', destinationMAC AS 'DestinationMAC', destinationaddress AS 'DestinationAddress', destinationgeographiclocation AS 'DestinationGeographicLocation', NetworkName(destinationip) AS 'DestinationNetworkName', payload AS 'Payload(base64)', UTF8(payload) AS 'Payload(UTF)', protocolid AS 'ProtocolID', ProtocolName(protocolid) AS 'Protocol', logsourceid AS 'LogSourceID', LOGSOURCENAME(logsourceid) AS 'LogSource', HOSTNAME(logsourceid) AS 'LogSourceHostname', deviceGroupList AS 'DeviceGroupListID', LOGSOURCEGROUPNAME(deviceGroupList) AS 'DeviceGroupListName', deviceType AS 'DeviceTypeID', LOGSOURCETYPENAME(deviceType) AS 'DeviceTypeName', eventcount AS 'EventCount', creeventlist AS 'CustomRuleIDs', RULENAME(creeventlist) AS 'CustomRules', partialmatchlist AS 'CustomRulesPartiallyMatchedIDs', RULENAME(partialmatchlist) AS 'CustomRulesPartiallyMatched', geographiclocation AS 'GeographicLocation', hasOffense AS 'HasOffense', isCREEvent AS 'IsCustomRuleEvent', isduplicate AS 'IsDuplicateevent', isunparsed AS 'EventIsUnparsed', pcappacket AS 'PCAPpacket', processorId AS 'EventProcessorID', PROCESSORNAME(processorid) AS 'EventProcessorName', adekey AS 'AdeKey', adevalue AS 'AdeValue', identityip AS 'IdentityIP', identityhostname AS 'IdentityHostName', hasIdentity AS 'HasIdentity' from events where SourceIP = '192.168.85.65' AND LowLevelCategory IN ('Information','Firewall Permit')
Query Time Type	Required	The time type to query results. The available options are First Persisted Time, Last Persisted Time, Start Time, Close Time, and Last Updated Time.	First Persisted Time

Incident Field Mapping

For this integration, the default incident fields in D3 SOAR are fixed with no built-in source fields. Users can specify the source fields as needed.

Event and Incident Intake Field Mapping

Please note that incident and event intake commands require both Event Field and Incident Field Mapping. These field mappings are the default event/incident field mappings for D3 system integrations. You can edit the provided mappings or create custom mappings as needed. Please refer to Event and Incident Intake Field Mapping for more details.

Incident Main JSON Path: $

Field Name	Source Field
Title	User to define
Description	User to define
Severity	User to define, default is “Low”
Incident Type *	User to define, default is the first Incident form in D3 SOAR system
Incident Creator	User to define
Incident Owner	User to define
Incident Playbook	User to define
Due In Date	User to define
Unique Key	User to define
Tactics	User to define
Techniques	User to define

Event Field Mapping

Main Event JSON Path

$.events

The event field mapping in Fetch Incident is the same as the one in Command Fetch Event.

Please refer to the command Fetch Event for detail.

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "username_count": 0,
        "description": "Session Allowed\n",
        "rules": [
            {
                "id": *****,
                "type": "CRE_RULE"
            }
        ],
        "event_count": 1,
        "flow_count": 0,
        "assigned_to": null,
        "security_category_count": 1,
        "follow_up": false,
        "source_address_ids": [
            *****
        ],
        "source_count": 1,
        "inactive": true,
        "protected": false,
        "closing_user": null,
        "destination_networks": [
            "other"
        ],
        "source_network": "Net-*****.Net_*****",
        "category_count": 1,
        "close_time": null,
        "remote_destination_count": 1,
        "start_time": 1637230073981,
        "magnitude": 2,
        "last_updated_time": 1637230073981,
        "credibility": 2,
        "id": *****,
        "categories": [
            "Firewall Permit"
        ],
        "severity": 5,
        "policy_category_count": 0,
        "closing_reason_id": null,
        "device_count": 1,
        "offense_type": 1,
        "relevance": 0,
        "domain_id": 0,
        "offense_source": "52.109.16.0",
        "local_destination_address_ids": [],
        "local_destination_count": 0,
        "status": "OPEN",
        "source_ip": [
            "1.1.1.1"
        ],
        "local_destination_ip": [
            "1.1.1.1"
        ],
        "events": [
            {
                "QID": *****,
                "EventName": "Session Allowed",
                "LowLevelCategoryID": *****,
                "LowLevelCategory": "Firewall Permit",
                "HighlevelCategoryID": *****,
                "HighlevelCategory": "Access",
                "EventDescription": "Session was allowed by policy",
                "Magnitude": 3,
                "Relevance": 1,
                "Severity": 5,
                "Credibility": 5,
                "Username": null,
                "StartTime (timestamp)": 1638172799640,
                "StartTime": "2021-11-28 23:59:59 -0800",
                "StorageTime (timestamp)": 1638172799640,
                "StorageTime": "2021-11-28 23:59:59 -0800",
                "Duration": 0,
                "LogSourceTime(timestamp)": 1638173733000,
                "LogSourceTime": "2021-11-29 00:15:33 -0800",
                "DomainID": 0,
                "Domain": "Default Domain",
                "EventDirection": "L2L",
                "SourceIP": "1.1.1.1",
                "SourceAssetName": null,
                "SourcePort": *****,
                "PreNATSourceIP": "0.0.0.0",
                "PreNATSourcePort": 0,
                "PostNATSourceIP": "0.0.0.0",
                "PostNATSourcePort": 0,
                "SourceIPv6": "0:0:0:0:0:0:0:0",
                "SourceMAC": "00:00:00:00:00:00",
                "SourceAddress": "1.1.1.1",
                "SourceGeographicLocation": "other",
                "SourceNetworkName": "Net_*****",
                "DestinationIP": "1.1.1.1",
                "DestinationAssetName": null,
                "DestinationPort": 500,
                "PreNATDestinationIP": "0.0.0.0",
                "PreNATDestinationPort": 0,
                "PostNATDestinationIP": "0.0.0.0",
                "PostNATDestinationPort": 0,
                "DestinationIPv6": "0:0:0:0:0:0:0:0",
                "DestinationMAC": "00:00:00:00:00:00",
                "DestinationAddress": "1.2.3.4",
                "DestinationGeographicLocation": "other",
                "DestinationNetworkName": "Net_*****",
                "Payload(base64)": "*****",
                "Payload(UTF)": "<14>Nov 29 00:15:34 PA-220 1,2021/11/29 00:15:33,012801170140,TRAFFIC,end,2561,2021/11/29 00:15:33,*****",
                "ProtocolID": ***,
                "Protocol": "UDP",
                "LogSourceID": ***,
                "LogSource": "PaSeries @ PA-***",
                "LogSourceHostname": "Unknown Host ***",
                "DeviceGroupListID": [
                    0
                ],
                "DeviceGroupListName": [
                    "Other"
                ],
                "DeviceTypeID": 206,
                "DeviceTypeName": "Palo Alto PA Series",
                "EventCount": 1,
                "CustomRuleIDs": [
                    ***,
                    ***
                ],
                "CustomRules": [
                    "BB:ProtocolDefinition: Windows Protocols",
                    "BB:CategoryDefinition: Firewall or ACL Accept",
                    "Context is Local to Local",
                    "Test_Login",
                    "D3 Test internal",
                    "Source Asset Weight is Low",
                    "Destination Asset Weight is Low",
                    "BB:DeviceDefinition: IDS / IPS",
                    "BB:DeviceDefinition: FW / Router / Switch",
                    "Load Basic Building Blocks"
                ],
                "CustomRulesPartiallyMatchedIDs": [],
                "CustomRulesPartiallyMatched": [
                    "null"
                ],
                "GeographicLocation": "other",
                "HasOffense": true,
                "IsCustomRuleEvent": false,
                "IsDuplicateevent": false,
                "EventIsUnparsed": false,
                "PCAPpacket": false,
                "EventProcessorID": 8,
                "EventProcessorName": "eventprocessor0",
                "AdeKey": null,
                "AdeValue": null,
                "IdentityIP": "0.0.0.0",
                "IdentityHostName": null,
                "HasIdentity": false
            }
        ]
    }
]

Key Fields

SAMPLE DATA

{
    "OffenseIDs": [
        ***
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

No Sample Data

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Fetch Incident failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The query_expression contains invalid AQL syntax.

Error Sample Data

Fetch Incident failed.

Status Code: 422.

Message: The query_expression contains invalid AQL syntax.

Get Offenses

Retrieves a list of offenses corresponding to the given offense IDs.

READER NOTE

The input parameter Offense IDs is required to run this command.

You should already have your desired Offense IDs on hand to run this command. If you don’t, you may use the Fetch Incident command with defined filters to retrieve the desired Offense IDs. The Offense IDs can be found in the raw data at the path $.[*].id.
Ensure the input Offense IDs are valid. If the input Offense IDs do not exist, the command will run successfully with no results. If you input multiple Offense IDs, only the corresponding offense of valid input Offense IDs will return.

Input

Input Parameter	Required/Optional	Description	Example
Offense IDs	Required	The ID(s) of the offense(s) to retrieve corresponding objects with the properties of the offense(s). Offense IDs can be obtained using the Fetch Incident command.	[1, 2, 3]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "username_count": 0,
        "description": "QRadar SIM Audit Event Stopped\n",
        "rules": [
            {
                "id": *****,
                "type": "CRE_RULE"
            }
        ],
        "event_count": 3,
        "flow_count": 0,
        "assigned_to": null,
        "security_category_count": 1,
        "follow_up": false,
        "source_address_ids": [
            94
        ],
        "source_count": 1,
        "inactive": true,
        "protected": false,
        "closing_user": null,
        "destination_networks": [
            "other"
        ],
        "source_network": "other",
        "category_count": 1,
        "close_time": null,
        "remote_destination_count": 1,
        "start_time": 1623714707961,
        "magnitude": 5,
        "last_updated_time": 1623720473533,
        "credibility": 3,
        "id": 564,
        "categories": [
            "Critical"
        ],
        "severity": 9,
        "policy_category_count": 0,
        "log_sources": [
            {
                "type_name": "EventCRE",
                "type_id": *****,
                "name": "Custom Rule Engine-8 :: qradar74",
                "id": *****
            }
        ],
        "closing_reason_id": null,
        "device_count": 1,
        "offense_type": 6,
        "relevance": 3,
        "domain_id": 0,
        "offense_source": "Custom Rule Engine-8 :: qradar74",
        "local_destination_address_ids": [],
        "local_destination_count": 0,
        "status": "OPEN"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

SAMPLE DATA

[
    {
        "username_count": 0,
        "description": "QRadar SIM Audit Event Stopped\n",
        "rules": [
            {
                "id": *****,
                "type": "CRE_RULE"
            }
        ],
        "event_count": 3,
        "flow_count": 0,
        "assigned_to": null,
        "security_category_count": 1,
        "follow_up": false,
        "source_address_ids": [
            *****
        ],
        "source_count": 1,
        "inactive": true,
        "protected": false,
        "closing_user": null,
        "destination_networks": [
            "other"
        ],
        "source_network": "other",
        "category_count": 1,
        "close_time": null,
        "remote_destination_count": 1,
        "start_time": 1623714707961,
        "magnitude": 5,
        "last_updated_time": 1623720473533,
        "credibility": 3,
        "id": *****,
        "categories": [
            "Critical"
        ],
        "severity": 9,
        "policy_category_count": 0,
        "log_sources": [
            {
                "type_name": "EventCRE",
                "type_id": *****,
                "name": "Custom Rule Engine-8 :: qradar74",
                "id": *****
            }
        ],
        "closing_reason_id": null,
        "device_count": 1,
        "offense_type": 6,
        "relevance": 3,
        "domain_id": 0,
        "offense_source": "Custom Rule Engine-8 :: qradar74",
        "local_destination_address_ids": [],
        "local_destination_count": 0,
        "status": "OPEN"
    }
]

Key Fields

SAMPLE DATA

{
    "ID": [
        1,
        2,
        3
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

USERNAME_COUNT	DESCRIPTION	RULES	EVENT_COUNT	FLOW_COUNT	ASSIGNED_TO	SECURITY_CATEGORY_COUNT	FOLLOW_UP	SOURCE_ADDRESS_IDS	SOURCE_COUNT	INACTIVE	PROTECTED	CLOSING_USER	DESTINATION_NETWORKS	SOURCE_NETWORK	CATEGORY_COUNT	CLOSE_TIME	REMOTE_DESTINATION_COUNT	START_TIME	MAGNITUDE	LAST_UPDATED_TIME	CREDIBILITY	ID	CATEGORIES	SEVERITY	POLICY_CATEGORY_COUNT	LOG_SOURCES	CLOSING_REASON_ID	DEVICE_COUNT	OFFENSE_TYPE	RELEVANCE	DOMAIN_ID	OFFENSE_SOURCE	LOCAL_DESTINATION_ADDRESS_IDS	LOCAL_DESTINATION_COUNT	STATUS
0	QRadar SIM Audit Event Stopped	[{'id': *****, 'type': 'CRE_RULE'}]	3	0	None	1	False	[94]	1	True	False	None	['other']	other	1	None	1	1623714707961	5	1623720473533	3	564	['Critical']	9	0	[{'type_name': 'EventCRE', 'type_id': 18, 'name': 'Custom Rule Engine-8 :: qradar74', 'id': ***}]	None	1	6	3	0	Custom Rule Engine-8 :: qradar74	[]	0	OPEN

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Offenses failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The value for parameter (Offense IDs) is invalid.

Error Sample Data

Get Offenses failed.

Status Code: 400.

Message: The value for parameter (Offense IDs) is invalid.

Get Rule Names

Retrieves a list of rule names corresponding to the given rule IDs.

READER NOTE

The input parameter Rule IDs is required to run this command.

You should already have your desired Rule IDs on hand to run this command. If you don’t, you may use the Fetch Incident command with defined filters to retrieve the desired Rule IDs. The Rule IDs can be found in the raw data at the path $.[*].rules.[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Rule IDs	Required	The ID(s) of the rule(s) to return. Rule IDs can be obtained using the Fetch Incident command.	[*, *]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "owner": "admin",
        "identifier": "***-***",
        "base_host_id": null,
        "capacity_timestamp": null,
        "origin": "SYSTEM",
        "creation_date": 1409839453360,
        "type": "EVENT",
        "enabled": false,
        "modification_date": 1615940222742,
        "linked_rule_identifier": "***-***-***-***-***",
        "name": "Vulnerabilities: Vulnerability Reported by Scanner",
        "average_capacity": null,
        "id": *****,
        "base_capacity": null
    },
    {
        "owner": "admin",
        "identifier": "**-***",
        "base_host_id": 0,
        "capacity_timestamp": 0,
        "origin": "SYSTEM",
        "creation_date": 1409839389980,
        "type": "EVENT",
        "enabled": false,
        "modification_date": 1597284487171,
        "linked_rule_identifier": null,
        "name": "Policy: New Host Discovered in DMZ",
        "average_capacity": 0,
        "id": *****,
        "base_capacity": 0
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

SAMPLE DATA

[
    {
        "owner": "admin",
        "identifier": "***-***",
        "base_host_id": null,
        "capacity_timestamp": null,
        "origin": "SYSTEM",
        "creation_date": 1409839453360,
        "type": "EVENT",
        "enabled": false,
        "modification_date": 1615940222742,
        "linked_rule_identifier": "***-**-***-***-**",
        "name": "Vulnerabilities: Vulnerability Reported by Scanner",
        "average_capacity": null,
        "id": *****,
        "base_capacity": null
    }
]

Key Fields

SAMPLE DATA

{
    "ID": "*****,\r\n\"name\": \"Vulnerabilities: Vulnerability Reported by Scanner\"\r\n},\r\n{\r\n\"id\": *****,\r\n\"name\": \"Policy: New Host Discovered in DMZ\"\r\n}\r\n]"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

OWNER	IDENTIFIER	BASE_HOST_ID	CAPACITY_TIMESTAMP	ORIGIN	CREATION_DATE	TYPE	ENABLED	MODIFICATION_DATE	LINKED_RULE_IDENTIFIER	NAME	AVERAGE_CAPACITY	ID	BASE_CAPACITY
admin	*-*	None	None	SYSTEM	1409839453360	EVENT	False	1615940222742	*----**	Vulnerabilities: Vulnerability Reported by Scanner	None	*****	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Rule Names failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The value for parameter (Rule IDs) is invalid.

Error Sample Data

Get Rule Names failed.

Status Code: 400.

Message: The value for parameter (Rule IDs) is invalid..

Get Reference Set By Name

Retrieves a Reference Set and its details by reference set name.

READER NOTE

Reference Set Name is a required parameter to run this command.

Run the List Reference Sets command to obtain the Reference Set Name. Reference Set Names can be found in the returned raw data at the path $.[*].name.

Input

Input Parameter	Required/Optional	Description	Example
Reference Set Name	Required	The name(s) of the reference set(s) to retrieve. Reference set names can be obtained using the List Reference Sets command.	*** Test*

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "time_to_live": "0 years 0 mons 3 days 0 hours 0 mins 0.00 secs",
    "timeout_type": "FIRST_SEEN",
    "number_of_elements": 1,
    "data": [
        {
            "last_seen": 1627938438620,
            "first_seen": 1627938438620,
            "source": "Context is Remote to Local",
            "value": "1.1.1.100"
        }
    ],
    "creation_time": 1626378517568,
    "name": "*** Test*",
    "element_type": "IP"
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 converts the value under key “creation_time”, “last_seen” and “first_seen” from milliseconds to UTC Date time.

SAMPLE DATA

{
    "time_to_live": "0 years 0 mons 3 days 0 hours 0 mins 0.00 secs",
    "timeout_type": "FIRST_SEEN",
    "number_of_elements": 1,
    "data": [
        {
            "last_seen": "2021-08-02T21:07:18.62Z",
            "first_seen": "2021-08-02T21:07:18.62Z",
            "source": "Context is Remote to Local",
            "value": "1.1.1.100"
        }
    ],
    "creation_time": "2021-07-15T19:48:37.568Z",
    "name": "*** Test*",
    "element_type": "IP"
}

Key Fields

SAMPLE DATA

{
    "TimeToLive": "0 years 0 mons 3 days 0 hours 0 mins 0.00 secs",
    "TimeoutType": "FIRST_SEEN",
    "NumberOfElements": 6,
    "CreationTime": "2021-07-15T19:48:37.568Z",
    "Name": "Tenable.sc scan IP",
    "ElementType": [
        "IP"
    ],
    "DataSource": [
        "Context is Remote to Local"
    ],
    "DataValue": [
        "1.1.1.100"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

time_to_live	0 years 0 mons 3 days 0 hours 0 mins 0.00 secs
timeout_type	FIRST_SEEN
number_of_elements	1
data	{'last_seen': '2021-08-02T21:07:18.62Z', 'first_seen': '2021-08-02T21:07:18.62Z', 'source': 'Context is Remote to Local', 'value': '1.1.1.100'}
creation_time	2021-07-15T19:48:37.568Z
name	** Test*
element_type	IP

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Reference Set By Name failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The Reference Set does not exist.

Error Sample Data

Get Reference Set By Name failed.

Status Code: 404.

Message: The Reference Set does not exist.

Get Rule Details With Use Case Manager

Retrieves the detail(s) of the rule(s) with QRadar Use Case Manager application. Returned fields include rule Notes, Test Descriptions, Event Description, Response Details, Action Details and Offense Type etc.

READER NOTE

Rule Names and Report ID are required parameters to run this command.

Run the Search Rules command to obtain the Rule Names. Rule Names can be found in the returned raw data at the path $.name.
Run the Create Rule Explorer Report command to obtain the Report ID. Report ID can be found in the returned raw data at the path $.reportId.

Input

Input Parameter

Required/Optional

Description

Example

Rule Names

Required

The name(s) of the rule(s) to get details. Rule Names can be obtained using the Search Rules command.

[

"Excessive Database Connections"

]

Report ID

Required

The ID of the use case explorer report. Report ID can be obtained using the Create Rule Explorer Report Command.

***-***-***-***-***

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "results": [
        {
            "_id": "***",
            "N": "Excessive Database Connections",
            "GR": "Anomaly, Recon",
            "RC": "Custom Rule",
            "T": "EVENT",
            "RO": "SYSTEM",
            "EN": true,
            "RE": "Dispatch New Event",
            "CD": ***,
            "MD": ***,
            "NO": "Rule detects an excessive number of successful database connections.",
            "TD": "[\"APPLY Excessive Database Connections on events which are detected by the LOCAL system\",\"AND when any of these BB:CategoryDefinition: Database Connections with the same source IP more than 60 times, across exactly 1 destination IP within 1 minutes\"]",
            "ED": "An excessive number (more than 1 per second) of successful database connections have been made to this host.  This may be a false alarm on some very busy servers. However, it can often also be caused by poorly written applications that are wasting resources continually connecting to the database for every query.",
            "RED": "[\"Dispatch New Event\",\"Event name: Excessive Database Connections\",\"Event description: An excessive number (more than 1 per second) of successful database connections have been made to this host.  This may be a false alarm on some very busy servers. However, it can often also be caused by poorly written applications that are wasting resources continually connecting to the database for every query.\",\"Severity: 3, Credibility: 5, Relevance: 3\",\"High-Level Category: \\\"Suspicious Activity\\\"\",\"Low-Level Category: \\\"Suspicious Pattern Detected\\\"\",\"Force the dispatched event to create a NEW offense, select the offense using Source IP\",\"This information should not contribute to the naming of the associated offense(s)\"]",
            "AD": "[\"Force the detected Event to create a NEW offense, select the offense using Source IP\"]",
            "TG": "Never",
            "OT": "Source IP",
            "uuid": "*****-******",
            "ID": "*****"
        }
    ]
}

Key Fields

SAMPLE DATA

{
  "RuleIDs": ["*****"],
  "RuleNames": ["Excessive Database Connections"],
  "Identifiers": ["*****-***"],
  "Notes": ["Rule detects an excessive number of successful database connections."],
  "TestDescriptions": ["[\"APPLY Excessive Database Connections on events which are detected by the LOCAL system\",\"AND when any of these BB:CategoryDefinition: Database Connections with the same source IP more than 60 times, across exactly 1 destination IP within 1 minutes\"]"],
  "ActionDetails": ["[\"Force the detected Event to create a NEW offense, select the offense using Source IP\"]"],
  "OffenseTypes": ["Source IP"],
  "ResponseDetails": ["[\"Dispatch New Event\",\"Event name: Excessive Database Connections\",\"Event description: An excessive number (more than 1 per second) of successful database connections have been made to this host.  This may be a false alarm on some very busy servers. However, it can often also be caused by poorly written applications that are wasting resources continually connecting to the database for every query.\",\"Severity: 3, Credibility: 5, Relevance: 3\",\"High-Level Category: \\\"Suspicious Activity\\\"\",\"Low-Level Category: \\\"Suspicious Pattern Detected\\\"\",\"Force the dispatched event to create a NEW offense, select the offense using Source IP\",\"This information should not contribute to the naming of the associated offense(s)\"]"]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

results

{'_id': '*****', 'N': 'Excessive Database Connections', 'GR': 'Anomaly, Recon', 'RC': 'Custom Rule', 'T': 'EVENT', 'RO': 'SYSTEM', 'EN': True, 'RE': 'Dispatch New Event', 'CD': *****, 'MD': *****, 'NO': 'Rule detects an excessive number of successful database connections.', 'TD': '["APPLY Excessive Database Connections on events which are detected by the LOCAL system","AND when any of these BB:CategoryDefinition: Database Connections with the same source IP more than 60 times, across exactly 1 destination IP within 1 minutes"]', 'ED': 'An excessive number (more than 1 per second) of successful database connections have been made to this host. This may be a false alarm on some very busy servers. However, it can often also be caused by poorly written applications that are wasting resources continually connecting to the database for every query.', 'RED': '["Dispatch New Event","Event name: Excessive Database Connections","Event description: An excessive number (more than 1 per second) of successful database connections have been made to this host. This may be a false alarm on some very busy servers. However, it can often also be caused by poorly written applications that are wasting resources continually connecting to the database for every query.","Severity: 3, Credibility: 5, Relevance: 3","High-Level Category: \\"Suspicious Activity\\"","Low-Level Category: \\"Suspicious Pattern Detected\\"","Force the dispatched event to create a NEW offense, select the offense using Source IP","This information should not contribute to the naming of the associated offense(s)"]', 'AD': '["Force the detected Event to create a NEW offense, select the offense using Source IP"]', 'TG': 'Never', 'OT': 'Source IP', 'uuid': '*****-*****', 'ID': '*****'}

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Rule Details With Use Case Manager failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Rule Names not found.

Error Sample Data

Get Rule Details With Use Case Manager failed.

Status Code: 404.

Message: Rule Names not found.

Get Search Results

Retrieves search results corresponding to the given Search ID. The returned results can be found in the returned data, at the path $.events. No events will be created in D3 SOAR.

READER NOTE

Search ID is a required parameter to run this command.

Run the Search command to obtain the Search ID. Search IDs can be found in the returned raw data at the path $.cursor_id.

Input

Input Parameter	Required/Optional	Description	Example
Search ID	Required	The ID of the search to return. Search IDs can be obtained using the Search command.	*----**

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "events": [
        {
            "starttime": 1624086087312,
            "protocolid": ***,
            "sourceip": "1.1.1.1.\",
            "logsourceid": ***,
            "qid": *****,
            "sourceport": 0,
            "eventcount": 1,
            "magnitude": 6,
            "identityip": "0.0.0.0",
            "destinationip": "1.2.3.4",
            "destinationport": 0,
            "category": 8055,
            "username": null
        }
    ]
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.events in API returned JSON.

SAMPLE DATA

[
    {
        "starttime": 1624086087312,
        "protocolid": ***,
        "sourceip": "1.2.3.4",
        "logsourceid": ***,
        "qid": *****,
        "sourceport": 0,
        "eventcount": 1,
        "magnitude": 6,
        "identityip": "0.0.0.0",
        "destinationip": "1.2.3.4",
        "destinationport": 0,
        "category": 8055,
        "username": null
    }
]

Key Fields

SAMPLE DATA

{
    "search_id": "***-***-***-***-***"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

STARTTIME	PROTOCOLID	SOURCEIP	LOGSOURCEID	QID	SOURCEPORT	EVENTCOUNT	MAGNITUDE	IDENTITYIP	DESTINATIONIP	DESTINATIONPORT	CATEGORY	USERNAME
1624086087312	***	1.1.1.1	***	***	0	1	6	0.0.0.0	1.1.1.1	0	8055	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Search Results failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Failed to retrieve data.

Error Sample Data

Get Search Results failed.

Status Code: 404.

Message: Failed to retrieve data.

Get Search Status

Retrieves the status of a search corresponding to the given Search ID.

READER NOTE

Search ID is a required parameter to run this command.

Run the Search command to obtain the Search ID. Search IDs can be found in the returned raw data at the path $.cursor_id.

Input

Input Parameter	Required/Optional	Description	Example
Search ID	Required	The ID of the search to return status information. Search IDs can be obtained using the Search command.	*----**

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "cursor_id": "***-***-***-***-***",
    "status": "COMPLETED",
    "compressed_data_file_count": 0,
    "compressed_data_total_size": 0,
    "data_file_count": 2,
    "data_total_size": 723,
    "index_file_count": 0,
    "index_total_size": 0,
    "processed_record_count": 2,
    "desired_retention_time_msec": 86400000,
    "progress": 100,
    "progress_details": [],
    "query_execution_time": 5,
    "query_string": "select qid AS 'QID', QidName(qid) AS 'Event Name', category AS 'Low Level Category ID', CategoryName(category) AS 'Low Level Category', highlevelcategory AS 'High level Category ID', CategoryName(highlevelcategory) AS 'High level Category', QIDDESCRIPTION(qid) AS 'Event Description', magnitude AS 'Magnitude', relevance AS 'Relevance', severity AS 'Severity', credibility AS 'Credibility', userName AS 'Username', starttime AS 'Start Time (timestamp)', DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss z') AS 'Start Time', endTime AS 'Storage Time (timestamp)', DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss z') AS 'Storage Time', duration AS 'Duration', devicetime AS 'Log Source Time (timestamp)', DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss z') AS 'Log Source Time', domainID AS 'Domain ID', DOMAINNAME(domainID) AS 'Domain', eventDirection AS 'Event Direction', sourceip AS 'Source IP', ASSETHOSTNAME(sourceip) AS 'Source Asset Name', sourceport AS 'Source Port', preNatSourceIP AS 'Pre NAT Source IP', preNatSourcePort AS 'Pre NAT Source Port', postNatSourceIP AS 'Post NAT Source IP', postNatSourcePort AS 'Post NAT Source Port', sourcev6 AS 'Source IPv6', sourceMAC AS 'Source MAC', sourceaddress AS 'Source Address', sourcegeographiclocation AS 'Source Geographic Location', NetworkName(sourceip) AS 'Source Network Name', destinationip AS 'Destination IP', ASSETHOSTNAME(destinationip) AS 'Destination Asset Name', destinationPort AS 'Destination Port', preNatDestinationIP AS 'Pre NAT Destination IP', preNatDestinationPort AS 'Pre NAT Destination Port', postNatDestinationIP AS 'Post NAT Destination IP', postNatDestinationPort AS 'Post NAT Destination Port', destinationv6 AS 'Destination IPv6', destinationMAC AS 'Destination MAC', destinationaddress AS 'Destination Address', destinationgeographiclocation AS 'Destination Geographic Location', NetworkName(destinationip) AS 'Destination Network Name', payload AS 'Payload (base64)', UTF8(payload) AS 'Payload (UTF)', protocolid AS 'Protocol ID', ProtocolName(protocolid) AS 'Protocol', logsourceid AS 'Log Source ID', LOGSOURCENAME(logsourceid) AS 'Log Source', HOSTNAME(logsourceid) AS 'Log Source Hostname', deviceGroupList AS 'Device Group List ID', LOGSOURCEGROUPNAME(deviceGroupList) AS 'Device Group List Name', deviceType AS 'Device Type ID', LOGSOURCETYPENAME(deviceType) AS 'Device Type Name', eventcount AS 'Event Count', creeventlist AS 'Custom Rule IDs', RULENAME(creeventlist) AS 'Custom Rules', partialmatchlist AS 'Custom Rules Partially Matched IDs', RULENAME(partialmatchlist) AS 'Custom Rules Partially Matched', geographiclocation AS 'Geographic Location', hasOffense AS 'Has Offense', isCREEvent AS 'Is Custom Rule Event', isduplicate AS 'Is Duplicate event', isunparsed AS 'Event is unparsed', pcappacket AS 'PCAP packet', processorId AS 'Event processor ID', PROCESSORNAME(processorid) AS 'Event processor Name', adekey AS 'Ade key', adevalue AS 'Ade value', identityip AS 'Identity IP', identityhostname AS 'Identity Host Name', hasIdentity AS 'Has identity' from events",
    "record_count": 2,
    "size_on_disk": 679,
    "save_results": false,
    "completed": true,
    "subsearch_ids": [],
    "snapshot": null,
    "search_id": "***-***-***-***-***"
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

SAMPLE DATA

{
    "cursor_id": "***-***-***-***-***",
    "status": "COMPLETED",
    "compressed_data_file_count": 0,
    "compressed_data_total_size": 0,
    "data_file_count": 2,
    "data_total_size": 723,
    "index_file_count": 0,
    "index_total_size": 0,
    "processed_record_count": 2,
    "desired_retention_time_msec": 86400000,
    "progress": 100,
    "progress_details": [],
    "query_execution_time": 5,
    "query_string": "select qid AS 'QID', QidName(qid) AS 'Event Name', category AS 'Low Level Category ID', CategoryName(category) AS 'Low Level Category', highlevelcategory AS 'High level Category ID', CategoryName(highlevelcategory) AS 'High level Category', QIDDESCRIPTION(qid) AS 'Event Description', magnitude AS 'Magnitude', relevance AS 'Relevance', severity AS 'Severity', credibility AS 'Credibility', userName AS 'Username', starttime AS 'Start Time (timestamp)', DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss z') AS 'Start Time', endTime AS 'Storage Time (timestamp)', DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss z') AS 'Storage Time', duration AS 'Duration', devicetime AS 'Log Source Time (timestamp)', DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss z') AS 'Log Source Time', domainID AS 'Domain ID', DOMAINNAME(domainID) AS 'Domain', eventDirection AS 'Event Direction', sourceip AS 'Source IP', ASSETHOSTNAME(sourceip) AS 'Source Asset Name', sourceport AS 'Source Port', preNatSourceIP AS 'Pre NAT Source IP', preNatSourcePort AS 'Pre NAT Source Port', postNatSourceIP AS 'Post NAT Source IP', postNatSourcePort AS 'Post NAT Source Port', sourcev6 AS 'Source IPv6', sourceMAC AS 'Source MAC', sourceaddress AS 'Source Address', sourcegeographiclocation AS 'Source Geographic Location', NetworkName(sourceip) AS 'Source Network Name', destinationip AS 'Destination IP', ASSETHOSTNAME(destinationip) AS 'Destination Asset Name', destinationPort AS 'Destination Port', preNatDestinationIP AS 'Pre NAT Destination IP', preNatDestinationPort AS 'Pre NAT Destination Port', postNatDestinationIP AS 'Post NAT Destination IP', postNatDestinationPort AS 'Post NAT Destination Port', destinationv6 AS 'Destination IPv6', destinationMAC AS 'Destination MAC', destinationaddress AS 'Destination Address', destinationgeographiclocation AS 'Destination Geographic Location', NetworkName(destinationip) AS 'Destination Network Name', payload AS 'Payload (base64)', UTF8(payload) AS 'Payload (UTF)', protocolid AS 'Protocol ID', ProtocolName(protocolid) AS 'Protocol', logsourceid AS 'Log Source ID', LOGSOURCENAME(logsourceid) AS 'Log Source', HOSTNAME(logsourceid) AS 'Log Source Hostname', deviceGroupList AS 'Device Group List ID', LOGSOURCEGROUPNAME(deviceGroupList) AS 'Device Group List Name', deviceType AS 'Device Type ID', LOGSOURCETYPENAME(deviceType) AS 'Device Type Name', eventcount AS 'Event Count', creeventlist AS 'Custom Rule IDs', RULENAME(creeventlist) AS 'Custom Rules', partialmatchlist AS 'Custom Rules Partially Matched IDs', RULENAME(partialmatchlist) AS 'Custom Rules Partially Matched', geographiclocation AS 'Geographic Location', hasOffense AS 'Has Offense', isCREEvent AS 'Is Custom Rule Event', isduplicate AS 'Is Duplicate event', isunparsed AS 'Event is unparsed', pcappacket AS 'PCAP packet', processorId AS 'Event processor ID', PROCESSORNAME(processorid) AS 'Event processor Name', adekey AS 'Ade key', adevalue AS 'Ade value', identityip AS 'Identity IP', identityhostname AS 'Identity Host Name', hasIdentity AS 'Has identity' from events",
    "record_count": 2,
    "size_on_disk": 679,
    "save_results": false,
    "completed": true,
    "subsearch_ids": [],
    "snapshot": null,
    "search_id": "***-***-***-***-***"
}

Key Fields

SAMPLE DATA

{
    "IDs": [
        "***-***-***-***-***"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

cursor_id	*----**
status	COMPLETED
compressed_data_file_count	0
compressed_data_total_size	0
data_file_count	2
data_total_size	723
index_file_count	0
index_total_size	0
processed_record_count	2
desired_retention_time_msec	86400000
progress	100
progress_details	[]
query_execution_time	5
query_string	select qid AS 'QID', QidName(qid) AS 'Event Name', category AS 'Low Level Category ID', CategoryName(category) AS 'Low Level Category', highlevelcategory AS 'High level Category ID', CategoryName(highlevelcategory) AS 'High level Category', QIDDESCRIPTION(qid) AS 'Event Description', magnitude AS 'Magnitude', relevance AS 'Relevance', severity AS 'Severity', credibility AS 'Credibility', userName AS 'Username', starttime AS 'Start Time (timestamp)', DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss z') AS 'Start Time', endTime AS 'Storage Time (timestamp)', DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss z') AS 'Storage Time', duration AS 'Duration', devicetime AS 'Log Source Time (timestamp)', DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss z') AS 'Log Source Time', domainID AS 'Domain ID', DOMAINNAME(domainID) AS 'Domain', eventDirection AS 'Event Direction', sourceip AS 'Source IP', ASSETHOSTNAME(sourceip) AS 'Source Asset Name', sourceport AS 'Source Port', preNatSourceIP AS 'Pre NAT Source IP', preNatSourcePort AS 'Pre NAT Source Port', postNatSourceIP AS 'Post NAT Source IP', postNatSourcePort AS 'Post NAT Source Port', sourcev6 AS 'Source IPv6', sourceMAC AS 'Source MAC', sourceaddress AS 'Source Address', sourcegeographiclocation AS 'Source Geographic Location', NetworkName(sourceip) AS 'Source Network Name', destinationip AS 'Destination IP', ASSETHOSTNAME(destinationip) AS 'Destination Asset Name', destinationPort AS 'Destination Port', preNatDestinationIP AS 'Pre NAT Destination IP', preNatDestinationPort AS 'Pre NAT Destination Port', postNatDestinationIP AS 'Post NAT Destination IP', postNatDestinationPort AS 'Post NAT Destination Port', destinationv6 AS 'Destination IPv6', destinationMAC AS 'Destination MAC', destinationaddress AS 'Destination Address', destinationgeographiclocation AS 'Destination Geographic Location', NetworkName(destinationip) AS 'Destination Network Name', payload AS 'Payload (base64)', UTF8(payload) AS 'Payload (UTF)', protocolid AS 'Protocol ID', ProtocolName(protocolid) AS 'Protocol', logsourceid AS 'Log Source ID', LOGSOURCENAME(logsourceid) AS 'Log Source', HOSTNAME(logsourceid) AS 'Log Source Hostname', deviceGroupList AS 'Device Group List ID', LOGSOURCEGROUPNAME(deviceGroupList) AS 'Device Group List Name', deviceType AS 'Device Type ID', LOGSOURCETYPENAME(deviceType) AS 'Device Type Name', eventcount AS 'Event Count', creeventlist AS 'Custom Rule IDs', RULENAME(creeventlist) AS 'Custom Rules', partialmatchlist AS 'Custom Rules Partially Matched IDs', RULENAME(partialmatchlist) AS 'Custom Rules Partially Matched', geographiclocation AS 'Geographic Location', hasOffense AS 'Has Offense', isCREEvent AS 'Is Custom Rule Event', isduplicate AS 'Is Duplicate event', isunparsed AS 'Event is unparsed', pcappacket AS 'PCAP packet', processorId AS 'Event processor ID', PROCESSORNAME(processorid) AS 'Event processor Name', adekey AS 'Ade key', adevalue AS 'Ade value', identityip AS 'Identity IP', identityhostname AS 'Identity Host Name', hasIdentity AS 'Has identity' from events
record_count	2
size_on_disk	679
save_results	False
completed	True
subsearch_ids	[]
snapshot	None
search_id	*----**

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Search Status failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: We could not find the resource you requested.

Error Sample Data

Get Search Status failed.

Status Code: 404.

Message: We could not find the resource you requested.

Get Server Time Zone

Returns the local Time Zone of your Qradar server host.

READER NOTE

Please note this command requires Offenses permission. Please refer to User Roles for more details.

Input

Input Parameter	Required/Optional	Description	Example
Server IP or Hostname	Required	The private IP or host name of the Qradar server host.	1.1.1.1

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "current_time": 1676581283000,
    "currentTimeUtc": "2023-02-16T21:50:123Z",
    "sync_with_ntp_server": false,
    "timezone_id": "America/Vancouver",
    "ntp_server_addresses": null
}

Key Fields

SAMPLE DATA

{
  "TimeZoneID": "America/Vancouver",
  "ServerUTCTime": "2023-02-16T21:50:123Z"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

current_time	1676581283000
currentTimeUtc	2023-02-16T21:50:123Z
sync_with_ntp_server	False
timezone_id	America/Vancouver
ntp_server_addresses	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	GGet Server Time Zone failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: We could not find the resource you requested.

Error Sample Data

Get Server Time Zone failed.

Status Code: 404.

Message: We could not find the resource you requested.

List Local Destination IP Address

Retrieves a list of offense local destination addresses currently in the system. The results will be returned in ascending order and sorted by the numerical value of the ID (smaller IDs will be listed first).

Input

Input Parameter	Required/Optional	Description	Example
Fields	Optional	The list of fields to return in the response data. Fields that are not listed will be excluded. Separate fields with a comma. Leave this field empty to get all fields. The available input fields are: id local_destination_ip magnitude network offense_ids source_address_ids event_flow_count first_event_flow_seen last_event_flow_seen domain_id	local_destination_ip,id
Filter	Optional	The expression to filter the returned results. The available search keys can be found in the returned raw data after running this command. See Filter Syntax for more information about the syntax of the filter expression.	id in (44, 45, 46)
Range	Optional	The maximum number of elements to return. The default value is 50.	1

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "event_flow_count": 14,
        "source_address_ids": [],
        "first_event_flow_seen": 1623837160513,
        "last_event_flow_seen": 1623951580007,
        "local_destination_ip": "1.2.3.4",
        "magnitude": 0,
        "id": ***,
        "offense_ids": [
            ***
        ],
        "domain_id": 0,
        "network": "Net-*****.Net_*****"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

SAMPLE DATA

[
    {
        "event_flow_count": 14,
        "source_address_ids": [],
        "first_event_flow_seen": 1623837160513,
        "last_event_flow_seen": 1623951580007,
        "local_destination_ip": "1.2.3.4",
        "magnitude": 0,
        "id": ***,
        "offense_ids": [
            ***
        ],
        "domain_id": 0,
        "network": "Net-*****.Net_*****"
    }
]

Key Fields

SAMPLE DATA

{
    "IDs": [
        ***
    ],
    "localDestIPs": [
        "1.2.3.4"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

EVENT_FLOW_COUNT	SOURCE_ADDRESS_IDS	FIRST_EVENT_FLOW_SEEN	LAST_EVENT_FLOW_SEEN	LOCAL_DESTINATION_IP	MAGNITUDE	ID	OFFENSE_IDS	DOMAIN_ID	NETWORK
14	[]	1623837160513	1623951580007	1.2.3.4	0	***	[***]	0	Net-***.Net_1***

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Local Destination IP Address failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The request was well-formed but was unable to be followed due to semantic errors.

Error Sample Data

List Local Destination IP Address failed.

Status Code: 422.

Message: The request was well-formed but was unable to be followed due to semantic errors.

List Notes

Retrieves notes corresponding to the given Offense ID.

READER NOTE

Offense ID is a required parameter to run this command.

You should already have your desired Offense IDs on hand to run this command. If you don’t, you may use the Fetch Incident command with defined filters to retrieve the desired Offense IDs. The Offense IDs can be found in the raw data at the path $.[*].id.
Not all Offense IDs contain notes. If an input Offense ID does not contain any notes, the command will run successfully with no results returned. You can add notes to an offense using the Add Note command.

Input

Input Parameter	Required/Optional	Description	Example
Offense ID	Required	The ID(s) of the offense(s) to retrieve notes. Offense IDs can be obtained using the Fetch Incident command.	1**
Fields	Optional	The list of fields to return in the response. Fields that are not specified will be excluded. Separate fields with a comma. The valid fields are id, create_time, username, and note_text. Note: Leave this field empty to return all fields in the response.	id,username
Filter	Optional	The expression to filter the returned results. The available search keys can be found in the returned raw data after running this command. See Filter Syntax for more information about the syntax of the filter expression.	id=1**
Range	Optional	The maximum number of elements to return. The default value is 50.	1

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "id": 1**,
        "username": "API_token: *****"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 converts the value under key “create_time” from milliseconds to UTC Date time.

SAMPLE DATA

[
    {
        "id": 1***,
        "username": "API_token: ****"
    }
]

Key Fields

SAMPLE DATA

{
    "Offense ID": [
        129
    ],
    "Note ID": [
        151
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	USERNAME
1**	API_token: *****

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Notes failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The value for parameter (Offense ID) is invalid.

Error Sample Data

List Notes failed.

Status Code: 400.

Message: The value for parameter (Offense ID) is invalid.

List Offense Closing Reasons

Retrieves a list of all offense closing reasons. System offense closing reasons (including False-Positive, Tuned; Non-Issue; and Policy Violation) will be listed first in alphabetical order, followed by custom offense close reasons listed in alphabetical order.

Input

Input Parameter	Required/Optional	Description	Example
Fields	Optional	The list of fields to return in the response. Fields that are not specified will be excluded. Separate fields with a comma. The valid fields are id, text, is_deleted and is_reserved. Note: Leave this field empty to return all fields in the response.	id
Filter	Optional	The expression to filter the returned results. The available search keys can be found in the returned raw data after running this command. See Filter Syntax for more information about the syntax of the filter expression.	id=2
Include Deleted	Optional	The option to include deleted closing reasons in the response data when set to TRUE. The default setting is FALSE. Note: Deleted closing reasons cannot be used to close an offense.	FALSE
Include Reserved	Optional	The option to include reserved closing reasons in the response data when set to TRUE. The default setting is FALSE. Note: Reserved closing reasons cannot be used to close an offense.	FALSE
Range	Optional	The maximum number of elements to return. The default value is 50.	1

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "id": 2
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

SAMPLE DATA

[
    {
        "id": 2
    }
]

Key Fields

SAMPLE DATA

{
    "IDs": [
        2
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID
2

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Offense Closing Reasons failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The request was well-formed but was unable to be followed due to semantic errors.

Error Sample Data

List Offense Closing Reasons failed.

Status Code: 422.

Message: The request was well-formed but was unable to be followed due to semantic errors.

List Reference Sets

Retrieves a list of all reference sets.

Input

Input Parameter	Required/Optional	Description	Example
Filter	Optional	The expression to filter the returned elements. The available filter fields include creation_time, element_type, name, number_of_elements, time_to_live, and timeout_type. The available element_type options include UNKNOWN, FIRST_SEEN, and LAST_SEEN. See Filter Syntax for more information about the syntax of the filter expression.	element_type="ALNIC" and name="Asset Reconciliation NetBIOS Blacklist" or number_of_elements>0
Limit	Optional	The maximum number of results to return. The default value is 20.	20

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "timeout_type": "UNKNOWN",
        "number_of_elements": 0,
        "creation_time": 1594189895398,
        "name": "Tenable.sc scan IP",
        "element_type": "IP"
    },
    {
        "timeout_type": "FIRST_SEEN",
        "number_of_elements": 0,
        "creation_time": 1440703770114,
        "name": "Mail Servers",
        "element_type": "IP"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

SAMPLE DATA

[
    {
        "timeout_type": "UNKNOWN",
        "number_of_elements": 0,
        "creation_time": "2021-07-08T06:31:35.398Z",
        "name": "Tenable.sc scan IP",
        "element_type": "IP"
    },
    {
        "timeout_type": "FIRST_SEEN",
        "number_of_elements": 0,
        "creation_time": "2015-08-27T07:29:30.114Z",
        "name": "Mail Servers",
        "element_type": "IP"
    }
]

Key Fields

SAMPLE DATA

{
    "TimeoutTypes": [
        "UNKNOWN"
    ],
    "NumberOfElements": [
        0
    ],
    "CreationTimes": "[2014-01-06T19:20:32.886Z]",
    "Names": [
        "Tenable.sc scan IP"
    ],
    "ElementTypes": [
        "IP"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

TIMEOUT_TYPE	NUMBER_OF_ELEMENTS	CREATION_TIME	NAME	ELEMENT_TYPE
UNKNOWN	0	2021-07-08T06:31:35.398Z	http://Tenable.sc scan IP	IP
FIRST_SEEN	0	2015-08-27T07:29:30.114Z	Mail Servers	IP

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Reference Sets failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to the IBM QRadar Error Code List for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The request was well-formed but was unable to be followed due to semantic errors.

Error Sample Data

List Reference Sets failed.

Status Code: 422.

Message: Filter parameter was invalid. Please make sure that the syntax is correct: Error Parsing filter.

List Source IP Address

Retrieves a list of offense source IP addresses currently in the system. Results are sorted by the numerical value of IDs in ascending order (IDs with a smaller numerical value will be listed first).

Input

Input Parameter	Required/Optional	Description	Example
Fields	Optional	The list of fields to return in the response data. Fields that are not listed will be excluded. Separate fields with a comma. Leave this field empty to get all fields. The available input fields are: id source_ip magnitude network offense_ids local_destination_address_ids event_flow_count first_event_flow_seen last_event_flow_seen domain_id	id,source_ip
Filter	Optional	The expression to filter the returned results. The available search keys can be found in the returned raw data after running this command. See Filter Syntax for more information about the syntax of the filter expression.	id in (94)
Range	Optional	The maximum number of elements to return. The default value is 50.	1

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "event_flow_count": 14,
        "local_destination_address_ids": [],
        "first_event_flow_seen": 1623837160513,
        "last_event_flow_seen": 1623951580007,
        "source_ip": "1.2.3.4",
        "magnitude": 0,
        "id": ***,
        "offense_ids": [
            ***
        ],
        "domain_id": 0,
        "network": "Net-***.Net_***"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

SAMPLE DATA

[
    {
        "event_flow_count": 14,
        "local_destination_address_ids": [],
        "first_event_flow_seen": 1623837160513,
        "last_event_flow_seen": 1623951580007,
        "source_ip": "1.2.3.4",
        "magnitude": 0,
        "id": ***,
        "offense_ids": [
            ***
        ],
        "domain_id": 0,
        "network": "Net-*****.Net_*****"
    }
]

Key Fields

SAMPLE DATA

{
    "IDs": [

    ],
    "SourceIPs": [
        "1.0.0.1"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

EVENT_FLOW_COUNT	LOCAL_DESTINATION_ADDRESS_IDS	FIRST_EVENT_FLOW_SEEN	LAST_EVENT_FLOW_SEEN	SOURCE_IP	MAGNITUDE	ID	OFFENSE_IDS	DOMAIN_ID	NETWORK
14	[]	1623837160513	1623951580007	1.2.2.3	0	**	[**]	0	Net-***Net_***

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Source IP Address failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The request was well-formed but was unable to be followed due to semantic errors.

Error Sample Data

List Source IP Address failed.

Status Code: 422.

Message: The request was well-formed but was unable to be followed due to semantic errors.

Query Events

Searches events based on specified query expressions. The returned results can be found in the returned data, at the path $.events. No events will be created in D3 SOAR.

Input

Input Parameter

Required/Optional

Description

Example

Query Expression

Required

The Ariel Query Language (AQL) query to retrieve the specified event data from the Ariel database.

For more information on the AQL syntax, see Sample AQL queries from IBM’s documentation. Using the provided sample data as a template is recommended to build your query by modifying the WHERE clauses as needed. If you need to filter out the events based on specific criteria such as Severity or LowLevelCategory, you can apply additional operators in WHERE clauses of a query (i.e. =, <>, <, >, <=, and >=) in addition to operators such as AND, LIKE, ILIKE, IS NULL, AND, TEXT SEARCH, or IN. For example, Severity > 9 AND LowLevelCategory = ‘Firewall Permit’.

select

qid AS 'QID',

QidName(qid) AS 'EventName',

category AS 'LowLevelCategoryID',

CategoryName(category) AS 'LowLevelCategory',

highlevelcategory AS 'HighlevelCategoryID',

CategoryName(highlevelcategory) AS 'HighlevelCategory',

QIDDESCRIPTION(qid) AS 'EventDescription',

magnitude AS 'Magnitude',

relevance AS 'Relevance',

severity AS 'Severity',

credibility AS 'Credibility',

userName AS 'Username',

starttime AS 'StartTime (timestamp)',

DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StartTime',

endTime AS 'StorageTime (timestamp)',

DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StorageTime',

duration AS 'Duration',

devicetime AS 'LogSourceTime(timestamp)',

DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss Z') AS 'LogSourceTime',

domainID AS 'DomainID',

DOMAINNAME(domainID) AS 'Domain',

eventDirection AS 'EventDirection',

sourceip AS 'SourceIP',

ASSETHOSTNAME(sourceip) AS 'SourceAssetName',

sourceport AS 'SourcePort',

preNatSourceIP AS 'PreNATSourceIP',

preNatSourcePort AS 'PreNATSourcePort',

postNatSourceIP AS 'PostNATSourceIP',

postNatSourcePort AS 'PostNATSourcePort',

sourcev6 AS 'SourceIPv6',

sourceMAC AS 'SourceMAC',

sourceaddress AS 'SourceAddress',

sourcegeographiclocation AS 'SourceGeographicLocation',

NetworkName(sourceip) AS 'SourceNetworkName',

destinationip AS 'DestinationIP',

ASSETHOSTNAME(destinationip) AS 'DestinationAssetName',

destinationPort AS 'DestinationPort',

preNatDestinationIP AS 'PreNATDestinationIP',

preNatDestinationPort AS 'PreNATDestinationPort',

postNatDestinationIP AS 'PostNATDestinationIP',

postNatDestinationPort AS 'PostNATDestinationPort',

destinationv6 AS 'DestinationIPv6',

destinationMAC AS 'DestinationMAC',

destinationaddress AS 'DestinationAddress',

destinationgeographiclocation AS 'DestinationGeographicLocation',

NetworkName(destinationip) AS 'DestinationNetworkName',

payload AS 'Payload(base64)',

UTF8(payload) AS 'Payload(UTF)',

protocolid AS 'ProtocolID',

ProtocolName(protocolid) AS 'Protocol',

logsourceid AS 'LogSourceID',

LOGSOURCENAME(logsourceid) AS 'LogSource',

HOSTNAME(logsourceid) AS 'LogSourceHostname',

deviceGroupList AS 'DeviceGroupListID',

LOGSOURCEGROUPNAME(deviceGroupList) AS 'DeviceGroupListName',

deviceType AS 'DeviceTypeID',

LOGSOURCETYPENAME(deviceType) AS 'DeviceTypeName',

eventcount AS 'EventCount',

creeventlist AS 'CustomRuleIDs',

RULENAME(creeventlist) AS 'CustomRules',

partialmatchlist AS 'CustomRulesPartiallyMatchedIDs',

RULENAME(partialmatchlist) AS 'CustomRulesPartiallyMatched',

geographiclocation AS 'GeographicLocation',

hasOffense AS 'HasOffense',

isCREEvent AS 'IsCustomRuleEvent',

isduplicate AS 'IsDuplicateevent',

isunparsed AS 'EventIsUnparsed',

pcappacket AS 'PCAPpacket',

processorId AS 'EventProcessorID',

PROCESSORNAME(processorid) AS 'EventProcessorName',

adekey AS 'AdeKey',

adevalue AS 'AdeValue',

identityip AS 'IdentityIP',

identityhostname AS 'IdentityHostName',

hasIdentity AS 'HasIdentity'

from events where SourceIP = '192.168.85.65' AND LowLevelCategory IN ('Information','Firewall Permit')

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "events": [
        {
            "QID": *****,
            "EventName": "Session Allowed",
            "LowLevelCategoryID": *****,
            "LowLevelCategory": "Firewall Permit",
            "HighlevelCategoryID": *****,
            "HighlevelCategory": "Access",
            "EventDescription": "Session was allowed by policy",
            "Magnitude": 3,
            "Relevance": 1,
            "Severity": 5,
            "Credibility": 5,
            "Username": null,
            "StartTime (timestamp)": 1638172799640,
            "StartTime": "2021-11-28 23:59:59 -0800",
            "StorageTime (timestamp)": 1638172799640,
            "StorageTime": "2021-11-28 23:59:59 -0800",
            "Duration": 0,
            "LogSourceTime(timestamp)": 1638173733000,
            "LogSourceTime": "2021-11-29 00:15:33 -0800",
            "DomainID": 0,
            "Domain": "Default Domain",
            "EventDirection": "L2L",
            "SourceIP": "1.1.1.1",
            "SourceAssetName": null,
            "SourcePort": *****,
            "PreNATSourceIP": "0.0.0.0",
            "PreNATSourcePort": 0,
            "PostNATSourceIP": "0.0.0.0",
            "PostNATSourcePort": 0,
            "SourceIPv6": "0:0:0:0:0:0:0:0",
            "SourceMAC": "00:00:00:00:00:00",
            "SourceAddress": "1.2.3.5",
            "SourceGeographicLocation": "other",
            "SourceNetworkName": "Net_*****",
            "DestinationIP": "1.2.3.4",
            "DestinationAssetName": null,
            "DestinationPort": ***,
            "PreNATDestinationIP": "0.0.0.0",
            "PreNATDestinationPort": 0,
            "PostNATDestinationIP": "0.0.0.0",
            "PostNATDestinationPort": 0,
            "DestinationIPv6": "0:0:0:0:0:0:0:0",
            "DestinationMAC": "00:00:00:00:00:00",
            "DestinationAddress": "1.2.3.4",
            "DestinationGeographicLocation": "other",
            "DestinationNetworkName": "Net_*****",
            "Payload(base64)": "*****",
            "Payload(UTF)": "<14>Nov 29 00:15:34 PA-220 1,2021/11/29 00:15:33,012801170140,TRAFFIC,end,2561,2021/11/29 00:15:33,192.168.85.65,192.168.86.2,0.0.0.0,0.0.0.0,intrazone-default,,,ike,vsys1,L3-D3CyberLabDmzZone,L3-D3CyberLabDmzZone,ethernet1/4.85,ethernet1/4.86,log,2021/11/29 00:15:33,18503,1,58422,500,0,0,0x4019,udp,allow,1530,1530,0,3,2021/11/29 00:05:30,4,any,,7022489198772850042,0x0,192.168.0.0-192.168.255.255,192.168.0.0-192.168.255.255,,3,0,aged-out,0,0,0,0,,PA-220,from-policy,,,0,,0,,N/A,0,0,0,0,7df3bbe7-0ca2-4dc6-8491-0d244b79a4cb,0,0,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,2021-11-29T00:15:34.448-08:00,,,encrypted-tunnel,networking,client-server,2,\"has-known-vulnerability,tunnel-other-application,pervasive-use\",ipsec,ike,no,no,0",
            "ProtocolID": **,
            "Protocol": "UDP",
            "LogSourceID": *****,
            "LogSource": "PaSeries @ *****",
            "LogSourceHostname": "Unknown Host ***",
            "DeviceGroupListID": [
                0
            ],
            "DeviceGroupListName": [
                "Other"
            ],
            "DeviceTypeID": ***,
            "DeviceTypeName": "Palo Alto PA Series",
            "EventCount": 1,
            "CustomRuleIDs": [
                *****,
                *****
            ],
            "CustomRules": [
                "BB:ProtocolDefinition: Windows Protocols",
                "BB:CategoryDefinition: Firewall or ACL Accept",
                "Context is Local to Local",
                "Test_Login",
                "D3 Test internal",
                "Source Asset Weight is Low",
                "Destination Asset Weight is Low",
                "BB:DeviceDefinition: IDS / IPS",
                "BB:DeviceDefinition: FW / Router / Switch",
                "Load Basic Building Blocks"
            ],
            "CustomRulesPartiallyMatchedIDs": [],
            "CustomRulesPartiallyMatched": [
                "null"
            ],
            "GeographicLocation": "other",
            "HasOffense": true,
            "IsCustomRuleEvent": false,
            "IsDuplicateevent": false,
            "EventIsUnparsed": false,
            "PCAPpacket": false,
            "EventProcessorID": 8,
            "EventProcessorName": "eventprocessor0",
            "AdeKey": null,
            "AdeValue": null,
            "IdentityIP": "0.0.0.0",
            "IdentityHostName": null,
            "HasIdentity": false
        }
    ]
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 converts the value under key “start_time” and “last_updated_time” from milliseconds to UTC Date time.

SAMPLE DATA

[
    {
        "QID": *****,
        "EventName": "Session Allowed",
        "LowLevelCategoryID": *****,
        "LowLevelCategory": "Firewall Permit",
        "HighlevelCategoryID": *****,
        "HighlevelCategory": "Access",
        "EventDescription": "Session was allowed by policy",
        "Magnitude": 3,
        "Relevance": 1,
        "Severity": 5,
        "Credibility": 5,
        "Username": null,
        "StartTime (timestamp)": 1638172799640,
        "StartTime": "2021-11-28 23:59:59 -0800",
        "StorageTime (timestamp)": 1638172799640,
        "StorageTime": "2021-11-28 23:59:59 -0800",
        "Duration": 0,
        "LogSourceTime(timestamp)": 1638173733000,
        "LogSourceTime": "2021-11-29 00:15:33 -0800",
        "DomainID": 0,
        "Domain": "Default Domain",
        "EventDirection": "L2L",
        "SourceIP": "1.2.3.4",
        "SourceAssetName": null,
        "SourcePort": *****,
        "PreNATSourceIP": "0.0.0.0",
        "PreNATSourcePort": 0,
        "PostNATSourceIP": "0.0.0.0",
        "PostNATSourcePort": 0,
        "SourceIPv6": "0:0:0:0:0:0:0:0",
        "SourceMAC": "00:00:00:00:00:00",
        "SourceAddress": "1.2.3.4",
        "SourceGeographicLocation": "other",
        "SourceNetworkName": "Net_*****",
        "DestinationIP": "1.2.3.4",
        "DestinationAssetName": null,
        "DestinationPort": ***,
        "PreNATDestinationIP": "0.0.0.0",
        "PreNATDestinationPort": 0,
        "PostNATDestinationIP": "0.0.0.0",
        "PostNATDestinationPort": 0,
        "DestinationIPv6": "0:0:0:0:0:0:0:0",
        "DestinationMAC": "00:00:00:00:00:00",
        "DestinationAddress": "1.2.3.4",
        "DestinationGeographicLocation": "other",
        "DestinationNetworkName": "Net_*****",
        "Payload(base64)": "*****",
        "Payload(UTF)": "<14>Nov 29 00:15:34 PA-220 1,2021/11/29 00:15:*****,TRAFFIC,end,2561,2021/11/29 00:15:33,192.168.85.65,192.168.86.2,0.0.0.0,0.0.0.0,intrazone-default,,,ike,vsys1,L3-D3CyberLabDmzZone,L3-D3CyberLabDmzZone,ethernet1/4.85,ethernet1/4.86,log,2021/11/29 00:15:33,18503,1,58422,500,0,0,0x4019,udp,allow,1530,1530,0,3,2021/11/29 00:05:30,4,any,,7022489198772850042,0x0,192.168.0.0-192.168.255.255,192.168.0.0-192.168.255.255,,3,0,aged-out,0,0,0,0,,PA-220,from-policy,,,0,,0,,N/A,0,0,0,0,7df3bbe7-0ca2-4dc6-8491-0d244b79a4cb,0,0,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,2021-11-29T00:15:34.448-08:00,,,encrypted-tunnel,networking,client-server,2,\"has-known-vulnerability,tunnel-other-application,pervasive-use\",ipsec,ike,no,no,0",
        "ProtocolID": ***,
        "Protocol": "UDP",
        "LogSourceID": *****,
        "LogSource": "PaSeries @ *****",
        "LogSourceHostname": "Unknown Host ***",
        "DeviceGroupListID": [
            0
        ],
        "DeviceGroupListName": [
            "Other"
        ],
        "DeviceTypeID": 206,
        "DeviceTypeName": "Palo Alto PA Series",
        "EventCount": 1,
        "CustomRuleIDs": [
            *****,
            *****
        ],
        "CustomRules": [
            "BB:ProtocolDefinition: Windows Protocols",
            "BB:CategoryDefinition: Firewall or ACL Accept",
            "Context is Local to Local",
            "Test_Login",
            "D3 Test internal",
            "Source Asset Weight is Low",
            "Destination Asset Weight is Low",
            "BB:DeviceDefinition: IDS / IPS",
            "BB:DeviceDefinition: FW / Router / Switch",
            "Load Basic Building Blocks"
        ],
        "CustomRulesPartiallyMatchedIDs": [],
        "CustomRulesPartiallyMatched": [
            "null"
        ],
        "GeographicLocation": "other",
        "HasOffense": true,
        "IsCustomRuleEvent": false,
        "IsDuplicateevent": false,
        "EventIsUnparsed": false,
        "PCAPpacket": false,
        "EventProcessorID": 8,
        "EventProcessorName": "eventprocessor0",
        "AdeKey": null,
        "AdeValue": null,
        "IdentityIP": "0.0.0.0",
        "IdentityHostName": null,
        "HasIdentity": false
    }
]

Key Fields

SAMPLE DATA

{
    "QIDs": [
        *****
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

QID	EVENTNAME	LOWLEVELCATEGORYID	LOWLEVELCATEGORY	HIGHLEVELCATEGORYID	HIGHLEVELCATEGORY	EVENTDESCRIPTION	MAGNITUDE	RELEVANCE	SEVERITY	CREDIBILITY	USERNAME	STARTTIME (TIMESTAMP)	STARTTIME	STORAGETIME (TIMESTAMP)	STORAGETIME	DURATION	LOGSOURCETIME(TIMESTAMP)	LOGSOURCETIME	DOMAINID	DOMAIN	EVENTDIRECTION	SOURCEIP	SOURCEASSETNAME	SOURCEPORT	PRENATSOURCEIP	PRENATSOURCEPORT	POSTNATSOURCEIP	POSTNATSOURCEPORT	SOURCEIPV6	SOURCEMAC	SOURCEADDRESS	SOURCEGEOGRAPHICLOCATION	SOURCENETWORKNAME	DESTINATIONIP	DESTINATIONASSETNAME	DESTINATIONPORT	PRENATDESTINATIONIP	PRENATDESTINATIONPORT	POSTNATDESTINATIONIP	POSTNATDESTINATIONPORT	DESTINATIONIPV6	DESTINATIONMAC	DESTINATIONADDRESS	DESTINATIONGEOGRAPHICLOCATION	DESTINATIONNETWORKNAME	PAYLOAD(BASE64)	PAYLOAD(UTF)	PROTOCOLID	PROTOCOL	LOGSOURCEID	LOGSOURCE	LOGSOURCEHOSTNAME	DEVICEGROUPLISTID	DEVICEGROUPLISTNAME	DEVICETYPEID	DEVICETYPENAME	EVENTCOUNT	CUSTOMRULEIDS	CUSTOMRULES	CUSTOMRULESPARTIALLYMATCHEDIDS	CUSTOMRULESPARTIALLYMATCHED	GEOGRAPHICLOCATION	HASOFFENSE	ISCUSTOMRULEEVENT	ISDUPLICATEEVENT	EVENTISUNPARSED	PCAPPACKET	EVENTPROCESSORID	EVENTPROCESSORNAME	ADEKEY	ADEVALUE	IDENTITYIP	IDENTITYHOSTNAME	HASIDENTITY
*****	Session Allowed	4002	Firewall Permit	4000	Access	Session was allowed by policy	3	1	5	5	None	1638172799640	2021-11-28 23:59:59 -0800	1638172799640	2021-11-28 23:59:59 -0800	0	1638173733000	2021-11-29 00:15:33 -0800	0	Default Domain	L2L	1.1.1.1	None	58422	0.0.0.0	0	0.0.0.0	0	0:0:0:0:0:0:0:0	00:00:00:00:00:00	1.1.1.1	other	Net_*****	1.2.3.4	None	500	0.0.0.0	0	0.0.0.0	0	0:0:0:0:0:0:0:0	00:00:00:00:00:00	192.168.86.2	other	Net_192_168_0_0	***	<14>Nov 29 00:15:34 PA-220 1,2021/11/29 00:15:*,TRAFFIC,end,2561,2021/11/29 00:15:33,,0.0.0.0,0.0.0.0,intrazone-default,,,ike,vsys1,L3-,L3-,ethernet1/4.85,ethernet1/4.86,log,2021/11/29 00:15:,udp,allow,/11/29 00:05:30,4,any,,--,,3,0,aged-out,0,0,0,0,,-220,from-policy,,,0,,0,,N/A,-0ca2-*--**,0,0,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,2021-11-29T00:15:34.448-08:00,,,encrypted-tunnel,networking,client-server,2,"has-known-vulnerability,tunnel-other-application,pervasive-use",ipsec,ike,no,no,0	17	UDP	314	PaSeries @ PA-220	Unknown Host 314	[0]	['Other']	***	Palo Alto PA Series	1	[***]	['BB:ProtocolDefinition: Windows Protocols', 'BB:CategoryDefinition: Firewall or ACL Accept', 'Context is Local to Local', 'Test_Login', 'D3 Test internal', 'Source Asset Weight is Low', 'Destination Asset Weight is Low', 'BB:DeviceDefinition: IDS / IPS', 'BB:DeviceDefinition: FW / Router / Switch', 'Load Basic Building Blocks']	[]	['null']	other	True	False	False	False	False	8	eventprocessor0	None	None	0.0.0.0	None	False

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Query Events failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The value for parameter (Offense ID) is invalid.

Error Sample Data

Query Events failed.

Status Code: 400.

Message: The value for parameter (Offense ID) is invalid.

Remove Element From ReferenceSet

Removes an element from a reference set.

READER NOTE

Reference Set Name is a required parameter to run this command.

Run the List ReferenceSets command to obtain the Reference Set Name. Reference Set Names can be found in the returned raw data at the path $.[*].name.

ALERT

The element value you want to remove must exist in the reference set. Otherwise, an error will return.

Input

Input Parameter	Required/Optional	Description	Example
Reference Set Name	Required	The name(s) of the reference set(s) to remove elements. Reference set names can be obtained using the List Reference Sets command.	Test Reference Set
Element Values	Required	The values of the elements to remove from the specified reference set.	[ "000.00.00.000" ]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "time_to_live": "0 years 0 mons 1 days 0 hours 0 mins 0.00 secs",
        "timeout_type": "LAST_SEEN",
        "number_of_elements": 4,
        "creation_time": 1628032077835,
        "name": "**** Test***",
        "element_type": "ALNIC"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 converts the value under key “creation_time” from milliseconds to UTC Date time.

SAMPLE DATA

[
    {
        "time_to_live": "0 years 0 mons 1 days 0 hours 0 mins 0.00 secs",
        "timeout_type": "LAST_SEEN",
        "number_of_elements": 4,
        "creation_time": 1628032077835,
        "name": "**** Test***",
        "element_type": "ALNIC"
    }
]

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

TIME_TO_LIVE	TIMEOUT_TYPE	NUMBER_OF_ELEMENTS	CREATION_TIME	NAME	ELEMENT_TYPE
0 years 0 mons 1 days 0 hours 0 mins 0.00 secs	LAST_SEEN	4	2021-08-03T23:07:57.835Z	* Test*	ALNIC

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Remove Element From ReferenceSet failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The Reference Set Name does not exist in the Reference Set.

Error Sample Data

Remove Element From ReferenceSet failed.

Status Code: 404.

Message: The Reference Set Name does not exist in the Reference Set.

Search

Creates a new search using an Ariel Query Language (AQL) query expression and returns a search ID. You can then use the Get Search Status command with the returned search ID to check the status of the search, and use the Get Search Result command to retrieve the search results.

Input

Input Parameter

Required/Optional

Description

Example

Query Expression

Required

The Ariel Query Language (AQL) query to retrieve the specified event data from the Ariel database. For more information on the AQL syntax, see Sample AQL queries from IBM’s documentation. Using the provided sample data as a template is recommended to build your query by modifying the WHERE clauses as needed. If you need to filter out the events based on specific criteria such as Severity or LowLevelCategory, you can apply additional operators in WHERE clauses of a query (i.e. =, <>, <, >, <=, and >=) in addition to operators such as AND, LIKE, ILIKE, IS NULL, AND, TEXT SEARCH, or IN. For example, Severity > 9 AND LowLevelCategory = ‘Firewall Permit’.

select

qid AS 'QID',

QidName(qid) AS 'EventName',

category AS 'LowLevelCategoryID',

CategoryName(category) AS 'LowLevelCategory',

highlevelcategory AS 'HighlevelCategoryID',

CategoryName(highlevelcategory) AS 'HighlevelCategory',

QIDDESCRIPTION(qid) AS 'EventDescription',

magnitude AS 'Magnitude',

relevance AS 'Relevance',

severity AS 'Severity',

credibility AS 'Credibility',

userName AS 'Username',

starttime AS 'StartTime (timestamp)',

DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StartTime',

endTime AS 'StorageTime (timestamp)',

DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StorageTime',

duration AS 'Duration',

devicetime AS 'LogSourceTime(timestamp)',

DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss Z') AS 'LogSourceTime',

domainID AS 'DomainID',

DOMAINNAME(domainID) AS 'Domain',

eventDirection AS 'EventDirection',

sourceip AS 'SourceIP',

ASSETHOSTNAME(sourceip) AS 'SourceAssetName',

sourceport AS 'SourcePort',

preNatSourceIP AS 'PreNATSourceIP',

preNatSourcePort AS 'PreNATSourcePort',

postNatSourceIP AS 'PostNATSourceIP',

postNatSourcePort AS 'PostNATSourcePort',

sourcev6 AS 'SourceIPv6',

sourceMAC AS 'SourceMAC',

sourceaddress AS 'SourceAddress',

sourcegeographiclocation AS 'SourceGeographicLocation',

NetworkName(sourceip) AS 'SourceNetworkName',

destinationip AS 'DestinationIP',

ASSETHOSTNAME(destinationip) AS 'DestinationAssetName',

destinationPort AS 'DestinationPort',

preNatDestinationIP AS 'PreNATDestinationIP',

preNatDestinationPort AS 'PreNATDestinationPort',

postNatDestinationIP AS 'PostNATDestinationIP',

postNatDestinationPort AS 'PostNATDestinationPort',

destinationv6 AS 'DestinationIPv6',

destinationMAC AS 'DestinationMAC',

destinationaddress AS 'DestinationAddress',

destinationgeographiclocation AS 'DestinationGeographicLocation',

NetworkName(destinationip) AS 'DestinationNetworkName',

payload AS 'Payload(base64)',

UTF8(payload) AS 'Payload(UTF)',

protocolid AS 'ProtocolID',

ProtocolName(protocolid) AS 'Protocol',

logsourceid AS 'LogSourceID',

LOGSOURCENAME(logsourceid) AS 'LogSource',

HOSTNAME(logsourceid) AS 'LogSourceHostname',

deviceGroupList AS 'DeviceGroupListID',

LOGSOURCEGROUPNAME(deviceGroupList) AS 'DeviceGroupListName',

deviceType AS 'DeviceTypeID',

LOGSOURCETYPENAME(deviceType) AS 'DeviceTypeName',

eventcount AS 'EventCount',

creeventlist AS 'CustomRuleIDs',

RULENAME(creeventlist) AS 'CustomRules',

partialmatchlist AS 'CustomRulesPartiallyMatchedIDs',

RULENAME(partialmatchlist) AS 'CustomRulesPartiallyMatched',

geographiclocation AS 'GeographicLocation',

hasOffense AS 'HasOffense',

isCREEvent AS 'IsCustomRuleEvent',

isduplicate AS 'IsDuplicateevent',

isunparsed AS 'EventIsUnparsed',

pcappacket AS 'PCAPpacket',

processorId AS 'EventProcessorID',

PROCESSORNAME(processorid) AS 'EventProcessorName',

adekey AS 'AdeKey',

adevalue AS 'AdeValue',

identityip AS 'IdentityIP',

identityhostname AS 'IdentityHostName',

hasIdentity AS 'HasIdentity'

from events where SourceIP = '192.168.85.65' AND LowLevelCategory IN ('Information','Firewall Permit')

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "cursor_id": "***-***-***-***-***",
    "status": "WAIT",
    "compressed_data_file_count": 0,
    "compressed_data_total_size": 0,
    "data_file_count": 0,
    "data_total_size": 0,
    "index_file_count": 0,
    "index_total_size": 0,
    "processed_record_count": 0,
    "desired_retention_time_msec": 86400000,
    "progress": 0,
    "progress_details": [],
    "query_execution_time": 0,
    "query_string": "select \n  qid AS 'QID', \n  QidName(qid) AS 'EventName', \n  category AS 'LowLevelCategoryID', \n  CategoryName(category) AS 'LowLevelCategory', \n  highlevelcategory AS 'HighlevelCategoryID', \n  CategoryName(highlevelcategory) AS 'HighlevelCategory', \n  QIDDESCRIPTION(qid) AS 'EventDescription', \n  magnitude AS 'Magnitude', \n  relevance AS 'Relevance', \n  severity AS 'Severity', \n  credibility AS 'Credibility', \n  userName AS 'Username', \n  starttime AS 'StartTime (timestamp)', \n  DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StartTime', \n  endTime AS 'StorageTime (timestamp)', \n  DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StorageTime', \n  duration AS 'Duration', \n  devicetime AS 'LogSourceTime(timestamp)', \n  DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss Z') AS 'LogSourceTime', \n  domainID AS 'DomainID', \n  DOMAINNAME(domainID) AS 'Domain', \n  eventDirection AS 'EventDirection', \n  sourceip AS 'SourceIP', \n  ASSETHOSTNAME(sourceip) AS 'SourceAssetName', \n  sourceport AS 'SourcePort', \n  preNatSourceIP AS 'PreNATSourceIP', \n  preNatSourcePort AS 'PreNATSourcePort', \n  postNatSourceIP AS 'PostNATSourceIP', \n  postNatSourcePort AS 'PostNATSourcePort', \n  sourcev6 AS 'SourceIPv6', \n  sourceMAC AS 'SourceMAC', \n  sourceaddress AS 'SourceAddress', \n  sourcegeographiclocation AS 'SourceGeographicLocation', \n  NetworkName(sourceip) AS 'SourceNetworkName', \n  destinationip AS 'DestinationIP', \n  ASSETHOSTNAME(destinationip) AS 'DestinationAssetName', \n  destinationPort AS 'DestinationPort', \n  preNatDestinationIP AS 'PreNATDestinationIP', \n  preNatDestinationPort AS 'PreNATDestinationPort', \n  postNatDestinationIP AS 'PostNATDestinationIP', \n  postNatDestinationPort AS 'PostNATDestinationPort', \n  destinationv6 AS 'DestinationIPv6', \n  destinationMAC AS 'DestinationMAC', \n  destinationaddress AS 'DestinationAddress', \n  destinationgeographiclocation AS 'DestinationGeographicLocation', \n  NetworkName(destinationip) AS 'DestinationNetworkName', \n  payload AS 'Payload(base64)', \n  UTF8(payload) AS 'Payload(UTF)', \n  protocolid AS 'ProtocolID', \n  ProtocolName(protocolid) AS 'Protocol', \n  logsourceid AS 'LogSourceID', \n  LOGSOURCENAME(logsourceid) AS 'LogSource', \n  HOSTNAME(logsourceid) AS 'LogSourceHostname', \n  deviceGroupList AS 'DeviceGroupListID', \n  LOGSOURCEGROUPNAME(deviceGroupList) AS 'DeviceGroupListName', \n  deviceType AS 'DeviceTypeID', \n  LOGSOURCETYPENAME(deviceType) AS 'DeviceTypeName', \n  eventcount AS 'EventCount', \n  creeventlist AS 'CustomRuleIDs', \n  RULENAME(creeventlist) AS 'CustomRules', \n  partialmatchlist AS 'CustomRulesPartiallyMatchedIDs', \n  RULENAME(partialmatchlist) AS 'CustomRulesPartiallyMatched', \n  geographiclocation AS 'GeographicLocation', \n  hasOffense AS 'HasOffense', \n  isCREEvent AS 'IsCustomRuleEvent', \n  isduplicate AS 'IsDuplicateevent', \n  isunparsed AS 'EventIsUnparsed', \n  pcappacket AS 'PCAPpacket', \n  processorId AS 'EventProcessorID', \n  PROCESSORNAME(processorid) AS 'EventProcessorName', \n  adekey AS 'AdeKey', \n  adevalue AS 'AdeValue', \n  identityip AS 'IdentityIP', \n  identityhostname AS 'IdentityHostName', \n  hasIdentity AS 'HasIdentity' \nfrom events where SourceIP = '192.168.85.65' AND LowLevelCategory IN ('Information','Firewall Permit')",
    "record_count": 0,
    "size_on_disk": 0,
    "save_results": false,
    "completed": false,
    "subsearch_ids": [],
    "snapshot": null,
    "search_id": "***-***-***-***-***"
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

SAMPLE DATA

{
    "cursor_id": "***-***-***-***-***",
    "status": "WAIT",
    "compressed_data_file_count": 0,
    "compressed_data_total_size": 0,
    "data_file_count": 0,
    "data_total_size": 0,
    "index_file_count": 0,
    "index_total_size": 0,
    "processed_record_count": 0,
    "desired_retention_time_msec": 86400000,
    "progress": 0,
    "progress_details": [],
    "query_execution_time": 0,
    "query_string": "select \n  qid AS 'QID', \n  QidName(qid) AS 'EventName', \n  category AS 'LowLevelCategoryID', \n  CategoryName(category) AS 'LowLevelCategory', \n  highlevelcategory AS 'HighlevelCategoryID', \n  CategoryName(highlevelcategory) AS 'HighlevelCategory', \n  QIDDESCRIPTION(qid) AS 'EventDescription', \n  magnitude AS 'Magnitude', \n  relevance AS 'Relevance', \n  severity AS 'Severity', \n  credibility AS 'Credibility', \n  userName AS 'Username', \n  starttime AS 'StartTime (timestamp)', \n  DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StartTime', \n  endTime AS 'StorageTime (timestamp)', \n  DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StorageTime', \n  duration AS 'Duration', \n  devicetime AS 'LogSourceTime(timestamp)', \n  DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss Z') AS 'LogSourceTime', \n  domainID AS 'DomainID', \n  DOMAINNAME(domainID) AS 'Domain', \n  eventDirection AS 'EventDirection', \n  sourceip AS 'SourceIP', \n  ASSETHOSTNAME(sourceip) AS 'SourceAssetName', \n  sourceport AS 'SourcePort', \n  preNatSourceIP AS 'PreNATSourceIP', \n  preNatSourcePort AS 'PreNATSourcePort', \n  postNatSourceIP AS 'PostNATSourceIP', \n  postNatSourcePort AS 'PostNATSourcePort', \n  sourcev6 AS 'SourceIPv6', \n  sourceMAC AS 'SourceMAC', \n  sourceaddress AS 'SourceAddress', \n  sourcegeographiclocation AS 'SourceGeographicLocation', \n  NetworkName(sourceip) AS 'SourceNetworkName', \n  destinationip AS 'DestinationIP', \n  ASSETHOSTNAME(destinationip) AS 'DestinationAssetName', \n  destinationPort AS 'DestinationPort', \n  preNatDestinationIP AS 'PreNATDestinationIP', \n  preNatDestinationPort AS 'PreNATDestinationPort', \n  postNatDestinationIP AS 'PostNATDestinationIP', \n  postNatDestinationPort AS 'PostNATDestinationPort', \n  destinationv6 AS 'DestinationIPv6', \n  destinationMAC AS 'DestinationMAC', \n  destinationaddress AS 'DestinationAddress', \n  destinationgeographiclocation AS 'DestinationGeographicLocation', \n  NetworkName(destinationip) AS 'DestinationNetworkName', \n  payload AS 'Payload(base64)', \n  UTF8(payload) AS 'Payload(UTF)', \n  protocolid AS 'ProtocolID', \n  ProtocolName(protocolid) AS 'Protocol', \n  logsourceid AS 'LogSourceID', \n  LOGSOURCENAME(logsourceid) AS 'LogSource', \n  HOSTNAME(logsourceid) AS 'LogSourceHostname', \n  deviceGroupList AS 'DeviceGroupListID', \n  LOGSOURCEGROUPNAME(deviceGroupList) AS 'DeviceGroupListName', \n  deviceType AS 'DeviceTypeID', \n  LOGSOURCETYPENAME(deviceType) AS 'DeviceTypeName', \n  eventcount AS 'EventCount', \n  creeventlist AS 'CustomRuleIDs', \n  RULENAME(creeventlist) AS 'CustomRules', \n  partialmatchlist AS 'CustomRulesPartiallyMatchedIDs', \n  RULENAME(partialmatchlist) AS 'CustomRulesPartiallyMatched', \n  geographiclocation AS 'GeographicLocation', \n  hasOffense AS 'HasOffense', \n  isCREEvent AS 'IsCustomRuleEvent', \n  isduplicate AS 'IsDuplicateevent', \n  isunparsed AS 'EventIsUnparsed', \n  pcappacket AS 'PCAPpacket', \n  processorId AS 'EventProcessorID', \n  PROCESSORNAME(processorid) AS 'EventProcessorName', \n  adekey AS 'AdeKey', \n  adevalue AS 'AdeValue', \n  identityip AS 'IdentityIP', \n  identityhostname AS 'IdentityHostName', \n  hasIdentity AS 'HasIdentity' \nfrom events where SourceIP = '192.168.85.65' AND LowLevelCategory IN ('Information','Firewall Permit')",
    "record_count": 0,
    "size_on_disk": 0,
    "save_results": false,
    "completed": false,
    "subsearch_ids": [],
    "snapshot": null,
    "search_id": "***-***-***-***-***"
}

Key Fields

SAMPLE DATA

{
    "IDs": [
        "***-***-***-***-***"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

cursor_id	*----**
status	WAIT
compressed_data_file_count	0
compressed_data_total_size	0
data_file_count	0
data_total_size	0
index_file_count	0
index_total_size	0
processed_record_count	0
desired_retention_time_msec	86400000
progress	0
progress_details	[]
query_execution_time	0
query_string	select qid AS 'QID', QidName(qid) AS 'EventName', category AS 'LowLevelCategoryID', CategoryName(category) AS 'LowLevelCategory', highlevelcategory AS 'HighlevelCategoryID', CategoryName(highlevelcategory) AS 'HighlevelCategory', QIDDESCRIPTION(qid) AS 'EventDescription', magnitude AS 'Magnitude', relevance AS 'Relevance', severity AS 'Severity', credibility AS 'Credibility', userName AS 'Username', starttime AS 'StartTime (timestamp)', DATEFORMAT(starttime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StartTime', endTime AS 'StorageTime (timestamp)', DATEFORMAT(endTime, 'YYYY-MM-dd HH:mm:ss Z') AS 'StorageTime', duration AS 'Duration', devicetime AS 'LogSourceTime(timestamp)', DATEFORMAT(devicetime, 'YYYY-MM-dd HH:mm:ss Z') AS 'LogSourceTime', domainID AS 'DomainID', DOMAINNAME(domainID) AS 'Domain', eventDirection AS 'EventDirection', sourceip AS 'SourceIP', ASSETHOSTNAME(sourceip) AS 'SourceAssetName', sourceport AS 'SourcePort', preNatSourceIP AS 'PreNATSourceIP', preNatSourcePort AS 'PreNATSourcePort', postNatSourceIP AS 'PostNATSourceIP', postNatSourcePort AS 'PostNATSourcePort', sourcev6 AS 'SourceIPv6', sourceMAC AS 'SourceMAC', sourceaddress AS 'SourceAddress', sourcegeographiclocation AS 'SourceGeographicLocation', NetworkName(sourceip) AS 'SourceNetworkName', destinationip AS 'DestinationIP', ASSETHOSTNAME(destinationip) AS 'DestinationAssetName', destinationPort AS 'DestinationPort', preNatDestinationIP AS 'PreNATDestinationIP', preNatDestinationPort AS 'PreNATDestinationPort', postNatDestinationIP AS 'PostNATDestinationIP', postNatDestinationPort AS 'PostNATDestinationPort', destinationv6 AS 'DestinationIPv6', destinationMAC AS 'DestinationMAC', destinationaddress AS 'DestinationAddress', destinationgeographiclocation AS 'DestinationGeographicLocation', NetworkName(destinationip) AS 'DestinationNetworkName', payload AS 'Payload(base64)', UTF8(payload) AS 'Payload(UTF)', protocolid AS 'ProtocolID', ProtocolName(protocolid) AS 'Protocol', logsourceid AS 'LogSourceID', LOGSOURCENAME(logsourceid) AS 'LogSource', HOSTNAME(logsourceid) AS 'LogSourceHostname', deviceGroupList AS 'DeviceGroupListID', LOGSOURCEGROUPNAME(deviceGroupList) AS 'DeviceGroupListName', deviceType AS 'DeviceTypeID', LOGSOURCETYPENAME(deviceType) AS 'DeviceTypeName', eventcount AS 'EventCount', creeventlist AS 'CustomRuleIDs', RULENAME(creeventlist) AS 'CustomRules', partialmatchlist AS 'CustomRulesPartiallyMatchedIDs', RULENAME(partialmatchlist) AS 'CustomRulesPartiallyMatched', geographiclocation AS 'GeographicLocation', hasOffense AS 'HasOffense', isCREEvent AS 'IsCustomRuleEvent', isduplicate AS 'IsDuplicateevent', isunparsed AS 'EventIsUnparsed', pcappacket AS 'PCAPpacket', processorId AS 'EventProcessorID', PROCESSORNAME(processorid) AS 'EventProcessorName', adekey AS 'AdeKey', adevalue AS 'AdeValue', identityip AS 'IdentityIP', identityhostname AS 'IdentityHostName', hasIdentity AS 'HasIdentity' from events where SourceIP = '192.168.85.65' AND LowLevelCategory IN ('Information','Firewall Permit')
record_count	0
size_on_disk	0
save_results	False
completed	False
subsearch_ids	[]
snapshot	None
search_id	*----**

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The query_expression contains invalid AQL syntax.

Error Sample Data

Search failed.

Status Code: 422.

Message: The query_expression contains invalid AQL syntax.

Search Building Block Rules

Retrieves a list of building block rules matching filter conditions.

Input

Input Parameter	Required/Optional	Description	Example
Filter	Optional	The filter conditions to restrict the elements in a list based on the contents of various fields. Please refer to Filter Syntax for filter syntax. For example, field_one = "String" and field_two > 42 or not field_three in (1, 2, 3).	enabled = true and name = "BB:CategoryDefinition: Authentication Failures"

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "owner": "admin",
        "identifier": "*****-*****",
        "base_host_id": 0,
        "capacity_timestamp": 0,
        "origin": "SYSTEM",
        "creation_date": 1123775872147,
        "type": "EVENT",
        "enabled": true,
        "modification_date": 1689869050733,
        "linked_rule_identifier": null,
        "name": "BB:CategoryDefinition: Authentication Failures",
        "average_capacity": 0,
        "id": *****,
        "base_capacity": 0
    }
]

Key Fields

SAMPLE DATA

{
  "BuildingBlockRuleIDs": [*****],
  "RuleNames": ["BB:CategoryDefinition: Authentication Failures"],
  "Identifiers": ["***-*****"]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

owner	identifier	base_host_id	capacity_timestamp	origin	creation_date	type	enabled	modification_date	linked_rule_identifier	name	average_capacity	id	base_capacity
admin	*-*	0	0	SYSTEM	1123775872147	EVENT	True	1689869050733	None	BB:CategoryDefinition: Authentication Failures	0	*****	0

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Building Block Rules failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You are unauthorized to access the requested resource. Please log in.

Error Sample Data

Search Building Block Rules failed.

Status Code: 401.

Message: You are unauthorized to access the requested resource. Please log in.

Search Rule Groups

Retrieves a list of rule and building block groups matching filter conditions.

Input

Input Parameter

Required/Optional

Description

Example

Filter

Optional

The filter conditions to restrict the elements in a list based on the contents of various fields. Please refer to Filter Syntax for filter syntax. For example, field_one = "String" and field_two > 42 or not field_three in (1, 2, 3).

If you want to get the groups to which a rule belongs, you can use below filter to get the rule groups: child_items contains "{{ruleID}}".

name=Virtualization and child_items contains "10***"

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "owner": "admin",
        "modified_time": 1556228095355,
        "level": 2,
        "name": "Virtualization",
        "description": "Rules focused on detection of suspicious behaviours for Virtualization devices.",
        "child_groups": [],
        "id": 1***,
        "child_items": [
            "1***"
        ],
        "type": "RULE_GROUP",
        "parent_id": *
    }
]

Key Fields

SAMPLE DATA

{
  "RuleGroupIDs": [*****],
  "RuleGroupNames": ["Virtualization"]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

owner	modified_time	level	name	description	child_groups	id	child_items	type	parent_id
admin	1556228095355	2	Virtualization	Rules focused on detection of suspicious behaviours for Virtualization devices.	[]	10*****	['10****']	RULE_GROUP	3

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Rule Groups failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You are unauthorized to access the requested resource. Please log in.

Error Sample Data

Search Rule Groups failed.

Status Code: 401.

Message: You are unauthorized to access the requested resource. Please log in.

Search Rule Mappings

Returns the rule mappings in QRadar Use Case Manager application.

READER NOTE

The parameter Rule Names is required to run this command.

Run the Search Rules command to obtain the Rule Names. Rule Names can be found in the returned raw data at the path $.name.

Input

Input Parameter

Required/Optional

Description

Example

Rule Names

Required

The name(s) of the rule(s) to get rule mappings. Rule Names can be obtained using the Search Rules command.

[

"Excessive Database Connections"

]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "results": [
        {
            "owner": "admin",
            "identifier": "***-***",
            "base_host_id": 0,
            "capacity_timestamp": 0,
            "origin": "SYSTEM",
            "creation_date": 1186670307862,
            "type": "EVENT",
            "enabled": true,
            "modification_date": 1689868457050,
            "linked_rule_identifier": null,
            "name": "Excessive Database Connections",
            "average_capacity": 0,
            "id": *****,
            "base_capacity": 0,
            "Excessive Database Connections": {
                "id": "***-***",
                "has_ibm_default": true,
                "last_updated": 1591634177302,
                "mapping": {
                    "Discovery": {
                        "confidence": "medium",
                        "user_override": false,
                        "enabled": true,
                        "ibm_default": true,
                        "id": "TA0007",
                        "techniques": {}
                    },
                    "Initial Access": {
                        "confidence": "low",
                        "user_override": false,
                        "enabled": true,
                        "ibm_default": true,
                        "id": "TA0001",
                        "techniques": {}
                    }
                },
                "min-mitre-version": 7
            }
        }
    ]
}

Key Fields

SAMPLE DATA

{
  "RuleIDs": [*****],
  "RuleNames": ["Excessive Database Connections"],
  "Identifiers": ["***-***"]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

results

{'owner': 'admin', 'identifier': '***-***', 'base_host_id': 0, 'capacity_timestamp': 0, 'origin': 'SYSTEM', 'creation_date': 1186670307862, 'type': 'EVENT', 'enabled': True, 'modification_date': 1689868457050, 'linked_rule_identifier': None, 'name': 'Excessive Database Connections', 'average_capacity': 0, 'id': *****, 'base_capacity': 0, 'Excessive Database Connections': {'id': 'SYSTEM-***', 'has_ibm_default': True, 'last_updated': 1591634177302, 'mapping': {'Discovery': {'confidence': 'medium', 'user_override': False, 'enabled': True, 'ibm_default': True, 'id': '*****', 'techniques': {}}, 'Initial Access': {'confidence': 'low', 'user_override': False, 'enabled': True, 'ibm_default': True, 'id': '*****', 'techniques': {}}}, 'min-mitre-version': 7}}

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Rule Mappings failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Rule Names not found.

Error Sample Data

Search Rule Mappings failed.

Status Code: 404.

Message: Rule Names not found.

Search Rules

Retrieves a list of rules matching filter conditions.

Input

Input Parameter	Required/Optional	Description	Example
Filter	Optional	The filter conditions to restrict the elements in a list based on the contents of various fields. Please refer to Filter syntax for filter syntax. For example, field_one = "String" and field_two > 42 or not field_three in (1, 2, 3).	enabled = true and name= "Excessive Database Connections"

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

[
    {
        "owner": "admin",
        "identifier": "***-***",
        "base_host_id": 0,
        "capacity_timestamp": 0,
        "origin": "SYSTEM",
        "creation_date": 1186670307862,
        "type": "EVENT",
        "enabled": true,
        "modification_date": 1689868457050,
        "linked_rule_identifier": null,
        "name": "Excessive Database Connections",
        "average_capacity": 0,
        "id": *****,
        "base_capacity": 0
    }
]

Key Fields

SAMPLE DATA

{
  "RuleIDs": [*****],
  "RuleNames": ["Excessive Database Connections"],
  "Identifiers": ["***-***"]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

owner	identifier	base_host_id	capacity_timestamp	origin	creation_date	type	enabled	modification_date	linked_rule_identifier	name	average_capacity	id	base_capacity
admin	SYSTEM-****	0	0	SYSTEM	1186670307862	EVENT	True	1689868457050	None	Excessive Database Connections	0	1****	0

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Rules failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You are unauthorized to access the requested resource. Please log in.

Error Sample Data

Search Rules failed.

Status Code: 401.

Message: You are unauthorized to access the requested resource. Please log in.

Update Offense

Updates an offense.

READER NOTE

Offense ID is a required parameter to run this command.

You should already have your desired Offense IDs on hand to run this command. If you don’t, you may use the Fetch Incident command with defined filters to retrieve the desired Offense IDs. The Offense IDs can be found in the raw data at the path $.[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Offense ID	Required	The ID(s) of the offense(s) to update. Offense IDs can be obtained using the Fetch Incident command.	1***
Assigned To	Optional	The user to assign the offense to.	admin
Closing Reason ID	Optional	The ID of a closing reason. You must provide a valid closing_reason_id when you close an offense. Closing Reason IDs can be obtained using the List Offense Closing Reasons command.	1
Fields	Optional	The list of fields to return in the response data. Fields that are not listed will be excluded. Input subfields in brackets and separate multiple fields in the same object with commas. The available input fields are: id description assigned_to categories category_count policy_category_count security_category_count close_time closing_user closing_reason_id credibility relevance severity magnitude destination_networks source_network device_count event_count flow_count inactive last_updated_time local_destination_count offense_source offense_type protected follow_up remote_destination_count source_count start_time status username_count source_address_ids local_destination_address_ids domain_id rules: id type	description,closing_user,status,offense_source
Follow up	Optional	The option to set a follow up flag on the offense when set to True.	False
Protected	Optional	The option to protect the offense when set to True.	False
Status	Optional	The updated status for the offense. The valid input values are OPEN, HIDDEN, and CLOSED. When the status of an offense is set to CLOSED, a valid closing_reason_id must be provided. To hide an offense, use the HIDDEN status. To show a previously hidden offense, use the OPEN status.	CLOSED

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

{
    "description": "Vulnerability Discovered on Local Host\n",
    "closing_user": "API_token: *****",
    "status": "CLOSED",
    "offense_source": "1.2.3.4"
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 converts the value under key “start_time” and “last_updated_time” from milliseconds to UTC Date time.

SAMPLE DATA

{
    "description": "Vulnerability Discovered on Local Host\n",
    "closing_user": "API_token: *****",
    "status": "CLOSED",
    "offense_source": "1.2.3.4"
}

Key Fields

SAMPLE DATA

{
    "IDs": [
        1**
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

description	Vulnerability Discovered on Local Host
closing_user	API_token: *****
status	CLOSED
offense_source	1.2.3.4

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Update Offense failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The value for parameter (Offense ID) is invalid.

Error Sample Data

Update Offense failed.

Status Code: 400.

Message: The value for parameter (Offense ID) is invalid.

Test Connection

Allows you to perform a health check on an integration connection. You can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

Successful

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Test Connection failed. Failed to check the connector.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the IBM QRadar portal. Refer to IBM QRadar Error Code List for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You are unauthorized to access the requested resource. Please log in.

Error Sample Data

Test Connection failed. Failed to check the connector.

Status Code: 401.

Message: You are unauthorized to access the requested resource. Please log in.

Use Case

The Query Events command returns event details directly, without creating actual events like the Fetch Event command. This may result in a longer running time. If the running time is too long, it is recommended to use the Search command to obtain a Search ID and use it with the Get Search Status and Get Search Result commands for future analysis.
