Overview

Trend Micro Apex Central is the web-based centralized management console for Trend Micro Apex One as a Service, which protects endpoints, on or off the corporate network, against malware, Trojans, worms, spyware, and ransomware with protection that adapts against new unknown variants as they emerge.

D3 SOAR is providing REST operations to function with Trend Micro Apex Central.

Trend Micro Apex Central is available for use in:

D3 SOAR	V14.0.158.0+
Category	Endpoint Security
Deployment Options	Option I, Option III

Connection

To connect to Trend Micro Apex Central from D3 SOAR, please follow this part to collect the required information below:

Parameter	Description	Example
Server URL	The server URL for Trend Micro Apex Central.	https://***.manage.trendmicro.com
Application ID	The application ID for authentication.	*----**
API Key	The API key for authentication.	*----**

Permission Requirements

Each endpoint in the Trend Micro Apex Central API requires a certain permission scope. The following are required scopes for the commands in this integration:

All commands need Settings > Automation API Access Settings access in order to generate an API key.

As Trend Micro Apex Central is using role-based access control (RBAC), the API access token is generated based on a specific user account and the application. Therefore, the command permissions are inherited from the user account's role. Users need to configure their user profile from the Trend Micro Apex Central console for each command in this integration.

READER NOTE

Trend Micro Apex Central's default user profiles are as follows:

Administrator_and_DLP_Compliance_Officer
Administrator
DLP_Compliance_Office
DLP_Incident_Reviewer
Operator
Power_User
Read-only_User
Threat_Investigator

You may see the following section to custom create user roles to use for this integration. Please refer to Default User Roles and User Roles for details on configuring user profiles.

Configuring Trend Micro Apex Central to Work with D3 SOAR

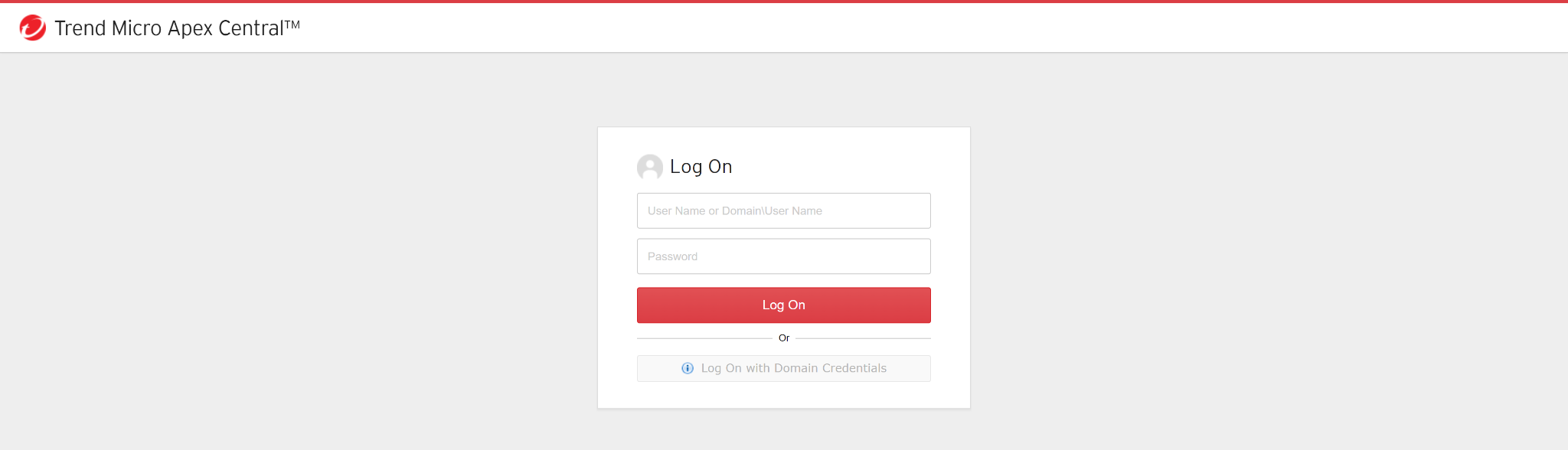

Log into the Trend Micro Apex Central portal.

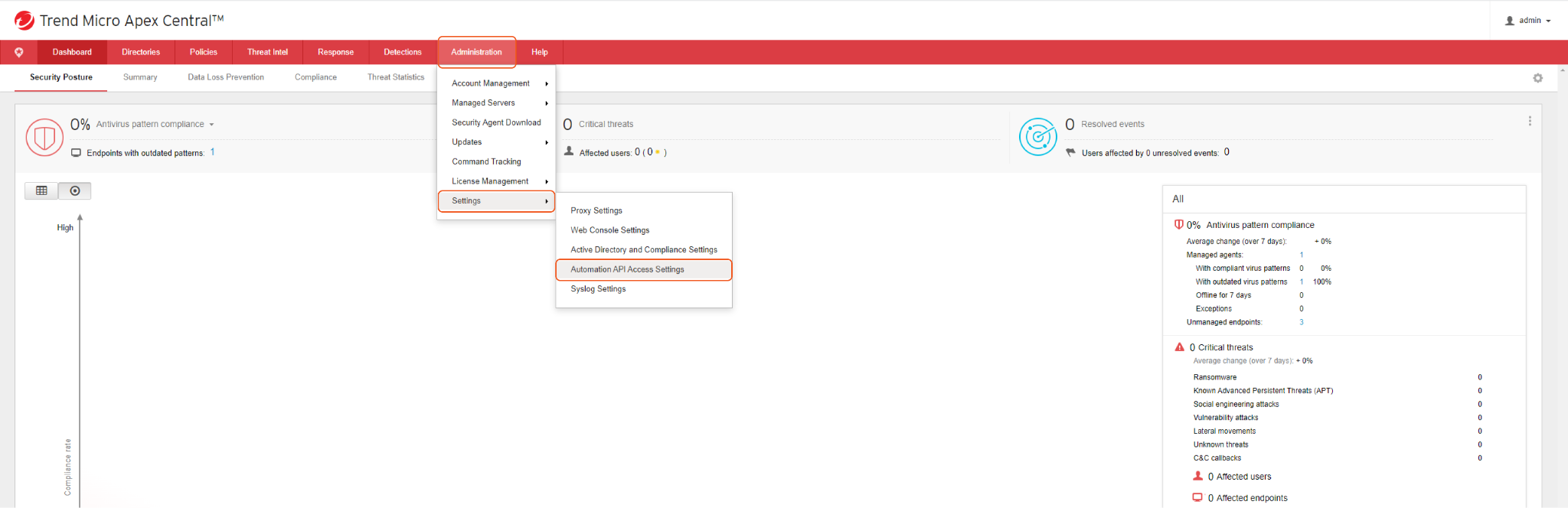

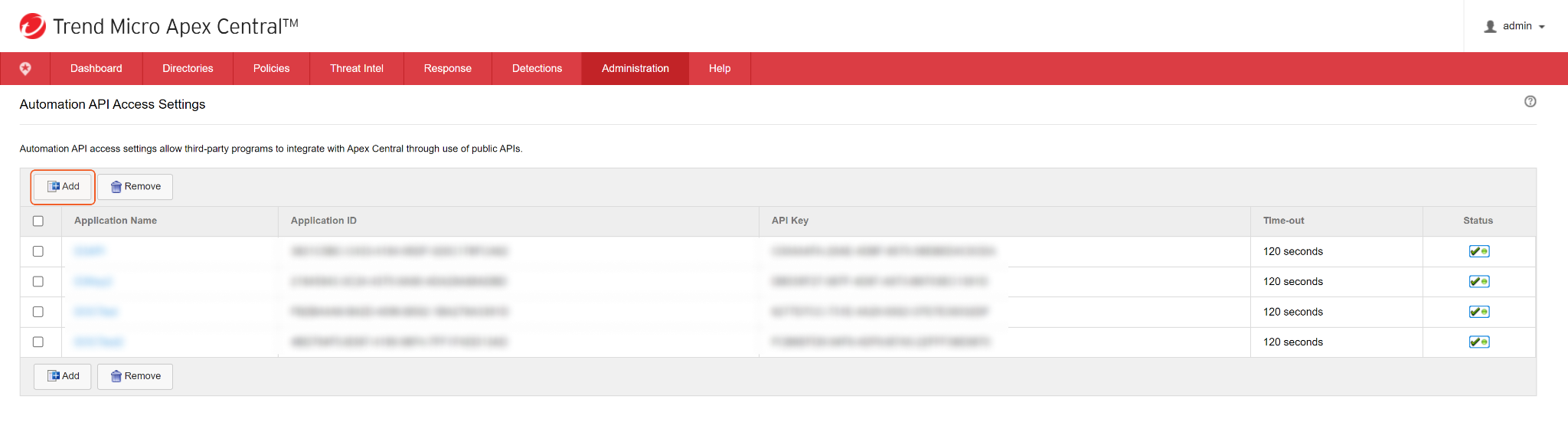

Navigate to Administration > Settings > Automation API Access Settings.

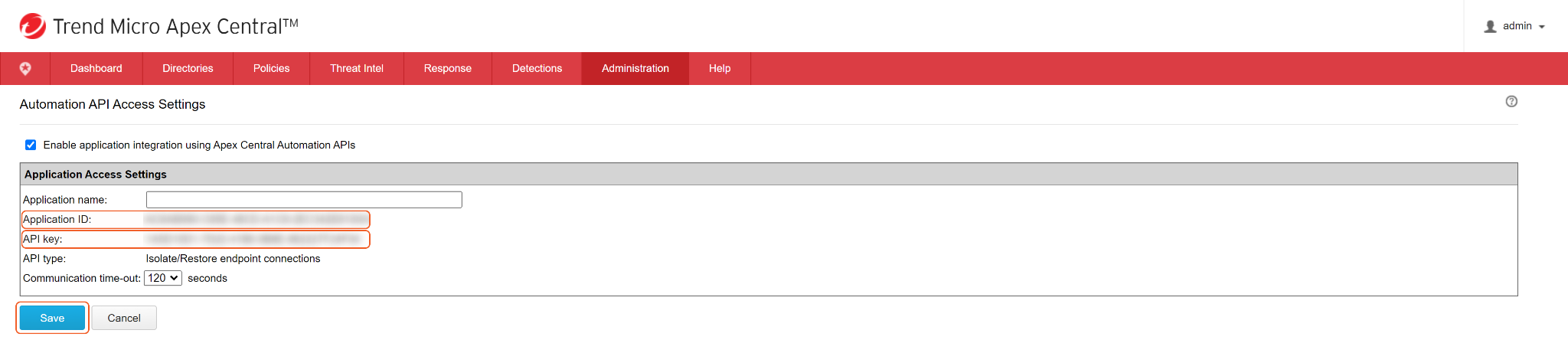

Click + Add to create a new application.
Enter a name for the application. Copy and save the Application ID and API Key. These will be required to build the integration connection in D3 SOAR.

Creating a User and Configuring API permissions

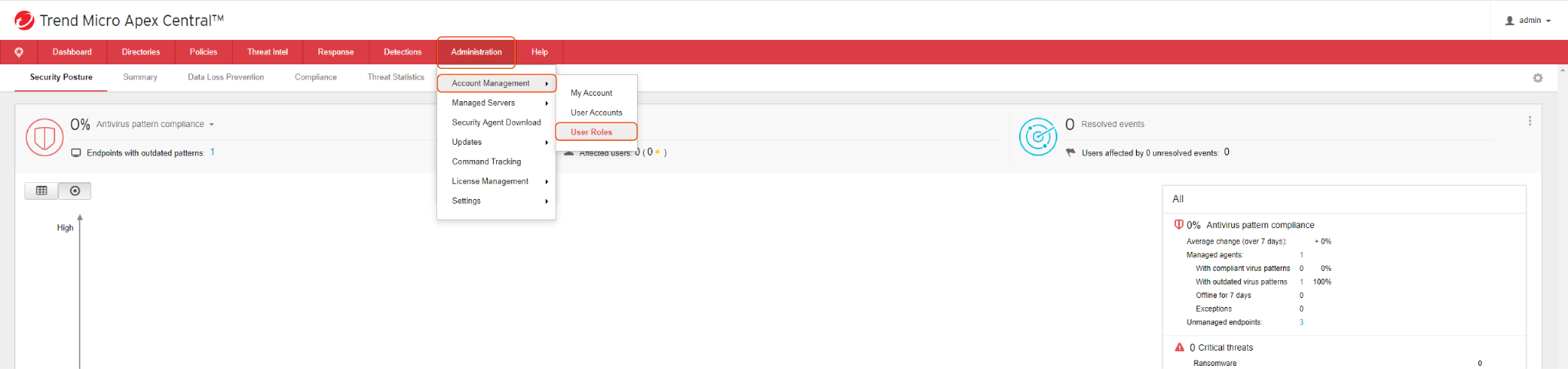

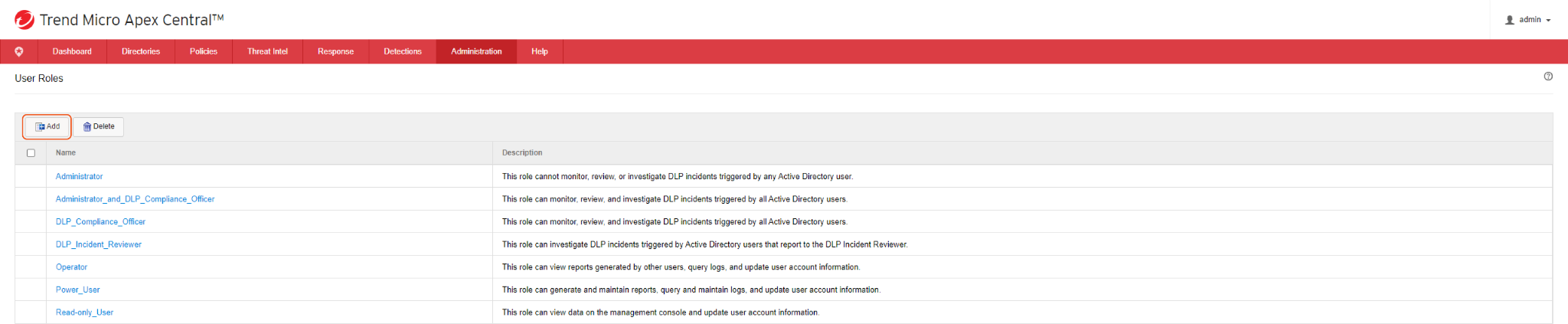

Define a custom role through the following steps. Navigate to Administration > Account Management > User Roles.
Click + Add to add a new role.

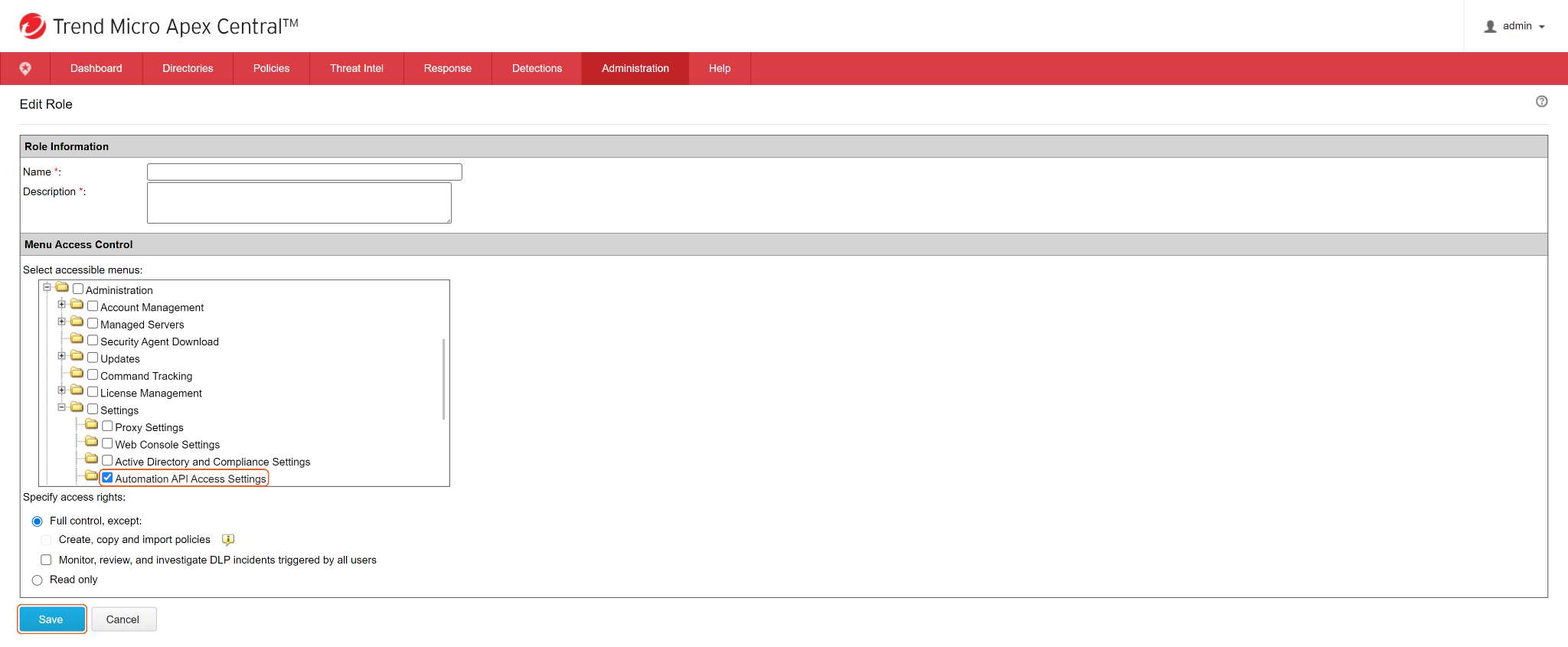

Add a name and description for the role, then specify the menu access controls for the role. Selecting Automation API Access Settings under Administration > Settings with the Full Control option selected will enable access to all commands for the integration.

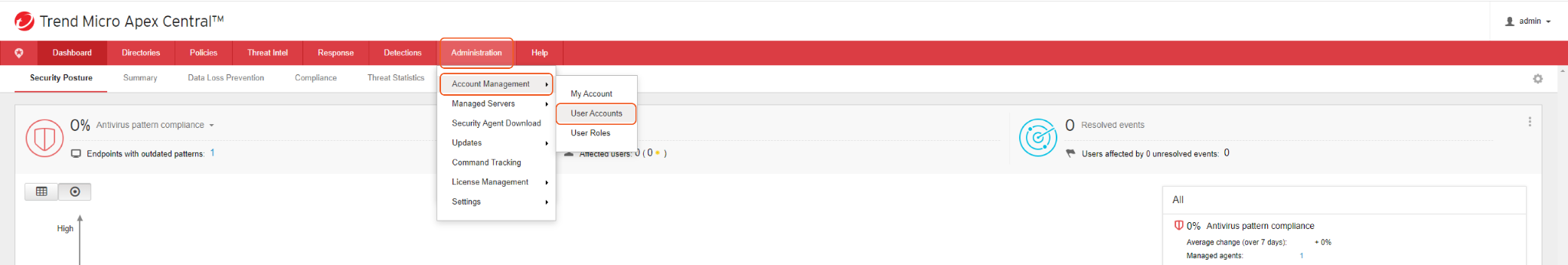

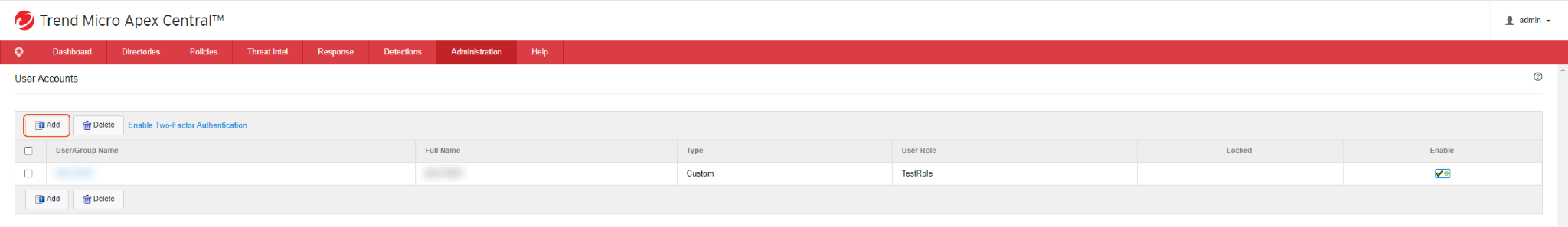

Create a user. Navigate to Administration > Account Management > User Accounts.
Click + Add to create a user.

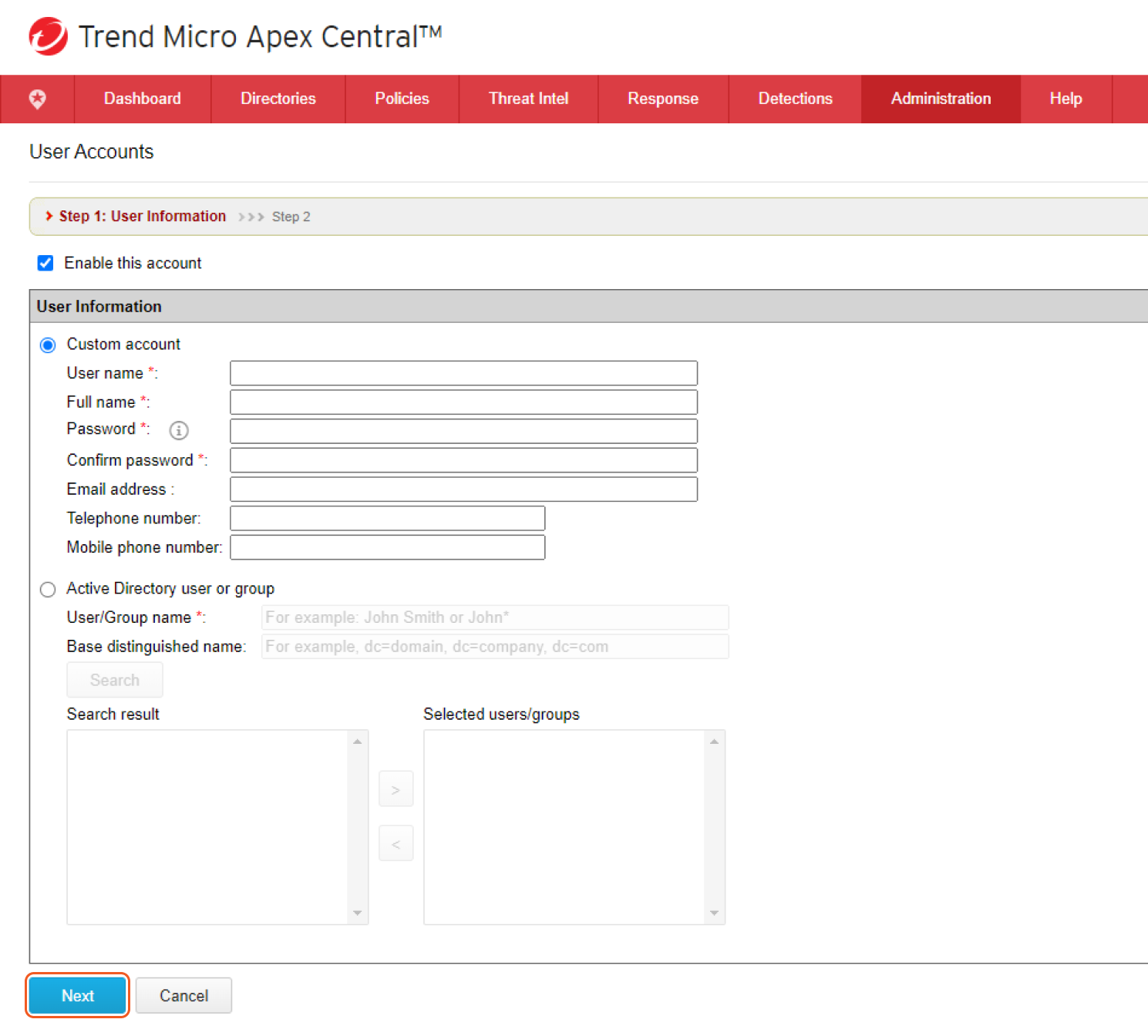

Enter the user's User Name, Full Name and Password. Click Next.

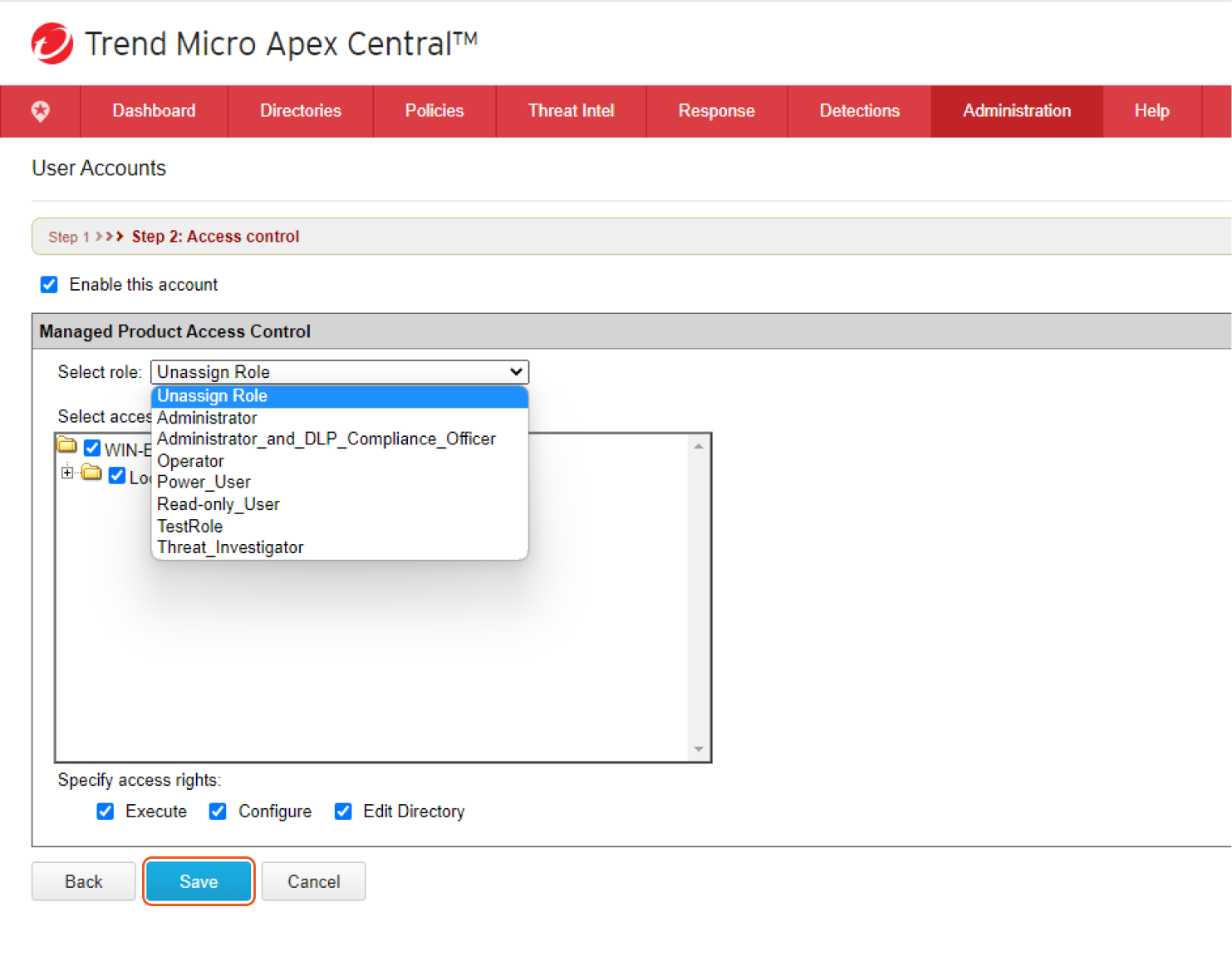

Specify the user's role and access level by selecting the custom role you created from the dropdown menu. Access rights can also be further specified with the tick boxes below this window. Click Save to create the user.

Configuring D3 SOAR to Work with Trend Micro Apex Central

Log in to D3 SOAR.

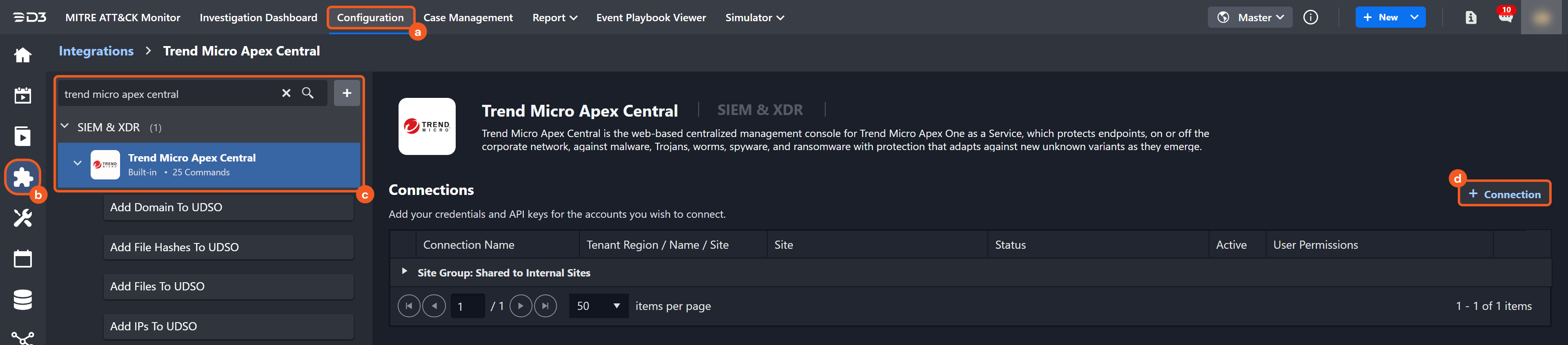

Find the Trend Micro Apex Central integration.
1. Navigate to Configuration on the top header menu.
2. Click on the Integration icon on the left sidebar.
3. Type Trend Micro Apex Central in the search box to find the integration, then click it to select it.
4. Click + Connection, on the right side of the Connections section. A new connection window will appear.

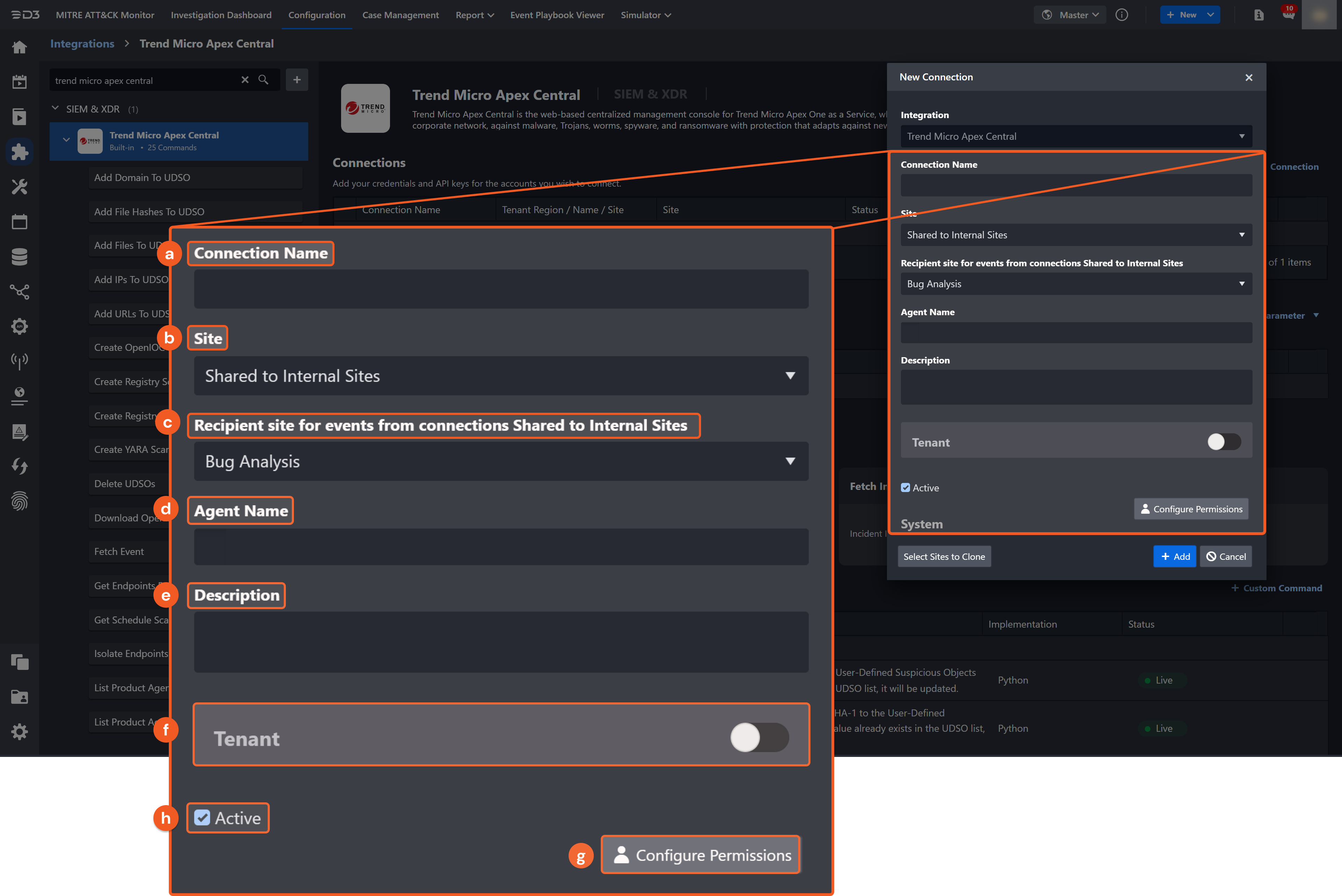

Configure the following fields to create a connection to Trend Micro Apex Central.
1. Connection Name: The desired name for the connection.
2. Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
3. Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.
4. Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
5. Description (Optional): Add your desired description for the connection.
6. Tenant (Optional): When configuring the connection from a master tenant site, you have the option to choose the specific tenant sites you want to share the connection with. Once you enable this setting, you can filter and select the desired tenant sites from the dropdowns to share the connection.
7. Configure User Permissions: Defines which users have access to the connection.
8. Active: Check the tick box to ensure the connection is available for use.

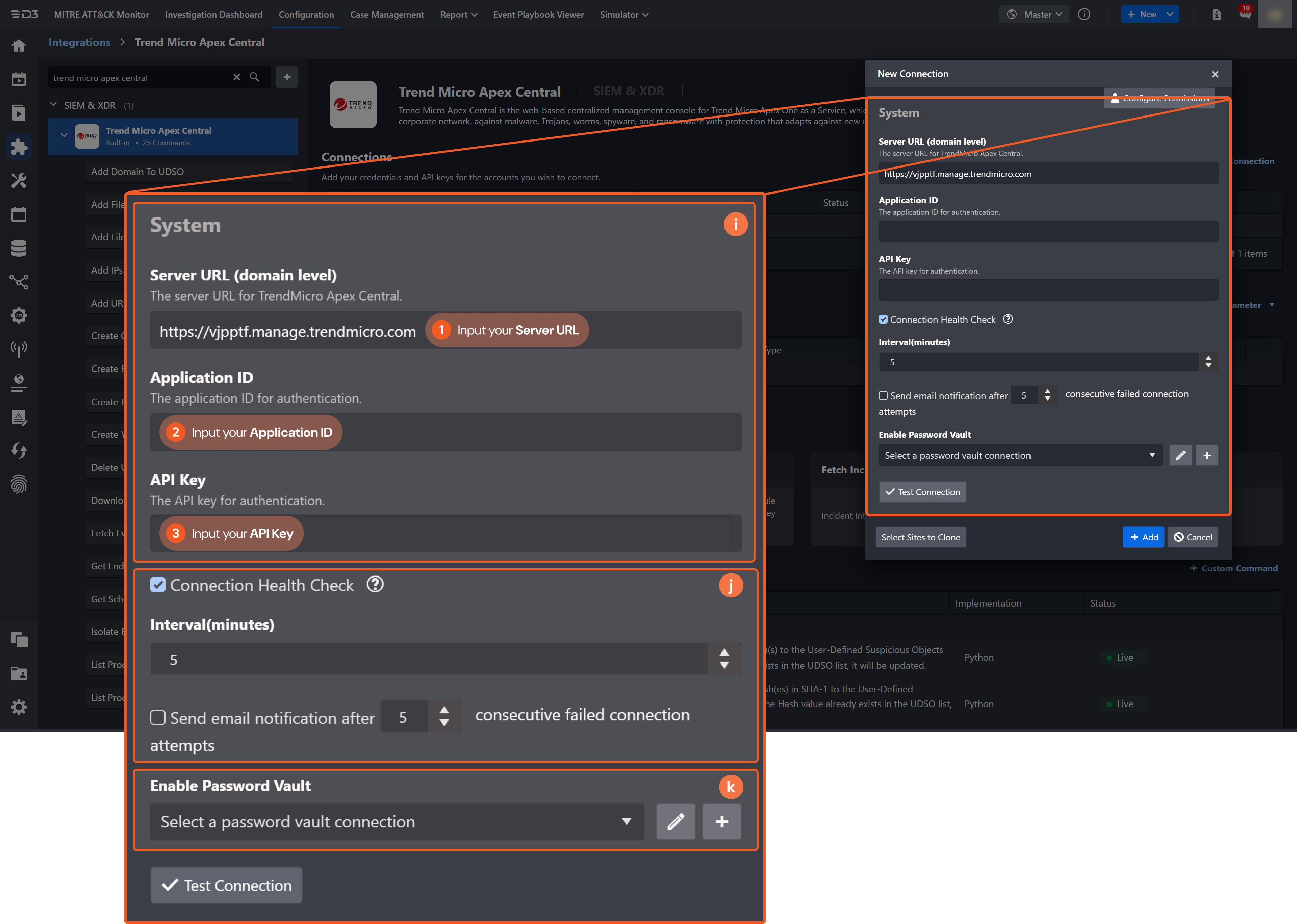

9. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
  1. Input the domain level Server URL. The default value is https://vjpptf.manage.trendmicro.com.
  2. Copy the Application ID from the Trend Micro Apex Central platform. Refer to step 4 of Configuring Trend Micro Apex Central to Work with D3 SOAR.
  3. Input the API Key from the TrendMicro Apex Central platform. Refer to step 4 of Configuring Trend Micro Apex Central to Work with D3 SOAR.
10. Connection Health Check: Updates the connection status you have created. A connection health check is done by scheduling the Test Connection command of this integration. This can only be done when the connection is active.
  To set up a connection health check, check the Connection Health Check tick box. You can customize the interval (minutes) for scheduling the health check. An email notification can be set up after a specified number of failed connection attempts.
11. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Please refer to the password vault connection guide if needed.
Test the connection.
1. Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green checkmark appear beside the Test Connection button. If the test connection fails, please check your connection parameters and try again.
2. Click OK to close the alert window.
3. Click Add to create and add the configured connection.

Commands

Trend Micro Apex Central includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the Trend Micro Apex Central API, please refer to the Trend Micro Apex Central API reference.

READER NOTE

Certain permissions are required for each command. Please refer to the Permission Requirements and Configuring Trend Micro Apex Central to Work with D3 SOAR for details.

Note for Time-related parameters

The input format of time-related parameters may vary based on your account settings. As a result, the sample data provided in our commands is different from what you see. To set your preferred time format, follow these steps:

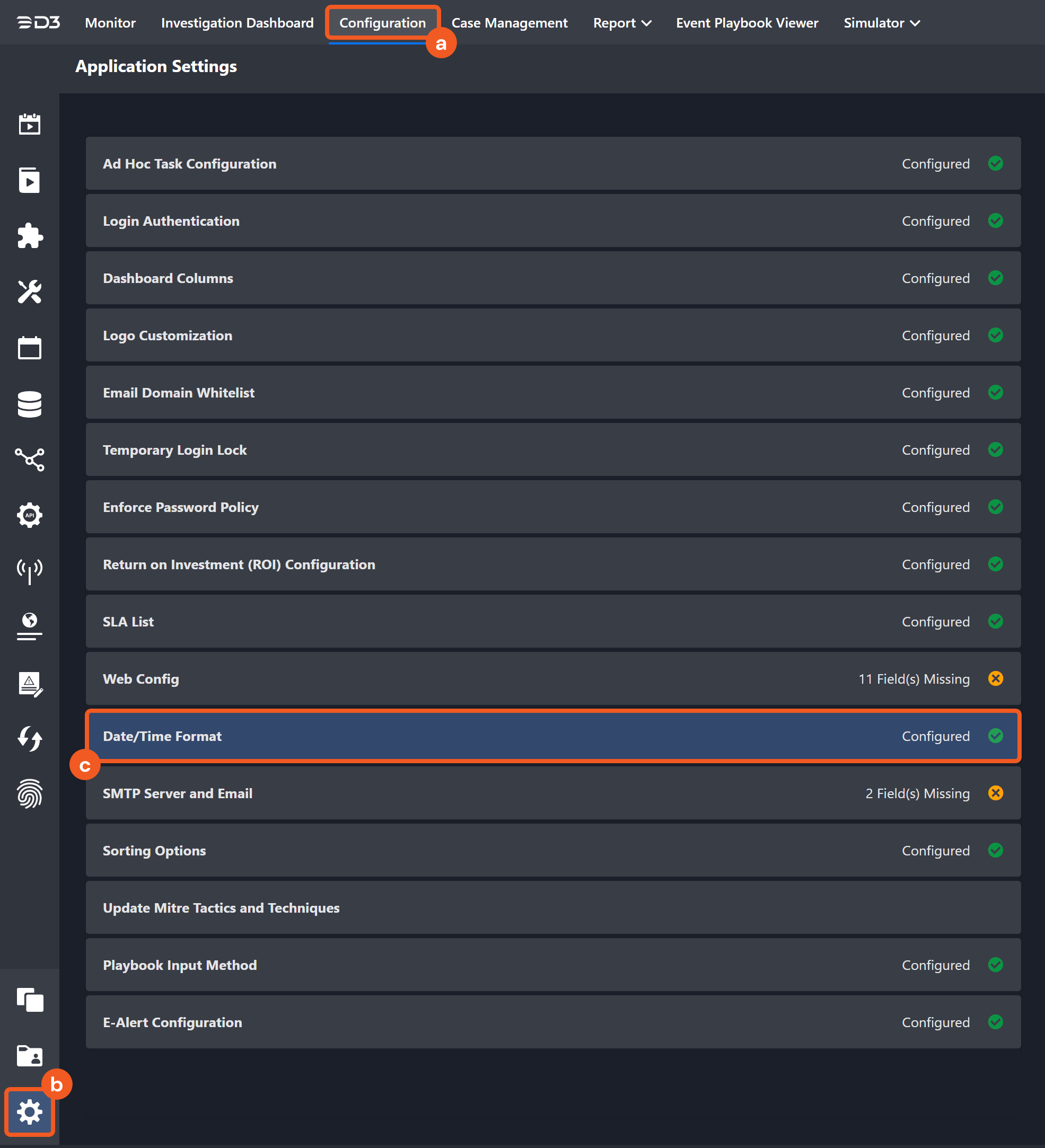

Navigate to Configuration > Application Settings. Select Date/Time Format.

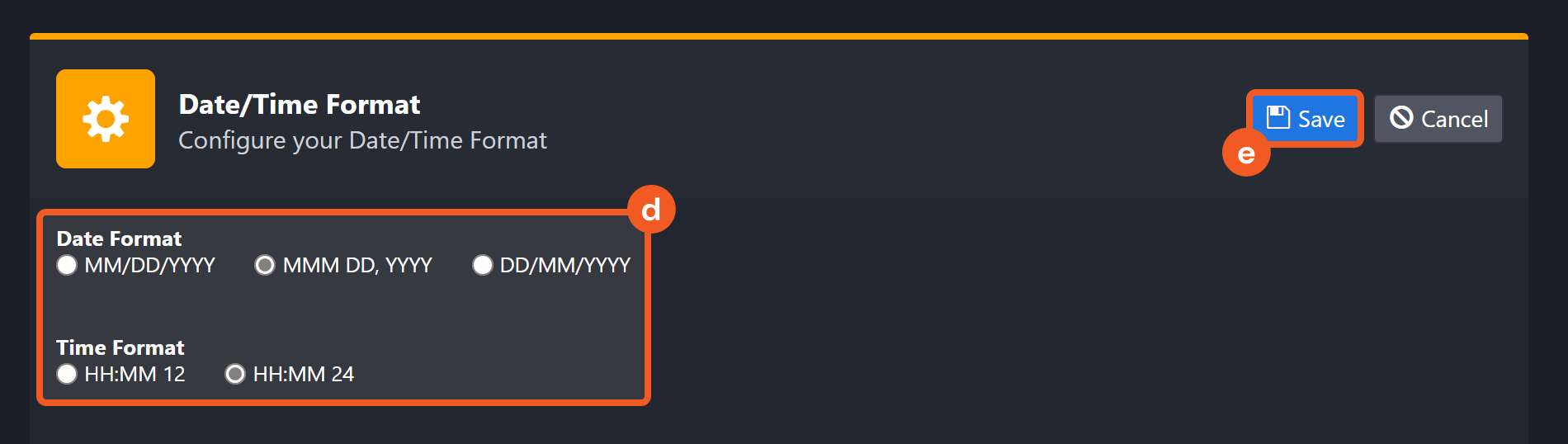

Choose your desired date and time format.
After that, you will be able to view your preferred time format when configuring the DateTime input parameters for commands.

Add Domain To UDSO

Adds the specified domain(s) to the User-Defined Suspicious Objects list. If a domain already exists in the UDSO list, it will be updated.

Input

Input Parameter	Required/Optional	Description	Example
Domains	Required	The domains to add to the UDSO list.	[ "www.phishing_domain1.com" ]
Scan Action	Optional	The scan action to perform on the Domains. Available options are Log and Block. If this parameter is not defined, the default scan action is Log.	Log
Notes	Optional	The description for the Domains.	Suspicious Domain!
Expiration UTC Date	Optional	The expiration date of the Domains in UTC time.	2023-05-05 00:00

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Apex Central API response by adding the "Domain" field.

Sample Data

JSON

[
    {
        "Domain": "www.phishing_domain1.com",
        "Data": "",
        "Meta": {
            "Result": 1,
            "ErrorCode": 0,
            "ErrorMsg": ""
        },
        "PermissionCtrl": {
            "permission": "255",
            "elements": null
        },
        "FeatureCtrl": {
            "mode": "0"
        },
        "SystemCtrl": {
            "TmcmSoDist_Role": "none"
        }
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

Sample Data

JSON

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command's input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

DOMAIN	DATA	META	PERMISSIONCTRL	FEATURECTRL	SYSTEMCTRL
www.phishing_domain1.com		{'Result': 1, 'ErrorCode': 0, 'ErrorMsg': ''}	{'permission': '255', 'elements': None}	{'mode': '0'}	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Add Domain To UDSO failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Add Domain To UDSO failed.

Status Code: 500.

Message: Invalid credential.

Add File Hashes To UDSO

Adds the specified File Hash(es) in SHA-1 to the User-Defined Suspicious Objects list. If the Hash value already exists in the UDSO list, it will be updated.

Input

Input Parameter	Required/Optional	Description	Example
File Hashes	Required	The File Hashes in SHA-1 to add to the UDSO list.	[ "B3*****A3" ]
Scan Action	Optional	The scan action to perform on the File Hashes. Available options are Log and Block. If this parameter is not defined, the default scan action is Log.	Log
Notes	Optional	The description for the File Hashes.	Suspicious File-Wildfire
Expiration UTC Date	Optional	The expiration date of the File Hashes in UTC time.	2023-05-05 00:00

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Apex Central API response by adding the "Hash" field.

Sample Data

JSON

[
    {
        "Hash": "B3*****A3",
        "Data": "",
        "Meta": {
            "Result": 1,
            "ErrorCode": 0,
            "ErrorMsg": ""
        },
        "PermissionCtrl": {
            "permission": "255",
            "elements": null
        },
        "FeatureCtrl": {
            "mode": "0"
        },
        "SystemCtrl": {
            "TmcmSoDist_Role": "none"
        }
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

Sample Data

JSON

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

HASH	DATA	META	PERMISSIONCTRL	FEATURECTRL	SYSTEMCTRL
B3*****3		{'Result': 1, 'ErrorCode': 0, 'ErrorMsg': ''}	{'permission': '255', 'elements': None}	{'mode': '0'}	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Add File Hashes To UDSO failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Add File Hashes To UDSO failed.

Status Code: 500.

Message: Invalid credential.

Add Files To UDSO

Adds the specified File information to the User-Defined Suspicious Objects list. If the File already exists in the UDSO list, it will be updated.

File ID and File Source

It is not recommended to use the Test Command feature with the Add Files To UDSO command as it is designed for dynamic input files in Playbooks, Incident Attachments, and Artifact Attachments. There is a simple workaround to test the command:

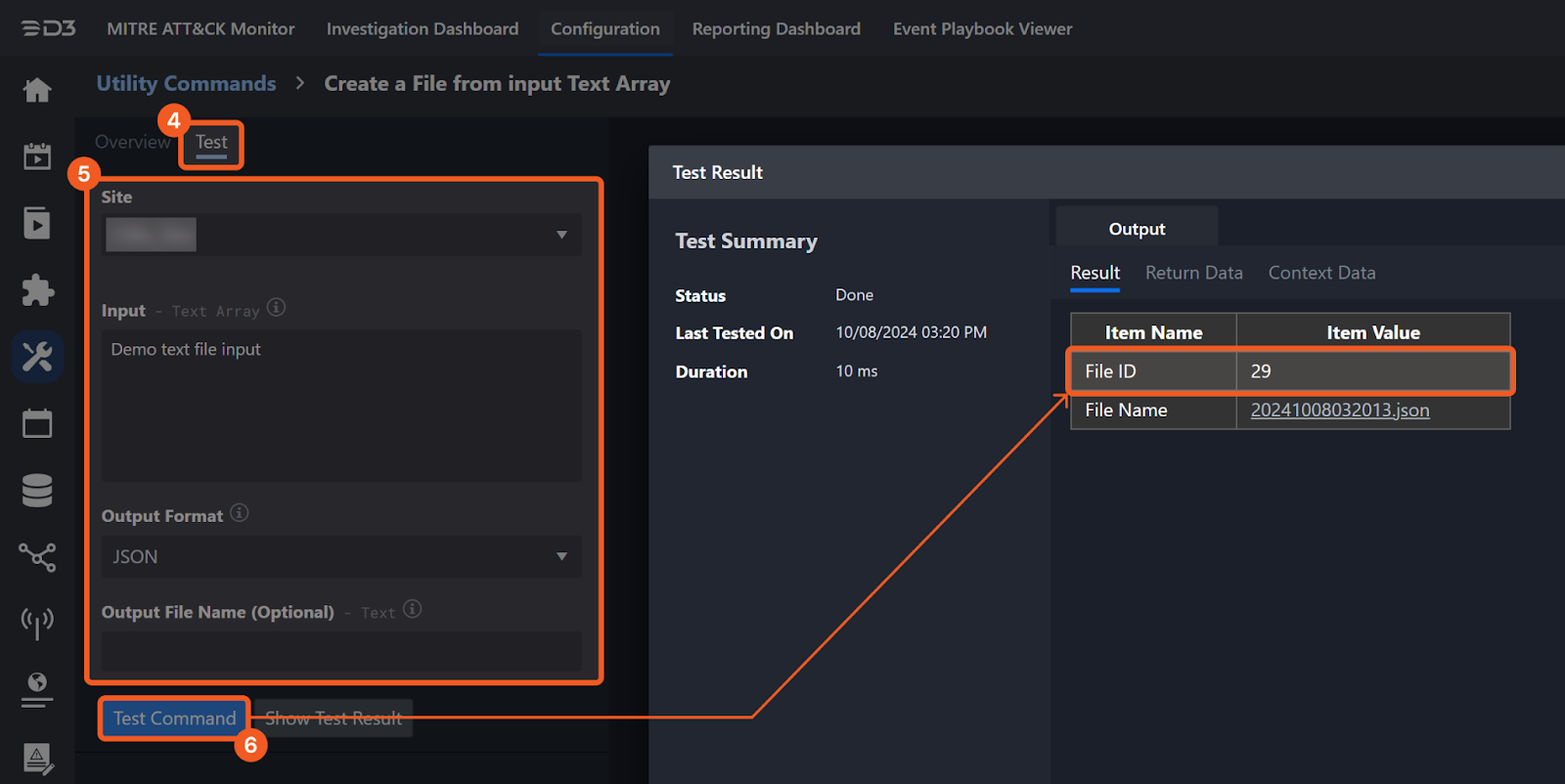

Navigate to Configuration on the top bar menu.

Click on Utility Commands on the left sidebar menu.

Use the search box to find and select the Create a File from input Text Array command.

Click on the Test tab.
Input the required information for the parameters.
Click on the Test Command button. A D3 File ID will appear in the output data after the file has been successfully created. The D3 File Source of the created file will be Playbook File.

Input

Input Parameter	Required/Optional	Description	Example
File IDs	Required	The File IDs to add to the UDSO list.	[ "913" ]
File Source	Required	The file source of the file to add. The options for file sources are: Incident Attachment File: Manually uploaded file from Incident Playbook File: Output from another Task Artifact File: Ingested Artifact in an Event	Playbook File
Scan Action	Optional	The scan action to perform on the Files. Available options are Log, Block and Quarantine. If this parameter is not defined, the default scan action is Log.	Block
Note	Optional	The description for the files.	Small file for test

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Apex Central API response by adding the "FileID" field.

Sample Data

JSON

[
    {
        "FileID": "913",
        "result_code": 1,
        "result_description": "Operation successful",
        "result_content": null
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

Sample Data

JSON

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

FILEID	RESULT_CODE	RESULT_DESCRIPTION	RESULT_CONTENT
913	1	Operation successful	None

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Add Files To UDSO failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Add Files To UDSO failed.

Status Code: 500.

Message: Invalid credential.

Add IPs To UDSO

Adds the specified IP(s) to the User-Defined Suspicious Objects list. If the IP already exists in the UDSO list, it will be updated.

Input

Input Parameter	Required/Optional	Description	Example
IPs	Required	The IP addresses to add to the UDSO list.	[ "2.2.2.2" ]
Scan Action	Optional	The scan action to perform on the IP addresses. Available options are Log and Block. If this parameter is not defined, the default scan action is Log.	Block
Notes	Optional	The description for the IP addresses.	Suspicious phishing ip
Expiration UTC Date	Optional	The expiration date of the IP addresses in UTC time.	2023-05-09 00:00

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Apex Central API response by adding the "IP" field.

Sample Data

JSON

[
    {
        "IP": "2.2.2.2",
        "Data": "",
        "Meta": {
            "Result": 1,
            "ErrorCode": 0,
            "ErrorMsg": ""
        },
        "PermissionCtrl": {
            "permission": "255",
            "elements": null
        },
        "FeatureCtrl": {
            "mode": "0"
        },
        "SystemCtrl": {
            "TmcmSoDist_Role": "none"
        }
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

Sample Data

JSON

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

IP	DATA	META	PERMISSIONCTRL	FEATURECTRL	SYSTEMCTRL
2.2.2.2		{'Result': 1, 'ErrorCode': 0, 'ErrorMsg': ''}	{'permission': '255', 'elements': None}	{'mode': '0'}	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Add IPs To UDSO failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Add IPs To UDSO failed.

Status Code: 500.

Message: Invalid credential.

Add URLs To UDSO

Adds the specified URL(s) to the User-Defined Suspicious Objects list. If the URL already exists in the UDSO list, it will be updated.

Input

Input Parameter	Required/Optional	Description	Example
URLs	Required	The URLs to add to the UDSO list.	[ "https://www.test123.com/index.html" ]
Scan Action	Optional	The scan action to perform on the URLs. Available options are Log and Block. If this parameter is not defined, the default scan action is Log.	Block
Notes	Optional	The description for the URLs.	Suspicious url
Expiration UTC Date	Optional	The expiration date of the URLs in UTC time.	2023-05-05 12:00 AM

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Apex Central API response by adding the "URL" field.

Sample Data

JSON

[
    {
        "URL": "https://www.test123.com/index.html",
        "Data": "",
        "Meta": {
            "Result": 1,
            "ErrorCode": 0,
            "ErrorMsg": ""
        },
        "PermissionCtrl": {
            "permission": "255",
            "elements": null
        },
        "FeatureCtrl": {
            "mode": "0"
        },
        "SystemCtrl": {
            "TmcmSoDist_Role": "none"
        }
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

Sample Data

JSON

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

URLDataMetaPermissionCtrlFeatureCtrlSystemCtrlhttps://www.test123.com/index.html{'Result': 1, 'ErrorCode': 0, 'ErrorMsg': ''}{'permission': '255', 'elements': None}{'mode': '0'}{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Add URLs To UDSO failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Url is invalid which should be include http:// or https://.

Error Sample Data

Add URLs To UDSO failed.

Status Code: 400.

Message: Url is invalid which should be include http:// or https://.

Create OpenIOC Scan

Creates a new Live Investigation to scan the disk file using an OpenIOC file.

READER NOTE

Agent GUIDs and Server GUID are required parameters to run this command.

Run the List Security Agents command to obtain Agent GUIDs. Agent GUIDs can be found from the returned raw data at the path $.data.data.content[0].content.agentEntity[*].agentGuid.
Run the List Product Agents command to obtain the Server GUID. Server GUID can be found from the returned raw data at the path $.result_content[*].entity_id.

File ID and File Source

It is not recommended to use the Test Command feature with the Create OpenIOC Scan command as it is designed for dynamic input files in Playbooks, Incident Attachments, and Artifact Attachments. There is a simple workaround to test the command:

Navigate to Configuration on the top bar menu.

Click on Utility Commands on the left sidebar menu.

Use the search box to find and select the Create a File from input Text Array command.

Click on the Test tab.
Input the required information for the parameters.
Click on the Test Command button. A D3 File ID will appear in the output data after the file has been successfully created. The D3 File Source of the created file will be Playbook File.

Input

Input Parameter	Required/Optional	Description	Example
Name	Required	The name of the scan.	Test Scan
Agent GUIDs	Required	The GUIDs of the agents to be scanned. Agent GUIDs can be obtained using the List Security Agents command.	[ "*----", "----" ]
Server GUID	Required	The GUID of the server. Server GUID can be obtained using the List Product Agents command.	*----**
File ID	Required	The file path of the file source.	287
File Source	Required	The file source of the file. The options for file sources are: Incident Attachment File: Manually uploaded file from Incident Playbook File: Output from another Task Artifact File: Ingested Artifact in an Event	Incident Attachment File

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "Code": 0,
        "CodeType": 1,
        "Message": "OK",
        "Data": {
            "taskId": "***-***-***-***-***",
            "lastContentId": "",
            "hasMore": false,
            "serverName": "Apex One as a Service",
            "serverGuid": "***-***-***-***-***",
            "content": [
                {
                    "statusCode": 0,
                    "message": "TMSL_S_SUCCESS",
                    "content": {
                        "scanSummaryGuid": "***-***-***-***-***"
                    }
                }
            ]
        },
        "TimeZone": -7
    },
    "Meta": {
        "result": 1,
        "errorCode": 0,
        "errorMessgae": "Success"
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "ScanSummaryGuids": [
        "***-***-***-***-***"
    ],
    "Messages": [
        "TMSL_S_SUCCESS"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

Data	{'Code': 0, 'CodeType': 1, 'Message': 'OK', 'Data': {'taskId': '*----', 'lastContentId': '', 'hasMore': False, 'serverName': 'Apex One as a Service', 'serverGuid': '----', 'content': [{'statusCode': 0, 'message': 'TMSL_S_SUCCESS', 'content': {'scanSummaryGuid': '----**'}}]}, 'TimeZone': -7}
Meta	{'result': 1, 'errorCode': 0, 'errorMessgae': 'Success'}
PermissionCtrl	{'permission': '255', 'elements': None}
FeatureCtrl	{'mode': '0'}
SystemCtrl	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create OpenIOC Scan failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Create OpenIOC Scan failed.

Status Code: 500.

Message: Invalid credential.

Create Registry Scan

Creates a new Live Investigation to search the registry.

READER NOTE

Agent GUIDs and Server GUID are required parameters to run this command.

Run the List Security Agents command to obtain Agent GUIDs. Agent GUIDs can be found from the returned raw data at the path $.data.data.content[0].content.agentEntity[*].agentGuid.
Run the List Product Agents command to obtain the Server GUID. Server GUID can be found from the returned raw data at the path $.result_content[*].entity_id.

Input

Input Parameter	Required/Optional	Description	Example
Name	Required	The name of the scan.	Test Scan
Agent GUIDs	Required	The GUIDs of the agents to be scanned. Agent GUIDs can be obtained using the List Security Agents command.	[ *----", "----*" ]
Server GUID	Required	The GUID of the server. Server GUID can be obtained using the List Product Agents command.	*----**
Registry Key	Required	The key to search.	HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL
Registry Value	Required	The registry value to search.	EventLogging
Registry Match	Required	The type of the match to search in the registry.	EventLogging
Registry Data	Required	The data to search in the registry.	1

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "Code": 0,
        "CodeType": 1,
        "Message": "OK",
        "Data": {
            "taskId": "***-***-***-***-***",
            "lastContentId": "",
            "hasMore": false,
            "serverName": "Apex One as a Service",
            "serverGuid": "***-***-***-***-***",
            "content": [
                {
                    "statusCode": 0,
                    "message": "TMSL_S_SUCCESS",
                    "content": {
                        "scanSummaryGuid": "***-***-***-***-***",
                        "unaccessibleAgentGuid": {
                            "***-***-***-***-***": [
                                "***-***-***-***-***"
                            ]
                        }
                    }
                }
            ]
        },
        "TimeZone": -7
    },
    "Meta": {
        "result": 1,
        "errorCode": 0,
        "errorMessgae": "Success"
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "ScanSummaryGuids": [
        "***-***-***-***-***"
    ],
    "Messages": [
        "TMSL_S_SUCCESS"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

Data	{'Code': 0, 'CodeType': 1, 'Message': 'OK', 'Data': {'taskId': '*----', 'lastContentId': '', 'hasMore': False, 'serverName': 'Apex One as a Service', 'serverGuid': '----', 'content': [{'statusCode': 0, 'message': 'TMSL_S_SUCCESS', 'content': {'scanSummaryGuid': '----', 'unaccessibleAgentGuid': {'----*']}}}]}, 'TimeZone': -7}
Meta	{'result': 1, 'errorCode': 0, 'errorMessgae': 'Success'}
PermissionCtrl	{'permission': '255', 'elements': None}
FeatureCtrl	{'mode': '0'}
SystemCtrl	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create Registry Scan failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Create Registry Scan failed.

Status Code: 500.

Message: Invalid credential.

Create Registry Scan Schedule

Creates a scheduled Windows registry scan.

READER NOTE

Agent GUIDs and Server GUID are required parameters to run this command.

Run the List Security Agents command to obtain Agent GUIDs. Agent GUIDs can be found from the returned raw data at the path $.data.data.content[0].content.agentEntity[*].agentGuid.
Run the List Product Agents command to obtain the Server GUID. Server GUID can be found from the returned raw data at the path $.result_content[*].entity_id.

Input

Input Parameter	Required/Optional	Description	Example
Name	Required	The name of the scheduled Windows registry scan.	Registry schedule scan 0111-A
Agent GUIDs	Optional	The GUIDs of the endpoints managed by the target server. Agent GUIDs can be obtained using the List Security Agents command. If this parameter is not defined, the scheduled scan will target all agents of the managing server.	[ "*----", "----*" ]
Server GUID	Optional	The GUID of the server which manages the endpoints specified in Agent GUID. Server GUID can be obtained using the List Product Agents command. If this parameter is not defined, the scheduled scan will target all agents.	*----**
Schedule Start Date	Required	The start date of the scheduled registry scan in UTC time.	2023-05-04 00:00
Schedule End Date	Required	The end date of the scheduled registry scan in UTC time.	2023-05-05 00:00
Schedule Repeat Type	Required	How often the schedule should repeat. The available options are yearly, monthly or daily.	Daily
Schedule Repeat Time	Required	The exact time when the schedule runs, in UTC time.	2023-05-05 00:00
Registry Key	Required	The Windows registry key to scan.	HKEY_Current_User\Software\Microsoft\Windows
Registry Name Value	Required	The value of the Windows registry name to scan.	default
Registry Match Option	Optional	The operator used for the registry scan. The available options are Equal, Data contains and Data does not contain. If this parameter is not defined, the default operator is Equal.	Data contains
Registry Data	Required	The value of Windows registry data to scan.	default
User TimeZone	Required	The local timezone of the user.	-7

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "Code": 0,
        "CodeType": 1,
        "Message": "OK",
        "Data": {
            "taskId": "",
            "lastContentId": "",
            "hasMore": false,
            "serverGuid": "",
            "serverName": "",
            "content": [
                {
                    "statusCode": 0,
                    "message": "Success",
                    "content": {
                        "scanScheduleId": 95,
                        "scanScheduleGuid": "***-***-***-***-***",
                        "name": "test_scheduleScan06293",
                        "userTimezone": -7,
                        "status": 1,
                        "repeatType": 2,
                        "repeatValue": "27:17:55:00",
                        "endpointType": 1,
                        "startDate": 1624431600,
                        "endDate": 1624690800,
                        "scanType": 1
                    }
                }
            ]
        },
        "TimeZone": -7
    },
    "Meta": {
        "result": 1,
        "errorCode": 0,
        "errorMessgae": "Success"
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

Data	{'Code': 0, 'CodeType': 1, 'Message': 'OK', 'Data': {'taskId': '', 'lastContentId': '', 'hasMore': False, 'serverGuid': '', 'serverName': '', 'content': [{'statusCode': 0, 'message': 'Success', 'content': {'scanScheduleId': 95, 'scanScheduleGuid': '*----', 'name': '***', 'userTimezone': -7, 'status': 1, 'repeatType': 2, 'repeatValue': '27:17:55:00', 'endpointType': 1, 'startDate': 1624431600, 'endDate': 1624690800, 'scanType': 1}}]}, 'TimeZone': -7}
Meta	{'result': 1, 'errorCode': 0, 'errorMessgae': 'Success'}
PermissionCtrl	{'permission': '255', 'elements': None}
FeatureCtrl	{'mode': '0'}
SystemCtrl	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create Registry Scan Schedule failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Create Registry Scan Schedule failed.

Status Code: 500.

Message: Invalid credential.

Create YARA Scan

Creates a new Live Investigation to scan in-memory processes using YARA.

READER NOTE

Agent GUIDs and Server GUID are required parameters to run this command.

Run the List Security Agents command to obtain Agent GUIDs. Agent GUIDs can be found from the returned raw data at the path $.data.data.content[0].content.agentEntity[*].agentGuid.
Run the List Product Agents command to obtain the Server GUID. Server GUID can be found from the returned raw data at the path $.result_content[*].entity_id.

File ID and File Source

It is not recommended to use the Test Command feature with the Create YARA Scan command as it is designed for dynamic input files in Playbooks, Incident Attachments, and Artifact Attachments. There is a simple workaround to test the command:

Navigate to Configuration on the top bar menu.

Click on Utility Commands on the left sidebar menu.

Use the search box to find and select the Create a File from input Text Array command.

Click on the Test tab.
Input the required information for the parameters.
Click on the Test Command button. A D3 File ID will appear in the output data after the file has been successfully created. The D3 File Source of the created file will be Playbook File.

Input

Input Parameter	Required/Optional	Description	Example
Name	Required	The name of the scan.	Test Scan
Agent GUIDs	Required	The GUIDs of the agents to be scanned. Agent GUIDs can be obtained using the List Security Agents command.	[ "*----", "----*" ]
Server GUID	Required	The GUID of the server. Server GUID can be obtained using the List Product Agents command.	*----**
File ID	Required	The file path of the file source.	288
File Source	Required	The file source of the file to scan. The options for file sources are: Incident Attachment File: Manually uploaded file from Incident Playbook File: Output from another Task Artifact File: Ingested Artifact in an Event	Incident Attachment File

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "Code": 0,
        "CodeType": 1,
        "Message": "OK",
        "Data": {
            "taskId": "***-***-***-***-***",
            "lastContentId": "",
            "hasMore": false,
            "serverName": "Apex One as a Service",
            "serverGuid": "***-***-***-***-***",
            "content": [
                {
                    "statusCode": 0,
                    "message": "TMSL_S_SUCCESS",
                    "content": {
                        "scanSummaryGuid": "***-***-***-***-***"
                    }
                }
            ]
        },
        "TimeZone": -7
    },
    "Meta": {
        "result": 1,
        "errorCode": 0,
        "errorMessgae": "Success"
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "ScanSummaryGuids": [
        "***-***-***-***-***"
    ],
    "Messages": [
        "TMSL_S_SUCCESS"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

Data	{'Code': 0, 'CodeType': 1, 'Message': 'OK', 'Data': {'taskId': '*----', 'lastContentId': '', 'hasMore': False, 'serverName': 'Apex One as a Service', 'serverGuid': '----', 'content': [{'statusCode': 0, 'message': 'TMSL_S_SUCCESS', 'content': {'scanSummaryGuid': '----**'}}]}, 'TimeZone': -7}
Meta	{'result': 1, 'errorCode': 0, 'errorMessgae': 'Success'}
PermissionCtrl	{'permission': '255', 'elements': None}
FeatureCtrl	{'mode': '0'}
SystemCtrl	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create YARA Scan failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Create YARA Scan failed.

Status Code: 500.

Message: Invalid credential.

Delete UDSOs

Deletes existing User-Defined Suspicious Objects from the Apex Central server. You can get UDSO information with the List UDSOs command.

READER NOTE

The input Contents and Content Type must match in order to delete the UDSOs.

It is suggested to run the List UDSOs command with the desired UDSO Type. Then the Contents will be returned. Use the value pairs to run this command to find the objects you want to delete.

Input

Input Parameter	Required/Optional	Description	Example
Contents	Required	The suspicious object content for the specified content type. For IPs, provide an IPv4 address. For URL, provide URLs starting with http:// or https:// (maximum length: 2047 characters). For SHA-1, provide file SHA-1 hash value. For Domain, provide the domain name. Please note, all contents in the list must be of the same content type.	[ "www.test1.com" ]
Content Type	Required	The suspicious object content type. The available options are IP, URL, SHA1 or Domain.	Domain

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Apex Central API response by adding the "Content" field.

Sample Data

JSON

[
    {
        "Content": "www.test1.com",
        "Data": "",
        "Meta": {
            "Result": 1,
            "ErrorCode": 0,
            "ErrorMsg": ""
        },
        "PermissionCtrl": {
            "permission": "255",
            "elements": null
        },
        "FeatureCtrl": {
            "mode": "0"
        },
        "SystemCtrl": {
            "TmcmSoDist_Role": "none"
        }
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.Data in API returned JSON.

Sample Data

JSON

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

CONTENT	DATA	META	PERMISSIONCTRL	FEATURECTRL	SYSTEMCTRL
www.test1.com		{'Result': 1, 'ErrorCode': 0, 'ErrorMsg': ''}	{'permission': '255', 'elements': None}	{'mode': '0'}	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Delete UDSOs failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Incorrect parameter.

Error Sample Data

Delete UDSOs failed.

Status Code: 400.

Message: Incorrect parameter.

Download Open IOC File

Downloads existing Open IOC files from the Apex Central server.

READER NOTE

File Hash IDs is a required parameter to run this command.

Run the List Uploaded Open IOC Files command to obtain File Hash IDs. File Hash IDs can be found from the returned raw data at the path $.Data.FilingCabinet[*].FileHashID.

Input

Input Parameter	Required/Optional	Description	Example
File Hash IDs	Required	The file hash IDs of the files to download. File Hash IDs can be obtained using the Open IOC Files command.	[ "5b*****e3" ]

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

No Sample Data

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

Sample Data

JSON

[
    {
        "fileId": "581",
        "fileName": "*****.ioc",
        "md5": "0*****4",
        "sha1": "94*****74",
        "sha256": "78*****8E"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "FileIDs": [
        "581"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

FILEID	FILENAME	MD5	SHA1	SHA256
581	*****.ioc	0*****4	94*****4	78*****8E

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Download Open IOC File failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Incorrect parameter.

Error Sample Data

Download Open IOC File failed.

Status Code: 400.

Message: Incorrect parameter.

Fetch Event

Retrieves syslog data that match the search condition from the Trend Micro Apex Central server.

Input

Input Parameter	Required/Optional	Description	Example
Start Time	Required	The Start Time of the time range for fetching syslogs in UTC time.	2021-07-13 00:00
End Time	Optional	The End Time of the time range for fetching syslogs in UTC time. If this parameter is not defined the End Time will be set to the current time.	2023-05-05 00:00
Number of Event(s) Fetched	Optional	The maximum number of syslogs to return.	100
Search Condition	Required	Filter log data by log type.	Virus/Malware

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "SyslogType": "Attack_Discovery_Detections",
        "SyslogName": "Attack Discovery Detections",
        "SyslogOutputFormat": "1",
        "CurrentPage": {
            "PageToken": 0,
            "SinceTime": 1623091696
        },
        "NextPage": {
            "PageToken": 1001,
            "SinceTime": 1624910086
        },
        "Next": "https://ddazcd.manage.trendmicro.com/WebApp/api/v1/Logs/Attack_Discovery_Detections?output_format=1&page_token=1001&since_time=1624910086",
        "Count": 1000,
        "Logs": [
            "Jul 13 2021 18:06:34 ddazcd.manage.trendmicro.com CEF:0|Trend Micro|Apex Central|2019|700220|Attack Discovery Detections|3|deviceExternalId=1 rt=Jun 24 2021 17:43:17 GMT+00:00 dhost=WIN-P41CCSLHUO5 TMCMLogDetectedHost=WIN-P41CCSLHUO5 dst=192.168.87.103 TMCMLogDetectedIP=192.168.87.103 customerExternalID=294f4529-d054-de7b-b94b-ccfe639d0ef0 cn1Label=SLF_RiskLevel cn1=100 cn2Label=SLF_PatternNumber cn2=35.1062.00 cs1Label=SLF_RuleID cs1=Run registry keys were created cat=point of entry cs2Label=SLF_ADEObjectGroup_Info_1 cs2=registry - d3commander - {\\n   \"META_ENTITY_ID\" : \"autorun_keys_1\",\\n   \"META_REGISTRY_DATA\" : \"C:\\\\Windows\\\\commander.exe\",\\n   \"META_REGISTRY_KEY\" : \"HKLM\\\\SOFTWARE\\\\Microsoft\\\\Windows\\\\CurrentVersion\\\\Run\",\\n   \"META_REGISTRY_ROOT\" : \"HKLM\",\\n   \"META_REGISTRY_VALUE\" : \"d3commander\"\\n}\\n cs3Label=SLF_ADEObjectGroup_Info_2 cs3=process - reg.exe - {\\n   \"META_AUTHENTICATION_ID\" : 5182238,\\n   \"META_CENSUS_MATURITY\" : 0,\\n   \"META_CENSUS_PREVALENCE\" : 0,\\n   \"META_CENSUS_RATING\" : \"0x00000000\",\\n   \"META_ENTITY_ID\" : \"installer_1\",\\n   \"META_FILE_MD5\" : \"8A93ACAC33151793F8D52000071C0B06\",\\n   \"META_FILE_NAME\" : \"reg.exe\",\\n   \"META_FILE_SHA1\" : \"429DF8371B437209D79DC97978C33157D1A71C4B\",\\n   \"META_FILE_SHA2\" : \"19316D4266D0B776D9B2A05D5903D8CBC8F0EA1520E9C2A7E6D5960B6FA4DCAF\",\\n   \"META_INTEGRITY_LEVEL\" : 12288,\\n   \"META_PATH\" : \"C:\\\\Windows\\\\System32\\\\\",\\n   \"META_PROCESS_CMD\" : [\\n      \"\\\\\"C:\\\\Windows\\\\System32\\\\reg.exe\\\\\" add HKLM\\\\Software\\\\Microsoft\\\\Windows\\\\CurrentVersion\\\\Run /v d3commander /d C:\\\\Windows\\\\commander.exe /f\"\\n   ],\\n   \"META_PROCESS_PID\" : 7660,\\n   \"META_SIGNER\" : \"Microsoft Windows\",\\n   \"META_USER_USER_NAME\" : \"Administrator\"\\n}\\n deviceNtDomain=N/A dntdom=Workgroup\\\\ "
        ],
        "ParsedLogs": [
            {
                "logVer": "Jul 13 2021 18:06:34 ddazcd.manage.trendmicro.com CEF:0",
                "vendor": "Trend Micro",
                "pname": "Apex Central",
                "pver": "2019",
                "eventid": "*****",
                "eventName": "Attack Discovery Detections",
                "severity": "3",
                "extension": {
                    "deviceExternalId": "1",
                    "rt": "Jun 24 2021 17:43:17 GMT+00:00",
                    "dhost": "WIN-*****",
                    "TMCMLogDetectedHost": "WIN-*****",
                    "dst": "1.2.3.4",
                    "TMCMLogDetectedIP": "1.2.3.4",
                    "customerExternalID": "***-***-***-***-***",
                    "cn1Label": "SLF_RiskLevel",
                    "cn1": "100",
                    "cn2Label": "*****",
                    "cn2": "*****",
                    "cs1Label": "SLF_RuleID",
                    "cs1": "Run registry keys were created",
                    "cat": "point of entry",
                    "cs2Label": "SLF_ADEObjectGroup_Info_1",
                    "cs2": "registry - d3commander - {\\n   \"META_ENTITY_ID\" : \"autorun_keys_1\",\\n   \"META_REGISTRY_DATA\" : \"C:\\\\Windows\\\\commander.exe\",\\n   \"META_REGISTRY_KEY\" : \"HKLM\\\\SOFTWARE\\\\Microsoft\\\\Windows\\\\CurrentVersion\\\\Run\",\\n   \"META_REGISTRY_ROOT\" : \"HKLM\",\\n   \"META_REGISTRY_VALUE\" : \"d3commander\"\\n}\\n",
                    "cs3Label": "SLF_ADEObjectGroup_Info_2",
                    "cs3": "process - reg.exe - {\\n   \"META_AUTHENTICATION_ID\" : *****,\\n   \"META_CENSUS_MATURITY\" : 0,\\n   \"META_CENSUS_PREVALENCE\" : 0,\\n   \"META_CENSUS_RATING\" : \"0x00000000\",\\n   \"META_ENTITY_ID\" : \"installer_1\",\\n   \"META_FILE_MD5\" : \"*****\",\\n   \"META_FILE_NAME\" : \"reg.exe\",\\n   \"META_FILE_SHA1\" : \"*****\",\\n   \"META_FILE_SHA2\" : \"*****\",\\n   \"META_INTEGRITY_LEVEL\" : 12288,\\n   \"META_PATH\" : \"C:\\\\Windows\\\\System32\\\\\",\\n   \"META_PROCESS_CMD\" : [\\n     add HKLM\\\\Software\\\\Microsoft\\\\Windows\\\\CurrentVersion\\\\Run /v d3commander /d C:\\\\Windows\\\\commander.exe /f\"\\n   ],\\n   \"META_PROCESS_PID\" : *****,\\n   \"META_SIGNER\" : \"Microsoft Windows\",\\n   \"META_USER_USER_NAME\" : \"Administrator\"\\n}\\n",
                    "deviceNtDomain": "N/A",
                    "dntdom": "Workgroup\\\\"
                }
            }
        ]
    },
    "Meta": {
        "Result": 1,
        "ErrorCode": 0,
        "ErrorMsg": ""
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "EventIds": [
        "*****"
    ],
    "EventNames": [
        "Attack Discovery Detections"
    ],
    "Severities": [
        "3"
    ],
    "TMCMLogDetectedHosts": [
        "WIN-*****"
    ],
    "TMCMLogDetectedIPs": [
        "1.2.3.4"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

Data	{'SyslogType': 'Attack_Discovery_Detections', 'SyslogName': 'Attack Discovery Detections', 'SyslogOutputFormat': '1', 'CurrentPage': {'PageToken': 0, 'SinceTime': 1623091696}, 'NextPage': {'PageToken': 1001, 'SinceTime': 1624910086}, 'Next': 'https://ddazcd.manage.trendmicro.com/WebApp/api/v1/Logs/Attack_Discovery_Detections?output_format=1&page_token=1001&since_time=1624910086', 'Count': 1000, 'Logs': ['Jul 13 2021 18:06:34 ***.manage.trendmicro.com CEF:0\|Trend Micro\|Apex Central\|2019\|*\|Attack Discovery Detections\|3\|deviceExternalId=1 rt=Jun 24 2021 17:43:17 GMT+00:00 dhost=WIN-*TMCMLogDetectedHost=WIN-*dst=1.2.3.4 TMCMLogDetectedIP=1.2.3.4 customerExternalID=----* cn1Label=SLF_RiskLevel cn1=100 cn2Label=SLF_PatternNumber cn2=***cs1Label=SLF_RuleID cs1=Run registry keys were created cat=point of entry cs2Label=SLF_ADEObjectGroup_Info_1 cs2=registry - d3commander - {\\n "META_ENTITY_ID" : "autorun_keys_1",\\n "META_REGISTRY_DATA" : "C:\\\\Windows\\\\commander.exe",\\n "META_REGISTRY_KEY" : "HKLM\\\\SOFTWARE\\\\Microsoft\\\\Windows\\\\CurrentVersion\\\\Run",\\n "META_REGISTRY_ROOT" : "HKLM",\\n "META_REGISTRY_VALUE" : "d3commander"\\n}\\n cs3Label=SLF_ADEObjectGroup_Info_2 cs3=process - reg.exe - {\\n "META_AUTHENTICATION_ID" : *,\\n "META_CENSUS_MATURITY" : 0,\\n "META_CENSUS_PREVALENCE" : 0,\\n "META_CENSUS_RATING" : "0x00000000",\\n "META_ENTITY_ID" : "installer_1",\\n "META_FILE_MD5" : "*",\\n "META_FILE_NAME" : "reg.exe",\\n "META_FILE_SHA1" : "*",\\n "META_FILE_SHA2" : "*",\\n "META_INTEGRITY_LEVEL" : *,\\n "META_PATH" : "C:\\\\Windows\\\\*\\\\",\\n "META_PROCESS_CMD" : [\\n "\\\\"C:\\\\Windows\\\\*\\\\reg.exe\\\\" add HKLM\\\\Software\\\\Microsoft\\\\Windows\\\\CurrentVersion\\\\Run /v */d C:\\\\Windows\\\\commander.exe /f"\\n ],\\n "META_PROCESS_PID" : *,\\n "META_SIGNER" : "Microsoft Windows",\\n "META_USER_USER_NAME" : "Administrator"\\n}\\n deviceNtDomain=N/A dntdom=Workgroup\\\\ '], 'ParsedLogs': [{'logVer': 'Jul 13 2021 18:06:34 *.manage.trendmicro.com CEF:0', 'vendor': 'Trend Micro', 'pname': 'Apex Central', 'pver': '2019', 'eventid': '*', 'eventName': 'Attack Discovery Detections', 'severity': '3', 'extension': {'deviceExternalId': '1', 'rt': 'Jun 24 2021 17:43:17 GMT+00:00', 'dhost': 'WIN-*', 'TMCMLogDetectedHost': 'WIN-*', 'dst': '1.2.3.4', 'TMCMLogDetectedIP': '1.2.3.4', 'customerExternalID': '----', 'cn1Label': 'SLF_RiskLevel', 'cn1': '100', 'cn2Label': 'SLF_PatternNumber', 'cn2': '35.1062.00', 'cs1Label': 'SLF_RuleID', 'cs1': 'Run registry keys were created', 'cat': 'point of entry', 'cs2Label': 'SLF_ADEObjectGroup_Info_1', 'cs2': 'registry - d3commander - {\\n "META_ENTITY_ID" : "autorun_keys_1",\\n "META_REGISTRY_DATA" : "C:\\\\Windows\\\\commander.exe",\\n "META_REGISTRY_KEY" : "HKLM\\\\SOFTWARE\\\\Microsoft\\\\Windows\\\\CurrentVersion\\\\Run",\\n "META_REGISTRY_ROOT" : "HKLM",\\n "META_REGISTRY_VALUE" : "d3commander"\\n}\\n', 'cs3Label': 'SLF_ADEObjectGroup_Info_2', 'cs3': 'process - reg.exe - {\\n "META_AUTHENTICATION_ID" : **,\\n "META_CENSUS_MATURITY" : 0,\\n "META_CENSUS_PREVALENCE" : 0,\\n "META_CENSUS_RATING" : "0x00000000",\\n "META_ENTITY_ID" : "installer_1",\\n "META_FILE_MD5" : "",\\n "META_FILE_NAME" : "reg.exe",\\n "META_FILE_SHA1" : "*",\\n "META_FILE_SHA2" : "*",\\n "META_INTEGRITY_LEVEL" : *,\\n "META_PATH" : "C:\\\\Windows\\\\*\\\\",\\n "META_PROCESS_CMD" : [\\n add HKLM\\\\Software\\\\Microsoft\\\\Windows\\\\CurrentVersion\\\\Run /v d3commander /d C:\\\\Windows\\\\commander.exe /f"\\n ],\\n "META_PROCESS_PID" : *****,\\n "META_SIGNER" : "Microsoft Windows",\\n "META_USER_USER_NAME" : "Administrator"\\n}\\n', 'deviceNtDomain': 'N/A', 'dntdom': 'Workgroup\\\\'}}]}
Meta	{'Result': 1, 'ErrorCode': 0, 'ErrorMsg': ''}
PermissionCtrl	{'permission': '255', 'elements': None}
FeatureCtrl	{'mode': '0'}
SystemCtrl	{'TmcmSoDist_Role': 'none'}

Fetch Event Field Mapping

Please note that Fetch Event commands require event field mapping. Field mapping plays a key role in the data normalization process part of the event pipeline. Field mapping converts the original data fields from the different providers to the D3 fields which are standardized by the D3 Model. Please refer to Event and Incident Intake Field Mapping for details.

If you require a custom field mapping, click + Add Field to add a custom field mapping. You may also remove built-in field mappings by clicking x. Please note that two underscore characters will automatically prefix the defined Field Name as the System Name for a custom field mapping. Additionally, if an input Field Name contains any spaces, they will automatically be replaced with underscores for the corresponding System Name.

As a system integration, the Trend Micro Apex Central integration has some pre-configured field mappings for default field mapping.

Default Event Source
The Default Event Source is the default set of field mappings that are applied when this fetch event command is executed. For out-of-the-box integrations, you will find a set of field mapping provided by the system. Default event source provides field mappings for common fields from fetched events . The default event source has a "Main Event JSON Path" (i.e., $.[*].Data.ParsedLogs) that is used to extract a batch of events from the response raw data. Click Edit Main JSON Path to view the "Main Event JSON Path".

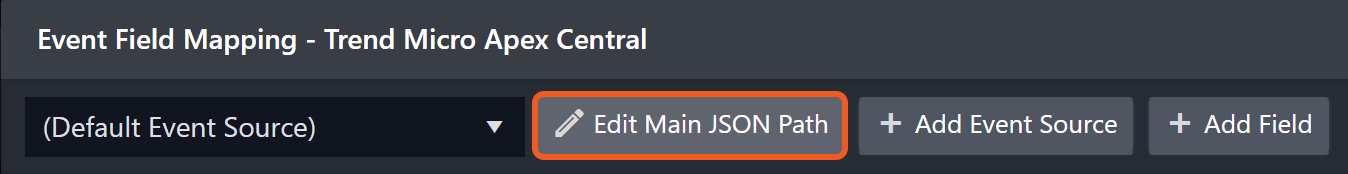

- Main Event JSON Path: $.[*].Data.ParsedLogs
  The Main Event JSON Path determines the root path where the system starts parsing raw response data into D3 event data. The JSON path begins with $, representing the root element. The path is formed by appending a sequence of child elements to $, each separated by a dot (.). Square brackets with nested quotation marks ([‘...']) should be used to separate child elements in JSON arrays.
  For example, the root node of a JSON Path is value. The child node denoting the Source product version field would be logVer. Putting it together, the JSON Path expression to extract the Unique Event Key is $.[*].Data.ParsedLogs.logVer.

The pre-configured field mappings are detailed below:

Field Name	Source Field
Source product version	.logVer
Source vendor product name	.pname
Device product version	.pver
Event code	.eventid
Event Type	.eventName
Severity	.severity
Device	.extension.TMCMLogDetectedHost
Device IP address	.extension.TMCMLogDetectedIP

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Fetch Event failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Fetch Event failed.

Status Code: 500.

Message: Invalid credential.

Get Endpoints By File Hashes

Retrieves End Point devices by file hashes.

Input

Input Parameter	Required/Optional	Description	Example
File Hashes	Required	The hash values of the files by which the end points are infected. If any hash value in the list is found on the end point, the endpoint will be returned. The hash values in the list must be the same kind of hash, for example, SHA-1. Ensure not to mix different kinds of hashes in the list. Available hash types are MD-5, SHA-1 and SHA-256.	[ "83*****e0" ]
Search Period	Optional	The time scope of search results. If this parameter is not defined, the default Search Period is All.	Three Month

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "Code": 0,
        "CodeType": 1,
        "Data": {
            "content": [],
            "hasMore": false,
            "lastContentId": "",
            "serverGuid": "***-***-***-***-***",
            "serverName": "SAMPLE_SERVER",
            "taskId": "***-***-***-***-***"
        },
        "Message": "OK",
        "TimeZone": 8
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "Meta": {
        "errorCode": 0,
        "errorMessgae": "Success",
        "result": 1
    },
    "PermissionCtrl": {
        "permission": "255"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

No Sample Data

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Endpoints By File Hashes failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unable to retrieve the registered server list. There are no servers registered.

Error Sample Data

Get Endpoints By File Hashes failed.

Status Code: 400.

Message: Unable to retrieve the registered server list. There are no servers registered.

Get Schedule Scan Result

Retrieves the result of a scheduled scan.

READER NOTE

Scan Schedule GUID is a required parameter to run this command.

Run the Create Registry Scan Schedule command to obtain Scan Schedule GUID. Scan Schedule GUID can be found in the returned raw data at the path $.Data.Data.content[*].content.scanScheduleGuid.

Input

Input Parameter	Required/Optional	Description	Example
Scan Schedule GUID	Required	The GUID of the scheduled scan to retrieve the result of.	*----**

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "Code": 0,
        "CodeType": 1,
        "Message": "OK",
        "Data": {
            "taskId": "***-***-***-***-***",
            "lastContentId": "",
            "hasMore": false,
            "serverName": "Apex One as a Service",
            "serverGuid": "***-***-***-***-***",
            "content": [
                {
                    "statusCode": 0,
                    "message": "TMSL_S_SUCCESS",
                    "content": {
                        "scanSummaryEntity": {
                            "scanSummaryId": 89,
                            "scanSummaryGuid": "***-***-***-***-***",
                            "status": 3,
                            "scanType": 1,
                            "submitTime": 1624928280,
                            "finishTime": 1624928774,
                            "specificAgentType": 1,
                            "progressInfo": {
                                "safeCount": 2,
                                "riskCount": 0,
                                "pendingCount": 0,
                                "timeoutCount": 0,
                                "noneCount": 0,
                                "processingCount": 0,
                                "errorCount": 0,
                                "abortCount": 0,
                                "connectionFailCount": 0
                            },
                            "name": "TestFromPoratal004",
                            "agentCount": 2,
                            "matchedAgentCount": 0,
                            "scanContent": {
                                "timeRange": {
                                    "rangeType": "ANY",
                                    "startUnixTime": 1624863600,
                                    "endUnixTime": 1627455600
                                }
                            },
                            "scanCriteriaEntity": {
                                "criteriaId": 7,
                                "criteriaName": "registry",
                                "criteriaContent": "{\r\n  \"item\": [\r\n    {\r\n      \"value\": [\r\n        {\r\n          \"key\": \"HKEY_Current_User\\\\\\\\Software\\\\\\\\Microsoft\\\\\\\\Windows\",\r\n          \"value\": \"default\",\r\n          \"matchOption\": 1,\r\n          \"data\": \"21\"\r\n        }\r\n      ]\r\n    }\r\n  ]\r\n}"
                            },
                            "creator": "D3security"
                        }
                    }
                }
            ]
        },
        "TimeZone": -7
    },
    "Meta": {
        "result": 1,
        "errorCode": 0,
        "errorMessgae": "Success"
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.Data.Data.content[0].content in API returned JSON.

Sample Data

JSON

No Sample Data

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "ServerGuid": "***-***-***-***-***",
    "ServerName": "Apex One as a Service",
    "ContentMessage": "TMSL_S_SUCCESS"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

Data	{'Code': 0, 'CodeType': 1, 'Message': 'OK', 'Data': {'taskId': '*----', 'lastContentId': '', 'hasMore': False, 'serverName': 'Apex One as a Service', 'serverGuid': '----', 'content': [{'statusCode': 0, 'message': 'TMSL_S_SUCCESS', 'content': {'scanSummaryEntity': {'scanSummaryId': **, 'scanSummaryGuid': '----*', 'status': 3, 'scanType': 1, 'submitTime': 1624928280, 'finishTime': 1624928774, 'specificAgentType': 1, 'progressInfo': {'safeCount': 2, 'riskCount': 0, 'pendingCount': 0, 'timeoutCount': 0, 'noneCount': 0, 'processingCount': 0, 'errorCount': 0, 'abortCount': 0, 'connectionFailCount': 0}, 'name': 'TestFromPoratal004', 'agentCount': 2, 'matchedAgentCount': 0, 'scanContent': {'timeRange': {'rangeType': 'ANY', 'startUnixTime': 1624863600, 'endUnixTime': 1627455600}}, 'scanCriteriaEntity': {'criteriaId': 7, 'criteriaName': 'registry', 'criteriaContent': '{\r\n "item": [\r\n {\r\n "value": [\r\n {\r\n "key": "HKEY_Current_User\\\\\\\\Software\\\\\\\\Microsoft\\\\\\\\Windows",\r\n "value": "default",\r\n "matchOption": 1,\r\n "data": "21"\r\n }\r\n ]\r\n }\r\n ]\r\n}'}, 'creator': 'D3security'}}}]}, 'TimeZone': -7}
Meta	{'result': 1, 'errorCode': 0, 'errorMessgae': 'Success'}
PermissionCtrl	{'permission': '255', 'elements': None}
FeatureCtrl	{'mode': '0'}
SystemCtrl	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Schedule Scan Result failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Get Schedule Scan Result failed.

Status Code: 500.

Message: Invalid credential.

Isolate Endpoints

Prevents the specified endpoint(s) from connecting to the network.

Input

Input Parameter	Required/Optional	Description	Example
Host Names	Required	The names of the hosts to be isolated.	[ "WIN-*****" ]

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

[
    {
        "result_code": 1,
        "result_description": "Operation successful",
        "result_content": [
            {
                "entity_id": "***-***-***-***-***",
                "product": null,
                "managing_server_id": "***-***-***-***-***",
                "ad_domain": "",
                "folder_path": "Workgroup",
                "ip_address_list": "1.1.1.1",
                "mac_address_list": "00-00-00-B0-00-00",
                "host_name": "WIN-*****",
                "client_tree_path": "Workgroup\\",
                "connection_status": "Online",
                "pfw_setting": "0",
                "os_name": "Windows Server 2016 ",
                "os_version": "10.0 (Build 14393)",
                "os_sp_version": "",
                "product_build_number": "*****",
                "cloud_scan_method": "Smart Scan",
                "cloud_scan_mode": "Available",
                "last_registration_time": "01/06/2023 3:30:14 PM",
                "last_scheduled_scanUTC": "",
                "last_manual_scanUTC": "01/10/2023 6:51:47 PM",
                "isolation_status": "endpoint_isolation_pending",
                "capabilities": [
                    "cmd_restore_isolated_agent",
                    "cmd_isolate_agent",
                    "cmd_relocate_agent",
                    "cmd_uninstall_agent"
                ]
            }
        ]
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.result_content in API returned JSON.

Sample Data

JSON

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

RESULT_CODE	RESULT_DESCRIPTION	RESULT_CONTENT
1	Operation successful	[{'entity_id': '***-***-***-***-***', 'product': None, 'managing_server_id': '***-***-***-***-***', 'ad_domain': '', 'folder_path': 'Workgroup', 'ip_address_list': '1.1.1.1', 'mac_address_list': '00-00-00-B0-00-00', 'host_name': 'WIN-*****', 'client_tree_path': 'Workgroup\\', 'connection_status': 'Online', 'pfw_setting': '0', 'os_name': 'Windows Server 2016 ', 'os_version': '10.0 (Build 14393)', 'os_sp_version': '', 'product_build_number': '*****', 'cloud_scan_method': 'Smart Scan', 'cloud_scan_mode': 'Available', 'last_registration_time': '01/06/2023 3:30:14 PM', 'last_scheduled_scanUTC': '', 'last_manual_scanUTC': '01/10/2023 6:51:47 PM', 'isolation_status': 'endpoint_isolation_pending', 'capabilities': ['cmd_restore_isolated_agent', 'cmd_isolate_agent', 'cmd_relocate_agent', 'cmd_uninstall_agent']}]

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Isolate Endpoints failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: host name could not be found.

Error Sample Data

Isolate Endpoints failed.

Status Code: 404.

Message: host name could not be found.

List Product Agents

Retrieves a list of Security Agents with more details, including logon User.

READER NOTE

Invalid Query input will return success with no result. Inputs in the Endpoint Query Field parameter must match the value in Query Values.

Input

Input Parameter	Required/Optional	Description	Example
Endpoint Query Field	Optional	The endpoint field used for the query. The available options are IP Address, MAC Address or Host Name. If this parameter is not defined, the default option is Host Name.	Host Name
Query Values	Optional	The field value used for the query. If Endpoint Query Field is IP Address, valid value is IP addresses; if Endpoint Query Field is MAC Address, valid value is MAC addresses, if Endpoint Query Field is Host Name, valid value is Host Names. If this paramter is not specified, all security agents will be returned.	[ "WIN-*****" ]

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "result_code": 1,
    "result_description": "Operation successful",
    "result_content": [
        {
            "entity_id": "***-***-***-***-***",
            "product": null,
            "managing_server_id": "***-***-***-***-***",
            "ad_domain": "",
            "folder_path": "Workgroup",
            "ip_address_list": "1.1.1.1",
            "mac_address_list": "00-00-00-B0-00-00",
            "host_name": "WIN-*****",
            "client_tree_path": "Workgroup\\",
            "connection_status": "Online",
            "pfw_setting": "0",
            "os_name": "Windows Server 2016 ",
            "os_version": "10.0 (Build 14393)",
            "os_sp_version": "",
            "product_build_number": "*****",
            "cloud_scan_method": "Smart Scan",
            "cloud_scan_mode": "Available",
            "last_registration_time": "01/06/2023 3:30:14 PM",
            "last_scheduled_scanUTC": "",
            "last_manual_scanUTC": "01/10/2023 6:51:47 PM",
            "isolation_status": "endpoint_isolation_pending",
            "capabilities": [
                "cmd_restore_isolated_agent",
                "cmd_isolate_agent",
                "cmd_relocate_agent",
                "cmd_uninstall_agent"
            ]
        }
    ]
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "EntityIDs": [
        "***-***-***-***-***"
    ],
    "HostNames": [
        "WIN-*****"
    ],
    "IPAddresses": [
        "1.1.1.1"
    ],
    "MACAddresses": [
        "00-00-00-B0-00-00"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

ENTITY_ID	PRODUCT	MANAGING_SERVER_ID	AD_DOMAIN	FOLDER_PATH	IP_ADDRESS_LIST	MAC_ADDRESS_LIST	HOST_NAME	CLIENT_TREE_PATH	CONNECTION_STATUS	PFW_SETTING	OS_NAME	OS_VERSION	OS_SP_VERSION	PRODUCT_BUILD_NUMBER	CLOUD_SCAN_METHOD	CLOUD_SCAN_MODE	LAST_REGISTRATION_TIME	LAST_SCHEDULED_SCANUTC	LAST_MANUAL_SCANUTC	ISOLATION_STATUS	CAPABILITIES
***-***-***-***-***	None	***-***-***-***-***		Workgroup	1.1.1.1	00-00-00-B0-00-00	WIN-*****	Workgroup\	Online	0	Windows Server 2016	10.0 (Build 14393)		*****Smart Scan	Available	01/06/2023 3:30:14 PM		01/10/2023 6:51:47 PM	endpoint_isolation_pending	['cmd_restore_isolated_agent', 'cmd_isolate_agent', 'cmd_relocate_agent', 'cmd_uninstall_agent']

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Product Agents failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

List Product Agents failed.

Status Code: 500.

Message: Invalid credential.

List Product Agents v2

Retrieves a list of Security Agents with more details, including logon User.

READER NOTE

Invalid Query input will return success with no result. Inputs in the Endpoint Query Field parameter must match the value in Query Values.

Different from the List Product Agents command, this command can get logon users of the endpoints, the other command does not have this specified in the returned raw data.

Input

Input Parameter	Required/Optional	Description	Example
Endpoint Query Field	Optional	The endpoint field used for the query. The available options are IP Address, MAC Address or Host Name.	Host Name
Query Values	Optional	The field value used for the query. If Endpoint Query Field is IP Address, valid value is IP addresses; if Endpoint Query Field is MAC Address, valid value is MAC addresses, if Endpoint Query Field is Host Name, valid value is Host Names. If this parameter is not defined, all security agents will be returned.	[ "WIN-*****" ]

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "result_code": 1,
    "result_description": "Operation successful",
    "result_content": [
        {
            "endpointID": "***-***-***-***-***",
            "endpointHost": "WIN-*****",
            "endpointIP": "1.1.1.1",
            "endpointMAC": "00-00-00-B0-00-00",
            "product": "Apex One",
            "managingServerID": "***-***-***-***-***",
            "adDomain": "",
            "domain": "Workgroup",
            "domainHierarchy": "Workgroup\\",
            "logonUser": "WIN-*****\\Administrator",
            "platform": "Windows Server 2016  10.0 (Build 14393) ",
            "clientProgram": "14.0.11561",
            "connectionStatus": "Online",
            "isolationStatus": "normal",
            "firewall": "Off",
            "scanMethod": "Smart Scan",
            "updateAgent": "No",
            "lastScheduledScanUTC": "",
            "lastManualScanUTC": "",
            "lastStartup": "2023-01-06T22:43:27Z",
            "lastConnected": "2023-01-09T08:16:32Z",
            "virusScanEngine": "22.5801005",
            "virusPattern": "",
            "smartScanAgentPattern": "18.183.00",
            "capabilities": [
                "cmd_restore_isolated_agent",
                "cmd_isolate_agent",
                "cmd_relocate_agent",
                "cmd_uninstall_agent"
            ]
        }
    ]
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "EndpointIDs": [
        "***-***-***-***-***"
    ],
    "HostNames": [
        "WIN-*****"
    ],
    "IPAddresses": [
        "1.1.1.1"
    ],
    "MACAddresses": [
        "00-00-00-B0-00-00"
    ],
    "LogonUsers": [
        "WIN-*****\\Administrator"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

ENDPOINTID	ENDPOINTHOST	ENDPOINTIP	ENDPOINTMAC	PRODUCT	MANAGINGSERVERID	ADDOMAIN	DOMAIN	DOMAINHIERARCHY	LOGONUSER	PLATFORM	CLIENTPROGRAM	CONNECTIONSTATUS	ISOLATIONSTATUS	FIREWALL	SCANMETHOD	UPDATEAGENT	LASTSCHEDULEDSCANUTC	LASTMANUALSCANUTC	LASTSTARTUP	LASTCONNECTED	VIRUSSCANENGINE	VIRUSPATTERN	SMARTSCANAGENTPATTERN	CAPABILITIES
***-***-***-***-***	WIN-***** 1.1.1.1	00-00-00-B0-00-00	Apex One	***-***-***-***-***		Workgroup	Workgroup\	WIN-*****\Administrator	Windows Server 2016 10.0 (Build 14393)	14.0.11561	Online	normal	Off	Smart Scan	No			2023-01-06T22:43:27Z	2023-01-09T08:16:32Z	22.5801005		18.183.00	['cmd_restore_isolated_agent', 'cmd_isolate_agent', 'cmd_relocate_agent', 'cmd_uninstall_agent']

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Product Agents v2 failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

List Product Agents v2 failed.

Status Code: 500.

Message: Invalid credential.

List Security Agents

Retrieves a list of all Security Agents with the Endpoint Sensor feature enabled.

Input

Input Parameter	Required/Optional	Description	Example
Host Type	Optional	The host type to filter results by. The available options are Desktop or Server. If this parameter is not defined, the results will include both Server and Desktop hosts.	Desktop
Host Operating System	Optional	The host operating system to filter results by. If this parameter is not defined, the default option is All.	Windows 10
Endpoint Filter Type	Optional	The endpoint field to filter results by. The available options are Host Name(Partial Match), Host IP Address, Host User Name(Partial Match), Host Type(Partial Match), Host IP Address(Partial Match), Host Operating System(Partial Match). If this parameter is not defined, the default option is Host Name(Partial Match).	Host Name
Filter Values	Optional	The field value to filter results by. Use Host Type parameter in order to filter by Host Type. Use the Host Operating System parameter in order to filter by Host Operating System.	[ "WIN" ]

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "Code": 0,
        "CodeType": 1,
        "Message": "OK",
        "Data": {
            "taskId": "",
            "lastContentId": "",
            "hasMore": false,
            "serverGuid": "",
            "serverName": "",
            "content": [
                {
                    "statusCode": 0,
                    "message": "Success",
                    "content": {
                        "agentEntity": [
                            {
                                "agentGuid": "***-***-***-***-***",
                                "serverGuid": "***-***-***-***-***",
                                "machineName": "*****-*****-5",
                                "isImportant": false,
                                "isOnline": true,
                                "ip": "1.1.1.1",
                                "machineGuid": "***-***-***-***-***",
                                "machineType": "Server",
                                "machineLabels": null,
                                "machineOS": "Windows Server 2019",
                                "isolateStatus": 0,
                                "isEnable": true,
                                "userName": "CYBER-*****-5\\Administrator",
                                "userGuid": "***-***-***-***-***",
                                "productType": 15
                            },
                            {
                                "agentGuid": "***-***-***-***-***",
                                "serverGuid": "***-***-***-***-***",
                                "machineName": "DESKTOP-******",
                                "isImportant": false,
                                "isOnline": true,
                                "ip": "1.1.1.1",
                                "machineGuid": "***-***-***-***-***",
                                "machineType": "Desktop",
                                "machineLabels": null,
                                "machineOS": "Windows 10",
                                "isolateStatus": 1,
                                "isEnable": true,
                                "userName": "DESKTOP-*****\\sysint",
                                "userGuid": "***-***-***-***-***",
                                "productType": 15
                            }
                        ],
                        "pagination": {
                            "offset": 0,
                            "limit": 50,
                            "total": 4
                        },
                        "agentQueryStatus": {
                            "hasFullRbac": true,
                            "hasFullAgents": true
                        }
                    }
                }
            ]
        },
        "TimeZone": -7
    },
    "Meta": {
        "result": 1,
        "errorCode": 0,
        "errorMessgae": "Success"
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.data.data.content[0].content.agentEntity in API returned JSON.

Sample Data

JSON

[
    {
        "agentGuid": "***-***-***-***-***",
        "serverGuid": "***-***-***-***-***",
        "machineName": "*****-*****-5",
        "isImportant": false,
        "isOnline": true,
        "ip": "1.1.1.1",
        "machineGuid": "***-***-***-***-***",
        "machineType": "Server",
        "machineLabels": null,
        "machineOS": "Windows Server 2019",
        "isolateStatus": 0,
        "isEnable": true,
        "userName": "*****-*****-5\\Administrator",
        "userGuid": "***-***-***-***-***",
        "productType": 15
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "AgentGuids": [
        "***-***-***-***-***",
        "***-***-***-***-***",
        "***-***-***-***-***",
        "***-***-***-***-***"
    ],
    "ServerGuids": [
        "***-***-***-***-***",
        "***-***-***-***-***",
        "***-***-***-***-***",
        "***-***-***-***-***"
    ],
    "MachineNames": [
        "*****-*****-5",
        "*****-*****",
        "WIN-*****",
        "WIN-*****"
    ],
    "IsOnlines": [
        true,
        true,
        false,
        true
    ],
    "Ips": [
        "1.1.1.1",
        "1.2.3.4",
        "1.2.2.2",
        "1.2.2.3"
    ],
    "MachineGuids": [
        "***-***-***-***-***",
        "***-***-***-***-***",
        "***-***-***-***-***",
        "***-***-***-***-***"
    ],
    "UserNames": [
        "*****-*****-5\\Administrator",
        "DESKTOP-*****\\*****",
        "WIN-*****\\Administrator",
        "WIN-*****\\Administrator"
    ],
    "UserGuids": [
        "***-***-***-***-***",
        "***-***-***-***-***",
        "***-***-***-***-***",
        "***-***-***-***-***"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

AGENTGUID	SERVERGUID	MACHINENAME	ISIMPORTANT	ISONLINE	IP	MACHINEGUID	MACHINETYPE	MACHINELABELS	MACHINEOS	ISOLATESTATUS	ISENABLE	USERNAME	USERGUID	PRODUCTTYPE
***-***-***-***-***	***-***-***-***-***	*****-*****-5	False	True	1.1.1.1	***-***-***-***-***	Server	None	Windows Server 2019	0	True	*****-*****-5\Administrator	***-***-***-***-***	15
***-***-***-***-***	***-***-***-***-***	DESKTOP-*****	False	True	1.2.3.4	***-***-***-***-***	Desktop	None	Windows 10	1	True	DESKTOP-*****\***** ***-***-***-***-***	15
***-***-***-***-***	***-***-***-***-***	WIN-*****False	False	1.2.2.2	***-***-***-***-***	Server	None	Windows Server 2019	2	True	WIN-*****\Administrator	***-***-***-***-***	15
***-***-***-***-***	***-***-***-***-***	WIN-*****False	True	1.2.2.3	***-***-***-***-***	Server	None	Windows Server 2019	1	True	WIN-*****\Administrator	***-***-***-***-***	15

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Security Agents failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unable to retrieve the registered server list. There are no servers registered.

Error Sample Data

List Security Agents failed.

Status Code: 400.

Message: Unable to retrieve the registered server list. There are no servers registered.

List UDSOs

Retrieves a list of User-Defined Suspicious Objects from the Apex Central server.

READER NOTE

If you input a UDSO Type but fail to input valid filters (including empty), List UDSOs will return success with no result. Inputs in the UDSO Type parameter must match the value in content filters.

If both parameters are not defined, the suspicious objects of all types will be returned.

Input

Input Parameter	Required/Optional	Description	Example
UDSO Type	Optional	The type of suspicious object to query by. The available types are IP, URL, SHA1, File or Domain. If this parameter is not defined, suspicious objects of all types will be returned.	Domain
Content Filters	Optional	Filters the list to suspicious objects that match the specified strings.	[ "phishing_domain" ]

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": [
        {
            "type": "domain",
            "content": "www.phishing_domain.com",
            "notes": "Suspicious Domain!",
            "scan_action": "log",
            "expiration_utc_date": "2023-01-31T00:00:00"
        },
        {
            "type": "domain",
            "content": "www.phishing_domain1.com",
            "notes": "Suspicious Domain!",
            "scan_action": "block",
            "expiration_utc_date": "2023-04-01T16:00:00"
        }
    ],
    "Meta": {
        "Result": 1,
        "ErrorCode": 0,
        "ErrorMsg": ""
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.Data in API returned JSON.

Sample Data

JSON

[
    {
        "type": "domain",
        "content": "www.phishing_domain.com",
        "notes": "Suspicious Domain!",
        "scan_action": "log",
        "expiration_utc_date": "2023-01-31T00:00:00"
    },
    {
        "type": "domain",
        "content": "www.phishing_domain1.com",
        "notes": "Suspicious Domain!",
        "scan_action": "block",
        "expiration_utc_date": "2023-04-01T16:00:00"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "Types": [
        "domain",
        "domain"
    ],
    "Contents": [
        "www.phishing_domain.com",
        "www.phishing_domain1.com"
    ],
    "Notes": [
        "Suspicious Domain!",
        "Suspicious Domain!"
    ],
    "ScanActions": [
        "log",
        "block"
    ],
    "ExpirationUTCDates": [
        "2023-01-31T00:00:00",
        "2023-04-01T16:00:00"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

TYPE	CONTENT	NOTES	SCAN_ACTION	EXPIRATION_UTC_DATE
domain	www.phishing_domain.com	Suspicious Domain!	log	2023-01-31T00:00:00
domain	www.phishing_domain1.com	Suspicious Domain!	block	2023-04-01T16:00:00

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List UDSOs failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

List UDSOs failed.

Status Code: 500.

Message: Invalid credential.

List Uploaded Open IOC Files

Retrieves a list of OpenIOC files from the Apex Central server.

READER NOTE

Entering invalid Fuzzy Match Strings will result in success with no returned data.

Input

Input Parameter	Required/Optional	Description	Example
Fuzzy Match Strings	Optional	Filters the list for matching strings in the "File Name", "Title", and "Source Context" fields. If part of the name contains the string searched, a result will be returned. For example, when searching for a file named "diskscansample", inputting "diskscan" or "scansample" in the search will return a match.	[ "diskscansample" ]

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "FilingCabinet": [
            {
                "FileHashID": "5*****3",
                "FileName": "*****.ioc",
                "FileAddedDatetime": "01/17/2023 16:58:25",
                "UploadedFrom": 2,
                "UploadedBy": "admin",
                "ExtractingStatus": 1,
                "ShortDesc": "QA"
            }
        ],
        "TotalIOCCount": 1
    },
    "Meta": {
        "Result": 1,
        "ErrorCode": 0,
        "ErrorMsg": ""
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.Data.FilingCabinet in API returned JSON.

Sample Data

JSON

[
    {
        "FileHashID": "*****",
        "FileName": "*****.ioc",
        "FileAddedDatetime": "01/17/2023 16:58:25",
        "UploadedFrom": 2,
        "UploadedBy": "admin",
        "ExtractingStatus": 1,
        "ShortDesc": "QA"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "FileHashIDs": [
        "*****"
    ],
    "FileNames": [
        "*****.ioc"
    ],
    "FileAddedDateTimes": [
        "01/17/2023 16:58:25"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

FILEHASHID	FILENAME	FILEADDEDDATETIME	UPLOADEDFROM	UPLOADEDBY	EXTRACTINGSTATUS	SHORTDESC
*****	*****.ioc	01/17/2023 16:58:25	2	admin	1	QA

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Uploaded Open IOC Files failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

List Uploaded Open IOC Files failed.

Status Code: 500.

Message: Invalid credential.

Show Scan Result

Displays the result of a previously created scan (Registry/OpenIOC/YARA).

READER NOTE

Scan Summary GUID is a required parameter to run this command.

Run the Create OpenIOC Scan (OpenIOC Scan summary GUID), Create YARA Scan (YARA Scan Summary GUID)or Create Registry Scan (Registry scan summary Guid) commands to obtain Scan Summary GUID.

Input

Input Parameter	Required/Optional	Description	Example
Scan Summary GUID	Required	The GUID of the scan summary to retrieve the scan result for. The scan summary GUID can be obtained with the Create OpenIOC Scan, Create YARA Scan or Create Registry Scan commands.	*----**

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Apex Central API response by adding the "riskCountList", "agentGuidList" and "machineNameList" fields.

Sample Data

JSON

{
    "Data": {
        "Code": 0,
        "CodeType": 1,
        "Message": "OK",
        "Data": {
            "taskId": "***-***-***-***-***",
            "lastContentId": "",
            "hasMore": false,
            "serverName": "Apex One as a Service",
            "serverGuid": "***-***-***-***-***",
            "content": [
                {
                    "statusCode": 0,
                    "message": "TMSL_S_SUCCESS",
                    "content": {
                        "scanEntity": [
                            {
                                "rowId": *****,
                                "agentGuid": "***-***-***-***-***",
                                "scanSummaryGuid": "***-***-***-***-***",
                                "status": 4,
                                "name": "test-fileContent12-001",
                                "riskCount": 0,
                                "triggerTime": 1631143864,
                                "finishTime": 1631144346,
                                "submitTime": 1631143811,
                                "exceedLeafModuleCountLimit": false,
                                "scanType": 6,
                                "traceId": "",
                                "region": "",
                                "serverGuid": "***-***-***-***-***",
                                "serverName": "Apex One as a Service",
                                "isOnline": true,
                                "isImportant": false,
                                "ip": "1.1.1.1",
                                "machineGuid": "***-***-***-***-***",
                                "machineName": "*****-103",
                                "machineType": "Server",
                                "userName": "*****-103\\Administrator",
                                "userGuid": "***-***-***-***-***",
                                "isolateStatus": 1,
                                "machineOS": "Windows Server 2019",
                                "productType": 15,
                                "taskType": 4,
                                "creator": "D3API",
                                "scanCriteriaEntity": {
                                    "criteriaId": 14,
                                    "criteriaName": "*****.ioc",
                                    "criteriaContent": ""
                                }
                            }
                        ],
                        "pagination": {
                            "offset": 0,
                            "limit": 50,
                            "total": 2
                        },
                        "riskCoutList": "0,0",
                        "agentGuidList": "***-***-***-***-***, ***-***-***-***-***",
                        "machineNameList": "*****-103, DESKTOP-*****"
                    }
                }
            ]
        },
        "TimeZone": -7
    },
    "Meta": {
        "result": 1,
        "errorCode": 0,
        "errorMessgae": "Success"
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "RiskCountList": [
        "0,0"
    ],
    "AgentGuidList": [
        "***-***-***-***-***, ***-***-***-***-***"
    ],
    "MachineNameList": [
        "*****-103, DESKTOP-*****"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

Data	{'Code': 0, 'CodeType': 1, 'Message': 'OK', 'Data': {'taskId': '*----', 'lastContentId': '', 'hasMore': False, 'serverName': 'Apex One as a Service', 'serverGuid': '----', 'content': [{'statusCode': 0, 'message': 'TMSL_S_SUCCESS', 'content': {'scanEntity': [{'rowId': **, 'agentGuid': '----', 'scanSummaryGuid': '----', 'status': 4, 'name': 'test-fileContent12-001', 'riskCount': 0, 'triggerTime': 1631143864, 'finishTime': 1631144346, 'submitTime': 1631143811, 'exceedLeafModuleCountLimit': False, 'scanType': 6, 'traceId': '', 'region': '', 'serverGuid': '----', 'serverName': 'Apex One as a Service', 'isOnline': True, 'isImportant': False, 'ip': '1.1.1.1', 'machineGuid': '----', 'machineName': '*-103', 'machineType': 'Server', 'userName': '*-103\\Administrator', 'userGuid': '----', 'isolateStatus': 1, 'machineOS': 'Windows Server 2019', 'productType': 15, 'taskType': 4, 'creator': 'D3API', 'scanCriteriaEntity': {'criteriaId': 14, 'criteriaName': 'diskscansample.ioc', 'criteriaContent': ''}}], 'pagination': {'offset': 0, 'limit': 50, 'total': 2}, 'riskCoutList': '0,0', 'agentGuidList': '----', 'machineNameList': '-103, DESKTOP-****'}}]}, 'TimeZone': -7}
Meta	{'result': 1, 'errorCode': 0, 'errorMessgae': 'Success'}
PermissionCtrl	{'permission': '255', 'elements': None}
FeatureCtrl	{'mode': '0'}
SystemCtrl	{'TmcmSoDist_Role': 'none'}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Show Scan Result failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Show Scan Result failed.

Status Code: 500.

Message: Invalid credential.

UnIsolate Endpoints

Restores network connectivity to the specified isolated endpoint(s).

Input

Input Parameter	Required/Optional	Description	Example
Host Names	Required	The names of the hosts to restore network connectivity to.	[ "WIN-*****" ]

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

[
    {
        "result_code": 1,
        "result_description": "Operation successful",
        "result_content": [
            {
                "entity_id": "***-***-***-***-***",
                "product": null,
                "managing_server_id": "***-***-***-***-***",
                "ad_domain": "",
                "folder_path": "Workgroup",
                "ip_address_list": "1.1.1.1",
                "mac_address_list": "00-00-00-B0-00-00",
                "host_name": "WIN-*****",
                "client_tree_path": "Workgroup\\",
                "connection_status": "Online",
                "pfw_setting": "0",
                "os_name": "Windows Server 2016 ",
                "os_version": "10.0 (Build 14393)",
                "os_sp_version": "",
                "product_build_number": "*****",
                "cloud_scan_method": "Smart Scan",
                "cloud_scan_mode": "Available",
                "last_registration_time": "01/06/2023 3:30:14 PM",
                "last_scheduled_scanUTC": "",
                "last_manual_scanUTC": "01/10/2023 6:51:47 PM",
                "isolation_status": "endpoint_isolation_pending",
                "capabilities": [
                    "cmd_restore_isolated_agent",
                    "cmd_isolate_agent",
                    "cmd_relocate_agent",
                    "cmd_uninstall_agent"
                ]
            }
        ]
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.result_content in API returned JSON.

Sample Data

JSON

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

RESULT_CODE	RESULT_DESCRIPTION	RESULT_CONTENT
1	Operation successful	[{'entity_id': '***-***-***-***-***', 'product': None, 'managing_server_id': '***-***-***-***-***', 'ad_domain': '', 'folder_path': 'Workgroup', 'ip_address_list': '1.1.1.1', 'mac_address_list': '00-00-00-B0-00-00', 'host_name': 'WIN-*****', 'client_tree_path': 'Workgroup\\', 'connection_status': 'Online', 'pfw_setting': '0', 'os_name': 'Windows Server 2016 ', 'os_version': '10.0 (Build 14393)', 'os_sp_version': '', 'product_build_number': '*****', 'cloud_scan_method': 'Smart Scan', 'cloud_scan_mode': 'Available', 'last_registration_time': '01/06/2023 3:30:14 PM', 'last_scheduled_scanUTC': '', 'last_manual_scanUTC': '01/10/2023 6:51:47 PM', 'isolation_status': 'endpoint_isolation_pending', 'capabilities': ['cmd_restore_isolated_agent', 'cmd_isolate_agent', 'cmd_relocate_agent', 'cmd_uninstall_agent']}]

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	UnIsolate Endpoints failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: host name could not be found.

Error Sample Data

UnIsolate Endpoints failed.

Status Code: 404.

Message: host name could not be found.

Upload Open IOC Files

Uploads OpenIOC files to the Apex Central server.

File ID and File Source

It is not recommended to use the Test Command feature with the Upload Open IOC Files command as it is designed for dynamic input files in Playbooks, Incident Attachments, and Artifact Attachments. There is a simple workaround to test the command:

Navigate to Configuration on the top bar menu.

Click on Utility Commands on the left sidebar menu.

Use the search box to find and select the Create a File from input Text Array command.

Click on the Test tab.
Input the required information for the parameters.
Click on the Test Command button. A D3 File ID will appear in the output data after the file has been successfully created. The D3 File Source of the created file will be Playbook File.

Input

Input Parameter

Required/Optional

Description

Example

File IDs

Required

The file path of the file source.

[ "913", "915" ]

File Source

Required

The file source of the file to upload. The options for file sources are:

Incident Attachment File: Manually uploaded file from Incident
Playbook File: Output from another Task
Artifact File: Ingested Artifact in an Event

Incident Attachment File

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

[
    {
        "Data": {
            "UploadedResultInfoList": [
                {
                    "FileName": "*****.ioc",
                    "FileHashID": "*****",
                    "UploadedStatus": 1
                },
                {
                    "FileName": "*****.ioc",
                    "FileHashID": "*****",
                    "UploadedStatus": 1
                }
            ],
            "UploadedResultMessageList": [
                {
                    "MessageType": 1,
                    "Message": "Uploaded 2 OpenIOC file(s) successfully."
                }
            ]
        },
        "Meta": {
            "Result": 1,
            "ErrorCode": 0,
            "ErrorMsg": ""
        },
        "PermissionCtrl": {
            "permission": "255",
            "elements": null
        },
        "FeatureCtrl": {
            "mode": "0"
        },
        "SystemCtrl": {
            "TmcmSoDist_Role": "none"
        }
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

Sample Data

JSON

[
    {
        "FileName": "*****.ioc",
        "FileHashID": "*****",
        "UploadedStatus": 1
    },
    {
        "FileName": "*****.ioc",
        "FileHashID": "*****",
        "UploadedStatus": 1
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "FileHashIDs": [
        "*****",
        "*****"
    ],
    "FileNames": [
        "*****.ioc",
        "*****.ioc"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

FILENAME	FILEHASHID	UPLOADEDSTATUS
*****.ioc	*****   1
*****.ioc	*****	1

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Upload Open IOC Files failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Validation of request parameters unsuccessful.

Error Sample Data

Upload Open IOC Files failed.

Status Code: 400.

Message: Validation of request parameters unsuccessful.

Upload YARA File

Uploads YARA files to the Apex Central server.

File ID and File Source

It is not recommended to use the Test Command feature with the Upload YARA File command as it is designed for dynamic input files in Playbooks, Incident Attachments, and Artifact Attachments. There is a simple workaround to test the command:

Navigate to Configuration on the top bar menu.

Click on Utility Commands on the left sidebar menu.

Use the search box to find and select the Create a File from input Text Array command.

Click on the Test tab.
Input the required information for the parameters.
Click on the Test Command button. A D3 File ID will appear in the output data after the file has been successfully created. The D3 File Source of the created file will be Playbook File.

Input

Input Parameter

Required/Optional

Description

Example

File IDs

Required

The file path of the file source.

[ "288" ]

File Source

Required

The source of the file to upload. The options for file sources are:

Incident Attachment File: Manually uploaded file from Incident
Playbook File: Output from another Task
Artifact File: Ingested Artifact in an Event

Incident Attachment File

Output

Raw Data

The primary response data from the API request.

Sample Data

JSON

{
    "Data": {
        "UploadedResultInfoList": [
            {
                "FileName": "*****.yar",
                "FileHashID": "*****",
                "UploadedStatus": 1
            }
        ],
        "UploadedResultMessageList": [
            {
                "MessageType": 1,
                "Message": "Uploaded 1 YARA file(s) successfully."
            }
        ]
    },
    "Meta": {
        "Result": 1,
        "ErrorCode": 0,
        "ErrorMsg": ""
    },
    "PermissionCtrl": {
        "permission": "255",
        "elements": null
    },
    "FeatureCtrl": {
        "mode": "0"
    },
    "SystemCtrl": {
        "TmcmSoDist_Role": "none"
    }
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.Data.UploadedResultInfoList in API returned JSON.

Sample Data

JSON

No Sample Data

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

Sample Data

JSON

{
    "Messages": [
        "Uploaded 1 YARA file(s) successfully."
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

Sample Data

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

Sample Data

FILENAME	FILEHASHID	UPLOADEDSTATUS
*****.yar	*****	1

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Upload YARA File failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Validation of YARA schema unsuccessful.

Error Sample Data

Upload YARA File failed.

Status Code: 400.

Message: Validation of YARA schema unsuccessful.

Test Connection

Allows you to perform a health check on an integration connection. You can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Sample Data

Successful

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Test Connection failed. Failed to check the connector.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Apex Central portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid credential.

Error Sample Data

Test Connection failed. Failed to check the connector.

Status Code: 500.

Message: Invalid credential.
