Microsoft Sentinel

LAST UPDATED: 05/30/2024

Overview

Microsoft Azure Sentinel is a scalable, cloud-native, security information event management (SIEM) and security orchestration automated response (SOAR) solution. Azure Sentinel delivers intelligent security analytics and threat intelligence across the enterprise, providing a single solution for alert detection, threat visibility, proactive hunting, and threat response.

D3 SOAR is providing REST operations to function with Microsoft Sentinel.

For example, you can use Microsoft Azure Sentinel to help reduce noise and hunt for security threats based on the MITRE framework. It combines AI capabilities with real-time data to ensure that alerts are significant/accurate and include critical contexts such as user profile, access rights, and environment-related information.

Microsoft Sentinel is available for use in:

D3 SOAR	V12.7.110.0+
Category	SIEM
Deployment Options	Option II, Option IV

Known Limitations

The following limits apply to incident commands in Microsoft Sentinel.

Number of characters per comment - 30K characters
Number of comments per incident - 100 comments

Minimum limits are supported per 5 minutes, and per subscription and endpoint.

Operation	Limit
GET automation rules	100
PUT comments	75
GET comments	100
GET incident alerts	100
GET incident entities	100
GET relations	100

Please refer to Service limits for Microsoft Sentinel, Azure Monitor service limits and Throttling Microsoft Sentinel requests for detailed information.

Connection

To connect to Microsoft Sentinel from D3 SOAR, please follow this part to collect the required information below:

Parameter	Description	Example
Directory (tenant) ID	The directory ID to authenticate the API connection.	nn0-*---*
Client ID	The client ID to authenticate the API connection.	hoA-*---*
Client Secret	The client secret to authenticate the API connection.	bYF-*---*
Subscription ID	The Azure subscription ID of the workspace to connect to.	kkQ-*---*
Resource Group Name	The name resource group name within the user's subscription.	YOUR_RESOURCE_GROUP_NAME
Workspace Name	The name of the workspace to connect to.	YOUR_WORKSPACE_NAME
API Version	The API version to use for the connection. Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.	2023-02-01

Reader Note

The scenario outlined in this user guide assumes that you already have the following prerequisites:

An admin or higher user role from Microsoft Entra ID Protection tenant.
Microsoft Sentinel Account.
A Log Analytics workspace is required to house all of the data that Microsoft Sentinel will be ingesting and using for its detections, analytics, and other features.

Permission Requirements

Each endpoint in the Microsoft Sentinel API requires a certain permission scope. The following are required scopes for the commands in this integration:

Command	Required Permission
Delete Incident Comments	Contributor
Fetch Event	Microsoft Sentinel Reader
Fetch Incident	Microsoft Sentinel Reader
Get Alert Details By Incident ID	Microsoft Sentinel Reader
List Alert Rules	Microsoft Sentinel Reader
List Alert Rule Templates	Microsoft Sentinel Reader
Search	Microsoft Sentinel Reader
Update Incident Comments	Contributor
Update Incident Status	Contributor
Test Connection	Microsoft Sentinel Reader

As Microsoft Sentinel is using role-based access control (RBAC), the API access token is generated based on a specific user account and the application. Therefore, the command permissions are inherited from the user account's role. Users need to configure their user profile from the Microsoft Sentinel console for each command in this integration.

Reader Note

Microsoft Sentinel's specific user profiles are as follows:

Microsoft Sentinel Reader
Microsoft Sentinel Responder
Microsoft Sentinel Contributor
Microsoft Sentinel Playbook Operator
Microsoft Sentinel Automation Contributor

Please refer to Roles and permissions in Microsoft Sentinel for details on configuring user profiles.

Configuring Microsoft Sentinel to Work with D3 SOAR

Log in to the Azure Portal (https://portal.azure.com/) with your credentials.

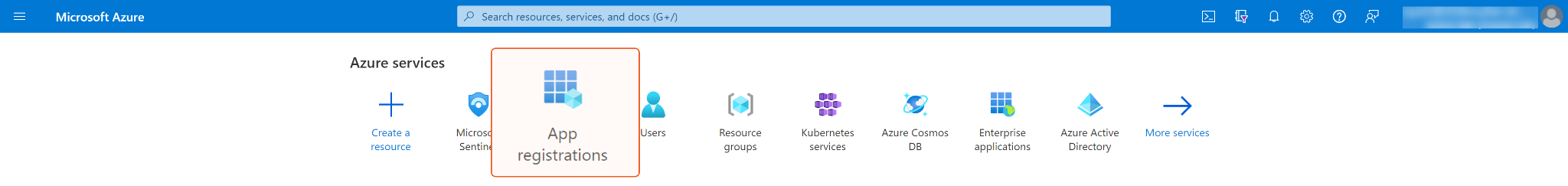

Navigate to the search bar at the top and search for "App registrations". Select App Registrations.
If you have already created Apps, you can use one of them and skip to step 6 to obtain the Client ID & Tenant ID.

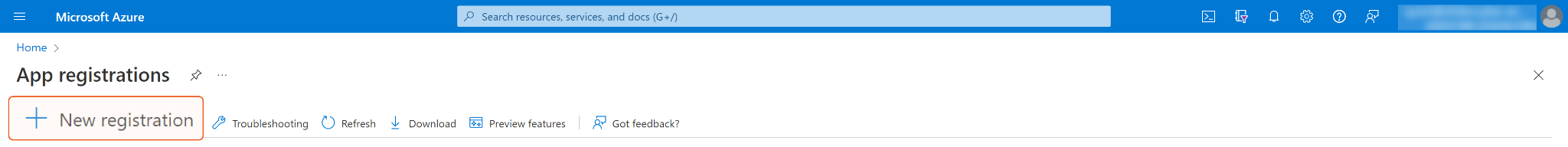

If you do not have a created App, click + New registration to create one.

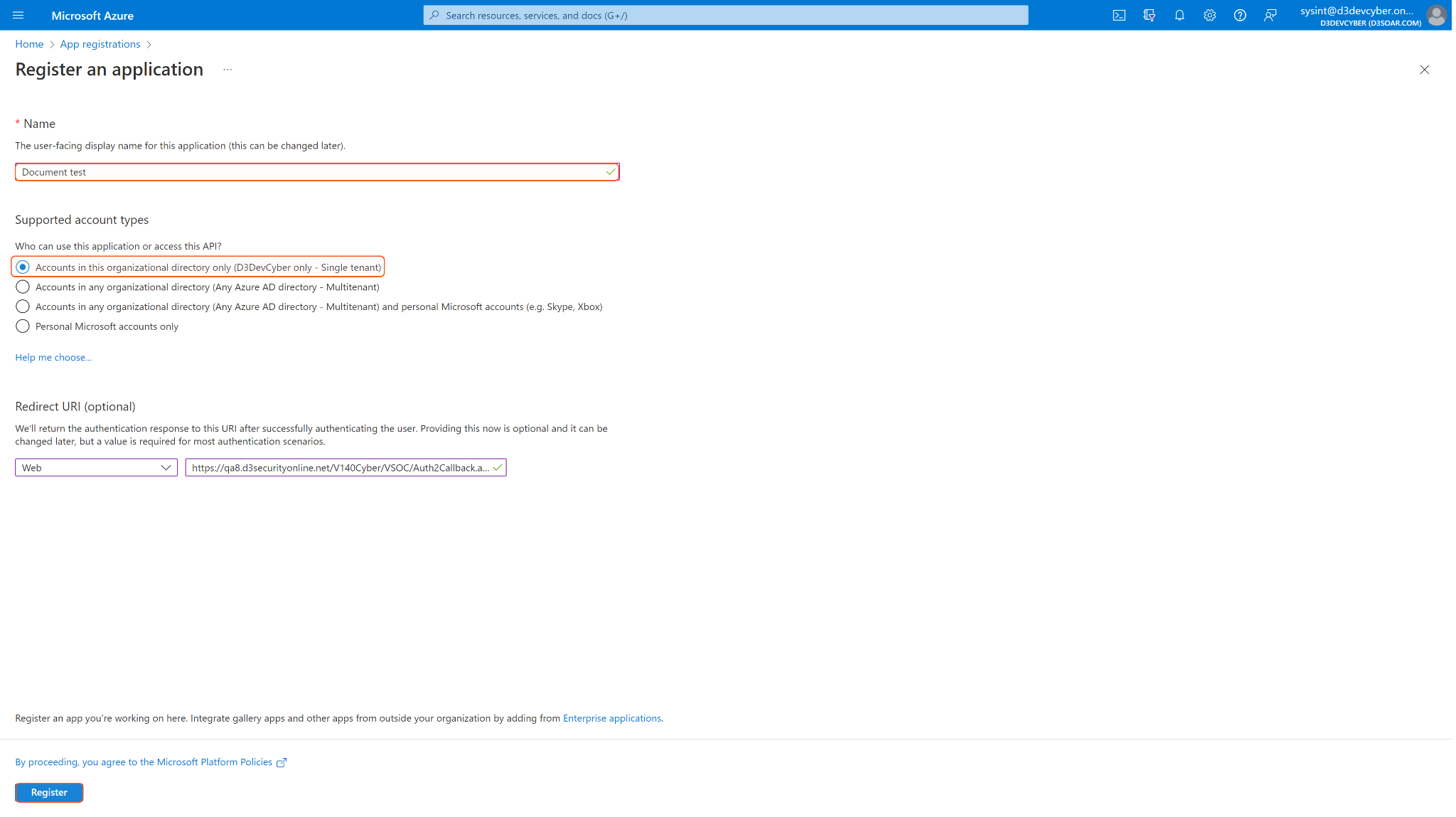

Provide a name for the App. If your target audience is internal within your organization, select the first option under Supported account type.

Reader Note

Single tenant apps: These apps are only accessible within the tenant in which they were registered, also known as their home tenant.

Multitenant apps: These apps are available to users in both their home tenant and other tenants.

For more information on tenancy in Microsoft Entra ID Protection, see Tenancy in Microsoft Entra ID Protection.

It is recommended to use a single tenant app for your D3 SOAR connection.

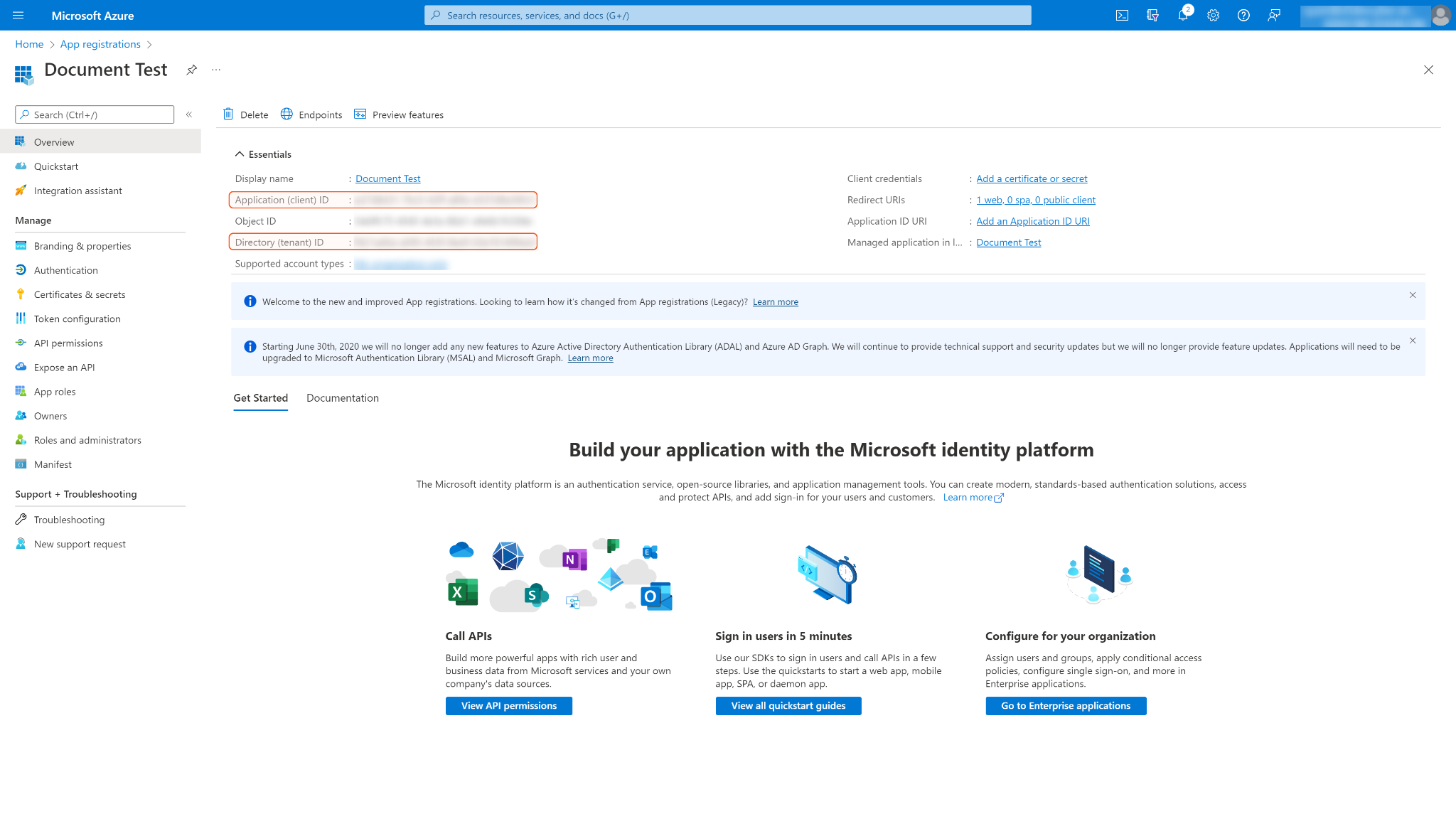

In the App Overview tab, copy and save the Application (client) ID and Directory (tenant) ID for creating the SOAR connection.

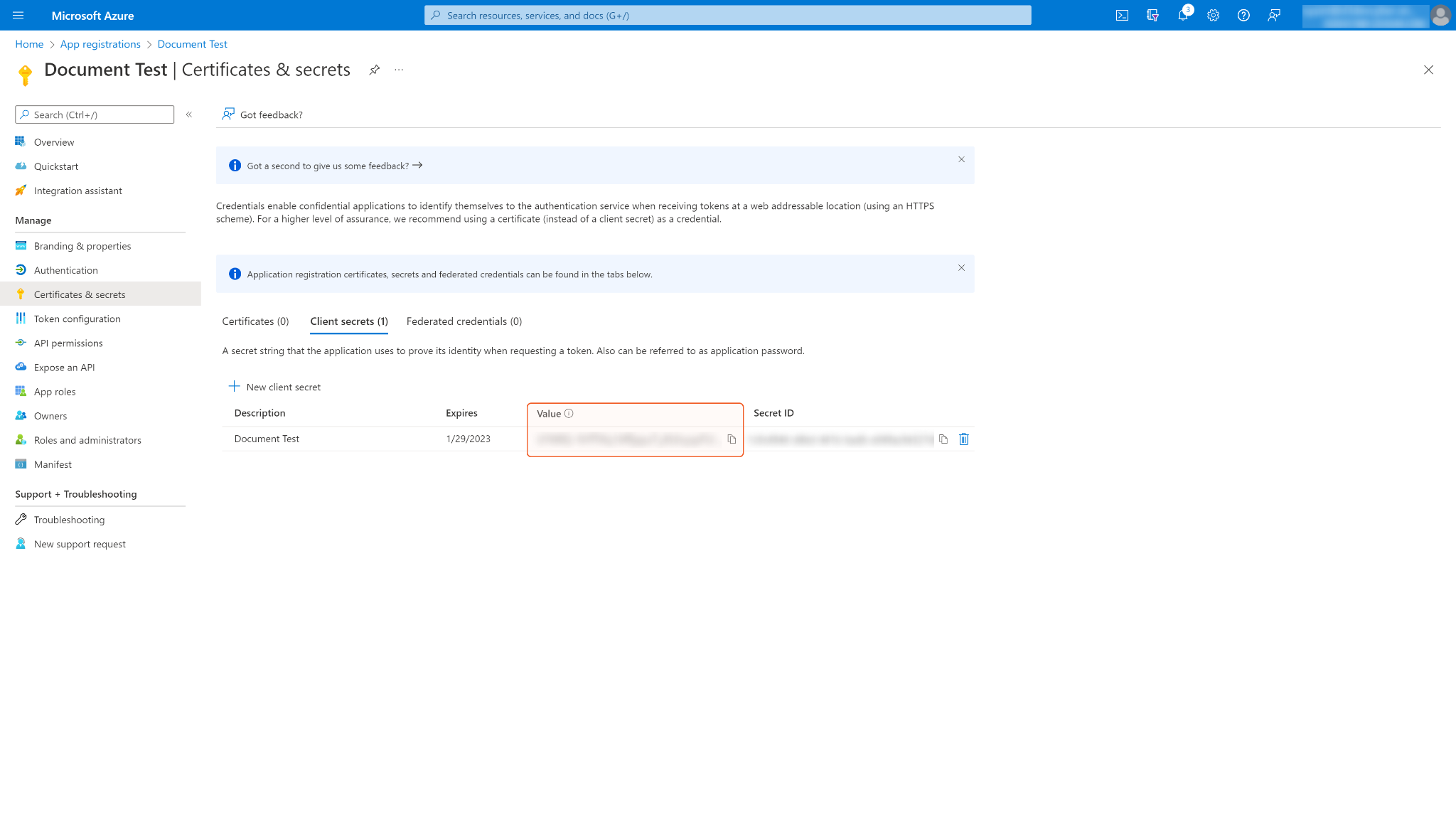

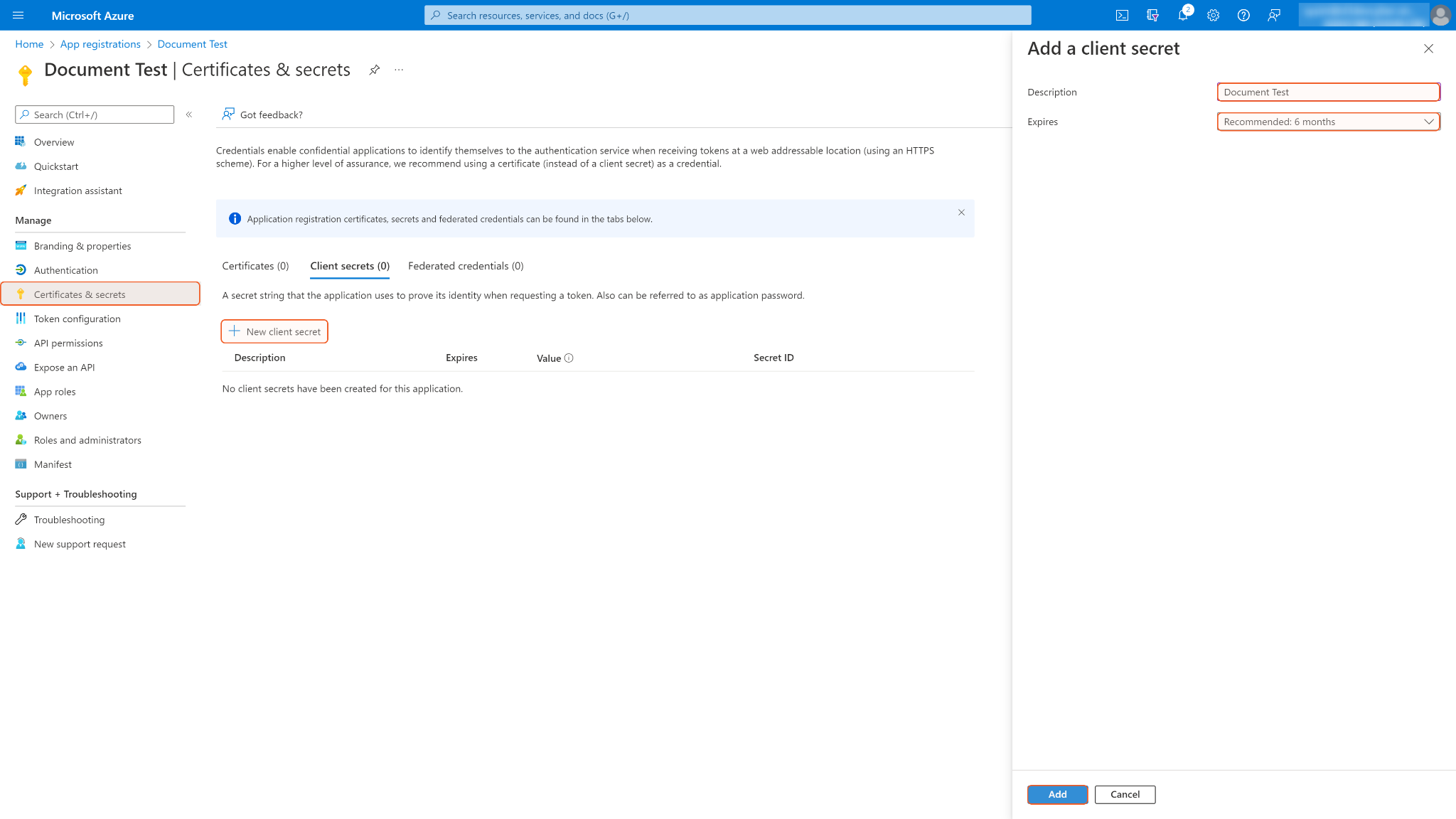

Navigate to Certificates & secrets in the left navigation column, and click + New client secret. Enter a description for the client secret and select an expiry period from the Expires dropdown menu. Keep in mind that the client ID will not be able to access API resources if the secret is expired. You must renew the secret after the expiry period to maintain the client ID's effectiveness. Finally, click Add at the bottom of the page.
Copy and save the secret value for building the integration connection. Note: The secret value is only viewable once upon its creation, please store it in a secure location.

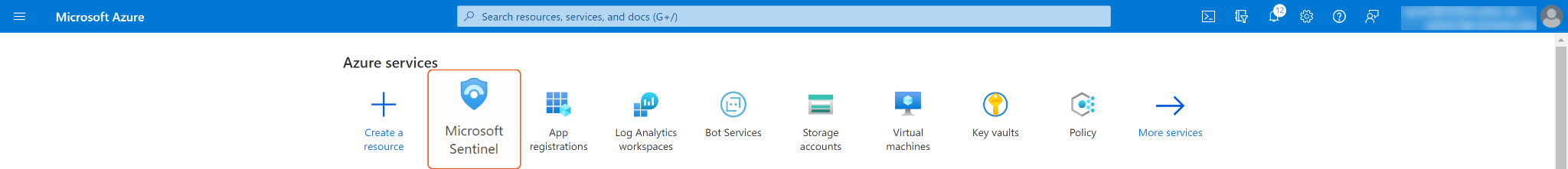

Return to the home page. Search and select Microsoft Sentinel.

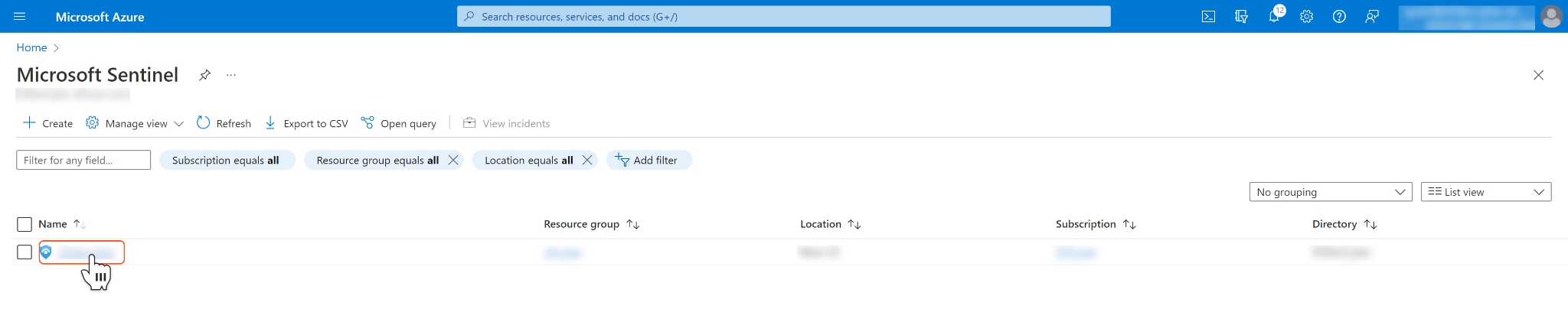

Select the Microsoft Sentinel workspace you want to integrate with.

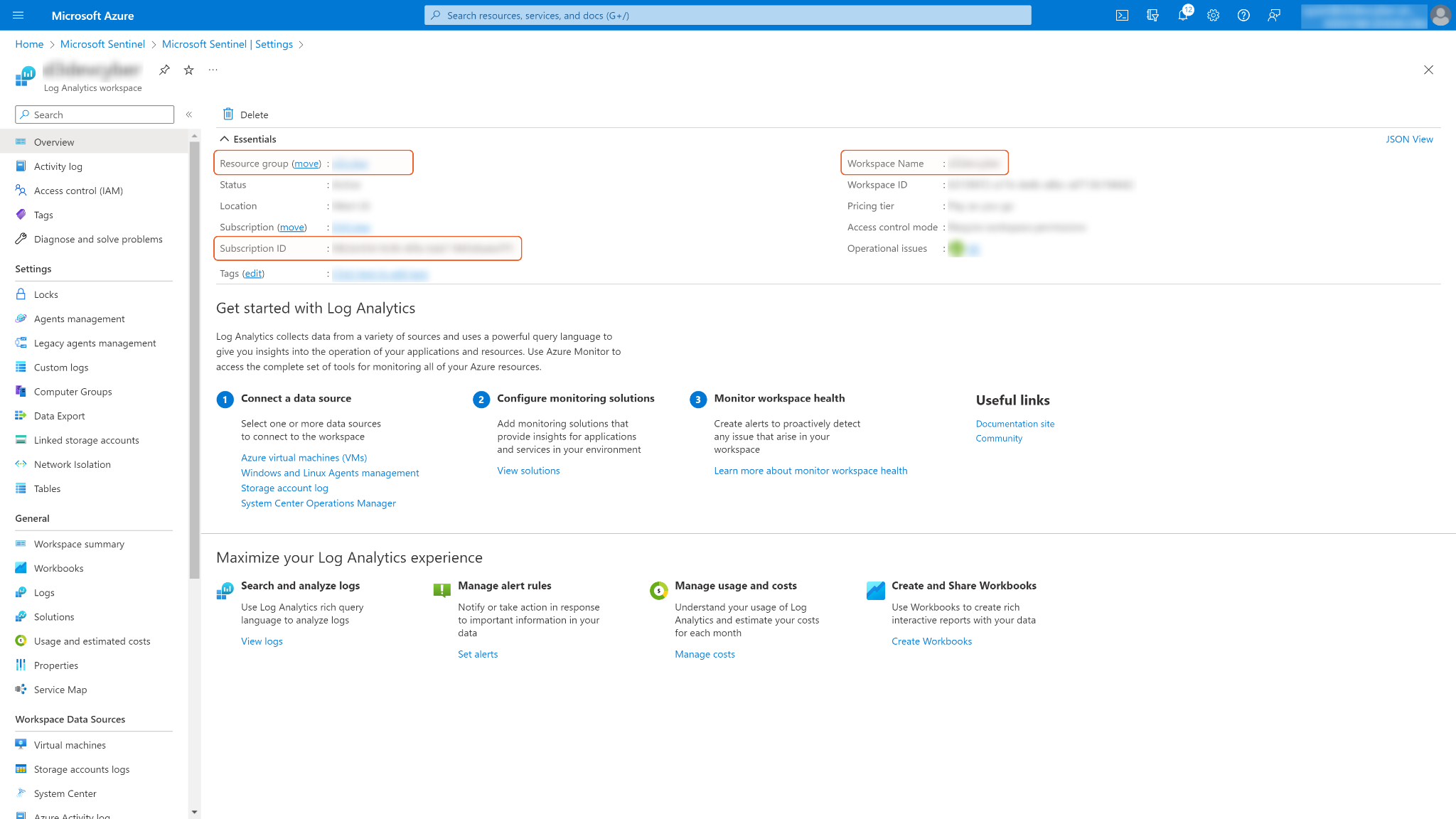

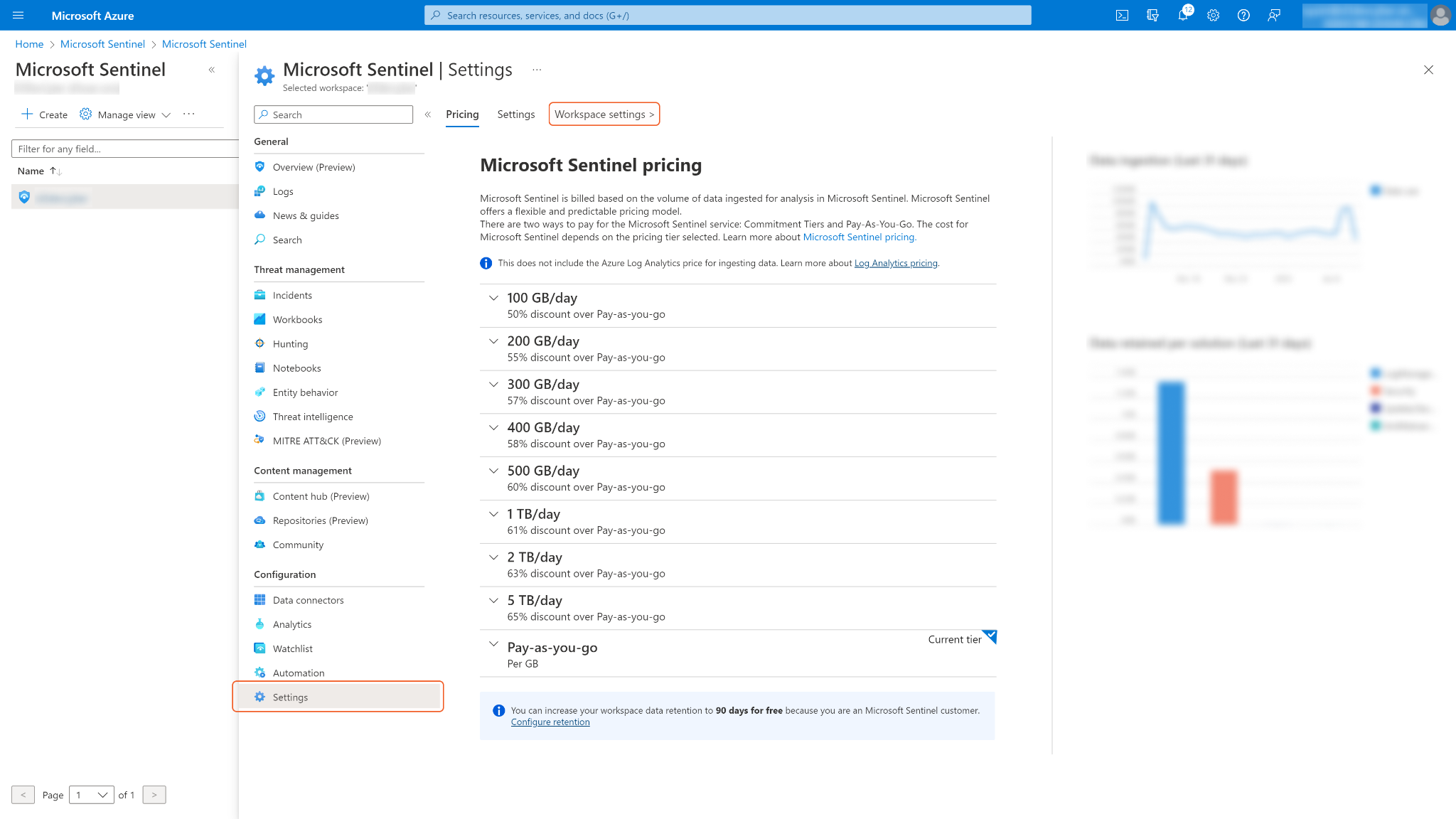

On the selected workspace's settings page, navigate to Settings > Workspace settings.
Save the values for Resource group, Subscription ID and Workspace name. They are required for building the integration connection in D3 SOAR.

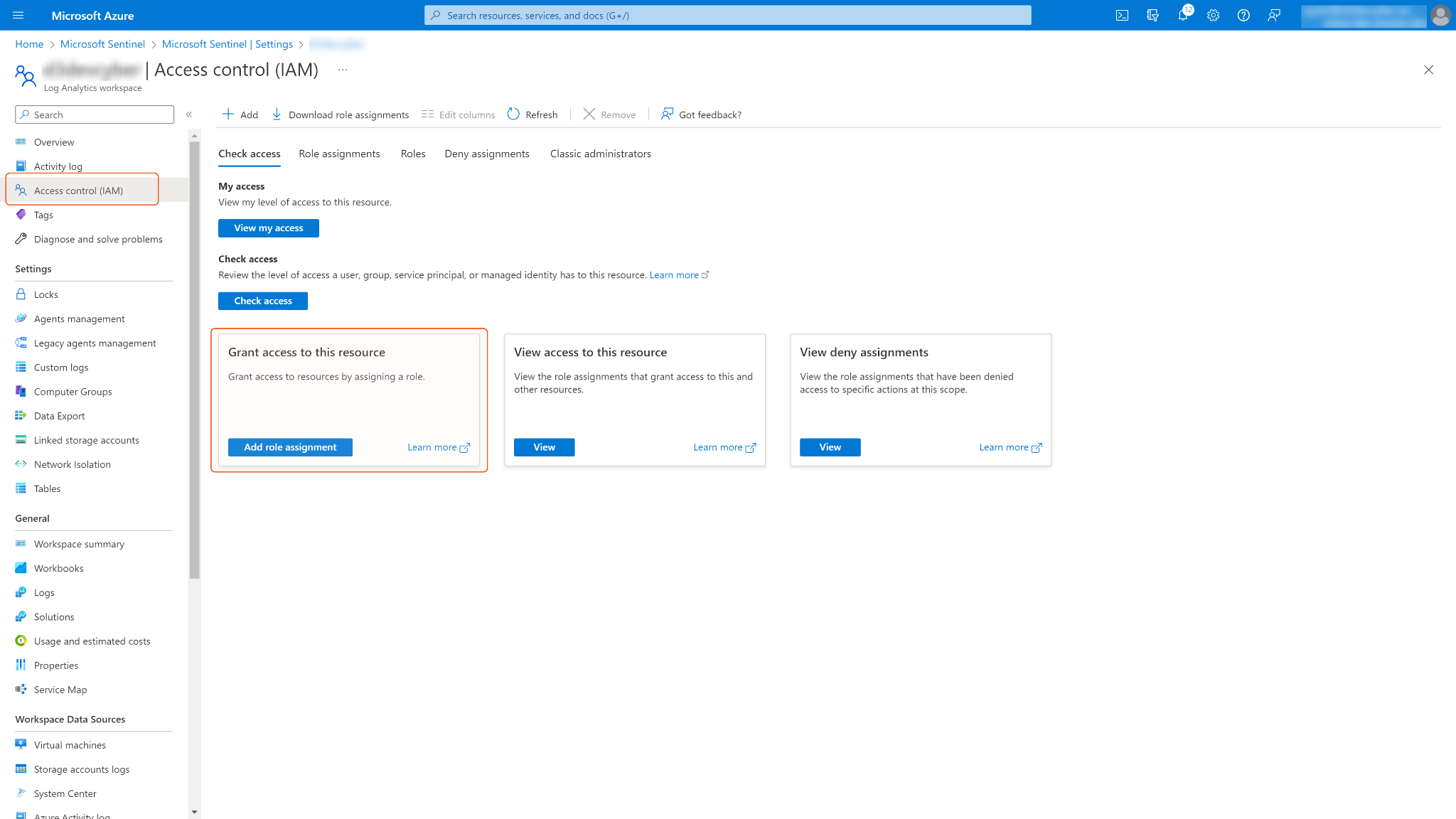

From the left navigation pane, navigate to Access control (IAM) > Add role assignment to grant access privileges.

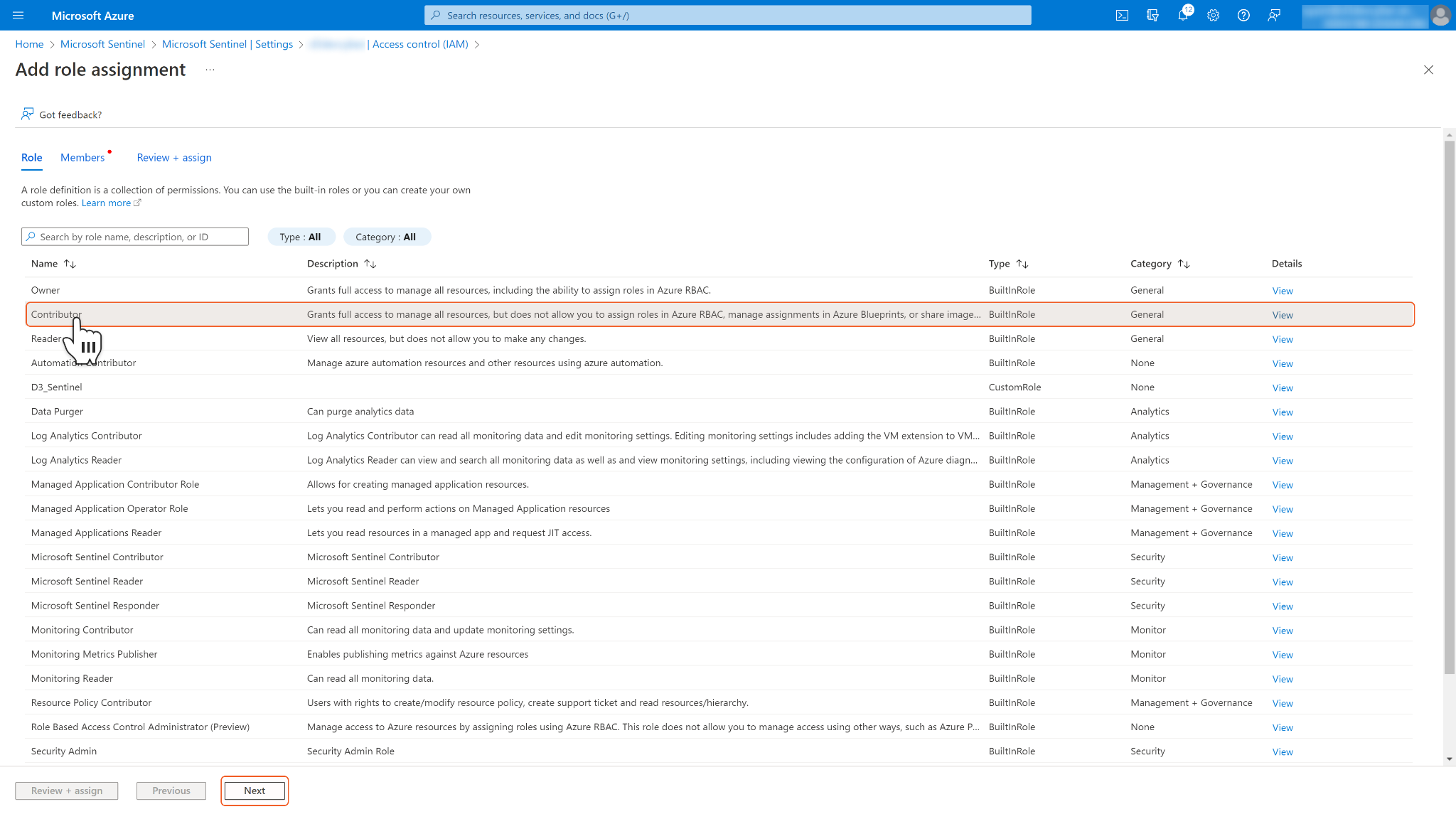

Select your desired roles and click Next. The Contributor privilege is sufficient to execute all Microsoft Sentinel's integration commands in D3 SOAR.

Reader Note
Unlike Microsoft Graph permissions, Microsoft Sentinel uses Azure role-based access control (Azure RBAC) to assign built-in roles to users, groups, and services in Azure. For more information, refer to the Permissions in Microsoft Sentinel. It is recommended to allow the Contributor role for your D3 SOAR connection.

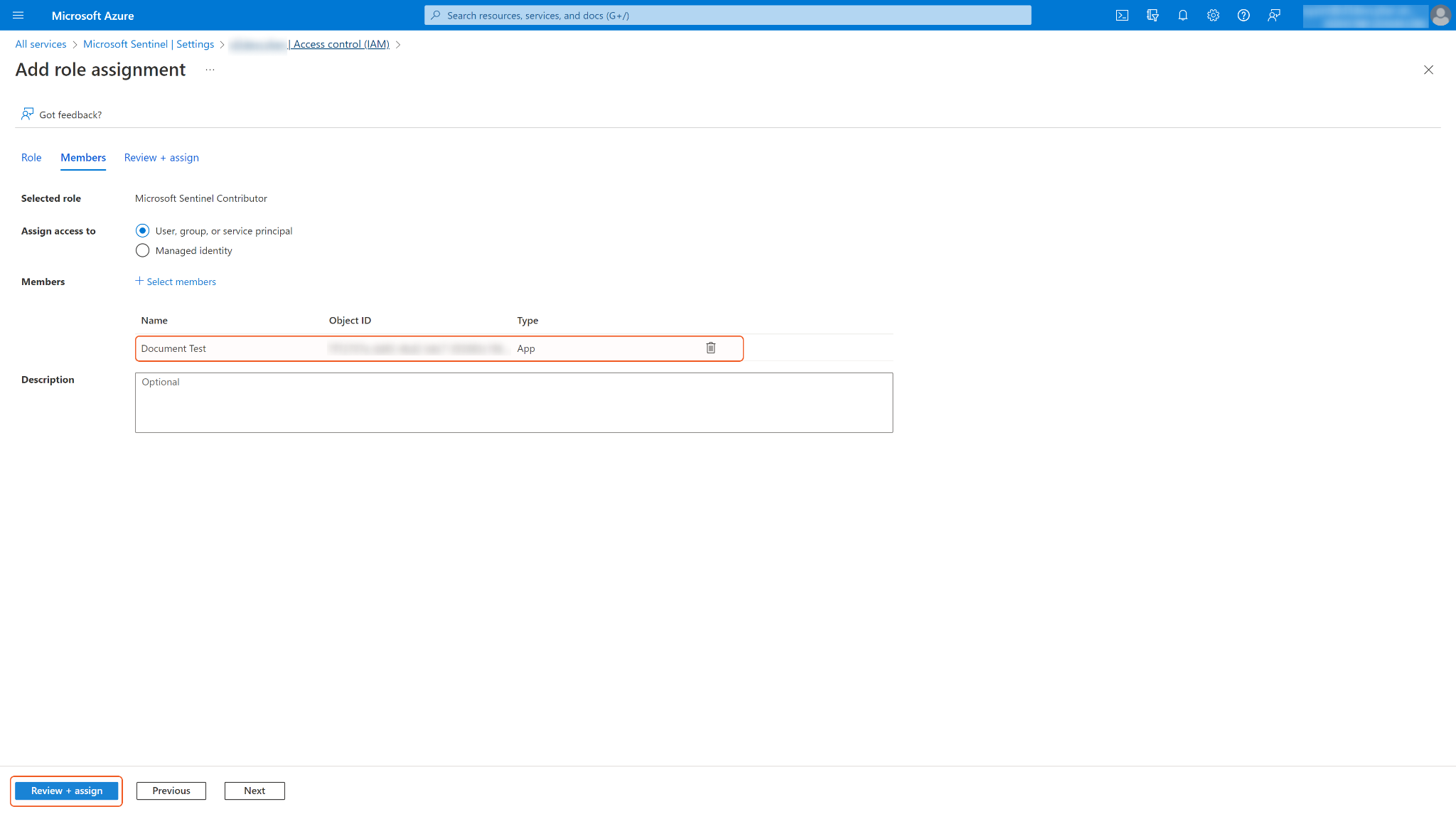

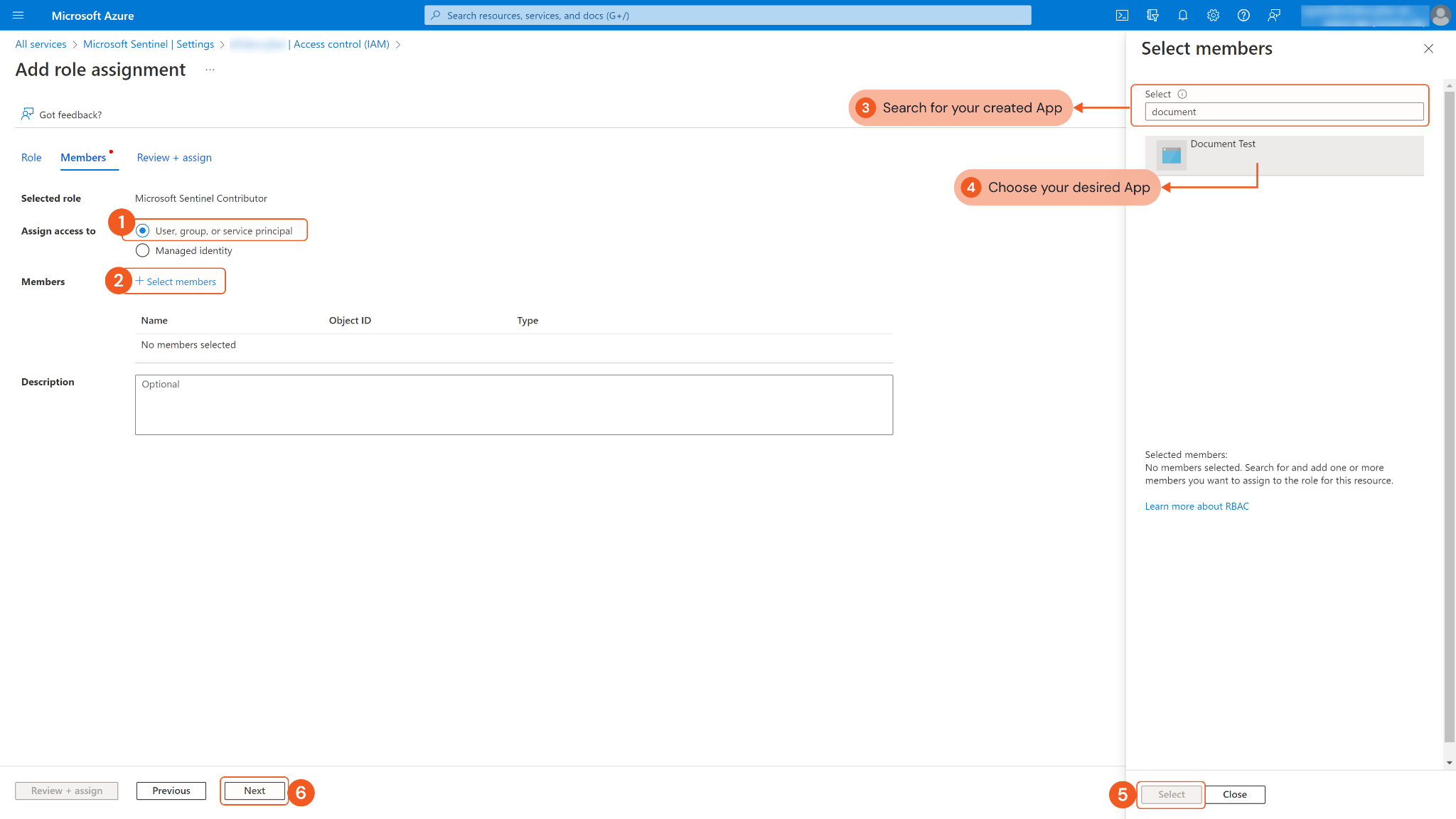

Under Assign access to, select User, group, or service principal. Click + Select members, and choose the App created in step 5. Finally, click Select.
Click Next. Ensure you have selected the correct app, then click Review + assign.

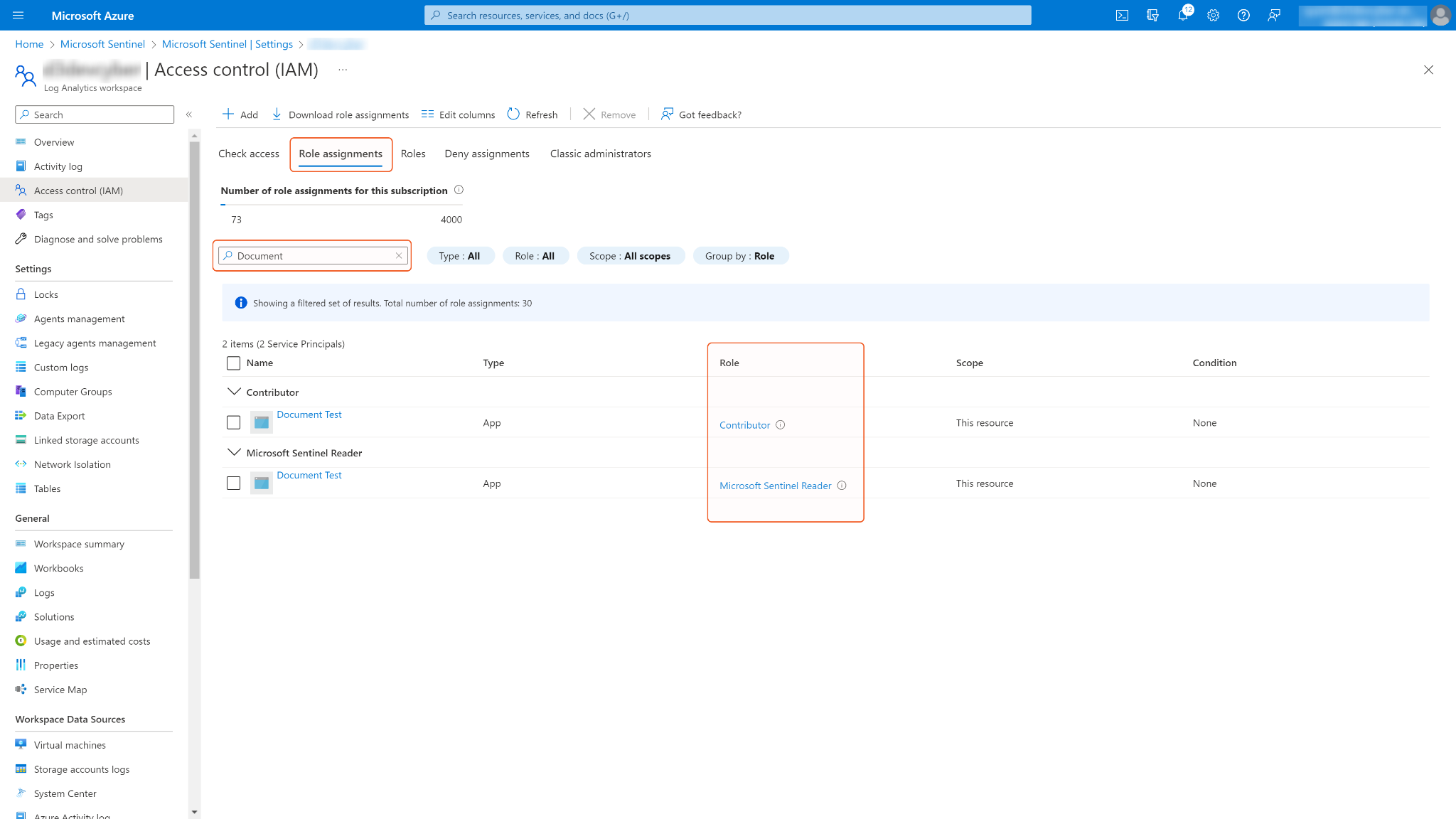

If you need to review or adjust your application's role assignment, go to Role assignments and search for your application. Select the role you want to remove.

Configuring D3 SOAR to Work with Microsoft Sentinel

Log in to D3 SOAR.

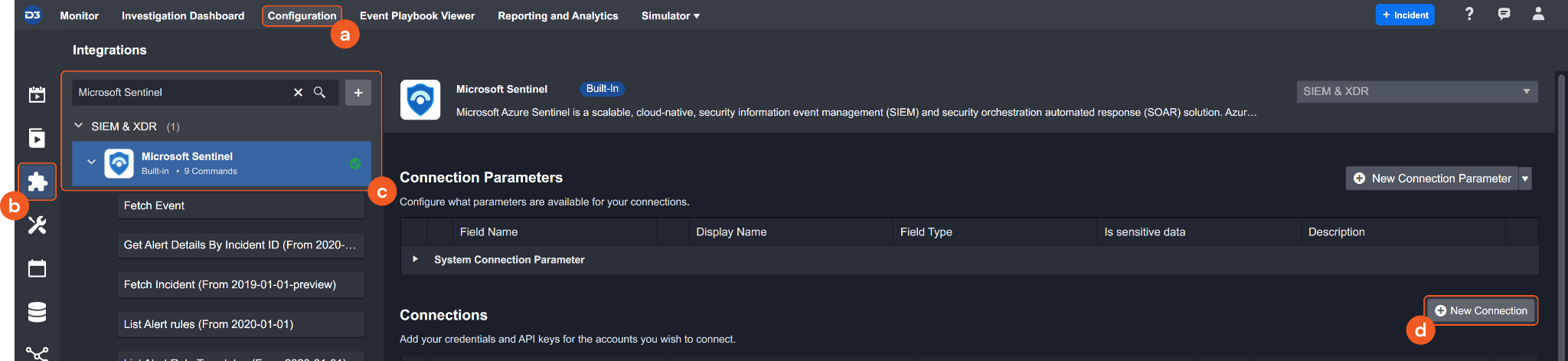

Find the Microsoft Sentinel integration.
1. Navigate to Configuration on the top header menu.
2. Click on the Integration icon on the left sidebar.
3. Type Microsoft Sentinel in the search box to find the integration, then click it to select it.
4. Click + New Connection, on the right side of the Connections section. A new connection window will appear.

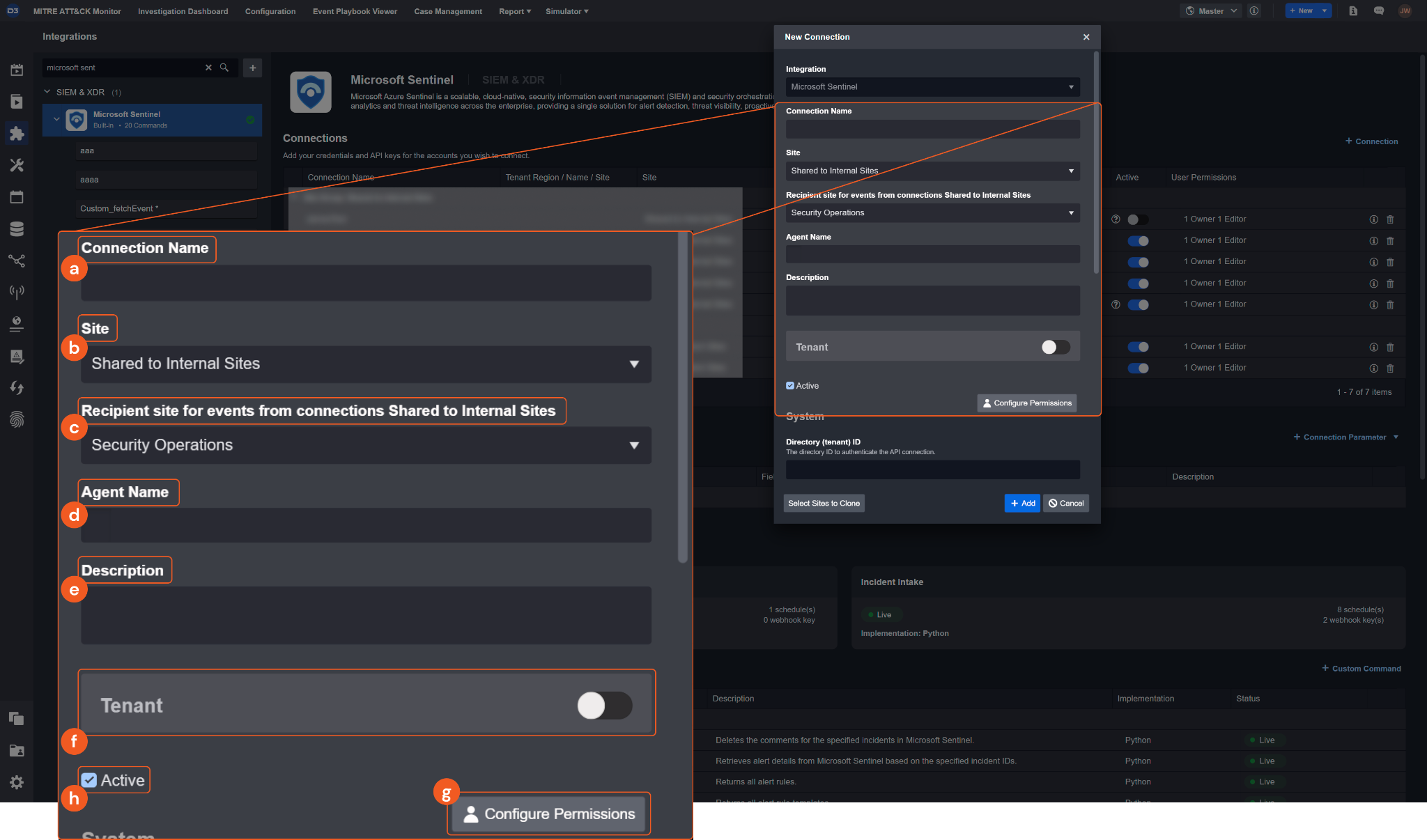

Configure the following fields to create a connection to Microsoft Sentinel.
1. Connection Name: The desired name for the connection.
2. Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
3. Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.
4. Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
5. Description (Optional): Add your desired description for the connection.
6. Tenant (Optional): When configuring the connection from a master tenant site, you have the option to choose the specific tenant sites you want to share the connection with. Once you enable this setting, you can filter and select the desired tenant sites from the dropdowns to share the connection.
7. Configure User Permissions: Defines which users have access to the connection.
8. Active: Check the tick box to ensure the connection is available for use.

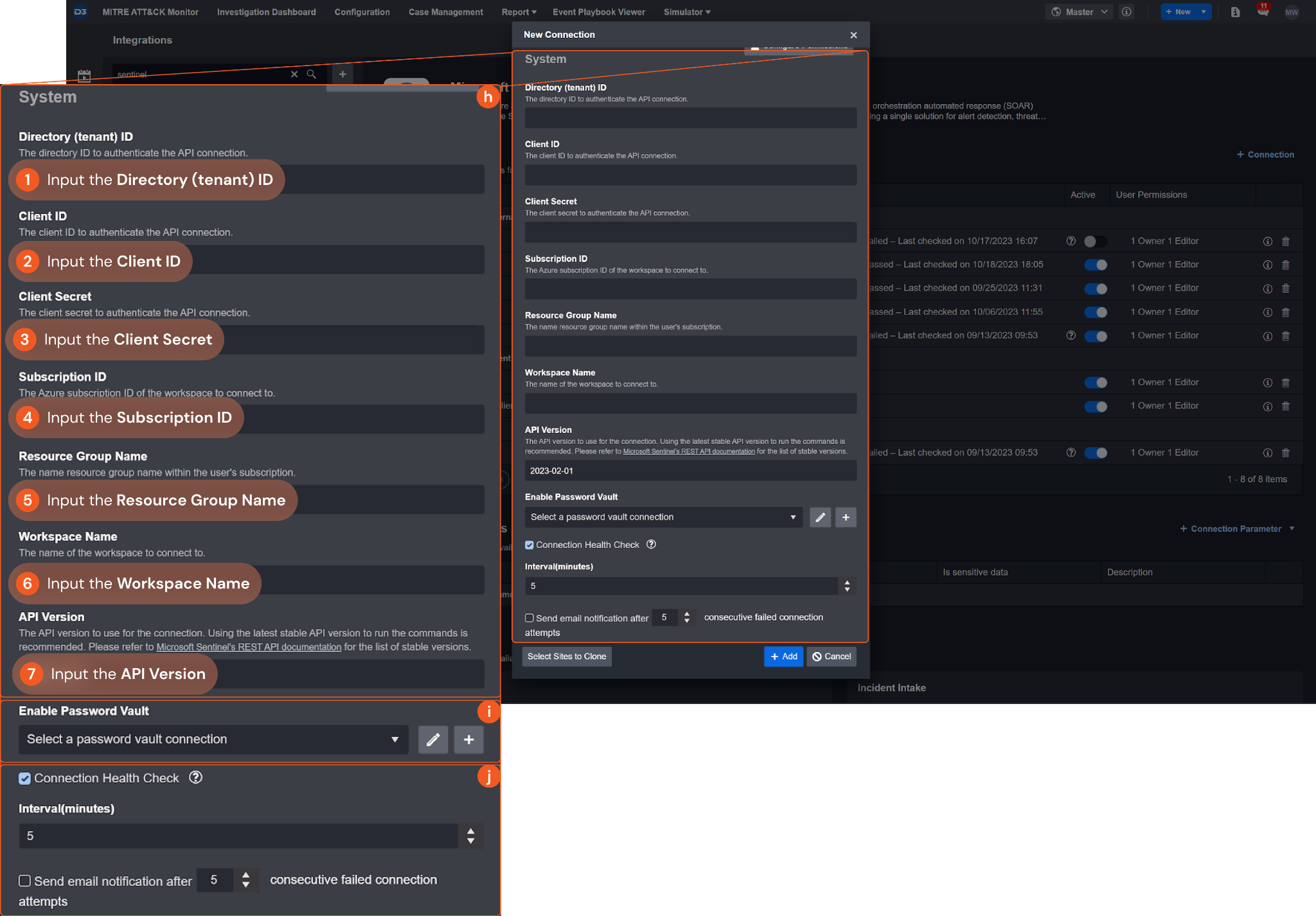

9. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
  1. Input the Directory (tenant) ID. See step 6 of Configuring Microsoft Sentinel to Work with D3 SOAR.
  2. Input the Client ID. See step 6 of Configuring Microsoft Sentinel to Work with D3 SOAR.
  3. Input the Client Secret. See step 8 of Configuring Microsoft Sentinel to Work with D3 SOAR.
  4. Input the Subscription ID. See step 12 of Configuring Microsoft Sentinel to Work with D3 SOAR.
  5. Input the Resource Group Name. See step 12 of Configuring Microsoft Sentinel to Work with D3 SOAR.
  6. Input the Workspace Name. See step 12 of Configuring Microsoft Sentinel to Work with D3 SOAR.
  7. Input the API Version. The default value is 2023-02-01. Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.
10. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Please refer to the password vault connection guide if needed.
11. Connection Health Check: Updates the connection status you have created. A connection health check is done by scheduling the Test Connection command of this integration. This can only be done when the connection is active.
  To set up a connection health check, check the Connection Health Check tickbox. You can customize the interval (minutes) for scheduling the health check. An email notification can be set up after a specified number of failed connection attempts.

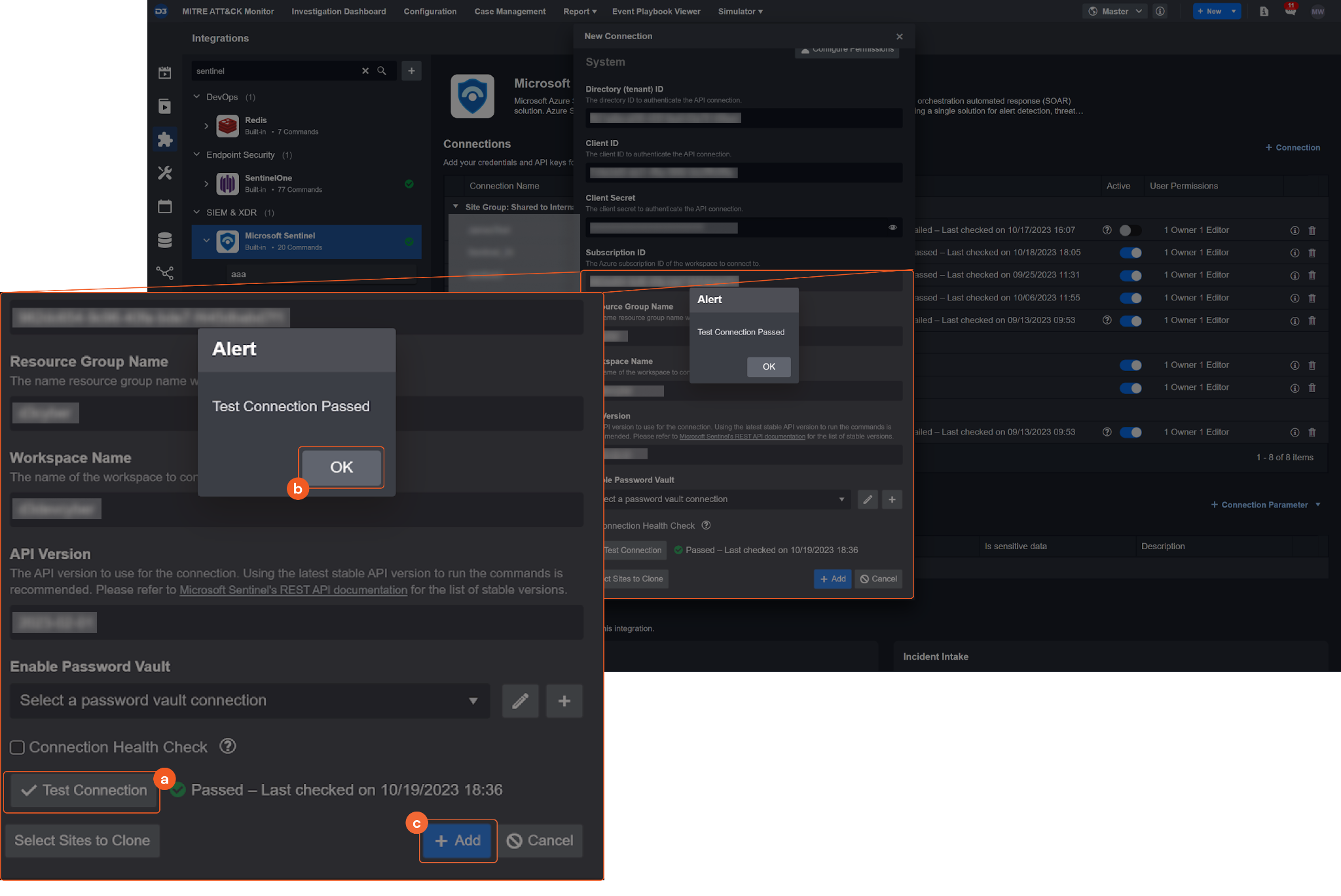

Test the connection.
1. Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green checkmark appear beside the Test Connection button. If the test connection fails, please check your connection parameters and try again.
2. Click OK to close the alert window.
3. Click + Add to create and add the configured connection.

Commands

Microsoft Sentinel includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the Microsoft Sentinel API, please refer to the Microsoft Sentinel API reference.

Reader Note

Certain permissions are required for each command. Please refer to the Permission Requirements and Configuring Microsoft Sentinel to Work with D3 SOAR for details.

Note for Time-related parameters

The input format of time-related parameters may vary based on your account settings. As a result, the sample data provided in our commands is different from what you see. To set your preferred time format, follow these steps:

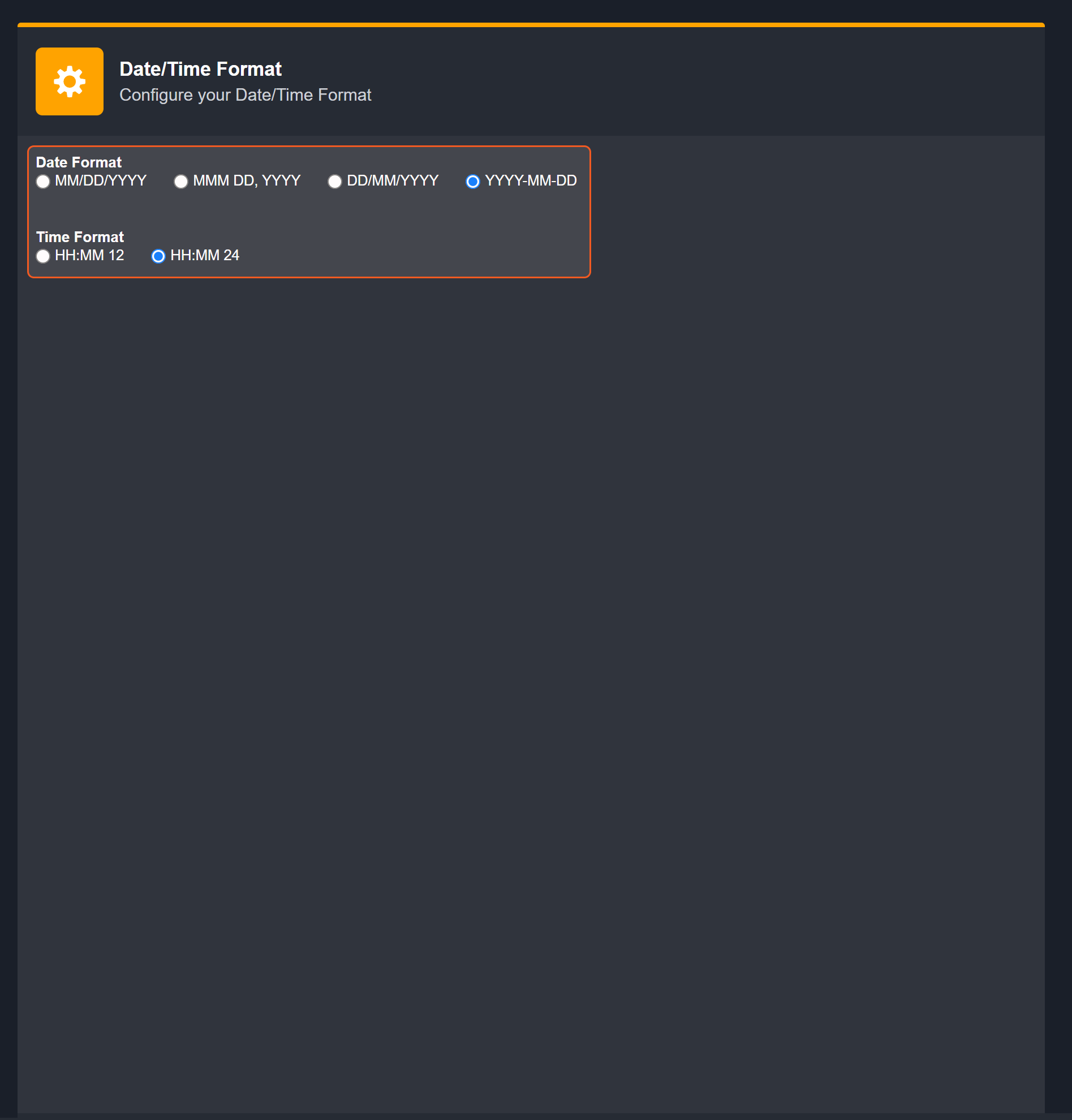

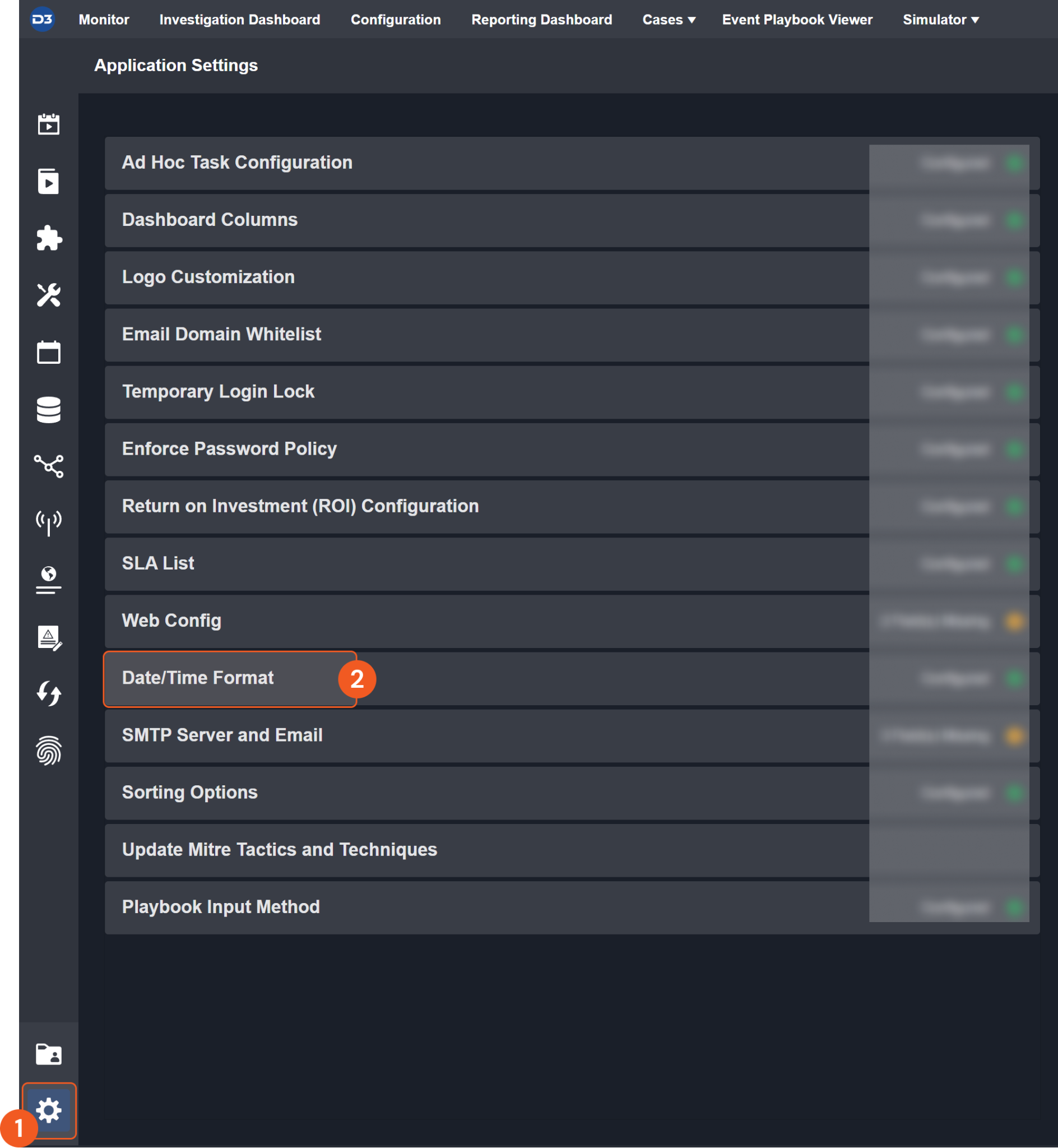

Navigate to Configuration > Application Settings. Select Date/Time Format.
Choose your desired date and time format.

After that, you will be able to view your preferred time format when configuring the DateTime input parameters for commands.

Delete Incident Comments

Deletes the comments for the specified incidents in Microsoft Sentinel.

Reader Note

Incident IDs and Comment Names are required parameters to run this command.
- Run the Fetch Incidents command with defined filters to retrieve the desired Incident IDs and Comment Names. The Incident IDs can be found in the raw data at the path $.values[*].name. Comment Names can be found from the returned raw data at the path $.value[*].comments[*].name.
- Comment Names must match the input Incident IDs. Not all incidents have comments.
Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.

Input

Input Parameter	Required /Optional	Description	Example
Incident IDs	Required	The IDs of the incidents to delete comments. Incident IDs can be obtained using the Fetch Incident command.	[**********************"]
Comment Names	Required	The name(s) of the comment(s) to be deleted. Comment Names can be obtained using the Fetch Incident command.	[ "2023-03-18 12:44 PM" ]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "incidentId": "**********************",
        "commentName": "2022-12-01 20:22:37",
        "message": "Comment is deleted successfully."
    }
]

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command's input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

INCIDENTID	COMMENTNAME	MESSAGE
**********************	2022-12-01 20:22:37	Comment is deleted successfully.

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Delete Incident Comments failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Incident IDs Not Found.

Error Sample Data

Delete Incident Comments failed.

Status Code: 404.

Message: Incident IDs Not Found.

Fetch Event

Retrieves events from Microsoft Sentinel based on a specified Kusto query. Note: The default workspace retention time is 30 days for Analytics tables and 8 days for Basic tables. Events beyond this retention period will not be returned.

Reader Note

D3 SOAR can fetch events from all available tables, including Azure tables and custom tables. As the Security Alert, Security Event, and Security Incident tables are the most commonly used, additional examples and field mappings for these tables are provided.
Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.

Input

Input Parameter	Required /Optional	Description	Example
Start Time	Required	The start time of the time range to fetch events by stored time in a workspace, in UTC time.	2023-04-01 00:00
End Time	Optional	The end time of the time range to fetch events by stored time in a workspace, in UTC time.	2023-04-02 00:00
Number of Event(s) Fetched	Optional	The maximum number of events to return. If the input value is 0, a negative number, or not specified, the command will return all events within the given time range.	20
Search Condition	Required	The Kusto query to fetch events. For more information about the Kusto Query Language (KQL) syntax, see KQL quick reference. It is recommended to use the provided sample data as a template to build your own query by modifying the "where" clause based on your needs. Some common tables to query are SecurityAlert, SecurityEvent and SecruityIncident. Additional field mappings for these tables are provided. All keys in the returned raw data can be used as search keys. Use the ‘\|' character to separate the table name and search condition (e.g. SecurityAlert \| where AlertName != "Windows logon success"). Note: Do not include the limit, take, and time fields in your KQL query. If these fields are included, their values will be overridden by the values of the Top Recent Event Number, Start Time, and End Time parameters.	For SecurityAlert SecurityAlert \| where AlertName != "Windows logon success" For SecurityEvent SecurityEvent \| where ProcessName == 'C:\\Windows\\*\\*.exe' For SecurityIncident SecurityIncident \| where Status == "New" and Severity == "High" For All tables TestCustomLog_1_CL\|where ingestion_time() between(datetime(2022-12-08T08:11:15Z) .. datetime(2022-12-10T08:11:18Z))\|project TimeGenerated, _TimeReceived, ingestion_time(),RawData
Tolerance Scope	Optional	The tolerance scope in minutes of the query to fetch events between start and end time to avoid the loss of events. Events will be fetched between {Start Time - Tolerance Scope}. The default value is 0.	10

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "TenantId": "***************************************",
        "TimeGenerated": "2022-12-10T19:05:18.1065694Z",
        "IncidentName": "***************************************",
        "Title": "Excessive Sign-in Failures in 10 Minutes ",
        "Description": "",
        "Severity": "High",
        "Status": "New",
        "Classification": "",
        "ClassificationComment": "",
        "ClassificationReason": "",
        "Owner": "{\"objectId\":null,\"email\":null,\"assignedTo\":null,\"userPrincipalName\":null}",
        "ProviderName": "Azure Sentinel",
        "ProviderIncidentId": "77473",
        "FirstActivityTime": "2022-12-10T18:30:00Z",
        "LastActivityTime": "2022-12-10T19:00:00Z",
        "FirstModifiedTime": null,
        "LastModifiedTime": "2022-12-10T19:05:18.1065694Z",
        "CreatedTime": "2022-12-10T18:45:18.0491481Z",
        "ClosedTime": null,
        "IncidentNumber": 77473,
        "RelatedAnalyticRuleIds": "[\"***************************************0\"]",
        "AlertIds": "[\"*****\",\"*****\",\"*****\",\"*****\",\"*****\"]",
        "BookmarkIds": "[]",
        "Comments": "[]",
        "Labels": "[]",
        "IncidentUrl": "https://portal.azure.com/***",
        "AdditionalData": "{\"alertsCount\":5,\"bookmarksCount\":0,\"commentsCount\":0,\"alertProductNames\":[\"Azure Sentinel\"],\"tactics\":[\"CredentialAccess\"],\"techniques\":[]}",
        "ModifiedBy": "Alert Grouping",
        "SourceSystem": "Azure",
        "Type": "SecurityIncident"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "EventKeys": "\"[ \\\"***************************************\\\" ]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

TENANTID	TIMEGENERATED	INCIDENTNAME	TITLE	DESCRIPTION	SEVERITY	STATUS	CLASSIFICATION	CLASSIFICATIONCOMMENT	CLASSIFICATIONREASON	OWNER	PROVIDERNAME	PROVIDERINCIDENTID	FIRSTACTIVITYTIME	LASTACTIVITYTIME	FIRSTMODIFIEDTIME	LASTMODIFIEDTIME	CREATEDTIME	CLOSEDTIME	INCIDENTNUMBER	RELATEDANALYTICRULEIDS	ALERTIDS	BOOKMARKIDS	COMMENTS	LABELS	INCIDENTURL	ADDITIONALDATA	MODIFIEDBY	SOURCESYSTEM	TYPE
***************************************	2022-12-10T19:05:18.1065694Z	***************************************	Excessive Sign-in Failures in 10 Minutes		High	New				{"objectId":null,"email":null,"assignedTo":null,"userPrincipalName":null}	Azure Sentinel	77473	2022-12-10T18:30:00Z	2022-12-10T19:00:00Z	None	2022-12-10T19:05:18.1065694Z	2022-12-10T18:45:18.0491481Z	None	77473	["***************************************0"]	["***","*","*","*","***"]	[]	[]	[]	https://portal.azure.com/***	{"alertsCount":5,"bookmarksCount":0,"commentsCount":0,"alertProductNames":["Azure Sentinel"],"tactics":["CredentialAccess"],"techniques":[]}	Alert Grouping	Azure	SecurityIncident

Fetch Event Field Mapping

Please note that Fetch Event commands require event field mapping. Field mapping plays a key role in the data normalization process part of the event pipeline. Field mapping converts the original data fields from the different providers to the D3 fields which are standardized by the D3 Model. Please refer to Event and Incident Intake Field Mapping for details.

If you require a custom field mapping, click + Add Field to add a custom field mapping. You may also remove built-in field mappings by clicking x. Please note that two underscore characters will automatically prefix the defined Field Name as the System Name for a custom field mapping. Additionally, if an input Field Name contains any spaces, they will automatically be replaced with underscores for the corresponding System Name.

The Microsoft Sentinel integration in D3 SOAR has some pre-configured field mappings for the all tables, Security Event, Security Alert and Security Incident, which correspond to the Default Event Source, Event Source for Security Event, Event Source for Security Alert and Event Source for Security Incident mappings:

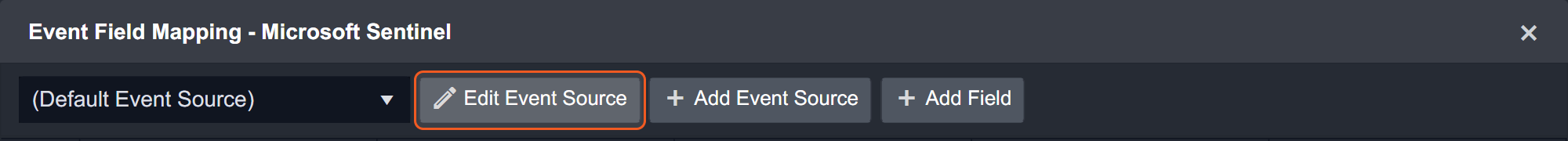

Default Event Source
Configures the field mapping which is specific to all tables related events. If a source field in the field mapping is not found, the corresponding field mapping will be ignored. The default event source has a "Main Event JSON Path" (i.e., $) that is used to extract a batch of events from the response raw data. Click Edit Event Source to view the "Main Event JSON Path". Click Edit Event Source to view the "Main Event JSON Path".
- Main Event JSON Path: $
  The Main Event JSON Path determines the root path where the system starts parsing raw response data into D3 event data. The JSON path begins with $, representing the root element. The path is formed by appending a sequence of child elements to $, each separated by a dot (.). Square brackets with nested quotation marks ([‘...']) should be used to separate child elements in JSON arrays.
  For example, the root node of a JSON Path is $. The child node denoting the Event Type field would be Type. Putting it together, the JSON Path expression to extract the Event Type is $.Type.

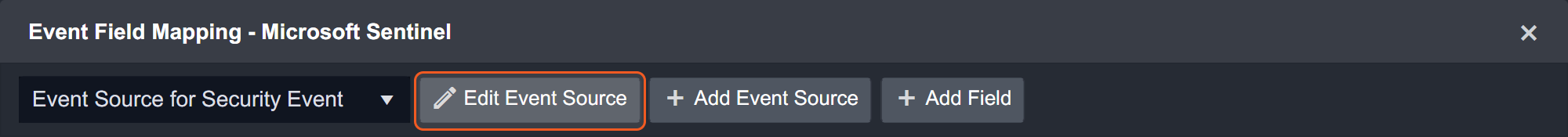

Event Source for Security Event
Configures the field mapping which are specific to the Security Event-related events. If a source field in the field mapping is not found, the corresponding field mapping will be ignored. As the data of the Security Event-related events have a character that the value of the Type field is SecurityEvent, the Security Event-related events can be defined by the Search String: {$.Type}=SecurityEvent. Click Edit Event Source to view the Search String.

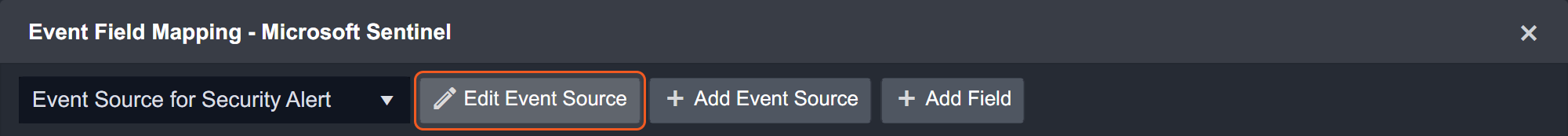

Event Source for Security Alert
Configures the field mapping which are specific to the Security Alert-related events. If a source field in the field mapping is not found, the corresponding field mapping will be ignored. As the data of the Security Alert-related events have a character that the value of the Type field is SecurityAlert, the Security Alert-related events can be defined by the Search String: {$.Type}=SecurityAlert. Click Edit Event Source to view the Search String.

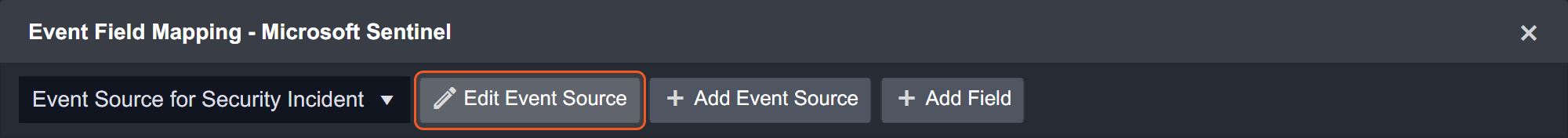

Event Source for Security Incident
Configures the field mapping which are specific to the Security Incident-related events. If a source field in the field mapping is not found, the corresponding field mapping will be ignored. As the data of the Security Incident-related events have a character that the value of the Type field is SecurityIncident, the Security Incident-related events can be defined by the Search String: {$.Type}=SecurityIncident. Click Edit Event Source to view the Search String.

The pre-configured field mappings are detailed below:

Field Name	Source Field
Default Event Source (Main Event JSON Path: $)
Event Type	.Type
Source System	.SourceSystem
Start Time	.TimeGenerated
Computer	.Computer
Time Of Command	.TimeOfCommand
Container ID	.ContainerID
Target image	.image
Event name	.Name
Resource ID	._ResourceId
Log Entry	.LogEntry
Source	.Source
Event Log	.EventLog
Event level	.EventLevel
Unique Event Key	.EventOriginId
Event Data	.EventData
Event category	.EventCategory
Username	.UserName
Service name	.ServiceName
Service ID	.ServiceId
Role	.Role
Message	.Message
Management Group Name	.ManagementGroupName
Rendered Description	.RenderedDescription
Time Stamp	.Timestamp
Alert ID	.AlertId
Entity Type	.EntityType
Evidence Role	.EvidenceRole
Evidence Direction	.EvidenceDirection
Folder Path	.FolderPath
File Name	.FileName
File Hash SHA1	.SHA1
File Hash SHA256	.SHA256
File Hash MD5	.MD5
Filesize	.FileSize
Threat category	.ThreatFamily
Account Name	.AccountName
Account Domain	.AccountDomain
Device ID	.DeviceId
Device Name	.DeviceName
Local IP	.LocalIP
Malicious IP Address	.MaliciousIP
Remote URL	.RemoteUrl
Email subject	.EmailSubject
App	.Application
Application ID	.ApplicationId
Process Command Line	.ProcessCommandLine
Registry key name	.RegistryKey
Registry value name	.RegistryValueName
Registry value data	.RegistryValueData
Alert Priority	.AlertPriority
Provider	.Provider
Original Severity	.OriginalSeverity
Alert Name	.AlertName
Alert Description	.AlertDescription
Resolved By	.ResolvedBy
Last Modified By	.LastModifiedBy
Alert State	.AlertState
Time Raised	.TimeRaised
Time Resolved	.TimeResolved
Time Last Modified	.TimeLastModified
Alert Context	.AlertContext
Ticket ID	.TicketId
Alert Unique ID	.AlertUniqueId
WMI filter query	.Query
Alert Rule ID	.AlertRuleId
Resource Type	.ResourceType
Resource Value	.ResourceValue
Hostname	.HostName
Alert Status	.AlertStatus
Trigger ID	.TriggerId
URL	.Url
Comments	.Comments
Template ID	.TemplateId
Alert type	.AlertType
Alert Title	.AlertTitle
Command Line	.CommandLine
Detection ID	.DetectionID
Full Path	.FullPath
Parent process name	.ParentProcess
Child Process Name	.ChildProcess
Subscription ID	.SubscriptionId
Receipt time (UTC)	.ReceiptTime
Device Product	.DeviceProduct
Device Action	.DeviceAction
Log Severity	.LogSeverity
Device IP address	.DeviceAddress
Destination IP address	.DestinationIP
Destination port	.DestinationPort
Source IP address	.SourceIP
Source port	.SourcePort
Remote IP address	.RemoteIP
Remote port	.RemotePort
Threat severity	.ThreatSeverity
Threat Description	.ThreatDescription
Threat Confidence	.ThreatConfidence
Protocol Info	.Protocol
Malicious IP Country	.MaliciousIPCountry
Malicious IP Longitude	.MaliciousIPLongitude
Malicious IP Latitude	.MaliciousIPLatitude
Source hostname	.SourceHostName
Source MAC address	.SourceMACAddress
Device MAC address	.DeviceMacAddress
Destination MAC	.DestinationMACAddress
Account SID	.AccountSid
Channel	.Channel
Raw event data	.RawEventData
Event code	.EventID
Client IP	.ClientIP
Category	.Category
Identity	.Identity
Resource	.Resource
Resource Group	.ResourceGroup
Raw Data	.RawData
User Principal Name	.UserPrincipalName
Event Source for Security Event (Search String: {$.Type}=SecurityEvent) The search string format is {jsonpath}=value. If the value of the Type key is SecurityEvent in the event object under raw data, then the Security Event-related events will use the field mapping below.
Unique Event Key	.EventOriginId
Event Type	.Type
Description	.Activity
Status	.Status
Start Time	.TimeGenerated
Device IP address	.IpAddress
File Hash	.FileHash
Filepath	.FilePath
Process ID	.ProcessId
Process Name	.ProcessName
Username	.UserPrincipalName
Service name	.ServiceName
Event Source for Security Alert (Search String: {$.Type}=SecurityAlert) The search string format is {jsonpath}=value. If the value of the Type key is SecurityAlert in the event object under raw data, then the Security Alert-related events will use the field mapping below.
Unique Event Key	.SystemAlertId
Event name	.AlertName
Event Type	.Type
Severity	.AlertSeverity
Description	.Description
Status	.Status
Start Time	.TimeGenerated
Tactics	.Tactics
Tactics	.Techniques
Alert Name	.AlertName
Alert type	.AlertType
Alert Timestamp	.StartTime
Extended Properties	.ExtendedProperties
Confidence Level	.ConfidenceLevel
Confidence Score	.ConfidenceScore
Source Computer ID	.SourceComputerId
Entities	.Entities
Source System	.SourceSystem
Product Name	.ProductName
Product Component Name	.ProductComponentName
Compromised Entity	.CompromisedEntity
Raw event data	.DecodedAlertedEvent
Event Type	.DecodedAlertedEvent[*].Type
Source System	.DecodedAlertedEvent[*].SourceSystem
Confidence Level	.DecodedAlertedEvent[*].ConfidenceLevel
Confidence Score	.DecodedAlertedEvent[*].ConfidenceScore
Device IP address	.DecodedAlertedEvent[*].DeviceAddress
Device MAC address	.DecodedAlertedEvent[*].DeviceMacAddress
Unique Event Key	DecodedAlertedEvent[*].EventOriginId
Destination port	.DecodedAlertedEvent[*].DestinationPort
Destination MAC	.DecodedAlertedEvent[*].DestinationMACAddress
Event code	.DecodedAlertedEvent[*].EventID
Product Name	.DecodedAlertedEvent[*].ProductName
Product Component Name	.DecodedAlertedEvent[*].ProductComponentName
Description	.DecodedAlertedEvent[*].Description
Device Product	.DecodedAlertedEvent[*].DeviceProduct
Event category	.DecodedAlertedEvent[*].EventCategory
App	.DecodedAlertedEvent[*].Application
Event Name	.DecodedAlertedEvent[*].Name
Entities	.DecodedAlertedEvent[*].Entities
Destination IP address	.DecodedAlertedEvent[*].DestinationIP
Time Resolved	.DecodedAlertedEvent[*].TimeResolved
Time Stamp	.DecodedAlertedEvent[*].Timestamp
User Roles	.DecodedAlertedEvent[*].UserRoles
Vendor Name	.DecodedAlertedEvent[*].VendorName
Vendor Original ID	.DecodedAlertedEvent[*].VendorOriginalId
Workspace Resource Group	.DecodedAlertedEvent[*].WorkspaceResourceGroup
Workspace Subscription ID	.DecodedAlertedEvent[*].WorkspaceSubscriptionId
Workstation Name	.DecodedAlertedEvent[*].WorkstationName
Event level	.DecodedAlertedEvent[*].EventLevel
Alert Name	.DecodedAlertedEvent[*].AlertName
File Hash MD5	.DecodedAlertedEvent[*].MD5
File Hash SHA1	.DecodedAlertedEvent[*].SHA1
File Hash SHA256	.DecodedAlertedEvent[*].SHA256
Start Time	.DecodedAlertedEvent[*].TimeGenerated
Filesize	.DecodedAlertedEvent[*].FileSize
Hostname	.DecodedAlertedEvent[*].HostName
Parent process name	.DecodedAlertedEvent[*].ParentProcess
Process command line	.DecodedAlertedEvent[*].ProcessCommandLine
Trigger ID	.DecodedAlertedEvent[*].TriggerId
Unique Token Identifier	.DecodedAlertedEvent[*].UniqueTokenIdentifier
URL Entities	.Entities_json..[?(@.Type=='url')].Url
User	.DecodedAlertedEvent[*].User
User Agent	.DecodedAlertedEvent[*].UserAgent
User Display Name	.DecodedAlertedEvent[*].UserDisplayName
User ID	.DecodedAlertedEvent[*].UserId
User IP Address	.DecodedAlertedEvent[*].UserIPAddress
User Principal Name	.DecodedAlertedEvent[*].UserPrincipalName
Tactics	.DecodedAlertedEvent[*].Tactics
Techniques	.DecodedAlertedEvent[*].Techniques
Time Of Command	.DecodedAlertedEvent[*].TimeOfCommand
Time Raised	.DecodedAlertedEvent[*].TimeRaised
Ticket ID	.DecodedAlertedEvent[*].TicketId
Time Last Modified	.DecodedAlertedEvent[*].TimeLastModified
Threat Confidence	.DecodedAlertedEvent[*].ThreatConfidence
Threat Description	.DecodedAlertedEvent[*].ThreatDescription
Resource Identity	.DecodedAlertedEvent[*].ResourceIdentity
Resource IDs	.DecodedAlertedEvent[*].ResourceIds
Resource Service Principal ID	.DecodedAlertedEvent[*].ResourceServicePrincipalId
Resource Tenant ID	.DecodedAlertedEvent[*].ResourceTenantId
Resource Type	.DecodedAlertedEvent[*].ResourceType
Success IP Address	.DecodedAlertedEvent[*].SuccessIPAddress
System Alert ID	.DecodedAlertedEvent[*].SystemAlertId
Target	.DecodedAlertedEvent[*].Target
Target Account	.DecodedAlertedEvent[*].TargetAccount
Target Domain Name	.DecodedAlertedEvent[*].TargetDomainName
Target Resources	.DecodedAlertedEvent[*].TargetResources
Target User Name	.DecodedAlertedEvent[*].TargetUserName
Target User Principal Name	.DecodedAlertedEvent[*].TargetUserPrincipalName
Target User SID	.DecodedAlertedEvent[*].TargetUserSid
Task	.DecodedAlertedEvent[*].Task
Template ID	.DecodedAlertedEvent[*].TemplateId
Status	.DecodedAlertedEvent[*].Status
Subject Account	.DecodedAlertedEvent[*].SubjectAccount
Subject Domain Name	.DecodedAlertedEvent[*].SubjectDomainName
Subject Logon ID	.DecodedAlertedEvent[*].SubjectLogonId
Subject Status	.DecodedAlertedEvent[*].SubStatus
Subject User Name	.DecodedAlertedEvent[*].SubjectUserName
Subject User SID	.DecodedAlertedEvent[*].SubjectUserSid
Subscription ID	.DecodedAlertedEvent[*].SubscriptionId
Role Name	.DecodedAlertedEvent[*].RoleName
Roles	.DecodedAlertedEvent[*].Roles
Score	.DecodedAlertedEvent[*].score
Service Principal ID	.DecodedAlertedEvent[*].ServicePrincipalId
Sign In Identifier	.DecodedAlertedEvent[*].SignInIdentifier
Raw Event Data	.DecodedAlertedEvent[*].RawEventData
Resource Value	.DecodedAlertedEvent[*].ResourceValue
Resources	.DecodedAlertedEvent[*].Resources
Result Description	.DecodedAlertedEvent[*].ResultDescription
Result Reason	.DecodedAlertedEvent[*].ResultReason
Result Type	.DecodedAlertedEvent[*].ResultType
Risk Detail	.DecodedAlertedEvent[*].RiskDetail
Risk Event Types	.DecodedAlertedEvent[*].RiskEventTypes
Risk Level	.DecodedAlertedEvent[*].RiskLevel
Role	.DecodedAlertedEvent[*].Role
Resource Groups	.DecodedAlertedEvent[*].ResourceGroups
Resource ID	.DecodedAlertedEvent[*].ResourceId
Resource Display Name	.DecodedAlertedEvent[*].ResourceDisplayName
Resource Group	.DecodedAlertedEvent[*].ResourceGroup
Resolved By	.DecodedAlertedEvent[*].ResolvedBy
Resource	.DecodedAlertedEvent[*].Resource
Remote URL	.DecodedAlertedEvent[*].RemoteUrl
Rendered Description	.DecodedAlertedEvent[*].RenderedDescription
Remote IP Address	.DecodedAlertedEvent[*].RemoteIP
Remote port	.DecodedAlertedEvent[*].RemotePort
Provider	.DecodedAlertedEvent[*].Provider
Provider Name	.DecodedAlertedEvent[*].ProviderName
Raw Data	.DecodedAlertedEvent[*].RawData
PIM Resource Group	.DecodedAlertedEvent[*].PIMResourceGroup
Process	.DecodedAlertedEvent[*].Process
Process Entities	.Entities_json..[?(@.Type=='process')].ProcessId,CommandLine
Operation IDs	.DecodedAlertedEvent[*].OperationIds
Operation Name	.DecodedAlertedEvent[*].OperationName
Operation Name Value	.DecodedAlertedEvent[*].OperationNameValue
Original Severity	.DecodedAlertedEvent[*].OriginalSeverity
Malicious IP Longitude	.DecodedAlertedEvent[*].MaliciousIPLongitude
Malware Entities	.Entities_json..[?(@.Type=='malware')].Name,Category
Management Group Name	.DecodedAlertedEvent[*].ManagementGroupName
Malicious IP Country	.DecodedAlertedEvent[*].MaliciousIPCountry
Malicious IP Latitude	.DecodedAlertedEvent[*].MaliciousIPLatitude
Local IP	.DecodedAlertedEvent[*].LocalIP
Log Entry	.DecodedAlertedEvent[*].LogEntry
Log Severity	.DecodedAlertedEvent[*].LogSeverity
Logon Process Name	.DecodedAlertedEvent[*].LogonProcessName
Logon Type	.DecodedAlertedEvent[*].LogonType
Logon Type Name	.DecodedAlertedEvent[*].LogonTypeName
Mailbox Entities	.Entities_json..[?(@.Type=='mailbox')].MailboxPrimaryAddress
MailCluster Entities	.Entities_json..[?(@.Type=='mailCluster')].Query,Source
MailMessage Entities	.Entities_json..[?(@.Type=='mailMessage')].NetworkMessageId,InternetMessageId,Sender,Recipient,Subject
Malicious IP Address	.DecodedAlertedEvent[*].MaliciousIP
Identity	.DecodedAlertedEvent[*].Identity
Initiated By Display Name	.DecodedAlertedEvent[*].InitiatedByDisplayName
Initiating User	.DecodedAlertedEvent[*].InitiatingUser
IP Address	.DecodedAlertedEvent[*].IpAddress
IP Custom Entity	.DecodedAlertedEvent[*].IPCustomEntity
IP Entities	.Entities_json..[?(@.Type=='ip')].Address
Last Modified By	.DecodedAlertedEvent[*].LastModifiedBy
Group Name	.DecodedAlertedEvent[*].GroupName
Home Tenant ID	.DecodedAlertedEvent[*].HomeTenantId
Host Entities	.Entities_json..[?(@.Type=='host')].HostName
ID	.DecodedAlertedEvent[*].Id
Folder Path	.DecodedAlertedEvent[*].FolderPath
Full Path	.DecodedAlertedEvent[*].FullPath
Entity Type	.DecodedAlertedEvent[*].EntityType
Event Data	.DecodedAlertedEvent[*].EventData
File Name Entities	.Entities_json..[?(@.Type=='file')].Name
File SHA1 Entities	.Entities_json..[?(@.Type=='filehash' && @.Algorithm=='SHA1')].Value
File SHA256 Entities	.Entities_json..[?(@.Type=='filehash' && @.Algorithm=='SHA256')].Value
Evidence Role	.DecodedAlertedEvent[*].EvidenceRole
Failed IP Address	.DecodedAlertedEvent[*].FailedIPAddress
File MD5 Entities	.Entities_json..[?(@.Type=='filehash' && @.Algorithm=='MD5')].Value
File Name	.DecodedAlertedEvent[*].FileName
Event Log	.DecodedAlertedEvent[*].EventLog
Event Source Name	.DecodedAlertedEvent[*].EventSourceName
Evidence Direction	.DecodedAlertedEvent[*].EvidenceDirection
Device Name	.DecodedAlertedEvent[*].DeviceName
Display Name	.DecodedAlertedEvent[*].DisplayName
Domain Entities	.Entities_json..[?(@.Type=='dns')].DomainName
Device Action	.DecodedAlertedEvent[*].DeviceAction
Device Detail	.DecodedAlertedEvent[*].DeviceDetail
Device ID	.DecodedAlertedEvent[*].DeviceId
Container ID	.DecodedAlertedEvent[*].ContainerID
Correlation ID	.DecodedAlertedEvent[*].CorrelationId
Correlation IDs	.DecodedAlertedEvent[*].CorrelationIds
Detection ID	.DecodedAlertedEvent[*].DetectionID
Computer	.DecodedAlertedEvent[*].Computer
Source Computer ID	.DecodedAlertedEvent[*].SourceComputerId
Operation Name	.DecodedAlertedEvent[*].OperationName
Command Line	.DecodedAlertedEvent[*].CommandLine
Comments	.DecodedAlertedEvent[*].Comments
Cloud Application Entities	.Entities_json..[?(@.Type=='cloud-application')].Name,AppId
App Display Name	.DecodedAlertedEvent[*].AppDisplayName
Application ID	.DecodedAlertedEvent[*].ApplicationId
Category	.DecodedAlertedEvent[*].Category
Child Process Name	.DecodedAlertedEvent[*].ChildProcess
Client IP	.DecodedAlertedEvent[*].ClientIP
ARM Template PIM	.DecodedAlertedEvent[*].ARMTemplatePIM
Caller	.DecodedAlertedEvent[*].Caller
Caller IP Address	.DecodedAlertedEvent[*].CallerIpAddress
Channel	.DecodedAlertedEvent[*].Channel
Alert Title	.DecodedAlertedEvent[*].AlertTitle
Alert Type	.DecodedAlertedEvent[*].AlertType
Alert Unique ID	.DecodedAlertedEvent[*].AlertUniqueId
Alert State	.DecodedAlertedEvent[*].AlertState
Alert Status	.DecodedAlertedEvent[*].AlertStatus
Alert Severity	.DecodedAlertedEvent[*].AlertSeverity
Alert Priority	.DecodedAlertedEvent[*].AlertPriority
Alert Rule ID	.DecodedAlertedEvent[*].AlertRuleId
Alert Description	.DecodedAlertedEvent[*].AlertDescription
Alert ID	.DecodedAlertedEvent[*].AlertId
Account Type	.DecodedAlertedEvent[*].AccountType
Activity	.DecodedAlertedEvent[*].Activity
Activity Display Name	.DecodedAlertedEvent[*].ActivityDisplayName
Additional Details	.DecodedAlertedEvent[*].AdditionalDetails
Alert Context	.DecodedAlertedEvent[*].AlertContext
Account Name	.DecodedAlertedEvent[*].AccountName
Account SID	.DecodedAlertedEvent[*].AccountSid
Account Entities	.Entities_json..[?(@.Type=='account')].Name
AAD Tenant ID	.DecodedAlertedEvent[*].AADTenantId
Account	.DecodedAlertedEvent[*].Account
Account Custom Entity	.DecodedAlertedEvent[*].AccountCustomEntity
Account Domain	.DecodedAlertedEvent[*].AccountDomain
Process ID	.DecodedAlertedEvent[*].ProcessId
Process Name	.DecodedAlertedEvent[*].ProcessName
Protocol info	.DecodedAlertedEvent[*].Protocol
WMI filter query	.DecodedAlertedEvent[*].Query
Message	.DecodedAlertedEvent[*].Message
Registry value data	.DecodedAlertedEvent[*].RegistryValueData
Registry value name	.DecodedAlertedEvent[*].RegistryValueName
Receipt time (UTC)	.DecodedAlertedEvent[*].ReceiptTime
Registry key name	.DecodedAlertedEvent[*].RegistryKey
Service ID	.DecodedAlertedEvent[*].ServiceId
Service name	.DecodedAlertedEvent[*].ServiceName
Source MAC address	.DecodedAlertedEvent[*].SourceMACAddress
Source hostname	.DecodedAlertedEvent[*].SourceHostName
Source IP address	.DecodedAlertedEvent[*].SourceIP
Source port	.DecodedAlertedEvent[*].SourcePort
Source	.DecodedAlertedEvent[*].Source
Sub Event	.DecodedAlertedEvent
Email subject	.DecodedAlertedEvent[*].EmailSubject
URL	.DecodedAlertedEvent[*].Url
Username	.DecodedAlertedEvent[*].UserName
Threat category	.DecodedAlertedEvent[*].ThreatFamily
Threat severity	.DecodedAlertedEvent[*].ThreatSeverity
Target image	.DecodedAlertedEvent[*].image
Event Source for Security Incident (Search String: {$.Type}=SecurityIncident) The search string format is {jsonpath}=value. If the value of the Type key is SecurityIncident in the event object under raw data, then the Security Incident-related events will use the field mapping below.
Status	.Status
Severity	.Severity
Comments	.Comments
Start Time	.TimeGenerated
Description	.Description
Event name	.IncidentName
Event Type	.Type

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Fetch Event failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The provided authentication is not valid for this resource.

Error Sample Data

Fetch Event failed.

Status Code: 403.

Message: The provided authentication is not valid for this resource.

Fetch Incident

Retrieves incidents from analytics or custom tables in Microsoft Sentinel. Note: Security Alerts are from the SecurityAlert table, which is an analytics table. The workplace default retention time for analytics tables is 30 days. Therefore, ingested Security Alerts that are 30 days or older will not be returned.

Reader Note

Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.
If no optional parameters are defined, all created incidents within your specified time range will be returned.
Access the Test tab on the Fetch Incident command page. Run the command with the required parameters to analyze the format of the response data. From the response data, locate the JSON paths corresponding to the fields that need to be synchronized in both D3 SOAR and Microsoft Sentinel. To simplify this process, you can use a JSON path picker tool by copying and pasting the data into it.
After identifying the JSON paths of interest, input them into the Update Field Mappings input parameter.
The configuration for the incident system fields and dynamic fields is defined by field mappings. In addition, default values can be established for these system fields. The keys defined in D3 SOAR for these settings are "D3SystemFields" and "D3DefaultFields". When dealing with a dynamic field, the structure will follow the format: "sectionName": {"fieldName": "JSON Path to the value"}.
For Microsoft Sentinel, you can follow the structure shown in the provided sample data below and customize it to your use case by adding or removing key-value pairs under each first-level JSON key (i.e., "D3SystemFields," "MS Sentinel Key Information," "Classification for Incident Closure," and "D3DefaultFields").

CODE

{
   "D3SystemFields": {
      "status": "$.properties.status",
      "owner": "$.properties.owner.userPrincipalName",
      "Severity": "$.properties.severity",
      "Conclusion": "$.properties.classificationComment"
   },
   "MS Sentinel Key Information": {
      "Incident Number": "$.properties.incidentNumber",
      "Incident Status": "$.properties.status",
      "Incident Severity": "$.properties.severity",
      "Incident Owner": "$.properties.owner.assignedTo",
      "Incident Creation Date": "$.properties.createdTimeUtc",
      "Alert Product Name": "$.properties.additionalData.alertProductNames",
      "Incident Comment Timeline": "$.comments",
      "Incident URL": "$.properties.incidentUrl"
   },
   "Classification for Incident Closure": {
      "Classification": "$.properties.classification",
      "ClassificationReason|TruePositive": "$.properties.classificationReason",
      "ClassificationReason|BenignPositive": "$.properties.classificationReason",
      "ClassificationReason|FalsePositive": "$.properties.classificationReason",
      "ClassificationComment": "$.properties.classificationComment"
   },
   "D3DefaultFields": {
      "owner": "defaultOwner@d3security.com"
   }
}

Here is a more in-depth explanation on each of the first-level keys:

D3SystemFields: Maps the paths from the raw Microsoft Sentinel incident data to the four incident system fields in D3 SOAR: incident status, the user principal name of the owner, the severity of the incident, and any comments related to the classification of the incident. These system fields are static and cannot be modified.
D3DefaultFields: Specifies the default owner of the ingested incident in D3 SOAR, in cases where D3 SOAR cannot map the owner of the Microsoft Sentinel Incident to a user in the D3 platform.
MS Sentinel Key Information: Maps the paths from the raw Microsoft Sentinel incident data to the section names of the "Microsoft Sentinel" incident form created in step 2. Verify the keys with your created incident form, as they should be aligned. Refer to response data from the previous test run to identify the correct JSON paths.
Classification for Incident Closure: Maps the paths of the raw Microsoft Sentinel incident data to the section names of the "Microsoft Sentinel" incident form created in step 2 pertaining to the classification information of the incident when it is closed by an analyst. Verify the keys with your created incident form, as they should be aligned. Again, refer to the response data from your previous test run to accurately identify the correct JSON paths.
NOTE: Ensure the default owner identified by the "owner" key has been created and configured with the necessary permissions to access the configured client site. You can do this by navigating to Configuration > Organization Management > Users.

Input

Input Parameter	Required /Optional	Description	Example
Start Time	Required	The start time of the time range to fetch incidents by the specified query time type, in UTC time.	2023-04-01 00:00
End Time	Required	The end time of the time range to fetch incidents by the specified query time type, in UTC time.	2023-04-02 00:00
Query Time Type	Optional	The time field (i.e. Created Time or Last Modified Time) to filter incidents by. If Created Time is selected, only new incidents will be ingested (excluding incident updates). If Last Modified Time is selected, both new and updated incidents will be ingested. If this parameter is not defined, Created Time will be the default value.	Last Modified Time
Number of Incident(s) Fetched	Optional	The maximum number of the most recent incidents to return. If this parameter is not defined, all incidents matching the search condition will be returned.	10
Search Condition	Optional	The condition to filter results. For more about the filter syntax, refer to Use query parameters to customize responses and Use the $filter query parameter. The available search keys can be accessed by using the keys under the path *$.value[].properties in the returned raw data. To search for sub-properties, use the '/' character. For example, to search for the status sub-property, the input search key would be properties/status**.	(properties/status eq 'New') and (properties/severity eq 'High')
Tolerance Scope	Optional	The tolerance scope in minutes of the query to fetch incidents between start and end time to avoid the loss of events. Events will be fetched between {Start Time - Tolerance Scope}. The default value is 0.	0
Update Field Mappings	Optional	The field mappings for the incident system fields or dynamic fields. Also it can set the default value for the system fields. The D3 defined keys are "D3SystemFields" and "D3DefaultFields". The dynamic field structure will be "sectionName": {"fieldName": "JSON Path to the value"}. Please refer to the sample data for the detailed fields and values.	{ "D3SystemFields": { "status": "$.properties.status", "owner": "$.properties.owner.userPrincipalName", "Severity": "$.properties.severity", "Conclusion": "$.properties.classificationComment" }, "MS Sentinel Key Information": { "Incident Number": "$.properties.incidentNumber", "Incident Status": "$.properties.status", "Incident Severity": "$.properties.severity", "Incident Owner": "$.properties.owner.assignedTo", "Incident Creation Date": "$.properties.createdTimeUtc", "Alert Product Name": "$.properties.additionalData.alertProductNames", "Incident Comment Timeline": "$.comments", "Incident URL": "$.properties.incidentUrl" }, "Classification for Incident Closure": { "Classification": "$.properties.classification", "ClassificationReason\|TruePositive": "$.properties.classificationReason", "ClassificationReason\|BenignPositive": "$.properties.classificationReason", "ClassificationReason\|FalsePositive": "$.properties.classificationReason", "ClassificationComment": "$.properties.classificationComment" }, "D3DefaultFields": { "owner": "defaultOwner" } }
Return additional Information	Optional	The additional information of the incident to return. The available values are "All", "Alert", "Comment", "Sub Event (Contain Alert)", "Comment & Alert" and "None". The default value is "All" which means the returned incident will contain the comment, alert and the events of the alert. If "None" is selected, then only the incidents will be returned.	All
Workspace ID	Optional	The workspace ID which is used to search log analytics tables. You don't need to enter it and it will be obtained automatically.	***************************************

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "value": [
        {
            "id": "*****",
            "name": "*****",
            "etag": "\"*****\"",
            "type": "Microsoft.SecurityInsights/Incidents",
            "properties": {
                "title": "Excessive Sign-in Failures in 10 Minutes ",
                "description": "",
                "severity": "High",
                "status": "New",
                "owner": {
                    "objectId": null,
                    "email": null,
                    "assignedTo": null,
                    "userPrincipalName": null
                },
                "labels": [],
                "comments": [
                    {
                        "id": "*****",
                        "name": "2022-12-01 20:24:13",
                        "etag": "\"*****\"",
                        "type": "Microsoft.SecurityInsights/Incidents/Comments",
                        "properties": {
                            "message": "testtest",
                            "createdTimeUtc": "2022-12-01T20:24:14.0589519Z",
                            "lastModifiedTimeUtc": "2022-12-01T20:24:14.0589519Z",
                            "author": {
                                "objectId": "*****",
                                "email": null,
                                "name": "Comment created from external application - d3devcyber",
                                "userPrincipalName": null
                            }
                        }
                    }
                ],
                "firstActivityTimeUtc": "2022-11-29T02:10:00Z",
                "lastActivityTimeUtc": "2022-11-29T02:10:00Z",
                "lastModifiedTimeUtc": "2022-12-06T10:03:12.4658861Z",
                "createdTimeUtc": "2022-11-29T02:27:11.6496287Z",
                "incidentNumber": 40047,
                "additionalData": {
                    "alertsCount": 1,
                    "bookmarksCount": 0,
                    "commentsCount": 1,
                    "alertProductNames": [
                        "Azure Sentinel"
                    ],
                    "tactics": [
                        "CredentialAccess"
                    ]
                },
                "relatedAnalyticRuleIds": [
                    "/subscriptions/*****/resourceGroups/d3cyber/providers/Microsoft.OperationalInsights/workspaces/d3devcyber/providers/Microsoft.SecurityInsights/alertRules/***************************************"
                ],
                "incidentUrl": "https://portal.azure.com/*****"
            },
            "alertDetails": [
                {
                    "TenantId": "***************************************",
                    "TimeGenerated": "2022-11-29T02:27:07.9588782Z",
                    "DisplayName": "Excessive Sign-in Failures in 10 Minutes ",
                    "AlertName": "Excessive Sign-in Failures in 10 Minutes ",
                    "AlertSeverity": "High",
                    "Description": "",
                    "ProviderName": "ASI Scheduled Alerts",
                    "VendorName": "Microsoft",
                    "VendorOriginalId": "*****",
                    "SystemAlertId": "*****",
                    "ResourceId": "",
                    "SourceComputerId": "",
                    "AlertType": "***************************************_***************************************0",
                    "ConfidenceLevel": "",
                    "ConfidenceScore": null,
                    "IsIncident": false,
                    "StartTime": "2022-11-29T02:10:00Z",
                    "EndTime": "2022-11-29T02:10:00Z",
                    "ProcessingEndTime": "2022-11-29T02:27:07.8448912Z",
                    "RemediationSteps": "",
                    "ExtendedProperties": "{\"Query Period\":\"00:10:00\",\"Trigger Operator\":\"GreaterThan\",\"Trigger Threshold\":\"***\",\"Correlation Id\":\"***************************************_***************************************\",\"Search Query Results Overall Count\":\"5\",\"Data Sources\":\"[\\\"d3devcyber\\\"]\",\"Query\":\"// The query_now parameter represents the time (in UTC) at which the scheduled analytics rule ran to produce this alert.\\nset query_now = datetime(2022-11-29T02:22:01.6997268Z);\\nSecurityEvent\\n| where EventID == ***\\n| summarize FailedLogins = count() by TenantId, SourceSystem, Account, AccountType, Computer, EventSourceName, Channel, Task, Level, EventID, Activity, AuthenticationPackageName, FailureReason, IpAddress, IpPort, KeyLength, LmPackageName, LogonProcessName, LogonType, LogonTypeName, Process, ProcessId, ProcessName, Status, SubjectAccount, SubjectDomainName, SubjectLogonId, SubjectUserName, SubjectUserSid, SubStatus, TargetAccount, TargetDomainName, TargetUserName, TargetUserSid, TransmittedServices, WorkstationName, SourceComputerId, EventOriginId\\n, MG, ManagementGroupName, Type, bin(TimeGenerated, 10m)\\n| sort by TimeGenerated desc\",\"Query Start Time UTC\":\"2022-11-29 02:12:01Z\",\"Query End Time UTC\":\"2022-11-29 02:22:02Z\",\"Analytic Rule Ids\":\"[\\\"***************************************\\\"]\",\"Event Grouping\":\"SingleAlert\",\"Analytic Rule Name\":\"Excessive Sign-in Failures in 10 Minutes \",\"ProcessedBySentinel\":\"True\",\"Alert generation status\":\"Full alert created\"}",
                    "Entities": "[{\"$id\":\"***\",\"Name\":\"sysint\",\"NTDomain\":\"*****\",\"Sid\":\"*****\",\"IsDomainJoined\":false,\"Type\":\"account\"},{\"$id\":\"***\",\"Directory\":\"C:\\\\***\\\\***\\\\***\\\\***\\\\***\",\"Name\":\"***.exe\",\"FileHashes\":[{\"$id\":\"***\",\"Algorithm\":\"SHA1\",\"Value\":\"*****\",\"Type\":\"filehash\"},{\"$id\":\"5\",\"Algorithm\":\"MD5\",\"Value\":\"*****\",\"Type\":\"filehash\"},{\"$id\":\"***\",\"Algorithm\":\"SHA256\",\"Value\":\"*****\",\"Type\":\"filehash\"}],\"CreatedTimeUtc\":\"2022-05-20T18:06:17.6630342Z\",\"Type\":\"file\"}]",
                    "Entities_json": [
                        {
                            "$id": "***",
                            "Name": "sysint",
                            "NTDomain": "*****",
                            "Sid": "*****",
                            "IsDomainJoined": false,
                            "Type": "account"
                        },
                        {
                            "$id": "***",
                            "Directory": "C:UserssysintAppDataLocalTemp",
                            "Name": "***.exe",
                            "FileHashes": [
                                {
                                    "$id": "***",
                                    "Algorithm": "SHA1",
                                    "Value": "*****",
                                    "Type": "filehash"
                                },
                                {
                                    "$id": "***",
                                    "Algorithm": "MD5",
                                    "Value": "*****",
                                    "Type": "filehash"
                                },
                                {
                                    "$id": "***",
                                    "Algorithm": "SHA256",
                                    "Value": "*****",
                                    "Type": "filehash"
                                }
                            ],
                            "CreatedTimeUtc": "2022-05-20T18:06:17.6630342Z",
                            "Type": "file"
                        }
                    ],
                    "SourceSystem": "Detection",
                    "WorkspaceSubscriptionId": "*****",
                    "WorkspaceResourceGroup": "*****",
                    "ExtendedLinks": "",
                    "ProductName": "Azure Sentinel",
                    "ProductComponentName": "Scheduled Alerts",
                    "AlertLink": "",
                    "Status": "New",
                    "CompromisedEntity": "",
                    "Tactics": "CredentialAccess",
                    "Techniques": "",
                    "Type": "SecurityAlert",
                    "DecodedAlertedEvent": [
                        {
                            "TenantId": "***************************************",
                            "SourceSystem": "OpsManager",
                            "Account": "***\\***",
                            "AccountType": "User",
                            "Computer": "test36",
                            "EventSourceName": "Microsoft-Windows-Security-Auditing",
                            "Channel": "Security",
                            "Task": 12544,
                            "Level": "16",
                            "EventID": ***,
                            "Activity": "4625 - An account failed to log on.",
                            "AuthenticationPackageName": "NTLM",
                            "FailureReason": "%%2313",
                            "IpAddress": "***.***.***.***",
                            "IpPort": "***",
                            "KeyLength": 0,
                            "LmPackageName": "-",
                            "LogonProcessName": "NtLmSsp ",
                            "LogonType": 3,
                            "LogonTypeName": "3 - Network",
                            "Process": "-",
                            "ProcessId": "*****",
                            "ProcessName": "-",
                            "Status": "0xc000006d",
                            "SubjectAccount": "-\\-",
                            "SubjectDomainName": "-",
                            "SubjectLogonId": "0x0",
                            "SubjectUserName": "-",
                            "SubjectUserSid": "*****",
                            "SubStatus": "0xc0000064",
                            "TargetAccount": "***\\***",
                            "TargetDomainName": "***",
                            "TargetUserName": "***",
                            "TargetUserSid": "*****",
                            "TransmittedServices": "-",
                            "WorkstationName": "***",
                            "SourceComputerId": "*****",
                            "EventOriginId": "*****",
                            "MG": "*****",
                            "ManagementGroupName": "AOI-***************************************",
                            "Type": "SecurityEvent",
                            "TimeGenerated": "2022-11-29T02:10:00Z",
                            "FailedLogins": 1
                        },
                        {
                            "TenantId": "***************************************",
                            "SourceSystem": "OpsManager",
                            "Account": "***\\***",
                            "AccountType": "User",
                            "Computer": "test36",
                            "EventSourceName": "Microsoft-Windows-Security-Auditing",
                            "Channel": "Security",
                            "Task": 12544,
                            "Level": "16",
                            "EventID": ***,
                            "Activity": "4625 - An account failed to log on.",
                            "AuthenticationPackageName": "NTLM",
                            "FailureReason": "%%2313",
                            "IpAddress": "***.***.***.***",
                            "IpPort": "***",
                            "KeyLength": 0,
                            "LmPackageName": "-",
                            "LogonProcessName": "NtLmSsp ",
                            "LogonType": 3,
                            "LogonTypeName": "3 - Network",
                            "Process": "-",
                            "ProcessId": "*****",
                            "ProcessName": "-",
                            "Status": "0xc000006d",
                            "SubjectAccount": "-\\-",
                            "SubjectDomainName": "-",
                            "SubjectLogonId": "0x0",
                            "SubjectUserName": "-",
                            "SubjectUserSid": "*****",
                            "SubStatus": "0xc0000064",
                            "TargetAccount": "***\\***",
                            "TargetDomainName": "***",
                            "TargetUserName": "***",
                            "TargetUserSid": "*****",
                            "TransmittedServices": "-",
                            "WorkstationName": "***",
                            "SourceComputerId": "*****",
                            "EventOriginId": "*****",
                            "MG": "*****",
                            "ManagementGroupName": "AOI-***************************************",
                            "Type": "SecurityEvent",
                            "TimeGenerated": "2022-11-29T02:10:00Z",
                            "FailedLogins": 1
                        },
                        {
                            "TenantId": "***************************************",
                            "SourceSystem": "OpsManager",
                            "Account": "***\\***",
                            "AccountType": "User",
                            "Computer": "test36",
                            "EventSourceName": "Microsoft-Windows-Security-Auditing",
                            "Channel": "Security",
                            "Task": 12544,
                            "Level": "16",
                            "EventID": ***,
                            "Activity": "4625 - An account failed to log on.",
                            "AuthenticationPackageName": "NTLM",
                            "FailureReason": "%%2313",
                            "IpAddress": "***.***.***.***",
                            "IpPort": "***",
                            "KeyLength": 0,
                            "LmPackageName": "-",
                            "LogonProcessName": "NtLmSsp ",
                            "LogonType": 3,
                            "LogonTypeName": "3 - Network",
                            "Process": "-",
                            "ProcessId": "*****",
                            "ProcessName": "-",
                            "Status": "0xc000006d",
                            "SubjectAccount": "-\\-",
                            "SubjectDomainName": "-",
                            "SubjectLogonId": "0x0",
                            "SubjectUserName": "-",
                            "SubjectUserSid": "*****",
                            "SubStatus": "0xc0000064",
                            "TargetAccount": "***\\***",
                            "TargetDomainName": "***",
                            "TargetUserName": "***",
                            "TargetUserSid": "*****",
                            "TransmittedServices": "-",
                            "WorkstationName": "***",
                            "SourceComputerId": "*****",
                            "EventOriginId": "*****",
                            "MG": "*****",
                            "ManagementGroupName": "AOI-***************************************",
                            "Type": "SecurityEvent",
                            "TimeGenerated": "2022-11-29T02:10:00Z",
                            "FailedLogins": 1
                        },
                        {
                            "TenantId": "***************************************",
                            "SourceSystem": "OpsManager",
                            "Account": "***\\***",
                            "AccountType": "User",
                            "Computer": "test36",
                            "EventSourceName": "Microsoft-Windows-Security-Auditing",
                            "Channel": "Security",
                            "Task": 12544,
                            "Level": "16",
                            "EventID": ***,
                            "Activity": "4625 - An account failed to log on.",
                            "AuthenticationPackageName": "NTLM",
                            "FailureReason": "%%2313",
                            "IpAddress": "***.***.***.***",
                            "IpPort": "***",
                            "KeyLength": 0,
                            "LmPackageName": "-",
                            "LogonProcessName": "NtLmSsp ",
                            "LogonType": 3,
                            "LogonTypeName": "3 - Network",
                            "Process": "-",
                            "ProcessId": "*****",
                            "ProcessName": "-",
                            "Status": "0xc000006d",
                            "SubjectAccount": "-\\-",
                            "SubjectDomainName": "-",
                            "SubjectLogonId": "0x0",
                            "SubjectUserName": "-",
                            "SubjectUserSid": "*****",
                            "SubStatus": "0xc0000064",
                            "TargetAccount": "***\\***",
                            "TargetDomainName": "***",
                            "TargetUserName": "***",
                            "TargetUserSid": "*****",
                            "TransmittedServices": "-",
                            "WorkstationName": "***",
                            "SourceComputerId": "*****",
                            "EventOriginId": "*****",
                            "MG": "*****",
                            "ManagementGroupName": "AOI-***************************************",
                            "Type": "SecurityEvent",
                            "TimeGenerated": "2022-11-29T02:10:00Z",
                            "FailedLogins": 1
                        },
                        {
                            "TenantId": "***************************************",
                            "SourceSystem": "OpsManager",
                            "Account": "***\\***",
                            "AccountType": "User",
                            "Computer": "test36",
                            "EventSourceName": "Microsoft-Windows-Security-Auditing",
                            "Channel": "Security",
                            "Task": 12544,
                            "Level": "16",
                            "EventID": ***,
                            "Activity": "4625 - An account failed to log on.",
                            "AuthenticationPackageName": "NTLM",
                            "FailureReason": "%%2313",
                            "IpAddress": "***.***.***.***",
                            "IpPort": "***",
                            "KeyLength": 0,
                            "LmPackageName": "-",
                            "LogonProcessName": "NtLmSsp ",
                            "LogonType": 3,
                            "LogonTypeName": "3 - Network",
                            "Process": "-",
                            "ProcessId": "*****",
                            "ProcessName": "-",
                            "Status": "0xc000006d",
                            "SubjectAccount": "-\\-",
                            "SubjectDomainName": "-",
                            "SubjectLogonId": "0x0",
                            "SubjectUserName": "-",
                            "SubjectUserSid": "*****"*****,
                            "SubStatus": "0xc0000064",
                            "TargetAccount": "***\\***",
                            "TargetDomainName": "***",
                            "TargetUserName": "***",
                            "TargetUserSid": "*****",
                            "TransmittedServices": "-",
                            "WorkstationName": "***",
                            "SourceComputerId": "*****",
                            "EventOriginId": "*****",
                            "MG": "*****",
                            "ManagementGroupName": "AOI-***************************************",
                            "Type": "SecurityEvent",
                            "TimeGenerated": "2022-11-29T02:10:00Z",
                            "FailedLogins": 1
                        }
                    ]
                }
            ]
        }
    ]
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $[*].objects in API returned JSON.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

CODE

No Sample Data

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

No Sample Data

Incident Field Mapping

For this integration, the default incident fields in D3 SOAR are fixed with no built-in source fields. Users can specify the source fields as needed.

Event and Incident Intake Field Mapping

Please note that incident and event intake commands require both Event Field and Incident Field Mapping. These field mappings are the default event/incident field mappings for D3 system integrations. You can edit the provided mappings or create custom mappings as needed. Please refer to Event and Incident Intake Field Mapping for more details.

Incident Main JSON Path: $.value

Field Name	Source Field
Title	User to define
Description	User to define
Severity	User to define, default is "Low"
Incident Type *	User to define, default is the first Incident form in D3 SOAR system
Incident Creator	User to define
Incident Owner	User to define
Incident Playbook	User to define
Due In Date	User to define
Unique Key	User to define
Tactics	User to define
Techniques	User to define

Event Field Mapping

Main Event JSON Path: $.value

The event field mapping in Fetch Incident is the same as the one in the Fetch Event command.

Please refer to the Fetch Event command for details.

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Fetch Incident failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The provided authentication is not valid for this resource.

Error Sample Data

Fetch Incident failed.

Status Code: 403.

Message: The provided authentication is not valid for this resource.

Get Alert Details By Incident ID

Retrieves alert details from Microsoft Sentinel based on the specified incident IDs.

Reader Note

Incident IDs is a required parameter to run this command.
- You should already have your desired Incident IDs on hand to run this command. If you don't, you may use the Fetch Incidents command with defined filters to retrieve the desired Incident IDs. The Incident IDs can be found in the raw data at the path $.values[*].name.
Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.

Input

Input Parameter	Required /Optional	Description	Example
Incident IDs	Required	The list of incident IDs to return alert details. Incident IDs can be obtained using the Fetch Incident command.	["*****"]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "incidentID": "*****",
        "alertDetails": [
            {
                "TenantId": "***************************************",
                "TimeGenerated": "2022-09-30T16:45:49.705Z",
                "DisplayName": "Suspicious process injection observed",
                "AlertName": "Suspicious process injection observed",
                "AlertSeverity": "Medium",
                "Description": "A process abnormally injected code into another process, As a result, unexpected code may be running in the target process memory. Injection is often used to hide malicious code execution within a trusted process. \nAs a result, the target process may exhibit abnormal behaviors such as opening a listening port or connecting to a command and control server.",
                "ProviderName": "MDATP",
                "VendorName": "Microsoft",
                "VendorOriginalId": "*****",
                "SystemAlertId": "*****",
                "ResourceId": "",
                "SourceComputerId": "",
                "AlertType": "WindowsDefenderAtp",
                "ConfidenceLevel": "",
                "ConfidenceScore": null,
                "IsIncident": false,
                "StartTime": "2022-05-20T18:06:18.55Z",
                "EndTime": "2022-05-20T18:06:18.55Z",
                "ProcessingEndTime": "2022-09-30T16:45:49.374Z",
                "RemediationSteps": "[\"1. Make sure the machine is completely updated and all your software has the latest patch.\",\"2. Contact your incident response team. NOTE: If you don't have an incident response team, contact Microsoft Support for architectural remediation and forensic.\",\"3. Install and run Microsoft's Malicious Software Removal Tool (see https://www.microsoft.com/*****.aspx).\",\"4. Run Microsoft's Autoruns utility and try to identify unknown applications that are configured to run at login (see https://technet.microsoft.com/***.aspx).\",\"5. Run Process Explorer and try to identify unknown running processes (see https://technet.microsoft.com/***.aspx).\"]",
                "ExtendedProperties": "{\"MicrosoftDefenderAtp.Category\":\"DefenseEvasion\",\"MicrosoftDefenderAtp.InvestigationId\":\"***\",\"MicrosoftDefenderAtp.InvestigationState\":\"SuccessfullyRemediated\",\"LastUpdated\":\"09/30/2022 16:41:54\",\"IncidentId\":\"***\",\"DetectionSource\":\"WindowsDefenderAtp\",\"AssignedTo\":\"*****@*****.com\",\"Determination\":\"UnwantedSoftware\",\"Classification\":\"TruePositive\",\"Action\":\"1. Investigate the machine's timeline for any other indicators around the time of this alert \\n2. Validate contextual information about the relevant components such as file prevalence, other machines it was observed on etc. \\n3. Contact the machine's user to verify whether they received an email with a suspicious attachment or link around the time of the alert.\\n4. Run a full malware scan on the machine, this may reveal additional related components. \\n5. Consider submitting the relevant file(s) for deep analysis for detailed behavioral information. \\n6. If initial investigation confirms suspicions, contact your incident response team for forensic analysis.\",\"ThreatName\":null,\"ThreatFamilyName\":null,\"DetectorId\":\"*****\",\"MitreTechniques\":\"T1055;T1055.001;T1055.002;T1055.003;T1055.004;T1055.005;T1055.012\",\"ProcessedBySentinel\":\"True\",\"Alert generation status\":\"Full alert created\"}",
                "Entities": "[{\"$id\":\"***\",\"Name\":\"sysint\",\"NTDomain\":\"*****\",\"Sid\":\"*****\",\"IsDomainJoined\":false,\"Type\":\"account\"},{\"$id\":\"***\",\"Directory\":\"C:\\\\***\\\\***\\\\***\\\\***\\\\***\",\"Name\":\"***.exe\",\"FileHashes\":[{\"$id\":\"***\",\"Algorithm\":\"SHA1\",\"Value\":\"*****\",\"Type\":\"filehash\"},{\"$id\":\"5\",\"Algorithm\":\"MD5\",\"Value\":\"*****\",\"Type\":\"filehash\"},{\"$id\":\"***\",\"Algorithm\":\"SHA256\",\"Value\":\"*****\",\"Type\":\"filehash\"}],\"CreatedTimeUtc\":\"2022-05-20T18:06:17.6630342Z\",\"Type\":\"file\"},{\"$ref\":\"4\"},{\"$ref\":\"5\"},{\"$ref\":\"6\"},{\"$id\":\"7\",\"ProcessId\":\"***\",\"CommandLine\":\"\\\"***.exe\\\" -u\",\"ElevationToken\":\"Full\",\"CreationTimeUtc\":\"2022-05-20T18:06:17.6934917Z\",\"ImageFile\":{\"$ref\":\"3\"},\"ParentProcess\":{\"$id\":\"***\",\"ProcessId\":\"***\",\"CommandLine\":\"\\\"***.exe\\\" -u\",\"CreationTimeUtc\":\"2022-05-20T18:06:17.4404646Z\",\"ImageFile\":{\"$id\":\"***\",\"Directory\":\"C:\\\\Users\\\\***\\\\***\\\\***\\\\***Downloads\",\"Name\":\"***.exe\",\"FileHashes\":[{\"$id\":\"***\",\"Algorithm\":\"SHA1\",\"Value\":\"*****\",\"Type\":\"filehash\"},{\"$id\":\"11\",\"Algorithm\":\"MD5\",\"Value\":\"*****\",\"Type\":\"filehash\"},{\"$id\":\"***\",\"Algorithm\":\"SHA256\",\"Value\":\"*****\",\"Type\":\"filehash\"}],\"CreatedTimeUtc\":\"2022-05-20T18:01:06.409436Z\",\"Type\":\"file\"},\"CreatedTimeUtc\":\"2022-05-20T18:06:17.4404646Z\",\"Type\":\"process\"},\"CreatedTimeUtc\":\"2022-05-20T18:06:17.6934917Z\",\"Type\":\"process\"},{\"$ref\":\"8\"},{\"$ref\":\"9\"},{\"$ref\":\"10\"},{\"$ref\":\"11\"},{\"$ref\":\"12\"},{\"$id\":\"***\",\"ProcessId\":\"***\",\"CommandLine\":\"***.exe\",\"ElevationToken\":\"Default\",\"CreationTimeUtc\":\"2022-05-11T07:49:13.1974475Z\",\"ImageFile\":{\"$id\":\"***\",\"Directory\":\"C:\\\\***\\\\***\",\"Name\":\"***.exe\",\"FileHashes\":[{\"$id\":\"***\",\"Algorithm\":\"SHA1\",\"Value\":\"***\",\"Type\":\"filehash\"},{\"$id\":\"***\",\"Algorithm\":\"MD5\",\"Value\":\"*****\",\"Type\":\"filehash\"},{\"$id\":\"***\",\"Algorithm\":\"SHA256\",\"Value\":\"*****\",\"Type\":\"filehash\"}],\"CreatedTimeUtc\":\"2022-04-05T02:00:11.469716Z\",\"Type\":\"file\"},\"ParentProcess\":{\"$id\":\"***\",\"ProcessId\":\"***\",\"CreationTimeUtc\":\"2022-05-11T07:49:12.9096505Z\",\"ImageFile\":{\"$id\":\"***\",\"Directory\":\"\\\\Device\\\\***\\\\***\\\\***\",\"Name\":\"***.exe\",\"Type\":\"file\"},\"CreatedTimeUtc\":\"2022-05-11T07:49:12.9096505Z\",\"Type\":\"process\"},\"CreatedTimeUtc\":\"2022-05-11T07:49:13.1974475Z\",\"Type\":\"process\"},{\"$ref\":\"18\"},{\"$ref\":\"19\"},{\"$ref\":\"14\"},{\"$ref\":\"15\"},{\"$ref\":\"16\"},{\"$ref\":\"17\"},{\"$id\":\"***\",\"HostName\":\"*****\",\"OSFamily\":\"Windows\",\"OSVersion\":\"*****\",\"Tags\":[{\"ProviderName\":\"MDATP\",\"TagId\":\"CE\",\"TagName\":\"CE\",\"TagType\":\"UserDefined\"}],\"Type\":\"host\",\"MdatpDeviceId\":\"*****\",\"FQDN\":\"*****\",\"AadDeviceId\":null,\"RiskScore\":\"Medium\",\"HealthStatus\":\"Inactive\",\"LastSeen\":\"2022-06-24T16:43:59.7603631\",\"LastExternalIpAddress\":\"***.***.***.***\",\"LastIpAddress\":\"***.***.***.***\",\"AvStatus\":\"Unknown\",\"OnboardingStatus\":\"Onboarded\",\"LoggedOnUsers\":[{\"AccountName\":\"sysint\",\"DomainName\":\"*****\"}]}]",
                "SourceSystem": "Detection",
                "WorkspaceSubscriptionId": "",
                "WorkspaceResourceGroup": "",
                "ExtendedLinks": "",
                "ProductName": "Microsoft Defender Advanced Threat Protection",
                "ProductComponentName": "",
                "AlertLink": "https://security.microsoft.com/alerts/*****?tid=*****",
                "Status": "InProgress",
                "CompromisedEntity": "*****",
                "Tactics": "DefenseEvasion",
                "Techniques": "",
                "Type": "SecurityAlert"
            }
        ]
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "IncidentIDs": "\"[\\r\\n\\\"*****\\\"\\r\\n]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

INCIDENTID

ALERTDETAILS

*****

[{'TenantId': '***************************************', 'TimeGenerated': '2022-09-30T16:45:49.705Z', 'DisplayName': 'Suspicious process injection observed', 'AlertName': 'Suspicious process injection observed', 'AlertSeverity': 'Medium', 'Description': 'A process abnormally injected code into another process, As a result, unexpected code may be running in the target process memory. Injection is often used to hide malicious code execution within a trusted process. \nAs a result, the target process may exhibit abnormal behaviors such as opening a listening port or connecting to a command and control server.', 'ProviderName': 'MDATP', 'VendorName': 'Microsoft', 'VendorOriginalId': '*****', 'SystemAlertId': '*****', 'ResourceId': '', 'SourceComputerId': '', 'AlertType': 'WindowsDefenderAtp', 'ConfidenceLevel': '', 'ConfidenceScore': None, 'IsIncident': False, 'StartTime': '2022-05-20T18:06:18.55Z', 'EndTime': '2022-05-20T18:06:18.55Z', 'ProcessingEndTime': '2022-09-30T16:45:49.374Z', 'RemediationSteps': '["1. Make sure the machine is completely updated and all your software has the latest patch.","2. Contact your incident response team. NOTE: If you don\'t have an incident response team, contact Microsoft Support for architectural remediation and forensic.","3. Install and run Microsoft\'s Malicious Software Removal Tool (see https://www.microsoft.com/*****.aspx).","4. Run Microsoft\'s Autoruns utility and try to identify unknown applications that are configured to run at login (see https://technet.microsoft.com/***.aspx).","5. Run Process Explorer and try to identify unknown running processes (see https://technet.microsoft.com/***.aspx)."]', 'ExtendedProperties': '{"MicrosoftDefenderAtp.Category":"DefenseEvasion","MicrosoftDefenderAtp.InvestigationId":"260","MicrosoftDefenderAtp.InvestigationState":"SuccessfullyRemediated","LastUpdated":"09/30/2022 16:41:54","IncidentId":"***","DetectionSource":"WindowsDefenderAtp","AssignedTo":"*****@*****.com","Determination":"UnwantedSoftware","Classification":"TruePositive","Action":"1. Investigate the machine\'s timeline for any other indicators around the time of this alert \\n2. Validate contextual information about the relevant components such as file prevalence, other machines it was observed on etc. \\n3. Contact the machine\'s user to verify whether they received an email with a suspicious attachment or link around the time of the alert.\\n4. Run a full malware scan on the machine, this may reveal additional related components. \\n5. Consider submitting the relevant file(s) for deep analysis for detailed behavioral information. \\n6. If initial investigation confirms suspicions, contact your incident response team for forensic analysis.","ThreatName":null,"ThreatFamilyName":null,"DetectorId":"*****","MitreTechniques":"T1055;T1055.001;T1055.002;T1055.003;T1055.004;T1055.005;T1055.012","ProcessedBySentinel":"True","Alert generation status":"Full alert created"}', 'Entities': '[{"$id":"***","Name":"sysint","NTDomain":"*****","Sid":"*****","IsDomainJoined":false,"Type":"account"},{"$id":"3","Directory":"C:\\\\Users\\\\***\\\\***\\\\***\\\\***AppData\\\\Local\\\\Temp","Name":"***.exe","FileHashes":[{"$id":"***","Algorithm":"SHA1","Value":"*****","Type":"filehash"},{"$id":"***","Algorithm":"MD5","Value":"*****","Type":"filehash"},{"$id":"***","Algorithm":"SHA256","Value":"*****","Type":"filehash"}],"CreatedTimeUtc":"2022-05-20T18:06:17.6630342Z","Type":"file"},{"$ref":"4"},{"$ref":"5"},{"$ref":"6"},{"$id":"***","ProcessId":"*****","CommandLine":"\\"***.exe\\" -u","ElevationToken":"Full","CreationTimeUtc":"2022-05-20T18:06:17.6934917Z","ImageFile":{"$ref":"3"},"ParentProcess":{"$id":"***","ProcessId":"10940","CommandLine":"\\"***.exe\\" -u","CreationTimeUtc":"2022-05-20T18:06:17.4404646Z","ImageFile":{"$id":"***","Directory":"C:\\\\Users\\\\***\\\\***\\\\***\\\\***Downloads","Name":"***.exe","FileHashes":[{"$id":"***","Algorithm":"SHA1","Value":"*****","Type":"filehash"},{"$id":"***","Algorithm":"MD5","Value":"*****","Type":"filehash"},{"$id":"***","Algorithm":"SHA256","Value":"*****","Type":"filehash"}],"CreatedTimeUtc":"2022-05-20T18:01:06.409436Z","Type":"file"},"CreatedTimeUtc":"2022-05-20T18:06:17.4404646Z","Type":"process"},"CreatedTimeUtc":"2022-05-20T18:06:17.6934917Z","Type":"process"},{"$ref":"8"},{"$ref":"9"},{"$ref":"10"},{"$ref":"11"},{"$ref":"12"},{"$id":"***","ProcessId":"***","CommandLine":"***.exe","ElevationToken":"Default","CreationTimeUtc":"2022-05-11T07:49:13.1974475Z","ImageFile":{"$id":"***","Directory":"C:\\\\***\\\\***","Name":"***.exe","FileHashes":[{"$id":"***","Algorithm":"SHA1","Value":"***","Type":"filehash"},{"$id":"***","Algorithm":"MD5","Value":"*****","Type":"filehash"},{"$id":"***","Algorithm":"SHA256","Value":"*****","Type":"filehash"}],"CreatedTimeUtc":"2022-04-05T02:00:11.469716Z","Type":"file"},"ParentProcess":{"$id":"***","ProcessId":"***","CreationTimeUtc":"2022-05-11T07:49:12.9096505Z","ImageFile":{"$id":"***","Directory":"\\\\Device\\\\***\\\\***\\\\***","Name":"***.exe","Type":"file"},"CreatedTimeUtc":"2022-05-11T07:49:12.9096505Z","Type":"process"},"CreatedTimeUtc":"2022-05-11T07:49:13.1974475Z","Type":"process"},{"$ref":"18"},{"$ref":"19"},{"$ref":"14"},{"$ref":"15"},{"$ref":"16"},{"$ref":"17"},{"$id":"***","HostName":"*****","OSFamily":"Windows","OSVersion":"*****","Tags":[{"ProviderName":"MDATP","TagId":"CE","TagName":"CE","TagType":"UserDefined"}],"Type":"host","MdatpDeviceId":"*****","FQDN":"*****","AadDeviceId":null,"RiskScore":"Medium","HealthStatus":"Inactive","LastSeen":"2022-06-24T16:43:59.7603631","LastExternalIpAddress":"***.***.***.***","LastIpAddress":"***.***.***.***","AvStatus":"Unknown","OnboardingStatus":"Onboarded","LoggedOnUsers":[{"AccountName":"sysint","DomainName":"*****"}]}]', 'SourceSystem': 'Detection', 'WorkspaceSubscriptionId': '', 'WorkspaceResourceGroup': '', 'ExtendedLinks': '', 'ProductName': 'Microsoft Defender Advanced Threat Protection', 'ProductComponentName': '', 'AlertLink': 'https://security.microsoft.com/alerts/*****?tid=*****', 'Status': 'InProgress', 'CompromisedEntity': '*****', 'Tactics': 'DefenseEvasion', 'Techniques': '', 'Type': 'SecurityAlert'}]

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Alert Details By Incident ID failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/read' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

Error Sample Data

Get Alert Details By Incident ID failed.

Status Code: 401.

Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/read' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

List Alert Rules

Returns all alert rules.

Reader Note

Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.

Input

N/A

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "value": [
        {
            "id": "*****",
            "name": "BuiltInFusion",
            "etag": "\"*****\"",
            "type": "Microsoft.SecurityInsights/alertRules",
            "kind": "Fusion",
            "properties": {
                "displayName": "Advanced Multistage Attack Detection",
                "description": "Microsoft Sentinel uses Fusion, a correlation engine based on scalable machine learning algorithms, to automatically detect multistage attacks by identifying combinations of anomalous behaviors and suspicious activities that are observed at various stages of the kill chain. On the basis of these discoveries, Azure Sentinel generates incidents that would otherwise be very difficult to catch. By design, these incidents are low-volume, high-fidelity, and high-severity, which is why this detection is turned ON by default.\n\nSince Fusion correlates multiple signals from various products to detect advanced multistage attacks, successful Fusion detections are presented as Fusion incidents on the Microsoft Sentinel Incidents page. This rule covers the following detections:\n- Fusion for emerging threats\n- Fusion for ransomware\n- Scenario-based Fusion detections (122 scenarios)\n\nTo enable these detections, we recommend you configure the following data connectors for best results:\n- Out-of-the-box anomaly detections\n- Azure Active Directory Identity Protection\n- Azure Defender\n- Azure Defender for IoT\n- Microsoft 365 Defender\n- Microsoft Cloud App Security    \n- Microsoft Defender for Endpoint\n- Microsoft Defender for Identity\n- Microsoft Defender for Office 365\n- Scheduled analytics rules, both built-in and those created by your security analysts. Analytics rules must contain kill-chain (tactics) and entity mapping information in order to be used by Fusion.\n\nFor the full description of each detection that is supported by Fusion, go to https://aka.ms/***",
                "alertRuleTemplateName": "*****",
                "tactics": [
                    "Collection",
                    "CommandAndControl",
                    "DefenseEvasion",
                    "Discovery",
                    "Execution",
                    "Exfiltration",
                    "Impact",
                    "InitialAccess",
                    "LateralMovement",
                    "Persistence",
                    "PrivilegeEscalation"
                ],
                "severity": "High",
                "enabled": true,
                "lastModifiedUtc": "2021-03-16T19:30:28.9533508Z"
            }
        },
        {
            "id": "*****",
            "name": "*****",
            "etag": "\"*****\"",
            "type": "Microsoft.SecurityInsights/alertRules",
            "kind": "MicrosoftSecurityIncidentCreation",
            "properties": {
                "productFilter": "Office 365 Advanced Threat Protection",
                "severitiesFilter": null,
                "displayNamesFilter": null,
                "displayNamesExcludeFilter": null,
                "displayName": "Create incidents based on Office 365 Advanced Threat Protection alerts",
                "enabled": true,
                "description": "Create incidents based on all alerts generated in Office 365 Advanced Threat Protection",
                "alertRuleTemplateName": null,
                "lastModifiedUtc": "2021-04-29T19:27:10.1146063Z"
            }
        }
    ]
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "AlertRuleNames": "\"[\\r\\n\\\"*****\\\"\\r\\n]\"",
    "AlertRuleDisplayNames": "\"[\\r\\n\\\"Brute force attack against Azure Portal\\\"\\r\\n]\"",
    "Severities": "\"[\\r\\n\\\"High\\\"\\r\\n]\"",
    "AlertRuleTemplateNames": "\"[\\r\\n\\\"*****\\\"\\r\\n]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	NAME	ETAG	TYPE	KIND	PROPERTIES
*****	BuiltInFusion	"*****"	Microsoft.SecurityInsights/alertRules	Fusion	{'displayName': 'Advanced Multistage Attack Detection', 'description': 'Microsoft Sentinel uses Fusion, a correlation engine based on scalable machine learning algorithms, to automatically detect multistage attacks by identifying combinations of anomalous behaviors and suspicious activities that are observed at various stages of the kill chain. On the basis of these discoveries, Azure Sentinel generates incidents that would otherwise be very difficult to catch. By design, these incidents are low-volume, high-fidelity, and high-severity, which is why this detection is turned ON by default.\n\nSince Fusion correlates multiple signals from various products to detect advanced multistage attacks, successful Fusion detections are presented as Fusion incidents on the Microsoft Sentinel Incidents page. This rule covers the following detections:\n- Fusion for emerging threats\n- Fusion for ransomware\n- Scenario-based Fusion detections (122 scenarios)\n\nTo enable these detections, we recommend you configure the following data connectors for best results:\n- Out-of-the-box anomaly detections\n- Azure Active Directory Identity Protection\n- Azure Defender\n- Azure Defender for IoT\n- Microsoft 365 Defender\n- Microsoft Cloud App Security \n- Microsoft Defender for Endpoint\n- Microsoft Defender for Identity\n- Microsoft Defender for Office 365\n- Scheduled analytics rules, both built-in and those created by your security analysts. Analytics rules must contain kill-chain (tactics) and entity mapping information in order to be used by Fusion.\n\nFor the full description of each detection that is supported by Fusion, go to https://aka.ms/*', 'alertRuleTemplateName': '***', 'tactics': ['Collection', 'CommandAndControl', 'DefenseEvasion', 'Discovery', 'Execution', 'Exfiltration', 'Impact', 'InitialAccess', 'LateralMovement', 'Persistence', 'PrivilegeEscalation'], 'severity': 'High', 'enabled': True, 'lastModifiedUtc': '2021-03-16T19:30:28.9533508Z'}
*****	*****	"*****"	Microsoft.SecurityInsights/alertRules	MicrosoftSecurityIncidentCreation	{'productFilter': 'Office 365 Advanced Threat Protection', 'severitiesFilter': None, 'displayNamesFilter': None, 'displayNamesExcludeFilter': None, 'displayName': 'Create incidents based on Office 365 Advanced Threat Protection alerts', 'enabled': True, 'description': 'Create incidents based on all alerts generated in Office 365 Advanced Threat Protection', 'alertRuleTemplateName': None, 'lastModifiedUtc': '2021-04-29T19:27:10.1146063Z'

*****

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Alert Rules failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/read' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

Error Sample Data

List Alert Rules failed.

Status Code: 401.

Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/read' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

List Alert Rule Templates

Returns all alert rule templates.

Reader Note

Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.

Input

N/A

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "value": [
        {
            "id": "*****",
            "name": "*****",
            "type": "Microsoft.SecurityInsights/AlertRuleTemplates",
            "kind": "Scheduled",
            "properties": {
                "severity": "High",
                "query": "let successCodes = dynamic([200, 302, 401]);\nW3CIISLog\n| where scStatus has_any (successCodes)\n| where ipv4_is_private(cIP) == False\n| where csUriStem hasprefix \"/autodiscover/autodiscover.json\"\n| project TimeGenerated, cIP, sIP, sSiteName, csUriStem, csUriQuery, Computer, csUserName, _ResourceId, FileUri\n| where (csUriQuery !has \"Protocol\" and isnotempty(csUriQuery))\nor (csUriQuery has_any(\"/mapi/\", \"powershell\"))\nor (csUriQuery contains \"@\" and csUriQuery matches regex @\"\\.[a-zA-Z]{2,4}?(?:[a-zA-Z]{2,4}\\/)\")\nor (csUriQuery contains \":\" and csUriQuery matches regex @\"\\:[0-9]{2,4}\\/\")\n| extend timestamp = TimeGenerated, HostCustomEntity = Computer, IPCustomEntity = cIP, AccountCustomEntity = csUserName, ResourceCustomEntity = _ResourceId, FileCustomEntity = FileUri",
                "queryFrequency": "PT12H",
                "queryPeriod": "PT12H",
                "triggerOperator": "GreaterThan",
                "triggerThreshold": 0,
                "displayName": "Exchange SSRF Autodiscover ProxyShell - Detection",
                "description": "This query looks for suspicious request patterns to Exchange servers that fit patterns recently\nblogged about by PeterJson. This exploitation chain utilises an SSRF vulnerability in Exchange\nwhich eventually allows the attacker to execute arbitrary Powershell on the server. In the example\npowershell can be used to write an email to disk with an encoded attachment containing a shell.\nReference: https://peterjson.medium.com/***",
                "lastUpdatedDateUTC": "2022-10-31T00:00:00Z",
                "createdDateUTC": "2021-08-09T00:00:00Z",
                "status": "Available",
                "requiredDataConnectors": [
                    {
                        "connectorId": "AzureMonitor(IIS)",
                        "dataTypes": [
                            "W3CIISLog"
                        ]
                    }
                ],
                "alertRulesCreatedByTemplateCount": 0
            }
        }
    ]
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "AlertRuleTemplateNames": "\"[\\r\\n\\\"*****\\\"\\r\\n]\"",
    "AlertRuleTemplateDisplayNames": "\"[\\r\\n\\\"TEARDROP memory-only dropper\\\"\\r\\n]\"",
    "Severities": "\"[\\r\\n\\\"Medium\\\"\\r\\n]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	NAME	TYPE	KIND	PROPERTIES
*****	*****	Microsoft.SecurityInsights/AlertRuleTemplates	Scheduled	{'severity': 'High', 'query': 'let successCodes = dynamic([200, 302, 401]);\nW3CIISLog\n\| where scStatus has_any (successCodes)\n\| where ipv4_is_private(cIP) == False\n\| where csUriStem hasprefix "/autodiscover/autodiscover.json"\n\| project TimeGenerated, cIP, sIP, sSiteName, csUriStem, csUriQuery, Computer, csUserName, _ResourceId, FileUri\n\| where (csUriQuery !has "Protocol" and isnotempty(csUriQuery))\nor (csUriQuery has_any("/mapi/", "powershell"))\nor (csUriQuery contains "@" and csUriQuery matches regex @"\\.[a-zA-Z]{2,4}?(?:[a-zA-Z]{2,4}\\/)")\nor (csUriQuery contains ":" and csUriQuery matches regex @"\\:[0-9]{2,4}\\/")\n\| extend timestamp = TimeGenerated, HostCustomEntity = Computer, IPCustomEntity = cIP, AccountCustomEntity = csUserName, ResourceCustomEntity = _ResourceId, FileCustomEntity = FileUri', 'queryFrequency': 'PT12H', 'queryPeriod': 'PT12H', 'triggerOperator': 'GreaterThan', 'triggerThreshold': 0, 'displayName': 'Exchange SSRF Autodiscover ProxyShell - Detection', 'description': 'This query looks for suspicious request patterns to Exchange servers that fit patterns recently\nblogged about by PeterJson. This exploitation chain utilises an SSRF vulnerability in Exchange\nwhich eventually allows the attacker to execute arbitrary Powershell on the server. In the example\npowershell can be used to write an email to disk with an encoded attachment containing a shell.\nReference: https://peterjson.medium.com/***', 'lastUpdatedDateUTC': '2022-10-31T00:00:00Z', 'createdDateUTC': '2021-08-09T00:00:00Z', 'status': 'Available', 'requiredDataConnectors': [{'connectorId': 'AzureMonitor(IIS)', 'dataTypes': ['W3CIISLog']}], 'alertRulesCreatedByTemplateCount': 0}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Alert Rule Templates failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/read' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

Error Sample Data

List Alert Rule Templates failed.

Status Code: 401.

Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/read' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

Search

Executes an Analytics or Basic query on analytics tables and custom tables in Microsoft Sentinel. Note: The default workspace retention time is 30 days for Analytics tables and 8 days for Basic tables.

Reader Note

Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.
This command does not require you to specify the tables to query like the Fetch Event command. Also, the data returned by this command will not be ingested as events in D3 SOAR.

Input

Input Parameter	Required /Optional	Description	Example
Query	Required	The Kusto query to search for data. For more information about the Kusto Query Language (KQL), see Kusto Query Language (KQL) overview- Azure Data Explorer \| Microsoft Learn.	set query_take_max_records=30001; set truncationmaxsize=67108864; SecurityEvent\| where EventID == ***\| summarize FailedLogins = count() by EventSourceName, IpAddress, Process, ProcessId, ProcessName, bin(TimeGenerated, 10m)
Time Span	Optional	The range of time for which data from a table should be queried. The input time stamps are separated by "/". The time field used for this is TimeGenerated and the values are in ISO8601 format. This parameter is in addition to any time range specified in the query statement. If no value is provided, the default for basic tables is the past 8 days.	2022-12-08T18:06:00Z/2022-12-08T18:10:00Z

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "results": [
        {
            "SystemAlertId": "*****",
            "TimeGenerated": "2023-06-09T16:08:06.58746727032Z",
            "TenantId": "***************************************",
            "DisplayName": " Special privileges assigned to new logon",
            "AlertName": " Special privileges assigned to new logon",4672
            "AlertSeverity": "Medium",
            "Description": "test  Special privileges assigned to new logon",
            "ProviderName": "ASI Scheduled Alerts",
            "VendorName": "Microsoft",
            "VendorOriginalId": "*****",
            "ResourceId": "",
            "SourceComputerId": "",
            "AlertType": "*****_*****",
            "ConfidenceLevel": "",
            "ConfidenceScore": null,
            "IsIncident": false,
            "StartTime": "2023-06-09T15:30:00Z",
            "EndTime": "2023-06-09T16:00:00Z",
            "ProcessingEndTime": "2023-06-09T16:08:06.5490417Z",
            "RemediationSteps": "",
            "ExtendedProperties": "{\"Query Period\":\"00:30:00\",\"Trigger Operator\":\"GreaterThan\",\"Trigger Threshold\":\"***\",\"Correlation Id\":\"*****\",\"Search Query Results Overall Count\":\"106\",\"Data Sources\":\"[\\\"d3devcyber\\\"]\",\"Query\":\"// The query_now parameter represents the time (in UTC) at which the scheduled analytics rule ran to produce this alert.\\nset query_now = datetime(2023-06-09T16:03:04.4200000Z);\\nSecurityEvent\\r\\n| where EventID == *****\\r\\n| summarize FailedLogins = count() by SourceSystem, Account, AccountType, Computer, EventSourceName, Channel, Task, Level, EventID, Activity, AuthenticationPackageName, FailureReason, IpAddress, IpPort, KeyLength, LmPackageName, LogonProcessName, LogonType, LogonTypeName, Process, ProcessId, ProcessName, Status, SubjectAccount, SubjectDomainName, SubjectLogonId, SubjectUserName, SubjectUserSid, SubStatus, TargetAccount, TargetDomainName, TargetUserName, TargetUserSid, TransmittedServices, WorkstationName, SourceComputerId,  ManagementGroupName, Type, bin(TimeGenerated, 10m)\\r\\n| sort by TimeGenerated desc\",\"Query Start Time UTC\":\"2023-06-09 15:33:04Z\",\"Query End Time UTC\":\"2023-06-09 16:03:05Z\",\"Analytic Rule Ids\":\"[\\\"*****\\\"]\",\"Event Grouping\":\"SingleAlert\",\"Analytic Rule Name\":\" Special privileges assigned to new logon\",\"ProcessedBySentinel\":\"True\",\"Alert generation status\":\"Full alert created\"}",
            "Entities": "",
            "SourceSystem": "Detection",
            "WorkspaceSubscriptionId": "*****",
            "WorkspaceResourceGroup": "*****",
            "ExtendedLinks": "",
            "ProductName": "Azure Sentinel",
            "ProductComponentName": "Scheduled Alerts",
            "AlertLink": "",
            "Status": "New",
            "CompromisedEntity": "",
            "Tactics": "PrivilegeEscalation, LateralMovement",
            "Techniques": "[\"T1548\"]",
            "Type": "SecurityAlert"
        }
    ],
    "D3Errors": []
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 enriches the raw data from the original Microsoft Sentinel API response by adding the fields "EventSourceName", "IpAddress", "Process", "ProcessId", "ProcessName", "TimeGenerated" and "FailedLogins" to provide more information.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

CODE

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

RetrievedDataCount

53

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The provided authentication is not valid for this resource.

Error Sample Data

Search failed.

Status Code: 403.

Message: The provided authentication is not valid for this resource.

Update Incident Comments

Updates the comments of specified incidents in Microsoft Sentinel. Please note, only the user that created the comment is allowed to edit it.

Reader Note

Incident IDs is a required parameter to run this command.
- You should already have your desired Incident IDs on hand to run this command. If you don't, you may use the Fetch Incidents command with defined filters to retrieve the desired Incident IDs. The Incident IDs can be found in the raw data at the path $.values[*].name.
Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.

Input

Input Parameter	Required /Optional	Description	Example
Incident IDs	Required	The IDs of the incidents to update comments. Incident IDs can be obtained using the Fetch Incident command.	["********************"]
Comment	Required	The contents of the updated comment.	Closed

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "id": "*****",
        "name": "2022-10-24 09:30:30",
        "etag": "\"*****\"",
        "type": "Microsoft.SecurityInsights/Incidents/Comments",
        "properties": {
            "message": "Some message Test",
            "createdTimeUtc": "2022-10-25T16:27:15.6363455Z",
            "lastModifiedTimeUtc": "2022-10-25T16:31:31.4782731Z",
            "author": {
                "objectId": "*****",
                "email": null,
                "name": "Comment created from external application - d3devcyber",
                "userPrincipalName": null
            }
        }
    }
]

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	NAME	ETAG	TYPE	PROPERTIES
*****	2022-10-24 09:30:30	"*****"	Microsoft.SecurityInsights/Incidents/Comments	{'message': 'Some message Test', 'createdTimeUtc': '2022-10-25T16:27:15.6363455Z', 'lastModifiedTimeUtc': '2022-10-25T16:31:31.4782731Z', 'author': {'objectId': '*****', 'email': None, 'name': 'Comment created from external application - d3devcyber', 'userPrincipalName': None}}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Update Incident Comments failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/comments/write' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

Error Sample Data

Update Incident Comments failed.

Status Code: 401.

Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/comments/write' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

Update Incident Status

Updates the status of the specified incidents in Microsoft Sentinel.

Reader Note

Incident IDs is a required parameter to run this command.
- You should already have your desired Incident IDs on hand to run this command. If you don't, you may use the Fetch Incidents command with defined filters to retrieve the desired Incident IDs. The Incident IDs can be found in the raw data at the path $.values[*].name.
Owner is an optional parameter to run this command.
- To view a complete list of users, run the Microsoft Entra ID Protection integration's List Users command. You can also navigate to Users in Microsoft Azure to view the list of users.
Using the latest stable API version to run the commands is recommended. Please refer to Microsoft Sentinel's REST API documentation for the list of stable versions.

Input

Input Parameter	Required /Optional	Description	Example
Incident IDs	Required	The IDs of the incidents to update comments. Incident IDs can be obtained using the Fetch Incident command.	["***"*************]
Status	Required	The updated status of the specified incident(s).	Closed
Title	Optional	The updated title of the specified incident(s).	This is a test
Severity	Optional	The updated severity of the specified incident(s).	Informational
Incident Classification	Optional	The reason for closing the incident(s). Note: This parameter is only required when you set the status of the incident(s) to Closed. If you want to change the incident status to New or Active, do not define this parameter.	Benign Positive
Incident Classification Reason	Optional	The classification reason for closing the incident(s). Note: This parameter is only required when you set the status of the incident(s) to Closed. If you want to change the incident status to New or Active, do not define this parameter.	Suspicious But Expected
Owner	Optional	The updated user that the incident(s) are assigned to. Valid user principal names can be obtained using the Microsoft Entra ID Protection integration's List Users command. You can also navigate to Users in Microsoft Azure to view the list of users.	***@***.com
Close Comment	Optional	The option to leave a comment to justify the classification when closing the incident. Note: This parameter is only available when you set the Status parameter to Closed.	Keep Watching One more week!

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "id": "*****",
        "name": "*****",
        "etag": "\"*****\"",
        "type": "Microsoft.SecurityInsights/Incidents",
        "properties": {
            "title": "Malware Detected - 0630b",
            "severity": "Informational",
            "status": "Closed",
            "classification": "BenignPositive",
            "classificationReason": "SuspiciousButExpected",
            "owner": {
                "objectId": "*****",
                "email": "*****@*****.*****.com",
                "assignedTo": "engai",
                "userPrincipalName": "*****@*****.*****.com"
            },
            "labels": [],
            "lastModifiedTimeUtc": "2022-07-01T00:14:49.7063032Z",
            "createdTimeUtc": "2022-06-30T22:34:18.9353257Z",
            "incidentNumber": 31501,
            "additionalData": {
                "alertsCount": 1,
                "bookmarksCount": 0,
                "commentsCount": 0,
                "alertProductNames": [
                    "Azure Active Directory Identity Protection"
                ],
                "tactics": [
                    "InitialAccess"
                ]
            },
            "relatedAnalyticRuleIds": [
                "/subscriptions/*****/resourceGroups/d3cyber/providers/Microsoft.OperationalInsights/workspaces/d3devcyber/providers/Microsoft.SecurityInsights/alertRules/*****"
            ],
            "incidentUrl": "https://portal.azure.com/*****"
        }
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "IncidentIDs": "\"[ \\\"*****\\\" ]\"",
    "Titles": "\"[ \\\"Malware Detected - 0630b\\\" ]\"",
    "Severities": "\"[ \\\"Medium\\\" ]\"",
    "Statuses": "\"[ \\\"Closed\\\" ]\"",
    "Classifications": "\"[ \\\"BenignPositive\\\" ]\"",
    "ClassificationReasons": "\"[ \\\"SuspiciousButExpected\\\" ]\"",
    "Owners": "\"[ \\\"*****@*****.com\\\" ]\"",
    "ClassificationComment": "\"[  \\\"Keep Watching One more week!\\\" ]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	NAME	ETAG	TYPE	PROPERTIES
*****	*****	"*****"	Microsoft.SecurityInsights/Incidents	{'title': 'Malware Detected - 0630b', 'severity': 'Informational', 'status': 'Closed', 'classification': 'BenignPositive', 'classificationReason': 'SuspiciousButExpected', 'owner': {'objectId': '***', 'email': '*@*.*.com', 'assignedTo': 'engai', 'userPrincipalName': '*@*.*.com'}, 'labels': [], 'lastModifiedTimeUtc': '2022-07-01T00:14:49.7063032Z', 'createdTimeUtc': '2022-06-30T22:34:18.9353257Z', 'incidentNumber': 31501, 'additionalData': {'alertsCount': 1, 'bookmarksCount': 0, 'commentsCount': 0, 'alertProductNames': ['Azure Active Directory Identity Protection'], 'tactics': ['InitialAccess']}, 'relatedAnalyticRuleIds': ['/subscriptions/*/resourceGroups/d3cyber/providers/Microsoft.OperationalInsights/workspaces/d3devcyber/providers/Microsoft.SecurityInsights/alertRules/*'], 'incidentUrl': 'https://portal.azure.com/***'}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Update Incident Status failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/comments/write' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

Error Sample Data

Update Incident Status failed.

Status Code: 401.

Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/comments/write' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

Test Connection

Allows you to perform a health check on an integration connection. You can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

SAMPLE DATA

CODE

Successful

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Test Connection failed. Failed to check the connector.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft Sentinel portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/read' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.

Error Sample Data

Test Connection failed. Failed to check the connector.

Status Code: 401.

Message: The client xxxxxx with object id xxxxxx does not have authorization to perform action 'Microsoft.SecurityInsights/incidents/read' over scope xxxxxx or the scope is invalid. If access was recently granted, please refresh your credentials.
