GitHub

LAST UPDATED: 01/25/2024

Overview

GitHub API.

D3 SOAR is providing REST operations to function with GitHub.

GitHub is available for use in:

D3 SOAR	V12.7.241+
Category	DevOps
Deployment Options	Option II, Option IV

Known Limitations

Unauthenticated clients	60 requests per hour
GitHub.com	Minimum 5,000 requests per hour. Installations that have more than 20 repositories receive another 50 requests per hour for each repository. The maximum rate limit for an installation is 12,500 requests per hour.
GitHub Enterprise Cloud	15,000 requests per hour

Please refer to Rate limits for GitHub Apps for detailed information.

Connection

To connect to GitHub from D3 SOAR, please follow this part to collect the required information below:

Parameter	Description	Example
Server URL	The server URL of the Github API.	https://api.github.com
Username	The user name to authenticate the connection.	d*********!
Authorization Token	The authorization token to authenticate the connection.	gho_********--**Iz0kc81V

Permission Requirements

Each endpoint in the GitHub API requires a certain permission scope. The following are required scopes for the commands in this integration:

Command	Required Permission
Checkin File	public_repo: Access public repositories (under repo section)
Create Branch	public_repo: Access public repositories (under repo section)
Create Comment	public_repo: Access public repositories (under repo section)
Create Issue	public_repo: Access public repositories (under repo section)
Delete Branch	public_repo: Access public repositories (under repo section)
Get Latest File	No scope needed
List Issues	No scope needed
Search Issues	No scope needed
Update Issue	public_repo: Access public repositories (under repo section)

Configuring GitHub to Work with D3 SOAR

Log in to Github (https://github.com/login).

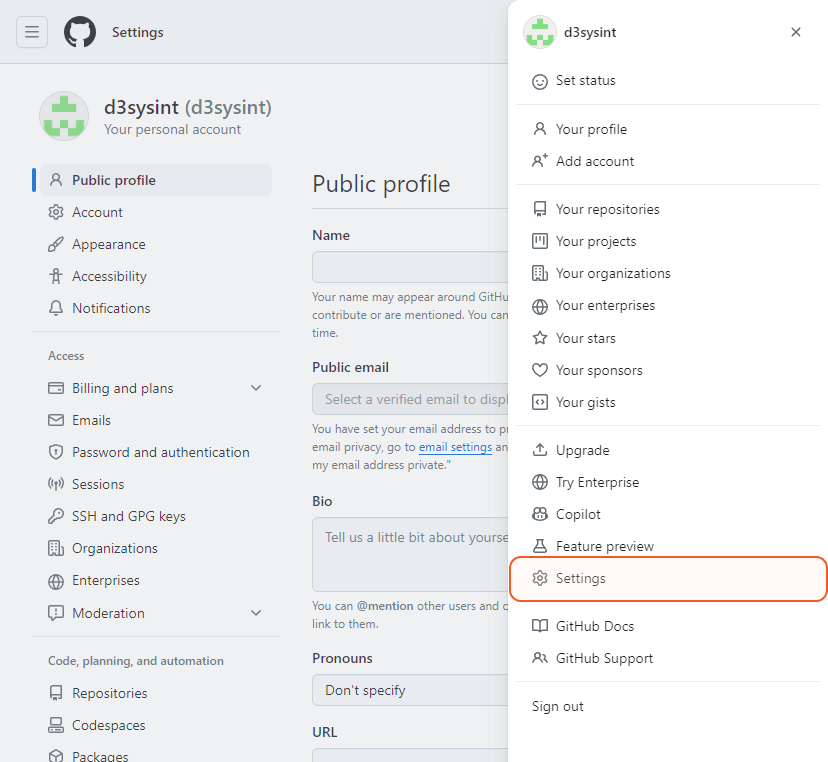

Once logged in, locate the profile icon at the top right corner and select Settings from the dropdown menu.

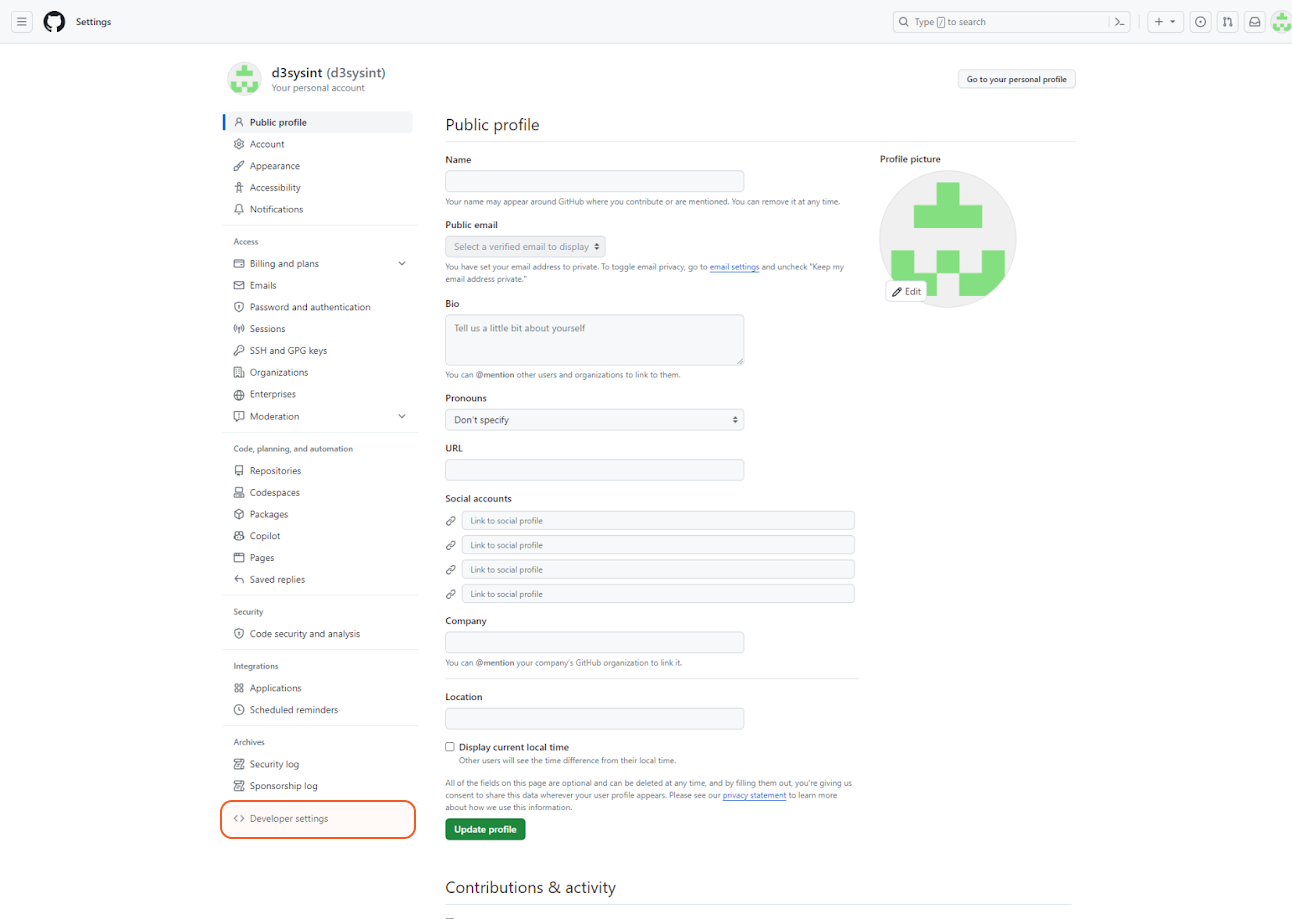

In the Settings menu, navigate to the bottom of the left sidebar and select Developer settings.

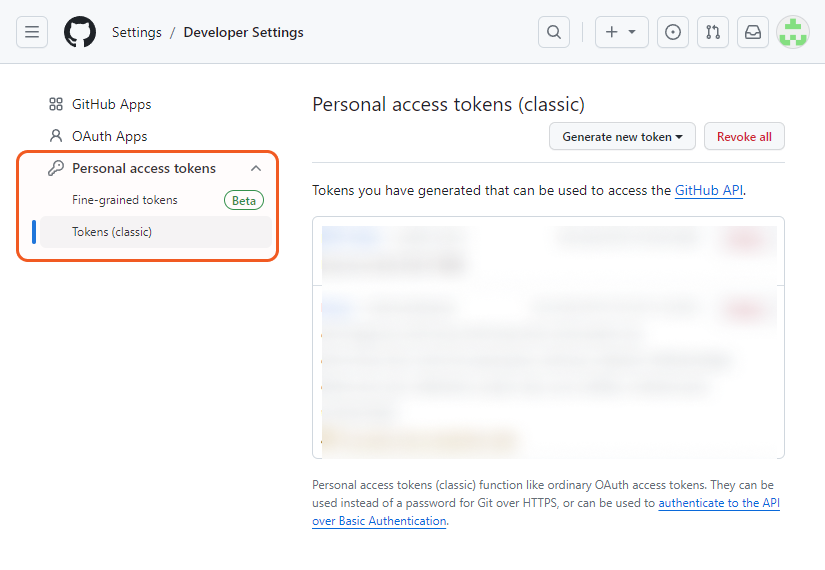

On the left side menu, click Personal access tokens on the left.

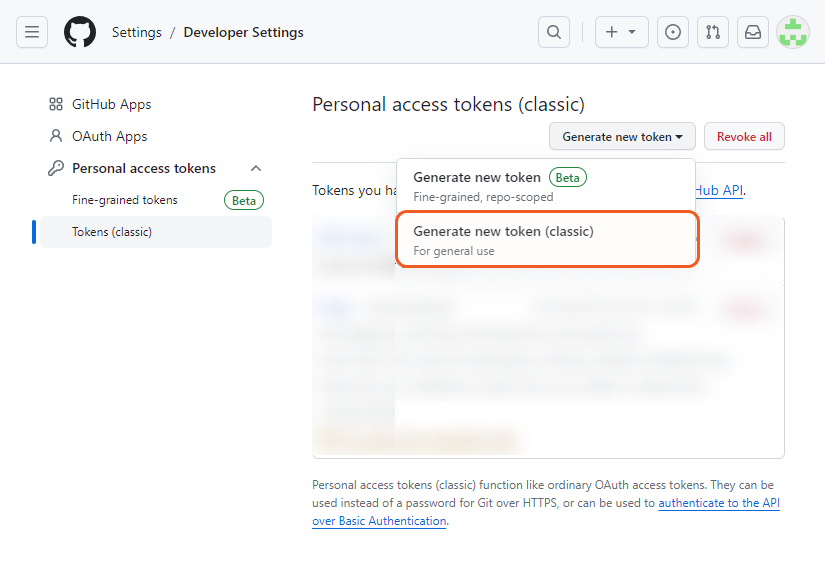

At the top right corner of the Personal access tokens page, click on the Generate new token button. Ensure to select the classic option.

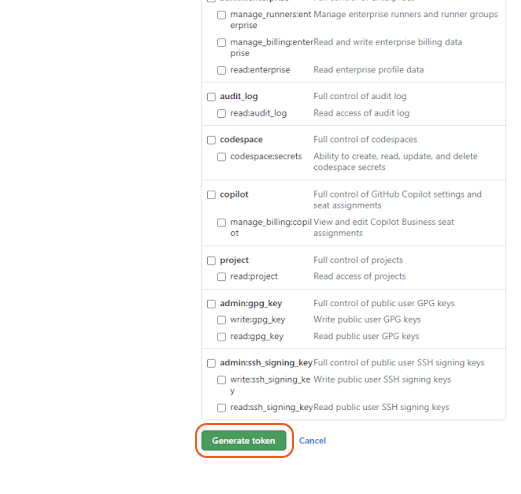

Enter a descriptive note for the token then select an expiration date for the token. Enable the required scopes as outlined in the Permission Requirements section. Finally, click Generate Token.

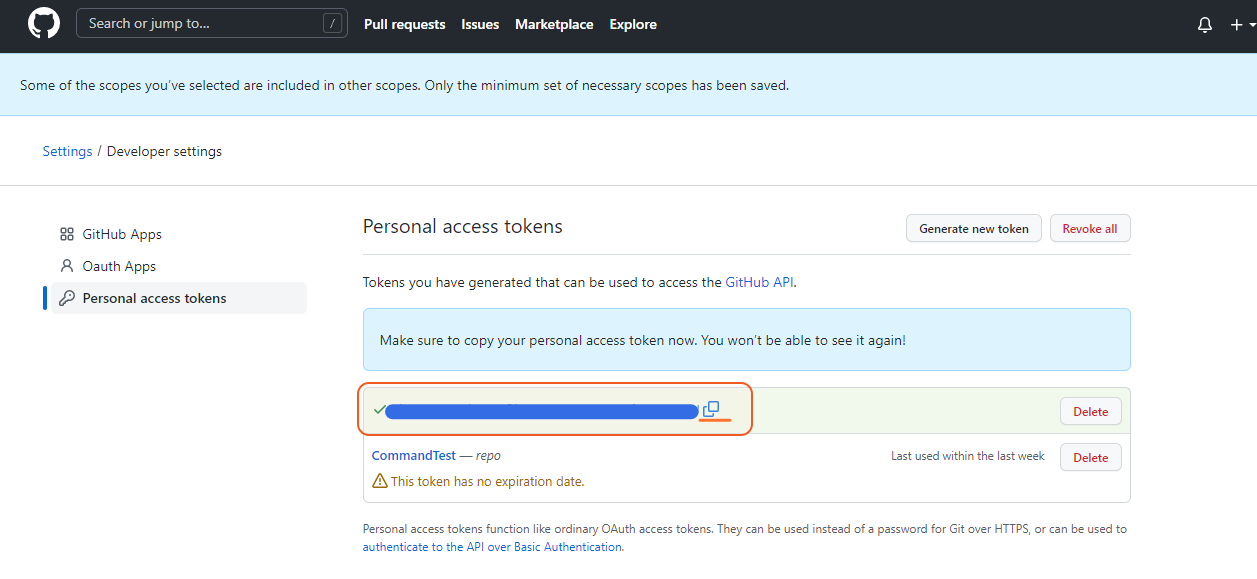

Copy and store the generated access token in a secure location. It will be used to establish a connection between Github and D3 SOAR.

Configuring D3 SOAR to Work with GitHub

Log in to D3 SOAR.

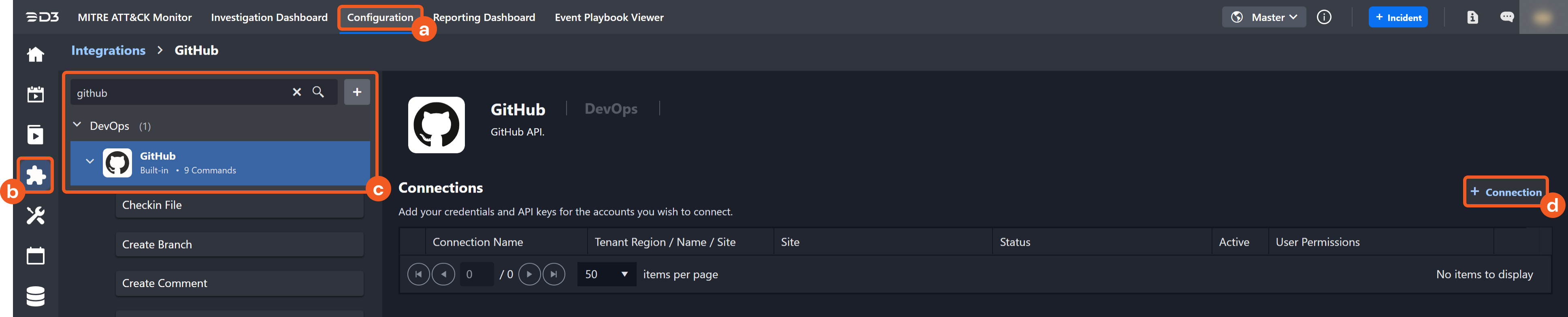

Find the GitHub integration.

a. Navigate to Configuration on the top header menu.

b. Click on the Integration icon on the left sidebar.

c. Type GitHub in the search box to find the integration, then click it to select it.

d. Click + Connection, on the right side of the Connections section. A new connection window will appear.

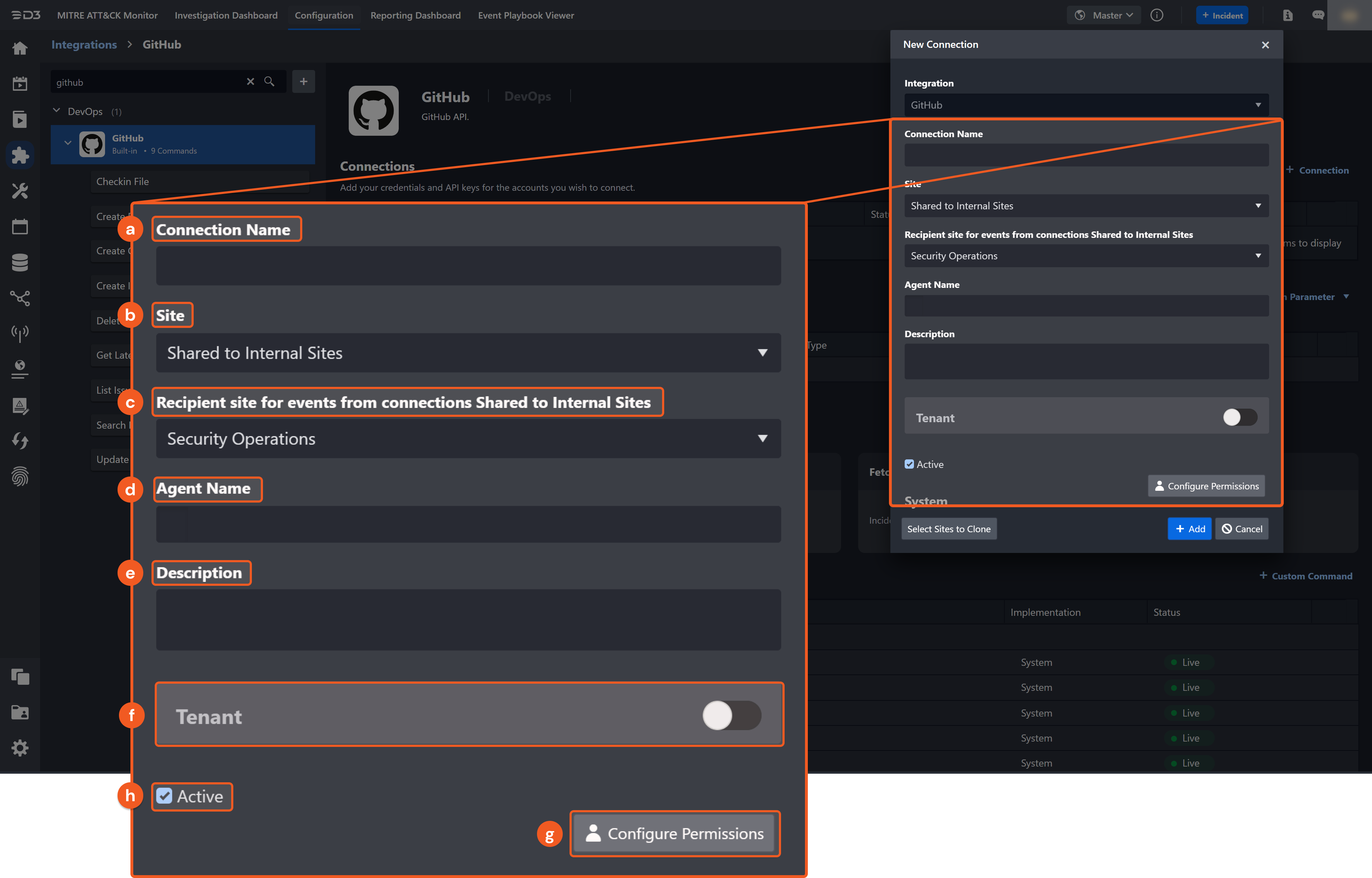

Configure the following fields to create a connection to GitHub.

a. Connection Name: The desired name for the connection.

b. Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.

c. Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.

d. Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.

e. Description (Optional): Add your desired description for the connection.

f. Tenant (Optional): When configuring the connection from a master tenant site, you have the option to choose the specific tenant sites you want to share the connection with. Once you enable this setting, you can filter and select the desired tenant sites from the dropdowns to share the connection.

g. Configure User Permissions: Defines which users have access to the connection.

h. Active: Check the tick box to ensure the connection is available for use.

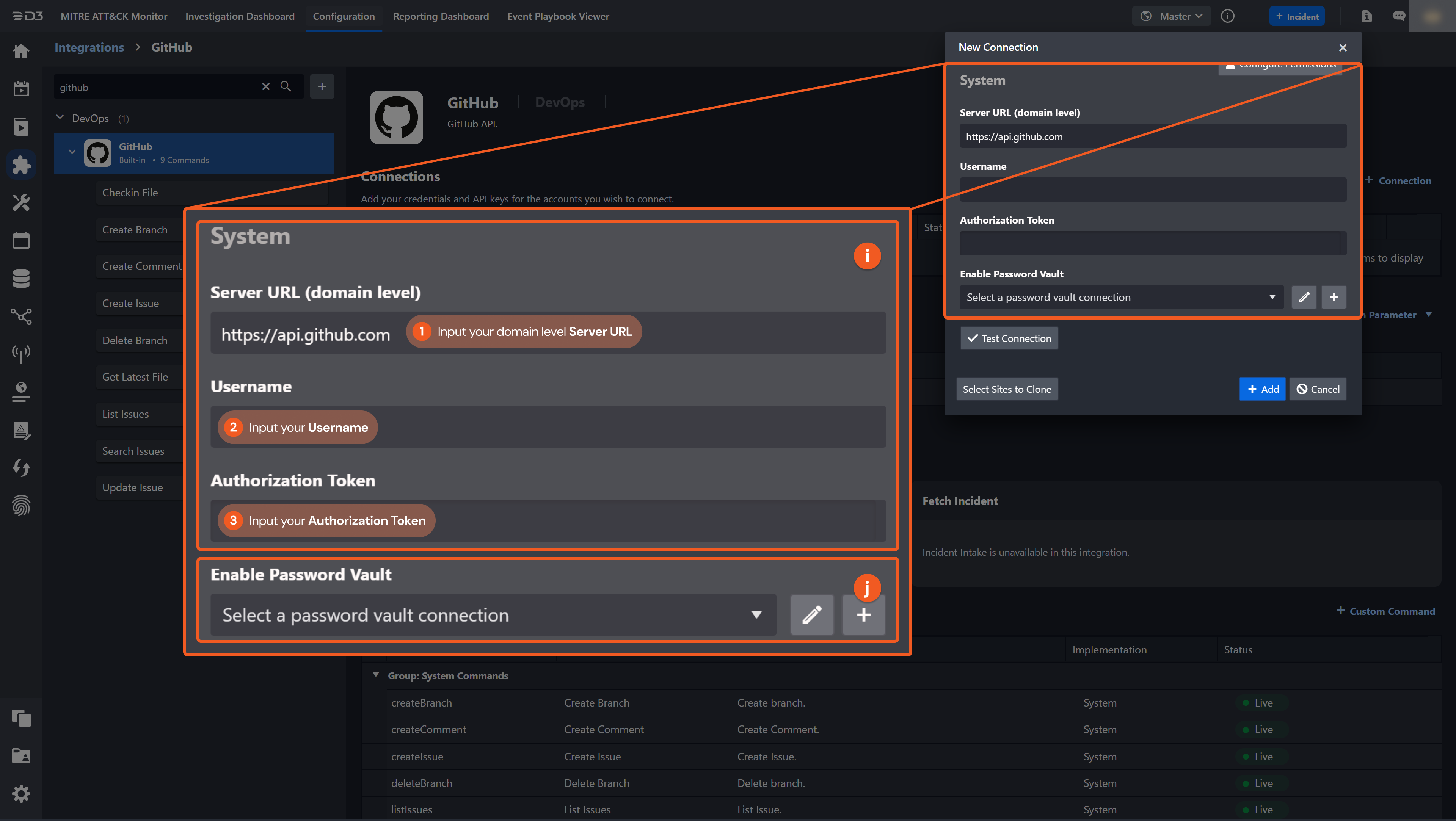

i. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.

1. Input the Server URL. The default value is https://api.github.com.

2. Input your Username.

3. Input the Authorization Token. Refer to step 7 of Configuring GitHub to Work with D3 SOAR for more details.

j. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Please refer to the password vault connection guide if needed.

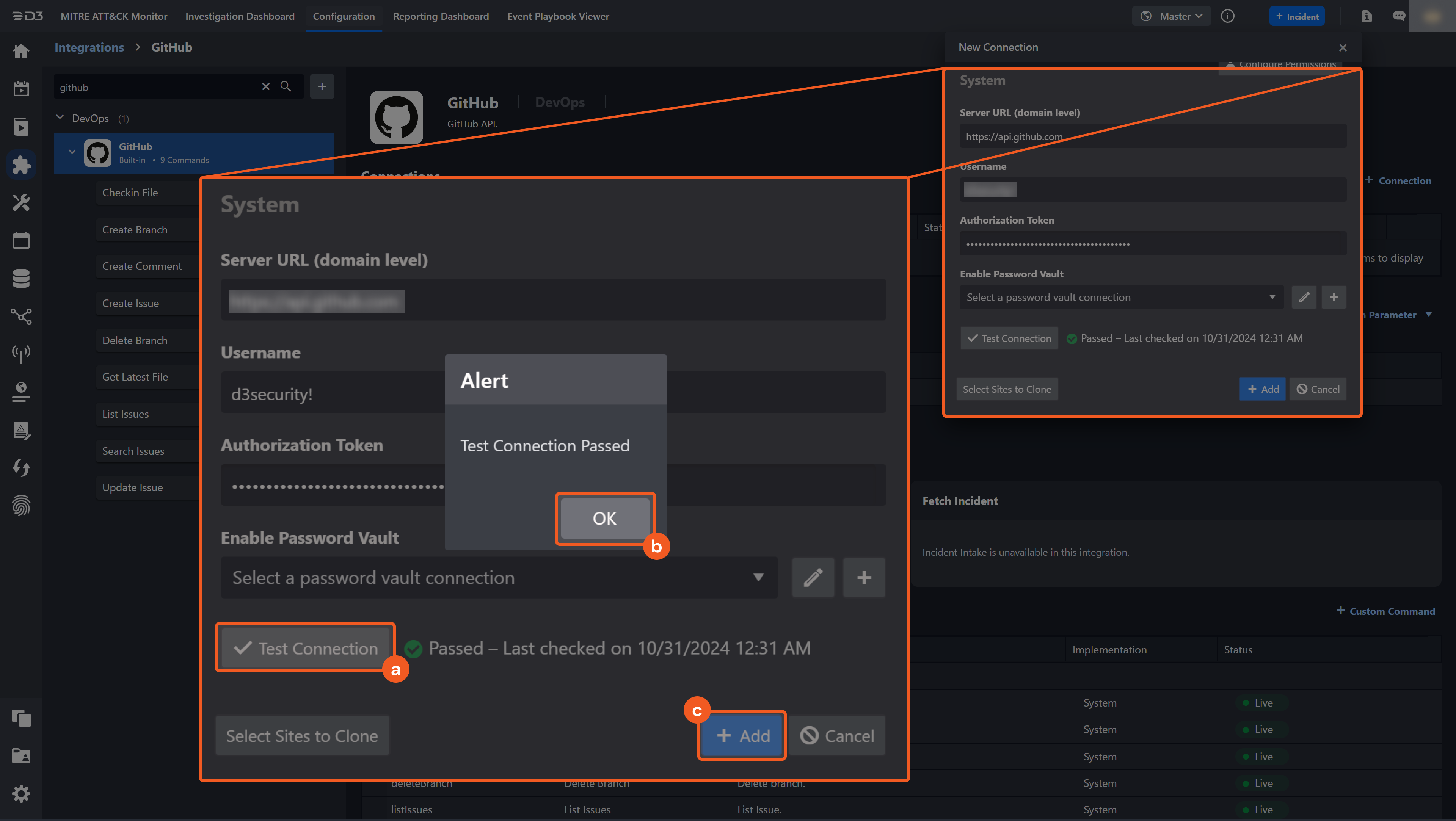

Test the connection.

a. Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green checkmark appear beside the Test Connection button. If the test connection fails, please check your connection parameters and try again.

b. Click OK to close the alert window.

c. Click + Add to create and add the configured connection.

Commands

GitHub includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the GitHub API, please refer to the GitHub API reference.

READER NOTE

Certain permissions are required for each command. Please refer to the Permission Requirements and Configuring GitHub to Work with D3 SOAR for details.

Checkin File

Creates a new file or replaces the content of an existing file in a repository.

READER NOTE

The list of repositories is accessible from the GitHub user interface in the left-side navigation menu. For this command, ensure to select a public , as choosing a private one will result in a 404 not found error.

Input

Input Parameter	Required/Optional	Description	Example
Repository Name	Required	The name of the repository to check in a file.	****--****--****
Path	Required	The file path or directory to check in the file. If the path exists, the file content will be updated. If the path does not exist, a new path will be created and a new file will be checked in.	*******
Message	Required	The commit message.	************
Content	Required	The new file content.	************
Branch	Optional	The name of the branch to check in the file. The repository's default branch (typically main) is used by default.	****
Committer Name	Optional	The name of the author or committer. If this parameter is not defined, the default committer is the authenticated user.	*****
Committer Email	Optional	The email address of the author or committer. If this parameter is not defined, the default value is the email address of the authenticated user.	****@******.*

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "content": {
        "name": "*******",
        "path": "*******",
        "sha": "****************************************",
        "size": 12,
        "url": "https://***.github.com/*****/********/******-***-*******-***-****/********/****************",
        "html_url": "https://github.com/********/******-***-*******-***-*****/****/****/*******",
        "git_url": "https://***.github.com/*****/********/******-***-*******-***-*****/***/*****/****************************************",
        "download_url": "https://***.githubusercontent.com/********/******-***-*******-***-*****/****/*******?*****=*****************************",
        "type": "file",
        "_links": {
            "self": "https://***.github.com/*****/********/******-***-*******-***-*****/********/*******?***=****",
            "git": "https://***.github.com/*****/********/******-***-*******-***-*****/***/*****/****************************************",
            "html": "https://github.com/********/******-***-*******-***-*****/****/****/*******"
        }
    },
    "commit": {
        "sha": "****************************************",
        "node_id": "*********************************************************************",
        "url": "https://***.github.com/*****/********/******-***-*******-***-*****/***/*******/****************************************",
        "html_url": "https://github.com/********/******-***-*******-***-*****/*******/****************************************",
        "author": {
            "name": "*****",
            "email": "******@**********.***",
            "date": "2022-02-25T21:53:32Z"
        },
        "committer": {
            "name": "*****",
            "email": "******@**********.***",
            "date": "2022-02-25T21:53:32Z"
        },
        "tree": {
            "sha": "****************************************",
            "url": "https://***.github.com/*****/********/******-***-*******-***-*****/***/*****/****************************************"
        },
        "message": "************",
        "parents": [
            {
                "sha": "****************************************",
                "url": "https://***.github.com/*****/********/******-***-*******-***-*****/***/******/****************************************",
                "html_url": "https://github.com/********/******-***-*******-***-*****/******/****************************************"
            }
        ],
        "verification": {
            "verified": false,
            "reason": "unsigned",
            "signature": null,
            "payload": null
        }
    }
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "FileSHA": "****************************************",
    "Type": "file"
}

Return Data

Indicates one of the possible command execution states: Successful, or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

content

{'name': '*******', 'path': '*******', 'sha': '****************************************', 'size': 12, 'url': 'https://***.github.com/*****/********/******-***-*******-***-*****/********/*******?***=**** ', 'html_url': 'https://github.com/********/******-***-*******-***-*****/****/****/******* ', 'git_url': 'https://***.github.com/*****/********/******-***-*******-***-*****/***/*****/**************************************** ', 'download_url': 'https://***.githubusercontent.com/********/******-***-*******-***-*****/****/*******?*****=*****************************', 'type': 'file', '_links': {'self': 'https://***.github.com/*****/********/******-***-*******-***-*****/********/*******?***=**** ', 'git': 'https://***.github.com/*****/********/******-***-*******-***-*****/***/*****/**************************************** ', 'html': 'https://github.com/********/******-***-*******-***-*****/****/****/******* '}}

commit

{'sha': '****************************************', 'node_id': '*********************************************************************', 'url': 'https://***.github.com/*****/********/******-***-*******-***-*****/***/******/**************************************** ', 'html_url': 'https://github.com/********/******-***-*******-***-*****/******/**************************************** ', 'author': {'name': '*****', 'email': '******@**********.***', 'date': '2022-02-25T21:53:32Z'}, 'committer': {'name': '*****', 'email': '******@**********.***', 'date': '2022-02-25T21:53:32Z'}, 'tree': {'sha': '****************************************', 'url': 'https://***.github.com/*****/********/******-***-*******-***-*****/***/*****/**************************************** '}, 'message': '************', 'parents': [{'sha': '****************************************', 'url': 'https://***.github.com/*****/********/******-***-*******-***-*****/***/******/**************************************** ', 'html_url': 'https://github.com/********/******-***-*******-***-*****/******/**************************************** '}], 'verification': {'verified': False, 'reason': 'unsigned', 'signature': None, 'payload': None}}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Checkin File failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the GitHub portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Not Found.

Error Sample Data

Checkin File failed.

Status Code: 404.

Message: Not Found.

Create Branch

Creates a new branch.

READER NOTE

The list of repositories is accessible from the GitHub user interface in the left-side navigation menu. For this command, ensure to select a public repository, as choosing a private one will result in a 404 not found error.

Input

Input Parameter	Required/Optional	Description	Example
Repository	Required	The repository to create a new branch.	*******
Branch Name	Required	The name of the new branch.	***
Commit SHA	Required	The SHA of the commit to create the branch from.	****************************************

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "ref": "****/*****/***",
    "node_id": "****************************************",
    "url": "https://***.github.com/*****/********/*******/***/****/*****/***",
    "object": {
        "sha": "****************************************",
        "type": "commit",
        "url": "https://***.github.com/*****/********/*******/***/******/****************************************"
    }
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

CODE

{
    "ref": "****/*****/***",
    "node_id": "****************************************",
    "url": "https://***.github.com/*****/********/*******/***/****/*****/***",
    "object": {
        "sha": "****************************************",
        "type": "commit",
        "url": "https://***.github.com/*****/********/*******/***/******/****************************************"
    }
}

Key Fields

Raw Data

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "Ref": "****/*****/***",
    "Url": "https://***.github.com/*****/********/*******/***/****/*****/***"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ref	**/*/*
node_id	****************************************
url	https://*.github.com/*/****/***//*/*/*
object	{ "sha": "**************************************", "type": "commit", "url": "https://.github.com/**/****/***//***/************************************** " }

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create Branch failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the GitHub portal. Refer to the HTTP Status Code Registry for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unprocessable Entity.

Error Sample Data

Create Branch failed.

Status Code: 422.

Message: Unprocessable Entity.

Create Comment

Creates a new comment in a repository.

READER NOTE

Repository and Issue Number are required parameters to run this command.

The list of repositories is accessible from the GitHub user interface in the left-side navigation menu. For this command, ensure to select a public repository, as choosing a private one will result in a 404 not found error.
Run the List Issues command to obtain the Issue Number. Issue Number can be found in the returned raw data at the path $.number.
Ensure that the issue number corresponds to the repository you enter. It is recommended to first run the List Issues command. From the response data, locate the specific issue you wish to update, and use this repository-issue pair to run the command.

Input

Input Parameter	Required/Optional	Description	Example
Repository	Required	The repository to create a new comment.	*******
Issue Number	Required	The number of the issue to create a comment.	1
Body	Required	The contents of the comment.	******

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

AUTOIT

{
    "url": "https://***.github.com/*****/********/*******/******/********/*********",
    "html_url": "https://github.com/********/*******/******/*#*************-*********",
    "issue_url": "https://***.github.com/*****/********/*******/******/*",
    "id": *********,
    "node_id": "************************************",
    "user": {
        "login": "********",
        "id": ********,
        "node_id": "********************",
        "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
        "gravatar_id": "",
        "url": "https://***.github.com/*****/********",
        "html_url": "https://github.com/********",
        "followers_url": "https://***.github.com/*****/********/*********",
        "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
        "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
        "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
        "subscriptions_url": "https://***.github.com/*****/********/*************",
        "organizations_url": "https://***.github.com/*****/********/****",
        "*****_url": "https://***.github.com/*****/********/*****",
        "events_url": "https://***.github.com/*****/********/******{/*******}",
        "received_events_url": "https://***.github.com/*****/********/********_******",
        "type": "User",
        "site_admin": false
    },
    "created_at": "2020-07-29T07:25:37Z",
    "updated_at": "2020-07-29T07:25:37Z",
    "author_association": "OWNER",
    "body": "******",
    "performed_via_github_app": null
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

CODE

{
    "url": "https://***.github.com/*****/********/*******/******/********/*********",
    "html_url": "https://github.com/********/*******/******/*#*************-*********",
    "issue_url": "https://***.github.com/*****/********/*******/******/*",
    "id": *********,
    "node_id": "************************************",
    "user": {
        "login": "********",
        "id": ********,
        "node_id": "********************",
        "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
        "gravatar_id": "",
        "url": "https://***.github.com/*****/********",
        "html_url": "https://github.com/********",
        "followers_url": "https://***.github.com/*****/********/*********",
        "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
        "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
        "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
        "subscriptions_url": "https://***.github.com/*****/********/*************",
        "organizations_url": "https://***.github.com/*****/********/****",
        "*****_url": "https://***.github.com/*****/********/*****",
        "events_url": "https://***.github.com/*****/********/******{/*******}",
        "received_events_url": "https://***.github.com/*****/********/********_******",
        "type": "User",
        "site_admin": false
    },
    "created_at": "2020-07-29T07:25:37Z",
    "updated_at": "2020-07-29T07:25:37Z",
    "author_association": "OWNER",
    "body": "******",
    "performed_via_github_app": null
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "ID": "*********",
    "UrlList": "https://***.github.com/*****/********/*******/******/********/*********"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

url	https://*.github.com/*/****/***/**/****/*******
html_url	https://github.com/******/***/***/#***********-*******
issue_url	https://*.github.com/*/****/***/***/
id	*********
node_id	************************************
user	{ "login": "******", "id": ****, "node_id": "****************", "avatar_url": "https://*****.githubusercontent.com//*******?=", "gravatar_id": "", "url": "https://.github.com/*/**** ", "html_url": "https://github.com/**** ", "followers_url": "https://.github.com/**/****/***** ", "following_url": "https://.github.com/**/****/*****{/*_} ", "gists_url": "https://.github.com/**/****/*{/_} ", "starred_url": "https://*.github.com/*/****/***{/*}{/} ", "subscriptions_url": "https://.github.com/**/****/********* ", "organizations_url": "https://.github.com/**/****/ ", "*_url": "https://.github.com/**/****/* ", "events_url": "https://.github.com/**/****/**{/***} ", "received_events_url": "https://.github.com/**/****/****_**** ", "type": "User", "site_admin": false }
created_at	7/29/2020 7:25:37 AM
updated_at	7/29/2020 7:25:37 AM
author_association	OWNER
body	******
performed_via_github_app

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create Comment failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the GitHub portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Must have admin rights to repository.

Error Sample Data

Create Comment failed.

Status Code: 403.

Message: Must have admin rights to repository.

Create Issue

Creates an issue in a repository.

READER NOTE

The list of repositories is accessible from the GitHub user interface in the left-side navigation menu. For this command, ensure to select a public repository, as choosing a private one will result in a 404 not found error.

Input

Input Parameter	Required/Optional	Description	Example
Repository	Required	The name of the repository to create an issue.	*******
Title	Required	The title of the issue.	*********
Body	Optional	The contents of the issue.	0.0
Labels	Optional	The labels to associate with this issue.	["labelA"]
Assignee	Optional	The assignee of the issue.	["********"]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

CODE

{
    "url": "https://***.github.com/*****/********/*******/******/*",
    "repository_url": "https://***.github.com/*****/********/*******",
    "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
    "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
    "events_url": "https://***.github.com/*****/********/*******/******/*/******",
    "html_url": "https://github.com/********/*******/******/*",
    "id": *********,
    "node_id": "************************",
    "number": 5,
    "title": "*********",
    "user": {
        "login": "********",
        "id": ********,
        "node_id": "********************",
        "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
        "gravatar_id": "",
        "url": "https://***.github.com/*****/********",
        "html_url": "https://github.com/********",
        "followers_url": "https://***.github.com/*****/********/*********",
        "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
        "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
        "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
        "subscriptions_url": "https://***.github.com/*****/********/*************",
        "organizations_url": "https://***.github.com/*****/********/****",
        "*****_url": "https://***.github.com/*****/********/*****",
        "events_url": "https://***.github.com/*****/********/******{/*******}",
        "received_events_url": "https://***.github.com/*****/********/********_******",
        "type": "User",
        "site_admin": false
    },
    "labels": [],
    "state": "open",
    "locked": false,
    "assignee": null,
    "assignees": [],
    "milestone": null,
    "comments": 0,
    "created_at": "2020-07-28T22:39:46Z",
    "updated_at": "2020-07-28T22:39:46Z",
    "closed_at": null,
    "author_association": "OWNER",
    "active_lock_reason": null,
    "body": "0.0",
    "closed_by": null,
    "performed_via_github_app": null
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

CODE

{
    "url": "https://***.github.com/*****/********/*******/******/*",
    "repository_url": "https://***.github.com/*****/********/*******",
    "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
    "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
    "events_url": "https://***.github.com/*****/********/*******/******/*/******",
    "html_url": "https://github.com/********/*******/******/*",
    "id": *********,
    "node_id": "************************",
    "number": 5,
    "title": "*********",
    "user": {
        "login": "********",
        "id": ********,
        "node_id": "********************",
        "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
        "gravatar_id": "",
        "url": "https://***.github.com/*****/********",
        "html_url": "https://github.com/********",
        "followers_url": "https://***.github.com/*****/********/*********",
        "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
        "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
        "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
        "subscriptions_url": "https://***.github.com/*****/********/*************",
        "organizations_url": "https://***.github.com/*****/********/****",
        "*****_url": "https://***.github.com/*****/********/*****",
        "events_url": "https://***.github.com/*****/********/******{/*******}",
        "received_events_url": "https://***.github.com/*****/********/********_******",
        "type": "User",
        "site_admin": false
    },
    "labels": [],
    "state": "open",
    "locked": false,
    "assignee": null,
    "assignees": [],
    "milestone": null,
    "comments": 0,
    "created_at": "2020-07-28T22:39:46Z",
    "updated_at": "2020-07-28T22:39:46Z",
    "closed_at": null,
    "author_association": "OWNER",
    "active_lock_reason": null,
    "body": "0.0",
    "closed_by": null,
    "performed_via_github_app": null
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "IssueNumber": "5",
    "Url": "https://***.github.com/*****/********/*******/***/****/*****/***",
    "Title": "********"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

url	https://*.github.com/*/****/***/***/
repository_url	https://*.github.com/*/****/*****
labels_url	https://*.github.com/*/****/***/***//****{/**}
comments_url	https://*.github.com/*/****/***/***//********
events_url	https://*.github.com/*/****/***/***//******
html_url	https://github.com/******/***/***/
id	*********
node_id	************************
number	5
title	IssueBBB
user	{ "login": "******", "id": ****, "node_id": "****************", "avatar_url": "https://*****.githubusercontent.com//*******?=", "gravatar_id": "", "url": "https://.github.com/*/**** ", "html_url": "https://github.com/**** ", "followers_url": "https://.github.com/**/****/***** ", "following_url": "https://.github.com/**/****/*****{/*_} ", "gists_url": "https://.github.com/**/****/*{/_} ", "starred_url": "https://*.github.com/*/****/***{/*}{/} ", "subscriptions_url": "https://.github.com/**/****/********* ", "organizations_url": "https://.github.com/**/****/ ", "*_url": "https://.github.com/**/****/* ", "events_url": "https://.github.com/**/****/**{/***} ", "received_events_url": "https://.github.com/**/****/****_**** ", "type": "User", "site_admin": false }
labels
state	open
locked	False
assignee
assignees
milestone
comments	0
created_at	7/28/2020 10:39:46 PM
updated_at	7/28/2020 10:39:46 PM
closed_at
author_association	OWNER
active_lock_reason
body	0.0
closed_by
performed_via_github_app

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create Issue failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the GitHub portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: at BuildInIntegrations.GitHubIntegration.createIssue(Object[] parameters).

Error Sample Data

Create Issue failed.

Status Code: 400.

Message: at BuildInIntegrations.GitHubIntegration.createIssue(Object[] parameters).

Delete Branch

Deletes a branch from a repository.

READER NOTE

The list of repositories is accessible from the GitHub user interface in the left-side navigation menu. For this command, ensure to select a public repository, as choosing a private one will result in a 404 not found error.

Input

Input Parameter	Required/Optional	Description	Example
Repository	Required	The repository to remove a branch.	*******
Branch Name	Required	The name of the branch to remove.	NNN

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

CODE

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

No Sample Data

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Delete Branch failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the GitHub portal. Refer to the HTTP Status Code Registry for details.	Status Code: 422.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unprocessable Entity.

Error Sample Data

Delete Branch failed.

Status Code: 422.

Message: Unprocessable Entity.

Get Latest File

Retrieves the contents of a file or directory within a repository. Use the Path parameter to specify the file path or directory. If the Path is not provided, it defaults to returning the contents of the repository's root directory.

READER NOTE

The list of repositories is accessible from the GitHub user interface in the left-side navigation menu. For this command, ensure to select a public repository, as choosing a private one will result in a 404 not found error.

Input

Input Parameter	Required/Optional	Description	Example
Repository Name	Required	The name of the repository to retrieve file content.	****--****--****
Path	Optional	The file path or directory to retrieve file content. If this parameter is not defined, the contents of the repository's root directory will be returned.	*******

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

CODE

{
    "name": "*******",
    "path": "*******",
    "sha": "****************************************",
    "size": 12,
    "url": "https://***.github.com/*****/********/******-***-*******-***-*****/********/*******?***=****",
    "html_url": "https://github.com/********/******-***-*******-***-*****/****/****/*******",
    "git_url": "https://***.github.com/*****/********/******-***-*******-***-*****/***/*****/****************************************",
    "download_url": "https://***.githubusercontent.com/********/******-***-*******-***-*****/****/*******?*****=*****************************",
    "type": "file",
    "content": "******************",
    "encoding": "base64",
    "_links": {
        "self": "https://***.github.com/*****/********/******-***-*******-***-*****/********/*******?***=****",
        "git": "https://***.github.com/*****/********/******-***-*******-***-*****/***/*****/****************************************",
        "html": "https://github.com/********/******-***-*******-***-*****/****/****/*******"
    }
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "FileSHA": "****************************************",
    "Type": "file"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

name	*******
path	*******
sha	****************************************
size	12
url	https://*.github.com/*/****/**--****--**/****/***?=***
html_url	https://github.com/******/**--****--**////*****
git_url	https://*.github.com/*/****/**--****--**//**/**************************************
download_url	https://*.githubusercontent.com/****/**--****--**//***?*=***************************
type	file
content	Y29udGVudDAyMjVj
encoding	base64
_links	{'self': 'https://*.github.com/*/****/**--****--**/****/***?=* ', 'git': 'https://.github.com/**/****/**--****--**//**/************************************ ', 'html': 'https://github.com/****/**--****--**////***** '}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Latest File failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the GitHub portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Not Found.

Error Sample Data

Get Latest File failed.

Status Code: 404.

Message: Not Found.

List Issues

Lists issues from a repository.

READER NOTE

The list of repositories is accessible from the GitHub user interface in the left-side navigation menu. For this command, ensure to select a public repository, as choosing a private one will result in a 404 not found error. If there are no issues in the repository you select, it will return a success message but no results. You have the option to create a new repository and your own issue either through the Github user interface or by using the Create Issue command.

Input

Input Parameter	Required/Optional	Description	Example
Repository	Required	The repository to list issues from.	*******
State	Optional	The state to filter listed issues. The available options are open and closed. The default value is open.	open

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

CODE

[
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 5,
        "title": "*********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 0,
        "created_at": "2020-07-28T22:39:46Z",
        "updated_at": "2020-07-28T22:39:46Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "0.0",
        "performed_via_github_app": null
    },
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 4,
        "title": "*********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 0,
        "created_at": "2020-07-28T21:32:24Z",
        "updated_at": "2020-07-28T21:32:24Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "xixixi",
        "performed_via_github_app": null
    },
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 3,
        "title": "*********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 0,
        "created_at": "2020-07-28T21:32:21Z",
        "updated_at": "2020-07-28T21:32:21Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "xixixi",
        "performed_via_github_app": null
    },
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 2,
        "title": "*********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 0,
        "created_at": "2020-07-28T18:57:09Z",
        "updated_at": "2020-07-28T18:57:09Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "0.0",
        "performed_via_github_app": null
    },
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 1,
        "title": "**********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 4,
        "created_at": "2020-07-25T00:03:55Z",
        "updated_at": "2020-07-28T22:50:45Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "******",
        "performed_via_github_app": null
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

CODE

[
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 5,
        "title": "********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 0,
        "created_at": "2020-07-28T22:39:46Z",
        "updated_at": "2020-07-28T22:39:46Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "0.0",
        "performed_via_github_app": null
    },
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 4,
        "title": "********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 0,
        "created_at": "2020-07-28T21:32:24Z",
        "updated_at": "2020-07-28T21:32:24Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "xixixi",
        "performed_via_github_app": null
    },
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 3,
        "title": "********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 0,
        "created_at": "2020-07-28T21:32:21Z",
        "updated_at": "2020-07-28T21:32:21Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "xixixi",
        "performed_via_github_app": null
    },
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 2,
        "title": "********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 0,
        "created_at": "2020-07-28T18:57:09Z",
        "updated_at": "2020-07-28T18:57:09Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "0.0",
        "performed_via_github_app": null
    },
    {
        "url": "https://***.github.com/*****/********/*******/******/*",
        "repository_url": "https://***.github.com/*****/********/*******",
        "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
        "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
        "events_url": "https://***.github.com/*****/********/*******/******/*/******",
        "html_url": "https://github.com/********/*******/******/*",
        "id": *********,
        "node_id": "************************",
        "number": 1,
        "title": "**********",
        "user": {
            "login": "********",
            "id": ********,
            "node_id": "********************",
            "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
            "gravatar_id": "",
            "url": "https://***.github.com/*****/********",
            "html_url": "https://github.com/********",
            "followers_url": "https://***.github.com/*****/********/*********",
            "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
            "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
            "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
            "subscriptions_url": "https://***.github.com/*****/********/*************",
            "organizations_url": "https://***.github.com/*****/********/****",
            "*****_url": "https://***.github.com/*****/********/*****",
            "events_url": "https://***.github.com/*****/********/******{/*******}",
            "received_events_url": "https://***.github.com/*****/********/********_******",
            "type": "User",
            "site_admin": false
        },
        "labels": [],
        "state": "open",
        "locked": false,
        "assignee": null,
        "assignees": [],
        "milestone": null,
        "comments": 4,
        "created_at": "2020-07-25T00:03:55Z",
        "updated_at": "2020-07-28T22:50:45Z",
        "closed_at": null,
        "author_association": "OWNER",
        "active_lock_reason": null,
        "body": "******",
        "performed_via_github_app": null
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "IssueNumberList" :
[
      "5",
      "4",
      "3",
      "2",
      "1"
],
    "IssueNumberList" :
[
      "IssueBBB",
      "IssueAAA",
      "IssueAAA",
      "IssueBBB",
      "IssueCCCCC"
],
    "UrlList" :
[
      "https://***.github.com/*****/********/*******/******/*",
      "https://***.github.com/*****/********/*******/******/*",
      "https://***.github.com/*****/********/*******/******/*",
      "https://***.github.com/*****/********/*******/******/*",
      "https://***.github.com/*****/********/*******/******/*"
],
    "IssueNumberList" :
[
      "5",
      "4",
      "3",
      "2",
      "1"
],
    "IssueNumberList" :
[
      "IssueBBB",
      "IssueAAA",
      "IssueAAA",
      "IssueBBB",
      "IssueCCCCC"
]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

url	repository_url	labels_url	comments_url	events_url	html_url	id	node_id	number	title	user	labels	state	locked	assignees	comments	created_at	updated_at	author_association	body
https://*.github.com/*/****/***/***/	https://*.github.com/*/****/*****	https://*.github.com/*/****/***/***//****{/**}	https://*.github.com/*/****/***/***//********	https://*.github.com/*/****/***/***//******	https://github.com/******/***/***/	*********	************************	5	IssueBBB	{ "login": "******", "id": ****, "node_id": "****************", "avatar_url": "https://*****.githubusercontent.com//*******?=", "gravatar_id": "", "url": "https://.github.com/*/**** ", "html_url": "https://github.com/**** ", "followers_url": "https://.github.com/**/****/***** ", "following_url": "https://.github.com/**/****/*****{/*_} ", "gists_url": "https://.github.com/**/****/*{/_} ", "starred_url": "https://*.github.com/*/****/***{/*}{/} ", "subscriptions_url": "https://.github.com/**/****/********* ", "organizations_url": "https://.github.com/**/****/ ", "*_url": "https://.github.com/**/****/* ", "events_url": "https://.github.com/**/****/**{/***} ", "received_events_url": "https://.github.com/**/****/****_**** ", "type": "User", "site_admin": false }	[]	open	False	[]	0	7/28/2020 10:39:46 PM	7/28/2020 10:39:46 PM	OWNER	0.0
https://*.github.com/*/****/***/***/	https://*.github.com/*/****/*****	https://*.github.com/*/****/***/***//****{/**}	https://*.github.com/*/****/***/***//********	https://*.github.com/*/****/***/***//******	https://github.com/******/***/***/	*********	************************	4	IssueAAA	{ "login": "******", "id": ****, "node_id": "****************", "avatar_url": "https://*****.githubusercontent.com//*******?=", "gravatar_id": "", "url": "https://.github.com/*/**** ", "html_url": "https://github.com/**** ", "followers_url": "https://.github.com/**/****/***** ", "following_url": "https://.github.com/**/****/*****{/*_} ", "gists_url": "https://.github.com/**/****/*{/_} ", "starred_url": "https://*.github.com/*/****/***{/*}{/} ", "subscriptions_url": "https://.github.com/**/****/********* ", "organizations_url": "https://.github.com/**/****/ ", "*_url": "https://.github.com/**/****/* ", "events_url": "https://.github.com/**/****/**{/***} ", "received_events_url": "https://.github.com/**/****/****_**** ", "type": "User", "site_admin": false }	[]	open	False	[]	0	7/28/2020 9:32:24 PM	7/28/2020 9:32:24 PM	OWNER	xixixi
https://*.github.com/*/****/***/***/	https://*.github.com/*/****/*****	https://*.github.com/*/****/***/***//****{/**}	https://*.github.com/*/****/***/***//********	https://*.github.com/*/****/***/***//******	https://github.com/******/***/***/	*********	************************	3	IssueAAA	{ "login": "******", "id": ****, "node_id": "****************", "avatar_url": "https://*****.githubusercontent.com//*******?=", "gravatar_id": "", "url": "https://.github.com/*/**** ", "html_url": "https://github.com/**** ", "followers_url": "https://.github.com/**/****/***** ", "following_url": "https://.github.com/**/****/*****{/*_} ", "gists_url": "https://.github.com/**/****/*{/_} ", "starred_url": "https://*.github.com/*/****/***{/*}{/} ", "subscriptions_url": "https://.github.com/**/****/********* ", "organizations_url": "https://.github.com/**/****/ ", "*_url": "https://.github.com/**/****/* ", "events_url": "https://.github.com/**/****/**{/***} ", "received_events_url": "https://.github.com/**/****/****_**** ", "type": "User", "site_admin": false }	[]	open	False	[]	0	7/28/2020 9:32:21 PM	7/28/2020 9:32:21 PM	OWNER	xixixi
https://*.github.com/*/****/***/***/	https://*.github.com/*/****/*****	https://*.github.com/*/****/***/***//****{/**}	https://*.github.com/*/****/***/***//********	https://*.github.com/*/****/***/***//******	https://github.com/******/***/***/	*********	************************	2	IssueBBB	{ "login": "******", "id": ****, "node_id": "****************", "avatar_url": "https://*****.githubusercontent.com//*******?=", "gravatar_id": "", "url": "https://.github.com/*/**** ", "html_url": "https://github.com/**** ", "followers_url": "https://.github.com/**/****/***** ", "following_url": "https://.github.com/**/****/*****{/*_} ", "gists_url": "https://.github.com/**/****/*{/_} ", "starred_url": "https://*.github.com/*/****/***{/*}{/} ", "subscriptions_url": "https://.github.com/**/****/********* ", "organizations_url": "https://.github.com/**/****/ ", "*_url": "https://.github.com/**/****/* ", "events_url": "https://.github.com/**/****/**{/***} ", "received_events_url": "https://.github.com/**/****/****_**** ", "type": "User", "site_admin": false }	[]	open	False	[]	0	7/28/2020 6:57:09 PM	7/28/2020 6:57:09 PM	OWNER	0.0
https://*.github.com/*/****/***/***/	https://*.github.com/*/****/*****	https://*.github.com/*/****/***/***//****{/**}	https://*.github.com/*/****/***/***//********	https://*.github.com/*/****/***/***//******	https://github.com/******/***/***/	*********	************************	1	**********	{ "login": "******", "id": ****, "node_id": "****************", "avatar_url": "https://*****.githubusercontent.com//*******?=", "gravatar_id": "", "url": "https://.github.com/*/**** ", "html_url": "https://github.com/**** ", "followers_url": "https://.github.com/**/****/***** ", "following_url": "https://.github.com/**/****/*****{/*_} ", "gists_url": "https://.github.com/**/****/*{/_} ", "starred_url": "https://*.github.com/*/****/***{/*}{/} ", "subscriptions_url": "https://.github.com/**/****/********* ", "organizations_url": "https://.github.com/**/****/ ", "*_url": "https://.github.com/**/****/* ", "events_url": "https://.github.com/**/****/**{/***} ", "received_events_url": "https://.github.com/**/****/****_**** ", "type": "User", "site_admin": false }	[]	open	False	[]	4	7/25/2020 12:03:55 AM	7/28/2020 10:50:45 PM	OWNER	******

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Issues failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the GitHub portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Not Found.

Error Sample Data

List Issues failed.

Status Code: 404.

Message: Not Found.

Search Issues

Searches issues.

Input

Input Parameter	Required/Optional	Description	Example
QueryString	Required	The query string to search issues.	********+user:******

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

CODE

{
    "total_count": 1,
    "incomplete_results": false,
    "items": [
        {
            "url": "https://***.github.com/*****/********/*******/******/*",
            "repository_url": "https://***.github.com/*****/********/*******",
            "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
            "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
            "events_url": "https://***.github.com/*****/********/*******/******/*/******",
            "html_url": "https://github.com/********/*******/******/*",
            "id": *********,
            "node_id": "************************",
            "number": 1,
            "title": "**********",
            "user": {
                "login": "********",
                "id": ********,
                "node_id": "********************",
                "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
                "gravatar_id": "",
                "url": "https://***.github.com/*****/********",
                "html_url": "https://github.com/********",
                "followers_url": "https://***.github.com/*****/********/*********",
                "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
                "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
                "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
                "subscriptions_url": "https://***.github.com/*****/********/*************",
                "organizations_url": "https://***.github.com/*****/********/****",
                "*****_url": "https://***.github.com/*****/********/*****",
                "events_url": "https://***.github.com/*****/********/******{/*******}",
                "received_events_url": "https://***.github.com/*****/********/********_******",
                "type": "User",
                "site_admin": false
            },
            "labels": [],
            "state": "open",
            "locked": false,
            "assignee": null,
            "assignees": [],
            "milestone": null,
            "comments": 4,
            "created_at": "2020-07-25T00:03:55Z",
            "updated_at": "2020-07-28T22:50:45Z",
            "closed_at": null,
            "author_association": "OWNER",
            "active_lock_reason": null,
            "body": "******",
            "performed_via_github_app": null,
            "score": 1
        }
    ]
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

CODE

{
    "total_count": 1,
    "incomplete_results": false,
    "items": [
        {
            "url": "https://***.github.com/*****/********/*******/******/*",
            "repository_url": "https://***.github.com/*****/********/*******",
            "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
            "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
            "events_url": "https://***.github.com/*****/********/*******/******/*/******",
            "html_url": "https://github.com/********/*******/******/*",
            "id": *********,
            "node_id": "************************",
            "number": 1,
            "title": "**********",
            "user": {
                "login": "********",
                "id": ********,
                "node_id": "********************",
                "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
                "gravatar_id": "",
                "url": "https://***.github.com/*****/********",
                "html_url": "https://github.com/********",
                "followers_url": "https://***.github.com/*****/********/*********",
                "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
                "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
                "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
                "subscriptions_url": "https://***.github.com/*****/********/*************",
                "organizations_url": "https://***.github.com/*****/********/****",
                "*****_url": "https://***.github.com/*****/********/*****",
                "events_url": "https://***.github.com/*****/********/******{/*******}",
                "received_events_url": "https://***.github.com/*****/********/********_******",
                "type": "User",
                "site_admin": false
            },
            "labels": [],
            "state": "open",
            "locked": false,
            "assignee": null,
            "assignees": [],
            "milestone": null,
            "comments": 4,
            "created_at": "2020-07-25T00:03:55Z",
            "updated_at": "2020-07-28T22:50:45Z",
            "closed_at": null,
            "author_association": "OWNER",
            "active_lock_reason": null,
            "body": "******",
            "performed_via_github_app": null,
            "score": 1
        }
    ]
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "IssueNumberList": "1",
    "UrlList" : ["https://***.github.com/*****/********/*******/******/*"],
    "TitleList" : ["**********"]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

total_count

1

incomplete_results

False

items

{

"url": "https://***.github.com/*****/********/*******/******/* ",

"repository_url": "https://***.github.com/*****/********/******* ",

"labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****} ",

"comments_url": "https://***.github.com/*****/********/*******/******/*/******** ",

"events_url": "https://***.github.com/*****/********/*******/******/*/****** ",

"html_url": "https://github.com/********/*******/******/* ",

"id": *********,

"node_id": "************************",

"number": 1,

"title": "**********",

"user": {

"login": "********",

"id": ********,

"node_id": "********************",

"avatar_url": "https://********.githubusercontent.com/*/********?*=*",

"gravatar_id": "",

"url": "https://***.github.com/*****/******** ",

"html_url": "https://github.com/******** ",

"followers_url": "https://***.github.com/*****/********/********* ",

"following_url": "https://***.github.com/*****/********/*********{/*****_****} ",

"gists_url": "https://***.github.com/*****/********/*****{/****_**} ",

"starred_url": "https://***.github.com/*****/********/*******{/*****}{/****} ",

"subscriptions_url": "https://***.github.com/*****/********/************* ",

"organizations_url": "https://***.github.com/*****/********/**** ",

"*****_url": "https://***.github.com/*****/********/***** ",

"events_url": "https://***.github.com/*****/********/******{/*******} ",

"received_events_url": "https://***.github.com/*****/********/********_****** ",

"type": "User",

"site_admin": false

},

"labels": [],

"state": "open",

"locked": false,

"assignee": null,

"assignees": [],

"milestone": null,

"comments": 4,

"created_at": "2020-07-25T00:03:55Z",

"updated_at": "2020-07-28T22:50:45Z",

"closed_at": null,

"author_association": "OWNER",

"active_lock_reason": null,

"body": "******",

"performed_via_github_app": null,

"score": 1.0

}

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Issues failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the GitHub portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: at BuildInIntegrations.GitHubIntegration.searchIssues(Object[] parameters).

Error Sample Data

Search Issues failed.

Status Code: 400.

Message: at BuildInIntegrations.GitHubIntegration.searchIssues(Object[] parameters).

Update Issue

Updates an issue.

READER NOTE

Repository and Issue Number are required parameters to run this command.

Run the List Issues command to obtain the Issue Number. Issue Number can be found in the returned raw data at the path $.number.
Make sure the issue number is under the repository you input. It is suggested to use the repository you choose to run the list issue command, select the issue you want to update, use that pair to run this command.

Input

Input Parameter	Required/Optional	Description	Example
Repository	Required	The repository containing the issue to update.	*******
Issue Number	Required	The number that identifies the issue to update. Issue Number can be obtained using the List Issues command.	1
Title	Required	The updated title of the issue.	**********
Body	Optional	The updated contents of the issue.	******
Labels	Optional	The updated labels to associate with this issue.	["labelA"]
Assignee	Optional	The updated assignee of the issue.	********
State	Optional	The updated state of the issue.	open

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

CODE

{
    "total_count": 1,
    "incomplete_results": false,
    "items": [
        {
            "url": "https://***.github.com/*****/********/*******/******/*",
            "repository_url": "https://***.github.com/*****/********/*******",
            "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
            "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
            "events_url": "https://***.github.com/*****/********/*******/******/*/******",
            "html_url": "https://github.com/********/*******/******/*",
            "id": *********,
            "node_id": "************************",
            "number": 1,
            "title": "**********",
            "user": {
                "login": "********",
                "id": ********,
                "node_id": "********************",
                "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
                "gravatar_id": "",
                "url": "https://***.github.com/*****/********",
                "html_url": "https://github.com/********",
                "followers_url": "https://***.github.com/*****/********/*********",
                "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
                "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
                "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
                "subscriptions_url": "https://***.github.com/*****/********/*************",
                "organizations_url": "https://***.github.com/*****/********/****",
                "*****_url": "https://***.github.com/*****/********/*****",
                "events_url": "https://***.github.com/*****/********/******{/*******}",
                "received_events_url": "https://***.github.com/*****/********/********_******",
                "type": "User",
                "site_admin": false
            },
            "labels": [],
            "state": "open",
            "locked": false,
            "assignee": null,
            "assignees": [],
            "milestone": null,
            "comments": 4,
            "created_at": "2020-07-25T00:03:55Z",
            "updated_at": "2020-07-28T22:50:45Z",
            "closed_at": null,
            "author_association": "OWNER",
            "active_lock_reason": null,
            "body": "******",
            "performed_via_github_app": null,
            "score": 1
        }
    ]
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

CODE

{
    "total_count": 1,
    "incomplete_results": false,
    "items": [
        {
            "url": "https://***.github.com/*****/********/*******/******/*",
            "repository_url": "https://***.github.com/*****/********/*******",
            "labels_url": "https://***.github.com/*****/********/*******/******/*/******{/****}",
            "comments_url": "https://***.github.com/*****/********/*******/******/*/********",
            "events_url": "https://***.github.com/*****/********/*******/******/*/******",
            "html_url": "https://github.com/********/*******/******/*",
            "id": *********,
            "node_id": "************************",
            "number": 1,
            "title": "**********",
            "user": {
                "login": "********",
                "id": ********,
                "node_id": "********************",
                "avatar_url": "https://********.githubusercontent.com/*/********?*=*",
                "gravatar_id": "",
                "url": "https://***.github.com/*****/********",
                "html_url": "https://github.com/********",
                "followers_url": "https://***.github.com/*****/********/*********",
                "following_url": "https://***.github.com/*****/********/*********{/*****_****}",
                "gists_url": "https://***.github.com/*****/********/*****{/****_**}",
                "starred_url": "https://***.github.com/*****/********/*******{/*****}{/****}",
                "subscriptions_url": "https://***.github.com/*****/********/*************",
                "organizations_url": "https://***.github.com/*****/********/****",
                "*****_url": "https://***.github.com/*****/********/*****",
                "events_url": "https://***.github.com/*****/********/******{/*******}",
                "received_events_url": "https://***.github.com/*****/********/********_******",
                "type": "User",
                "site_admin": false
            },
            "labels": [],
            "state": "open",
            "locked": false,
            "assignee": null,
            "assignees": [],
            "milestone": null,
            "comments": 4,
            "created_at": "2020-07-25T00:03:55Z",
            "updated_at": "2020-07-28T22:50:45Z",
            "closed_at": null,
            "author_association": "OWNER",
            "active_lock_reason": null,
            "body": "******",
            "performed_via_github_app": null,
            "score": 1
        }
    ]
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "IssueNumber": "1",
    "Url" : "https://***.github.com/*****/********/*******/******/*",
    "Title" : "**********"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

url	https://*.github.com/*/****/***/***/
repository_url	https://*.github.com/*/****/*****
labels_url	https://*.github.com/*/****/***/***//****{/**}
comments_url	https://*.github.com/*/****/***/***//********
events_url	https://*.github.com/*/****/***/***//******
html_url	https://github.com/******/***/***/
id	*********
node_id	************************
number	1
title	**********
user	{ "login": "******", "id": ****, "node_id": "****************", "avatar_url": "https://*****.githubusercontent.com//*******?=", "gravatar_id": "", "url": "https://.github.com/*/**** ", "html_url": "https://github.com/**** ", "followers_url": "https://.github.com/**/****/***** ", "following_url": "https://.github.com/**/****/*****{/*_} ", "gists_url": "https://.github.com/**/****/*{/_} ", "starred_url": "https://*.github.com/*/****/***{/*}{/} ", "subscriptions_url": "https://.github.com/**/****/********* ", "organizations_url": "https://.github.com/**/****/ ", "*_url": "https://.github.com/**/****/* ", "events_url": "https://.github.com/**/****/**{/***} ", "received_events_url": "https://.github.com/**/****/****_**** ", "type": "User", "site_admin": false }
labels
state	open
locked	False
assignee
assignees
milestone
comments	4
created_at	7/25/2020 12:03:55 AM
updated_at	7/28/2020 10:50:45 PM
closed_at
author_association	OWNER
active_lock_reason
body	******
closed_by
performed_via_github_app

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Update Issue failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the GitHub portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Not Found.

Error Sample Data

Update Issue failed.

Status Code: 404.

Message: Not Found.
