Trend Micro Vision One

Overview

Trend Micro Vision One is a purpose-built threat defense platform that provides added value and new benefits beyond XDR solutions, allowing users to see more and respond faster. Integration with Trend Micro Vision One mainly covers the major operations that are commonly used by users. For example, add file hash to blocklist, quarantine email message, delete message, isolate endpoint, restore endpoint, terminate process, fetch event, edit alert status, and so on.

D3 SOAR is providing REST operations to function with Trend Micro Vision One.

Trend Micro Vision One is available for use in:

D3 SOAR	V14.0.184.0+
Category	SIEM XDR
Deployment Options	Option II, Option IV

Known Limitations

Trend Micro Vision One imposes rate limits on API requests. For more information on rate limits, refer to Trend Micro Vision One's API Request Limits page.

Connection

To connect to Trend Micro Vision One from D3 SOAR, please follow this part to collect the required information below:

Parameter	Description	Example
Server URL	TrendMicro Vision One URL	https://api.xdr.trendmicro.com/
Authentication Token	Use the token for authentication	eyJ0eXAi****************mL7E_KD8
API Version	Specify the API Version.	v2.0

Permission Requirements

Each endpoint in the Trend Micro Vision One API requires a certain permission scope. The following are required scopes for the commands in this integration:

Command	Required Permission
Add Alert Note	Workbench: Modify alert details
Add To Blocklist	Response Management: View, filter, and search (Task List tab) + Add to block list Suspicious Object Management: View, filter, and search + Manage lists and configure settings
Delete Alert Notes	Workbench: Modify alert details
Delete Message	Response Management: View, filter, and search (Task List tab) + Delete messages
Edit Alert Statuses	Workbench: Modify alert details
Fetch Event	Workbench: View, filter, and search
Get Alert Notes	Workbench: View, filter, and search
Get Endpoint Info	N/A
Get Exception List	Suspicious Object Management: View, filter, and search
Get Message Info	Search: View, filter, and search
Isolate Endpoints	Response Management: View, filter, and search (Task List tab) + Isolate endpoint
List Task Responses	Response Management: View, filter, and search (Task List tab)
Quarantine Email Message	Response Management: View, filter, and search (Task List tab) + Quarantine/Restore messages
Remove From Blocklist	Response Management: View, filter, and search (Task List tab) + Add to block list Suspicious Object Management: View, filter, and search + Manage lists and configure settings
Restore Endpoints	Response Management: View, filter, and search (Task List tab) + Isolate endpoint
Search Data	Search: View, filter, and search
Search Detections	Search: View, filter, and search
Terminate Process	Response Management: View, filter, and search (Task List tab) + Terminate process
Test Connection	Workbench: View, filter, and search

Configuring Trend Micro Vision One to Work with D3 SOAR

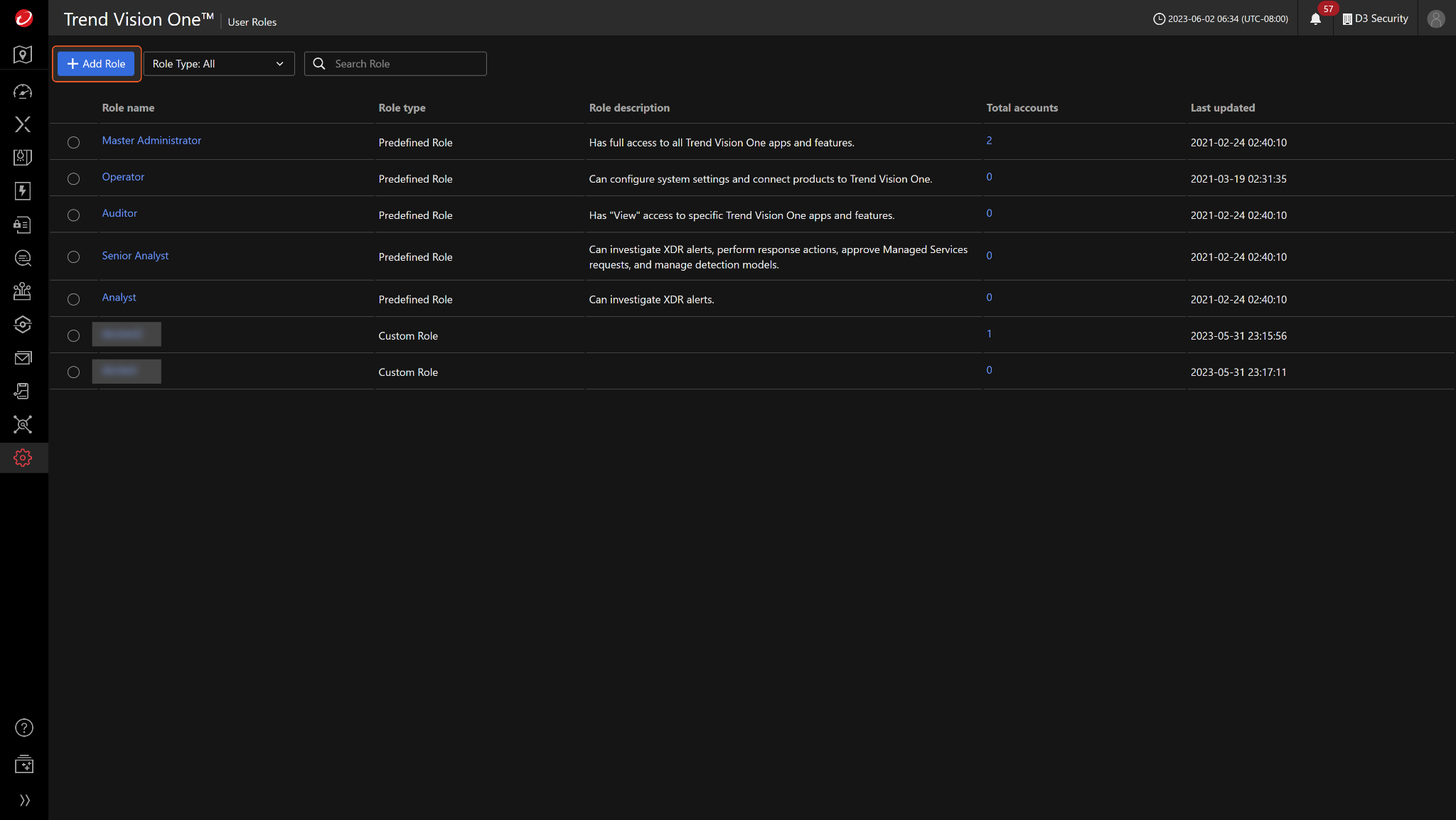

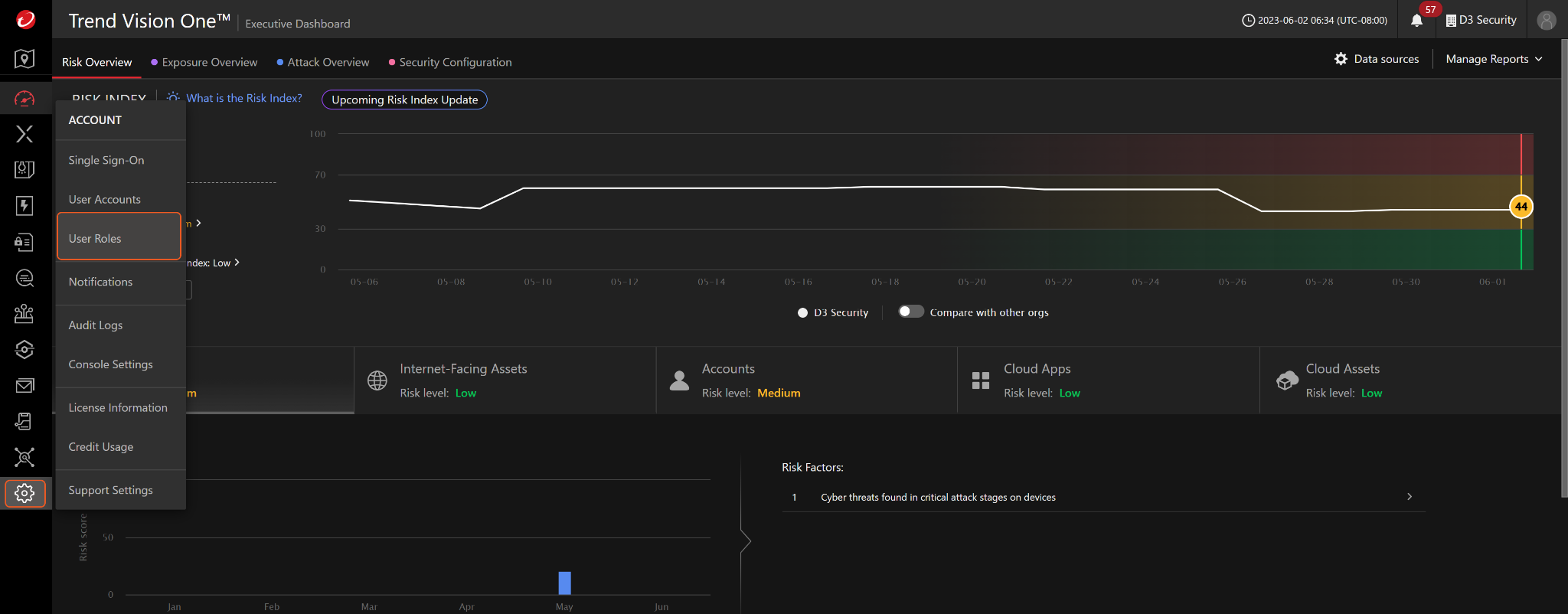

Click on the gear icon to open the settings menu, then select User Roles.
Click + Add Role to create a new user role.

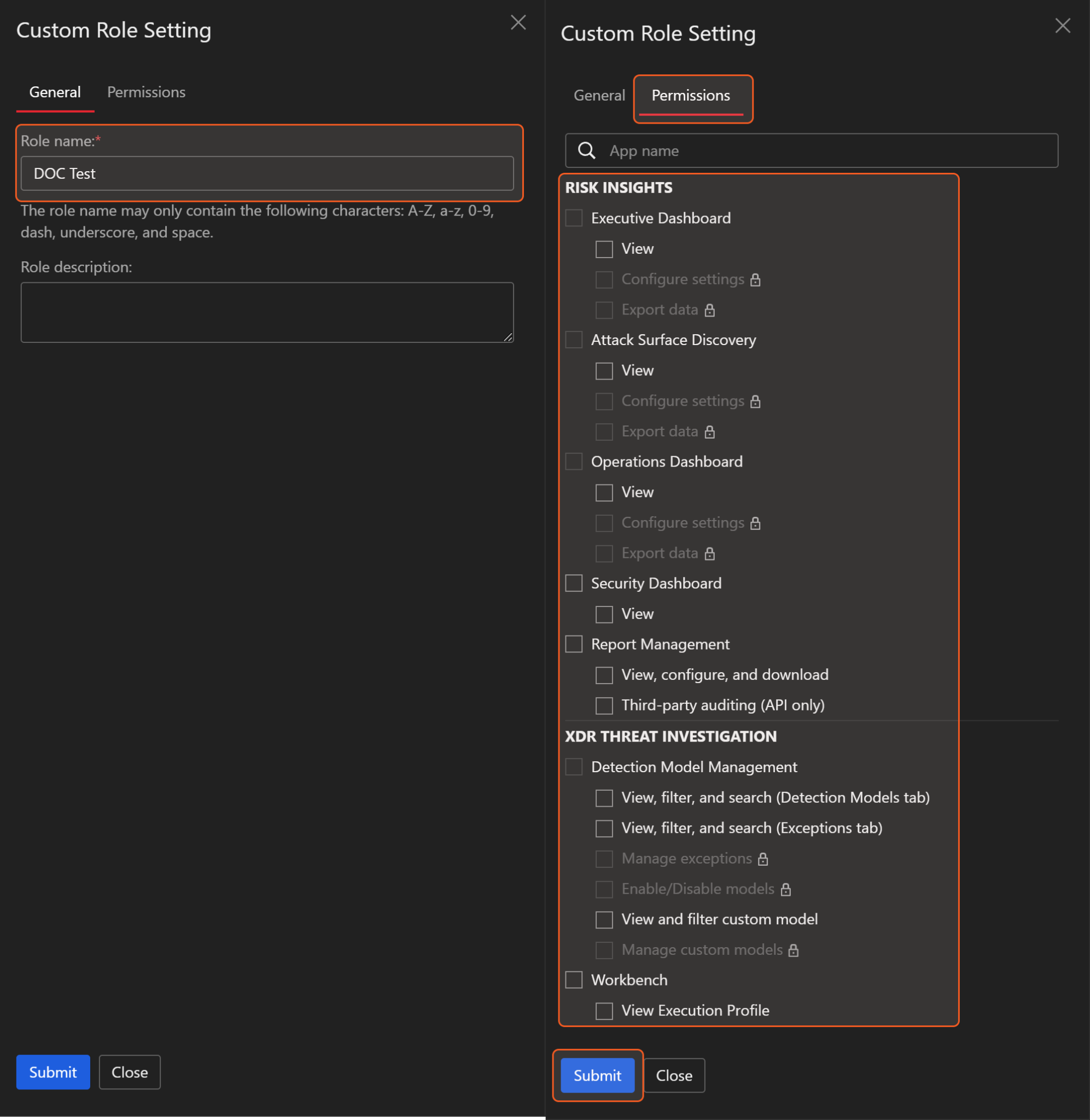

Create a name for the role, then configure the required permissions for the role based on the Permission Requirements. Once finished, click Submit.

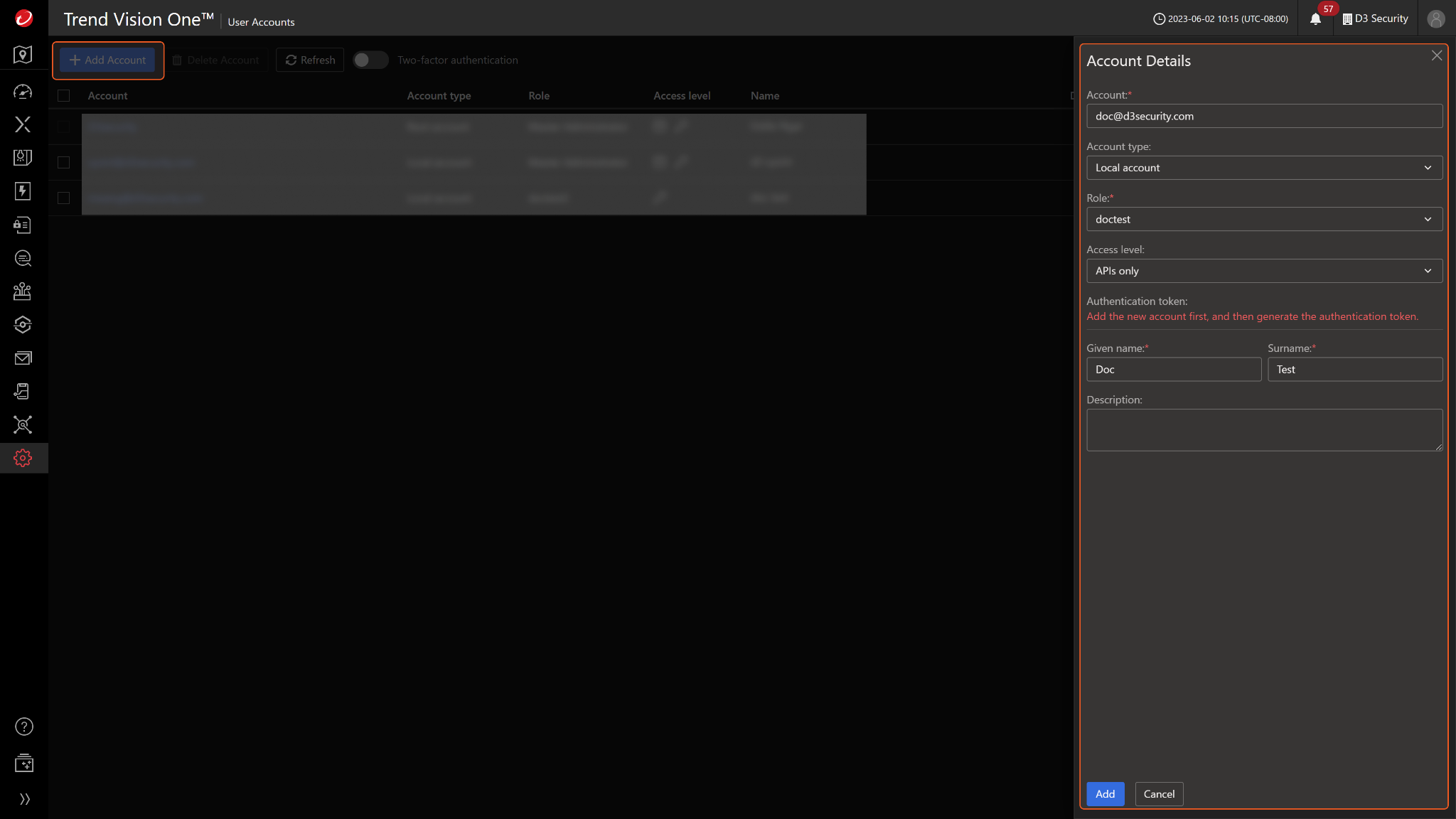

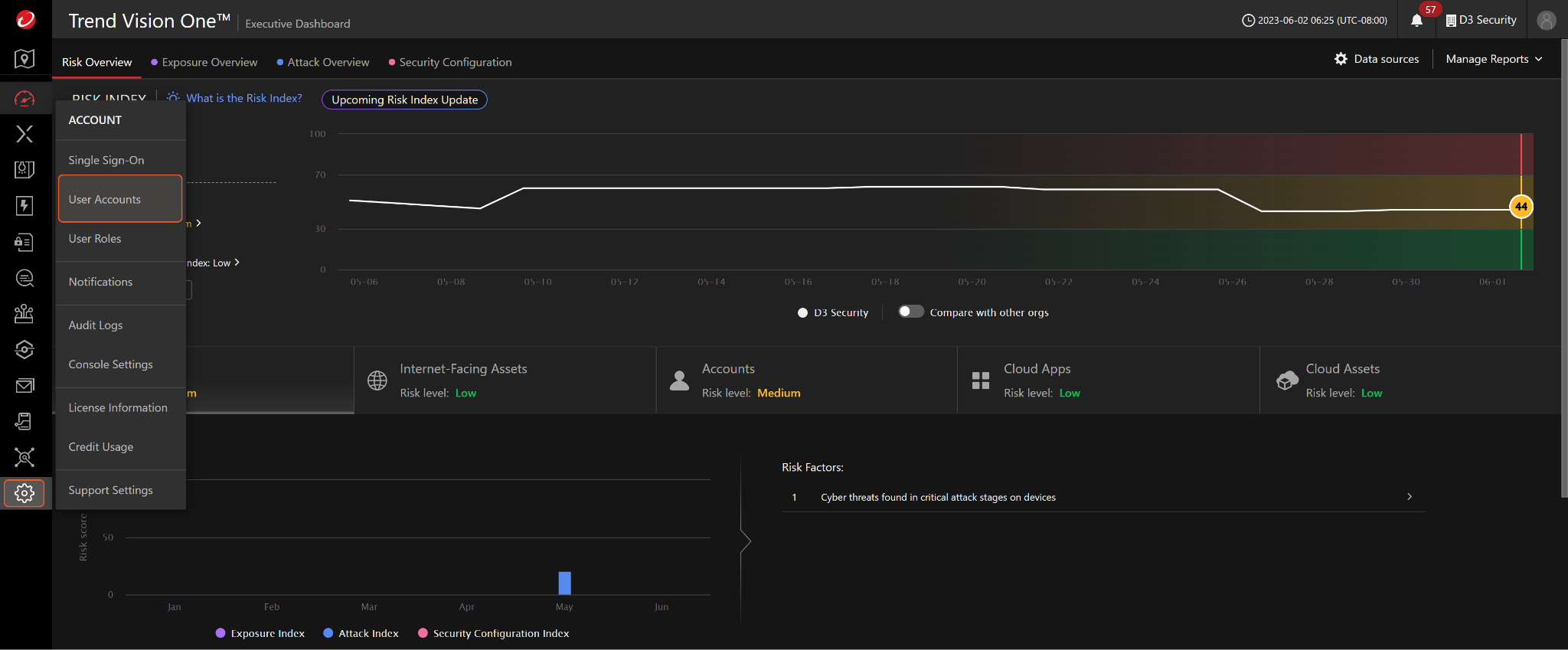

To add an account, click the gear icon on the left sidebar, then select User Accounts.
Click + Add Account to create a new user. Input the details of the account, then click Add.

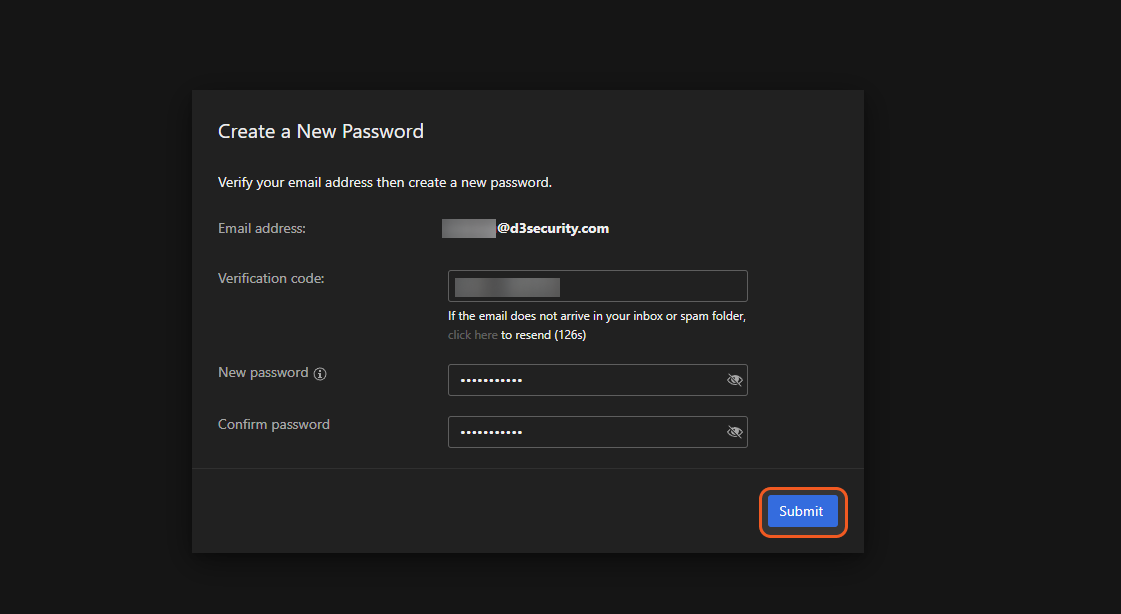

A verification email will be sent to the email provided. Check the email to verify the account.

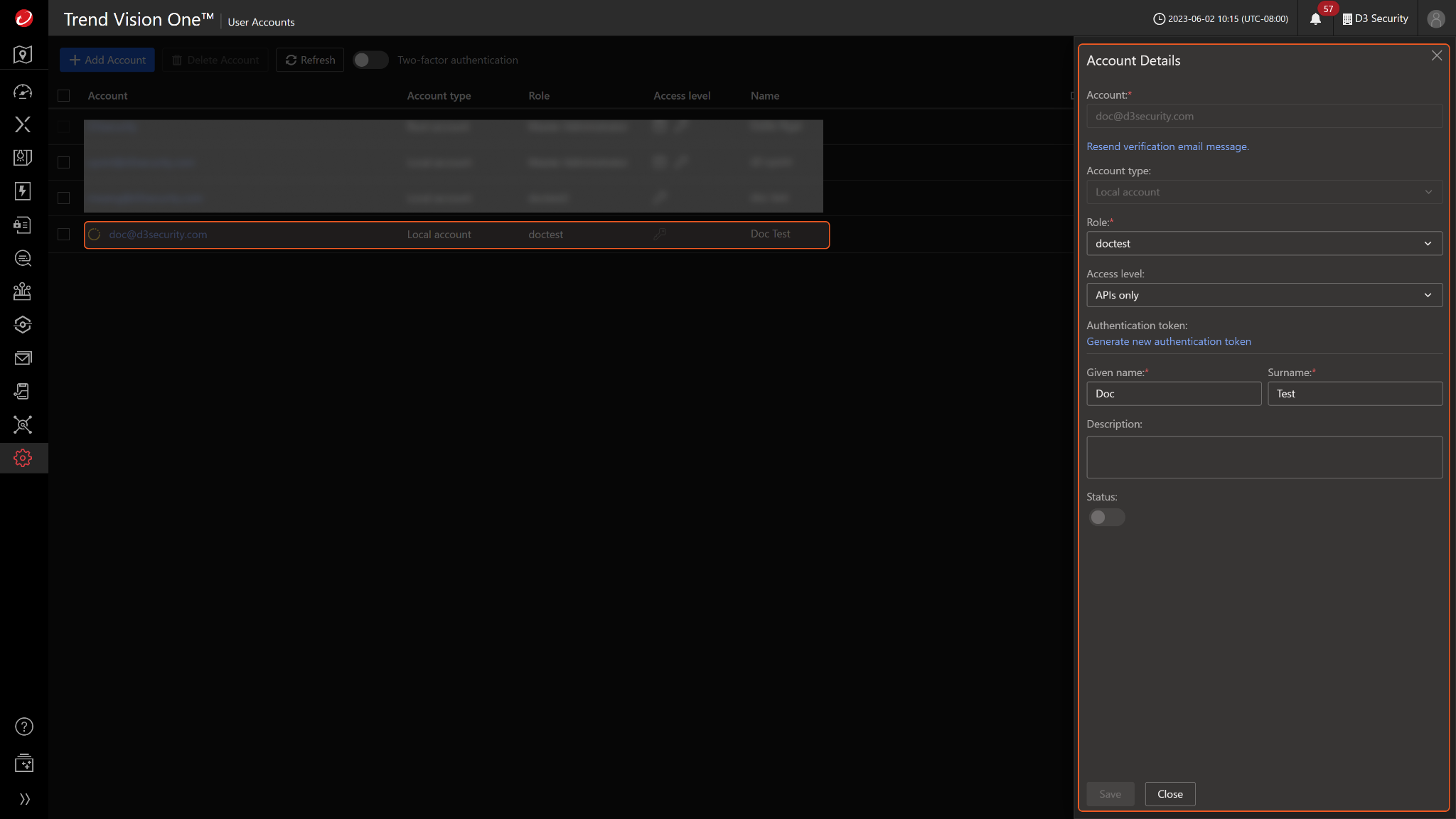

Once the account is verified, return to the account details and click Generate new authentication token.

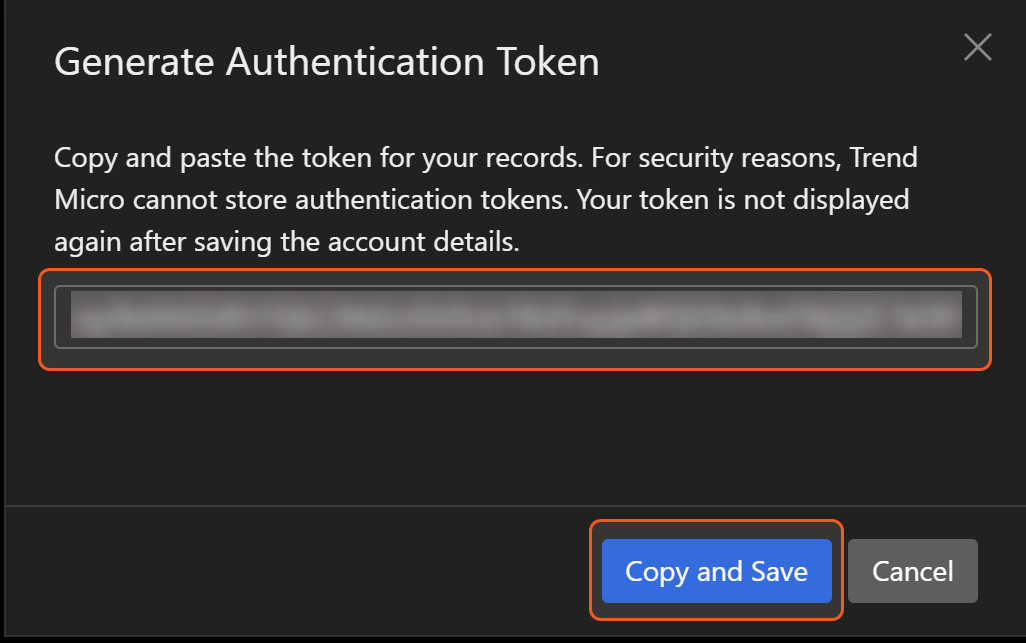

Copy and save the Authentication Token. It will be required to build the integration connection in D3 SOAR. Note: The created Authentication Token can only be viewed once. Store it in a secure location before leaving the page.
When making changes to the user role, the token's permissions will not be automatically updated to reflect the new permissions. A new token needs to be generated in order to reflect new changes.

Configuring D3 SOAR to Work with Trend Micro Vision One

Log in to D3 SOAR.
Find the Trend Micro Vision One integration.

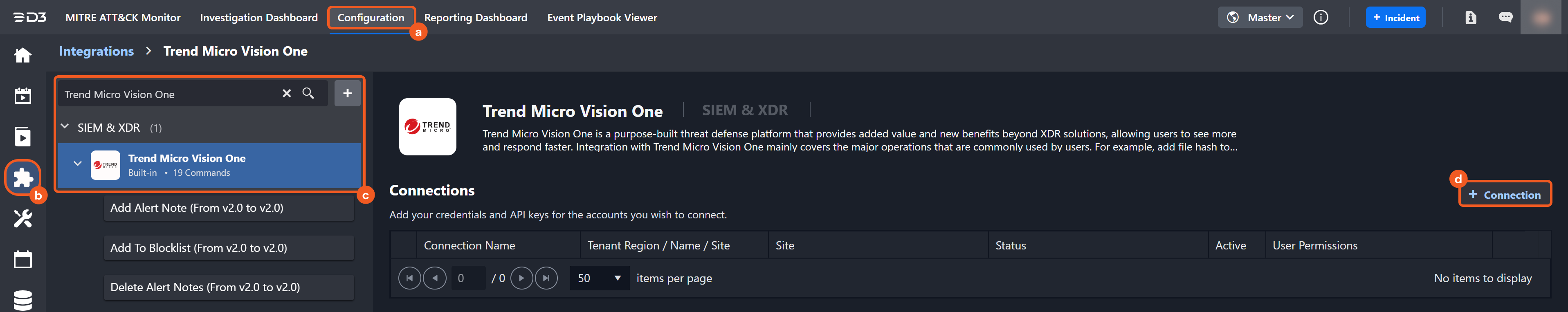

1. Navigate to Configuration on the top header menu.
2. Click on the Integration icon on the left sidebar.
3. Type Trend Micro Vision One in the search box to find the integration, then click it to select it.
4. Click + Connection, on the right side of the Connections section. A new connection window will appear.

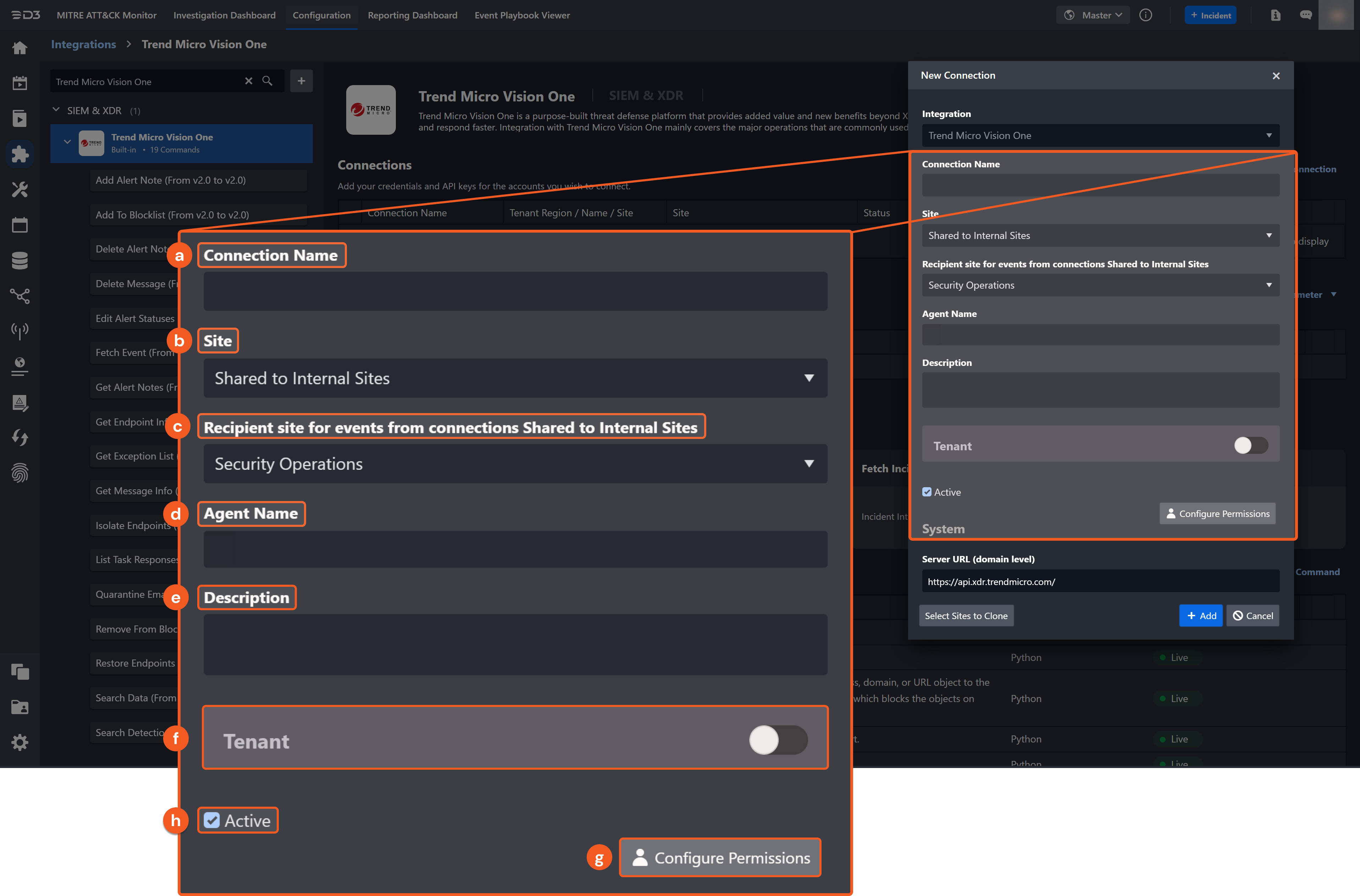

Configure the following fields to create a connection to Trend Micro Vision One.
1. Connection Name: The desired name for the connection.
2. Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
3. Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.
4. Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
5. Description (Optional): Add your desired description for the connection.
6. Configure User Permissions: Defines which users have access to the connection.
7. Active: Check the tick box to ensure the connection is available for use.

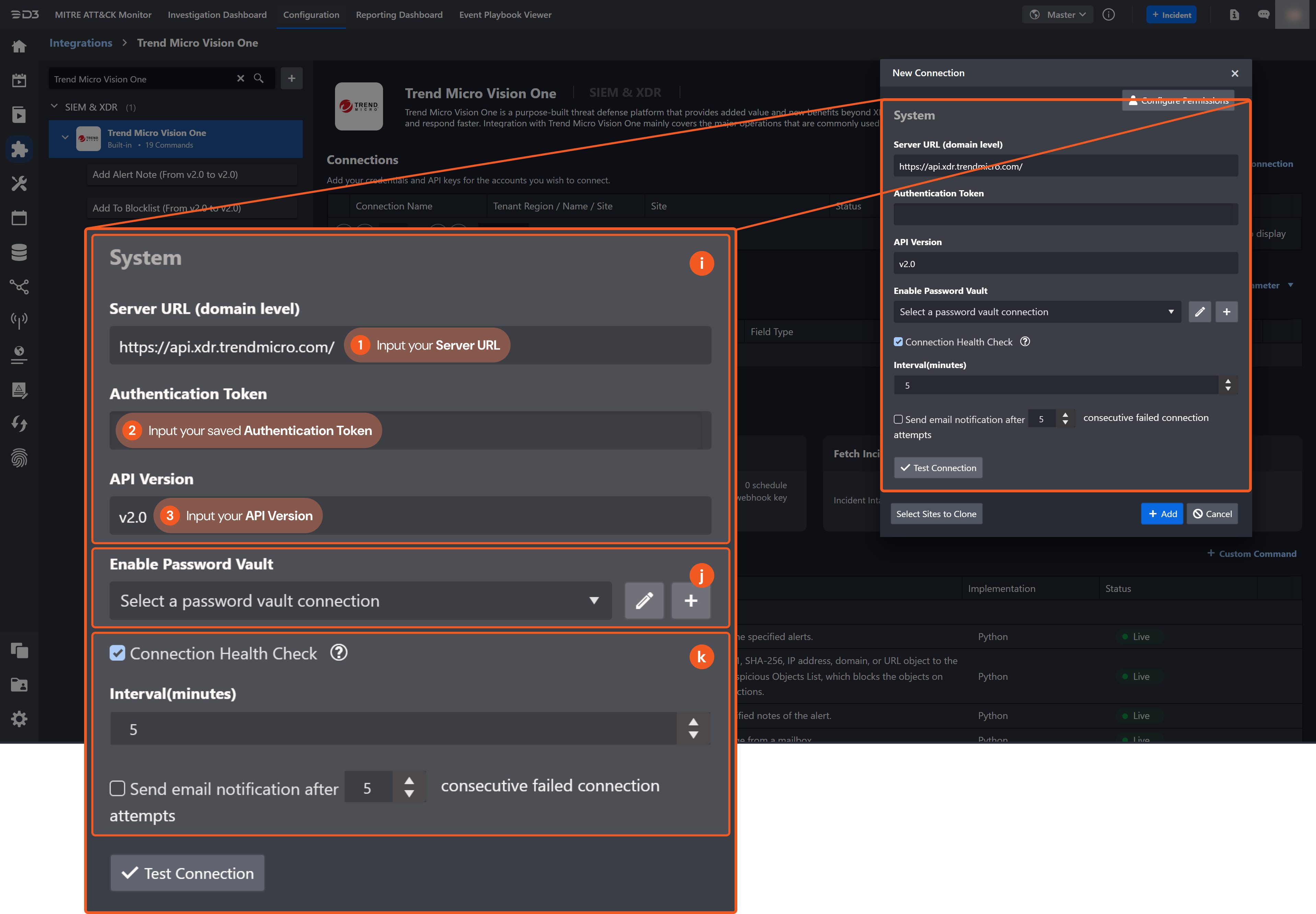

8. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
  1. Input the Server URL.
  2. Copy the Authentication Token from the Trend Micro Vision One platform (Refer to step 5 of Configuring Trend Micro Vision One to Work with D3 SOAR).
  3. Input the API Version. The default value is v2.0.
9. Connection Health Check: Updates the connection status you have created. A connection health check is done by scheduling the Test Connection command of this integration. This can only be done when the connection is active.
  To set up a connection health check, check the Connection Health Check tick box. You can customize the interval (minutes) for scheduling the health check. An email notification can be set up after a specified number of failed connection attempts.
10. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Please refer to the password vault connection guide if needed.
Test the connection.
1. Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green checkmark appear beside the Test Connection button. If the test connection fails, please check your connection parameters and try again.
2. Click OK to close the alert window.
3. Click + Add to create and add the configured connection.

Commands

Trend Micro Vision One includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the Trend Micro Vision One API, please refer to the Trend Micro Vision One API reference.

Reader Note

Certain permissions are required for each command. Please refer to the Permission Requirements and Configuring Trend Micro Vision One to Work with D3 SOAR for details.

Note for Time-related parameters

The input format of time-related parameters may vary based on your account settings. As a result, the sample data provided in our commands is different from what you see. To set your preferred time format, follow these steps:

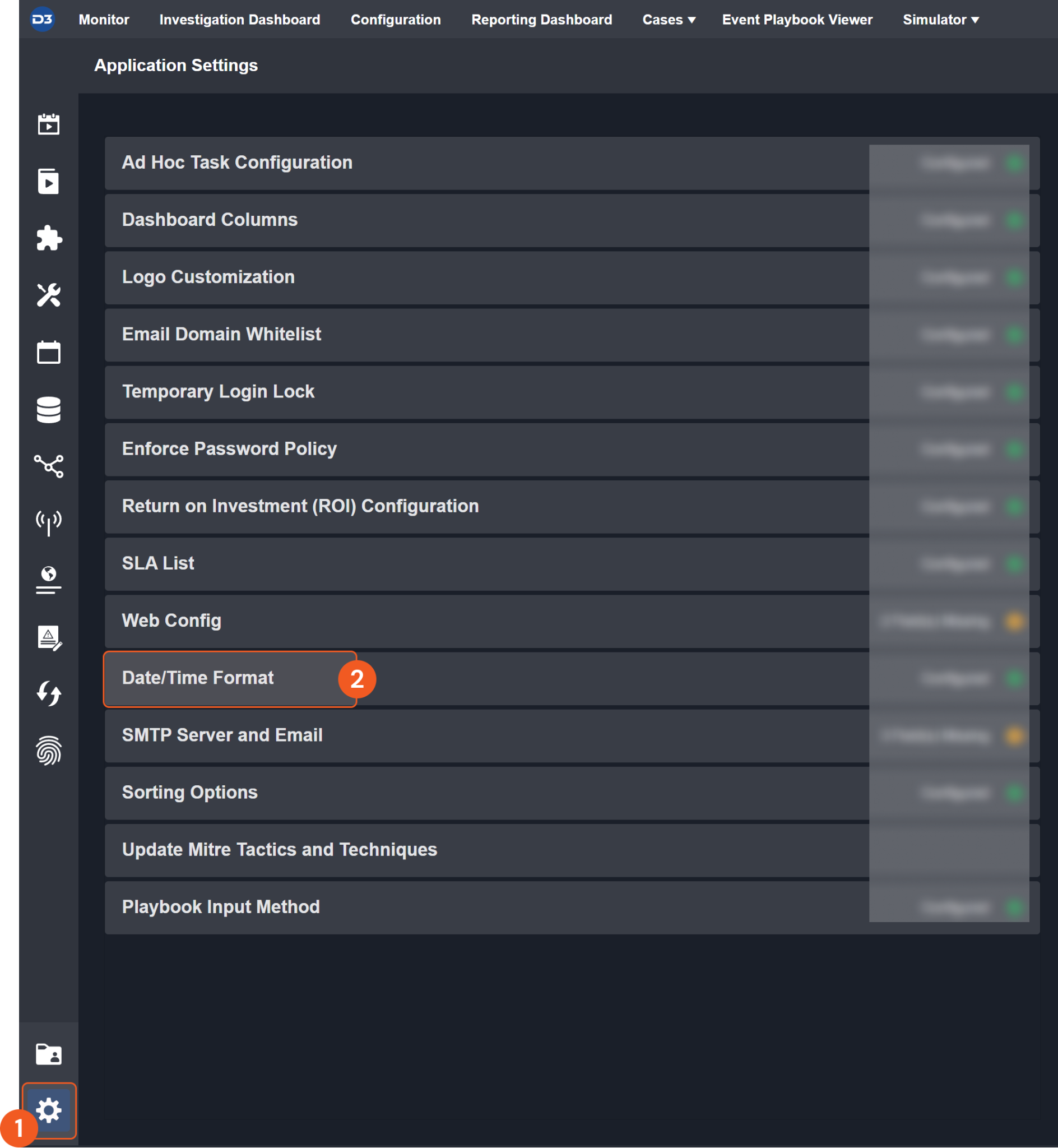

Navigate to Configuration > Application Settings. Select Date/Time Format.
Choose your desired date and time format.
After that, you will be able to view your preferred time format when configuring the DateTime input parameters for commands.

Add Alert Note

Adds a note to the specified alerts.

Reader Note

The parameter Workbench IDs is required to run this command.

Run the Fetch Event command with defined filters to retrieve the desired Workbench IDs. The Workbench IDs can be found in the returned raw data at the path $.data.workbenchRecords[*].data.workbenchId.

Input

Input Parameter	Required/Optional	Description	Example
Workbench IDs	Required	The workbench record IDs of the alerts. Workbench IDs can be obtained using the Fetch Event command with defined filters.	[ "WB-***-*-00001", "WB-*-***-00000" ]
Note	Required	The note content applied to the alerts.	New note for alerts.

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Vision One API response by adding the "workbenchIds" field

SAMPLE DATA

JSON

[
    {
        "workbenchId": "WB-*****-*****-00001",
        "info": {
            "code": *****,
            "msg": "Alert notes added successfully."
        },
        "data": {
            "id": 123
        }
    },
    {
        "workbenchID": "WB-*****-*****-00000",
        "error": {
            "code": "*****",
            "message": "Unable to process the request. Verify that the request is properly formatted and try again. (Error code: 3090003)",
            "innererror": {
                "code": ""
            }
        }
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "WorkbenchIDs": [
        "WB-*****-*****-00001",
        "WB-*****-*****-00000"
    ],
    "NoteIDs": [
        *****,
        *****
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

WORKBENCHID	INFO	DATA
WB-*****-*****-00001	{'code': *****, 'msg': 'Alert notes added successfully.'}	{'id': *****}

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Add Alert Note failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unable to process the request. Verify that the specified workbench ID exists and that you have permission to access the alert and try again.

Error Sample Data

Add Alert Note failed.

Status Code: 404.

Message: Unable to process the request. Verify that the specified workbench ID exists and that you have permission to access the alert and try again.

Add To Blocklist

Adds a file SHA-1, IP address, domain, or URL object to the User-Defined Suspicious Objects List, which blocks the objects on subsequent detections.

Input

Input Parameter	Required/Optional	Description	Example
Value Type	Required	The type of target to be added to the blocklist.	File SHA-1
Target Value	Required	The value of the targets to be added to the blocklist.	[ "36***5B", "D5***92" ]
Description	Optional	The description for the action of adding objects to the blocklist.	test batch block file sha1

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "data": [
        {
            "targetValue": "36*****5B",
            "valueType": "file_sha1",
            "actionId": "*****",
            "taskStatus": "pending"
        },
        {
            "targetValue": "D5*****92",
            "valueType": "file_sha1",
            "actionId": "*****",
            "taskStatus": "pending"
        }
    ]
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.data in API returned JSON.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Dat

SAMPLE DATA

JSON

[
    {
        "targetValue": "*****",
        "valueType": "file_sha1",
        "actionId": "*****",
        "taskStatus": "pending"
    },
    {
        "targetValue": "*****",
        "valueType": "file_sha1",
        "actionId": "*****",
        "taskStatus": "pending"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "ActionIds": [
        "*****",
        "*****"
    ],
    "TaskStatuses": [
        "pending",
        "pending"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

TARGETVALUE	VALUETYPE	ACTIONID	TASKSTATUS
*****   file_sha1	*****   pending
*****   file_sha1	*****	pending

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Add To Blocklist failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: InvalidToken.

Error Sample Data

Add To Blocklist failed.

Status Code: 403.

Message: InvalidToken.

Delete Alert Notes

Deletes the specified notes of the alert.

Reader Note

Workbench ID and Note IDs are required parameters to run this command.

Run the Fetch Event command with defined filters to retrieve the desired Workbench IDs. The Workbench IDs can be found in the returned raw data at the path $.data.workbenchRecords[*].data.workbenchId.
Run the Get Alert Notes command to obtain the Note IDs. The Note IDs can be found in the returned raw data at the path $.notes[*].id.
Note: the input value of Workbench ID and Notes IDs must match. It is suggested to use the desired Workbench ID to run the Get Alert Notes command to obtain the Note IDs, then use those pairs of values to run this command.

Input

Input Parameter	Required/Optional	Description	Example
Workbench ID	Required	The workbench records IDs of the alert. Workbench IDs can be obtained using the Fetch Event command with defined filters.	WB-***-***-00001
Note IDs	Required	The note ID of the alert. Note IDs can be obtained using the Get Alert Notes command.	[ 1, 2, 32 ]

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Vision One API response by adding the "workbenchID" field.

SAMPLE DATA

JSON

{
    "workbenchID": "WB-*****-*****-00001",
    "info": {
        "code": *****,
        "msg": "Alert notes deleted successfully."
    },
    "data": {
        "ids": [
            *****
        ]
    }
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

";Alert notes deleted successfully.";

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Delete Alert Notes failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unable to process the request. Verify that the request is properly formatted and try again.

Error Sample Data

Delete Alert Notes failed.

Status Code: 400.

Message: Unable to process the request. Verify that the request is properly formatted and try again.

Delete Message

Deletes a message from a mailbox.

Reader Note

Message ID is a required parameter to run this command.

Run the Get Message Info command to obtain Message ID. Message IDs can be obtained from the returned raw data at the path $.data.logs[*].mail_message_id.

Input

Input Parameter	Required/Optional	Description	Example
Message ID	Required	The message ID of the email to be deleted. Message IDs can be obtained using the Get Message Info command.	*----**@YTXPR0101MB1581.CANPRD01.PROD.OUTLOOK.COM
Mailbox	Required	The mailbox of the email to be deleted.	test@example.com
Message Delivery Time	Optional	The delivery time of the email to be deleted.	2021-06-23 00:00
Description	Optional	The description to add for the action of deleting email.	delete description test

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "actionId": "*****",
    "taskStatus": "pending"
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.data.logs in API returned JSON.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

{
    "actionId": "*****",
    "taskStatus": "pending"
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "ActionId": "*****",
    "TaskStatus": "pending"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

ACTIONID	TASKSTATUS
*****       failed
*****   	timeout
*****   	success

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Delete Message failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid field format: mailBox.

Error Sample Data

Delete Message failed.

Status Code: 400.

Message: Invalid field format: mailBox.

Edit Alert Statuses

Modifies the investigation status of the specified alerts.

Reader Note

The parameter Workbench IDs is required to run this command.

Run the Fetch Event command with defined filters to retrieve the desired Workbench IDs. The Workbench IDs can be found in the returned raw data at the path $.data.workbenchRecords[*].data.workbenchId.

Input

Input Parameter	Required/Optional	Description	Example
Workbench IDs	Required	The workbench records IDs of the alerts. Workbench IDs can be obtained using the Fetch Event command with defined filters.	["WB-***-*-00001", "WB-*-***-00000"]
Investigation Status	Optional	The investigation status that will be applied to the alerts.	2: Resolved: True Positive

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Vision One API response by adding the "workbenchID" field.

SAMPLE DATA

JSON

[
    {
        "info": {
            "code": *****,
            "msg": "Alert status changed successfully."
        },
        "data": null
    },
    {
        "info": {
            "code": *****,
            "msg": "Alert status changed successfully."
        },
        "data": null
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

[
    {
        "info": {
            "code": *****,
            "msg": "Alert status changed successfully."
        },
        "data": null
    },
    {
        "info": {
            "code": *****,
            "msg": "Alert status changed successfully."
        },
        "data": null
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

No Sample Data

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

INFO	DATA	WORKBENCHID
{
";code";: *****,
";msg";: ";Alert status changed successfully.";
}		WB-*****-*****-00001
{
";code";: *****,
";msg";: ";Alert status changed successfully.";
}		WB-*****-*****-00000

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Edit Alert Statuses failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unable to change alert status. Verify that all requested workbench IDs exist and try again.

Error Sample Data

Edit Alert Statuses failed.

Status Code: 404.

Message: Unable to change alert status. Verify that all requested workbench IDs exist and try again.

Fetch Event

Retrieves a list of alerts with details from one or more data sources for a specific period.

Input

Input Parameter	Required/Optional	Description	Example
Start Time	Required	The start time of the time range to fetch alerts in UTC time.	2021-06-23 00:00
End Time	Required	The end time of the time range to fetch alerts in UTC time.	2021-06-24 00:00
Number of Event(s) Fetched	Optional	The maximum number of alerts to return.	50
Search Condition	Optional	The query string to define the search condition. The query format is: source=<value> investigationStatus=[<value1>, <value2>,<value3>,<value4>]. For example: source=all investigationStatus=[0,1]. Please note that only source and investigationStatus fields can be used in the query string. Valid values for the source field are: all (default), workbench, ... The investigationStatus field is an array of integers. Valid values for the invesitgationStatus are: 0, 1, 2, 3. The definition of values is: 0 = New, 1 = In Progress, 2 = Resolved: True Positive, 3 = Resolved: False Positive.	source=all investigationStatus=[0,1]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "info": {
        "code": *****,
        "msg": "Retrieve workbench summary information successfully."
    },
    "data": {
        "totalCount": 4,
        "modelList": [
            "System-Defined Event Logs Clearing via Wevtutil"
        ],
        "workbenchRecords": [
            {
                "investigationStatus": 1,
                "priorityScore": 50,
                "workbenchName": "System-Defined Event Logs Clearing via Wevtutil",
                "workbenchId": "WB-*****-******-00001",
                "workbenchLink": "https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-*****-*****-00001&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3",
                "createdTime": "2021-06-28T19:57:30Z",
                "updatedTime": "2021-08-30T23:39:40Z",
                "severity": "medium",
                "impactScope": {
                    "desktopCount": 1,
                    "serverCount": 2,
                    "accountCount": 1,
                    "emailAddressCount": 0
                },
                "data": {
                    "schemaVersion": "1.7",
                    "workbenchId": "WB-*****-******-00001",
                    "workbenchLink": "https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-*****-*****-00001&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3",
                    "alertProvider": "SAE",
                    "model": "System-Defined Event Logs Clearing via Wevtutil",
                    "description": "Wevtutil.exe, the Windows Event Log Utility, was executed multiple times to clear out the system-defined Event Logs.",
                    "score": "50",
                    "modelSeverity": "medium",
                    "impactScope": [
                        {
                            "entityValue": "desktop-******\\sysint",
                            "entityId": "desktop-*****\\sysint",
                            "relatedEntities": [
                                "***-***-***-***-***"
                            ],
                            "relatedIndicators": [],
                            "entityType": "account"
                        },
                        {
                            "entityValue": {
                                "guid": "***-***-***-***-***",
                                "name": "WIN-*****",
                                "ips": [
                                    "1.1.1.1"
                                ]
                            },
                            "entityId": "***-***-***-***-***",
                            "relatedEntities": [],
                            "relatedIndicators": [
                                *****
                            ],
                            "entityType": "host"
                        },
                        {
                            "entityValue": {
                                "guid": "***-***-***-***-***",
                                "name": "desktop-*****",
                                "ips": [
                                    "1.1.1.1"
                                ]
                            },
                            "entityId": "***-***-***-***-***",
                            "relatedEntities": [
                                "desktop-*****\\*****"
                            ],
                            "relatedIndicators": [
                                ******
                            ],
                            "entityType": "host"
                        },
                        {
                            "entityValue": {
                                "guid": "***-***-***-***-***",
                                "name": "WIN-*****",
                                "ips": [
                                    "1.1.1.1"
                                ]
                            },
                            "entityId": "***-***-***-***-***",
                            "relatedEntities": [],
                            "relatedIndicators": [
                                *****
                            ],
                            "entityType": "host"
                        }
                    ],
                    "indicators": [
                        {
                            "id": 1,
                            "objectType": "command_line",
                            "objectValue": "C:\\Windows\\*****\\wevtutil.exe cl Application",
                            "relatedEntities": [
                                "***-***-***-***-***"
                            ],
                            "filterId": [
                                "***-***-***-***-***"
                            ]
                        },
                        {
                            "id": 2,
                            "objectType": "command_line",
                            "objectValue": "powershell",
                            "relatedEntities": [
                                "***-***-***-***-***"
                            ],
                            "filterId": [
                                "***-***-***-***-***"
                            ]
                        },
                        {
                            "id": 3,
                            "objectType": "command_line",
                            "objectValue": "C:\\Windows\\*****\\svchost.exe -k netsvcs -p -s Appinfo",
                            "relatedEntities": [
                                "***-***-***-***-***"
                            ],
                            "filterId": [
                                "***-***-***-***-***"
                            ]
                        },
                        {
                            "id": 4,
                            "objectType": "command_line",
                            "objectValue": "C:\\Windows\\*****\\WindowsPowerShell\\v1.0\\powershell.exe",
                            "relatedEntities": [
                                "***-***-***-***-***"
                            ],
                            "filterId": [
                                "***-***-***-***-***"
                            ]
                        }
                    ],
                    "matchedRules": [
                        {
                            "id": "***-***-***-***-***",
                            "name": "System-Defined Event Logs Clearing via Wevtutil",
                            "matchedFilters": [
                                {
                                    "id": ***-***-***-***-***",
                                    "name": "System-Defined Event Logs Clearing via Wevtutil",
                                    "timestamp": "2021-06-28T19:52:21.827Z",
                                    "mitreTechniques": [
                                        "V8.T1070.001"
                                    ]
                                }
                    ],
                    "alertTriggerTimestamp": "2021-06-28T19:55:16.219Z",
                    "workbenchCompleteTimestamp": "2021-06-28T19:57:30Z"
                }
            },
            {
                "investigationStatus": 0,
                "priorityScore": 50,
                "workbenchName": "System-Defined Event Logs Clearing via Wevtutil",
                "workbenchId": "WB-*****-*****-00000",
                "workbenchLink": "https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-18866-20210628-00000&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3",
                "createdTime": "2021-06-28T19:54:43Z",
                "updatedTime": "2021-06-28T19:56:13Z",
                "severity": "medium",
                "impactScope": {
                    "desktopCount": 1,
                    "serverCount": 2,
                    "accountCount": 1,
                    "emailAddressCount": 0
                },
                "data": {
                    "schemaVersion": "1.7",
                    "workbenchId": "WB-*****-*****-00000",
                    "workbenchLink": "https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-18866-20210628-00000&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3",
                    "alertProvider": "SAE",
                    "model": "System-Defined Event Logs Clearing via Wevtutil",
                    "description": "Wevtutil.exe, the Windows Event Log Utility, was executed multiple times to clear out the system-defined Event Logs.",
                    "score": "50",
                    "modelSeverity": "medium",
                    "impactScope": [
                        {
                            "entityValue": "win-*****\\administrator",
                            "entityId": "win-*****\\administrator",
                            "relatedEntities": [
                                "***-***-***-***-***"
                            ],
                            "relatedIndicators": [],
                            "entityType": "account"
                        }
                    ],
                    "indicators": [
                        {
                            "id": 1,
                            "objectType": "command_line",
                            "objectValue": "C:\\Windows\\*****\\wevtutil.exe cl Application",
                            "relatedEntities": [
                                "***-***-***-***-***"
                            ],
                            "filterId": [
                                "***-***-***-***-***"
                            ]
                        }
                    ],
                    "matchedRules": [
                        {
                            "id": "***-***-***-***-***",
                            "name": "System-Defined Event Logs Clearing via Wevtutil",
                            "matchedFilters": [
                                {
                                    "id": "***-***-***-***-***",
                                    "name": "System-Defined Event Logs Clearing via Wevtutil",
                                    "timestamp": "2021-06-28T19:49:07.845Z",
                                    "mitreTechniques": [
                                        "V8.T1070.001"
                                    ]
                                },
                                {
                                    "id": "***-***-***-***-***",
                                    "name": "System-Defined Event Logs Clearing via Wevtutil",
                                    "timestamp": "2021-06-28T19:50:09.208Z",
                                    "mitreTechniques": [
                                        "V8.T1070.001"
                                    ]
                                }
                            ]
                        }
                    ],
                    "alertTriggerTimestamp": "2021-06-28T19:53:13.265Z",
                    "workbenchCompleteTimestamp": "2021-06-28T19:54:43Z"
                }
            }
        ]
    }
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.workbenchRecords in API returned JSON.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

[
    {
        "investigationStatus": 1,
        "priorityScore": 50,
        "workbenchName": "System-Defined Event Logs Clearing via Wevtutil",
        "workbenchId": "WB-*****-*****-00001",
        "workbenchLink": "https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-*****-*****-00001&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3",
        "createdTime": "2021-06-28T19:57:30Z",
        "updatedTime": "2021-08-30T23:39:40Z",
        "severity": "medium",
        "impactScope": {
            "desktopCount": 1,
            "serverCount": 2,
            "accountCount": 1,
            "emailAddressCount": 0
        },
        "data": {
            "schemaVersion": "1.7",
            "workbenchId": "WB-*****-*****-00001",
            "workbenchLink": "https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-*****-*****-00001&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3",
            "alertProvider": "SAE",
            "model": "System-Defined Event Logs Clearing via Wevtutil",
            "description": "Wevtutil.exe, the Windows Event Log Utility, was executed multiple times to clear out the system-defined Event Logs.",
            "score": "50",
            "modelSeverity": "medium",
            "impactScope": [
                {
                    "entityValue": "desktop-*****\\*****",
                    "entityId": "desktop-*****\\*****",
                    "relatedEntities": [
                        "***-***-***-***-***"
                    ],
                    "relatedIndicators": [],
                    "entityType": "account"
                },
                {
                    "entityValue": {
                        "guid": "***-***-***-***-***",
                        "name": "WIN-*****",
                        "ips": [
                            "1.1.1.1"
                        ]
                    },
                    "entityId": "***-***-***-***-***",
                    "relatedEntities": [],
                    "relatedIndicators": [
                        *****
                    ],
                    "entityType": "host"
                },
                {
                    "entityValue": {
                        "guid": "***-***-***-***-***",
                        "name": "desktop-*****",
                        "ips": [
                            "1.1.1.1"
                        ]
                    },
                    "entityId": "***-***-***-***-***",
                    "relatedEntities": [
                        "desktop-*****\\*****"
                    ],
                    "relatedIndicators": [
                        &****
                    ],
                    "entityType": "host"
                }
            ],
            "indicators": [
                {
                    "id": 1,
                    "objectType": "command_line",
                    "objectValue": "C:\\Windows\\*****\\wevtutil.exe cl Application",
                    "relatedEntities": [
                        "***-***-***-***-***"
                    ],
                    "filterId": [
                        "***-***-***-***-***"
                    ]
                }
            ],
            "matchedRules": [
                {
                    "id": "***-***-***-***-***",
                    "name": "System-Defined Event Logs Clearing via Wevtutil",
                    "matchedFilters": [
                        {
                            "id": "***-***-***-***-***",
                            "name": "System-Defined Event Logs Clearing via Wevtutil",
                            "timestamp": "2021-06-28T19:52:21.827Z",
                            "mitreTechniques": [
                                "V8.T1070.001"
                            ]
                        },
                        {
                            "id": "***-***-***-***-***",
                            "name": "System-Defined Event Logs Clearing via Wevtutil",
                            "timestamp": "2021-06-28T19:49:55.249Z",
                            "mitreTechniques": [
                                "V8.T1070.001"
                            ]
                        }
                    ]
                }
            ],
            "alertTriggerTimestamp": "2021-06-28T19:55:16.219Z",
            "workbenchCompleteTimestamp": "2021-06-28T19:57:30Z"
        }
    },
    {
        "investigationStatus": 0,
        "priorityScore": 50,
        "workbenchName": "System-Defined Event Logs Clearing via Wevtutil",
        "workbenchId": "WB-*****-*****-00000",
        "workbenchLink": "https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-18866-20210628-00000&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3",
        "createdTime": "2021-06-28T19:54:43Z",
        "updatedTime": "2021-06-28T19:56:13Z",
        "severity": "medium",
        "impactScope": {
            "desktopCount": 1,
            "serverCount": 2,
            "accountCount": 1,
            "emailAddressCount": 0
        },
        "data": {
            "schemaVersion": "1.7",
            "workbenchId": "WB-*****-*****-00000",
            "workbenchLink": "https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-18866-20210628-00000&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3",
            "alertProvider": "SAE",
            "model": "System-Defined Event Logs Clearing via Wevtutil",
            "description": "Wevtutil.exe, the Windows Event Log Utility, was executed multiple times to clear out the system-defined Event Logs.",
            "score": "50",
            "modelSeverity": "medium",
            "impactScope": [
                {
                    "entityValue": "win-*****\\administrator",
                    "entityId": "win-*****\\administrator",
                    "relatedEntities": [
                        "***-***-***-***-***"
                    ],
                    "relatedIndicators": [],
                    "entityType": "account"
                },
                {
                    "entityValue": {
                        "guid": "***-***-***-***-***",
                        "name": "DESKTOP-******",
                        "ips": [
                            "1.1.1.1"
                        ]
                    },
                    "entityId": "***-***-***-***-***",
                    "relatedEntities": [],
                    "relatedIndicators": [
                        *****
                    ],
                    "entityType": "host"
                }
            ],
            "indicators": [
                {
                    "id": 1,
                    "objectType": "command_line",
                    "objectValue": "C:\\Windows\\*****\\wevtutil.exe cl Application",
                    "relatedEntities": [
                        "***-***-***-***-***",
                        "8***-***-***-***-***"
                    ],
                    "filterId": [
                        "***-***-***-***-***"
                    ]
                }
            ],
            "matchedRules": [
                {
                    "id": "***-***-***-***-***",
                    "name": "System-Defined Event Logs Clearing via Wevtutil",
                    "matchedFilters": [
                        {
                            "id": "***-***-***-***-***",
                            "name": "System-Defined Event Logs Clearing via Wevtutil",
                            "timestamp": "2021-06-28T19:49:07.845Z",
                            "mitreTechniques": [
                                "V8.T1070.001"
                            ]
                        },
                        {
                            "id": "***-***-***-***-***",
                            "name": "System-Defined Event Logs Clearing via Wevtutil",
                            "timestamp": "2021-06-28T19:50:09.208Z",
                            "mitreTechniques": [
                                "V8.T1070.001"
                            ]
                        }
                    ]
                }
            ],
            "alertTriggerTimestamp": "2021-06-28T19:53:13.265Z",
            "workbenchCompleteTimestamp": "2021-06-28T19:54:43Z"
        }
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "WorkbenchIds": [
        "WB-*****-*****-00001",
        "WB-*****-*****-00000"
    ],
    "Models": [
        "System-Defined Event Logs Clearing via Wevtutil",
        "System-Defined Event Logs Clearing via Wevtutil"
    ],
    "WorkbenchCompleteTimestamps": [
        "2021-06-28T19:57:30Z",
        "2021-06-28T19:54:43Z"
    ],
    "AlertTriggerTimestamps": [
        "2021-06-28T19:55:16.219Z",
        "2021-06-28T19:53:13.265Z"
    ],
    "Scores": [
        "50",
        "50"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

INVESTIGATIONSTATUS	PRIORITYSCORE	WORKBENCHNAME	WORKBENCHID	WORKBENCHLINK	CREATEDTIME	UPDATEDTIME	SEVERITY	IMPACTSCOPE	DATA
1	50	System-Defined Event Logs Clearing via Wevtutil	WB-*****-*****-00001	https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-*****-*****-00001&ref=*****6/28/2021 ****:****:****:***::**** PM	8/30/2021 ****:****:****:***::**** PM	medium	{
";desktopCount";: 1,
";serverCount";: 2,
";accountCount";: 1,
";emailAddressCount";: 0
}	{
";schemaVersion";: ";1.7";,
";workbenchId";: ";WB-*****-*****-00001";,
";workbenchLink";: ";https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-*****-*****-00001&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3";,
";alertProvider";: ";SAE";,
";model";: ";System-Defined Event Logs Clearing via Wevtutil";,
";description";: ";Wevtutil.exe, the Windows Event Log Utility, was executed multiple times to clear out the system-defined Event Logs.";,
";score";: ";50";,
";modelSeverity";: ";medium";,
";impactScope";: [
{
";entityValue";: ";desktop-*****\\*****";,
";entityId";: ";desktop-****\\*****";,
";relatedEntities";: [
";***-***-***-***-***5";
],
";relatedIndicators";: [],
";entityType";: ";account";
},
{
";entityValue";: {
";guid";: ";***-***-***-***-***";,
";name";: ";WIN-*****";,
";ips";: [
";***.***.***.***";
]
},
";entityId";: ";***-***-***-***-***";,
";relatedEntities";: [],
";relatedIndicators";: [
2,
4,
6
],
";entityType";: ";host";
},
{
";entityValue";: {
";guid";: ";***-***-***-***-***";,
";name";: ";desktop-*****";,
";ips";: [
";***.***.***.***";
]
},
";entityId";: ";***-***-***-***-***";,
";relatedEntities";: [
";desktop-*****\\*****";
],
";relatedIndicators";: [
*****
],
";entityType";: ";host";
},
{
";entityValue";: {
";guid";: ";***-***-***-***-***";,
";name";: ";WIN-*****";,
";ips";: [
";***.***.***.***";
]
},
";entityId";: ";***-***-***-***-***";,
";relatedEntities";: [],
";relatedIndicators";: [
2,
4
],
";entityType";: ";host";
}
],
";indicators";: [
{
";id";: 1,
";objectType";: ";command_line";,
";objectValue";: ";C:\\Windows\\*****\\wevtutil.exe cl Application";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 2,
";objectType";: ";command_line";,
";objectValue";: ";powershell";,
";relatedEntities";: [
";***-***-***-***-***"
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 3,
";objectType";: ";command_line";,
";objectValue";: ";C:\\Windows\\*****\\svchost.exe -k netsvcs -p -s Appinfo";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 4,
";objectType";: ";command_line";,
";objectValue";: ";C:\\Windows\\*****\\WindowsPowerShell\\v1.0\\powershell.exe";,
";relatedEntities";: [
";***-***-***-***-***"
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 5,
";objectType";: ";command_line";,
";objectValue";: ";\";C:\\Windows\\*****\\cmd.exe\"; ";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 6,
";objectType";: ";command_line";,
";objectValue";: ";\";C:\\Windows\\*****\\wevtutil.exe\"; cl Application";,
";relatedEntities";: [
";***-***-***-***-***"
],
";filterId";: [
";***-***-***-***-***";
]
}
],
";matchedRules";: [
{
";id";: ";***-***-***-***-***";,
";name";: ";System-Defined Event Logs Clearing via Wevtutil";,
";matchedFilters";: [
{
";id";: ";***-***-***-***-***";,
";name";: ";System-Defined Event Logs Clearing via Wevtutil";,
";timestamp";: ";2021-06-28T19****:****:****:***::****.827Z";,
";mitreTechniques";: [
";V8.T1070.001";
]
},
{
";id";: ";***-***-***-***-***";,
";name";: ";System-Defined Event Logs Clearing via Wevtutil";,
";timestamp";: ";2021-06-28T19****:****:****:***::****.249Z";,
";mitreTechniques";: [
";V8.T1070.001";
]
}
]
}
],
";alertTriggerTimestamp";: ";2021-06-28T19****:****:****:***::****.219Z";,
";workbenchCompleteTimestamp";: ";2021-06-28T19:57:30Z";
}
0	50	System-Defined Event Logs Clearing via Wevtutil	WB-*****-*****-00000	https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-18866-20210628-00000&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3	6/28/2021 ****:****:****:***::**** PM	6/28/2021 ****:****:****:***::**** PM	medium	{
";desktopCount";: 1,
";serverCount";: 2,
";accountCount";: 1,
";emailAddressCount";: 0
}	{
";schemaVersion";: ";1.7";,
";workbenchId";: ";WB-*****-*****-00000";,
";workbenchLink";: ";https://portal.xdr.trendmicro.com/index.html#/workbench?workbenchId=WB-18866-20210628-00000&ref=0c12e642ca5b7ed4436e5f23f568ae10066608d3";,
";alertProvider";: ";SAE";,
";model";: ";System-Defined Event Logs Clearing via Wevtutil";,
";description";: ";Wevtutil.exe, the Windows Event Log Utility, was executed multiple times to clear out the system-defined Event Logs.";,
";score";: ";50";,
";modelSeverity";: ";medium";,
";impactScope";: [
{
";entityValue";: ";win-*****\\administrator";,
";entityId";: ";win-*****\\administrator";,
";relatedEntities";: [
";***-***-***-***-***";
],
";relatedIndicators";: [],
";entityType";: ";account";
},
{
";entityValue";: {
";guid";: ";***-***-***-***-***";,
";name";: ";DESKTOP-*****";,
";ips";: [
";***.***.***.***";
]
},
";entityId";: ";***-***-***-***-***";,
";relatedEntities";: [],
";relatedIndicators";: [
1,
2,
3,
4
],
";entityType";: ";host";
},
{
";entityValue";: {
";guid";: ";***-***-***-***-***";,
";name";: ";win-*****";,
";ips";: [
";***.***.***.***";
]
},
";entityId";: ";***-***-***-***-***";,
";relatedEntities";: [
";win-*****\\administrator";
],
";relatedIndicators";: [
*****
],
";entityType";: ";host";
},
{
";entityValue";: {
";guid";: ";***-***-***-***-***";,
";name";: ";WIN-*****";,
";ips";: [
";***.***.***.***";
]
},
";entityId";: ";***-***-***-***-***";,
";relatedEntities";: [],
";relatedIndicators";: [
2,
3
],
";entityType";: ";host";
}
],
";indicators";: [
{
";id";: 1,
";objectType";: ";command_line";,
";objectValue";: ";C:\\Windows\\*****\\wevtutil.exe cl Application";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 2,
";objectType";: ";command_line";,
";objectValue";: ";powershell";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 3,
";objectType";: ";command_line";,
";objectValue";: ";C:\\Windows\\*****\\WindowsPowerShell\\v1.0\\powershell.exe";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 4,
";objectType";: ";command_line";,
";objectValue";: ";\";C:\\Windows\\*****\\wevtutil.exe\"; cl System";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 5,
";objectType";: ";command_line";,
";objectValue";: ";\";C:\\Windows\\*****\\cmd.exe\"; ";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 6,
";objectType";: ";command_line";,
";objectValue";: ";C:\\Windows\\*****\\cmd.exe";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: [
";***-***-***-***-***";
]
},
{
";id";: 7,
";objectType";: ";filename";,
";objectValue";: ";commander.exe";,
";relatedEntities";: [
";***-***-***-***-***";
],
";filterId";: []
}
],
";matchedRules";: [
{
";id";: ";***-***-***-***-***";,
";name";: ";System-Defined Event Logs Clearing via Wevtutil";,
";matchedFilters";: [
{
";id";: ";***-***-***-***-***";,
";name";: ";System-Defined Event Logs Clearing via Wevtutil";,
";timestamp";: ";2021-06-28T19****:****:****:***::****.845Z";,
";mitreTechniques";: [
";V8.T1070.001";
]
},
{
";id";: ";***-***-***-***-***";,
";name";: ";System-Defined Event Logs Clearing via Wevtutil";,
";timestamp";: ";2021-06-28T19****:****:****:***::****.208Z";,
";mitreTechniques";: [
";V8.T1070.001";
]
}
]
}
],
";alertTriggerTimestamp";: ";2021-06-28T19****:****:****:***::****.265Z";,
";workbenchCompleteTimestamp";: ";2021-06-28T19:54:43Z";
}

Fetch Event Field Mapping

Please note that Fetch Event commands require event field mapping. Field mapping plays a key role in the data normalization process part of the event pipeline. Field mapping converts the original data fields from the different providers to the D3 fields which are standardized by the D3 Model. Please refer to Event and Incident Intake Field Mapping for details.

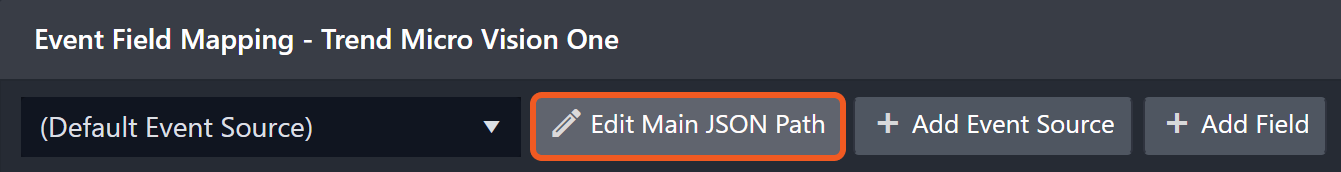

If you require a custom field mapping, click +Add Field to add a custom field mapping. You may also remove built-in field mappings by clicking x. Please note that two underscore characters will automatically prefix the defined Field Name as the System Name for a custom field mapping. Additionally, if an input Field Name contains any spaces, they will automatically be replaced with underscores for the corresponding System Name.

As a system integration, the Trend Micro Vision One integration has some pre-configured field mappings for default field mapping.

Default Event Source
The Default Event Source is the default set of field mappings that are applied when this fetch event command is executed. For out-of-the-box integrations, you will find a set of field mapping provided by the system. Default event source provides field mappings for common fields from fetched events. The default event source has a “Main Event JSON Path” (i.e., $.data.workbenchRecords) that is used to extract a batch of events from the response raw data. Click Edit Event Source to view the “Main Event JSON Path”.
- Main Event JSON Path: $.data.workbenchRecords
  The Main Event JSON Path determines the root path where the system starts parsing raw response data into D3 event data. The JSON path begins with $, representing the root element. The path is formed by appending a sequence of child elements to $, each separated by a dot (.). Square brackets with nested quotation marks ([‘...’]) should be used to separate child elements in JSON arrays.
  For example, the root node of a JSON Path is data.workbenchRecords. The child node denoting the Unique Event Key field would be workbenchId. Putting it together, the JSON Path expression to extract the Unique Event Key is $.data.workbenchRecords.workbenchId.

The pre-configured field mappings are detailed below:

Field Name	Source Field
Unique Event Key	.workbenchId
Event name	.workbenchName
Event category	.data.model
Severity	.severity
Description	.data.description
Alert Timestamp	.data.alertTriggerTimestamp
Source vendor product name	.data.alertProvider
PriorityScore	.priorityScore
InvestigationStatus	.investigationStatus
ImpactScopeDesktopCount	.impactScope.desktopCount
ImpactScopeServerCount	.impactScope.serverCount
ImpactScopeAccountCount	.impactScope.accountCount
ImpactScopeEmailAddressCount	.impactScope.emailAddressCount
LocalTime	.data.alertTriggerTimestamp
Techniques	.data.matchedRules[].matchedFilters[].mitreTechniques

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Fetch Event failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The Search condition format error. Format: {Key1=Value1;Key2=Value2}.

Error Sample Data

Fetch Event failed.

Status Code: 403.

Message: The Search condition format error. Format: {Key1=Value1;Key2=Value2}.

Get Alert Notes

Retrieves the notes of the specified workbenches (alerts).

Reader Note

The parameter Workbench IDs is required to run this command.

You should already have your desired Workbench IDs on hand to run this command. If you don’t, you may use the Fetch Event command with defined filters to retrieve the desired Workbench IDs. The Workbench IDs can be found in the raw data at the path $.data.workbenchRecords[*].data.workbenchId.

Input

Input Parameter	Required/Optional	Description	Example
Workbench IDs	Required	The list of workbench records IDs. Workbench IDs can be obtained using the Fetch Event command with defined filters.	[ "WB-***-*-00001", "WB-*-***-00000" ]

Output

Raw Data

The primary response data from the API request.

D3 enriches the raw data from the original Trend Micro Vision One API response by adding the "workbenchID" field.

SAMPLE DATA

JSON

[
    {
        "workbenchID": "WB-*****-*****-00001",
        "notes": [
            {
                "id": 2,
                "content": "test note 2",
                "creatorId": "test@example.com",
                "creatorName": "test user",
                "createdTimestamp": "2020-11-12T10:30:13Z",
                "lastUpdatedBy": null,
                "lastUpdatedTimestamp": null
            },
            {
                "id": 1,
                "content": "test note 1",
                "creatorId": "test@example.com",
                "creatorName": "test1 user",
                "createdTimestamp": "2020-11-11T15:10:08Z",
                "lastUpdatedBy": "test1 user",
                "lastUpdatedTimestamp": "2020-11-11T15:15:21Z"
            }
        ]
    },
    {
        "workbenchID": "WB-*****-*****-00000",
        "error": {
            "code": "3090003",
            "message": "Unable to process the request. Verify that the request is properly formatted and try again. (Error code: 3090003)",
            "innererror": {
                "code": ""
            }
        }
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "WorkbenchIDs": [
        "WB-*****-*****-00001",
        "WB-*****-*****-00000"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

WORKBENCHID	NOTES
WB-*****-*****-00001	[{'id': 2, 'content': 'test note 2', 'creatorId': 'test@example.com', 'creatorName': 'test user', 'createdTimestamp': '2020-11-12T10:30:13Z', 'lastUpdatedBy': None, 'lastUpdatedTimestamp': None}, {'id': 1, 'content': 'test note 1', 'creatorId': 'test1@user.com', 'creatorName': 'test1 user', 'createdTimestamp': '2020-11-11T15:10:08Z', 'lastUpdatedBy': 'test1 user', 'lastUpdatedTimestamp': '2020-11-11T15:15:21Z'}]

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Alert Notes failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unable to process the request. Verify that the request is properly formatted and try again.

Error Sample Data

Get Alert Notes failed.

Status Code: 404.

Message: Unable to process the request. Verify that the request is properly formatted and try again.

Get Endpoint Info

Retrieves information about endpoints by Host names, IPs or Mac addresses.

Reader Note

The parameter Host Names Or IPs Or Macs is required to run this command.

You should already have your desired Host Names Or IPs Or Macs on hand to run this command. If you don’t, you can use the Fetch Event command with defined filters to retrieve the desired Host Names Or IPs Or Macs. The Host Names Or IPs Or Macs can be found in the raw data in the Host Names corresponding to the value in "name" under "entityValue" and IPs corresponding to the value in "ips" under "entityValue".

Input

Input Parameter	Required/Optional	Description	Example
Host Names Or IPs Or Macs	Required	The host name(s) or IP address(es) or Mac address(es) of the endpoint(s) to retrieve information about. Host Names Or IPs Or Macs can be obtained using the Fetch Event command with defined filters.	[ "test87103", "1.1.1.1" ]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "status": "SUCCESS",
    "errorCode": 0,
    "result": [
        {
            "computerId": "***-***-***-***-***",
            "info": {
                "logonAccount": {
                    "value": [
                        "*****\\demo"
                    ],
                    "updateAt": 1640035064000
                },
                "hostname": {
                    "value": "test87103",
                    "updateAt": 1648490912000
                },
                "macAddr": {
                    "value": "00:00:06:b0:b0:b0",
                    "updateAt": 1648490912000
                },
                "ip": {
                    "value": "1.1.1.1",
                    "updateAt": 1648490912000
                },
                "osName": "Windows",
                "osVersion": "10.0.17763",
                "osDescription": "Windows Server 2019 Standard Evaluation (64 bit) build 17763",
                "productCode": "xes"
            }
        },
        {
            "computerId": "***-***-***-***-***",
            "info": {
                "logonAccount": {
                    "value": [
                        "WIN2019-*****-*****\\Administrator"
                    ],
                    "updateAt": 1654112362000
                },
                "hostname": {
                    "value": "WIN2019-*****-*****",
                    "updateAt": 1655417779000
                },
                "macAddr": {
                    "value": "00:00:06:b0:b0:b0",
                    "updateAt": 1655417779000
                },
                "ip": {
                    "value": "1.1.1.1",
                    "updateAt": 1655417779000
                },
                "osName": "Windows",
                "osVersion": "10.0.17763",
                "osDescription": "Windows Server 2019 Standard Evaluation (64 bit) build 17763",
                "productCode": "xes"
            }
        }
    ]
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "ComputerIDs": [
        "***-***-***-***-***",
        "***-***-***-***-***"
    ],
    "HostNames": [
        "test87103",
        "WIN2019-*****-*****"
    ],
    "MacAddresses": "b5\" ]",
    "IPAddresses": [
        "1.1.1.1",
        "1.1.1.1"
    ],
    "OSDescription": [
        "Windows Server 2019 Standard Evaluation (64 bit) build 17763",
        "Windows Server 2019 Standard Evaluation (64 bit) build 17763"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

Items Count

2

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Endpoint Info failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unable to find record.

Error Sample Data

Get Endpoint Info failed.

Status Code: 404.

Message: Unable to find record.

Get Exception List

Retrieves information about Domains, File SHA-1 values, IP Addresses, or URLs that are in the Exception List.

Input

N/A

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "data": {
        "exceptionList": [
            {
                "type": "domain",
                "value": "github.com",
                "description": "test exception domain 1",
                "lastModified": "2021-06-25T18:42:57Z"
            },
            {
                "type": "ip",
                "value": "8.8.8.8",
                "description": "test exception ip 1",
                "lastModified": "2021-06-25T18:42:57Z"
            }
        ]
    }
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.data.exceptionList in API returned JSON.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

[
    {
        "type": "domain",
        "value": "github.com",
        "description": "test exception domain 1",
        "lastModified": "2021-06-25T18:42:57Z"
    },
    {
        "type": "ip",
        "value": "8.8.8.8",
        "description": "test exception ip 1",
        "lastModified": "2021-06-25T18:42:57Z"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "ExceptionTypes": [
        "domain",
        "ip"
    ],
    "ExceptionValues": [
        "github.com",
        "8.8.8.8"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

TYPE	VALUE	DESCRIPTION	LASTMODIFIED
domain	github.com	test exception domain 1	2021-06-25T18:42:57Z
ip	8.8.8.8	test exception domain 1	2021-06-25T18:42:57Z

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Exception List failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: InvalidToken.

Error Sample Data

Get Exception List failed.

Status Code: 403.

Message: InvalidToken.

Get Message Info

Retrieves information about the messages matching the specified query criteria.

Input

Input Parameter	Required/Optional	Description	Example
Start Time	Required	The start time of the time range to get message info in UTC time.	2021-06-23 00:00
End Time	Required	The end time of the time range to get message info in UTC time.	2021-06-24 00:00
Query	Required	The query string to filter messages. Adding a query string allows you to retrieve a subset of the collected email activity data. Supported fields: 'uuid', 'tags', 'pname', 'msgUuid', 'mailDirection', 'mailFromAddresses', 'mailToAddresses', 'mailMsgSubject', 'mailMsgId', 'mailCcAddresses', 'mailBccAddresses', 'mailSenderIp', 'mailAttachmentHash', 'attachmentFileName', 'attachmentSha1', 'attachmentMd5', 'attachmentSha256', 'attachmentUrls', 'orgId', 'mailUrlsVisibleLink', 'mailUrlsRealLink'. Supported operators: ':' - Abbreviation of the operator "equal to", 'and' - Operator "and", 'or' - Operator "or", 'not' - Operator "not", '( )' - Symbols for grouping operands with their correct operator. Note: For more information about the query syntax, supported fields and match type support, see https://docs.trendmicro.com/en-us/enterprise/trend-vision-one/xdr-part/search-app/search-syntax-simple.aspx.	subject:malicious AND recipient:test@example.com

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "data": {
        "logs": [
            {
                "mail_message_sender": "*****@example.sample.com",
                "mail_message_recipient": [
                    "test@example.com"
                ],
                "mail_message_subject": "Undeliverable: Malicious Country Detected - Date Reported from 01/01/2013 to 02/28/2019",
                "mailbox": "test@example.com",
                "mail_urls": [
                    "https://support.google.com/mail/?p=DisabledUser"
                ],
                "source_domain": "test.example.com",
                "source_ip": "1.1.1.1",
                "mail_message_delivery_time": "2021-06-24T00:49:36.000Z",
                "mail_message_id": "",
                "mail_unique_id": "*****",
                "mail_attachments": [],
                "mail_internet_headers": [
                    {
                        "HeaderName": "In-Reply-To",
                        "Value": ""
                    }
                ],
                "searchDL": "CAS",
                "eventTime": 1624495776000
            },
            {
                "mail_message_sender": "test@example.com",
                "mail_message_recipient": [
                    "test@example.com"
                ],
                "mail_message_subject": "Malicious Country Detected - Date Reported from 01/01/2013 to 02/28/2019",
                "mailbox": "test@example.com",
                "mail_urls": [
                    "https://demo.d3securityonline.net:443/Mitre/VSOC/AnalysisReports/FlexDashboardReport.aspx?q=M8zN%2f7yXJcThMXCRvVkPrmFuQMkpUlZrJKuHJSVeCLfwNHrIqvfowLRWmBM4%2bY6%2bjha1zo%2fFp6QcukMSPz%2fCcvjFgjLhhFPiINanm5KLMv2i%2bnDtuEXc0NMnNmgly8Vrr5N5R%2frwMHsO%2bc7iHKKVH%2fu4ZhC6kJBb9L1OBJK4FVU%3d"
                ],
                "source_domain": "sample.com",
                "source_ip": "0.0.0.0",
                "mail_message_delivery_time": "2021-06-24T00:49:34.000Z",
                "mail_message_id": "",
                "mail_unique_id": "*****",
                "mail_attachments": [],
                "mail_internet_headers": [
                    {
                        "Value": "test@example.com",
                        "HeaderName": "Return-Path"
                    }
                ],
                "searchDL": "CAS",
                "eventTime": 1624495774000
            }
        ]
    }
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.data.logs in API returned JSON.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

[
    {
        "mail_message_sender": "*****@test.example.com",
        "mail_message_recipient": [
            "test@example.com"
        ],
        "mail_message_subject": "Undeliverable: Malicious Country Detected - Date Reported from 01/01/2013 to 02/28/2019",
        "mailbox": "test@example.com",
        "mail_urls": [
            "https://support.google.com/mail/?p=DisabledUser"
        ],
        "source_domain": "test.example.com",
        "source_ip": "1.1.1.1",
        "mail_message_delivery_time": "2021-06-24T00:49:36.000Z",
        "mail_message_id": "",
        "mail_unique_id": "*****",
        "mail_attachments": [],
        "mail_internet_headers": [
            {
                "HeaderName": "In-Reply-To",
                "Value": ""
            }
        ],
        "searchDL": "CAS",
        "eventTime": 1624495776000
    },
    {
        "mail_message_sender": "test@example.com",
        "mail_message_recipient": [
            "test@example.com"
        ],
        "mail_message_subject": "Malicious Country Detected - Date Reported from 01/01/2013 to 02/28/2019",
        "mailbox": "test@example.com",
        "mail_urls": [
            "https://demo.d3securityonline.net:443/Mitre/VSOC/AnalysisReports/FlexDashboardReport.aspx?q=M8zN%2f7yXJcThMXCRvVkPrmFuQMkpUlZrJKuHJSVeCLfwNHrIqvfowLRWmBM4%2bY6%2bjha1zo%2fFp6QcukMSPz%2fCcvjFgjLhhFPiINanm5KLMv2i%2bnDtuEXc0NMnNmgly8Vrr5N5R%2frwMHsO%2bc7iHKKVH%2fu4ZhC6kJBb9L1OBJK4FVU%3d"
        ],
        "source_domain": "sample.com",
        "source_ip": "0.0.0.0",
        "mail_message_delivery_time": "2021-06-24T00:49:34.000Z",
        "mail_message_id": "",
        "mail_unique_id": "*****",
        "mail_attachments": [],
        "mail_internet_headers": [
            {
                "Value": "test@example.com",
                "HeaderName": "Return-Path"
            }
        ],
        "searchDL": "CAS",
        "eventTime": 1624495774000
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "MessageIds": [
        "",
        ""
    ],
    "Maiboxes": [
        "test@example.com",
        "test@example.com"
    ],
    "MessageDeliveryTimes": [
        "2021-06-24T00:49:36.000Z",
        "2021-06-24T00:49:34.000Z"
    ],
    "SourceIPs": [
        "1.1.1.1",
        "0.0.0.0"
    ],
    "SourceDomains": [
        "test.example.com",
        "sample.com"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

MAIL_MESSAGE_SENDER	MAIL_MESSAGE_RECIPIENT	MAIL_MESSAGE_SUBJECT	MAILBOX	MAIL_URLS	SOURCE_DOMAIN	SOURCE_IP	MAIL_MESSAGE_DELIVERY_TIME	MAIL_MESSAGE_ID	MAIL_UNIQUE_ID	MAIL_ATTACHMENTS	MAIL_INTERNET_HEADERS	SEARCHDL	EVENTTIME
*****@D3DevCyber.onmicrosoft.com	[
";test@example.com";
]	Undeliverable: Malicious Country Detected - Date Reported from 01/01/2013 to 02/28/2019	test@example.com	[
";https://support.google.com/mail/?p=DisabledUser";
]	d3devcyber.onmicrosoft.com	1.1.1.1	6/24/2021 12:49:36 AM		*****	[]	[
{
";HeaderName";: ";In-Reply-To";,
";Value";: ";";
}
]	CAS	1624495776000
test@example.com	[
";test@example.com";
]	Malicious Country Detected - Date Reported from 01/01/2013 to 02/28/2019	test@example.com	[
";https://demo.d3securityonline.net:443/Mitre/VSOC/AnalysisReports/FlexDashboardReport.aspx?q=M8zN%2f7yXJcThMXCRvVkPrmFuQMkpUlZrJKuHJSVeCLfwNHrIqvfowLRWmBM4%2bY6%2bjha1zo%2fFp6QcukMSPz%2fCcvjFgjLhhFPiINanm5KLMv2i%2bnDtuEXc0NMnNmgly8Vrr5N5R%2frwMHsO%2bc7iHKKVH%2fu4ZhC6kJBb9L1OBJK4FVU%3d";
]	d3soar.com	0.0.0.0	6/24/2021 12:49:34 AM		*****	[]	[
{
";Value";: ";test@example.com";,
";HeaderName";: ";Return-Path";
}
]	CAS	1624495774000

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Message Info failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unsupported query field. The specified query field does not exist.

Error Sample Data

Get Message Info failed.

Status Code: 404.

Message: Unsupported query field. The specified query field does not exist.

Isolate Endpoints

Disconnects the specified endpoints from the network.

Reader Note

The parameter Host Names is required to run this command.

You should already have your desired Host Names on hand to run this command. If you don’t, you can use the Fetch Event command with defined filters to retrieve the desired Host Names. The Host Names can be found in the raw data in the Host Names corresponding to the value in "name" under "entityValue".

Input

Input Parameter	Required/Optional	Description	Example
Host Names	Required	The host name of the endpoints to be isolated. Host Names can be obtained using the Fetch Event command with defined filters.	["WIN-*****"]
Description	Optional	The description to add for the action of isolating the endpoint.	Isolate endpoint test.

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "actionId": "*****",
        "taskStatus": "pending"
    },
    {
        "actionId": "*****",
        "taskStatus": "pending"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

[
    {
        "actionId": "*****",
        "taskStatus": "pending"
    },
    {
        "actionId": "*****",
        "taskStatus": "pending"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "ActionIds": [
        "*****",
        "*****"
    ],
    "TaskStatuses": [
        "pending",
        "pending"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

ACTIONID	TASKSTATUS
*****       pending
*****   	pending

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Isolate Endpoints failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 404.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unable to find record.

Error Sample Data

Isolate Endpoints failed.

Status Code: 404.

Message: Unable to find record.

List Task Responses

Retrieves a list of tasks' responses.

Input

N/A

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "data": [
        {
            "actionId": "*****",
            "taskStatus": "failed"
        },
        {
            "actionId": "*****",
            "taskStatus": "timeout"
        },
        {
            "actionId": "*****",
            "taskStatus": "success"
        }
    ]
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.data in API returned JSON.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

[
    {
        "actionId": "*****",
        "taskStatus": "failed"
    },
    {
        "actionId": "*****",
        "taskStatus": "timeout"
    },
    {
        "actionId": "*****",
        "taskStatus": "success"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "ActionIds": [
        "*****",
        "*****",
        "*****"
    ],
    "TaskStatuses": [
        "failed",
        "timeout",
        "success"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

ACTIONID	TASKSTATUS
*****	failed
*****	timeout
*****	success

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Task Responses failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: InvalidToken.

Error Sample Data

List Task Responses failed.

Status Code: 403.

Message: InvalidToken.

Quarantine Email Message

Moves a message from a mailbox to the quarantine folder.

Reader Note

Message ID is a required parameter to run this command.

Run the Get Message Info command to obtain Message ID. Message ID can be obtained from the returned raw data at the path $.data.logs[*].mail_message_id.

Input

Input Parameter	Required/Optional	Description	Example
Message ID	Required	The message ID of the email to be quarantined. Message IDs can be obtained using the Get Message Info command.	<*----**2@YTXPR0101MB1581.CANPRD01.PROD.OUTLOOK.COM>
Mailbox	Required	The mailbox of the email to be quarantined.	test@example.com
Message Delivery Time	Required	The delivery time of the email to be quarantined.	2021-06-23 00:00
Description	Optional	The description to add for the action of quarantining the email.	quarantine description test

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "actionId": "*****",
    "taskStatus": "pending"
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

{
    "actionId": "*****",
    "taskStatus": "pending"
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "ActionId": "*****",
    "TaskStatus": "pending"
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

ACTIONID	TASKSTATUS
*****	failed
*****	timeout
*****	success

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Quarantine Email Message failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid request - Invalid field format: mailBox.

Error Sample Data

Quarantine Email Message failed.

Status Code: 400.

Message: Invalid request - Invalid field format: mailBox.

Remove From Blocklist

Removes a file SHA-1, IP address, domain, or URL object that was added to the User-Defined Suspicious Objects List by the "Add to block list" command.

Reader Note

The inputs of Target Value must already have been added to the block list. An invalid request error will be returned if the value does not exist in the blocklist.

Input

Input Parameter	Required/Optional	Description	Example
Value Type	Required	The type of the target to be removed from the blocklist.	File SHA-1
Target Value	Required	The value of the targets to be removed from the blocklist.	[ "36***5B", "D5***92" ]
Description	Optional	The description to add for the action of removing the object from the blocklist.	test remove file sha1 from blocklist

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "actionId": "*****",
        "taskStatus": "pending"
    },
    {
        "actionId": "*****",
        "taskStatus": "pending"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

[
    {
        "actionId": "*****",
        "taskStatus": "pending"
    },
    {
        "actionId": "*****",
        "taskStatus": "pending"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "ActionIds": [
        "*****",
        "*****"
    ],
    "TaskStatuses": [
        "pending",
        "pending"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

ACTIONID	TASKSTATUS
*****	pending
*****	pending

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Remove From Blocklist failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Invalid request.

Error Sample Data

Remove From Blocklist failed.

Status Code: 400.

Message: Invalid request.

Restore Endpoints

Restores network connectivity to isolated endpoints.

Reader Note

The parameter Host Names is required to run this command.

You should already have your desired Host Names on hand to run this command. If you don’t, you can use the Fetch Event command with defined filters to retrieve the desired Host Names. The Host Names can be found in the raw data in the Host Names corresponding to the value in "name" under "entityValue".
The input host names must be isolated already to run this command.

Input

Input Parameter	Required /Optional	Description	Example
Host Names	Required	The host name of the endpoint to be restored. Host Names can be obtained using the Fetch Event command.	["WIN-*****"]
Description	Optional	The description to add for the action of restoring the endpoints.	Isolate endpoint test.

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "actionId": "*****",
        "taskStatus": "pending"
    },
    {
        "actionId": "*****",
        "taskStatus": "pending"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

[
    {
        "actionId": "*****",
        "taskStatus": "pending"
    },
    {
        "actionId": "*****",
        "taskStatus": "pending"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "TaskStatuses": [
        "pending",
        "pending"
    ],
    "ActionIds": [
        "*****",
        "*****"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

ACTIONID	TASKSTATUS
*****	pending
*****	pending

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Restore Endpoints failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unable to find record.

Error Sample Data

Restore Endpoints failed.

Status Code: 400.

Message: Unable to find record.

Search Data

Searches data sources using the specified query criteria and retrieves all matching records.

Input

Input Parameter	Required/Optional	Description	Example
Start Time	Required	The start time of the time range to search data in UTC time.	2021-06-23 00:00
End Time	Required	The end time of the time range to search data in UTC time.	2021-06-24 00:00
Source	Required	The Datalake source to search.	Endpoint Activity Data
Query	Required	The query string to filter the data. Endpoint Activity Data field available list: dst, endpointGuid, endpointHostName, endpointIp, eventId, eventSubId, hostName, logonUser, objectCmd, objectFileHashSha1, objectFilePath, objectIp, objectIps, objectPort, objectRegistryData, objectRegistryKeyHandle, objectRegistryValue, objectSigner, objectSignerValid, objectUser,parentCmd, parentFileHashSha1, parentFilePath, pname, processCmd, processFileHashSha1, processFilePath, request, spt, dpt, src, srcFileHashSha1, srcFilePath. Message Activity Data field available list: sender, subject, mailbox, url, recipient, source_domain, source_ip, file_sha1, message_id, file_extension, file_name. Detection field available list: hostName, interestedHost, objectDomain, shost, dhost, denyListHost, endpointHostName, userDomain, endpointGUID, request,botUrl, cccaDestination, src, dst, interestedIp, endpointIp, peerIp, denyListIp, dpt, spt, fileName, objectFileName, compressedFileName, attachmentFileName, filePath, filePathName, objectFilePath, fileHash, attachmentFileHash, attachmentFileHashSha1, compressedFileHash, denyListFileHash, objectFileHashSha1, oldFileHash, fileHashSha256, attachmentFileHashSha256, compressedFileHashSha256, objectFileHashSha256, attachmentFileHashMd5, objectFileHashMd5, processCmd, objectCmd, objectRegistryData, objectRegistryKeyHandle, objectRegistryValue, suid, processFilePath, suser, duser, mailMsgSubject, msgId, techniqueId, tags, tacticId, ruleName, ruleId, malName. Network Activity Data field available list: url, ip, file_sha1, file_sha256, filename, domain, user_account, ip_port.	hostName:* AND endpointIp:1.1.1.1

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "data": {
        "logs": [
            {
                "service": "exchange",
                "mail_message_delivery_time": "2023-05-05T17:44:12Z",
                "mail_attachments": {
                    "file_sha1": [
                        "*****"
                    ],
                    "file_sha256": [
                        "*****"
                    ],
                    "file_name": [
                        "IR-20230505-*****.pdf"
                    ]
                },
                "mail_internet_headers": {
                    "HeaderName": [
                        "Received",
                        "Received",
                        "Received",
                        "Received",
                        "Received",
                        "Authentication-Results",
                        "Received-SPF",
                        "CC",
                        "X-Microsoft-Antispam",
                        "X-Forefront-Antispam-Report",
                        "X-TM-AS-ERS",
                        "X-TM-Product-Ver",
                        "X-TMASE-XGENCLOUD",
                        "MAPIExtendedProperties",
                        "MAPIExtendedProperties"
                    ],
                    "Value": [
                        "from *****.CANPRD01.PROD.OUTLOOK.COM (*****) by *****.CANPRD01.PROD.OUTLOOK.COM with HTTPS; Fri, 5 May 2023 17:44:12 +0000",
                        "from *****.namprd17.prod.outlook.com (*****) by ****.CANPRD01.PROD.OUTLOOK.COM (**** with Microsoft SMTP Server (version=TLS1_2, cipher=****) id ******; Fri, 5 May 2023 17:42:54 +0000",
                        "from *****.eop-CAN01.prod.protection.outlook.com (**8*) by *****.outlook.*****.com (****) with Microsoft SMTP Server (version=TLS1_2, cipher=****) id ***** via Frontend Transport; Fri, 5 May 2023 17:42:54 +0000",
                        "from ***** (*****) by YQBCAN01FT010.mail.protection.outlook.com (*****) with Microsoft SMTP Server id ***** via Frontend Transport; Fri, 5 May 2023 17:42:54 +0000",
                        "from [**8**] ([****]) by ***** over TLS secured channel with Microsoft SMTPSVC(*****);\t Fri, 5 May 2023 10:42:53 -0700",
                        "spf=permerror (sender IP is *****) smtp.mailfrom=*****; dkim=none (message not signed) header.d=none;dmarc=fail action=none header.from=*****.com;compauth=softpass reason=201",
                        "PermError (protection.*****.com: domain of **88.com used an invalid SPF mechanism)",
                        "",
                        "BCL:5;",
                        "CIP:*****;CTRY:US;LANG:la;SCL:1;SRV:;IPV:NLI;SFV:NSPM;H:d3sm-poc-web33;PTR:InfoDomainNonexistent;CAT:NONE;SFS:(*****);DIR:INB;",
                        "*****",
                        "cloud-app-security-5.0",
                        "5***-***-***-***-***-0-0-200-0",
                        "{\"id\":\"String {*****} Id *****\",\"value\":null}",
                        "{\"id\":\"Boolean {***88} Id *****\",\"value\":null}"
                    ]
                },
                "mail_message_subject": "ST_Playbook_Email_2023/05/05 17:42:51",
                "mail_message_id": "",
                "mail_unique_id": "*****",
                "mailbox": "test@example.com",
                "source_ip": "*****",
                "mail_message_sender": [
                    "test@example"
                ],
                "mail_message_recipient": [
                    "test@example.com",
                    null,
                    null
                ],
                "source_domain": "*****",
                "org_id": "***-***-***-***-***",
                "eventTime": 1683308652000,
                "searchDL": "CAS"
            }
        ]
    }
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

Items Count

10

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Data failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: InvalidToken.

Error Sample Data

Search Data failed.

Status Code: 403.

Message: InvalidToken.

Search Detections

Searches the "Detections" data using specified query criteria and retrieves all matching detections. Note: A maximum of 500 detection items can be returned using this command.

Input

Input Parameter	Required/Optional	Description	Example
Start Time	Required	The start time of the time range to search detections in UTC time.	2023-05-05 00:00
End Time	Required	The end time of the time range to search detections in UTC time.	2023-05-06 00:00
Query	Optional	The query string to filter the detections. If this parameter is not defined, all detections logged within the specified time range will be returned. The list of available detection fields includes: hostName, interestedHost, objectDomain, shost, dhost, denyListHost, endpointHostName, userDomain, endpointGUID, request, botUrl, cccaDestination, src, dst, interestedIp, endpointIp, peerIp, denyListIp, dpt, spt, fileName, objectFileName, compressedFileName, attachmentFileName, filePath, filePathName, objectFilePath, fileHash, attachmentFileHash, attachmentFileHashSha1, compressedFileHash, denyListFileHash, objectFileHashSha1, oldFileHash, fileHashSha256, attachmentFileHashSha256, compressedFileHashSha256, objectFileHashSha256, attachmentFileHashMd5, objectFileHashMd5, processCmd, objectCmd, objectRegistryData, objectRegistryKeyHandle, objectRegistryValue, suid, processFilePath, suser, duser, mailMsgSubject, msgId, techniqueId, tags, tacticId, ruleName, ruleId, malName.	mailMsgSubject:ST_Playbook_Email_*

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "data": {
        "logs": [
            {
                "eventTimeDT": "2023-05-05T17:32:14+00:00",
                "searchDL": "DDL",
                "eventSourceType": 2,
                "eventTime": 1683307934000,
                "uuid": "***-***-***-***-***5",
                "productCode": "sca",
                "dataType": 1,
                "eventId": "MA-01-003",
                "eventName": "",
                "description": "New Born Sender IP Detected by ERS",
                "ruleVer": "",
                "rt_utc": "2023-05-05T17:35:45.062+0000",
                "mailbox": "test@example.com",
                "msgId": "",
                "msgUuid": "*****",
                "rt": "1683307934000",
                "suser": [
                    "test@example"
                ],
                "duser": [
                    "test@example.com"
                ],
                "mailMsgSubject": "ST_Playbook_Email_2023/05/05 17:30:53",
                "attachment": [
                    {
                        "attachmentFileName": "IR-20230505-*****.pdf",
                        "attachmentFileHash": "*****",
                        "attachmentFileSize": "-1",
                        "attachmentFileTlsh": ""
                    }
                ],
                "samUser": "",
                "groupIdCorrKey": "IP",
                "groupIdCorrValues": [
                    "*****"
                ],
                "orgId": "***-***-***-***-***",
                "attachmentFileName": [
                    "IR-20230505-*****.pdf"
                ],
                "attachmentFileHashs": [
                    "*****"
                ],
                "attachmentFileSizes": [
                    "-1"
                ],
                "attachmentFileTlshs": [
                    ""
                ],
                "ruleName": "MA-*****",
                "scanType": "realtime_mailmeta-exchange",
                "attachmentFileHashes": [
                    "*****"
                ],
                "attachmentFileTlshes": [
                    ""
                ]
            }
        ],
        "total_count": 1,
        "offset": 0
    }
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "DetectionIDs": [
        "*****"
    ],
    "DetectionNames": [
        "*****"
    ],
    "CreatedTime": [
        "2020-10-15T01:16:32Z"
    ],
    "DetectionTypes": [
        "File"
    ],
    "Severities": [
        6
    ],
    "InterestedIPs": [
        "1.1.1.1"
    ],
    "InterestedHosts": [
        "xxx-docker"
    ],
    "EndpointIPs": [
        "111.111.111.111"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

Detections Count

10

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Detections failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Vision One portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: InvalidToken.

Error Sample Data

Search Detections failed.

Status Code: 403.

Message: InvalidToken.

Terminate Process

Terminates a specified process that is running on an endpoint.

Reader Note

The parameter Host Names is required to run this command.

You should already have your desired Host Names on hand to run this command. If you don’t, you can use the Fetch Event command with defined filters to retrieve the desired Host Names. The Host Names can be found in the raw data in the Host Names corresponding to the value in "name" under "entityValue".

Input

Input Parameter	Required/Optional	Description	Example
Host Names	Required	The host name of the endpoint to terminate the process for. Host Names can be obtained using the Fetch Event command with defined filters.	["WIN-*****"]
File Hash SHA-1	Required	The file hash of the process to be terminated.	12*****f8b
Description	Optional	The description to add for the action of terminating the process.	terminate process test.

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "actionId": "*****",
        "taskStatus": "pending"
    },
    {
        "actionId": "*****",
        "taskStatus": "pending"
    }
]

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

JSON

[
    {
        "actionId": "*****",
        "taskStatus": "pending"
    },
    {
        "actionId": "*****",
        "taskStatus": "pending"
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.

The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

JSON

{
    "ActionIds": [
        "*****",
        "*****"
    ],
    "TaskStatuses": [
        "pending",
        "pending"
    ]
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

CODE

ACTIONID	TASKSTATUS
*****	pending
*****	pending
