Trend Micro Deep Security automatically protects new and existing workloads against known and unknown threats using techniques such as machine learning and virtual patching. It offers a full range of security capabilities through a single smart agent, including protection against vulnerabilities and end-of-life systems.
D3 SOAR is providing REST operations to function with Trend Micro Deep Security Manager.
Trend Micro Deep Security Manager is available for use in:
The rate limits applied to Deep Security Manager instances depend on the available resources of the manager computer and the API traffic received. The following rate limits are set by default:
To connect to Trend Micro Deep Security Manager from D3 SOAR, follow this part to collect the required information below:
Parameter
Description
Example
Server URL
The URL of the Trend Micro Deep Security Manager server.
https://app.deepsecurity.trendmicro.com
API Key
The API key for authentication.
*****
API Version
The API version.
v1
Permission Requirements
Each endpoint in the Trend Micro Deep Security Manager API requires certain permissions. Assigning users to built-in roles or creating custom roles with predefined scopes ensures appropriate access control. The following are the required permissions for the commands in this integration:
Commands
Required Permissions
Built-in Roles
Scopes for Custom Roles
Add Firewall Rule IDs
Deep Security Migration
Computer Rights -> Edit -> All Computers
Assign Intrusion Prevention Rules
Deep Security Migration
All of:
Computer Rights -> Edit -> All Computers
Policy Rights -> Edit -> All Policies
Create Firewall Rule
Full Access
Common Object Rights -> Firewall Rules -> Custom -> Can Create New Firewall Rules
Create Intrusion Rule
Full Access
Common Object Rights -> Intrusion Prevention Rules -> Custom -> Can Create New Intrusion Prevention Rules
Deactivate Computer
Workload Security Read Only
All of:
Computer Rights -> View -> All Computers, and
Computer Rights -> Delete -> All Computers
Delete Firewall Rules
Full Access
Common Object Rights -> Firewall Rules -> Custom -> Can Delete Firewall Rules
Delete Intrusion Rules
Full Access
Common Object Rights -> Intrusion Prevention Rules -> Custom -> Can Delete Intrusion Prevention Rules
Get Firewall Rule IDs By Computer
Workload Security Read Only
Computer Rights -> View All Computers
Get Host List
Workload Security Read Only
Computer Rights -> View All Computers
List Application Types
Workload Security Read Only
Other Rights -> Application Types -> View-Only
List Firewall Rules
Workload Security Read Only
Common Object Rights -> Firewall Rules -> View-Only
List Intrusion Rules
Workload Security Read Only
Common Object Rights -> Intrusion Prevention Rules -> View-Only
List Policies
Workload Security Read Only
Policy Rights -> View -> All Policies
Modify Intrusion Rule
Full Access
Common Object Rights -> Intrusion Prevention Rules -> Custom -> Can Edit Intrusion Prevention Rule Properties
Remove Firewall Rule IDs
Deep Security Migration
Computer Rights -> Edit -> All Computers
Schedule Daily Scan
Full Access
Other Rights -> Tasks -> Custom -> Can Add New Tasks, Can View Tasks, Can Edit Tasks
Schedule Hourly Scan
Full Access
Other Rights -> Tasks -> Custom -> Can Add New Tasks, Can View Tasks, Can Edit Tasks
Schedule Monthly Scan
Full Access
Other Rights -> Tasks -> Custom -> Can Add New Tasks, Can View Tasks, Can Edit Tasks
Schedule Once Only Scan
Full Access
Other Rights -> Tasks -> Custom -> Can Add New Tasks, Can View Tasks, Can Edit Tasks
Schedule Weekly Scan
Full Access
Other Rights -> Tasks -> Custom -> Can Add New Tasks, Can View Tasks, Can Edit Tasks
Unassign Intrusion Prevention Rules
Deep Security Migration
All of:
Computer Rights -> Edit -> All Computers
Policy Rights -> Edit -> All Policies
Test Connection
Workload Security Read Only
Computer Rights -> View -> All Computers
As Trend Micro Deep Security Manager is using role-based access control (RBAC), the API Key is generated based on a specific user account and the application. Therefore, the command permissions are inherited from the user account’s role. Users need to configure their user profile from the Trend Micro Deep Security Manager console for each command in this integration.
Configuring Trend Micro Deep Security Manager to Work with D3 SOAR

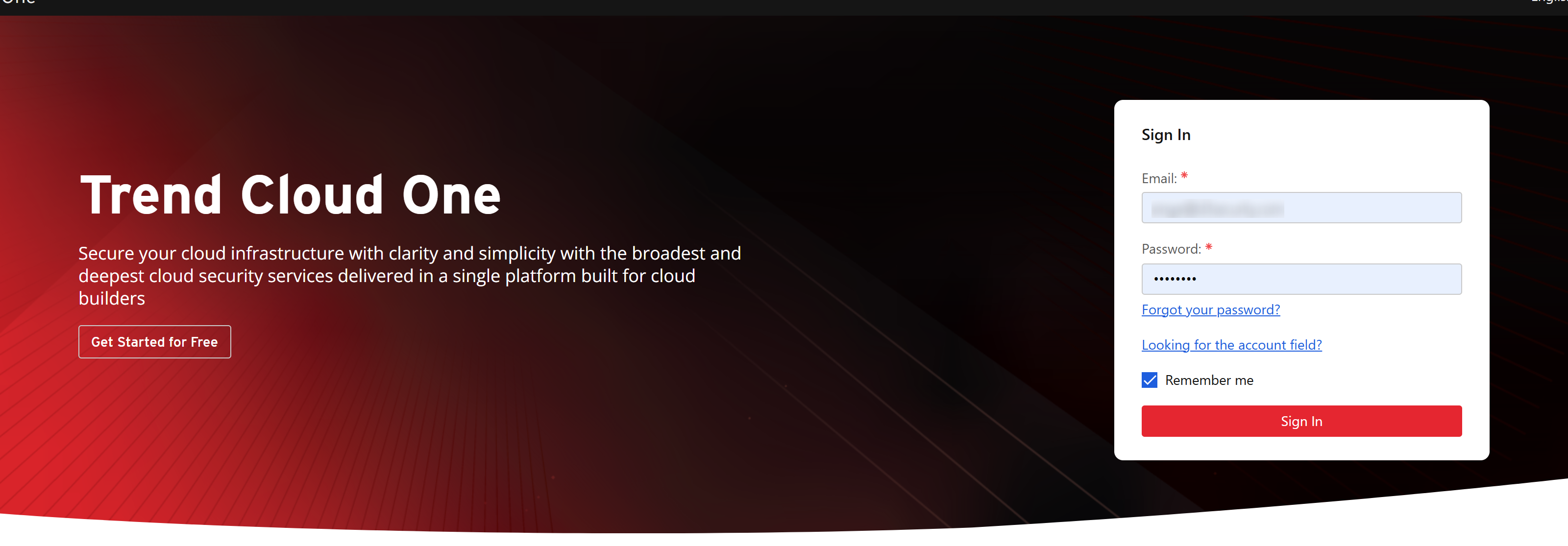

Log into the Trend Cloud One console.

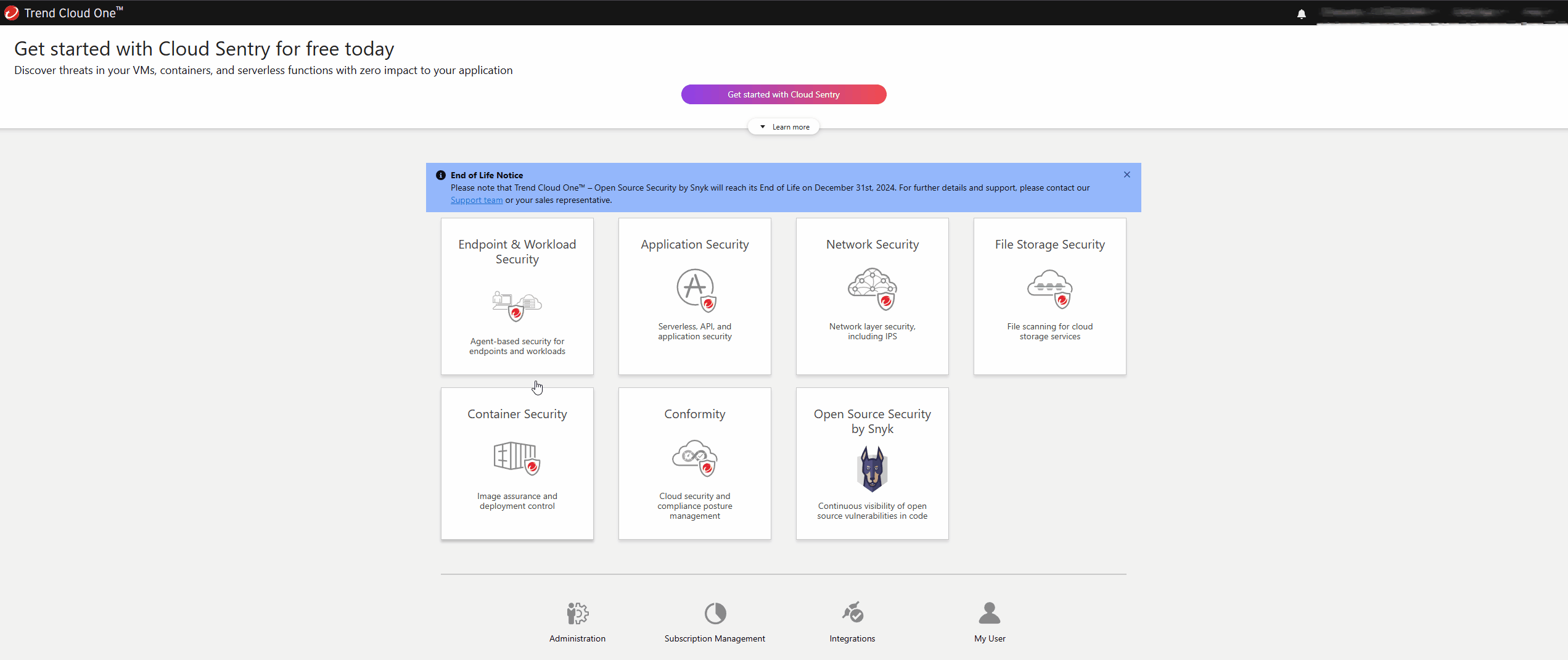

Navigate to the API Key management section.
Select the Endpoint & Workload Security card.
Open the Administration tab.
Go to User Management > API Keys.
Click on the New… button to open the Properties pop-up window.

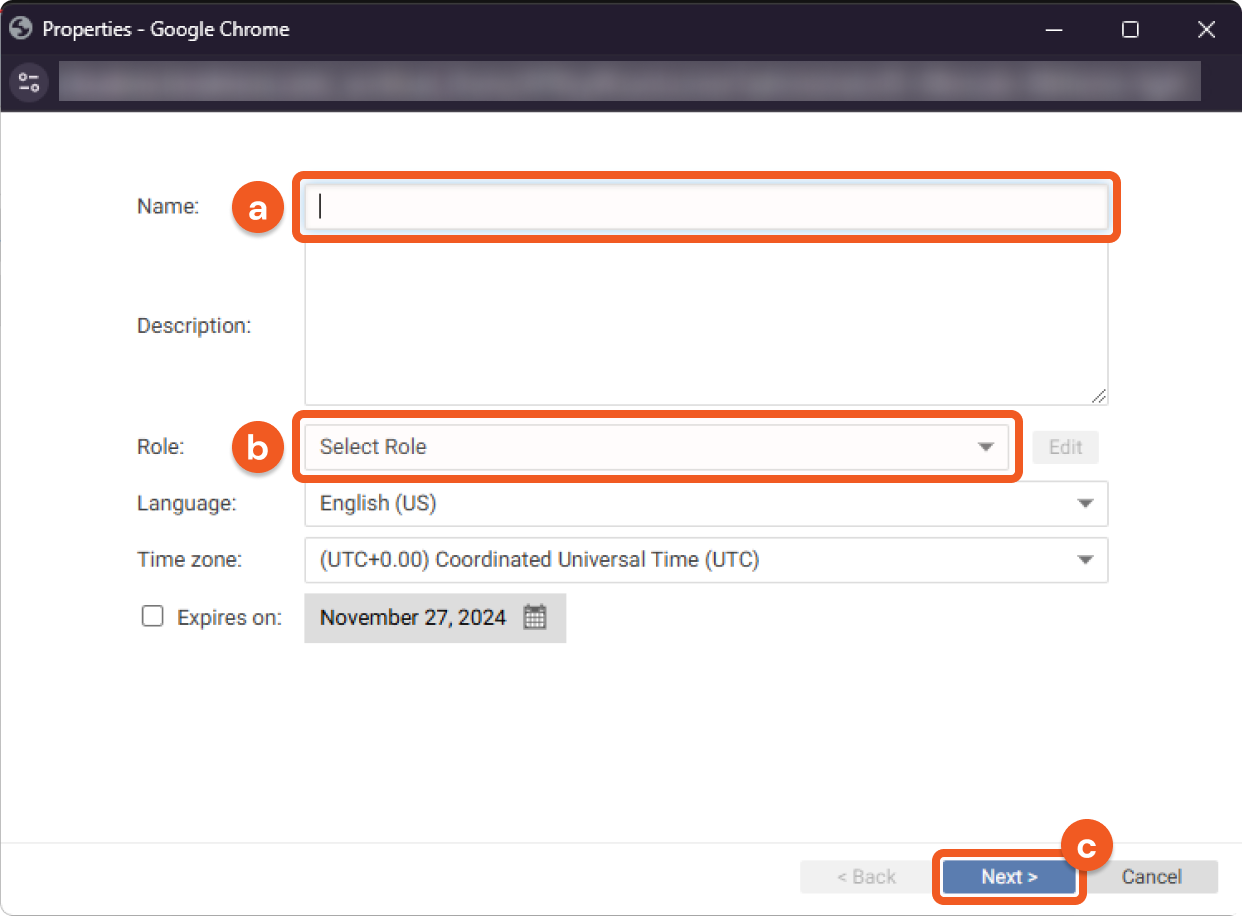

Configure the API key.
Provide a name for the API key.
Select a role using the dropdown.
Click on the Next > button.

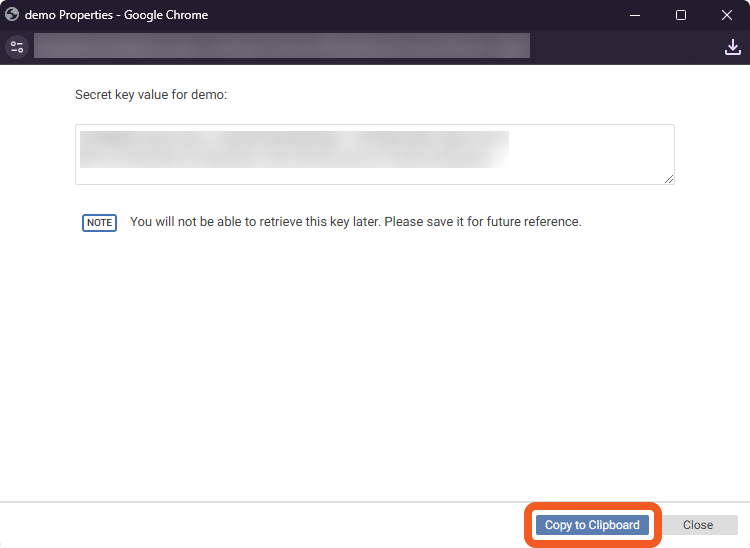

Copy the API Key and store it in a secure location. The API Key will not be visible again after this window is closed. Refer to step 3i sub-step 2 in Configuring D3 SOAR to Work with Trend Micro Deep Security Manager.
Creating and Configuring Custom Roles

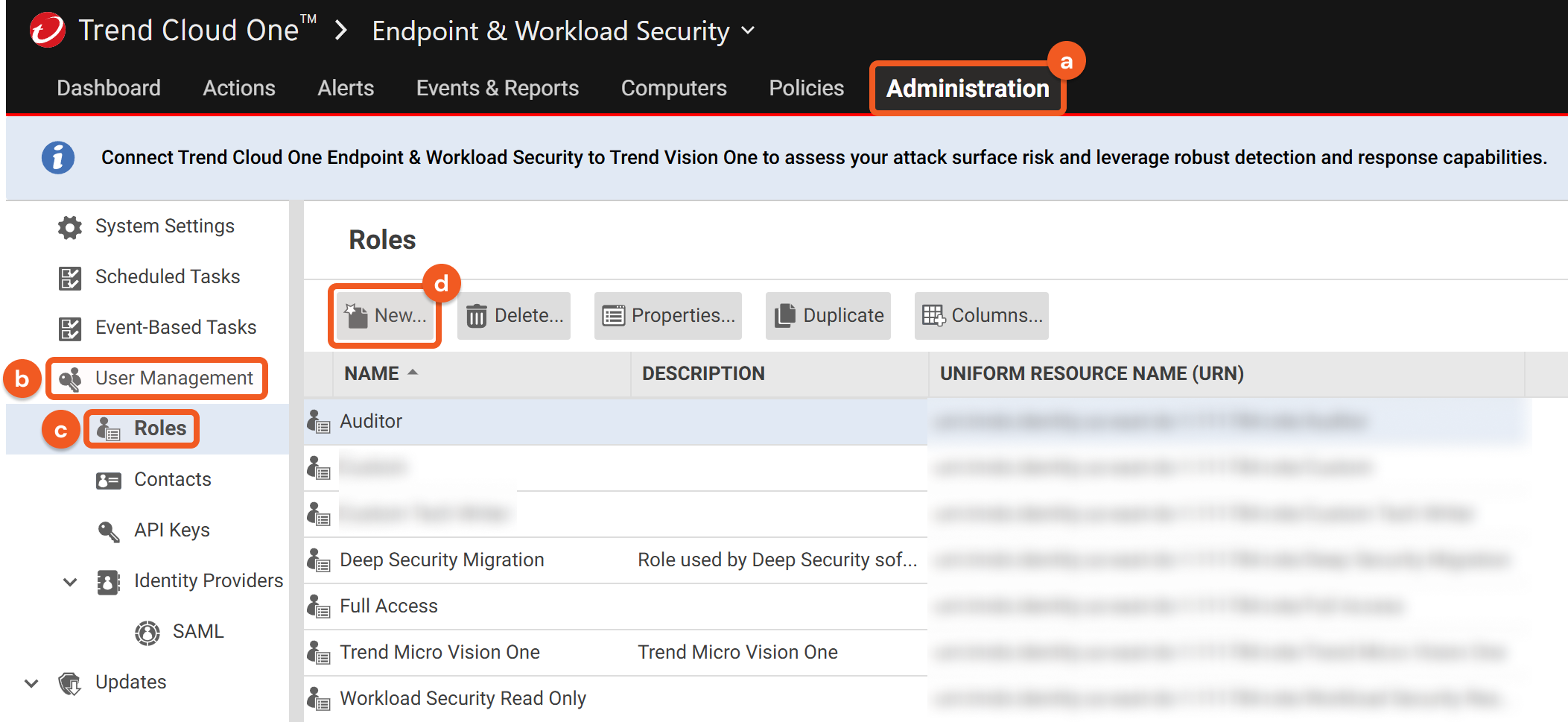

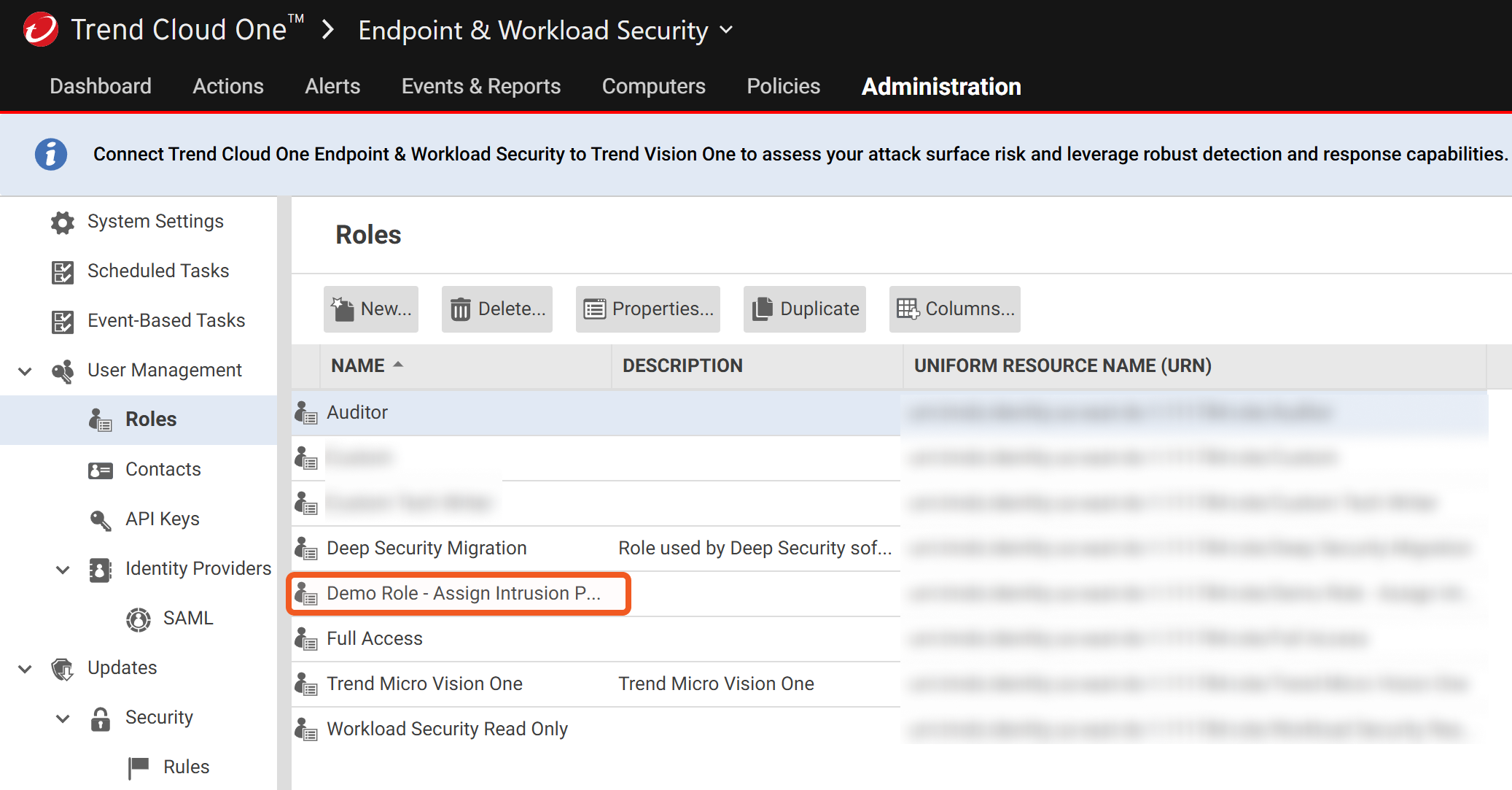

Navigate to Administration > User Management > Roles within Endpoint & Workload Security and click on the New… button.

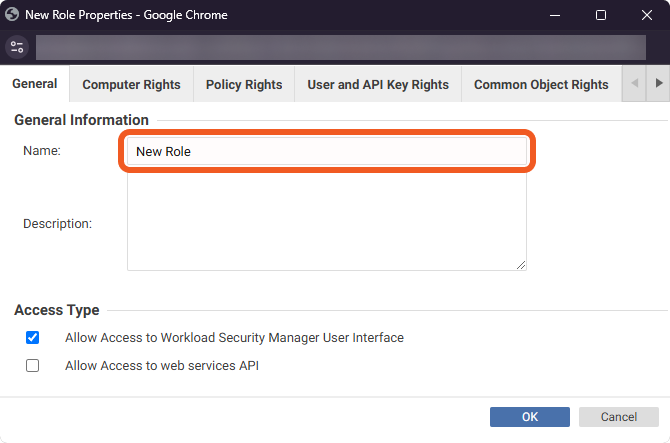

Name the role.

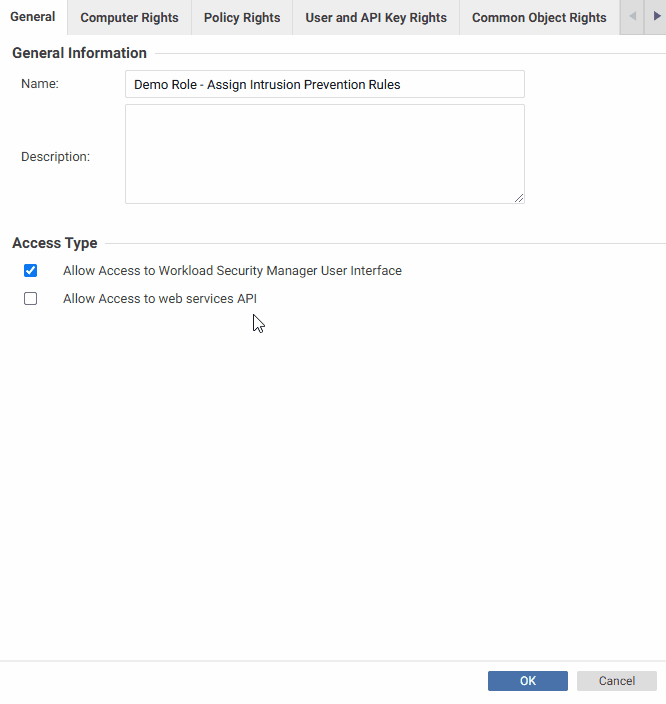

Navigate through the tabs at the top to configure the permission scopes for the role. This example demonstrates the configuration of the scopes required for a custom role to execute the Assign Intrusion Prevention Rules and Unassign Intrusion Prevention Rules commands.
READER NOTE
Refer to the Permission Requirements section to identify the necessary scopes for each command.
Save the role and confirm that it has been set up.
Configuring D3 SOAR to Work with Trend Micro Deep Security Manager
Log in to D3 SOAR.

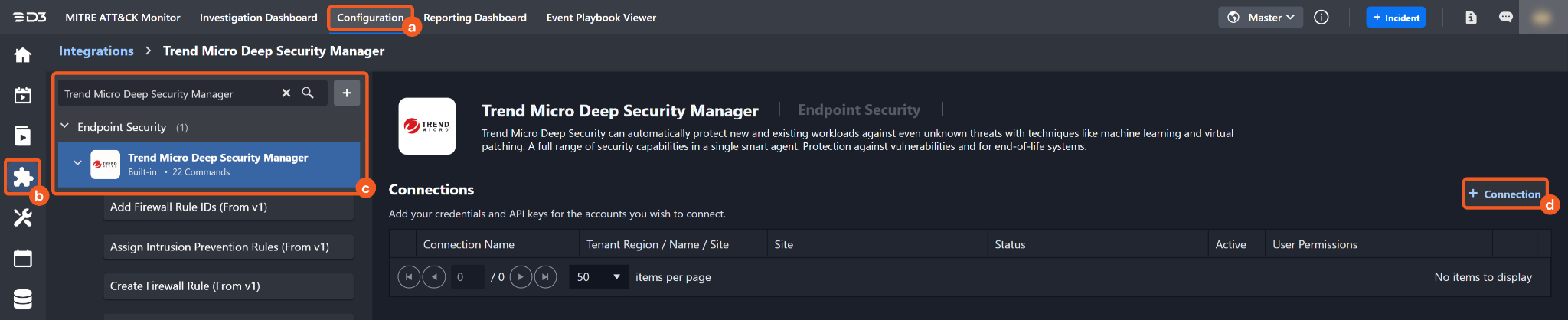

Find the Trend Micro Deep Security Manager integration.
Navigate to Configuration on the top header menu.
Click on the Integration icon on the left sidebar.
Type Trend Micro Deep Security Manager in the search box to find the integration, then click it to select it.
Click on the + Connection button on the right side of the Connections section. A new connection window will appear.

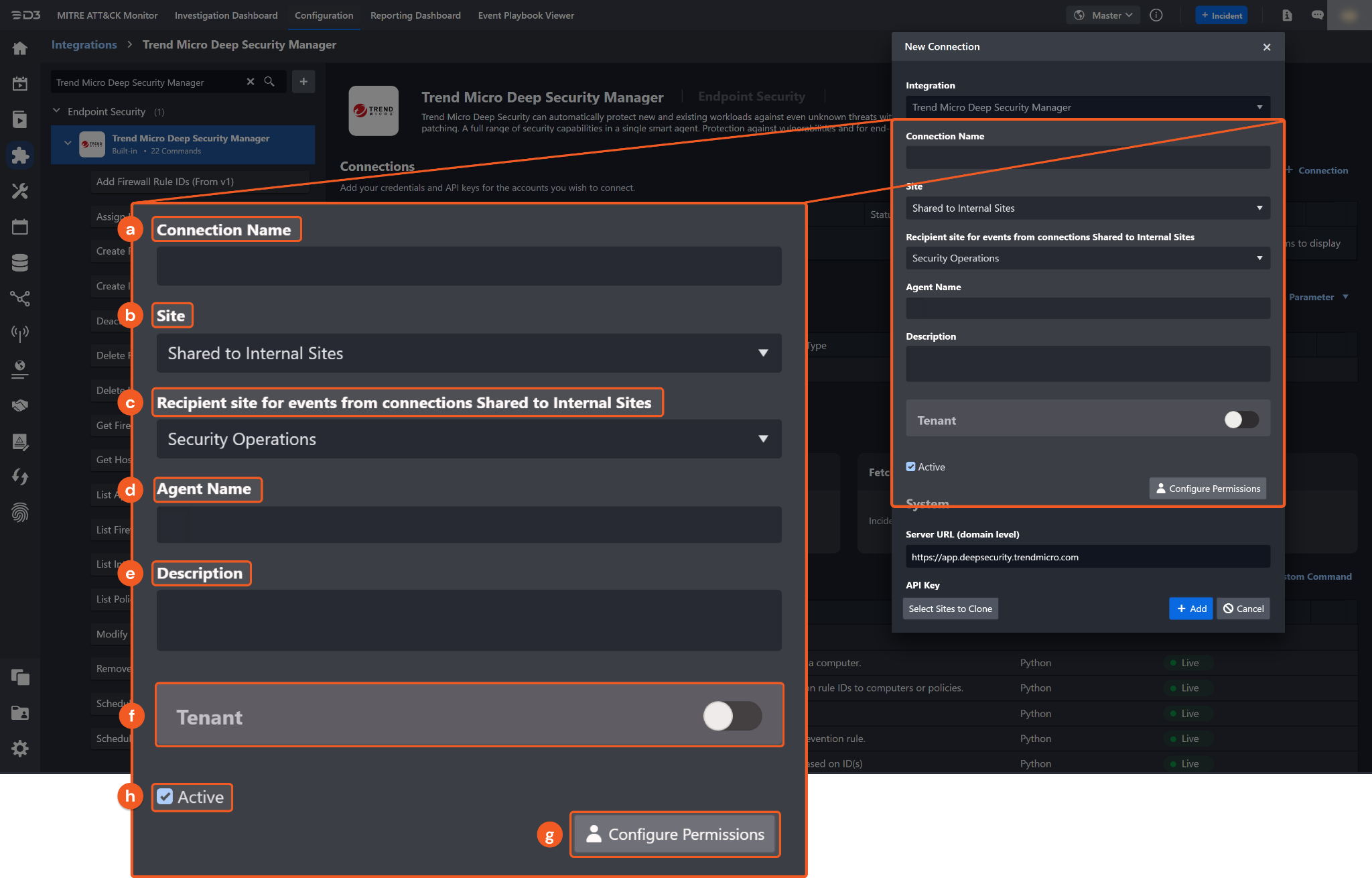

Configure the following fields to create a connection to Trend Micro Deep Security Manager.
Connection Name: The desired name for the connection.
Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.
Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
Description (Optional): Add your desired description for the connection.
Tenant (Optional): When configuring the connection from a master tenant site, you have the option to choose the specific tenant sites you want to share the connection with. Once you enable this setting, you can filter and select the desired tenant sites from the dropdowns to share the connection.
Configure User Permissions: Defines which users have access to the connection.
Active: Check the checkbox to ensure the connection is available for use.

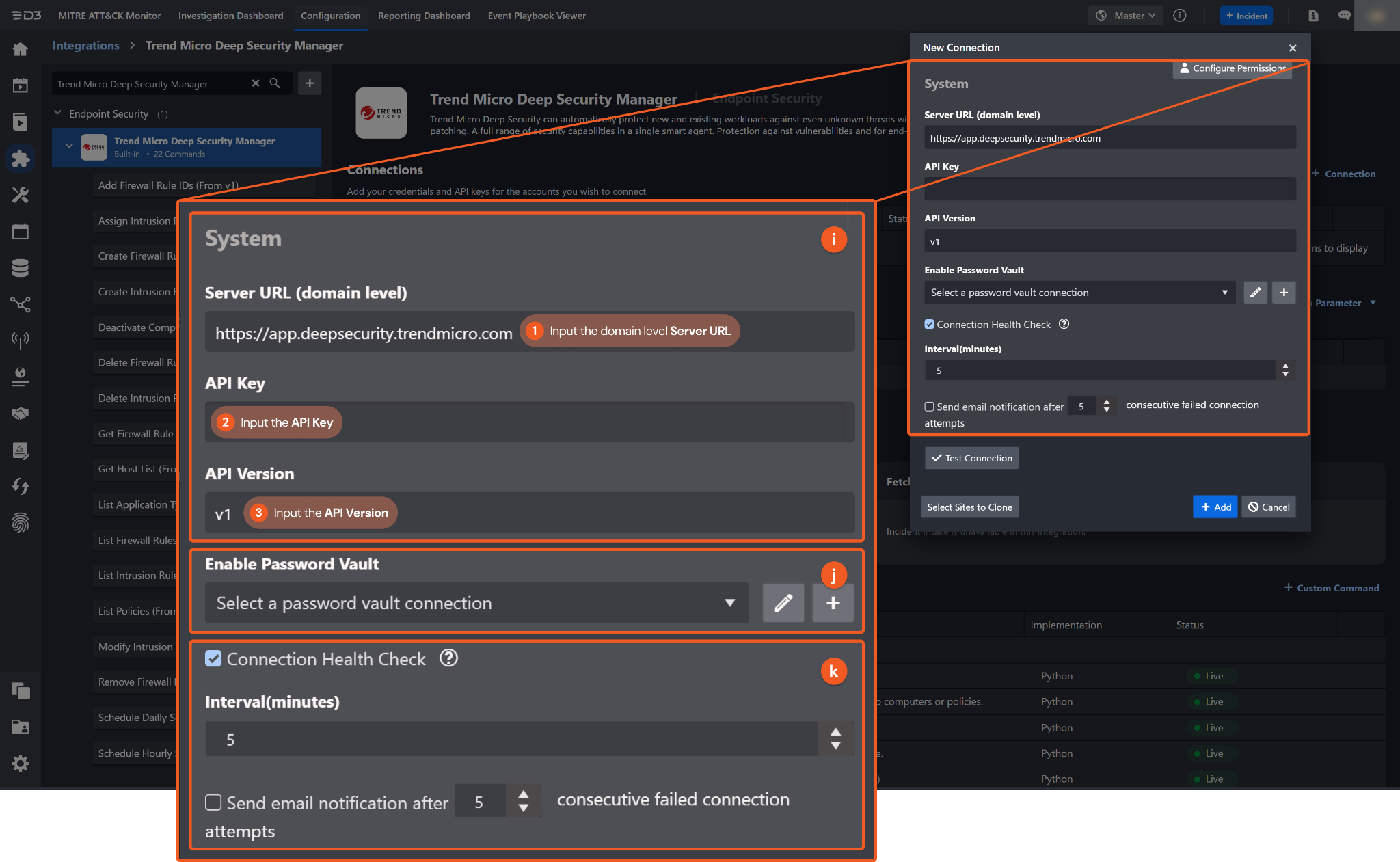

System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
1. Input the Server URL. The default value is https://app.deepsecurity.trendmicro.com.
2. Copy the API Key from the Trend Micro Deep Security Manager platform. Refer to step 4 of Configuring Trend Micro Deep Security Manager to Work with D3 SOAR.
3. Input the API Version. The default value is v1.
Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Refer to the password vault connection guide if needed.
Connection Health Check: Updates the connection status you have created. A connection health check is done by scheduling the Test Connection command of this integration. This can only be done when the connection is active.
To set up a connection health check, check the Connection Health Check tick box. You can customize the interval (minutes) for scheduling the health check. An email notification can be set up after a specified number of failed connection attempts.

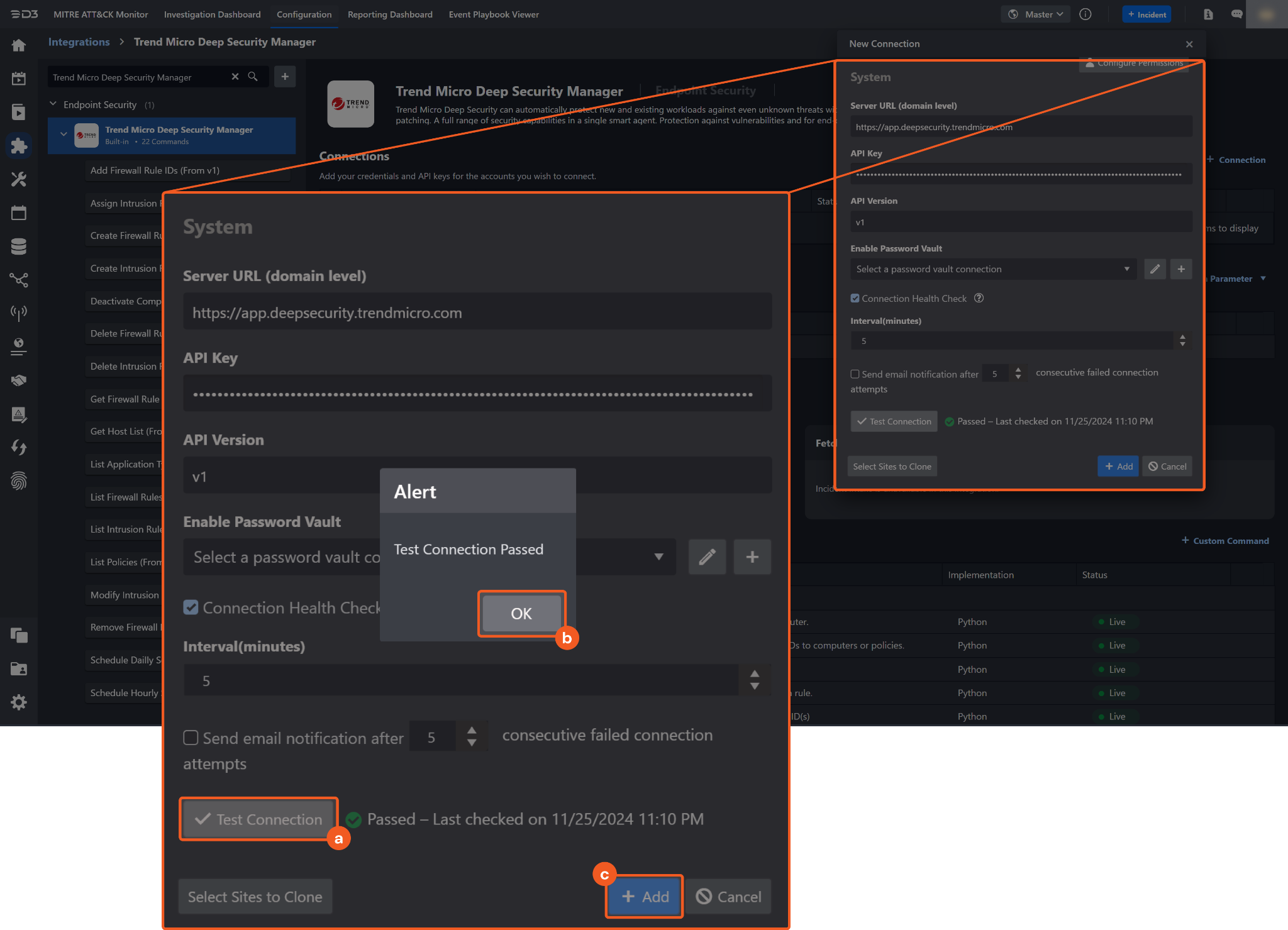

Test the connection.
Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green check markappear beside the Test Connection button. If the test connection fails, check your connection parameters and try again.
Click OK to close the alert window.
Click +Add to create and add the configured connection.
Commands
Trend Micro Deep Security Manager includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.
Computer ID and Rule IDs are required parametersto run this command.
Run the Get Host List command to obtain the Computer ID. Computer IDs can be found in the raw data at the path $.computers[*].ID.
Run the List Firewall Rules or Create Firewall Rule command to obtain the Rule IDs. Rule IDs can be found in the raw data at the path $.firewallRules[*].ID for List Firewall Rules or $.ID for Create Firewall Rule.
Input
Input Parameter
Required/Optional
Description
Example
Computer ID
Required
The ID of the computer to which the firewall rule IDs are assigned. Computer ID can be obtained using the Get Host List command.
*****
Rule IDs
Required
The IDs of the firewall rules to assign. Rules IDs can be obtained using the List Firewall Rules or Create Firewall Rule command.
JSON
[ ***** ]
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"AssignedRuleIDs": [
*****,
*****
]
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
assignedRuleIDs
*****
*****
*****
*****
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Add Firewall Rule IDs failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 404.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not Found.
Error Sample Data
Add Firewall Rule IDs failed.
Status Code: 404.
Message: Not Found.
Assign Intrusion Prevention Rules
Assigns intrusion prevention rules to the specified computers or policies.
READER NOTE
Intrusion Rule IDs is a required parameterto run this command.
Run the List Intrusion Rules command to obtain the Intrusion Rule IDs. Intrusion Rule IDs can be found in the raw data at the path $.intrusionPreventionRules[*].ID.
Computer IDs and Policy IDs are optional parameters to run this command.
Run the Get Host List command to obtain the Computer IDs. Computer IDs can be found in the raw data at the path $.computers[*].ID.
Run the List Policies command to obtain the Policy IDs. Policy IDs can be found in the raw data at the path $.policies[*].ID.
Input
Input Parameter
Required/Optional
Description
Example
Intrusion Rule IDs
Required
The IDs of the intrusion prevention rules to assign. Intrusion Rule IDs can be obtained using the List Intrusion Rules command.
JSON
[
*****,
*****,
*****
]
Computer IDs
Optional
The IDs of the computers to which the rules are assigned. Computer IDs can be obtained using the Get Host List command.
JSON
[*****]
Policy IDs
Optional
The IDs of the policies to which the rules are assigned. Policy IDs can be obtained using the List Policies command.
JSON
[*****]
Output
Return Data
Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.
The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Assign Intrusion Prevention Rules failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 400.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Either of Computer IDs or Policy IDs can be empty but not both empty.
Error Sample Data
Assign Intrusion Prevention Rules failed.
Status Code: 400.
Message: Either of Computer IDs or Policy IDs can be empty but not both empty.
Create Firewall Rule
Creates a new firewall rule.
Input
Input Parameter
Required/Optional
Description
Example
Name
Required
The name of the firewall rule.
Test Rule
Description
Optional
The description of the firewall rule.
Test for creating firewall rule
Action
Optional
The action applied by the packet filter. Available options include:
Log only
Allow
Deny
Force Allow
Bypass
By default, the value is Allow.
Allow
Priority
Optional
The priority of the packet filter. Available options are:
0 - Lowest
1 - Low
2 - Normal
3 - High
4 - Highest
By default, the value is 0 - Lowest.
0 - Lowest
Direction
Optional
The direction of the packet. Available options are:
Incoming
Outgoing
By default, the value is Incoming.
Incoming
Frame Type
Required
The type of frame supported.
Any
IP
ARP
REVARP
IPV4
IPV6
Other
By default, the value is IP.
IP
Protocol
Optional
The protocol of the packet. By default, the value is Any.
TCP
Source IP Value
Optional
The source IP address of the packet. If provided, the source IP type is set to Masked IP.
***.***.***.***
Source IP Mask
Optional
The source IP mask of the packet. If provided, the source IP type is set to Masked IP.
***.***.***.***
Source MAC Multiple
Optional
A list of source MAC addresses. If provided, the source MAC type is set to Multiple.
JSON
[
"**-**-**-**-**-**",
"**-**-**-**-**-**"
]
Packet Source Multiple
Optional
A list of source ports. If provided, the source port type is set to Multiple.
JSON
[
"*****",
"*****"
]
Destination IP Value
Optional
The destination IP address of the packet. If provided, the destination IP type is set to Masked IP.
***.***.***.***
Destination IP Mask
Optional
The destination IP mask of the packet. If provided, the destination IP type is set to Masked IP.
***.***.***.***
Destination MAC Multiple
Optional
A list of destination MAC addresses. If provided, the destination MAC type is set to Multiple.
JSON
[
"**-**-**-**-**-**",
"**-**-**-**-**-**"
]
Destination Port Multiple
Optional
A list of destination ports. If provided, the destination port type is set to Multiple.
CODE
[
"*****",
"*****"
]
Additional Settings
Optional
Additional settings for creating a firewall rule. This is formatted as <FieldName1>=<FieldValue1> <FieldName2>=<FieldValue2>. For example, logDisabled=true TCPNot=true is a valid input. Refer to the Firewall Rules | Trend Micro Deep Security Manager for available field names and values.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"RuleID": *****
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
name
Test Rule 44
description
Test for creating firewall rule
action
allow
priority
0
direction
incoming
frameType
ip
frameNumber
2048
frameNot
FALSE
protocol
tcp
protocolNot
FALSE
sourceIPType
masked-ip
sourceIPValue
***.***.***.***
sourceIPMask
***.***.***.***
sourceIPNot
FALSE
sourceMACType
multiple
sourceMACMultiple
**:**:**:**:**:**, **:**:**:**:**:**
sourceMACNot
FALSE
sourcePortType
any
sourcePortMultiple
*****,*****
sourcePortNot
FALSE
destinationIPType
masked-ip
destinationIPValue
***.***.***.***
destinationIPMask
***.***.***.***
destinationIPNot
FALSE
destinationMACType
multiple
destinationMACMultiple
**:**:**:**:**:**, **:**:**:**:**:**
destinationMACNot
FALSE
destinationPortType
any
destinationPortMultiple
*****,*****
destinationPortNot
FALSE
anyFlags
TRUE
logDisabled
FALSE
includePacketData
FALSE
alertEnabled
FALSE
ID
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Create Firewall Rule failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 409.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: The requested firewall rule name already exists.
Error Sample Data
Create Firewall Rule failed.
Status Code: 409.
Message: The requested firewall rule name already exists.
Create Intrusion Rule
Creates a new intrusion prevention rule.
READER NOTE
Application Type ID is a required parameterto run this command.
Run the List Application Types command to obtain the Application Type ID. Application Type IDs can be found in the raw data at the path $.applicationTypes[*].ID.
One of the following must be provided to create an intrusion rule:
Signature
Start Pattern, Body Patterns, and End Pattern
Custom XML.
If the Start Pattern is specified, the template is set to start-end-patterns. Start Pattern, Body Patterns, and End Pattern are all required to create a start-end-patterns rule.
Input
Input Parameter
Required/Optional
Description
Example
Rule Name
Required
The name of the intrusion prevention rule.
test202109081
Signature
Optional
The signature of the rule. If provided, the template is set to signature, and the input values of Start Pattern, End Pattern, Body Patterns, and Custom XML will be ignored.
*****
Start Pattern
Optional
The start pattern of the rule. If provided, the template is set to start-end-patterns.
secret
Body Patterns
Optional
The body patterns of the rule.
JSON
["*money"]
End Pattern
Optional
The ending pattern of the rule.
hack
Custom XML
Optional
The Custom XML used to define the rule. If provided, the template is set to custom.
*****
Application Type ID
Required
The ID of the application type associated with the rule. Application Type ID can be obtained using the List Application Types command.
*****
Severity
Optional
The severity level of the rule. Available options are:
Any
Critical
High
Medium
Low
By default, the value is Any.
Critical
Priority
Optional
The priority of the rule. Higher priority rules are applied before lower priority rules.
Available options are:
Highest
High
Normal
Low
Lowest
Highest
Alert Enabled
Optional
Whether to raise an alert when the rule logs an event. By default, the value is False.
False
Action
Optional
The action applied when the rule is triggered. Available options are:
Drop
Log-Only
Drop
Description
Optional
The description of the rule.
"Modify test Intrusion Prevention Rule"
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
name
test20210913-1
description
an test Intrusion Prevention Rule
applicationTypeID
*****
priority
normal
severity
low
detectOnly
FALSE
eventLoggingDisabled
FALSE
generateEventOnPacketDrop
TRUE
alwaysIncludePacketData
FALSE
debugModeEnabled
FALSE
template
start-end-patterns
start
t5r7y43
patterns
['4358uhtjgfdy']
end
grfehstruy
caseSensitive
FALSE
condition
all
action
drop
alertEnabled
FALSE
ID
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Create Intrusion Rule failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 400
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Please input either Signature or Start-Body-End Patterns or Custom XML to create an intrusion rule.
Error Sample Data
Create Intrusion Rule failed.
Status Code: 400
Message: Please input either Signature or Start-Body-End Patterns or Custom XML to create an intrusion rule.
Deactivate Computer
Deactivates computers using IDs.
READER NOTE
Computer ID is a required parameterto run this command.
Run the Get Host List command to obtain the Computer ID. Computer IDs can be found in the raw data at the path $.computers[*].ID.
Input
Input Parameter
Required/Optional
Description
Example
Computer IDs
Required
The IDs of the computers to deactivate. Computer IDs can be obtained using the Get Host List command.
JSON
[
*****,
*****
]
Output
Return Data
Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.
The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"IDs": [
*****,
*****
]
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
ID
result
*****
Successful
*****
Successful
Error Handling
If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Deactivate Computer failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 404.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: ID ***** not found
Error Sample Data
Deactivate Computer failed.
Status Code: 404.
Message: ID ***** not found
Delete Firewall Rules
Deletes firewall rules using the specified IDs.
READER NOTE
Rule IDs is a required parameterto run this command.
Run the List Firewall Rules or Create Firewall Rule command to obtain the Rule IDs. Rule IDs can be found in the raw data at the path $.firewallRules[*].ID for List Firewall Rules or $.ID for Create Firewall Rule.
Input
Input Parameter
Required/Optional
Description
Example
Rule IDs
Required
The IDs of the firewall rules to delete. Rules IDs can be obtained using the List Firewall Rules or Create Firewall Rule command.
JSON
[ ***** ]
Output
Return Data
Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.
The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
ruleID
actionResult
*****
Deleted the rule successfully
Error Handling
If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Delete Firewall Rules failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 409.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: One or more firewall rules could not be deleted because it is in use by one or more computers or policies.
Error Sample Data
Delete Firewall Rules failed.
Status Code: 409.
Message: One or more firewall rules could not be deleted because it is in use by one or more computers or policies.
Delete Intrusion Rules
Deletes intrusion prevention rules using the specified IDs.
READER NOTE
Intrusion Rule IDs is a required parameterto run this command.
Run the List Intrusion Rules command to obtain the Intrusion Rule IDs. Intrusion Rule IDs can be found in the raw data at the path $.intrusionPreventionRules[*].ID.
Input
Input Parameter
Required/Optional
Description
Example
Intrusion Rule IDs
Required
The IDs of the intrusion prevention rules to delete. Intrusion Rule IDs can be obtained using the List Intrusion Rules command.
CODE
[*****]
Output
Return Data
Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.
The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
SAMPLE DATA
CODE
Successful
Raw Data
The primary response data from the API request.
SAMPLE DATA
JSON
[
{
"ID": *****,
"Message": "Intrusion Prevention Rule ID ***** has been removed successfully."
},
{
"ID": *****,
"Message": "Intrusion Prevention Rule ID ***** has been removed successfully."
}
]
Context Data
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
SAMPLE DATA
JSON
[
{
"ID": *****,
"Message": "Intrusion Prevention Rule ID ***** has been removed successfully."
},
{
"ID": *****,
"Message": "Intrusion Prevention Rule ID ***** has been removed successfully."
}
]
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
ID
Message
*****
Intrusion Prevention Rule ID ***** has been removed successfully.
*****
Intrusion Prevention Rule ID ***** has been removed successfully.
Error Handling
If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Delete Intrusion Rules failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 409.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: One or more Intrusion Prevention Rules could not be deleted because they have been issued by Trend Micro.
Error Sample Data
Delete Intrusion Rules failed.
Status Code: 409.
Message: One or more Intrusion Prevention Rules could not be deleted because they have been issued by Trend Micro.
Get Firewall Rule IDs By Computer
Retrieves all firewall rule IDs assigned to a computer.
READER NOTE
Computer ID is a required parameterto run this command.
Run the Get Host List command to obtain the Computer ID. Computer IDs can be found in the raw data at the path $.computers[*].ID.
Input
Input Parameter
Required/Optional
Description
Example
Computer ID
Required
The ID of the computer for which to retrieve firewall rule IDs. Computer ID can be obtained using the Get Host List command.
*****
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"AssignedRuleIDs": [
*****,
*****
]
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
assignedRuleIDs
*****
*****
*****
*****
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Get Firewall Rule IDs By Computer failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 404.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not Found.
Error Sample Data
Get Firewall Rule IDs By Computer failed.
Status Code: 404.
Message: Not Found.
Get Host List
Retrieves all computers.
Input
N/A
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
hostName
*****
displayName
description
lastIPUsed
***.***.***.***
platform
relayListID
0
agentFingerPrint
*****
lastAgentCommunication
1.61E+12
agentVersion
0.0.0.0
biosUUID
*****
hostGUID
*****
agentGUID
*****
ID
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Get Host List failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 401.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Invalid API Key.
Error Sample Data
Get Host List failed.
Status Code: 401.
Message: Invalid API Key.
List Application Types
Lists all application types.
Input
N/A
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"ApplicationTypeIDs": [
*****,
*****
],
"ApplicationTypeNames": [
"Backdoors TCP",
"TFTP Client Decoder"
],
"Descriptions": [
"",
"This application type helps the TFTP client application type to decode the traffic."
],
"Directions": [
"incoming",
"outgoing"
],
"Protocols": [
"tcp",
"udp"
],
"PortTypes": [
"port-list",
"port-list"
]
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
name
Backdoors TCP
TFTP Client Decoder
description
This application type helps the TFTP client application type to decode the traffic.
minimumAgentVersion
4.0.0.0
4.0.0.0
direction
incoming
outgoing
protocol
tcp
udp
portType
port-list
port-list
portListID
*****
*****
ID
*****
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
List Application Types failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 403.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not authorized. Invalid Key. Check DSM events for details.
Error Sample Data
List Application Types failed.
Status Code: 403.
Message: Not authorized. Invalid Key. Check DSM events for details.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
name
Off Domain Exceptions - Domain Client (UDP)
description
action
force-allow
priority
2
direction
outgoing
frameType
ip
frameNumber
2048
frameNot
FALSE
protocol
udp
protocolNot
FALSE
sourceIPType
any
sourceIPNot
FALSE
sourceMACType
any
sourceMACNot
FALSE
sourcePortType
any
sourcePortNot
FALSE
destinationIPType
ip-list
destinationIPListID
*****
destinationIPNot
FALSE
destinationMACType
any
destinationMACNot
FALSE
destinationPortType
port-list
destinationPortListID
*****
destinationPortNot
FALSE
anyFlags
TRUE
logDisabled
FALSE
includePacketData
FALSE
alertEnabled
FALSE
contextID
*****
ID
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
List Firewall Rules failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 401.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Invalid API Key.
Error Sample Data
List Firewall Rules failed.
Status Code: 401.
Message: Invalid API Key.
List Intrusion Rules
Lists intrusion prevention rules based on specified filters.
Input
Input Parameter
Required/Optional
Description
Example
Type
Required
The type of intrusion prevention rule. Available options are:
Custom
Smart
Vulnerability
Exploit
Hidden
Policy
Info
By default, the value is Custom.
Custom
Severity
Required
The severity level of the rule. Available options are:
Any
Critical
High
Medium
Low
By default, the value is Any.
Critical
Max Results
Optional
The maximum number of results returned. The maximum is 5000. By default, the value is 5000.
5000
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
SAMPLE DATA
CODE
Successful
Raw Data
The primary response data from the API request.
SAMPLE DATA
JSON
{
"intrusionPreventionRules": [
{
"name": "Oracle Database Server XML Database Component Buffer Overflow (create file)",
"description": "Oracle Database has a buffer overflow vulnerability in public procedure DBMS_XMLSCHEMA.GENERATESCHEMA that can be exploited to run arbitrary code.",
"applicationTypeID": *****,
"priority": "high",
"severity": "critical",
"detectOnly": false,
"eventLoggingDisabled": false,
"generateEventOnPacketDrop": true,
"alwaysIncludePacketData": false,
"debugModeEnabled": false,
"type": "exploit",
"originalIssue": 1139856774000,
"lastUpdated": 1168375378000,
"identifier": "*****",
"alertEnabled": false,
"recommendationsMode": "enabled",
"canBeAssignedAlone": true,
"ID": *****,
"CVSSScore": "9.00",
"CVE": ["*****"]
},
{
"name": "Symantec Veritas NetBackup CONNECT_OPTIONS Request Buffer Overflow",
"description": "There exists a buffer overflow vulnerability in Symantec VERITAS NetBackup Server, Backup Client Service (BPCD). The flaw is caused by incorrect processing of specially crafted BPCD messages. A remote attacker may exploit this vulnerability to inject and execute arbitrary code on the vulnerable system within the security context of the affected service, normally System.",
"applicationTypeID": *****,
"priority": "normal",
"severity": "critical",
"detectOnly": false,
"eventLoggingDisabled": false,
"generateEventOnPacketDrop": true,
"alwaysIncludePacketData": false,
"debugModeEnabled": false,
"type": "exploit",
"originalIssue": 1166611684000,
"lastUpdated": 1166611684000,
"identifier": "*****",
"alertEnabled": false,
"recommendationsMode": "enabled",
"canBeAssignedAlone": true,
"ID": *****,
"CVSSScore": "10.00",
"CVE": ["*****"]
}
]
}
Context Data
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
SAMPLE DATA
JSON
[
{
"name": "Oracle Database Server XML Database Component Buffer Overflow (create file)",
"description": "Oracle Database has a buffer overflow vulnerability in public procedure DBMS_XMLSCHEMA.GENERATESCHEMA that can be exploited to run arbitrary code.",
"applicationTypeID": *****,
"priority": "high",
"severity": "critical",
"detectOnly": false,
"eventLoggingDisabled": false,
"generateEventOnPacketDrop": true,
"alwaysIncludePacketData": false,
"debugModeEnabled": false,
"type": "exploit",
"originalIssue": 1139856774000,
"lastUpdated": 1168375378000,
"identifier": "*****",
"alertEnabled": false,
"recommendationsMode": "enabled",
"canBeAssignedAlone": true,
"ID": *****,
"CVSSScore": "9.00",
"CVE": ["*****"],
"originalIssueUTCTime": "2006-02-13T18:52:54",
"lastUpdatedUTCTime": "2007-01-09T20:42:58"
},
{
"name": "Symantec Veritas NetBackup CONNECT_OPTIONS Request Buffer Overflow",
"description": "There exists a buffer overflow vulnerability in Symantec VERITAS NetBackup Server, Backup Client Service (BPCD). The flaw is caused by incorrect processing of specially crafted BPCD messages. A remote attacker may exploit this vulnerability to inject and execute arbitrary code on the vulnerable system within the security context of the affected service, normally System.",
"applicationTypeID": *****,
"priority": "normal",
"severity": "critical",
"detectOnly": false,
"eventLoggingDisabled": false,
"generateEventOnPacketDrop": true,
"alwaysIncludePacketData": false,
"debugModeEnabled": false,
"type": "exploit",
"originalIssue": 1166611684000,
"lastUpdated": 1166611684000,
"identifier": "*****",
"alertEnabled": false,
"recommendationsMode": "enabled",
"canBeAssignedAlone": true,
"ID": *****,
"CVSSScore": "10.00",
"CVE": ["*****"],
"originalIssueUTCTime": "2006-12-20T10:48:04",
"lastUpdatedUTCTime": "2006-12-20T10:48:04"
}
]
Key Fields
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"IntrusionPreventionRuleIDs": [
*****,
*****
],
"IntrusionPreventionRuleNames": [
"Oracle Database Server XML Database Component Buffer Overflow (create file)",
"Symantec Veritas NetBackup CONNECT_OPTIONS Request Buffer Overflow"
],
"Descriptions": [
"Oracle Database has a buffer overflow vulnerability in public procedure DBMS_XMLSCHEMA.GENERATESCHEMA that can be exploited to run arbitrary code.",
"There exists a buffer overflow vulnerability in Symantec VERITAS NetBackup Server, Backup Client Service (BPCD). The flaw is caused by incorrect processing of specially crafted BPCD messages. A remote attacker may exploit this vulnerability to inject and execute arbitrary code on the vulnerable system within the security context of the affected service, normally System."
],
"ApplicationTypeIDs": [
"*****",
"*****"
],
"Priorities": [
"high",
"normal"
],
"Severities": [
"critical",
"critical"
],
"Types": [
"exploit",
"exploit"
],
"CVSSScores": [
"9.00",
"10.00"
]
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
name
Oracle Database Server XML Database Component Buffer Overflow (create file)
Oracle Database has a buffer overflow vulnerability in public procedure DBMS_XMLSCHEMA.GENERATESCHEMA that can be exploited to run arbitrary code.
There exists a buffer overflow vulnerability in Symantec VERITAS NetBackup Server, Backup Client Service (BPCD). The flaw is caused by incorrect processing of specially crafted BPCD messages. A remote attacker may exploit this vulnerability to inject and execute arbitrary code on the vulnerable system within the security context of the affected service, normally System.
applicationTypeID
*****
*****
priority
high
normal
severity
critical
critical
detectOnly
FALSE
FALSE
eventLoggingDisabled
FALSE
FALSE
generateEventOnPacketDrop
TRUE
TRUE
alwaysIncludePacketData
FALSE
FALSE
debugModeEnabled
FALSE
FALSE
type
exploit
exploit
originalIssue
1.14E+12
1.17E+12
lastUpdated
1.17E+12
1.17E+12
identifier
*****
*****
alertEnabled
FALSE
FALSE
recommendationsMode
enabled
enabled
canBeAssignedAlone
TRUE
TRUE
ID
*****
*****
CVSSScore
9
10
CVE
['*****']
['*****']
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
List Intrusion Rules failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 400.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Type and Severity is required.
Error Sample Data
List Intrusion Rules failed.
Status Code: 400.
Message: Type and Severity is required.
List Policies
Lists all policies.
Input
N/A
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
SAMPLE DATA
CODE
Successful
Raw Data
The primary response data from the API request.
SAMPLE DATA
JSON
{
"policies": [
{
"name": "Base Policy",
"description": "A policy from which all other policies can inherit. Only the most general settings should be applied to this policy as they will apply to all policies that inherit from it, unless overridden. More specific settings and rules should be added to sub-policies that are assigned to computers.",
"policySettings": {
"logInspectionSettingSeverityClippingAgentEventSendSyslogLevelMin": {
"value": "Medium (6)"
},
"firewallSettingEngineOptionConnectionsCleanupMax": {
"value": "1000"
},
"firewallSettingEngineOptionVerifyTcpChecksumEnabled": {
"value": "false"
}
},
"recommendationScanMode": "ongoing",
"autoRequiresUpdate": "on",
"ID": "*****",
"antiMalware": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off"
},
"realTimeScanConfigurationID": *****,
"realTimeScanScheduleID": *****,
"manualScanConfigurationID": *****,
"scheduledScanConfigurationID": *****
},
"webReputation": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off"
}
},
"activityMonitoring": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off"
}
},
"firewall": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off, 2 rules"
},
"globalStatefulConfigurationID": "*****",
"ruleIDs": [
*****,
*****
]
},
"intrusionPrevention": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off, no rules"
}
},
"integrityMonitoring": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off, no rules"
}
},
"logInspection": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off, no rules"
}
},
"applicationControl": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off"
}
}
}
]
}
Context Data
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
SAMPLE DATA
JSON
[
{
"name": "Base Policy",
"description": "A policy from which all other policies can inherit. Only the most general settings should be applied to this policy as they will apply to all policies that inherit from it, unless overridden. More specific settings and rules should be added to sub-policies that are assigned to computers.",
"policySettings": {
"logInspectionSettingSeverityClippingAgentEventSendSyslogLevelMin": {
"value": "Medium (6)"
},
"firewallSettingEngineOptionConnectionsCleanupMax": {
"value": "1000"
},
"firewallSettingEngineOptionVerifyTcpChecksumEnabled": {
"value": "false"
}
},
"recommendationScanMode": "ongoing",
"autoRequiresUpdate": "on",
"ID": "*****",
"antiMalware": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off"
},
"realTimeScanConfigurationID": *****,
"realTimeScanScheduleID": *****,
"manualScanConfigurationID": *****,
"scheduledScanConfigurationID": *****
},
"webReputation": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off"
}
},
"activityMonitoring": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off"
}
},
"firewall": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off, 2 rules"
},
"globalStatefulConfigurationID": "*****",
"ruleIDs": [
*****,
*****
]
},
"intrusionPrevention": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off, no rules"
}
},
"integrityMonitoring": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off, no rules"
}
},
"logInspection": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off, no rules"
}
},
"applicationControl": {
"state": "off",
"moduleStatus": {
"status": "inactive",
"statusMessage": "Off"
}
}
}
]
Key Fields
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"PolicyIDs": [
*****
],
"PolicyNames": [
"Base Policy"
],
"Descriptions": [
"A policy from which all other policies can inherit. Only the most general settings should be applied to this policy as they will apply to all policies that inherit from it, unless overridden. More specific settings and rules should be added to sub-policies that are assigned to computers."
]
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
name
Base Policy
description
A policy from which all other policies can inherit. Only the most general settings should be applied to this policy as they will apply to all policies that inherit from it, unless overridden. More specific settings and rules should be added to sub-policies that are assigned to computers.
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
List Policies failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 401.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not authorized. Invalid Key. Check DSM events for details.
Error Sample Data
List Policies failed.
Status Code: 401.
Message: Not authorized. Invalid Key. Check DSM events for details.
Modify Intrusion Rule
Modifies an existing intrusion prevention rule.
READER NOTE
Rule ID and Application Type ID are required parametersto run this command.
Run the List Intrusion Rules command to obtain the Rule ID. Rule IDs can be found in the raw data at the path $.intrusionPreventionRules[*].ID.
Run the List Application Types command to obtain the Application Type ID. Application Type IDs can be found in the raw data at the path $.applicationTypes[*].ID.
One of the following must be provided to create an intrusion rule:
Signature
Start Pattern, Body Patterns, and End Pattern
Custom XML.
If the Start Pattern is specified, the template is set to start-end-patterns. Start Pattern, Body Patterns, and End Pattern are all required to create a start-end-patterns rule.
Input
Input Parameter
Required/Optional
Description
Example
Rule ID
Required
The ID of the intrusion prevention rule to modify. Rule ID can be obtained using the List Intrusion Rules command.
*****
Rule Name
Optional
The new name for the rule.
test202109081
Signature
Optional
The signature of the rule. If provided, the template is set to signature, and the input values of Start Pattern, End Pattern, Body Patterns, and Custom XML will be ignored.
*****
Start Pattern
Optional
The start pattern of the rule. If provided, the template is set to start-end-patterns.
secret
Body Patterns
Optional
The body patterns of the rule.
JSON
["*money"]
End Pattern
Optional
The ending pattern of the rule.
hack
Custom XML
Optional
The Custom XML used to define the rule. If provided, the template is set to custom.
*****
Application Type ID
Optional
The ID of the application type associated with the rule. Application Type ID can be obtained using the List Application Types command.
*****
Severity
Optional
The severity level of the rule. Available options are:
Any
Critical
High
Medium
Low
By default, the value is Any.
Critical
Priority
Optional
The priority of the rule. Higher priority rules are applied before lower priority rules.
Available options are:
Highest
High
Normal
Low
Lowest
Highest
Alert Enabled
Optional
Whether to raise an alert when the rule logs an event. By default, the value is False.
False
Action
Optional
The action applied when the rule is triggered. Available options are:
Drop
Log-Only
Drop
Description
Optional
The description of the rule.
"Modify test Intrusion Prevention Rule"
Additional Settings
Optional
Additional settings for modifying an intrusion prevention rule. This is formatted as <FieldName1>=<FieldValue1> <FieldName2>=<FieldValue2-1>,<FieldValue2-2>. For example, minimumAgentVersion=12 originalIssue=***** CVE=CVE-2006-0272,CVE-2006-5822 is a valid input. Refer to the Intrusion Prevention Rules | Trend Micro Deep Security Manager for available field names and values.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
name
test20210913-1 Modify
description
Modify test Intrusion Prevention Rule
applicationTypeID
*****
priority
high
severity
critical
detectOnly
TRUE
eventLoggingDisabled
FALSE
generateEventOnPacketDrop
TRUE
alwaysIncludePacketData
FALSE
debugModeEnabled
FALSE
template
signature
signature
*****
caseSensitive
FALSE
action
drop
alertEnabled
FALSE
ID
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Modify Intrusion Rule failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 404.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not Found.
Error Sample Data
Modify Intrusion Rule failed.
Status Code: 404.
Message: Not Found.
Remove Firewall Rule IDs
Unassigns one or more firewall rule IDs from a computer.
READER NOTE
Computer ID and Rule IDs are required parametersto run this command.
Run the Get Host List command to obtain the Computer ID. Computer IDs can be found in the raw data at the path $.computers[*].ID.
Run the List Firewall Rules or Create Firewall Rule command to obtain the Rule IDs. Rule IDs can be found in the raw data at the path $.firewallRules[*].ID for List Firewall Rules or $.ID for Create Firewall Rule.
Input
Input Parameter
Required/Optional
Description
Example
Computer ID
Required
The ID of the computer from which the firewall rules are unassigned. Computer ID can be obtained using the Get Host List command.
*****
Firewall Rule IDs
Required
The IDs of the firewall rules to unassign. Rules IDs can be obtained using the List Firewall Rules or Create Firewall Rule command.
JSON
[*****]
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"AssignedRuleIDs": [
*****,
*****
]
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
assignedRuleIDs
*****
*****
*****
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Remove Firewall Rule IDs failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 404.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not Found.
Error Sample Data
Remove Firewall Rule IDs failed.
Status Code: 404.
Message: Not Found.
Schedule Daily Scan
Schedules a daily scan.
Input
Input Parameter
Required/Optional
Description
Example
Name
Required
The name of the scheduled scan.
TestScanMalwareDaily0195
Start Time
Required
The start time (in UTC) of the scheduled scan.
2021-06-23 03:33:19
Filter Type
Optional
The filter type.
computers-using-policy
Filter Value
Optional
The filter value.
Base Policy
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
SAMPLE DATA
JSON
{
"scanId": *****,
"nextRunTime": 1624990440000
}
Key Fields
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
scanId
*****
nextRunTime
1624990440000
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Schedule Daily Scan failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 401.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not authorized. Invalid Key. Check DSM events for details.
Error Sample Data
Schedule Daily Scan failed.
Status Code: 401.
Message: Not authorized. Invalid Key. Check DSM events for details.
Schedule Hourly Scan
Schedules an hourly scan.
Input
Input Parameter
Required/Optional
Description
Example
Name
Required
The name of the scheduled scan.
TestScanMalwareHourly017
Minutes Past The Hour
Required
After the specified number of minutes past the hour, the scheduled task will start. By default, the value is 0.
5
Filter Type
Optional
The filter type.
computer
Filter Value
Optional
The filter value.
*****
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
SAMPLE DATA
JSON
{
"scanId": *****,
"nextRunTime": 1624917900000
}
Key Fields
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"ScanId": *****,
"NextRunTime": 1624917900000
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
scanId
*****
nextRunTime
1624917900000
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Schedule Hourly Scan failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 401.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not authorized. Invalid Key. Check DSM events for details.
Error Sample Data
Schedule Hourly Scan failed.
Status Code: 401.
Message: Not authorized. Invalid Key. Check DSM events for details.
Schedule Monthly Scan
Schedules a monthly scan.
Input
Input Parameter
Required/Optional
Description
Example
Name
Required
The name of the scheduled scan.
TestMonthlyScanMonthly017
Start Time
Required
The start time (in UTC) of the scheduled scan.
2021-06-23 03:33:19
Day(s) of Month
Required
The days of the month for the scheduled scan. Valid values range from 1 to 31.
1
Filter Type
Optional
The filter type.
computer
Filter Value
Optional
The filter value.
*****
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
SAMPLE DATA
JSON
{
"scanId": *****,
"nextRunTime": 1625163240000
}
Key Fields
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"ScanId": *****,
"NextRunTime": 1625163240000
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
scanId
*****
nextRunTime
1625163240000
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Schedule Monthly Scan failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 401.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not authorized. Invalid Key. Check DSM events for details.
Error Sample Data
Schedule Monthly Scan failed.
Status Code: 401.
Message: Not authorized. Invalid Key. Check DSM events for details.
Schedule Once Only Scan
Schedules a scan to run only once at the specified date and time.
Input
Input Parameter
Required/Optional
Description
Example
Name
Required
The name of the scheduled scan.
TestScheduledScanOnce016
StartTime
Required
The start time (in UTC) of the scheduled scan.
2021-06-23 03:33:19
Filter Type
Optional
The filter type.
computer
Filter Value
Optional
The filter value.
*****
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
SAMPLE DATA
JSON
{
"scanId": *****
}
Key Fields
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"ScanId": *****
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
scanId
*****
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Schedule Once Only Scan failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 401.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not authorized. Invalid Key. Check DSM events for details.
Error Sample Data
Schedule Once Only Scan failed.
Status Code: 401.
Message: Not authorized. Invalid Key. Check DSM events for details.
Schedule Weekly Scan
Schedules a weekly scan.
Input
Input Parameter
Required/Optional
Description
Example
Name
Required
The name of the scheduled scan.
TestWeeklyScheduledScanWeekly031
Start Time
Required
The start time (in UTC) of the scheduled scan.
2021-06-23 03:33:19
Day(s) of Week
Required
The days of the week for the scheduled scan. If multiple days are specified, use a comma as a delimiter.
sunday,Monday
Filter Type
Optional
The filter type.
computer
Filter Value
Optional
The filter value.
*****
Output
Return Data
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
SAMPLE DATA
JSON
{
"scanId": *****,
"nextRunTime": 1625422440000
}
Key Fields
Common cyber security indicators such as unique IDs, file hash values, CVE numbers, and IP addresses will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.
SAMPLE DATA
JSON
{
"ScanId": *****,
"NextRunTime": 1625422440000
}
Result
Provides a brief summary of outputs in an HTML formatted table.
SAMPLE DATA
scanId
*****
nextRunTime
1625422440000
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Schedule Weekly Scan failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 401.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not authorized. Invalid Key. Check DSM events for details.
Error Sample Data
Schedule Weekly Scan failed.
Status Code: 401.
Message: Not authorized. Invalid Key. Check DSM events for details.
Unassign Intrusion Prevention Rules
Unassigns intrusion prevention rules from computers or policies using the specified rule IDs.
READER NOTE
Intrusion Rule IDs is a required parameterto run this command.
Run the List Intrusion Rules command to obtain the Intrusion Rule IDs. Intrusion Rule IDs can be found in the raw data at the path $.intrusionPreventionRules[*].ID.
Computer IDs and Policy IDs are optional parameters to run this command.
Run the Get Host List command to obtain the Computer IDs. Computer IDs can be found in the raw data at the path $.computers[*].ID.
Run the List Policies command to obtain the Policy IDs. Policy IDs can be found in the raw data at the path $.policies[*].ID.
Input
Input Parameter
Required/Optional
Description
Example
Intrusion Rule IDs
Required
The IDs of the intrusion prevention rules to unassign. Intrusion Rule IDs can be obtained using the List Intrusion Rules command.
JSON
[*****]
Computer IDs
Optional
The IDs of the computers from which the rules are unassigned. Computer IDs can be obtained using the Get Host List command.
JSON
[*****]
Policy IDs
Optional
The IDs of the policies from which the rules are unassigned. Policy IDs can be obtained using the List Policies command.
JSON
[*****]
Output
Return Data
Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.
The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.
The data that has been extracted from Raw Data and converted into JSON format. Context Data may be identical to Raw Data in some cases.
As the Raw Data contains the complete API response, refer to the Raw Data instead of the Context Data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be updated to use Raw Data.
If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.
The errortab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Unassign Intrusion Prevention Rules failed.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 404.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not Found.
Error Sample Data
Unassign Intrusion Prevention Rules failed.
Status Code: 404.
Message: Not Found.
Test Connection
Allows you to perform a health check on an integration connection. You can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.
Input
N/A
Output
Output
Indicates one of the possible command execution states: Successful or Failed.
The Failed state can be triggered by any of the following errors:
A connection issue with the integration
The API returned an error message
No response from the API
You can view more details about an error in the Error tab.
CODE
Successful
Error Handling
If the Return Data displays Failed, an Error tab will appear in the Test Result window.
The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error
Description
Example
Failure Indicator
Indicates the command failure that happened at a specific input and/or API call.
Test Connection failed. Failed to check the connector.
Status Code
The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Trend Micro Deep Security Manager portal. Refer to the HTTP Status Code Registry for details.
Status Code: 401.
Message
The raw data or captured key error message from the integration API server about the API request failure.
Message: Not authorized. Invalid Key. Check DSM events for details.
Error Sample Data
Test Connection failed. Failed to check the connector.
Status Code: 401.
Message: Not authorized. Invalid Key. Check DSM events for details.
JavaScript errors detected
Please note, these errors can depend on your browser setup.
If this problem persists, please contact our support.
.png)
.png?inst-v=3363bacf-1ba3-4a9b-b554-558cd4632ecc)
.png?inst-v=3363bacf-1ba3-4a9b-b554-558cd4632ecc)
