Thycotic Secret Server

LAST UPDATED: 05/30/2024

Overview

Thycotic Secret Server is a privileged account management solution designed for IT admins and IT security professionals to take charge and be in control of all password management-related processes across the organization.

D3 SOAR is providing REST operations to function with Thycotic Secret Server.

For example, you can use Thycotic Secret Server to store all of your secrets, such as passwords, usernames, and other credentials. These credentials can be from many places, such as service accounts, bank accounts, and key pairs.

Thycotic Secret Server is available for use in:

D3 SOAR	V15.1+
Category	Identity & Access Management
Deployment Options	Option II, Option IV

Connection

To connect to Thycotic Secret Server from D3 SOAR, please follow this part to collect the required information below:

Parameter	Description	Example
Server URL	The Server URL of the Thycotic Secret Server instance.	https://*.*.com
User Name	The User Name to authenticate the connection.	apiUser
Password	The Password to authenticate the connection.	YOURPASSWORD
API Version	The version of the API to use for the connection.	v1

Permission Requirements

Each endpoint in the Thycotic Secret Server API requires a certain permission scope. The following are required scopes for the commands in this integration:

Command	Required Permission
Activate Secrets	View Secret, View Deleted Secret, Own Secret
Check In Secret	View Secret
Check Out Secret	View Secret
Create Folder	Administer Folders; Create Root Folders (only for root folders); Personal Folders (only for personal folders)
Deactivate Secrets	View Secret, Delete Secret
Get Restricted Secrets	View Secret
Get Secrets	View Secret
Get Secret States	View Secret
Search Folders	View Folders; Personal Folders (only for personal folders)
Search Secret Policies	View Secret Policy
Search Secrets	View Secret
Search Secrets By Name	View Secret
Search Secret Templates	View Secret Templates
Update Folder	Administer Folders
Update Secret Password	View Secret, Edit Secret
Update Restricted Secret Password	View Secret, Edit Secret
Test Connection	N/A

As Thycotic Secret Server is using role-based access control (RBAC), D3 connectors will be generated based on a specific user account and the application. Therefore, the command permissions are inherited from the user account’s role. Users need to configure their user profile from the Thycotic Secret Server console for each command in this integration.

Reader Note

Thycotic Secret Server’s default built-in roles are as follows:

Administrator
Basic User
Group Owner
Read Only User
User
User Owner

Please refer to List of Thycotic Secret Server Role Permissions from Idency's documentation and the Configuring Thycotic Secret Server to Work with D3 SOAR section for details on configuring user profiles.

Configuring Thycotic Secret Server to Work with D3 SOAR

Creating a Custom Role

Login your Thycotic instance with an admin account.

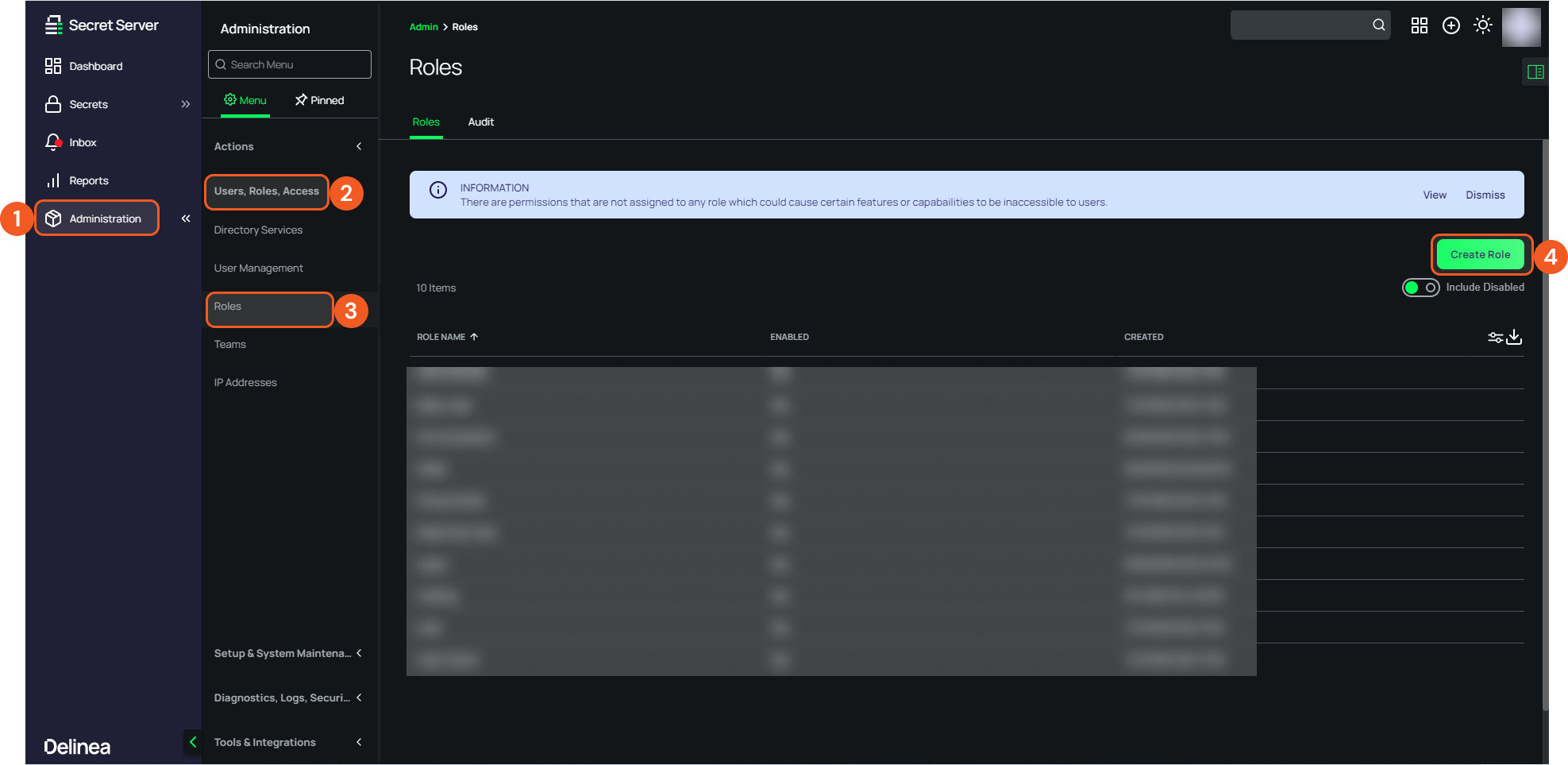

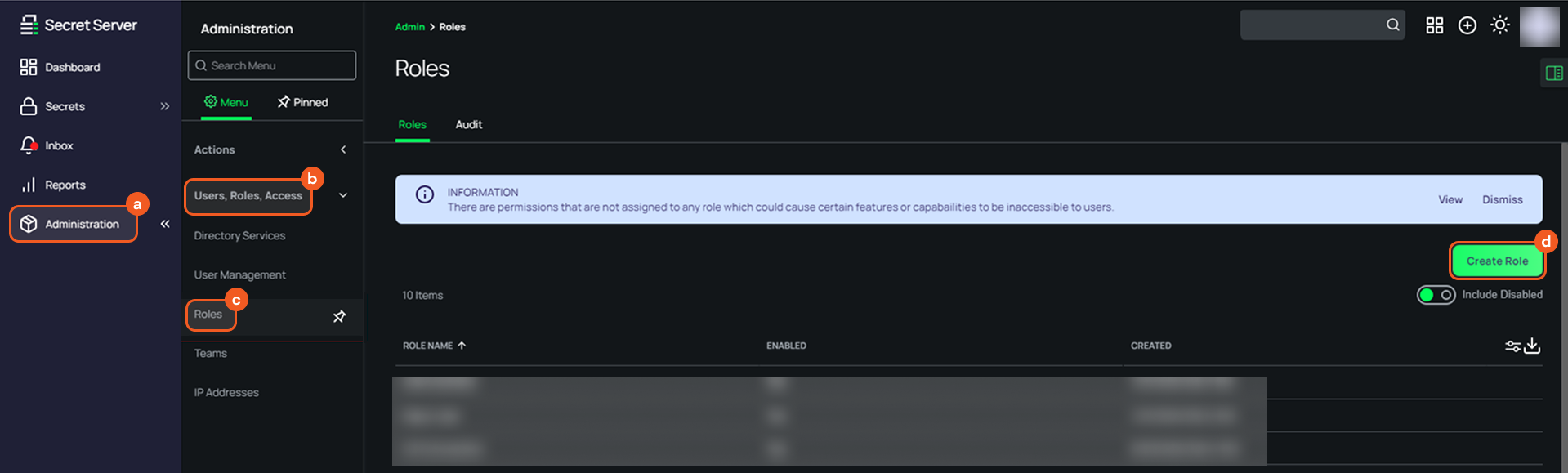

Navigate to Administration > Users, Roles, Access > Roles.
Click Create Role.

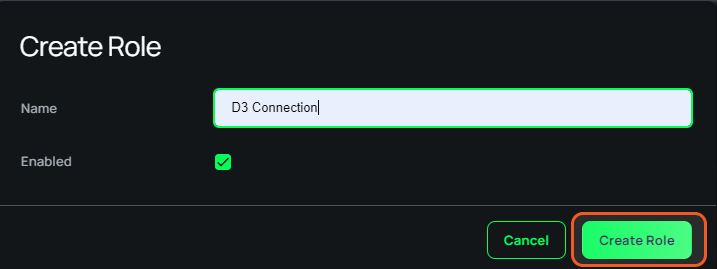

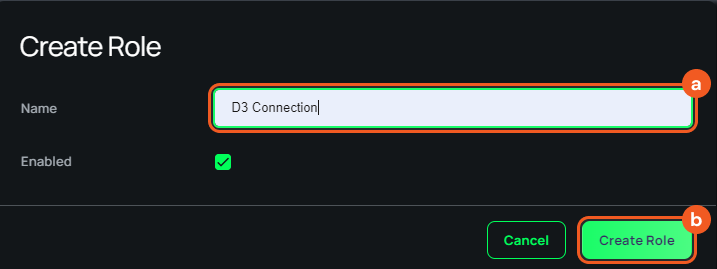

Enter the role name, and click Create Role.

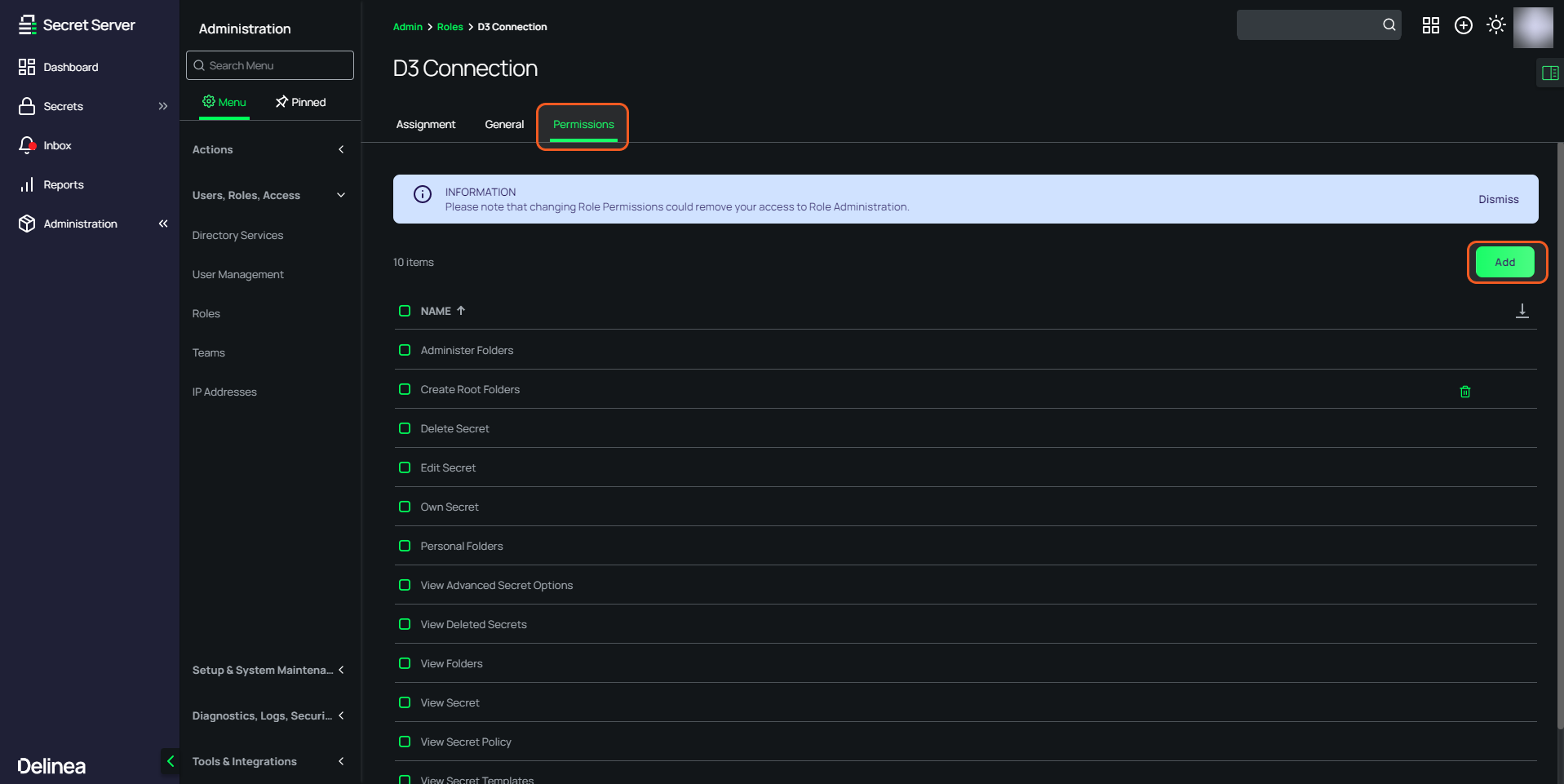

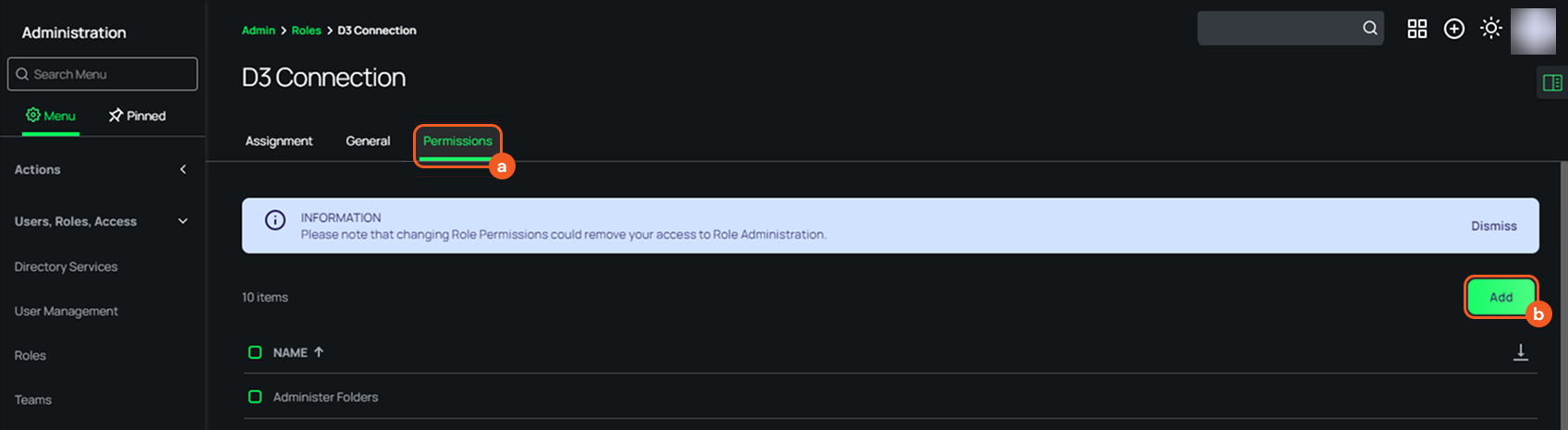

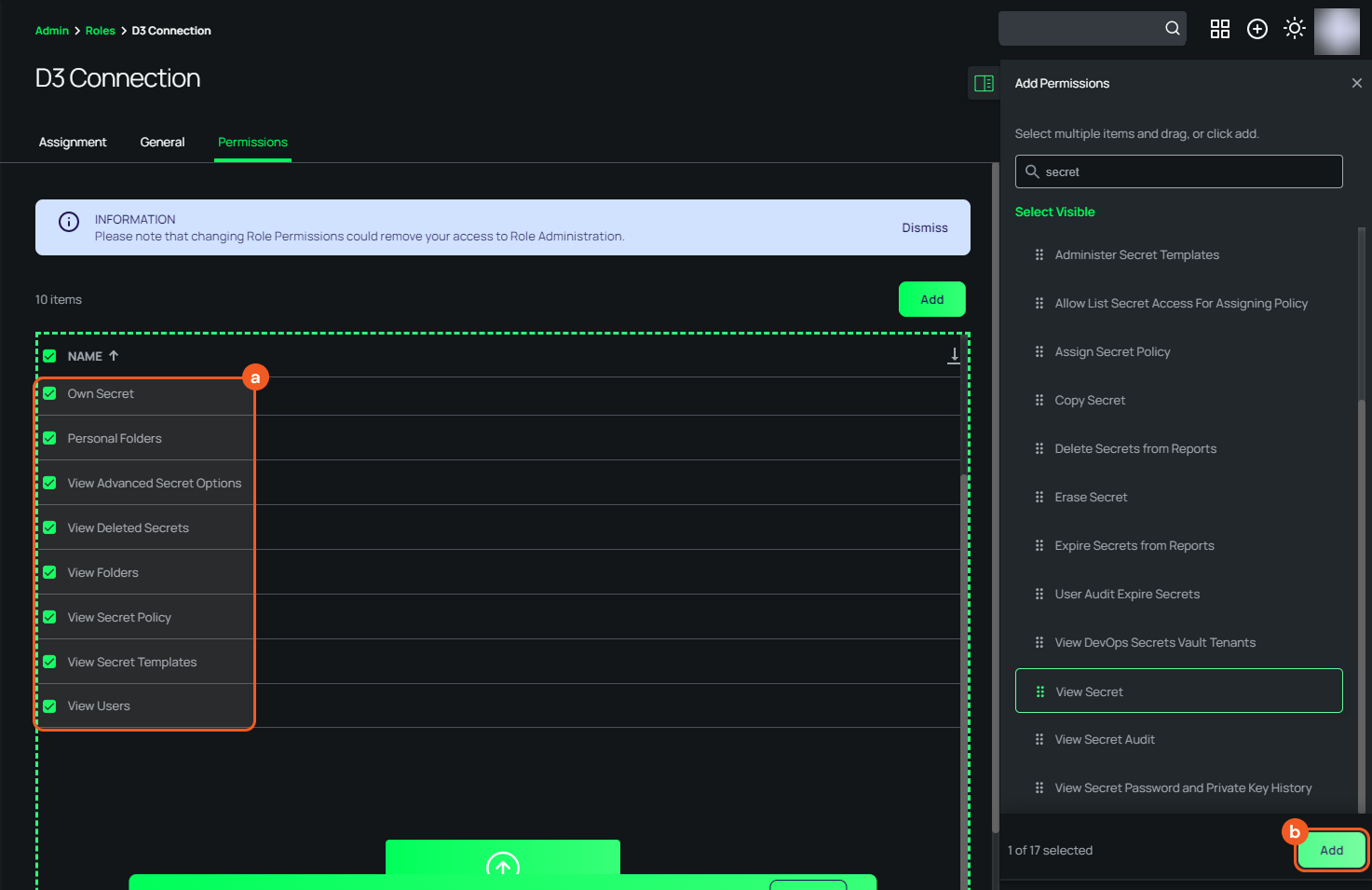

Select the Permissions tab and click Add.

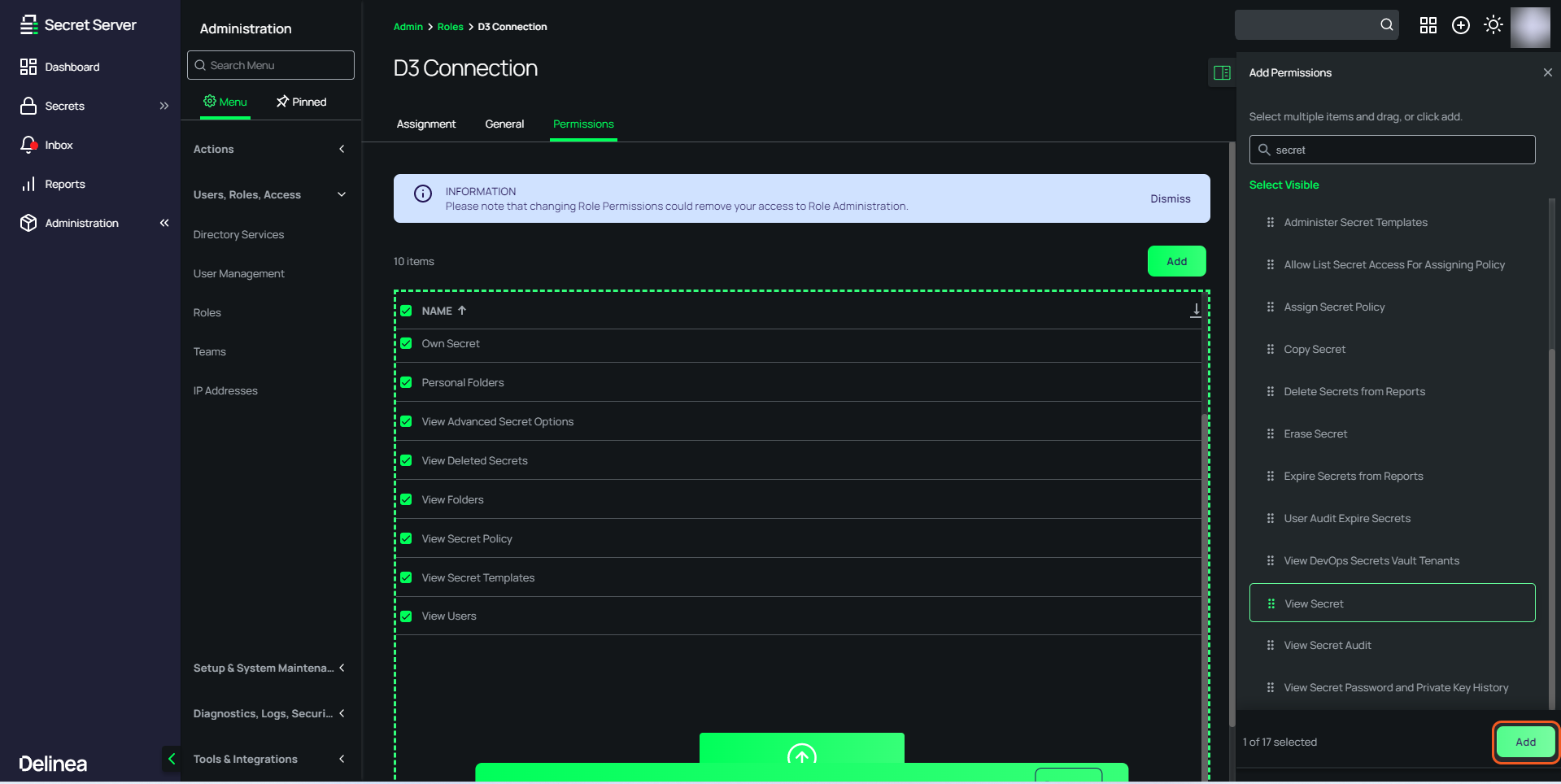

Select the desired permissions, check Permission Requirements for the least required permission. Click Add. You can drag and drop as well.

Creating New User and Assigning Roles

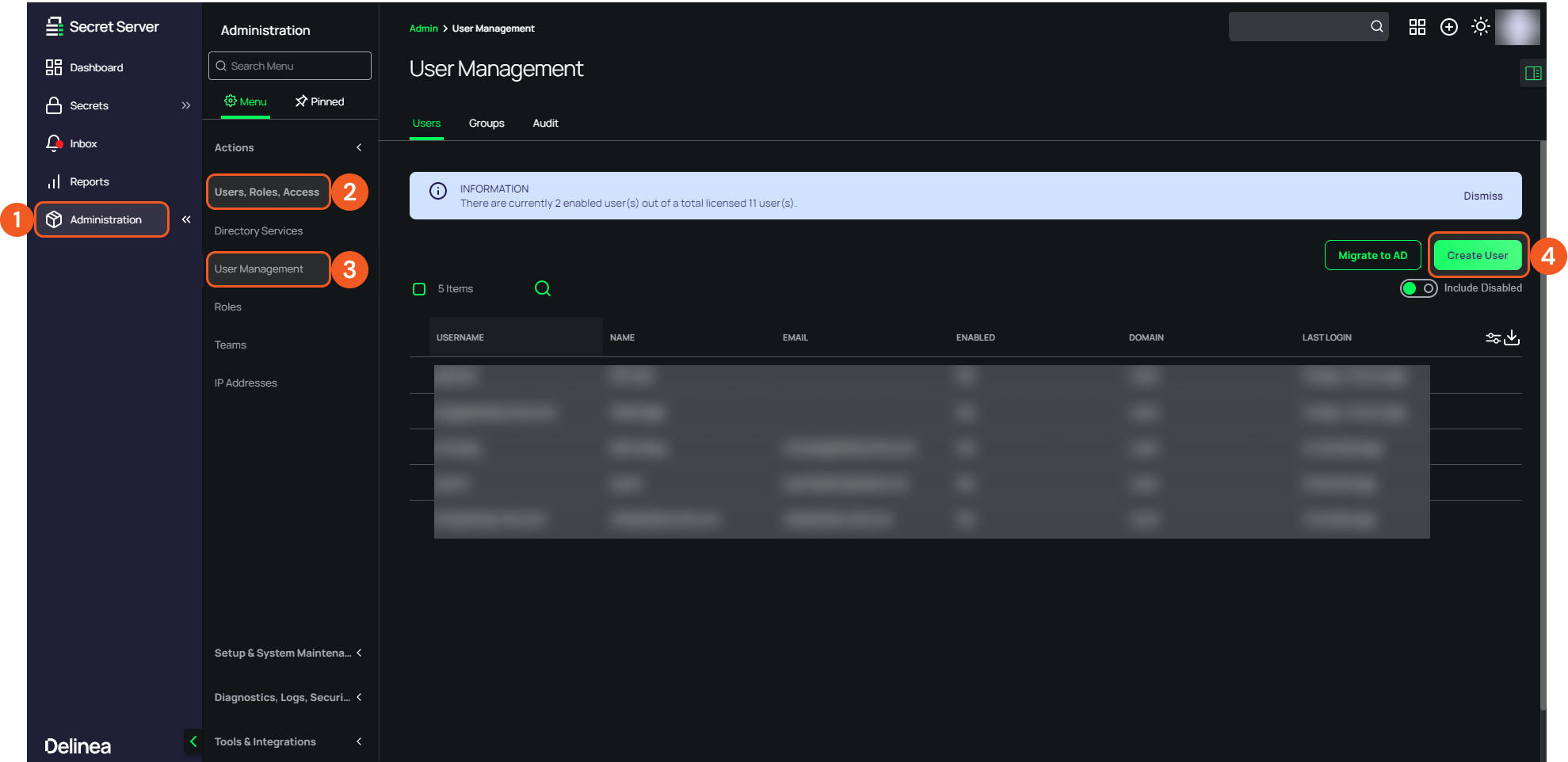

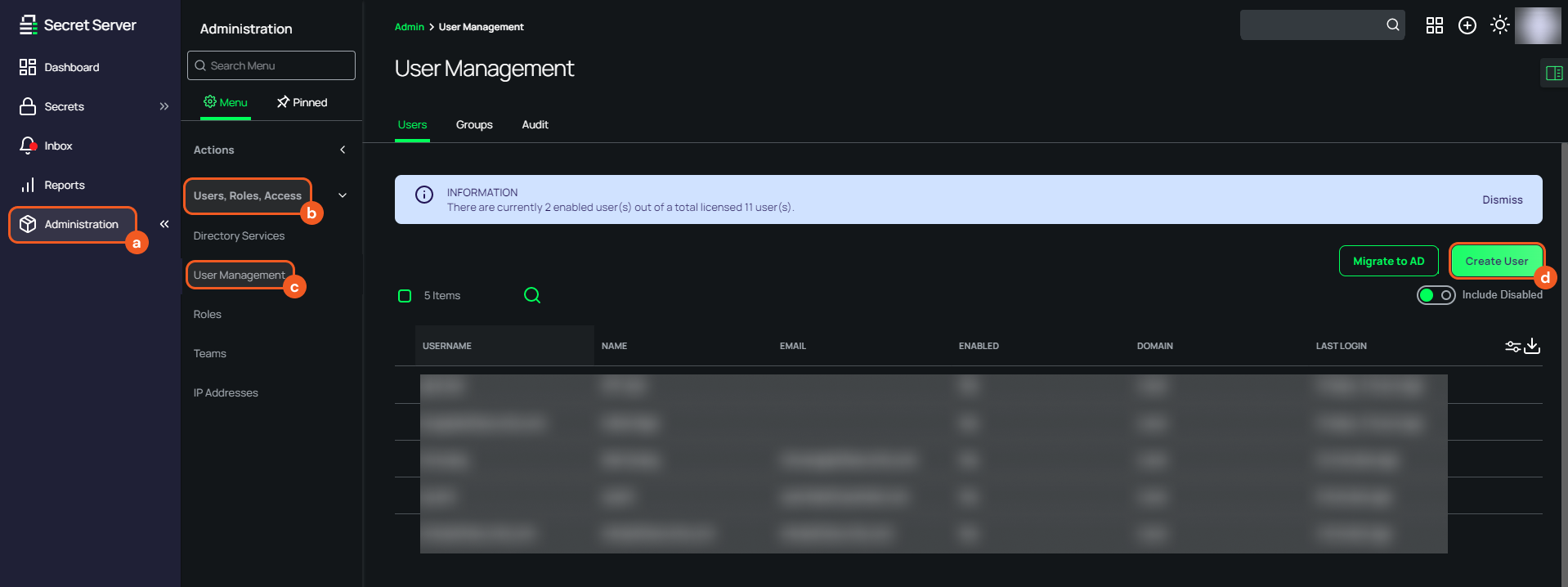

Navigate to Administration, then click the arrow beside it. Click Users, Roles, Access, then select User Management. Click Create User.

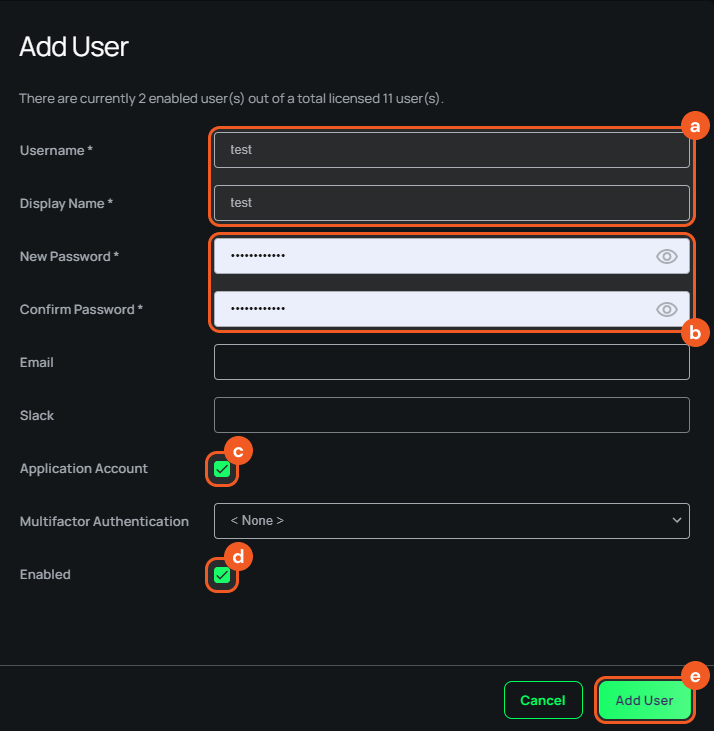

A window will pop up. Enter the user information, then click Add User.

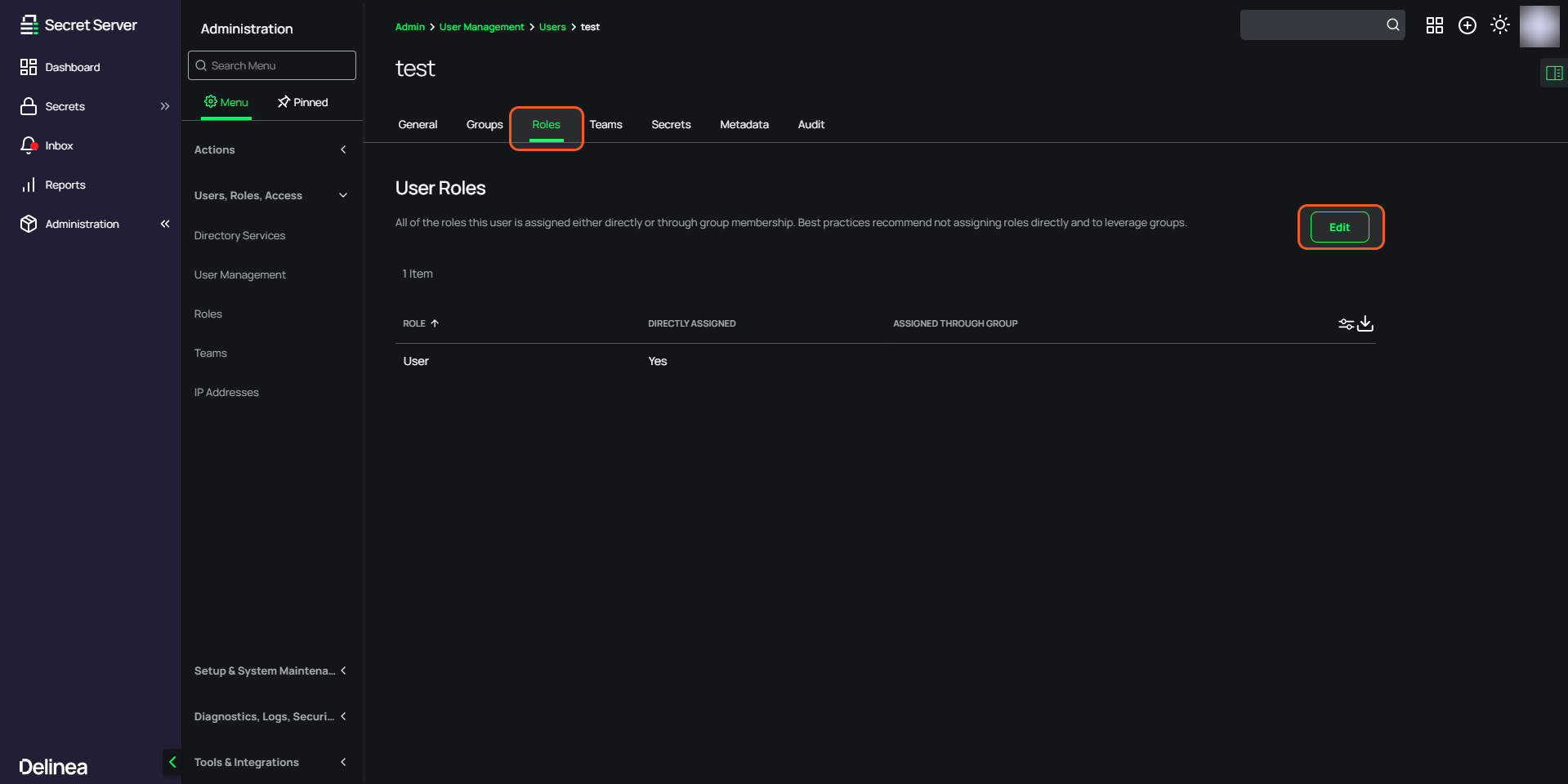

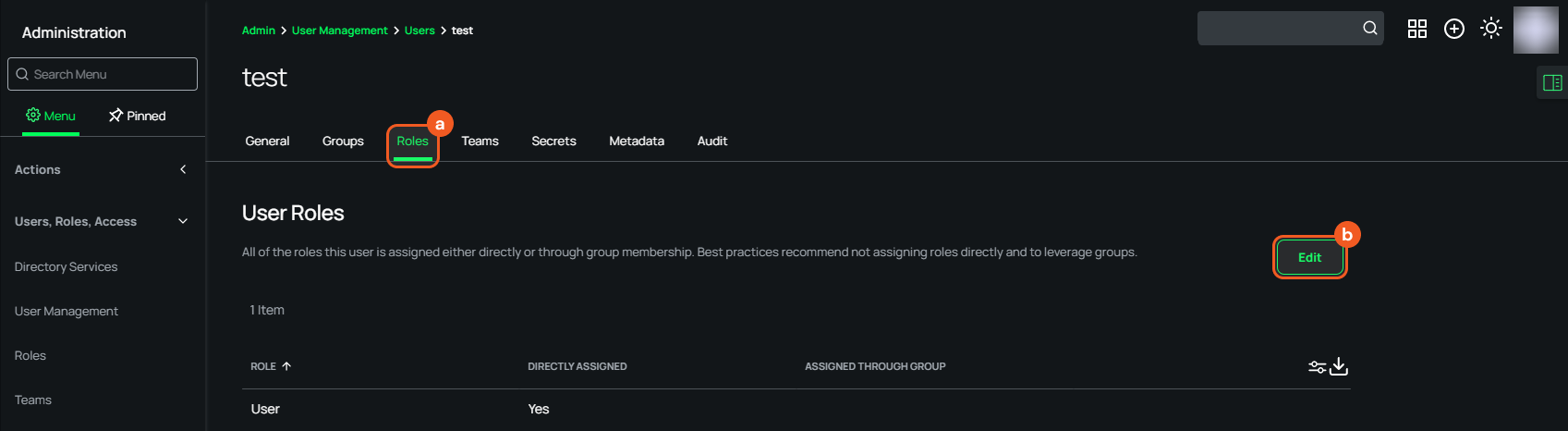

After the user has been successfully added, navigate to the Roles tab, then click Edit.

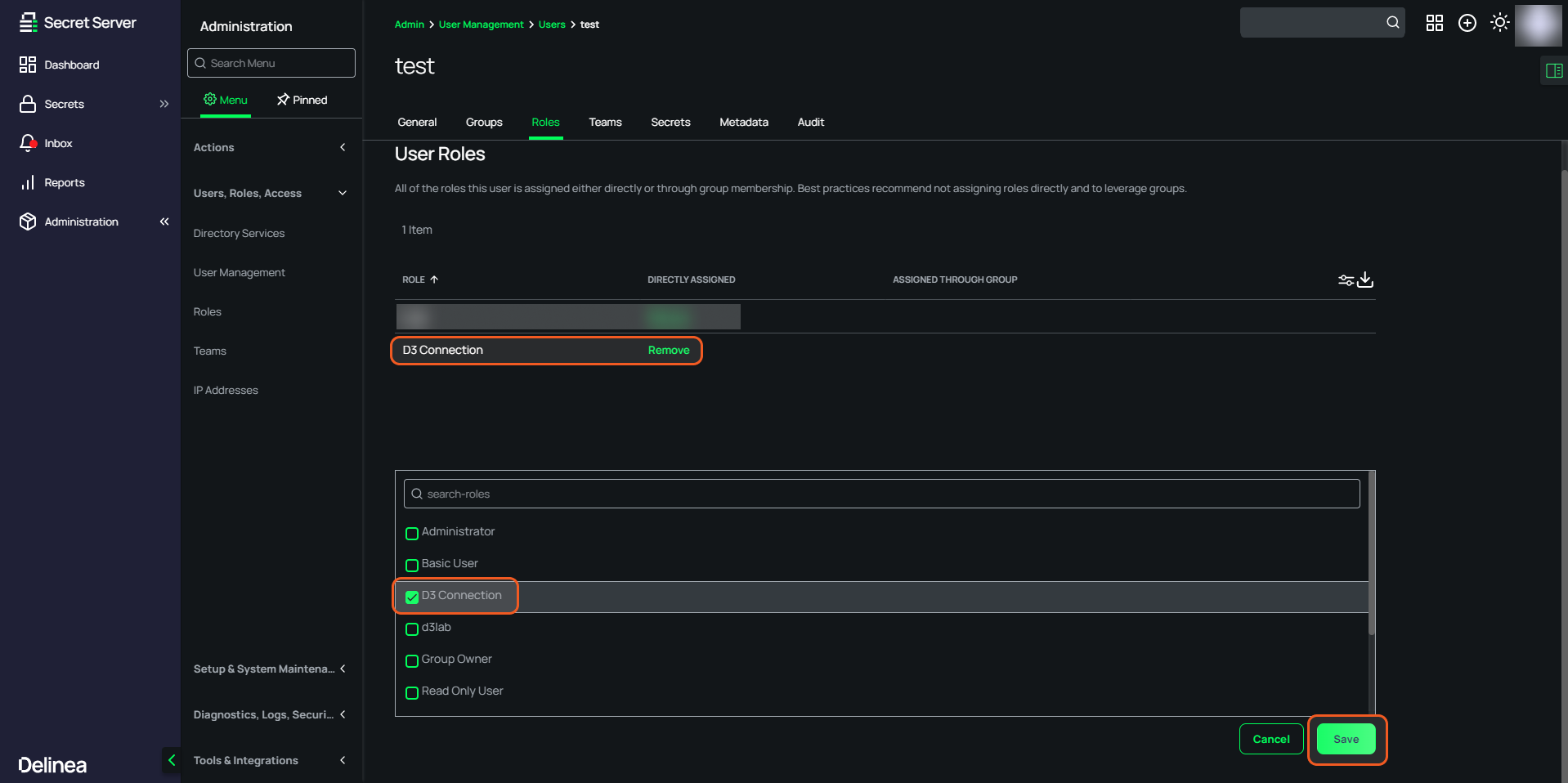

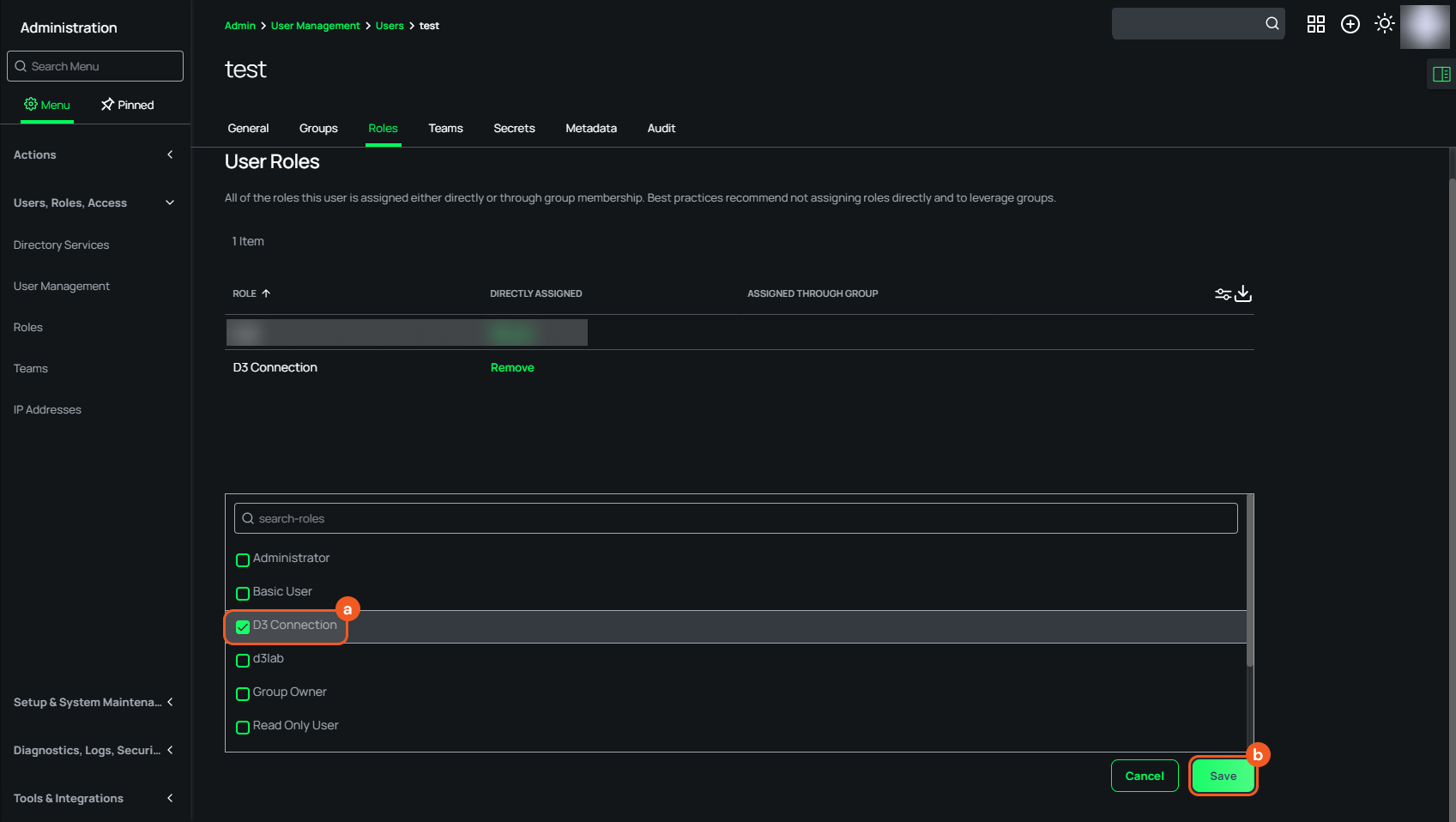

Select the role you created for the user, and click Save.

Configuring D3 SOAR to Work with Thycotic Secret Server

Log in to D3 SOAR.

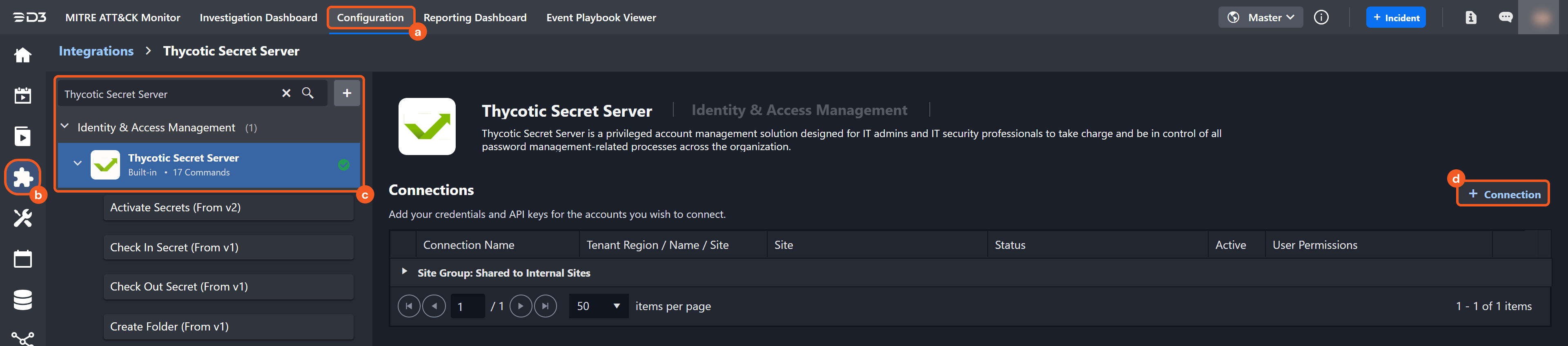

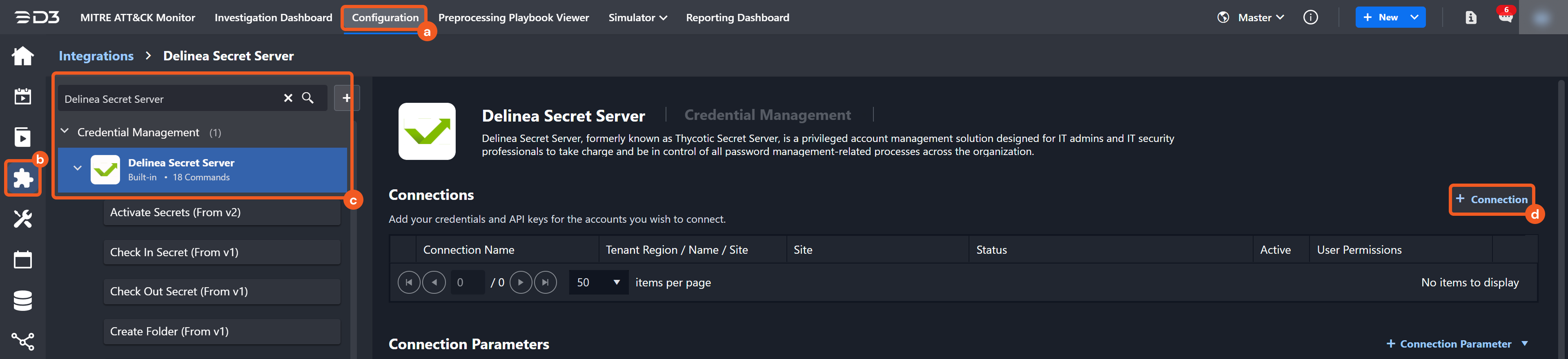

Find the Thycotic Secret Server integration.
1. Navigate to Configuration on the top header menu.
2. Click on the Integration icon on the left sidebar.
3. Type Thycotic Secret Server in the search box to find the integration, then click it to select it.
4. Click + New Connection, on the right side of the Connections section. A new connection window will appear.

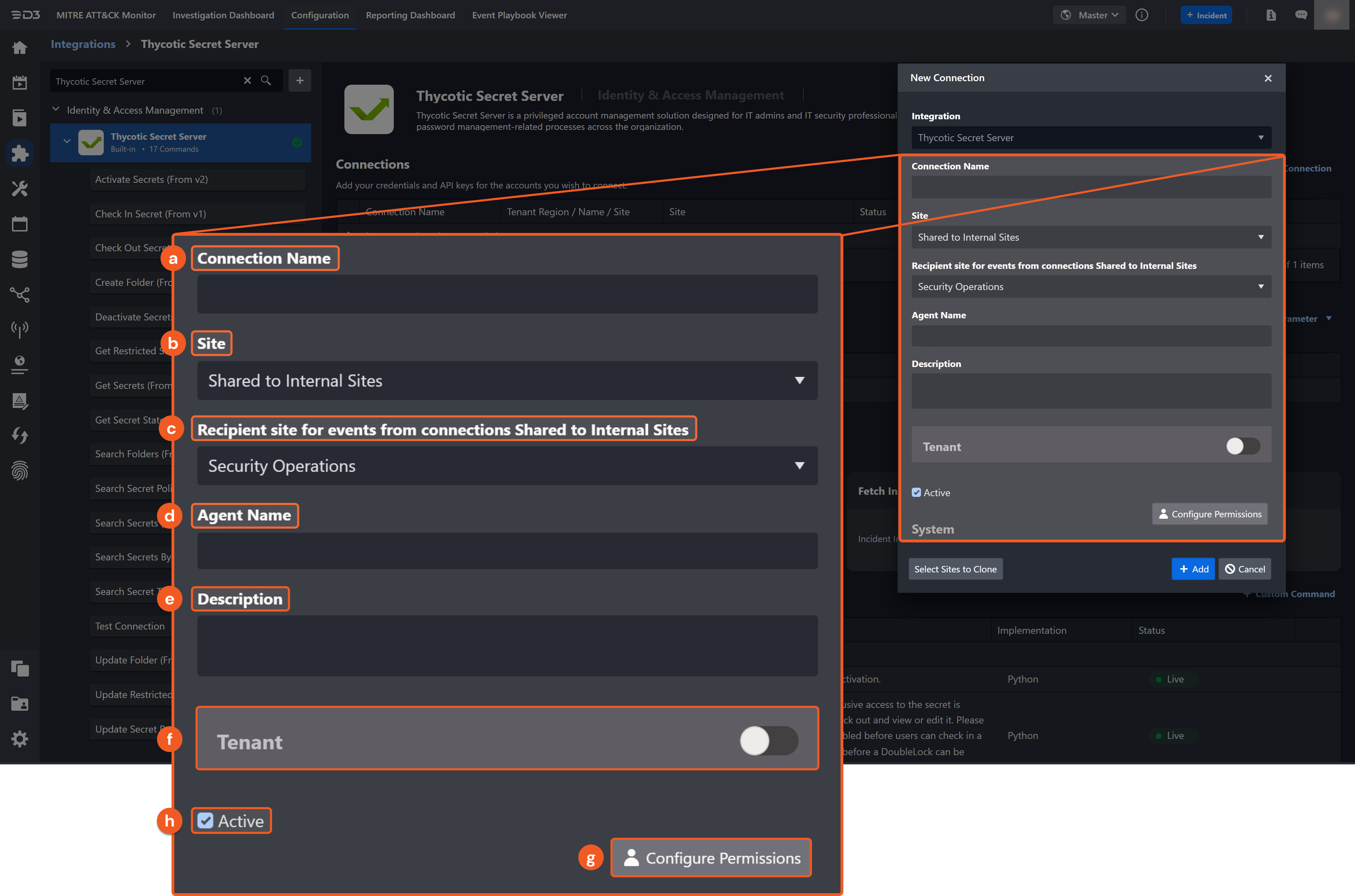

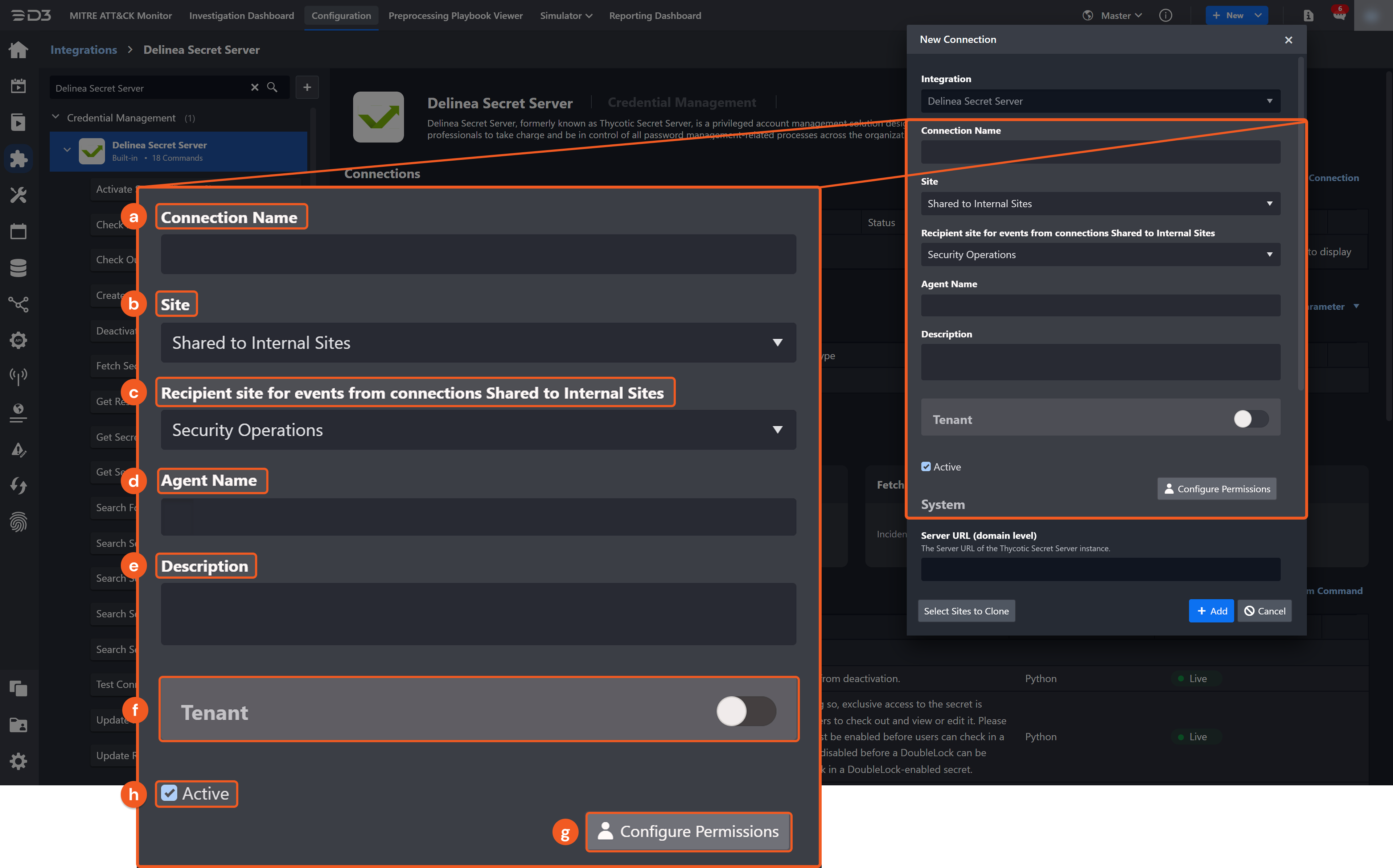

Configure the following fields to create a connection to Thycotic Secret Server.
1. Connection Name: The desired name for the connection.
2. Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
3. Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.
4. Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
5. Description (Optional): Add your desired description for the connection.

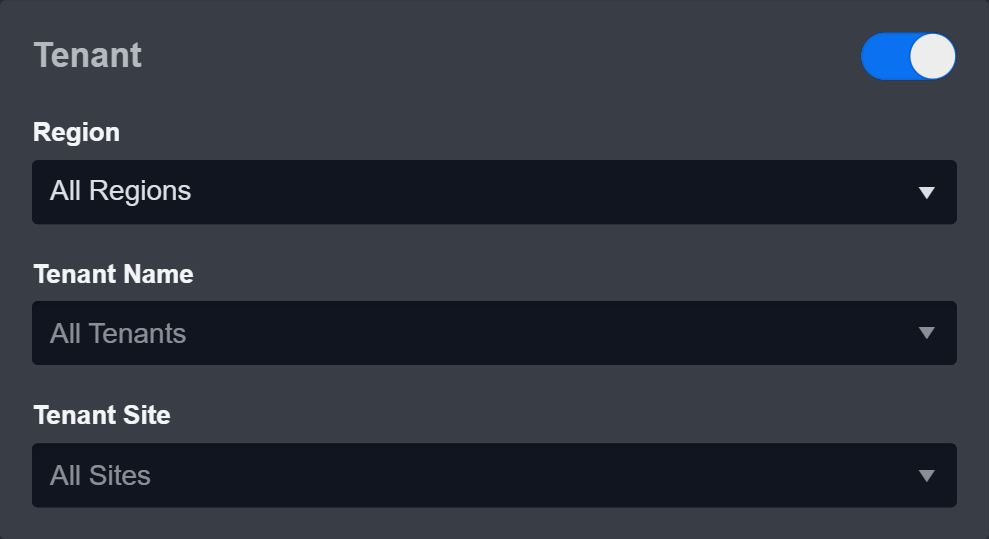

6. Tenant (Optional): When configuring the connection from a master tenant site, you have the option to choose the specific tenant sites you want to share the connection with. Once you enable this setting, you can filter and select the desired tenant sites from the dropdowns to share the connection.
7. Configure User Permissions: Defines which users have access to the connection.
8. Active: Check the tick box to ensure the connection is available for use.

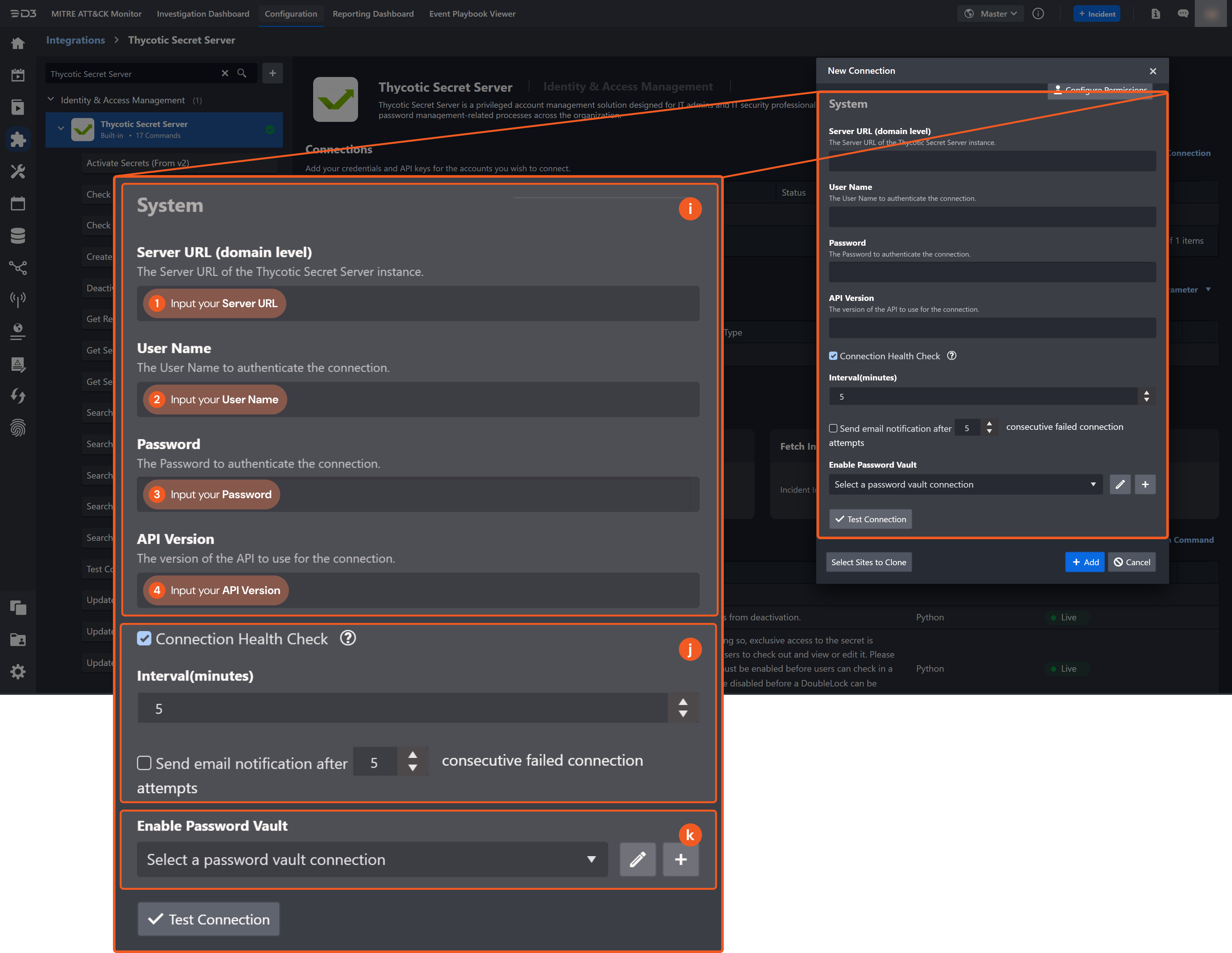

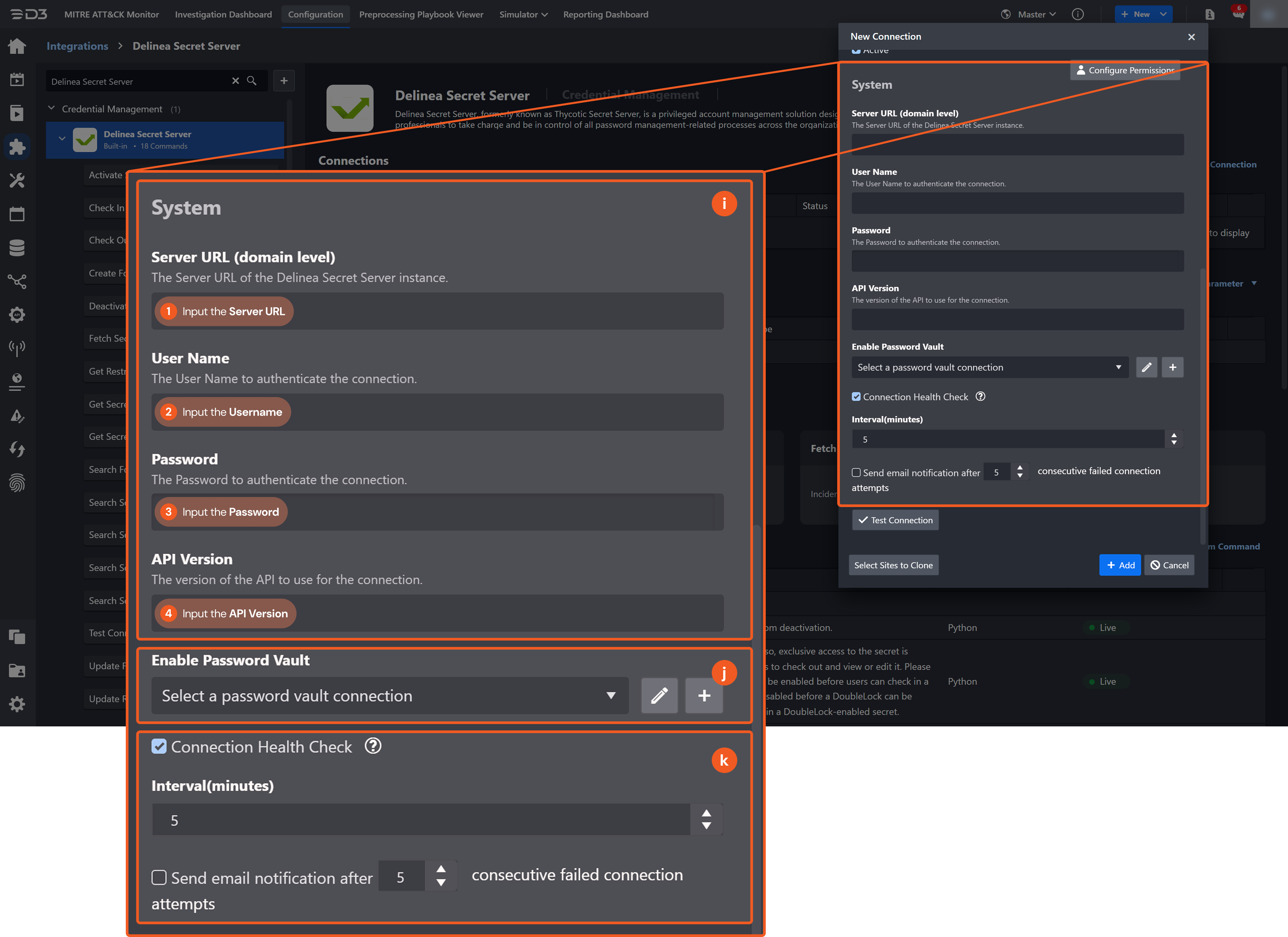

9. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
  1. Copy the User Name from the Thycotic Secret Server platform. Refer to step 2 of Creating a New User and Assigning Roles.
  2. Copy the Password from the Thycotic Secret Server platform. Refer to step 2 of Creating a New User and Assigning Roles.
  3. Input the API Version: Ensure to carefully select the API version, as different commands will be available based on whether the connection is established using v1 or v2. Each command name will contain (From v1) or (From v2) in order to specify which API version will be available from the connector list.
10. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Please refer to the password vault connection guide if needed.
11. Connection Health Check: Updates the connection status you have created. A connection health check is done by scheduling the Test Connection command of this integration. This can only be done when the connection is active.
  To set up a connection health check, check the Connection Health Check tickbox. You can customize the interval (minutes) for scheduling the health check. An email notification can be set up after a specified number of failed connection attempts.
Test the connection.
1. Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green checkmark appear beside the Test Connection button. If the test connection fails, please check your connection parameters and try again.
2. Click OK to close the alert window.
3. Click + Add to create and add the configured connection.

Commands

Thycotic Secret Server includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the Thycotic Secret Server API, please refer to the Thycotic Secret Server API reference: https://{{subdomain}}.secretservercloud.com/app/#/admin/rest-api.

Reader Note

Certain permissions are required for each command. Please refer to the Permission Requirements and Configuring Thycotic Secret Server to Work with D3 SOAR for details.

Activate Secrets

Activates specified secrets from deactivation.

Reader Note

The parameter Secret IDs is required to run this command.

Run the Search Secrets command to obtain Secret IDs. Secret IDs can be found in the returned raw data at the path $.records[*].id.
Only deactivated secrets can be reactivated. Ensure that you set the Status parameter to 'Inactive' when executing the Search Secret command. This step ensures that all retrieved secrets are in an inactive state, making them eligible for reactivation through this command.

This command can only be used with API Version v2.

Alert

When running the Search Secrets command, ensure that your chosen secret displays $.records[*].checkedOut = false in the returned raw data. If it does, you must check out the secret before proceeding. Run the Check Out Secret command to change the value of $.records[*].checkedOut to true. Otherwise, this will result in an error message: "API_SecretRequiresCheckout".

Input

Input Parameter	Required/Optional	Description	Example
Secret IDs	Required	The IDs of the secrets to activate. Secret IDs can be obtained using the Search Secrets command, with the status set to Inactive.	[ 4 ]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "id": 4,
        "name": "***_test***",
        "enableInheritSecretPolicy": false,
        "secretPolicy": null,
        "site": 1,
        "template": 6027,
        "active": true,
        "fields": [
            "*****.com",
            "*****",
            null,
            "test user2"
        ],
        "folder": null,
        "isOutOfSync": false,
        "outOfSyncReason": null,
        "lastHeartBeatStatus": "Disabled",
        "lastHeartBeatCheck": null,
        "heartbeatEnabled": false,
        "expiration": null,
        "launchers": [],
        "isFavorite": false,
        "autoChangePassword": false,
        "canGenerateSshKey": false,
        "slugPrivateKey": null,
        "slugPublicKey": null,
        "isTotpEnabled": false,
        "totpPasswordSlug": null
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretIDs": "\"[ 4 ]\""
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	NAME	ENABLEINHERITSECRETPOLICY	SECRETPOLICY	SITE	TEMPLATE	ACTIVE	FIELDS	FOLDER	ISOUTOFSYNC	OUTOFSYNCREASON	LASTHEARTBEATSTATUS	LASTHEARTBEATCHECK	HEARTBEATENABLED	EXPIRATION	LAUNCHERS	ISFAVORITE	AUTOCHANGEPASSWORD	CANGENERATESSHKEY	SLUGPRIVATEKEY	SLUGPUBLICKEY	ISTOTPENABLED	TOTPPASSWORDSLUG
4	*_test*	False	None	1	6027	True	['*.com', '*', None, 'test user2']	None	False	None	Disabled	None	False	None	[]	False	False	False	None	None	False	None

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Activate Secrets failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: API_SecretRequiresCheckout.

Error Sample Data

Activate Secrets failed.

Status Code: 400.

Message: API_SecretRequiresCheckout.

Check In Secret

Checks in a secret. By doing so, exclusive access to the secret is revoked, allowing other users to check out and view or edit it. Please note, Secret Check Out must be enabled before users can check in a secret. Check Out must be disabled before a DoubleLock can be enabled, users cannot check in a DoubleLock-enabled secret.

Reader Note

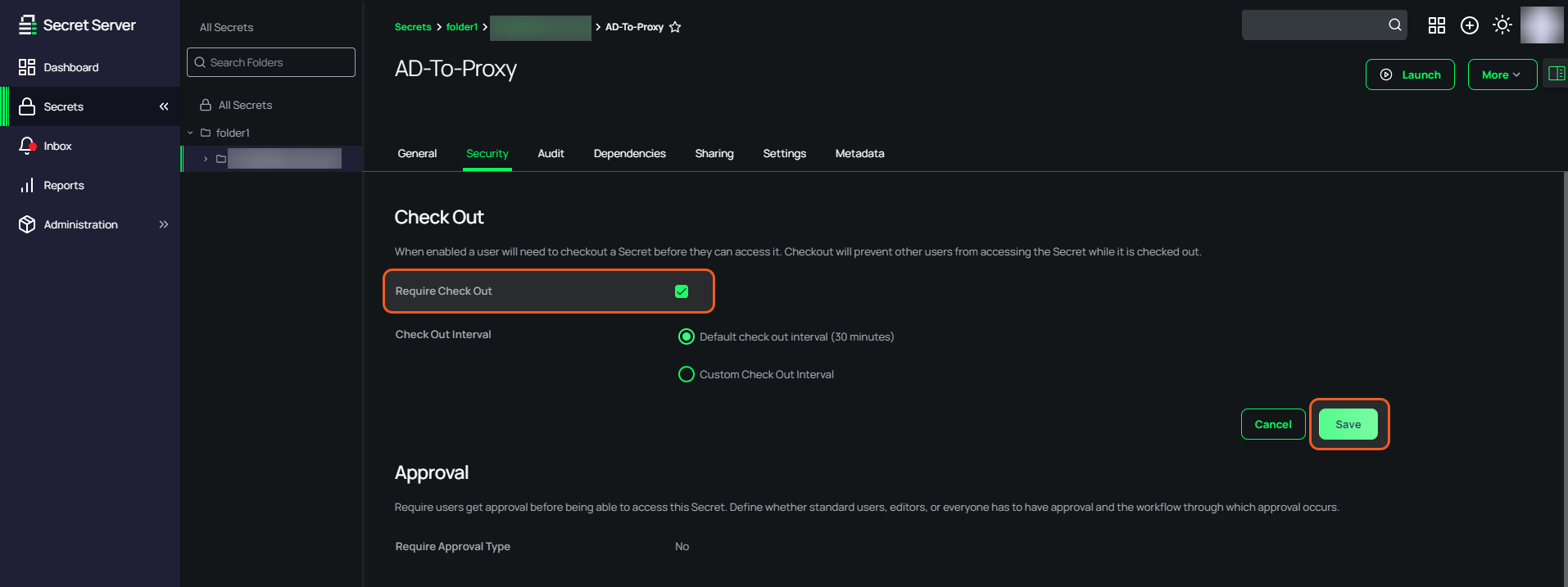

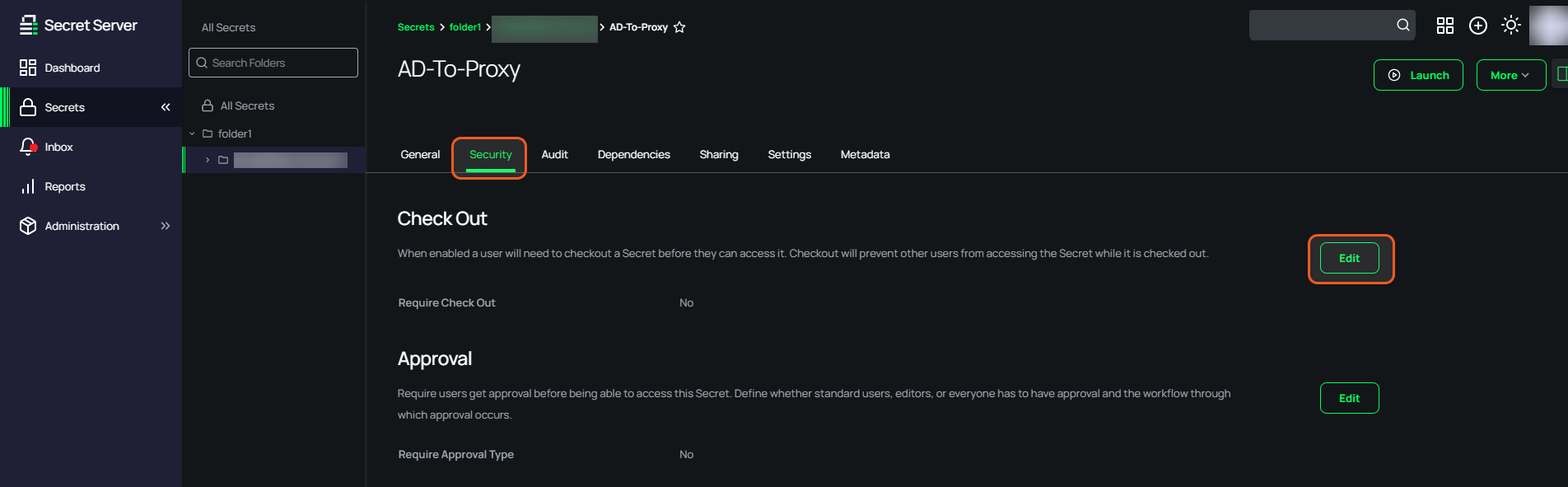

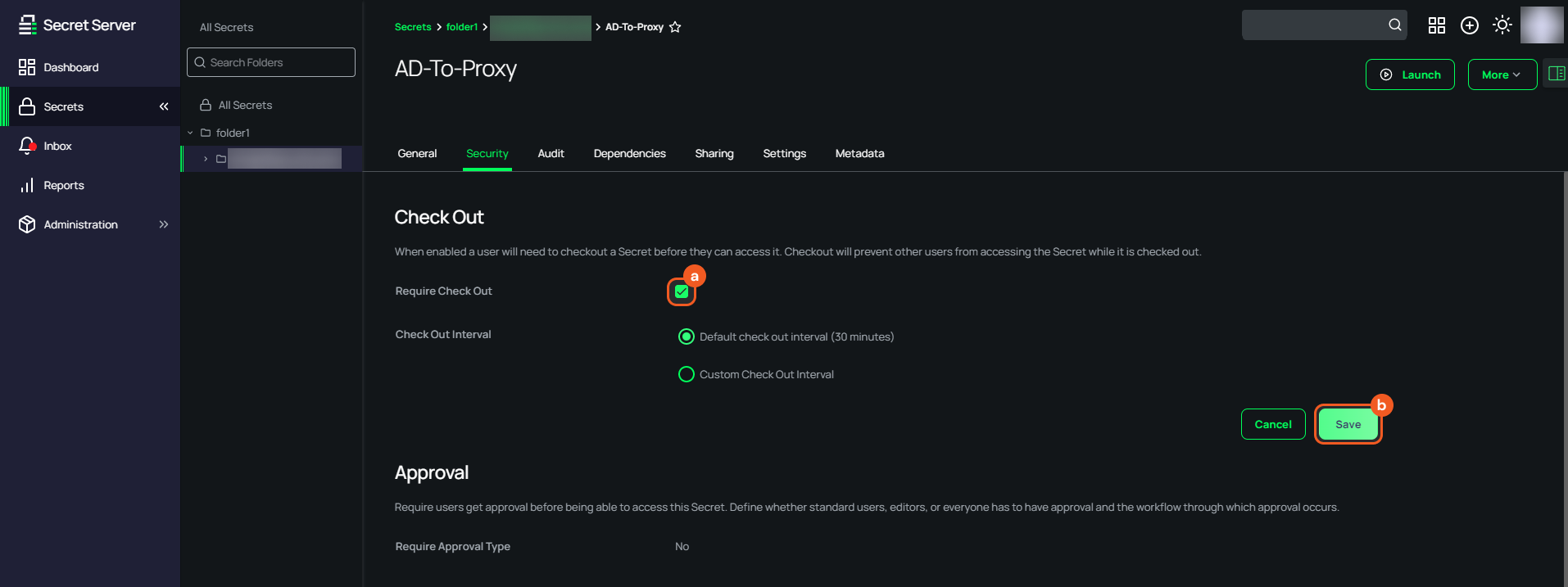

Before running this command, please enable the Secret Check Out option. Please see Enabling Secret Check Out for how to enable the option.
Check Out must be disabled before a DoubleLock can be enabled. Users cannot check in a DoubleLock-enabled secret.
This command can only be used with API Version v1.

Secret ID is a required parameter to run this command.

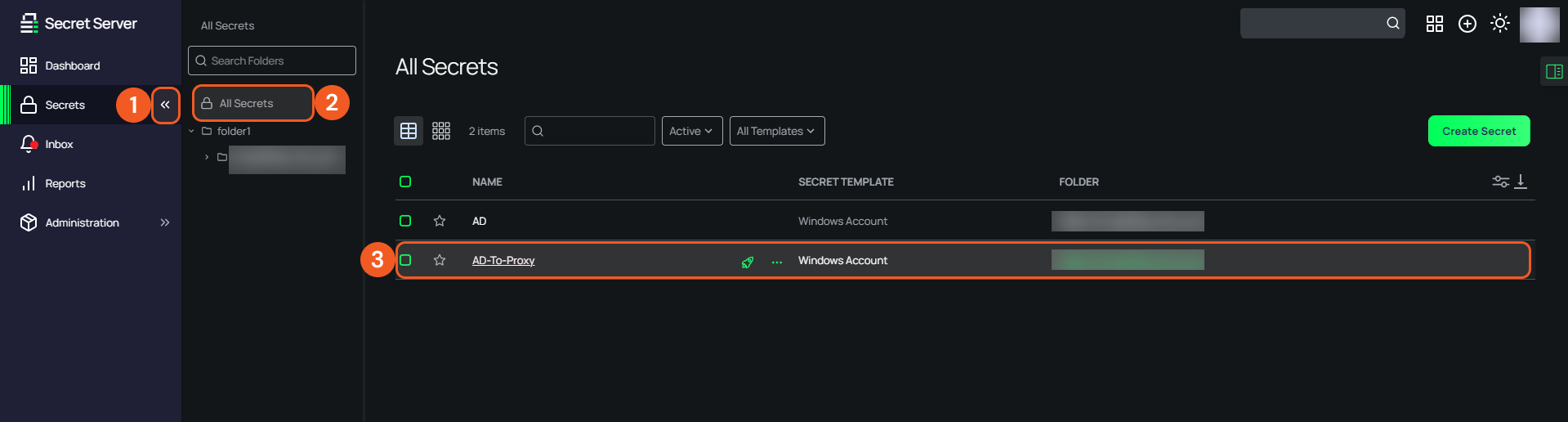

Run the Search Secrets command to obtain the Secret ID. Secret IDs can be found in the returned raw data at the path $.records[*].id.
Only active secrets can be checked in. Run the Search Secrets command with the Status parameter set to Active in order to obtain active secrets to run this command.

Input

Input Parameter	Required/Optional	Description	Example
Secret ID	Required	The ID of the secret to check in. Secret ID can be obtained using the Search Secrets command, with the status set to active.	5

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "id": 5,
    "name": "***_***",
    "secretTemplateId": 6027,
    "secretTemplateName": "Office365 Account",
    "folderId": -1,
    "siteId": 1,
    "active": true,
    "checkedOut": false,
    "isRestricted": true,
    "isOutOfSync": false,
    "outOfSyncReason": "",
    "lastHeartBeatStatus": "Pending",
    "lastPasswordChangeAttempt": "0001-01-01T00:00:00",
    "responseCodes": null,
    "lastAccessed": null,
    "extendedFields": null,
    "checkOutEnabled": true,
    "autoChangeEnabled": false,
    "doubleLockEnabled": false,
    "requiresApproval": false,
    "requiresComment": false,
    "inheritsPermissions": false,
    "hidePassword": false,
    "createDate": "2022-08-25T23:06:56.187",
    "daysUntilExpiration": null,
    "hasLauncher": false
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretID": "\"5\"",
    "SecretName": "\"\\\"***_***\\\"\"",
    "SecretTemplateName": "\"\\\"Office365 Account\\\"\"",
    "CheckedOut": "\"false\"",
    "Active": "\"true\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

id	5
name	*_*
secretTemplateId	6027
secretTemplateName	Office365 Account
folderId	-1
siteId	1
active	True
checkedOut	False
isRestricted	True
isOutOfSync	False
outOfSyncReason
lastHeartBeatStatus	Pending
lastPasswordChangeAttempt	0001-01-01T00:00:00
responseCodes	None
lastAccessed	None
extendedFields	None
checkOutEnabled	True
autoChangeEnabled	False
doubleLockEnabled	False
requiresApproval	False
requiresComment	False
inheritsPermissions	False
hidePassword	False
createDate	2022-08-25T23:06:56.187
daysUntilExpiration	None
hasLauncher	False

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Check In Secret failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: API_CheckoutNotEnabled.

Error Sample Data

Check In Secret failed.

Status Code: 400.

Message: API_CheckoutNotEnabled.

Check Out Secret

Checks out a specified secret.

Reader Note

Secret ID is a required parameter to run this command.

Run the Search Secrets command to obtain the Secret ID. Secret IDs can be found in the returned raw data at the path $.records[*].id.
Check Out must be disabled before a Doublelock can be enabled, as a DoubleLock-enabled Secret cannot be checked out.
Only active secrets can be checked out. The Status parameter must be set to Active when running the Search Secret command in order to obtain active secrets to run this command.

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Secret ID	Required	The ID of the secret to check out. Secret ID can be obtained using the Search Secrets command. Check Out must be disabled before a DoubleLock can be enabled. You cannot check out a DoubleLock-enabled secret.	5

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "responseCodes": []
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

responseCodes

[]

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Check Out Secret failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied.

Error Sample Data

Check Out Secret failed.

Status Code: 400.

Message: Access Denied.

Create Folder

Creates a new secret folder.

Reader Note

Parent Folder ID is a required parameter to run this command.

Run the Search Folders command to obtain the Parent Folder ID. Folder IDs can be found in the returned raw data at the path $.records[*].id.

Secret Policy ID is an optional parameter to run this command.

Run the Search Secret Policy command to obtain the Secret Policy ID. Secret Policy IDs can be found in the returned raw data at the path $.records[*].secretPolicyId.

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Folder Name	Required	The name of the folder to be created.	***subfolder
Parent Folder ID	Required	The ID of this folder's parent folder. Folder IDs can be obtained using the Search Folders command. Inputting a value of -1 for this command will create a root folder.	5
Inherit Permissions	Required	Determines whether the folder should inherit permissions from its parent folder. The default value is True. Note: If creating a root folder (by inputting -1 for the parent folder ID), this parameter must be set to False.	False
Inherit Secret Policy	Required	Determines whether the folder should inherit the Secret Policy from its parent folder. Note: If creating a root folder (by inputting -1 for the parent folder ID), this parameter must be set to False.	False
Secret Policy ID	Optional	The ID of the Secret Policy that sets security and other settings on secrets contained within the folder. Secret Policy ID can be obtained using the Search Secret Policy command.	0

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "id": 6,
    "folderName": "***subfolder",
    "folderPath": "\\***\\***subfolder",
    "parentFolderId": 5,
    "folderTypeId": 1,
    "secretPolicyId": -1,
    "inheritSecretPolicy": true,
    "inheritPermissions": true,
    "childFolders": null,
    "secretTemplates": null
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "FolderID": "\"6\"",
    "FolderName": "\"\\\"***subfolder\\\"\"",
    "FolderPath": "\"\\\"\\\\\\\\***\\\\\\\\***subfolder\\\"\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

id	6
folderName	***subfolder
folderPath	\*\*subfolder
parentFolderId	5
folderTypeId	1
secretPolicyId	-1
inheritSecretPolicy	True
inheritPermissions	True
childFolders	None
secretTemplates	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Create Folder failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: User does not have the Administer Folder permission.

Error Sample Data

Create Folder failed.

Status Code: 500.

Message: User does not have the Administer Folder permission.

Deactivate Secrets

Deactivates specified secrets. A deactivated secret is hidden from users who do not have a role containing the View Deleted Secrets permission. Secret Server uses these "soft deletes" to maintain the audit history for all data.

Reader Note

The parameter Secret IDs is required to run this command.

Run the Search Secrets command to obtain Secret IDs. Secret IDs can be found in the returned raw data at the path $.records[*].id.
Only active secrets can be deactivated. The Status parameter must be set to Active when running the Search Secret command in order to obtain active secrets to run this command.

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Secret IDs	Required	The ID(s) of the secret(s) to deactivate. Secret IDs can be obtained using the Search Secrets command, with the Status set to Active.	[ 4 ]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "id": 4,
        "objectType": "Secret",
        "responseCodes": []
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretIDs": "\"[ 4 ]\""
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	OBJECTTYPE	RESPONSECODES
4	Secret	[]

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Deactivate Secrets failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied.

Error Sample Data

Deactivate Secrets failed.

Status Code: 400.

Message: Access Denied.

Get Restricted Secrets

Retrieves details of the specified restricted secret(s), including domain, user name and password.

Reader Note

The parameter Secret IDs is required to run this command.

Run the Search Secrets command to obtain Secret IDs. Secret IDs can be found in the returned raw data at the path $.records[*].id. If details of the specified secret cannot be retrieved, the secret may require restricted actions to be performed. In this case, you can use the ID of the secret to run the Get Secret States command restricted actions to be performed.

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Secret IDs	Required	The ID(s) of the restricted secret(s) to retrieve the details of. Secret IDs can be obtained using the Search Secrets command. If the details of the specified secret cannot be retrieved, please run the Get Secret States command to check if the secret needs restricted actions to be performed.	[ 13 ]
Comment	Optional	The comment to add for the action of retrieving the restricted secret. If the secret requires a comment or approval to view, a reason for accessing the secret must be provided.	Test Comment
DoubleLock Password	Optional	The DoubleLock password of a secret that is DoubleLocked.	DOUBLELOCKPASSWORD

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "id": 13,
        "name": "***Secret4",
        "secretTemplateId": ***,
        "folderId": 5,
        "active": true,
        "items": [
            {
                "itemId": ***,
                "fileAttachmentId": null,
                "filename": null,
                "itemValue": "*****.com",
                "fieldId": *****,
                "fieldName": "Domain",
                "slug": "domain",
                "fieldDescription": "The Office365 domain.",
                "isFile": false,
                "isNotes": false,
                "isPassword": false,
                "isList": false,
                "listType": "None"
            },
            {
                "itemId": ***,
                "fileAttachmentId": null,
                "filename": null,
                "itemValue": "*****",
                "fieldId": *****,
                "fieldName": "Username",
                "slug": "username",
                "fieldDescription": "The Office365 username.",
                "isFile": false,
                "isNotes": false,
                "isPassword": false,
                "isList": false,
                "listType": "None"
            },
            {
                "itemId": ***,
                "fileAttachmentId": null,
                "filename": null,
                "itemValue": "*****!",
                "fieldId": ***,
                "fieldName": "Password",
                "slug": "password",
                "fieldDescription": "The password of the user.",
                "isFile": false,
                "isNotes": false,
                "isPassword": true,
                "isList": false,
                "listType": "None"
            }
        ],
        "launcherConnectAsSecretId": -1,
        "checkOutMinutesRemaining": 0,
        "checkedOut": false,
        "checkOutUserDisplayName": "",
        "checkOutUserId": -1,
        "isRestricted": true,
        "isOutOfSync": false,
        "outOfSyncReason": "",
        "autoChangeEnabled": false,
        "autoChangeNextPassword": null,
        "requiresApprovalForAccess": false,
        "requiresComment": true,
        "checkOutEnabled": false,
        "checkOutIntervalMinutes": 30,
        "checkOutChangePasswordEnabled": false,
        "accessRequestWorkflowMapId": -1,
        "proxyEnabled": true,
        "sessionRecordingEnabled": true,
        "restrictSshCommands": false,
        "jumpboxRouteId": null,
        "allowOwnersUnrestrictedSshCommands": false,
        "isDoubleLock": true,
        "doubleLockId": 1,
        "enableInheritPermissions": false,
        "passwordTypeWebScriptId": -1,
        "siteId": 1,
        "enableInheritSecretPolicy": false,
        "secretPolicyId": -1,
        "lastHeartBeatStatus": "Disabled",
        "lastHeartBeatCheck": "0001-01-01T00:00:00",
        "failedPasswordChangeAttempts": 0,
        "lastPasswordChangeAttempt": "0001-01-01T00:00:00",
        "secretTemplateName": "Office365 Account",
        "responseCodes": [],
        "webLauncherRequiresIncognitoMode": true
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretIDs": "\"[ 13 ]\"",
    "SecretNames": "\"[ \\\"*****\\\" ]\"",
    "Domains": "\"[ \\\"*****.com\\\" ]\"",
    "UserNames": "\"[ \\\"*****\\\" ]\"",
    "Passwords": "\"[ \\\"*****!\\\" ]\""
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	NAME	SECRETTEMPLATEID	FOLDERID	ACTIVE	ITEMS	LAUNCHERCONNECTASSECRETID	CHECKOUTMINUTESREMAINING	CHECKEDOUT	CHECKOUTUSERDISPLAYNAME	CHECKOUTUSERID	ISRESTRICTED	ISOUTOFSYNC	OUTOFSYNCREASON	AUTOCHANGEENABLED	AUTOCHANGENEXTPASSWORD	REQUIRESAPPROVALFORACCESS	REQUIRESCOMMENT	CHECKOUTENABLED	CHECKOUTINTERVALMINUTES	CHECKOUTCHANGEPASSWORDENABLED	ACCESSREQUESTWORKFLOWMAPID	PROXYENABLED	SESSIONRECORDINGENABLED	RESTRICTSSHCOMMANDS	JUMPBOXROUTEID	ALLOWOWNERSUNRESTRICTEDSSHCOMMANDS	ISDOUBLELOCK	DOUBLELOCKID	ENABLEINHERITPERMISSIONS	PASSWORDTYPEWEBSCRIPTID	SITEID	ENABLEINHERITSECRETPOLICY	SECRETPOLICYID	LASTHEARTBEATSTATUS	LASTHEARTBEATCHECK	FAILEDPASSWORDCHANGEATTEMPTS	LASTPASSWORDCHANGEATTEMPT	SECRETTEMPLATENAME	RESPONSECODES	WEBLAUNCHERREQUIRESINCOGNITOMODE
13	***	6***	5	True	[{'itemId': *, 'fileAttachmentId': None, 'filename': None, 'itemValue': '*.com', 'fieldId': *, 'fieldName': 'Domain', 'slug': 'domain', 'fieldDescription': 'The Office365 domain.', 'isFile': False, 'isNotes': False, 'isPassword': False, 'isList': False, 'listType': 'None'}, {'itemId': 50, 'fileAttachmentId': None, 'filename': None, 'itemValue': '', 'fieldId': , 'fieldName': 'Username', 'slug': 'username', 'fieldDescription': 'The Office365 username.', 'isFile': False, 'isNotes': False, 'isPassword': False, 'isList': False, 'listType': 'None'}, {'itemId': , 'fileAttachmentId': None, 'filename': None, 'itemValue': '!', 'fieldId': , 'fieldName': 'Password', 'slug': 'password', 'fieldDescription': 'The password of the user.', 'isFile': False, 'isNotes': False, 'isPassword': True, 'isList': False, 'listType': 'None'}, {'itemId': 52, 'fileAttachmentId': None, 'filename': None, 'itemValue': '', 'fieldId': **, 'fieldName': 'Notes', 'slug': 'notes', 'fieldDescription': 'Any additional notes.', 'isFile': False, 'isNotes': True, 'isPassword': False, 'isList': False, 'listType': 'None'}]	-1	0	False		-1	True	False		False	None	False	True	False	30	False	-1	True	True	False	None	False	True	1	False	-1	1	False	-1	Disabled	0001-01-01T00:00:00	0	0001-01-01T00:00:00	Office365 Account	[]	True

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Restricted Secrets failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied.

Error Sample Data

Get Restricted Secrets failed.

Status Code: 400.

Message: Access Denied.

Get Secrets

Retrieves details of the specified secret(s), including domain, user name and password. If the secret is a restricted secret (requires a comment or is DoubleLock enabled), please use the Get Restricted Secrets command.

Reader Note

The parameter Secret IDs is required to run this command.

Run the Search Secrets command to obtain Secret IDs. Secret IDs can be found in the returned raw data at the path $.records[*].id. If details of the specified secret cannot be retrieved, the secret may require restricted actions to be performed. In this case, you can run the Get Secret States command to check if the secret needs restricted actions to be performed.

This command can only be used with API Version v2.

Input

Input Parameter	Required/Optional	Description	Example
Secret IDs	Required	The ID(s) of the secret(s) to retrieve the details of. Secret IDs can be obtained using the Search Secrets command. If the details of the specified secret cannot be retrieved, please run the Get Secret States command to check if the secret needs restricted actions to be performed.	[ 3 ]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "id": 3,
        "name": "***_test***",
        "secretTemplateId": 6027,
        "folderId": -1,
        "active": true,
        "items": [
            {
                "itemId": 9,
                "fileAttachmentId": null,
                "filename": null,
                "itemValue": "",
                "fieldId": *****,
                "fieldName": "Domain",
                "slug": "domain",
                "fieldDescription": "The Office365 domain.",
                "isFile": false,
                "isNotes": false,
                "isPassword": false,
                "isList": false,
                "listType": "None"
            },
            {
                "itemId": 10,
                "fileAttachmentId": null,
                "filename": null,
                "itemValue": "*****",
                "fieldId": *****,
                "fieldName": "Username",
                "slug": "username",
                "fieldDescription": "The Office365 username.",
                "isFile": false,
                "isNotes": false,
                "isPassword": false,
                "isList": false,
                "listType": "None"
            },
            {
                "itemId": 11,
                "fileAttachmentId": null,
                "filename": null,
                "itemValue": "*****",
                "fieldId": *****,
                "fieldName": "Password",
                "slug": "password",
                "fieldDescription": "The password of the user.",
                "isFile": false,
                "isNotes": false,
                "isPassword": true,
                "isList": false,
                "listType": "None"
            },
            {
                "itemId": 12,
                "fileAttachmentId": null,
                "filename": null,
                "itemValue": "",
                "fieldId": *****,
                "fieldName": "Notes",
                "slug": "notes",
                "fieldDescription": "Any additional notes.",
                "isFile": false,
                "isNotes": true,
                "isPassword": false,
                "isList": false,
                "listType": "None"
            }
        ],
        "launcherConnectAsSecretId": -1,
        "checkOutMinutesRemaining": 0,
        "checkedOut": false,
        "checkOutUserDisplayName": "",
        "checkOutUserId": -1,
        "isRestricted": false,
        "isOutOfSync": false,
        "outOfSyncReason": "",
        "autoChangeEnabled": false,
        "autoChangeNextPassword": null,
        "requiresApprovalForAccess": false,
        "requiresComment": false,
        "checkOutEnabled": false,
        "checkOutIntervalMinutes": -1,
        "checkOutChangePasswordEnabled": false,
        "accessRequestWorkflowMapId": -1,
        "proxyEnabled": false,
        "sessionRecordingEnabled": false,
        "restrictSshCommands": false,
        "jumpboxRouteId": null,
        "allowOwnersUnrestrictedSshCommands": false,
        "isDoubleLock": false,
        "doubleLockId": -1,
        "enableInheritPermissions": false,
        "passwordTypeWebScriptId": -1,
        "siteId": 1,
        "enableInheritSecretPolicy": false,
        "secretPolicyId": -1,
        "lastHeartBeatStatus": "Pending",
        "lastHeartBeatCheck": null,
        "failedPasswordChangeAttempts": 0,
        "lastPasswordChangeAttempt": null,
        "secretTemplateName": "Office365 Account",
        "responseCodes": [],
        "webLauncherRequiresIncognitoMode": false
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretIDs": "\"[ 3 ]\"",
    "SecretNames": "\"[ \\\"*****_test*****\\\" ]\"",
    "Domains": "\"[ \\\"\\\" ]\"",
    "UserNames": "\"[ \\\"*****\\\" ]\"",
    "Passwords": "\"[ \\\"*****\\\" ]\""
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	NAME	SECRETTEMPLATEID	FOLDERID	ACTIVE	ITEMS	LAUNCHERCONNECTASSECRETID	CHECKOUTMINUTESREMAINING	CHECKEDOUT	CHECKOUTUSERDISPLAYNAME	CHECKOUTUSERID	ISRESTRICTED	ISOUTOFSYNC	OUTOFSYNCREASON	AUTOCHANGEENABLED	AUTOCHANGENEXTPASSWORD	REQUIRESAPPROVALFORACCESS	REQUIRESCOMMENT	CHECKOUTENABLED	CHECKOUTINTERVALMINUTES	CHECKOUTCHANGEPASSWORDENABLED	ACCESSREQUESTWORKFLOWMAPID	PROXYENABLED	SESSIONRECORDINGENABLED	RESTRICTSSHCOMMANDS	JUMPBOXROUTEID	ALLOWOWNERSUNRESTRICTEDSSHCOMMANDS	ISDOUBLELOCK	DOUBLELOCKID	ENABLEINHERITPERMISSIONS	PASSWORDTYPEWEBSCRIPTID	SITEID	ENABLEINHERITSECRETPOLICY	SECRETPOLICYID	LASTHEARTBEATSTATUS	LASTHEARTBEATCHECK	FAILEDPASSWORDCHANGEATTEMPTS	LASTPASSWORDCHANGEATTEMPT	SECRETTEMPLATENAME	RESPONSECODES	WEBLAUNCHERREQUIRESINCOGNITOMODE
3	Office365*****	6*****	-1	True	[{'itemId': ***, 'fileAttachmentId': None, 'filename': None, 'itemValue': '', 'fieldId': *, 'fieldName': 'Domain', 'slug': 'domain', 'fieldDescription': 'The Office365 domain.', 'isFile': False, 'isNotes': False, 'isPassword': False, 'isList': False, 'listType': 'None'}, {'itemId': *, 'fileAttachmentId': None, 'filename': None, 'itemValue': '*', 'fieldId': *, 'fieldName': 'Username', 'slug': 'username', 'fieldDescription': 'The *username.', 'isFile': False, 'isNotes': False, 'isPassword': False, 'isList': False, 'listType': 'None'}, {'itemId': *, 'fileAttachmentId': None, 'filename': None, 'itemValue': '8', 'fieldId': *, 'fieldName': 'Password', 'slug': 'password', 'fieldDescription': 'The password of the user.', 'isFile': False, 'isNotes': False, 'isPassword': True, 'isList': False, 'listType': 'None'}, {'itemId': *, 'fileAttachmentId': None, 'filename': None, 'itemValue': '', 'fieldId': ***, 'fieldName': 'Notes', 'slug': 'notes', 'fieldDescription': 'Any additional notes.', 'isFile': False, 'isNotes': True, 'isPassword': False, 'isList': False, 'listType': 'None'}]	-1	0	False		-1	False	False		False	None	False	False	False	-1	False	-1	False	False	False	None	False	False	-1	False	-1	1	False	-1	Pending	None	0	None	Office365 Account	[]	False

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Secrets failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied.

Error Sample Data

Get Secrets failed.

Status Code: 400.

Message: Access Denied.

Get Secret States

Retrieves the state of the specified Secret(s), such as whether they require approval, doublelock, checkout, or other restricted actions to be performed before running the Get Secrets command.

Reader Note

The parameter Secret IDs is required to run this command.

Run the Search Secrets command to obtain Secret IDs. Secret IDs can be found in the returned raw data at the path $.records[*].id.

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Secret IDs	Required	The ID(s) of the secret(s) to check the state of. Secret IDs can be obtained using the Search Secrets command.	[ 4 ]

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

[
    {
        "id": 4,
        "secretName": "*****_test****",
        "folderId": -1,
        "folderName": "",
        "secretState": "RequiresUndelete",
        "isCheckedOut": null,
        "checkedOutUserId": null,
        "checkOutMinutesRemaining": null,
        "checkedOutUserDisplayName": null,
        "isCheckedOutByCurrentUser": null,
        "checkOutIntervalMinutes": null,
        "role": null,
        "actions": null,
        "availableActions": null,
        "passwordChangePending": null,
        "isActive": null,
        "approvalEnd": null,
        "warningMinutesRemaining": null,
        "remainingTimeWarningMinuteMarker": null
    }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretIDs": "\"[ 4 ]\"",
    "SecretStates": "\"[ \\\"RequiresUndelete\\\" ]\""
}

Return Data

Indicates one of the possible command execution states: Successful, Partially Successful, or Failed.

The Partially Successful state only occurs when a command’s input accepts an array of items (e.g. an array of IP addresses) and one or more items within the array return an error from the API request.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ID	SECRETNAME	FOLDERID	FOLDERNAME	SECRETSTATE	ISCHECKEDOUT	CHECKEDOUTUSERID	CHECKOUTMINUTESREMAINING	CHECKEDOUTUSERDISPLAYNAME	ISCHECKEDOUTBYCURRENTUSER	CHECKOUTINTERVALMINUTES	ROLE	ACTIONS	AVAILABLEACTIONS	PASSWORDCHANGEPENDING	ISACTIVE	APPROVALEND	WARNINGMINUTESREMAINING	REMAININGTIMEWARNINGMINUTEMARKER
4	offic****	-1		RequiresUndelete	None	None	None	None	None	None	None	None	None	None	None	None	None	None

Error Handling

If the Return Data is Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Secret States failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied.

Error Sample Data

Get Secret States failed.

Status Code: 400.

Message: Access Denied.

Search Folders

Retrieves folder information by folder name.

Reader Note

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Folder Name	Optional	The full or partial name of the folder to retrieve. If this parameter is not defined, all folders will be returned.	***lab

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "filter": {
        "searchText": "***lab",
        "folderTypeId": null,
        "parentFolderId": null,
        "permissionRequired": null,
        "onlyIncludeRootFolders": false
    },
    "skip": 0,
    "take": 10,
    "total": 2,
    "pageCount": 1,
    "currentPage": 1,
    "batchCount": 1,
    "prevSkip": 0,
    "nextSkip": 10,
    "hasPrev": false,
    "hasNext": false,
    "records": [
        {
            "id": 5,
            "folderName": "***lab",
            "folderPath": "\\***lab",
            "parentFolderId": -1,
            "folderTypeId": 1,
            "secretPolicyId": -1,
            "inheritSecretPolicy": false,
            "inheritPermissions": false
        },
        {
            "id": 6,
            "folderName": "***labsubfolder",
            "folderPath": "\\***lab\\***labsubfolder",
            "parentFolderId": 5,
            "folderTypeId": 1,
            "secretPolicyId": -1,
            "inheritSecretPolicy": true,
            "inheritPermissions": true
        }
    ],
    "sortBy": [],
    "success": true,
    "severity": "None"
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "FolderIDs": "\"[ 5,6 ]\"",
    "FolderNames": "\"[ \\\"***lab\\\", \\\"***labsubfolder\\\" ]\"",
    "FolderPaths": "\"[ \\\"\\\\\\\\***lab\\\", \\\"\\\\\\\\***lab\\\\\\\\***labsubfolder\\\" ]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

filter	{'searchText': '***lab', 'folderTypeId': None, 'parentFolderId': None, 'permissionRequired': None, 'onlyIncludeRootFolders': False}
skip	0
take	10
total	2
pageCount	1
currentPage	1
batchCount	1
prevSkip	0
nextSkip	10
hasPrev	False
hasNext	False
records	{'id': *, 'folderName': 'lab', 'folderPath': '\\lab', 'parentFolderId': -1, 'folderTypeId': 1, 'secretPolicyId': -1, 'inheritSecretPolicy': False, 'inheritPermissions': False} {'id': , 'folderName': 'labsubfolder', 'folderPath': '\\lab\\**labsubfolder', 'parentFolderId': 5, 'folderTypeId': 1, 'secretPolicyId': -1, 'inheritSecretPolicy': True, 'inheritPermissions': True}
sortBy	[]
success	True
severity	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Folders failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied.

Error Sample Data

Search Folders failed.

Status Code: 403.

Message: Access Denied.

Search Secret Policies

Retrieves secret policies by secret policy name.

Reader Note

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Secret Policy Name	Optional	The full or partial name of the secret policy to retrieve. If this parameter is not defined, all secret policies will be returned.	secretPolicy826

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "filter": {
        "includeInactive": false,
        "secretPolicyName": "secretPolicy826"
    },
    "skip": 0,
    "take": 1000,
    "total": 1,
    "pageCount": 1,
    "currentPage": 1,
    "batchCount": 1,
    "prevSkip": 0,
    "nextSkip": 1000,
    "hasPrev": false,
    "hasNext": false,
    "records": [
        {
            "secretPolicyId": 1,
            "secretPolicyName": "secretPolicy826a",
            "secretPolicyDescription": "",
            "active": true
        }
    ],
    "sortBy": [
        {
            "name": "filter.secretPolicyName",
            "direction": "Asc",
            "priority": 0
        }
    ],
    "success": true,
    "severity": "None"
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretPolicyIDs": "\"[ 1 ]\"",
    "SecretPolicyNames": "\"[ \\\"secretPolicy826a\\\" ]\"",
    "Active": "\"[ true ]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

filter	{'includeInactive': False, 'secretPolicyName': 'secretPolicy826'}
skip	0
take	1000
total	1
pageCount	1
currentPage	1
batchCount	1
prevSkip	0
nextSkip	1000
hasPrev	False
hasNext	False
records	{'secretPolicyId': 1, 'secretPolicyName': 'secretPolicy826a', 'secretPolicyDescription': '', 'active': True}
sortBy	{'name': 'filter.secretPolicyName', 'direction': 'Asc', 'priority': 0}
success	True
severity	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Secret Policies failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied.

Error Sample Data

Search Secret Policies failed.

Status Code: 403.

Message: Access Denied.

Search Secrets

Retrieves secret information by secret template or status. The results include restricted secrets.

Reader Note

The parameter Secret Template IDs is optional to run this command.

Run the Search Secret Templates command to obtain Secret Template IDs. Secret Template IDs can be found in the returned raw data at the path $.records[*].id.

This command can only be used with API Version v2.

Input

Input Parameter	Required/Optional	Description	Example
Secret Template IDs	Optional	The ID of the secret template on which the secrets are generated. If this parameter is not defined, secrets of all secret templates will be returned. Secret Template IDs can be obtained using the Search Secret Templates command.	[ 6***8 ]
Status	Optional	The status of the secrets. If this parameter is not defined, both active and inactive secrets will be returned.	Active

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "filter": {
        "searchText": null,
        "searchField": null,
        "searchFieldSlug": null,
        "includeInactive": false,
        "includeActive": null,
        "includeRestricted": false,
        "secretTemplateIds": [
            6038
        ],
        "folderId": null,
        "includeSubFolders": false,
        "heartbeatStatus": null,
        "siteId": null,
        "scope": null,
        "recentMinDateTime": null,
        "recentMaxDateTime": null,
        "onlySharedWithMe": null,
        "extendedFields": null,
        "permissionRequired": null,
        "extendedTypeId": null,
        "passwordTypeIds": null,
        "onlyRPCEnabled": null,
        "doubleLockId": null,
        "isExactMatch": null,
        "allowDoubleLocks": null,
        "doNotCalculateTotal": null,
        "hasLauncher": null
    },
    "skip": 0,
    "take": 10,
    "total": 1,
    "pageCount": 1,
    "currentPage": 1,
    "batchCount": 1,
    "prevSkip": 0,
    "nextSkip": 10,
    "hasPrev": false,
    "hasNext": false,
    "records": [
        {
            "id": 10,
            "name": "GCP service account",
            "secretTemplateId": 6***8,
            "secretTemplateName": "Google IAM Service Account Key",
            "folderId": -1,
            "siteId": 1,
            "active": true,
            "checkedOut": false,
            "isRestricted": false,
            "isOutOfSync": false,
            "outOfSyncReason": "",
            "lastHeartBeatStatus": "Pending",
            "lastPasswordChangeAttempt": "0001-01-01T00:00:00",
            "responseCodes": null,
            "lastAccessed": "2022-08-26T17:36:53.327",
            "extendedFields": null,
            "checkOutEnabled": false,
            "autoChangeEnabled": false,
            "doubleLockEnabled": false,
            "requiresApproval": false,
            "requiresComment": false,
            "inheritsPermissions": false,
            "hidePassword": false,
            "createDate": "2022-08-26T17:36:51.593",
            "daysUntilExpiration": 29,
            "hasLauncher": false
        }
    ],
    "sortBy": [
        {
            "name": "name",
            "direction": "Asc",
            "priority": 0
        }
    ],
    "success": true,
    "severity": "None"
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretIDs": "\"[ 10 ]\"",
    "SecretNames": "\"[ \\\"GCP service account\\\" ]\"",
    "SecretTemplateNames": "\"[ \\\"Google IAM Service Account Key\\\" ]\"",
    "SecretTemplateIDs": "\"[ 6***8 ]\"",
    "Active": "\"[ true ]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

filter	{'searchText': None, 'searchField': None, 'searchFieldSlug': None, 'includeInactive': False, 'includeActive': None, 'includeRestricted': False, 'secretTemplateIds': [6***8], 'folderId': None, 'includeSubFolders': False, 'heartbeatStatus': None, 'siteId': None, 'scope': None, 'recentMinDateTime': None, 'recentMaxDateTime': None, 'onlySharedWithMe': None, 'extendedFields': None, 'permissionRequired': None, 'extendedTypeId': None, 'passwordTypeIds': None, 'onlyRPCEnabled': None, 'doubleLockId': None, 'isExactMatch': None, 'allowDoubleLocks': None, 'doNotCalculateTotal': None, 'hasLauncher': None}
skip	0
take	10
total	1
pageCount	1
currentPage	1
batchCount	1
prevSkip	0
nextSkip	10
hasPrev	False
hasNext	False
records	{'id': 10, 'name': 'GCP service account', 'secretTemplateId': 6***8, 'secretTemplateName': 'Google IAM Service Account Key', 'folderId': -1, 'siteId': 1, 'active': True, 'checkedOut': False, 'isRestricted': False, 'isOutOfSync': False, 'outOfSyncReason': '', 'lastHeartBeatStatus': 'Pending', 'lastPasswordChangeAttempt': '0001-01-01T00:00:00', 'responseCodes': None, 'lastAccessed': '2022-08-26T17:36:53.327', 'extendedFields': None, 'checkOutEnabled': False, 'autoChangeEnabled': False, 'doubleLockEnabled': False, 'requiresApproval': False, 'requiresComment': False, 'inheritsPermissions': False, 'hidePassword': False, 'createDate': '2022-08-26T17:36:51.593', 'daysUntilExpiration': 29, 'hasLauncher': False}
sortBy	{'name': 'name', 'direction': 'Asc', 'priority': 0}
success	True
severity	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Secrets failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

Search Secrets failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

Search Secrets By Name

Retrieves secret information by secret name. The results include restricted secrets and inactive secrets.

Reader Note

This command can only be used with API Version v2.

Input

Input Parameter	Required/Optional	Description	Example
Secret Name	Optional	The name of the secret to retrieve information. If this parameter is not defined, all secrets will be returned. Returned secrets are sorted by secret name in ascending order.	*_test*

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "filter": {
        "searchText": "***_test***",
        "searchField": "name",
        "searchFieldSlug": null,
        "includeInactive": false,
        "includeActive": null,
        "includeRestricted": false,
        "secretTemplateIds": null,
        "folderId": null,
        "includeSubFolders": false,
        "heartbeatStatus": null,
        "siteId": null,
        "scope": null,
        "recentMinDateTime": null,
        "recentMaxDateTime": null,
        "onlySharedWithMe": null,
        "extendedFields": null,
        "permissionRequired": null,
        "extendedTypeId": null,
        "passwordTypeIds": null,
        "onlyRPCEnabled": null,
        "doubleLockId": null,
        "isExactMatch": null,
        "allowDoubleLocks": null,
        "doNotCalculateTotal": null,
        "hasLauncher": null
    },
    "skip": 0,
    "take": 10,
    "total": 1,
    "pageCount": 1,
    "currentPage": 1,
    "batchCount": 1,
    "prevSkip": 0,
    "nextSkip": 10,
    "hasPrev": false,
    "hasNext": false,
    "records": [
        {
            "id": 4,
            "name": "***_test***",
            "secretTemplateId": 6***7,
            "secretTemplateName": "Office365 Account",
            "folderId": -1,
            "siteId": 1,
            "active": true,
            "checkedOut": false,
            "isRestricted": false,
            "isOutOfSync": false,
            "outOfSyncReason": "",
            "lastHeartBeatStatus": "Pending",
            "lastPasswordChangeAttempt": "0001-01-01T00:00:00",
            "responseCodes": null,
            "lastAccessed": "2022-08-25T22:32:33.07",
            "extendedFields": null,
            "checkOutEnabled": false,
            "autoChangeEnabled": false,
            "doubleLockEnabled": false,
            "requiresApproval": false,
            "requiresComment": false,
            "inheritsPermissions": false,
            "hidePassword": false,
            "createDate": "2022-08-25T22:32:32.203",
            "daysUntilExpiration": null,
            "hasLauncher": false
        }
    ],
    "sortBy": [
        {
            "name": "name",
            "direction": "Asc",
            "priority": 0
        }
    ],
    "success": true,
    "severity": "None"
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretIDs": "\"[ 4 ]\"",
    "SecretNames": "\"[ \\\"***_test***\\\" ]\"",
    "SecretTemplateNames": "\"[ \\\"Office365 Account\\\" ]\"",
    "Active": "\"[ true ]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

filter	{'searchText': '*_test*', 'searchField': 'name', 'searchFieldSlug': None, 'includeInactive': False, 'includeActive': None, 'includeRestricted': False, 'secretTemplateIds': None, 'folderId': None, 'includeSubFolders': False, 'heartbeatStatus': None, 'siteId': None, 'scope': None, 'recentMinDateTime': None, 'recentMaxDateTime': None, 'onlySharedWithMe': None, 'extendedFields': None, 'permissionRequired': None, 'extendedTypeId': None, 'passwordTypeIds': None, 'onlyRPCEnabled': None, 'doubleLockId': None, 'isExactMatch': None, 'allowDoubleLocks': None, 'doNotCalculateTotal': None, 'hasLauncher': None}
skip	0
take	10
total	1
pageCount	1
currentPage	1
batchCount	1
prevSkip	0
nextSkip	10
hasPrev	False
hasNext	False
records	{'id': 4, 'name': '*_test', 'secretTemplateId': 6**7, 'secretTemplateName': 'Office365 Account', 'folderId': -1, 'siteId': 1, 'active': True, 'checkedOut': False, 'isRestricted': False, 'isOutOfSync': False, 'outOfSyncReason': '', 'lastHeartBeatStatus': 'Pending', 'lastPasswordChangeAttempt': '0001-01-01T00:00:00', 'responseCodes': None, 'lastAccessed': '2022-08-25T22:32:33.07', 'extendedFields': None, 'checkOutEnabled': False, 'autoChangeEnabled': False, 'doubleLockEnabled': False, 'requiresApproval': False, 'requiresComment': False, 'inheritsPermissions': False, 'hidePassword': False, 'createDate': '2022-08-25T22:32:32.203', 'daysUntilExpiration': None, 'hasLauncher': False}
sortBy	{'name': 'name', 'direction': 'Asc', 'priority': 0}
success	True
severity	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Secrets By Name failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied.

Error Sample Data

Search Secrets By Name failed.

Status Code: 403.

Message: Access Denied.

Search Secret Templates

Retrieves information about secret templates by secret template name.

Reader Note

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Secret Template Name	Optional	The full or partial name of the secret template to retrieve. If this parameter is not defined, all secret templates will be returned.	google

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "filter": {
        "searchText": "google",
        "includeInactive": false,
        "includeSecretCount": false,
        "passwordTypeIds": null
    },
    "skip": 0,
    "take": 1000,
    "total": 1,
    "pageCount": 1,
    "currentPage": 1,
    "batchCount": 1,
    "prevSkip": 0,
    "nextSkip": 1000,
    "hasPrev": false,
    "hasNext": false,
    "records": [
        {
            "id": 6***,
            "name": "Google IAM Service Account Key",
            "secretCount": null,
            "active": true,
            "passwordTypeId": 50
        }
    ],
    "sortBy": [],
    "success": true,
    "severity": "None"
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretTemplateIDs": "\"[ 6*** ]\"",
    "SecretTemplateNames": "\"[ \\\"Google IAM Service Account Key\\\" ]\"",
    "Active": "\"[ true ]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

filter	{'searchText': 'google', 'includeInactive': False, 'includeSecretCount': False, 'passwordTypeIds': None}
skip	0
take	1000
total	1
pageCount	1
currentPage	1
batchCount	1
prevSkip	0
nextSkip	1000
hasPrev	False
hasNext	False
records	{'id': 6***, 'name': 'Google IAM Service Account Key', 'secretCount': None, 'active': True, 'passwordTypeId': 50}
sortBy	[]
success	True
severity	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Secret Templates failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied.

Error Sample Data

Search Secret Templates failed.

Status Code: 403.

Message: Access Denied.

Update Folder

Updates a single secret folder by folder ID.

Reader Note

Folder ID is a required parameter to run this command.

Run the Search Folders command to obtain Folder ID. Folder IDs can be found in the returned raw data at the path $.records[*].id.

Parent Folder ID and Secret Policy ID are optional parameters to run this command.

Run the Search Folders command to obtain the Parent Folder ID. Folder IDs can be found in the returned raw data at the path $.records[*].id.
Run the Search Secret Policy command to obtain the Secret Policy ID. Secret Policy IDs can be found in the returned raw data at the path $.records[*].secretPolicyId.

This command can only be used with API Version v1.

Alert

Secret policies and permission settings cannot be modified on personal folders.

Input

Input Parameter	Required/Optional	Description	Example
Folder ID	Required	The ID of the folder to be updated. Folder ID can be obtained using the Search Folders command.	11
Folder Name	Optional	The new name of the folder to be updated.	d3lab***
Parent Folder ID	Optional	The id of this folder's new parent folder. Folder ID can be obtained using the Search Folders command. If the folder is to be updated to be a root folder, enter -1 as Parent Folder ID.	-1
Inherit Permissions	Required	Determines whether the folder should inherit permissions from its parent folder. Note: If updating to a root folder (by inputting -1 for the parent folder ID), this parameter must be set to False.	False
Inherit Secret Policy	Required	Determines whether the folder should inherit the Secret Policy from its parent folder. Note: If updating to a root folder (by inputting -1 for the parent folder ID), this parameter must be set to False.	False
Secret Policy ID	Optional	The ID of the Secret Policy that sets security and other settings on secrets contained within the folder. Secret Policy ID can be obtained using the Search Secret Policy command.	1

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "id": 11,
    "folderName": "d3lab***",
    "folderPath": "\\d3lab***",
    "parentFolderId": -1,
    "folderTypeId": 1,
    "secretPolicyId": 1,
    "inheritSecretPolicy": false,
    "inheritPermissions": false,
    "childFolders": null,
    "secretTemplates": null
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "FolderID": "\"11\"",
    "FolderName": "\"\\\"d3lab***\\\"\"",
    "FolderPath": "\"\\\"\\\\\\\\d3lab***\\\"\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

id	11
folderName	d3lab***
folderPath	\d3lab***
parentFolderId	-1
folderTypeId	1
secretPolicyId	1
inheritSecretPolicy	False
inheritPermissions	False
childFolders	None
secretTemplates	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Update Folder failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Cannot modify secret policy or permission settings on personal folders.

Error Sample Data

Update Folder failed.

Status Code: 400.

Message: Cannot modify secret policy or permission settings on personal folders.

Update Restricted Secret Password

Updates the password of a specified restricted secret on a local Secret Server.

Reader Note

The parameter Secret IDs is required to run this command.

Run the Search Secrets command to obtain Secret IDs. Secret IDs can be found in the returned raw data at the path $.records[*].id.

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Secret ID	Required	The ID of the secret that requires a change of password. Secret ID can be obtained using the Search Secrets command.	11
Comment	Optional	The comment to add for the action of retrieving the restricted secret. If the secret requires a comment or approval to view, a reason for accessing the secret must be provided.	Test Comment
DoubleLock Password	Optional	The DoubleLock password of a secret that is DoubleLocked.	DOUBLELOCKPASSWORD
New Password	Required	The new password for the restricted secret.	NEWPassw0rd!@#

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "id": 17,
    "name": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": "QATest",
        "label": "Secret Name",
        "name": null,
        "description": "Secret Name",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": false,
        "isRequired": true,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "enableInheritSecretPolicy": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Enable Inherit Secret Policy",
        "name": null,
        "description": "This Secret will inherit or have the same Secret Policy settings as the parent folder.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": "Secret is DoubleLocked",
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "secretPolicy": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": null,
        "label": "Secret Policy",
        "name": "< No Policy >",
        "description": "This policy will be applied to all new Secrets which are added to this folder and any existing Secrets that inherit the Policy",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": "Secret is DoubleLocked",
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "site": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": 1,
        "label": "Site",
        "name": "Default",
        "description": "The container in which heartbeat, RPC, and other Secret activities occur.",
        "readOnly": false,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "template": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": 6001,
        "label": "Secret Template",
        "name": "Active Directory Account",
        "description": "Describes the type of Secret such as which fields, launchers, and password requirements.",
        "readOnly": true,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "active": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": true,
        "label": "Active",
        "name": null,
        "description": "Whether or not the Secret is Active",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "fields": [
        {
            "slug": "domain",
            "type": "Text",
            "dropDownOptions": null,
            "passwordRequirementId": null,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": "D3security",
            "label": "Domain",
            "name": "Domain",
            "description": "The Server or Location of the Active Directory Domain.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": true,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        },
        {
            "slug": "username",
            "type": "Text",
            "dropDownOptions": null,
            "passwordRequirementId": null,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": "QA",
            "label": "Username",
            "name": "Username",
            "description": "The Domain Username.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": true,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        },
        {
            "slug": "password",
            "type": "Password",
            "dropDownOptions": null,
            "passwordRequirementId": 1,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": null,
            "label": "Password",
            "name": "Password",
            "description": "The password of the Domain User.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": true,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        },
        {
            "slug": "notes",
            "type": "Notes",
            "dropDownOptions": null,
            "passwordRequirementId": null,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": "",
            "label": "Notes",
            "name": "Notes",
            "description": "Any additional notes.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": false,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        }
    ],
    "folder": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": null,
        "label": "Folder",
        "name": "",
        "description": "The folder in which a Secret resides.",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "isOutOfSync": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Out of Sync",
        "name": null,
        "description": "Out of sync indicates that a Password is setup for autochange and has failed its last password change attempt or has exceeded the maximum RPC attempts.",
        "readOnly": true,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "outOfSyncReason": null,
    "lastHeartBeatStatus": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": "Disabled",
        "label": "Last Heartbeat Status",
        "name": "Disabled",
        "description": "Last Heartbeat status received for this Secret.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "lastHeartBeatCheck": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": null,
        "label": "Last Heart Beat Check",
        "name": null,
        "description": "When the last heartbeat status was received.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "heartbeatEnabled": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Heartbeat Enabled",
        "name": "Heartbeat Enabled",
        "description": "Whether or not heartbeat is enabled for this Secret.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "expiration": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": "Expires in 29 days. (Expires every 30 day(s))",
        "label": "Expiration",
        "name": null,
        "description": "Secret Expiration applies to one field of a Secret Template (most commonly the password field) and may trigger a password change for that Secret if Auto-Change is configured for Remote Password Changing.",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "launchers": [
        {
            "name": "RDP Launcher",
            "typeId": 1,
            "imagePath": "https://d3sec.secretservercloud.com/themes/GlobalImages/rdp.png",
            "isRecorded": false,
            "hasProxyCredentials": true
        }
    ],
    "isFavorite": false,
    "autoChangePassword": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Auto Change Enabled",
        "name": "Auto Change Enabled",
        "description": "When enabled this Secret will be set to expire on a schedule and change the password.  After creation view the RPC tab for details.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "canGenerateSshKey": false,
    "slugPrivateKey": null,
    "slugPublicKey": null,
    "isTotpEnabled": false,
    "totpPasswordSlug": null
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "SecretID": "\"17\"",
    "SecretName": "\"\\\"QATest\\\"\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

id	17
name	{'fieldInputType': None, 'sortOrder': None, 'value': 'QATest', 'label': 'Secret Name', 'name': None, 'description': 'Secret Name', 'readOnly': None, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': False, 'isRequired': True, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
enableInheritSecretPolicy	{'fieldInputType': None, 'sortOrder': None, 'value': False, 'label': 'Enable Inherit Secret Policy', 'name': None, 'description': 'This Secret will inherit or have the same Secret Policy settings as the parent folder.', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': 'Secret is DoubleLocked', 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
secretPolicy	{'fieldInputType': None, 'sortOrder': None, 'value': None, 'label': 'Secret Policy', 'name': '< No Policy >', 'description': 'This policy will be applied to all new Secrets which are added to this folder and any existing Secrets that inherit the Policy', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': 'Secret is DoubleLocked', 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
site	{'fieldInputType': None, 'sortOrder': None, 'value': 1, 'label': 'Site', 'name': 'Default', 'description': 'The container in which heartbeat, RPC, and other Secret activities occur.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
template	{'fieldInputType': None, 'sortOrder': None, 'value': 6001, 'label': 'Secret Template', 'name': 'Active Directory Account', 'description': 'Describes the type of Secret such as which fields, launchers, and password requirements.', 'readOnly': True, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
active	{'fieldInputType': None, 'sortOrder': None, 'value': True, 'label': 'Active', 'name': None, 'description': 'Whether or not the Secret is Active', 'readOnly': None, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
fields	{'slug': 'domain', 'type': 'Text', 'dropDownOptions': None, 'passwordRequirementId': None, 'listType': 0, 'fieldInputType': None, 'sortOrder': None, 'value': 'D3security', 'label': 'Domain', 'name': 'Domain', 'description': 'The Server or Location of the Active Directory Domain.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': False, 'hasHistory': True, 'isRequired': True, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None} {'slug': 'username', 'type': 'Text', 'dropDownOptions': None, 'passwordRequirementId': None, 'listType': 0, 'fieldInputType': None, 'sortOrder': None, 'value': 'QA', 'label': 'Username', 'name': 'Username', 'description': 'The Domain Username.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': False, 'hasHistory': True, 'isRequired': True, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None} {'slug': 'password', 'type': 'Password', 'dropDownOptions': None, 'passwordRequirementId': 1, 'listType': 0, 'fieldInputType': None, 'sortOrder': None, 'value': None, 'label': 'Password', 'name': 'Password', 'description': 'The password of the Domain User.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': False, 'hasHistory': True, 'isRequired': True, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None} {'slug': 'notes', 'type': 'Notes', 'dropDownOptions': None, 'passwordRequirementId': None, 'listType': 0, 'fieldInputType': None, 'sortOrder': None, 'value': '', 'label': 'Notes', 'name': 'Notes', 'description': 'Any additional notes.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': False, 'hasHistory': True, 'isRequired': False, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
folder	{'fieldInputType': None, 'sortOrder': None, 'value': None, 'label': 'Folder', 'name': '', 'description': 'The folder in which a Secret resides.', 'readOnly': None, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
isOutOfSync	{'fieldInputType': None, 'sortOrder': None, 'value': False, 'label': 'Out of Sync', 'name': None, 'description': 'Out of sync indicates that a Password is setup for autochange and has failed its last password change attempt or has exceeded the maximum RPC attempts.', 'readOnly': True, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
outOfSyncReason	None
lastHeartBeatStatus	{'fieldInputType': None, 'sortOrder': None, 'value': 'Disabled', 'label': 'Last Heartbeat Status', 'name': 'Disabled', 'description': 'Last Heartbeat status received for this Secret.', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
lastHeartBeatCheck	{'fieldInputType': None, 'sortOrder': None, 'value': None, 'label': 'Last Heart Beat Check', 'name': None, 'description': 'When the last heartbeat status was received.', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
heartbeatEnabled	{'fieldInputType': None, 'sortOrder': None, 'value': False, 'label': 'Heartbeat Enabled', 'name': 'Heartbeat Enabled', 'description': 'Whether or not heartbeat is enabled for this Secret.', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
expiration	{'fieldInputType': None, 'sortOrder': None, 'value': 'Expires in 29 days. (Expires every 30 day(s))', 'label': 'Expiration', 'name': None, 'description': 'Secret Expiration applies to one field of a Secret Template (most commonly the password field) and may trigger a password change for that Secret if Auto-Change is configured for Remote Password Changing.', 'readOnly': None, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
launchers	{'name': 'RDP Launcher', 'typeId': 1, 'imagePath': 'https://d3sec.secretservercloud.com/themes/GlobalImages/rdp.png', 'isRecorded': False, 'hasProxyCredentials': True}
isFavorite	False
autoChangePassword	{'fieldInputType': None, 'sortOrder': None, 'value': False, 'label': 'Auto Change Enabled', 'name': 'Auto Change Enabled', 'description': 'When enabled this Secret will be set to expire on a schedule and change the password. After creation view the RPC tab for details.', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
canGenerateSshKey	False
slugPrivateKey	None
slugPublicKey	None
isTotpEnabled	False
totpPasswordSlug	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Update Restricted Secret Password failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Access Denied

Error Sample Data

Update Secret Password failed.

Status Code: 403

Message: Access Denied

Update Secret Password

Updates the password of a specified secret on the local Secret Server. If the secret is a restricted secret, please use the Update Restricted Secret Password command.

Reader Note

The parameter Secret IDs is required to run this command.

Run the Search Secrets command to obtain Secret IDs. Secret IDs can be found in the returned raw data at the path $.records[*].id.

This command can only be used with API Version v1.

Input

Input Parameter	Required/Optional	Description	Example
Secret ID	Required	The ID of the secret to update the password for. Secret ID can be obtained using the Search Secrets command.	11
New Password	Required	The new password for the secret.	NEWPassw0rd!@#

Output

Raw Data

The primary response data from the API request.

SAMPLE DATA

JSON

{
    "id": 11,
    "name": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": "***",
        "label": "Secret Name",
        "name": null,
        "description": "Secret Name",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": false,
        "isRequired": true,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "enableInheritSecretPolicy": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Enable Inherit Secret Policy",
        "name": null,
        "description": "This Secret will inherit or have the same Secret Policy settings as the parent folder.",
        "readOnly": false,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "secretPolicy": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": null,
        "label": "Secret Policy",
        "name": "< No Policy >",
        "description": "This policy will be applied to all new Secrets which are added to this folder and any existing Secrets that inherit the Policy",
        "readOnly": false,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "site": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": 1,
        "label": "Site",
        "name": "Default",
        "description": "The container in which heartbeat, RPC, and other Secret activities occur.",
        "readOnly": false,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "template": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": 6003,
        "label": "Secret Template",
        "name": "Windows Account",
        "description": "Describes the type of Secret such as which fields, launchers, and password requirements.",
        "readOnly": true,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "active": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": true,
        "label": "Active",
        "name": null,
        "description": "Whether or not the Secret is Active",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "fields": [
        {
            "slug": "machine",
            "type": "Text",
            "dropDownOptions": null,
            "passwordRequirementId": null,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": "jyao",
            "label": "Machine",
            "name": "Machine",
            "description": "The Server or Location of the Windows Machine.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": true,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        },
        {
            "slug": "username",
            "type": "Text",
            "dropDownOptions": null,
            "passwordRequirementId": null,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": "sysint",
            "label": "Username",
            "name": "Username",
            "description": "The Username of the Windows User.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": true,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        },
        {
            "slug": "password",
            "type": "Password",
            "dropDownOptions": null,
            "passwordRequirementId": 1,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": null,
            "label": "Password",
            "name": "Password",
            "description": "The password of the Windows User.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": true,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        },
        {
            "slug": "notes",
            "type": "Notes",
            "dropDownOptions": null,
            "passwordRequirementId": null,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": "",
            "label": "Notes",
            "name": "Notes",
            "description": "Any additional notes.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": false,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        }
    ],
    "folder": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": null,
        "label": "Folder",
        "name": "",
        "description": "The folder in which a Secret resides.",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "isOutOfSync": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Out of Sync",
        "name": null,
        "description": "Out of sync indicates that a Password is setup for autochange and has failed its last password change attempt or has exceeded the maximum RPC attempts.",
        "readOnly": true,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "outOfSyncReason": null,
    "lastHeartBeatStatus": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": "Disabled",
        "label": "Last Heartbeat Status",
        "name": "Pending",
        "description": "Last Heartbeat status received for this Secret.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "lastHeartBeatCheck": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": null,
        "label": "Last Heart Beat Check",
        "name": null,
        "description": "When the last heartbeat status was received.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "heartbeatEnabled": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Heartbeat Enabled",
        "name": "Heartbeat Enabled",
        "description": "Whether or not heartbeat is enabled for this Secret.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "expiration": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": "Expires in 29 days. (Expires every 30 day(s))",
        "label": "Expiration",
        "name": null,
        "description": "Secret Expiration applies to one field of a Secret Template (most commonly the password field) and may trigger a password change for that Secret if Auto-Change is configured for Remote Password Changing.",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "launchers": [
        {
            "name": "RDP Launcher",
            "typeId": 1,
            "imagePath": "https://d3sec.secretservercloud.com/themes/GlobalImages/rdp.png",
            "isRecorded": false,
            "hasProxyCredentials": true
        }
    ],
    "isFavorite": false,
    "autoChangePassword": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Auto Change Enabled",
        "name": "Auto Change Enabled",
        "description": "When enabled this Secret will be set to expire on a schedule and change the password.  After creation view the RPC tab for details.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "canGenerateSshKey": false,
    "slugPrivateKey": null,
    "slugPublicKey": null,
    "isTotpEnabled": false,
    "totpPasswordSlug": null
}

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "id": 11,
    "name": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": "***",
        "label": "Secret Name",
        "name": null,
        "description": "Secret Name",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": false,
        "isRequired": true,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "enableInheritSecretPolicy": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Enable Inherit Secret Policy",
        "name": null,
        "description": "This Secret will inherit or have the same Secret Policy settings as the parent folder.",
        "readOnly": false,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "secretPolicy": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": null,
        "label": "Secret Policy",
        "name": "< No Policy >",
        "description": "This policy will be applied to all new Secrets which are added to this folder and any existing Secrets that inherit the Policy",
        "readOnly": false,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "site": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": 1,
        "label": "Site",
        "name": "Default",
        "description": "The container in which heartbeat, RPC, and other Secret activities occur.",
        "readOnly": false,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "template": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": 6003,
        "label": "Secret Template",
        "name": "Windows Account",
        "description": "Describes the type of Secret such as which fields, launchers, and password requirements.",
        "readOnly": true,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "active": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": true,
        "label": "Active",
        "name": null,
        "description": "Whether or not the Secret is Active",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "fields": [
        {
            "slug": "machine",
            "type": "Text",
            "dropDownOptions": null,
            "passwordRequirementId": null,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": "jyao",
            "label": "Machine",
            "name": "Machine",
            "description": "The Server or Location of the Windows Machine.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": true,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        },
        {
            "slug": "username",
            "type": "Text",
            "dropDownOptions": null,
            "passwordRequirementId": null,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": "sysint",
            "label": "Username",
            "name": "Username",
            "description": "The Username of the Windows User.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": true,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        },
        {
            "slug": "password",
            "type": "Password",
            "dropDownOptions": null,
            "passwordRequirementId": 1,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": null,
            "label": "Password",
            "name": "Password",
            "description": "The password of the Windows User.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": true,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        },
        {
            "slug": "notes",
            "type": "Notes",
            "dropDownOptions": null,
            "passwordRequirementId": null,
            "listType": 0,
            "fieldInputType": null,
            "sortOrder": null,
            "value": "",
            "label": "Notes",
            "name": "Notes",
            "description": "Any additional notes.",
            "readOnly": false,
            "placeholder": null,
            "hidden": false,
            "hideOnView": false,
            "hasHistory": true,
            "isRequired": false,
            "readOnlyReason": null,
            "helpLink": null,
            "helpLinkText": null,
            "maxLength": null,
            "additionalLinks": null
        }
    ],
    "folder": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": null,
        "label": "Folder",
        "name": "",
        "description": "The folder in which a Secret resides.",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "isOutOfSync": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Out of Sync",
        "name": null,
        "description": "Out of sync indicates that a Password is setup for autochange and has failed its last password change attempt or has exceeded the maximum RPC attempts.",
        "readOnly": true,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "outOfSyncReason": null,
    "lastHeartBeatStatus": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": "Disabled",
        "label": "Last Heartbeat Status",
        "name": "Pending",
        "description": "Last Heartbeat status received for this Secret.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "lastHeartBeatCheck": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": null,
        "label": "Last Heart Beat Check",
        "name": null,
        "description": "When the last heartbeat status was received.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "heartbeatEnabled": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Heartbeat Enabled",
        "name": "Heartbeat Enabled",
        "description": "Whether or not heartbeat is enabled for this Secret.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "expiration": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": "Expires in 29 days. (Expires every 30 day(s))",
        "label": "Expiration",
        "name": null,
        "description": "Secret Expiration applies to one field of a Secret Template (most commonly the password field) and may trigger a password change for that Secret if Auto-Change is configured for Remote Password Changing.",
        "readOnly": null,
        "placeholder": null,
        "hidden": false,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "launchers": [
        {
            "name": "RDP Launcher",
            "typeId": 1,
            "imagePath": "https://d3sec.secretservercloud.com/themes/GlobalImages/rdp.png",
            "isRecorded": false,
            "hasProxyCredentials": true
        }
    ],
    "isFavorite": false,
    "autoChangePassword": {
        "fieldInputType": null,
        "sortOrder": null,
        "value": false,
        "label": "Auto Change Enabled",
        "name": "Auto Change Enabled",
        "description": "When enabled this Secret will be set to expire on a schedule and change the password.  After creation view the RPC tab for details.",
        "readOnly": true,
        "placeholder": null,
        "hidden": true,
        "hideOnView": null,
        "hasHistory": null,
        "isRequired": null,
        "readOnlyReason": null,
        "helpLink": null,
        "helpLinkText": null,
        "maxLength": null,
        "additionalLinks": null
    },
    "canGenerateSshKey": false,
    "slugPrivateKey": null,
    "slugPublicKey": null,
    "isTotpEnabled": false,
    "totpPasswordSlug": null
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

id	11
name	{'fieldInputType': None, 'sortOrder': None, 'value': '***', 'label': 'Secret Name', 'name': None, 'description': 'Secret Name', 'readOnly': None, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': False, 'isRequired': True, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
enableInheritSecretPolicy	{'fieldInputType': None, 'sortOrder': None, 'value': False, 'label': 'Enable Inherit Secret Policy', 'name': None, 'description': 'This Secret will inherit or have the same Secret Policy settings as the parent folder.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
secretPolicy	{'fieldInputType': None, 'sortOrder': None, 'value': None, 'label': 'Secret Policy', 'name': '< No Policy >', 'description': 'This policy will be applied to all new Secrets which are added to this folder and any existing Secrets that inherit the Policy', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
site	{'fieldInputType': None, 'sortOrder': None, 'value': 1, 'label': 'Site', 'name': 'Default', 'description': 'The container in which heartbeat, RPC, and other Secret activities occur.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
template	{'fieldInputType': None, 'sortOrder': None, 'value': ***, 'label': 'Secret Template', 'name': 'Windows Account', 'description': 'Describes the type of Secret such as which fields, launchers, and password requirements.', 'readOnly': True, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
active	{'fieldInputType': None, 'sortOrder': None, 'value': True, 'label': 'Active', 'name': None, 'description': 'Whether or not the Secret is Active', 'readOnly': None, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
fields	{'slug': 'machine', 'type': 'Text', 'dropDownOptions': None, 'passwordRequirementId': None, 'listType': 0, 'fieldInputType': None, 'sortOrder': None, 'value': 'jyao', 'label': 'Machine', 'name': 'Machine', 'description': 'The Server or Location of the Windows Machine.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': False, 'hasHistory': True, 'isRequired': True, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None} {'slug': 'username', 'type': 'Text', 'dropDownOptions': None, 'passwordRequirementId': None, 'listType': 0, 'fieldInputType': None, 'sortOrder': None, 'value': 'sysint', 'label': 'Username', 'name': 'Username', 'description': 'The Username of the Windows User.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': False, 'hasHistory': True, 'isRequired': True, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None} {'slug': 'password', 'type': 'Password', 'dropDownOptions': None, 'passwordRequirementId': 1, 'listType': 0, 'fieldInputType': None, 'sortOrder': None, 'value': None, 'label': 'Password', 'name': 'Password', 'description': 'The password of the Windows User.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': False, 'hasHistory': True, 'isRequired': True, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None} {'slug': 'notes', 'type': 'Notes', 'dropDownOptions': None, 'passwordRequirementId': None, 'listType': 0, 'fieldInputType': None, 'sortOrder': None, 'value': '', 'label': 'Notes', 'name': 'Notes', 'description': 'Any additional notes.', 'readOnly': False, 'placeholder': None, 'hidden': False, 'hideOnView': False, 'hasHistory': True, 'isRequired': False, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
folder	{'fieldInputType': None, 'sortOrder': None, 'value': None, 'label': 'Folder', 'name': '', 'description': 'The folder in which a Secret resides.', 'readOnly': None, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
isOutOfSync	{'fieldInputType': None, 'sortOrder': None, 'value': False, 'label': 'Out of Sync', 'name': None, 'description': 'Out of sync indicates that a Password is setup for autochange and has failed its last password change attempt or has exceeded the maximum RPC attempts.', 'readOnly': True, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
outOfSyncReason	None
lastHeartBeatStatus	{'fieldInputType': None, 'sortOrder': None, 'value': 'Disabled', 'label': 'Last Heartbeat Status', 'name': 'Pending', 'description': 'Last Heartbeat status received for this Secret.', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
lastHeartBeatCheck	{'fieldInputType': None, 'sortOrder': None, 'value': None, 'label': 'Last Heart Beat Check', 'name': None, 'description': 'When the last heartbeat status was received.', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
heartbeatEnabled	{'fieldInputType': None, 'sortOrder': None, 'value': False, 'label': 'Heartbeat Enabled', 'name': 'Heartbeat Enabled', 'description': 'Whether or not heartbeat is enabled for this Secret.', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
expiration	{'fieldInputType': None, 'sortOrder': None, 'value': 'Expires in 29 days. (Expires every 30 day(s))', 'label': 'Expiration', 'name': None, 'description': 'Secret Expiration applies to one field of a Secret Template (most commonly the password field) and may trigger a password change for that Secret if Auto-Change is configured for Remote Password Changing.', 'readOnly': None, 'placeholder': None, 'hidden': False, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
launchers	{'name': 'RDP Launcher', 'typeId': 1, 'imagePath': 'https://d3sec.secretservercloud.com/themes/GlobalImages/rdp.png', 'isRecorded': False, 'hasProxyCredentials': True}
isFavorite	False
autoChangePassword	{'fieldInputType': None, 'sortOrder': None, 'value': False, 'label': 'Auto Change Enabled', 'name': 'Auto Change Enabled', 'description': 'When enabled this Secret will be set to expire on a schedule and change the password. After creation view the RPC tab for details.', 'readOnly': True, 'placeholder': None, 'hidden': True, 'hideOnView': None, 'hasHistory': None, 'isRequired': None, 'readOnlyReason': None, 'helpLink': None, 'helpLinkText': None, 'maxLength': None, 'additionalLinks': None}
canGenerateSshKey	False
slugPrivateKey	None
slugPublicKey	None
isTotpEnabled	False
totpPasswordSlug	None

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Update Secret Password failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The requested Secret is DoubleLocked.

Error Sample Data

Update Secret Password failed.

Status Code: 500.

Message: The requested Secret is DoubleLocked.

Test Connection

Allows you to perform a health check on an integration connection. You can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

SAMPLE DATA

CODE

Successful

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Test Connection failed. Failed to check the connector.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Thycotic Secret Server portal. Refer to the HTTP Status Code Registry for details.	Status Code: 500.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Exceptions must derive from BaseException.

Error Sample Data

Test Connection failed. Failed to check the connector.

Status Code: 500.

Message: Exceptions must derive from BaseException.

FAQ

Enabling Secret Check Out

Log in to your Thycotic Secret Server Console.
Navigate to Secrets, click the arrow beside it. Click All Secrets, and click the secret you want to edit.
Click the Security tab. And click the Edit button beside Check Out.
Check the Require Check Out option, and click Save.
