Overview

SOCRadar is an Extended Threat Intelligence (XTI) SaaS platform that combines external attack surface management (EASM), digital risk protection services (DRPS), and cyber threat intelligence (CTI). SOCRadar Threat Intelligence maximizes the efficiency of your SOC team with false-positive free, actionable, and contextualized threat intelligence. This integration enables organizations to search indicators of compromise (IOCs) and obtain enhanced information.

D3 SOAR is providing REST operations to function with SOCRadar Threat Analysis.

SOCRadar Threat Analysis is available for use in:

Known Limitations

API Rate Limit: Users can make a maximum of 6 API requests per minute.

Monthly Credit Limit: Each API key has a monthly limit of 1,500 requests.

See Threat Analysis API – SOCRadar Cyber Intelligence for the latest API limitations.

Connection

To connect to SOCRadar Threat Analysis from D3 SOAR, follow this part to collect the required information below:

Configuring SOCRadar Threat Analysis to Work with D3 SOAR

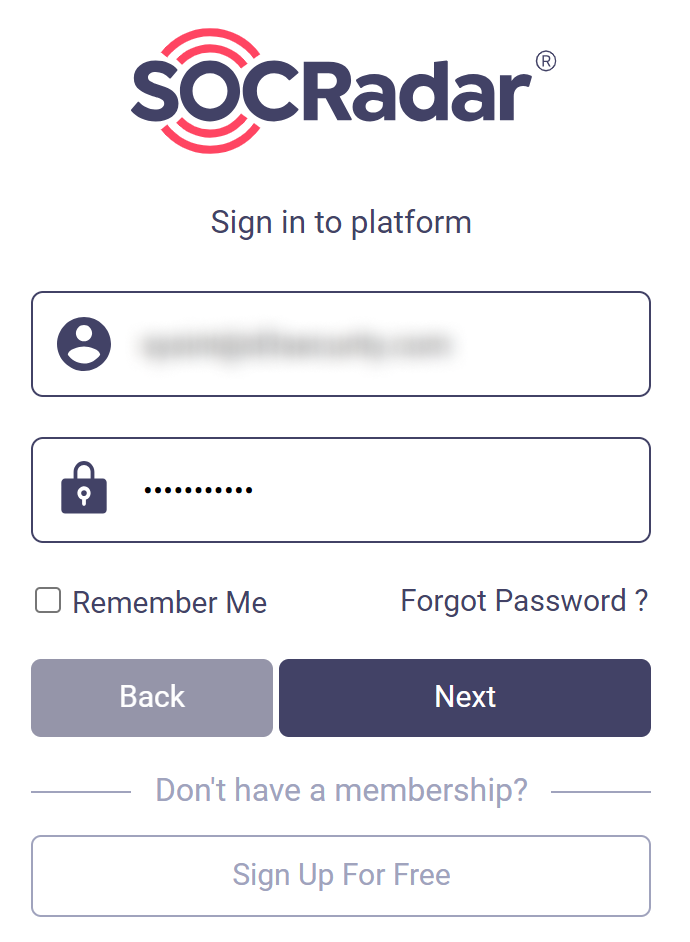

1. Login to the SOCRadar Threat Analysis platform at SOCRadar | Login.

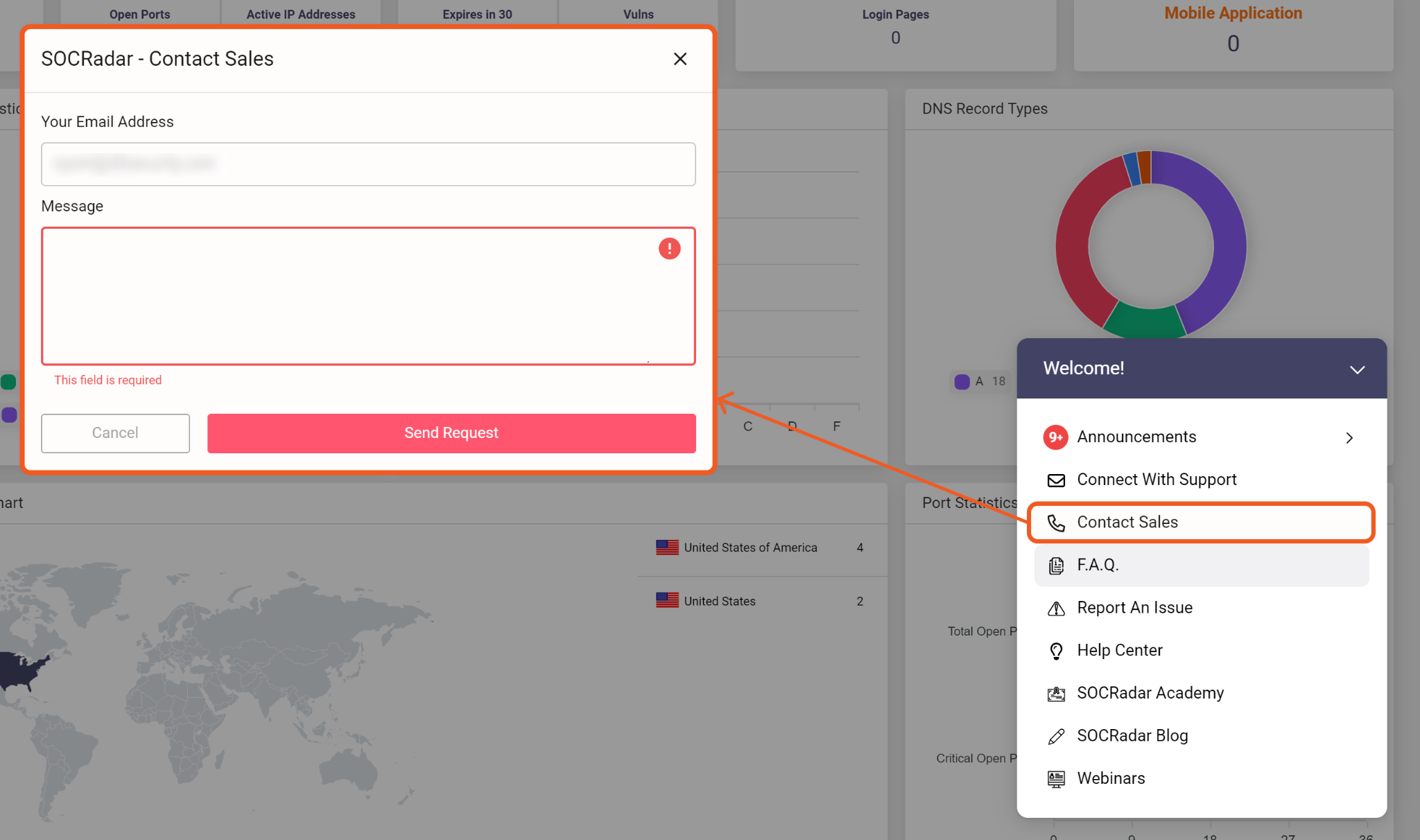

2. Click on the support menu icon to open up a pop-up overlay.

3. Click on the Contact Sales option, then submit a request for an API key.



Configuring D3 SOAR to Work with SOCRadar Threat Analysis

1. Log in to D3 SOAR.

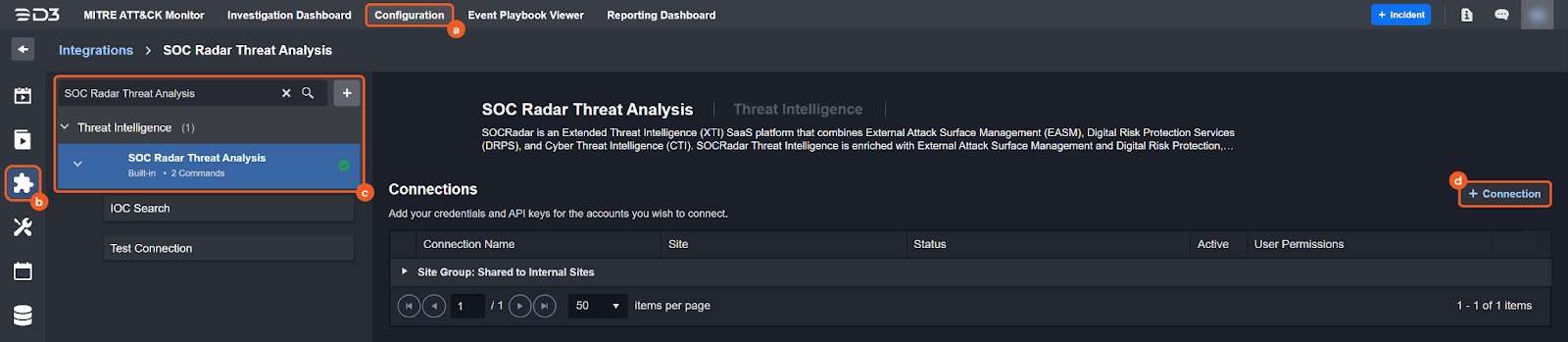

2. Find the SOCRadar Threat Analysis integration.



   1. Navigate to Configuration on the top header menu.

   2. Click on the Integration icon on the left sidebar.

   3. Type SOC Radar Threat Analysis in the search box to find the integration, then click it to select it.

   4. Click on the + Connection button on the right side of the Connections section. A new connection window will appear.

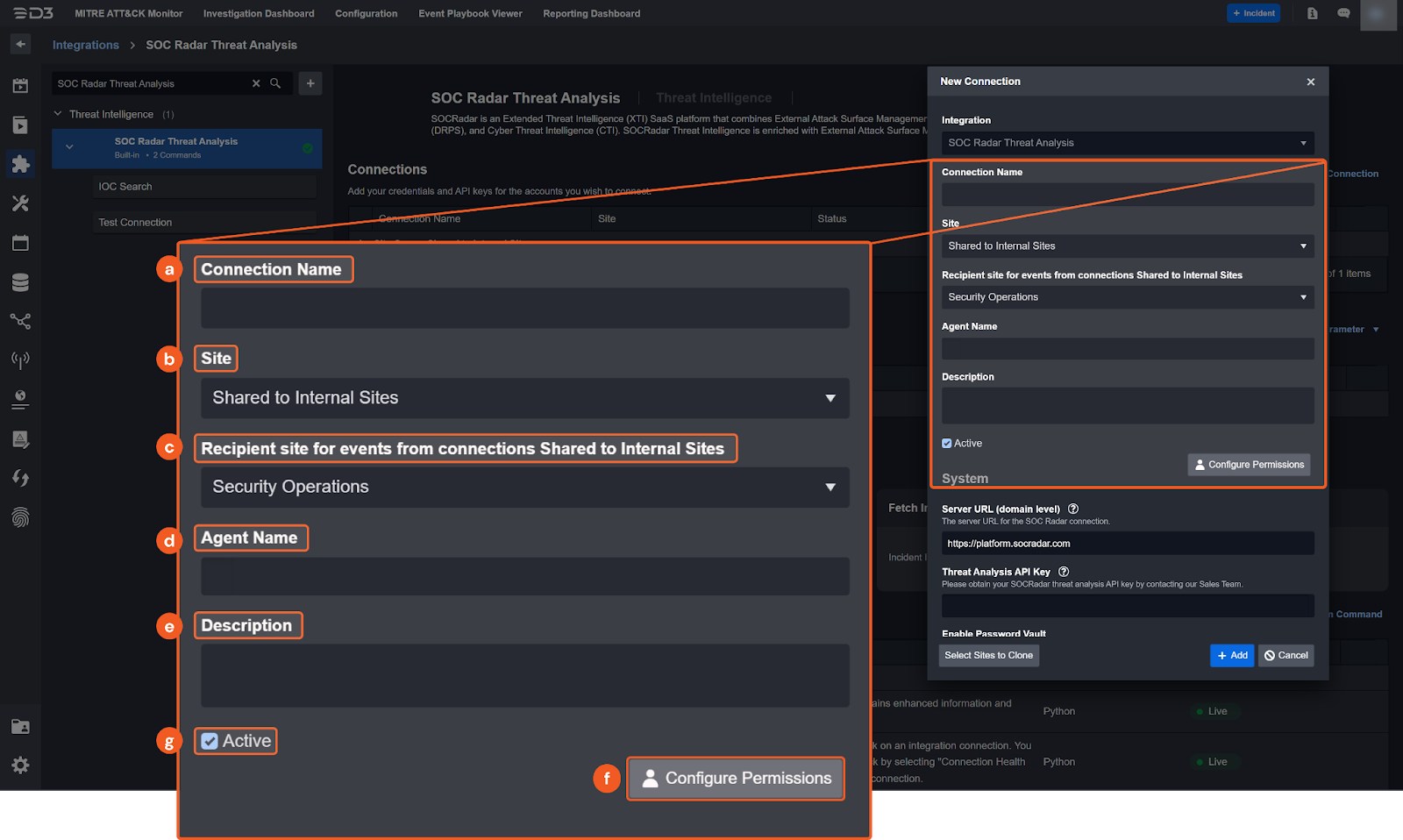

3. Configure the following fields to create a connection to SOCRadar Threat Analysis.



   1. Connection Name: The desired name for the connection.

   2. Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.

   3. Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.

   4. Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.

   5. Description (Optional): Add your desired description for the connection.

   6. Configure User Permissions: Defines which users have access to the connection.

   7. Active: Check the checkbox to ensure the connection is available for use.

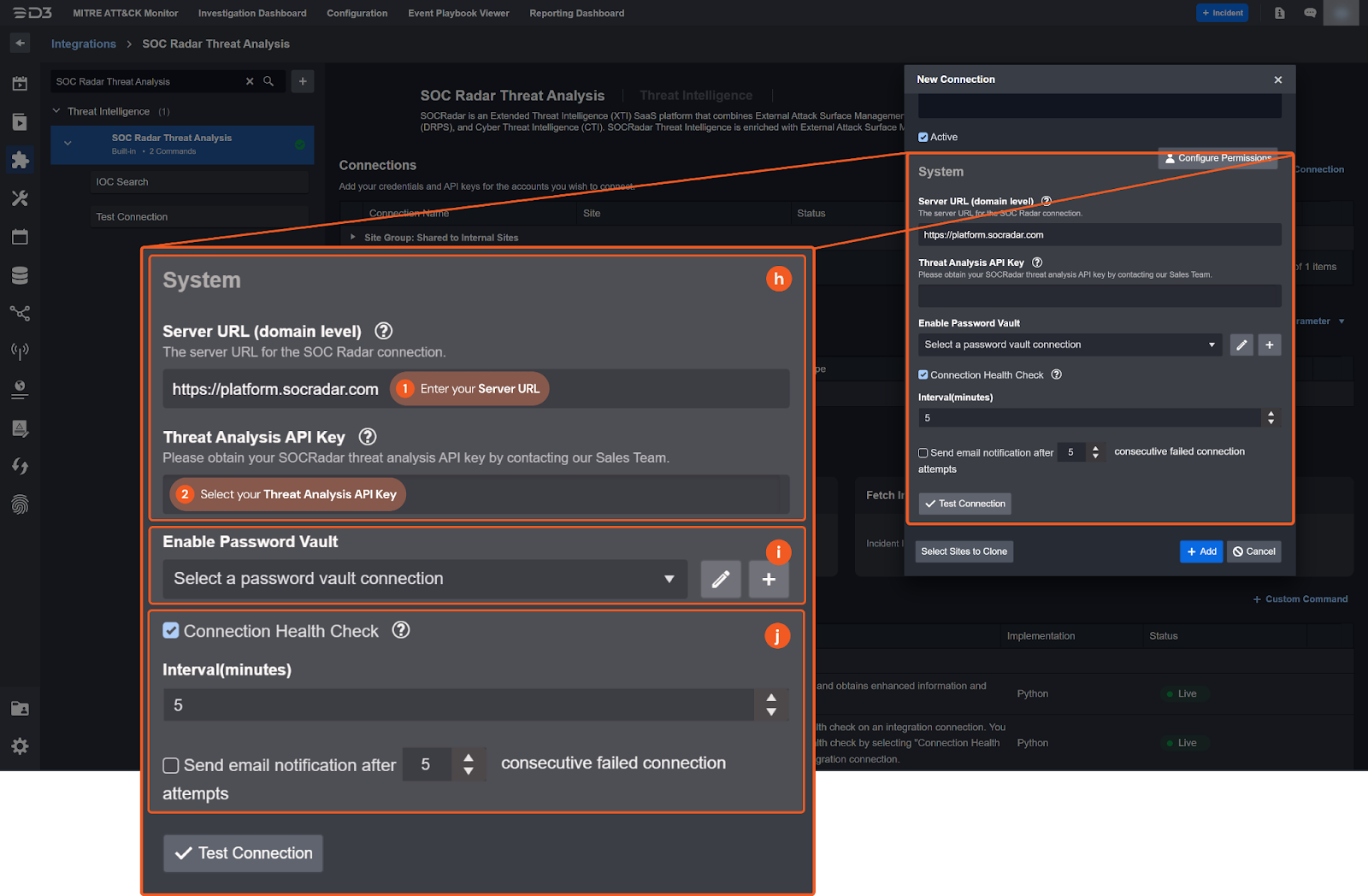

   8. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
      1. Input the Server URL. The default value is https://platform.socradar.com.
      2. Input the API Key obtained from contacting the SOCRadar Threat Analysis sales team. Refer to step 3 of Configuring SOCRadar Threat Analysis to Work with D3 SOAR.

   9. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Refer to the password vault connection guide if needed.

   10. Connection Health Check: Updates the connection status you have created. A connection health check is done by scheduling the Test Connection command of this integration. This can only be done when the connection is active. To set up a connection health check, check the Connection Health Check tick box. You can customize the interval (minutes) for scheduling the health check. An email notification can be set up after a specified number of failed connection attempts.

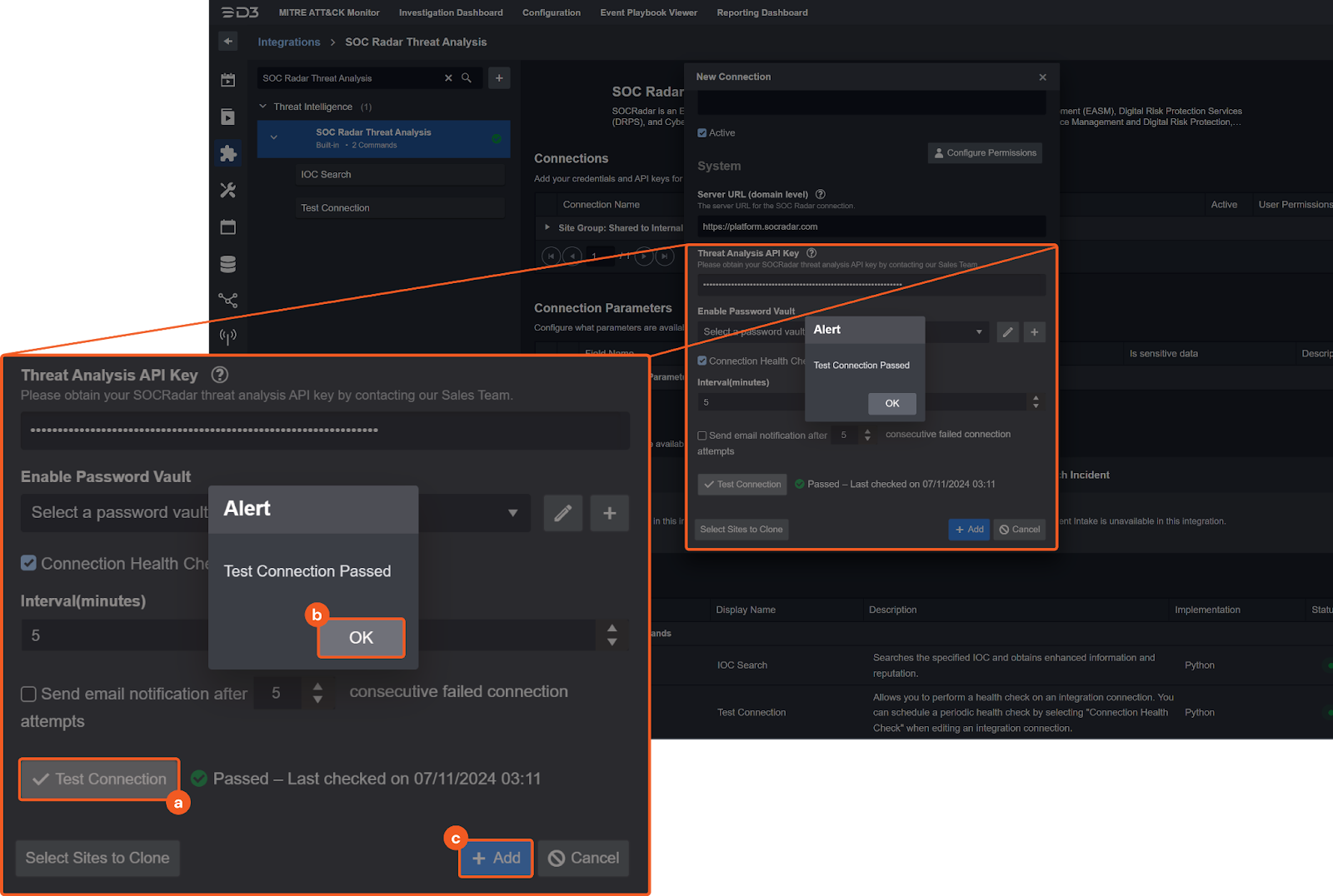

4. Test the connection.



   1. Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green check mark appear beside the Test Connection button. If the test connection fails, check your connection parameters and try again.

   2. Click OK to close the alert window.

   3. Click + Add to create and add the configured connection.

Commands

SOCRadar Threat Analysis includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the SOCRadar Threat Analysis API, refer to the SOCRadar Threat Analysis API reference.

IOC Search

Searches the specified IOC and obtains enhanced information and reputation.

Input

Output

Successful

{
    "data": {
        "classification": "hash",
        "credit_details": {
            "max_daily_credit": 500,
            "max_monthly_credit": 500,
            "remaining_credit": 499,
            "remaining_daily_credit": 496,
            "remaining_monthly_credit": 496,
            "total_api_credit": 500
        },
        "findings": [
            {
                "extra_info": {
                    "last_seen_date": "2024-03-04 15:30:12",
                    "maintainer_name": "Maltiverse"
                },
                "reliability": 85,
                "scoring_channel": "threatfeed",
                "source_category": "Botnet & Malware>Botnet Malware",
                "source_name": "Maltiverse Hash List"
            }
        ],
        "is_advance_investigation": false,
        "is_blacklisted": false,
        "is_whitelisted": false,
        "remaining_credit": 499,
        "score": 52.75,
        "score_details": {
            "Botnet & Malware": 27.75,
            "Virus Total": 25
        },
        "value": "*****",
        "whitelist_hits": {},
        "whitelist_sources": []
    },
    "is_success": true,
    "message": "Requested entity: ***** has been successfully processed.",
    "response_code": 200
}

{
  "IOC": *****,
  "Advanced Investigation": True
}

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Test Connection

Allows you to perform a health check on an integration connection. You can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Successful

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
