LAST UPDATED: SEPTEMBER 10, 2025

Overview

Securonix Next-Generation SIEM combines log management, UEBA and security incident response into a complete, end-to-end security operations platform.

Securonix is available for use in:

D3 SOAR

V12.7+

Category

SIEM & XDR

Deployment Options

Option II, Option IV

Known Limitations

The following are the known limitations of the commands in this integration:

Only available for version 6.2 CU4 SP4 and above.

  • Fetch Event parameters: Number of Event(s) Fetched and Query ID

  • Fetch Incident

Only available for version 6.2 CU4 SP5 and above:

  • Add Comment to Incidents

  • Create Watchlist

  • Get Incident Available Actions

  • List All Entities Present in an Existing Watchlist

  • List Watchlists

  • Take Incident Action

Connection

Gather the following information to connect D3 SOAR to Securonix.

Parameter

Description

Example

Server URL

The server URL of the Securonix instance.

https://<Replace_Me>

Username

The username used to access Securonix.

access21

Password

The password used to access Securonix.

*****

Is Multi-Tenancy

The option to indicate that the Securonix instance is multi-tenant when set to Yes.

No

Tenant Name

The tenant name associated with the account for accessing Securonix. Tenant Name can be obtained using the List All Tenants command. If the tenant name is unknown, this parameter can be left empty temporarily.

Test_watchlist

Configuring D3 SOAR to Work with Securonix

  1. Log in to D3 SOAR.

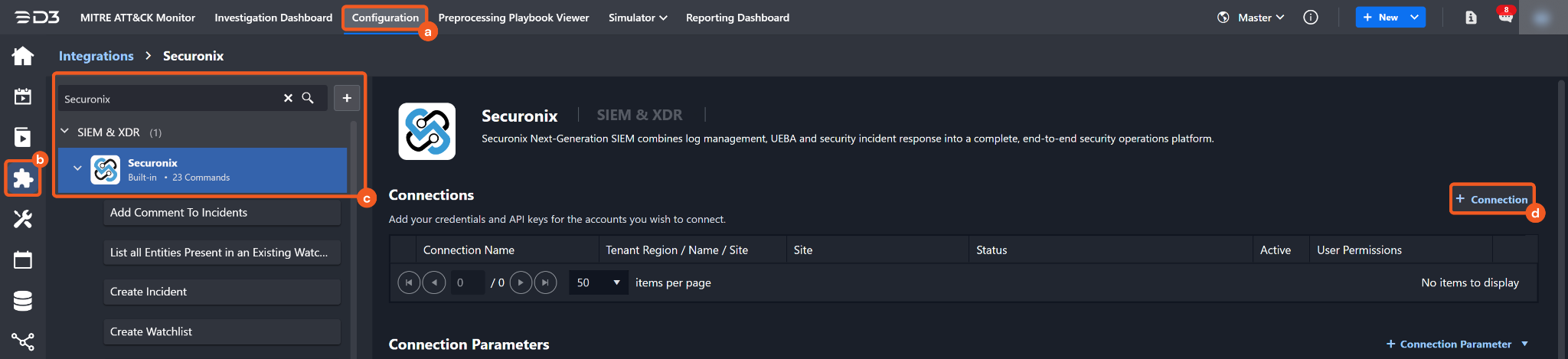

  2. Find the Securonix integration.

    1. Navigate to Configuration on the top header menu.

    2. Click on the Integration icon on the left sidebar.

    3. Type Securonix in the search box to find the integration, then click it to select it.

    4. Click on the + Connection button on the right side of the Connections section. A new connection window will appear.

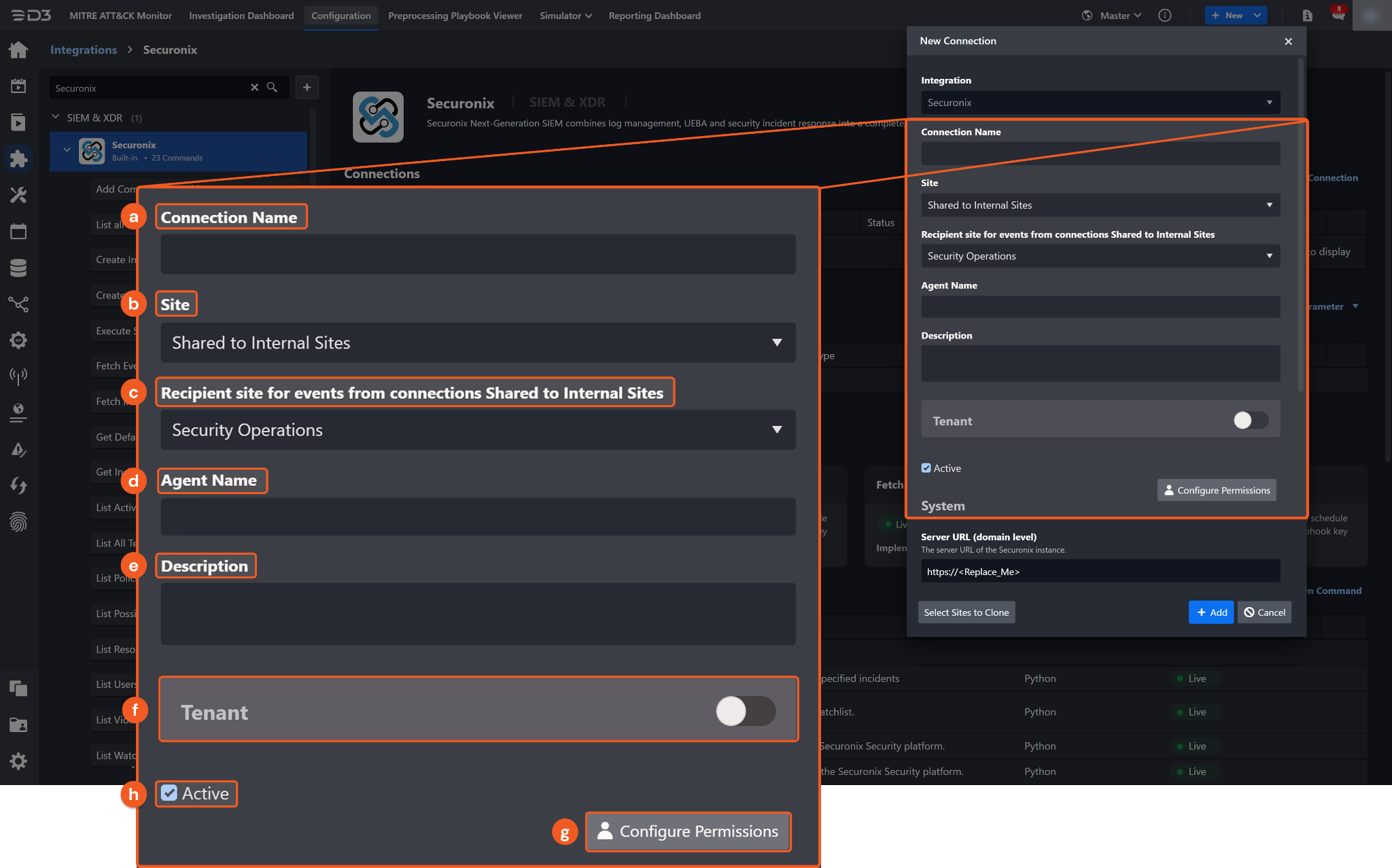

  3. Configure the following fields to create a connection to Securonix.

    1. Connection Name: The desired name for the connection.

    2. Site: The site on which to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.

    3. Recipient site for events from connections Shared to Internal Sites: This field is displayed when Share to Internal Sites is selected for the Site field, allowing selection of the internal site for deploying the integration connection.

    4. Agent Name (Optional): The proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.

    5. Description (Optional): The description for the connection.

    6. Tenant (Optional): When configuring the connection from a master tenant site, users can choose the specific tenant sites with which to share the connection. Once this setting is enabled, users can filter and select the desired tenant sites from the dropdowns to share the connection.

    7. Active: The checkbox that enables the connection to be used when selected.

    8. Configure User Permissions: Defines which users have access to the connection.

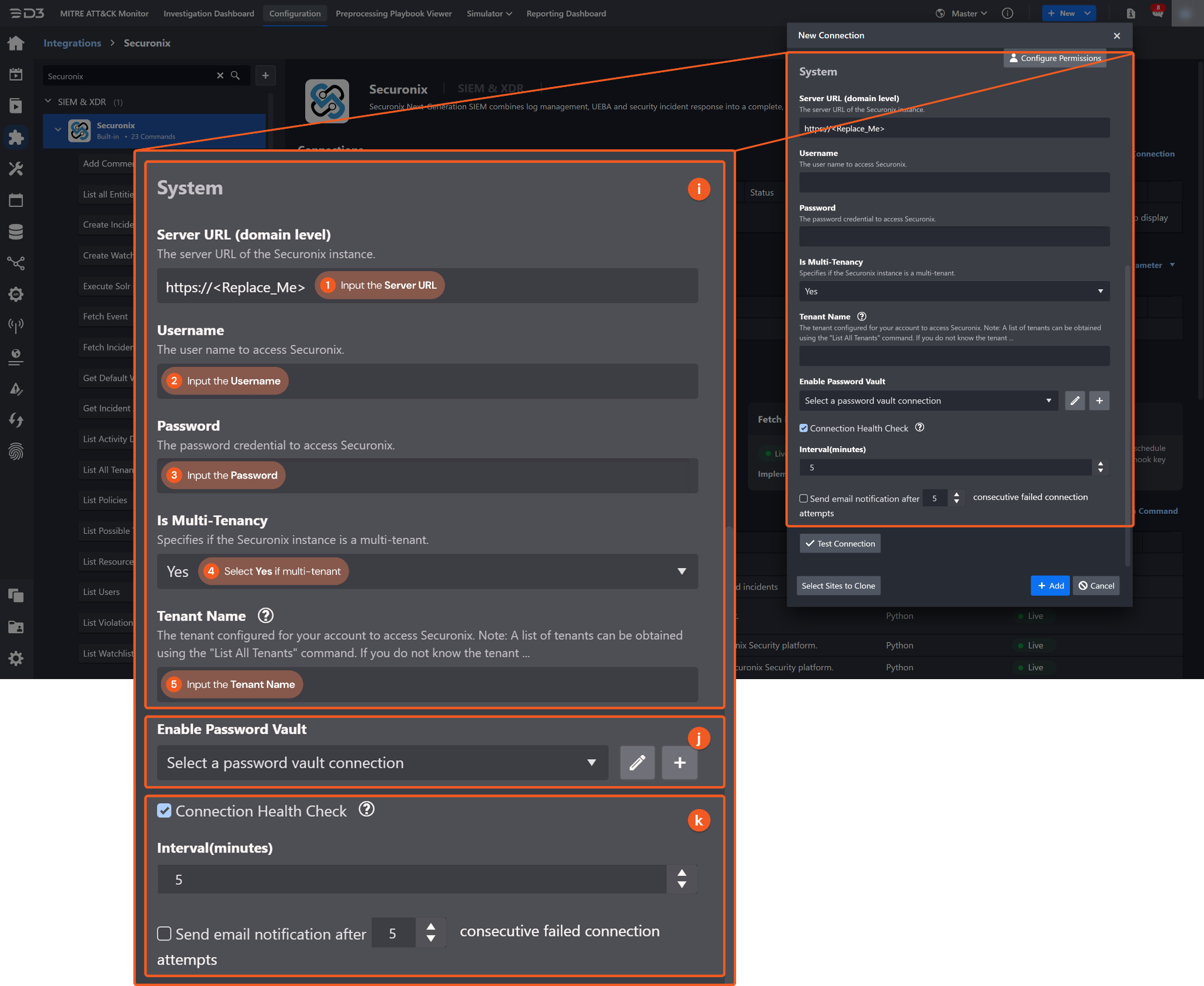

    9. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.

      1. Input the Server URL.
      2. Input the Username.
      3. Input the Password.
      4. Select Yes if the instance is multi-tenant.
      5. Input the Tenant Name.

    10. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Refer to the password vault connection guide if needed.

    11. Connection Health Check: Periodically checks the connection status by scheduling the Test Connection command at the specified interval (in minutes). Available only for active connections, this feature also allows configuring email notifications for failed attempts.

  4. Test the connection.

    1. Click on the Test Connection button to verify credentials and connectivity. A success alert displays Passed with a green checkmark. If the connection fails, review the parameters and retry.

    2. Click OK to close the alert window.

    3. Click + Add to create and add the configured connection.

Commands

Securonix includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command function, users can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the Securonix API, refer to the Securonix API reference.

Note for Time-related parameters

The input format of time-related parameters may vary based on user account settings, which may cause the sample data in commands to differ from what is displayed. To adjust the time format, follow these steps:

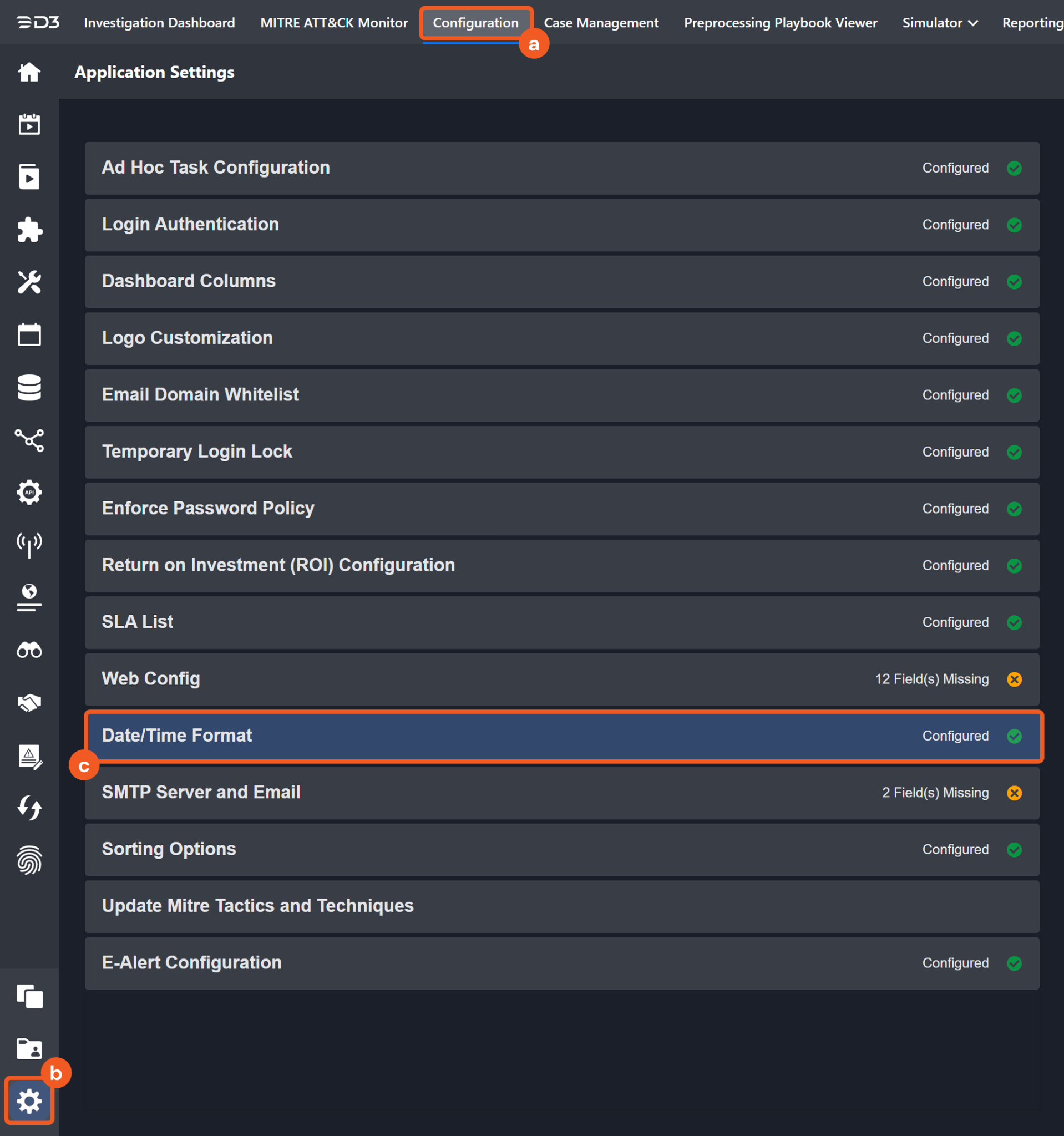

  1. Navigate to Configuration Application Settings. Select Date/Time Format.

  2. Choose the desired date and time format, then click on the Save button.

The selected time format will now be visible when configuring Date/Time command input parameters.

Add Comment to Incidents

Adds a comment to the specified incidents.

READER NOTE

Incident IDs is a required parameter to run this command.

  • Run the Fetch Incident command to obtain the Incident IDs. Incident IDs can be found in the raw data at $.result.data.incidentItems[*].incidentId.

Input

Input Parameter

Required/Optional

Description

Example

Incident IDs

Required

The IDs of the incidents to which a comment is added. Incident IDs can be obtained using the Fetch Incident command.

JSON
[
  "*****"
]

Comment

Required

The comment to add to the incidents.

New Comment

User Name

Optional

The name of the user adding the comment. If the third-party username exists in Unified Defense SIEM, the application adds the comment using that username.

user@example.com

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Add Comment to Incidents failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Add Comment to Incidents failed.

Status Code: 400.

Message: Server URL is not valid in format.

Create Incident

Creates an incident in Securonix.

READER NOTE

Violation Name, Datasource Name, and Entity Name are required parameters to run this command.

  • Run the List Violation Data command to obtain them.

    • Violation Names can be found in the raw data at $.events[*].policyname.

    • Datasource Names can be found in the raw data at $.events[*].resourcegroupname.

    • Entity Names can be found in the raw data at $.events[*].accountname.

Resource Name and Employee ID is an optional parameter to run this command.

  • Run the List Users command to obtain the Employee ID. Employee IDs can be found in the raw data at $.user[*].employeeId.

  • Run the List Violation Data command to obtain the Resource Name. Resource Names can be found in the raw data at $.events[*].resourcename.

Input

Input Parameter

Required/Optional

Description

Example

Workflow

Required

The workflow to assign to the incident.

SOCTeamReview

Violation Name

Required

The name of the policy violation to associate with the incident. Violation Name can be obtained using the List Violation Data command.

POSSIBLE PRIVILEGE ENUMERATION

Datasource Name

Required

The resource group name. Datasource Name can be obtained using the List Violation Data command.

A-IQ-Windows

Entity Type

Required

The entity type of the incident. Valid values are:

  • Users

  • Activityaccount

  • RGActivityaccount

  • Resources

  • Activityip

By default, the value is Activityaccount.

Activityaccount

Entity Name

Required

The account name linked to the violation associated with the incident. Entity Name can be obtained using the List Violation Data command.

ADMIN

Resource Name

Optional

The resource name. This value is required when the Entity Type is Activityaccount. Resource Name can be obtained using the List Violation Data command.

COMPUTERNAME

Comment

Optional

Adds a comment to the incident.

Incident created

Employee ID

Optional

The employee ID of the creator. Employee ID can be obtained using the List Users command.

1078

Criticality

Optional

The criticality of the incident. Valid values are:

  • LOW

  • MEDIUM

  • HIGH

MEDIUM

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Create Incident failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Create Incident failed.

Status Code: 400.

Message: Server URL is not valid in format.

Create Watchlist

Creates a new watchlist in Securonix.

Input

Input Parameter

Required/Optional

Description

Example

Watchlist Name

Required

The name of the new watchlist.

JSON
[
   "test_watchlist001",
   "test_watchlist001",
   "test_watchlist002"
]

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Create Watchlist failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Create Watchlist failed.

Status Code: 400.

Message: Server URL is not valid in format.

Execute Solr Query

Retrieves events with details based on the provided Solr query string.

READER NOTE

Solr Query of Violation is a required parameter to run this command.

  • Run the Fetch Incident command to obtain the Solr Query of Violation. Solr Queries of Violation can be found in the raw data at $.result.data.incidentItems[*].solrquery.

Input

Input Parameter

Required/Optional

Description

Example

Solr Query of Violation

Required

The Solr query of the violation from the incident to retrieve incident-related events. Solr Query of Violation can be obtained using the Fetch Incident command.

index = violation and @policyName = "Security Alert SSO" and @resourcename = "2E22*****2234" and @resourcegroupname = "*****" and @tenantname = "*****" and generationtime between "05/15/2024 04:36:07" "05/15/2024 04:40:45"

Event Query Maximum Days Allowed

Optional

The maximum number of days allowed by Securonix for event data to be queried in a single Solr query.

When the specified Solr query contains a time range larger than the allowed limit, the command breaks it into multiple continuous time ranges within the limit to retrieve all event data.

This parameter is required only when the Securonix tenant has a time range limitation for event data queries.

7

Event Query Interval (Seconds)

Optional

The time delay for each time-range events query. A tuned value reduces the chance of API rate limit failures, especially when the Solr query contains a time range greater than 7 days.

By default, the value is 1 second. The maximum allowed value is 60.

A higher value may significantly increase the command run time.

2

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Execute Solr Query failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Execute Solr Query failed.

Status Code: 400.

Message: Server URL is not valid in format.

Fetch Event

Returns events based on the specified query.

READER NOTE

Tenant Name is an optional parameter to run this command.

  • Run the List All Tenants command to obtain the Tenant Name. Tenant Names can be found in the raw data at $.result*.

Input

Input Parameter

Required/Optional

Description

Example

Start Time

Required

The start of the event retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format. The range between Start Time and End Time cannot exceed 24 hours when Index is set to Activity.

11/01/2022 12:00 AM

End Time

Required

The end of the event retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format. The range between Start Time and End Time cannot exceed 24 hours when Index is set to Activity.

11/24/2022 12:00 AM

Index

Optional

The index from which to return events. Valid values are:

  • Activity

  • Violation

By default, the value is set to Activity.

Activity

Open Query

Optional

The query string used to fetch events in the <FieldName> = <FieldValue> AND <FieldName> = <FieldValue> syntax. For details on Spotter query structure, see Getting Started with Spotter Queries.

Supported field names include (non-exhaustive):

  • resourcegroupname

  • eventid

  • customfield3

  • customfield2

  • jobid

  • resourcegroupid

  • agentfilename

  • tenantid

  • collectionmethod

  • rawevent

  • categoryseverity

  • ingestionnodeid

  • policyname (Violation only)

If the input contains only text without operators, the command queries by keyword. For more information about keyword queries, see Keyword searches.

resourcegroupname=vcenter AND categoryseverity=0

Tenant Name

Optional

The name of the tenant from which to retrieve events when using an MSSP account. This parameter is not applicable for tenant user accounts, where the tenant name is applied automatically. Tenant Name can be obtained using the List All Tenants command.

Partners001

Number of Event(s) Fetched

Optional

The maximum number of events to return. A value of 0 or a negative number returns all events within the given time range.

By default, all events within the given time range are returned.

2

Query ID

Optional

The ID used to paginate results within the specified duration. When Query ID is specified, all other parameters are ignored. The first query response includes a queryId, which can be used to retrieve records from a specific page.

Spotterwebservice5059*****f78e

Tolerance Scope (Minutes)

Optional

Sets the tolerance scope for fetching events between the specified start and end times. This prevents event loss or fetch failures caused by system time differences between D3 and Securonix. Events are fetched between {Start Time − Tolerance Scope, End Time}.

1

Custom Index

Optional

The name of the custom index from which to return events. Use this parameter if the required index is not available in the Index parameter list. When specified, this parameter overrides the Index parameter.

snowflake

Output

To view the sample output data for all commands, refer to this article.

Fetch Event Field Mapping

See Field Mappings.

The Securonix system integration includes pre-configured field mappings for the default event source.

The Default Event Source is the default system-provided set of field mappings applied when the fetch event command is executed. It includes a Main Event JSON Path, which is the JSONPath expression that points to the base array of event objects. The source field path continues from this array to locate the required data.

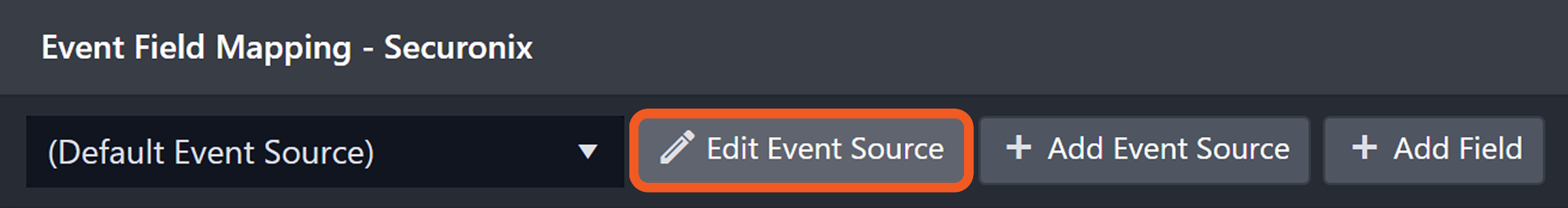

The Main Event JSON Path can be viewed by clicking on the Edit Event Source button.

Main Event JSON Path: $.events

The events array contains the event objects. Within each object, the key eventid denotes the Unique Event Key field. As such, the full JSONPath expression to extract the Unique Event Key is $.events.eventid.

The pre-configured field mappings are detailed below:

Field Name

Source Field

Default

Unique Event Key

.eventid

Event Type

.riskthreatname

Start Time

.datetime

Severity

.categoryseverity

Description

.category

Username

.fullname

Employee ID

.employeeid

Tenant Name

.tenantname

Event Source for Violations (Search String: {$.eventType}=violation)

Unique Event Key

.eventid

Event Type

.riskthreatname

Start Time

.eventtime

Description

.category

Alert Raw Log

.rawevent

Hostname

.devicehostname

Destination NT domain

.destinationntdomain

Process file path

.filepath

Source IP address

.sourceaddress

Account Name

.accountname

Policy Name

.policyname

Employee ID

.employeeid

Tenant Name

.tenantname

Username

.fullname

Department

.department

Status

.status

Work Email

.workemail

Event City

.eventcity

Manager Employee ID

.manageremployeeid

Resource Type

.resourcetype

User Criticality

.usercriticality

Message

.message

Entity Type

.violator

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Fetch Event failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Fetch Event failed.

Status Code: 400.

Message: Server URL is not valid in format.

Fetch Incident

Returns incidents based on the specified criteria.

Input

Input Parameter

Required/Optional

Description

Example

Start Time

Required

The start of the incident retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format.

11/10/2021 12:00 AM

End Time

Required

The end of the incident retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format.

12/10/2021 12:00 AM

Time Range Type

Required

Indicates how the Start Time and End Time are applied. Valid options are:

  • Updated

  • Opened

  • Closed

For example, if Closed is selected, the query returns incidents closed within the specified time range.

Updated

Offset

Optional

The start position for querying incident records.

By default, the value is the beginning of the record set.

50

Number of Incident(s) Fetched

Optional

The maximum number of incidents to return. Valid input values are integers between 0 and 100 inclusive.

By default, the value is 100.

2

Include Events

Optional

Whether to include related events for each incident. When "True," the returned incidents will include their related events. When "False," only incidents will be returned.

By default, the value is True.

False

Output

To view the sample output data for all commands, refer to this article.

Incident Field Mapping

For this integration, the default incident fields in D3 SOAR contain built-in source fields.

Event and Incident Intake Field Mapping

See Field Mappings.

Incident field mapping is required.

Incident Main JSON Path: $.result.data.incidentItems

Field Name

Source Field

Title

.violatorText

Description

.reason

Severity

<user-selected>

Incident Type *

<user-selected>

Incident Creator

<user-defined>

Incident Owner

<user-defined>

Investigation Playbook

<user-defined>

Due In Date

<user-defined>

Unique Key

.properties.incidentNumber

Tactics

.properties.additionalData.tactics

Techniques

<user-defined>

Event Field Mapping

Main Event JSON Path: $.events (Search String: {$.eventType}=violation)

The event field mappings here are the same as that of Fetch Event.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Fetch Incident failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Fetch Incident failed.

Status Code: 400.

Message: Server URL is not valid in format.

Get Default Workflow Assignee

Returns the default assignee of the specified workflow.

READER NOTE

Workflow Name is a required parameter to run this command.

  • Run the List Workflows command to obtain the Workflow Name. Workflow Names can be found in the raw data at $.result.workflows[*].workflow.

Input

Input Parameter

Required/Optional

Description

Example

Workflow Name

Required

The name of the workflow. Workflow Name can be obtained using the List Workflows command.

JSON
[
    "Securaa_Test",
    "Securaa_Test_2"
]

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Get Default Workflow Assignee failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Get Default Workflow Assignee failed.

Status Code: 400.

Message: Server URL is not valid in format.

Get Incident Available Actions

Retrieves possible actions available for the specified incident.

READER NOTE

Incident ID is a required parameter to run this command.

  • Run the Fetch Incident command to obtain the Incident ID. Incident IDs can be found in the raw data at $.result.data.incidentItems[*].incidentId.

Input

Input Parameter

Required/Optional

Description

Example

Incident ID

Required

The ID of the incident for which to retrieve available actions. Incident ID can be obtained using the Fetch Incident command.

*****

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Get Incident Available Actions failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Get Incident Available Actions failed.

Status Code: 400.

Message: Server URL is not valid in format.

List Activity Data

Retrieves activity (also known as event data) based on the specified query.

Input

Input Parameter

Required/Optional

Description

Example

Start Time

Required

The start of the data retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format. The range between Start Time and End Time cannot exceed 24 hours.

11/01/2022 12:00 AM

End Time

Required

The end of the data retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format. The range between Start Time and End Time cannot exceed 24 hours.

11/24/2022 12:00 AM

Open Query

Optional

The query string to return data in the <FieldName> = <FieldValue> AND <FieldName> = <FieldValue> syntax. Supported field names include (non-exhaustive):

  • resourcegroupname

  • eventid

  • customfield3

  • customfield2

  • jobid

  • resourcegroupid

  • agentfilename

  • tenantid

  • collectionmethod

  • rawevent

  • categoryseverity

  • tenantname

  • ingestionnodeid

In multitenant environments, this command returns all tenants accessible to the authenticated user if no tenant name is specified. For details about the query, see Getting Started with Spotter Queries.

tenantname=partners001 AND resourcegroupname=vcenter

Limit

Optional

The maximum number of results to return. Valid values are integers from 0 to 1,000.

By default, the value is 100.

2

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Get Incident Available Actions failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Get Incident Available Actions failed.

Status Code: 400.

Message: Server URL is not valid in format.

List All Entities Present in an Existing Watchlist

Checks whether specified entities are present in a watchlist.

Input

Input Parameter

Required/Optional

Description

Example

Entity ID

Required

The ID of the entity to check against the watchlist.

JSON
[
  "AFeighery"
]

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

List All Entities Present in an Existing Watchlist failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

List All Entities Present in an Existing Watchlist failed.

Status Code: 400.

Message: Server URL is not valid in format.

List All Tenants

Returns the list of tenants configured in the SNYPR multi-tenant environment that are accessible to the authenticated account.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

List All Tenants failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

List All Tenants failed.

Status Code: 400.

Message: Server URL is not valid in format.

List Policies

Retrieves the list of policies (rules) configured in Unified Defense SIEM for detecting violators, violations, and threats. The response returns all policies available in the system.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

List Policies failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

List Policies failed.

Status Code: 400.

Message: Server URL is not valid in format.

List Possible Threat Actions

Retrieves all possible threat actions.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

List Policies failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

List Policies failed.

Status Code: 400.

Message: Server URL is not valid in format.

List Resource Groups

Retrieves grouping of similar data sources (i.e. devices, applications, servers, databases, etc.) configured in Unified Defense SIEM for monitoring. The response returns all resource groups available in the system.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

List Resource Groups failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

List Resource Groups failed.

Status Code: 400.

Message: Server URL is not valid in format.

List Users

Retrieves all users available in the system.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

List Users failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

List Users failed.

Status Code: 400.

Message: Server URL is not valid in format.

List Violation Data

Runs a Spotter query to list all violations in the violation collection. This command supports simple searches on the activity collection from the Unified Defense SIEM interface. Operator-based searches, including the pipe (|) operator, are not supported.

Input

Input Parameter

Required/Optional

Description

Example

Start Time

Required

The start of the violation data retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format.

11/01/2022 12:00 AM

End Time

Required

The end of the violation data retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format.

11/24/2022 12:00 AM

Open Query

Optional

The query string to return events in the <FieldName> = <FieldValue> AND <FieldName> = <FieldValue> syntax.

Supported field names include (non-exhaustive):

Supported field names include (non-exhaustive):

  • devicecustomstring1

  • resourcegroupname

  • eventid

  • devicehostname

  • riskthreatname

  • devicecustomstring6

  • categoryobject

  • destinationusername

  • userid

  • jobid

  • resourcegroupid

  • accountname

  • filepath

  • tenantid

  • customnumber1

  • id

  • others

  • violator

  • transactionstring1

  • rawevent

  • jobstarttime

  • categorybehavior

  • message

  • baseeventid

  • dayofyear

  • destinationport

  • categoryseverity

  • month

  • sourceaddress

  • invalid

  • tenantname

  • policyname

  • resourcename

  • deviceeventcategory

  • category

For details about the query, see Getting Started with Spotter Queries.

baseeventid=***** AND tenantname=partners001

Limit

Optional

The maximum number of violation data results to return. Valid values are integers from 0 to 1,000.

By default, the value is 100.

2

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

List Violation Data failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

List Violation Data failed.

Status Code: 400.

Message: Server URL is not valid in format.

List Watchlists

Retrieves all watchlists.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

List Violation Data failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

List Violation Data failed.

Status Code: 400.

Message: Server URL is not valid in format.

List Workflows

Retrieves all available incident workflows.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

List Workflows failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

List Workflows failed.

Status Code: 400.

Message: Server URL is not valid in format.

Search by Index

Retrieves search results from an index using Spotter query syntax. When executed, the system returns up to 1,000 event records for hot data and up to 300 event records for archived data.

Input

Input Parameter

Required/Optional

Description

Example

Index

Optional

The index in which to search. Valid values are:

  • Activity

  • Archive

  • Asset

  • Geolocation

  • Lookup

  • Riskscore

  • Risk Score History

  • Threat Intelligence

  • Users

  • Violation

  • Watch List

  • White List

By default, the value is set to Activity.

Threat Intelligence

Query Statement

Optional

The query statement using Spotter query syntax. See Getting Started with Spotter Queries.

tpi_src=syslog

Start Time

Optional

The start time (in UTC) of the search range for the Activity, Violation, or Archive index. The range between Start Time and End Time cannot exceed 24 hours.

11/01/2022 12:00 AM

End Time

Optional

The end time (in UTC) of the search range for the Activity, Violation, or Archive index. The range between Start Time and End Time cannot exceed 24 hours.

11/02/2022 12:00 AM

Custom Index

Optional

The name of the custom index in which to search. Use this parameter if the required index is not available in the Index parameter list. When specified, this parameter overrides the Index parameter.

snowflake

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Search by Index failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Search by Index failed.

Status Code: 400.

Message: Server URL is not valid in format.

Search Events

Retrieves a list of events with details based on the specified query.

READER NOTE

Tenant Name is an optional parameter to run this command.

  • Run the List All Tenants command to obtain the Tenant Name. Tenant Names can be found in the raw data at $.result.*.

Input

Input Parameter

Required/Optional

Description

Example

Start Time

Required

The start of the event retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format. The range between Start Time and End Time cannot exceed 24 hours.

11/01/2022 12:00 AM

End Time

Required

The end of the event retrieval range (in UTC) in the MM-dd-yyyy HH:mm AM|PM format. The range between Start Time and End Time cannot exceed 24 hours.

1/24/2022 12:00 AM

Open Query

Optional

The query string to return targeted events based on specific keywords and syntax. Supported field names include (non-exhaustive):

  • resourcegroupname

  • eventid

  • customfield3

  • customfield2

  • jobid

  • resourcegroupid

  • agentfilename

  • tenantid

  • collectionmethod

  • rawevent

  • categoryseverity

  • ingestionnodeid

For details about the query, see Spotter Query Structure.

resourcegroupname=vcenter AND categoryseverity=0

Tenant Name

Optional

The name of the tenant from which to retrieve events when using an MSSP account. This parameter is not applicable for tenant user accounts, where the tenant name is applied automatically. Tenant Name can be obtained using the List All Tenants command.

Partners001

Limit

Optional

The maximum number of events to return. Valid values are integers from 0 to 1,000.

By default, the value is 100.

2

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Search by Index failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Search by Index failed.

Status Code: 400.

Message: Server URL is not valid in format.

Search Threats

Retrieves a list of threats with corresponding details based on the specified query.

READER NOTE

Tenant Name is an optional parameter to run this command.

  • Run the List All Tenants command to obtain the Tenant Name. Tenant Names can be found in the raw data at $.result.*.

Input

Input Parameter

Required/Optional

Description

Example

Tenant Name

Optional

The name of the tenant from which to retrieve threats when using an MSSP account. This parameter is not applicable for tenant user accounts, where the tenant name is applied automatically. Tenant Name can be obtained using the List All Tenants command.

Securonix

Domain

Optional

Filters threats by domain.

paiapark.com

IP Address

Optional

Filters threats by IP address.

***.***.***.***

Category

Optional

Filters threats by category.

phishing

Severity

Optional

Filters threats by severity.

high

Type

Optional

Filters threats by type.

Malicious Domain

Source

Optional

Filters threats by source.

MalwareDomains

Optional Conditions

Optional

Filters threats using additional fields in the Field1=Value1 AND Field2=Value2 format. See Attributes by Field Group.

tpi_src=syslog AND tpi_filename=fiel1.zip

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Search Threats failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Search Threats failed.

Status Code: 400.

Message: Server URL is not valid in format.

Take Incident Action

Executes a specified action on one or more incidents.

READER NOTE

Incident IDs and Action Name are required parameters to run this command.

  • Run the Fetch Incident command to obtain the Incident IDs. Incident IDs can be found in the raw data at $.result.data.incidentItems[*].incidentId.

  • Run the Get Incident Available Actions command to obtain the Action Name. Action Names can be found in the raw data at $.result[*].actionName.

Required Attributes is an optional parameter to run this command.

  • Run the Get Incident Available Actions command to obtain the Required Attributes. Required Attributes can be found in the raw data at $.result[*].actionDetails[*].sections.attributes[*].attribute.

Recommended approach for using this command:

  1. Run the Fetch Incident command to retrieve the desired incident IDs at $.result.data.incidentItems[*].incidentId.

  2. Use the retrieved incident IDs with the Get Incident Available Actions command to obtain the action name at $.result[*].actionName and any required attributes at $.result[*].actionDetails[*].sections.attributes[*].attribute.

  3. Required attributes are identified by "required": true in the same object within the attributes array.

  4. Provide those values when running this command.

Input

Input Parameter

Required/Optional

Description

Example

Incident IDs

Required

The IDs of the incidents on which to take action. Incident IDs can be obtained using the Fetch Incident command.

JSON
[
  "*****",
  "*****"
]

Action Name

Required

The action to perform for the incident. Not all actions are available for every incident. Valid values are:

  • CLAIM

  • ASSIGN TO SECOPS

  • ACCEPT RISK

  • RELEASE

  • VIOLATION

  • VERIFY

  • CLOSE

  • REOPEN

Available action names for the specified incidents can be obtained using the Get Incident Available Actions command.

Close

Required Attributes

Optional

The attributes required by the configured workflow in the organization. All available attributes for an incident are returned in the attributes array from the Get Incident Available Actions command, where "required": true indicates a required attribute.

JSON
{
  "15_Comments": "comment1213-02"
}

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Take Incident Action failed.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Take Incident Action failed.

Status Code: 400.

Message: Server URL is not valid in format.

Test Connection

Allows users to perform a health check on an integration connection. Users can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Output Type

Description

Return Data Type

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

  • A connection issue with the integration

  • The API returned an error message

  • No response from the API

More details about an error can be viewed in the Error tab.

String

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error

Description

Example

Failure Indicator

Indicates the command failure that happened at a specific input and/or API call.

Test Connection failed. Failed to check the connector.

Status Code

The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Securonix portal. Refer to the HTTP Status Code Registry for details.

Status Code: 400.

Message

The raw data or captured key error message from the integration API server about the API request failure.

Message: Server URL is not valid in format.

Error Sample Data

Test Connection failed. Failed to check the connector.

Status Code: 400.

Message: Server URL is not valid in format.

JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.

Contact Support Close
