Nucleus Security

LAST UPDATED: MAY 27, 2025

Overview

Nucleus Security is a platform designed to enhance vulnerability and exposure management for organizations. It unifies and operationalizes vulnerability data, enabling teams to prioritize and mitigate critical exposures efficiently.

D3 SOAR is providing REST operations to function with Nucleus Security.

Nucleus Security is available for use in:

D3 SOAR	V17.0+
Category	Vulnerability Management
Deployment Options	Option II, Option IV

Connection

To connect to Nucleus Security from D3 SOAR, follow this part to collect the required information below:

Parameter	Description	Example
Nucleus API Server URL	The URL for the Nucleus API Server at the domain level.	https://nucleus-us1.nucleussec.com
API Key	The key used for API authentication.	<API_KEY>

Permission Requirements

Commands	Role	Permissions
Fetch Event	API Account - General Users	API Access
Get Asset Findings	API Account - General Users	API Access
Get Asset Information	API Account - General Users	API Access
Get Finding Details	API Account - General Users	API Access
Get Project Scans	API Account - General Users	API Access
Get Scan Finding Summary	API Account - General Users	API Access
List Assets	API Account - General Users	API Access + Assets: View Assets
List Mitigation Statuses	API Account - General Users	API Access
List Projects	API Account - General Users	API Access
List Project Scans	API Account - General Users	API Access
List Teams	API Account - Project Admin	API Access + Teams: ViewTeams
List Users	API Account - General Users	API Access
Search Project Findings	API Account - General Users	API Access
Test Connection	API Account - General Users	API Access
Update Project Findings	API Account - General Users	API Access + Findings: Update Findings

Configuring Nucleus Security to Work with D3 SOAR

READER NOTE

Users with API Access can create their own API key.
A user's API Key will remain valid unless they regenerate a new one or until the user is deleted/disabled.

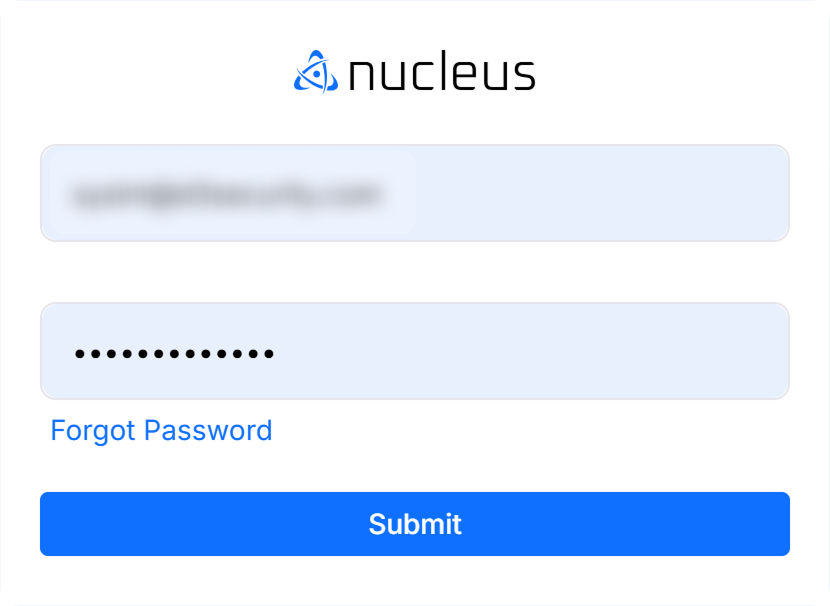

Log into Nucleus Security.

For User Accounts

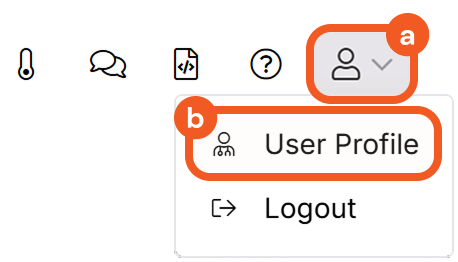

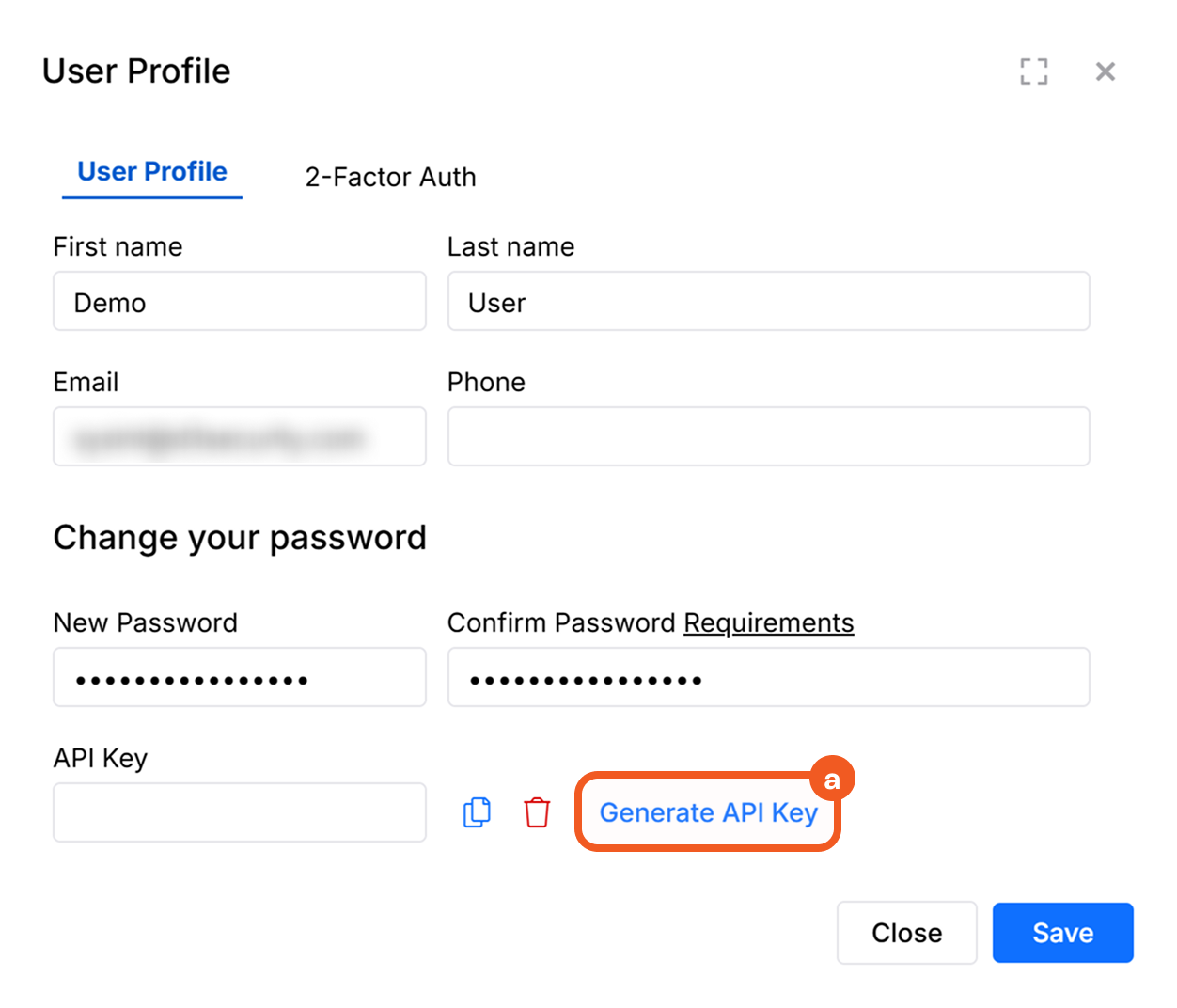

Navigate to User Profile.

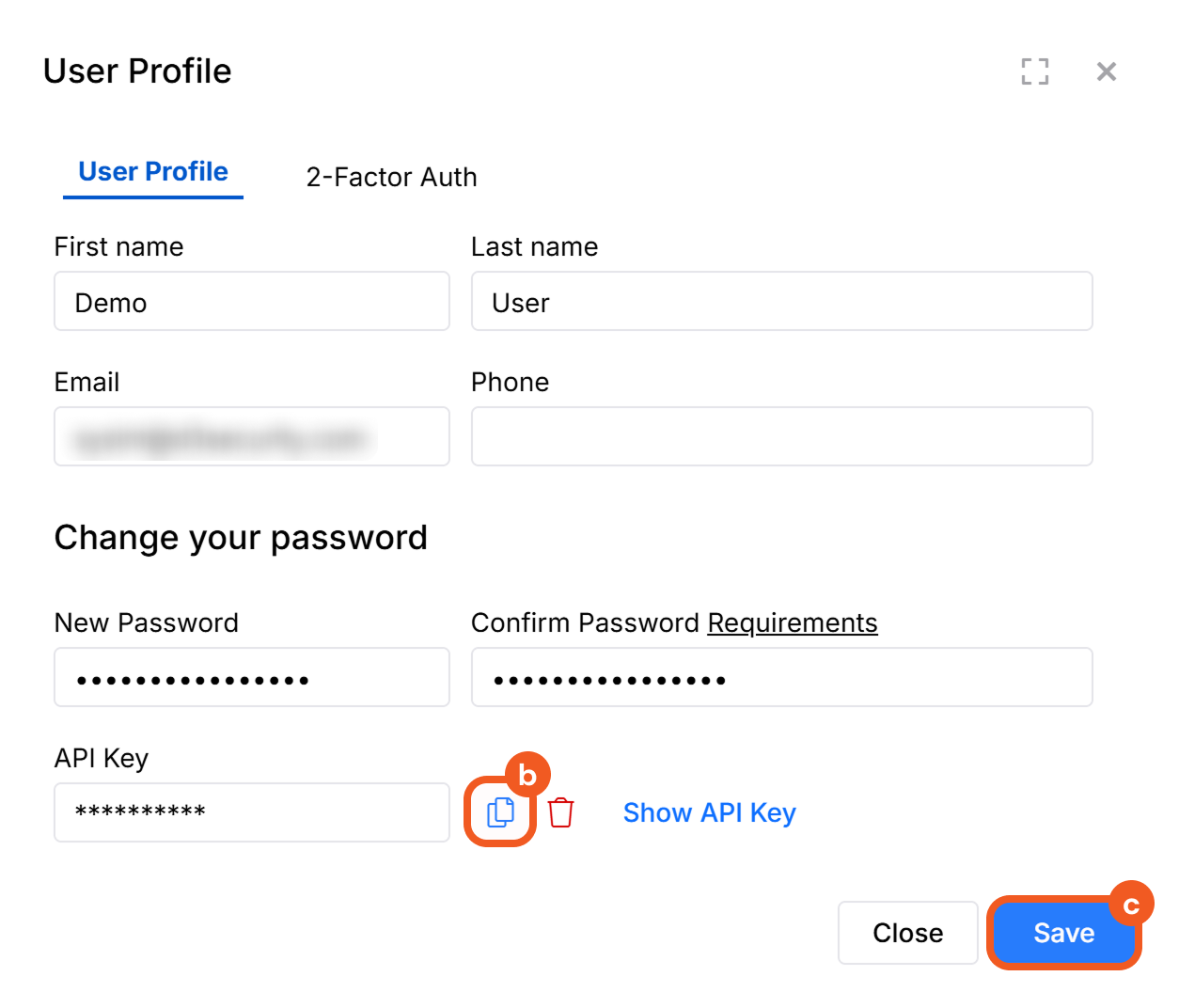

Generate the API key, store it in a secure location, then click on the Save button.

For API Accounts

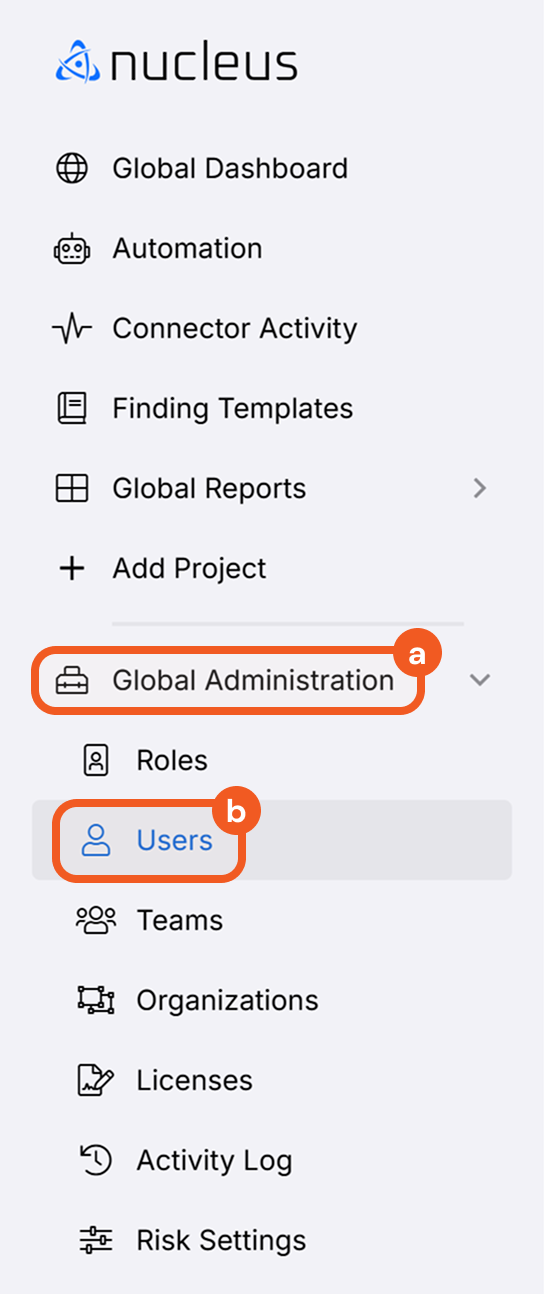

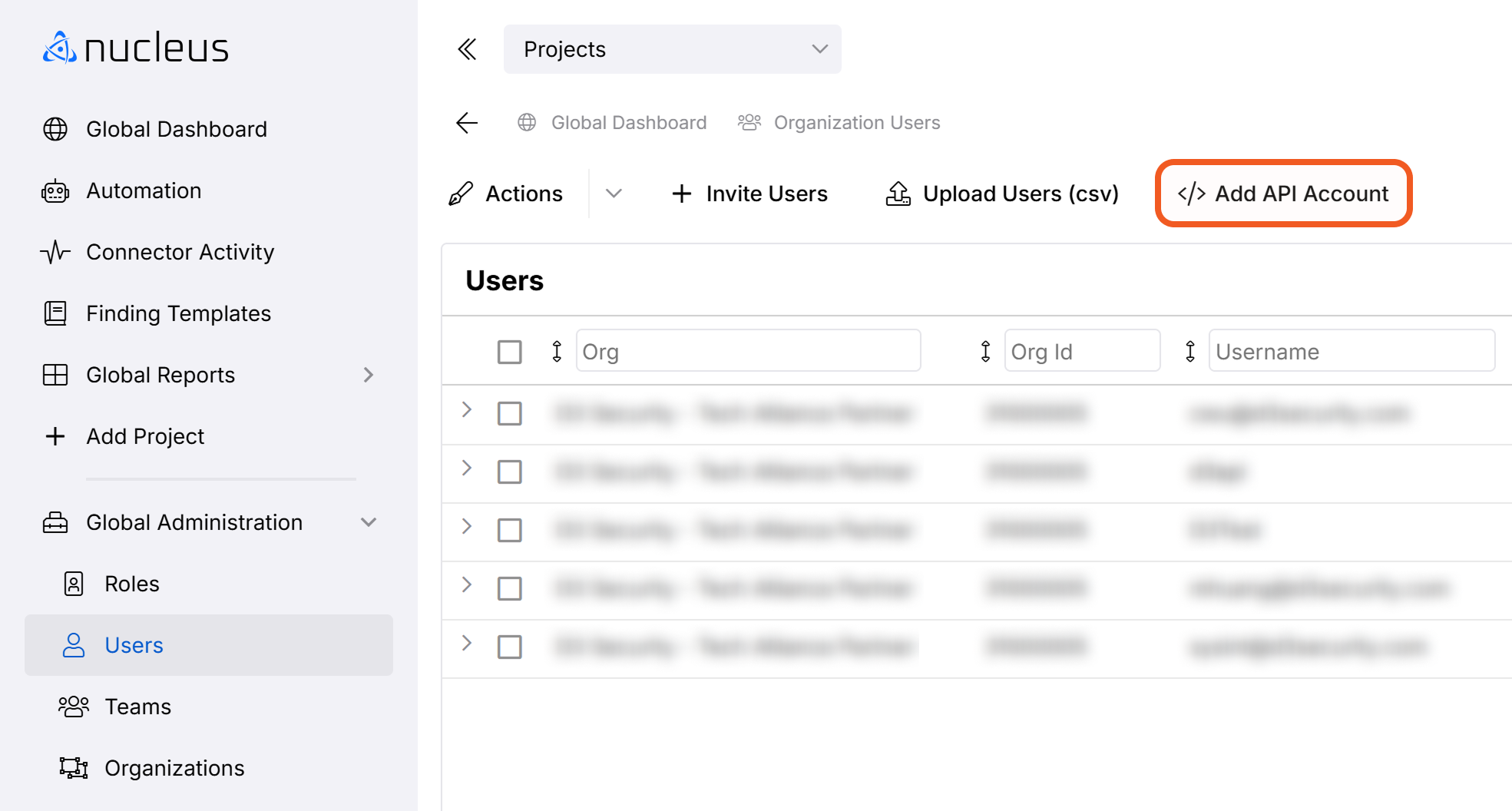

Navigate to Global Administration > Users.
Click on the </> Add API Account button.

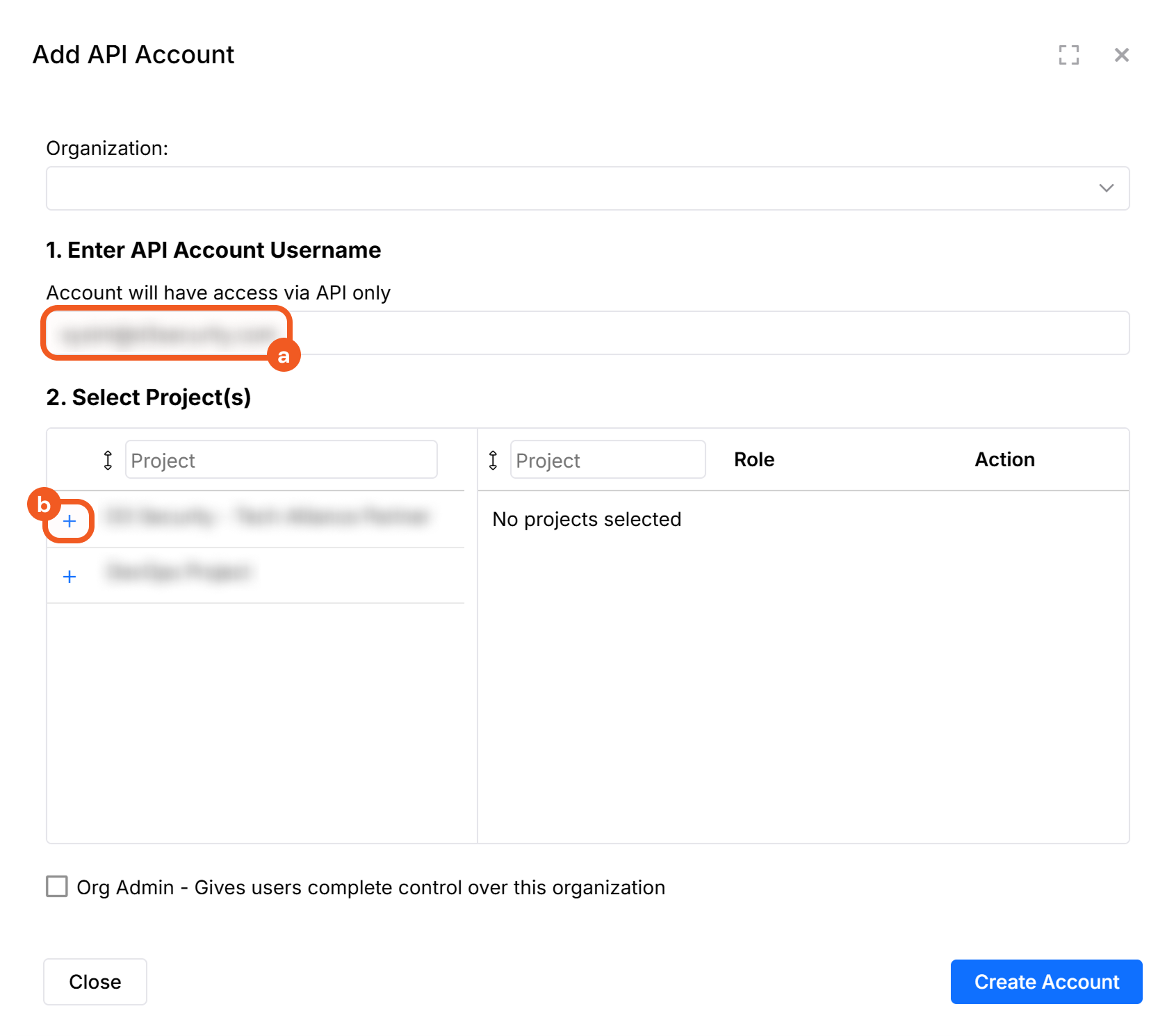

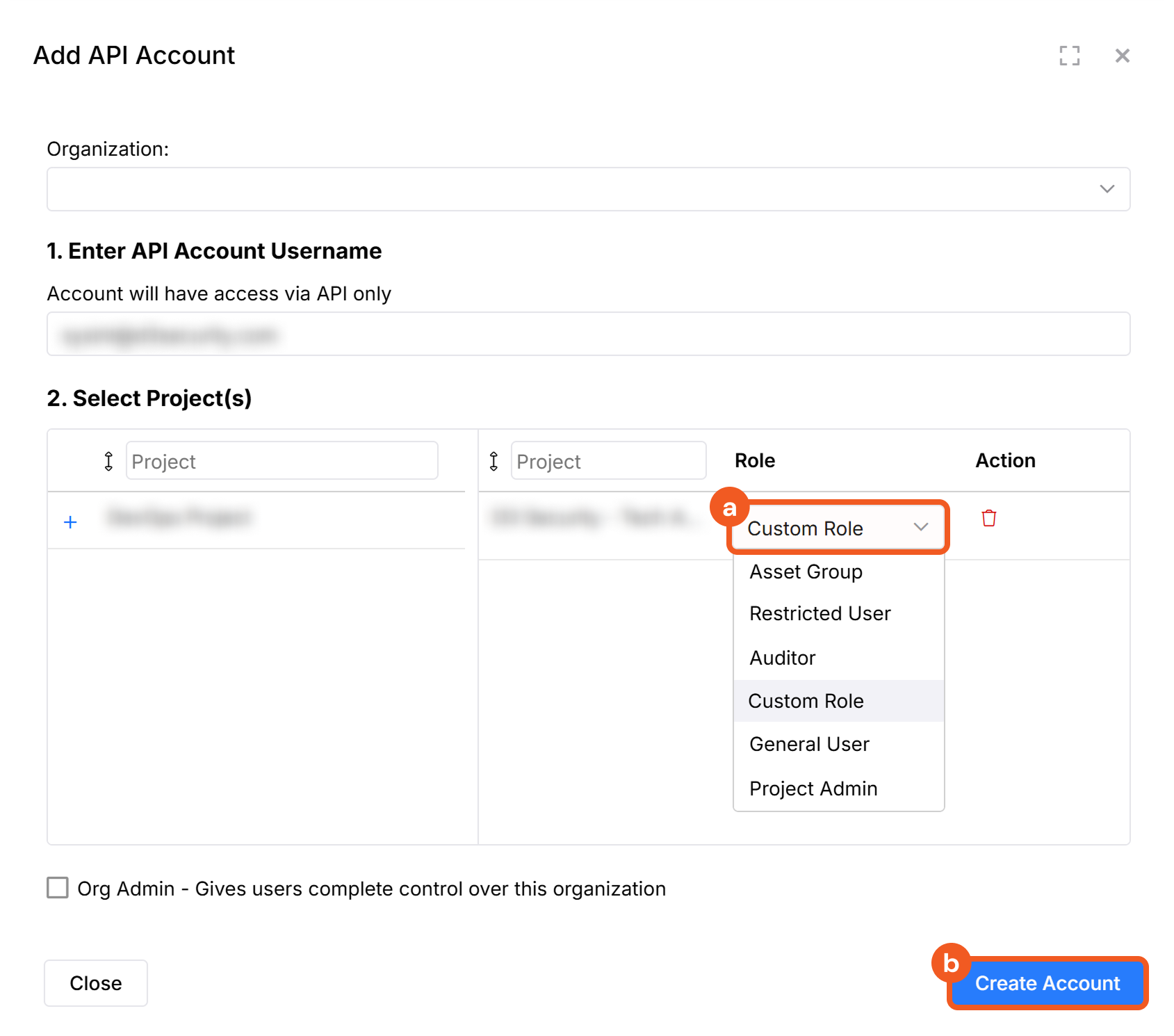

Enter the API account username, then select the project.
Select a role, then click on the Create Account button.

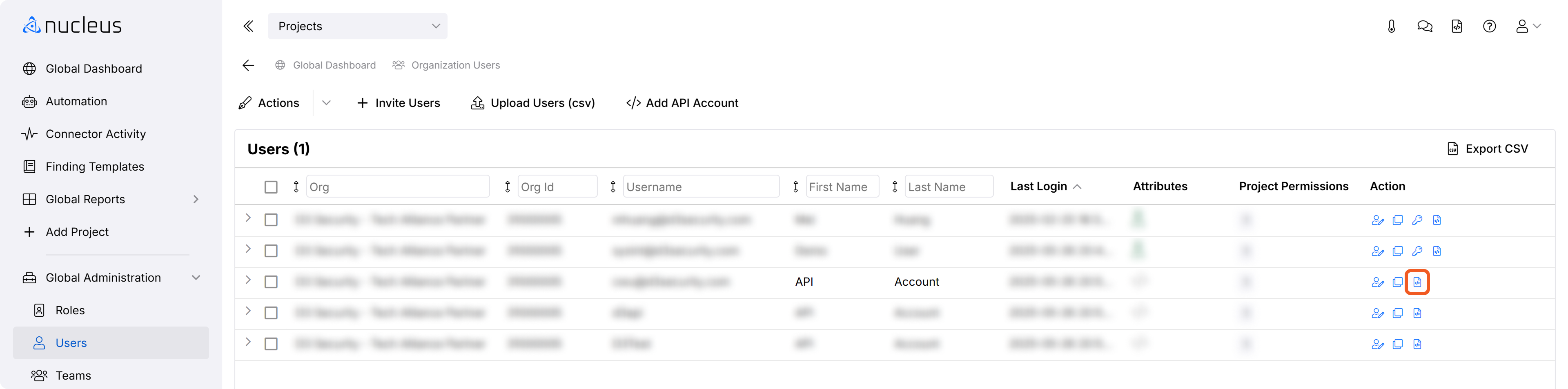

Click on the icon associated with the newly created API account.

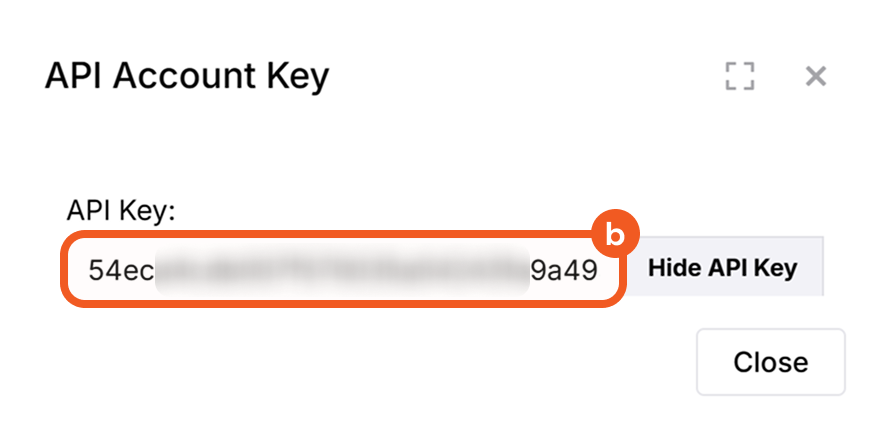

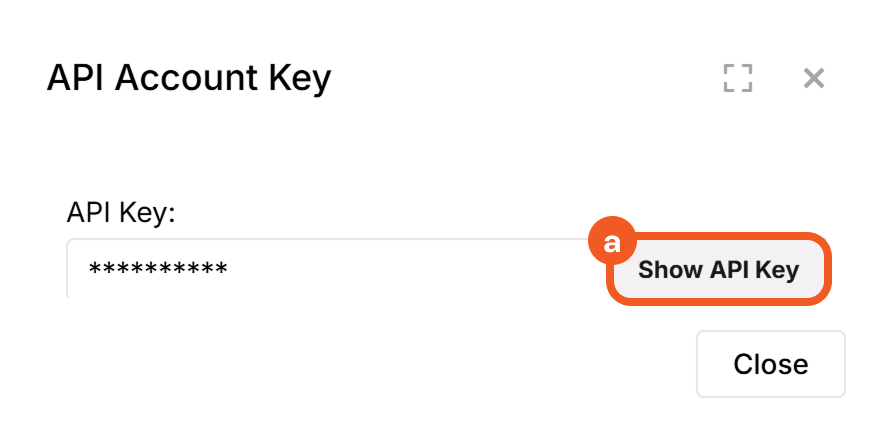

Click on the Show API Key button, then store the API key in a secure location.

Configuring D3 SOAR to Work with Nucleus Security

Log in to D3 SOAR.

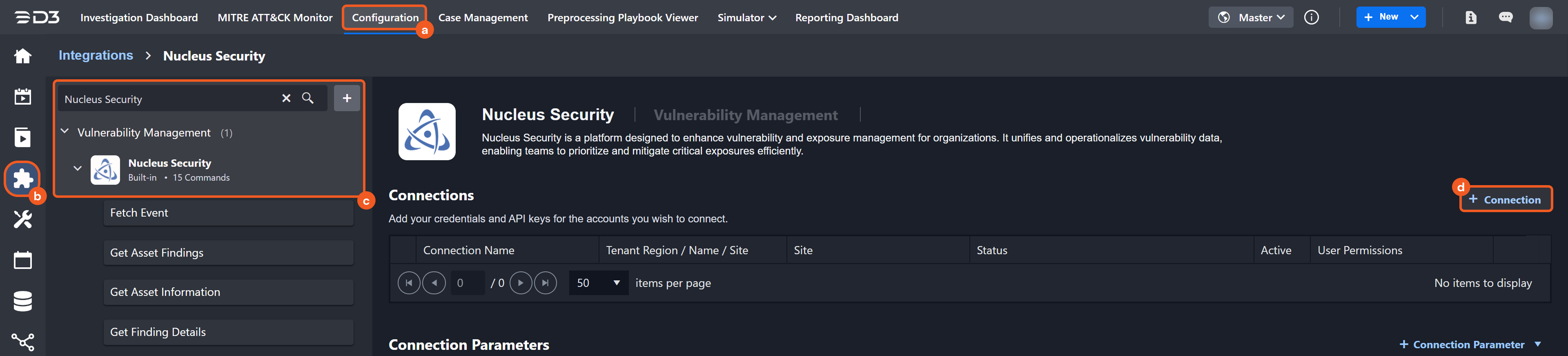

Find the Nucleus Security integration.
1. Navigate to Configuration on the top header menu.
2. Click on the Integration icon on the left sidebar.
3. Type Nucleus Security in the search box to find the integration, then click it to select it.
4. Click on the + Connection button on the right side of the Connections section. A new connection window will appear.

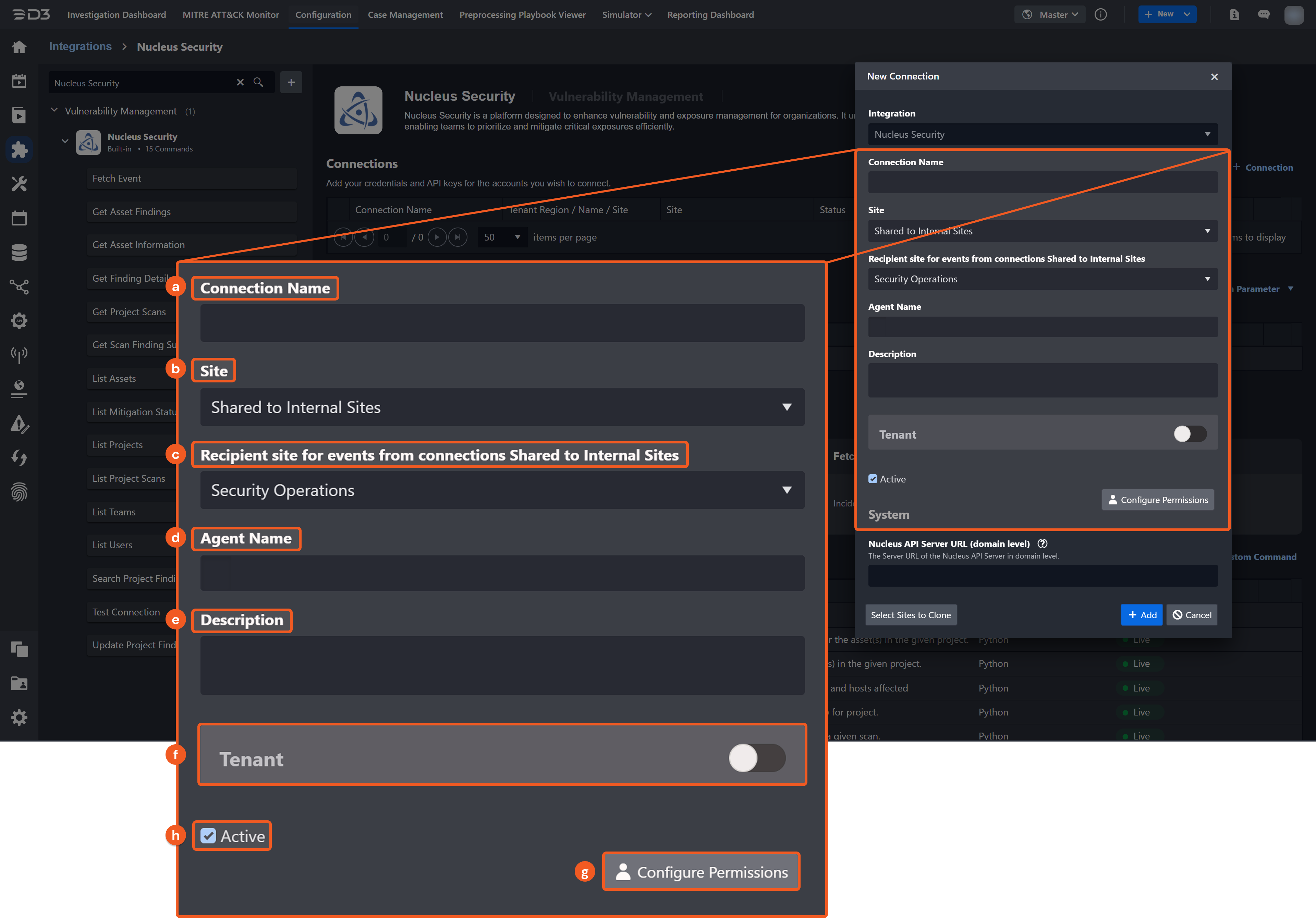

Configure the following fields to create a connection to Nucleus Security.
1. Connection Name: The desired name for the connection.
2. Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
3. Recipient site for events from connections Shared to Internal Sites: This field is displayed when Share to Internal Sites is selected for the Site field, allowing selection of the internal site for deploying the integration connection.
4. Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
5. Description (Optional): Add a description for the connection.
6. Tenant (Optional): When configuring the connection from a master tenant site, users have the option to choose the specific tenant sites to share the connection with. Once this setting is enabled, users can filter and select the desired tenant sites from the dropdowns to share the connection.
7. Configure User Permissions: Defines which users have access to the connection.
8. Active: Check the checkbox to ensure the connection is available for use.

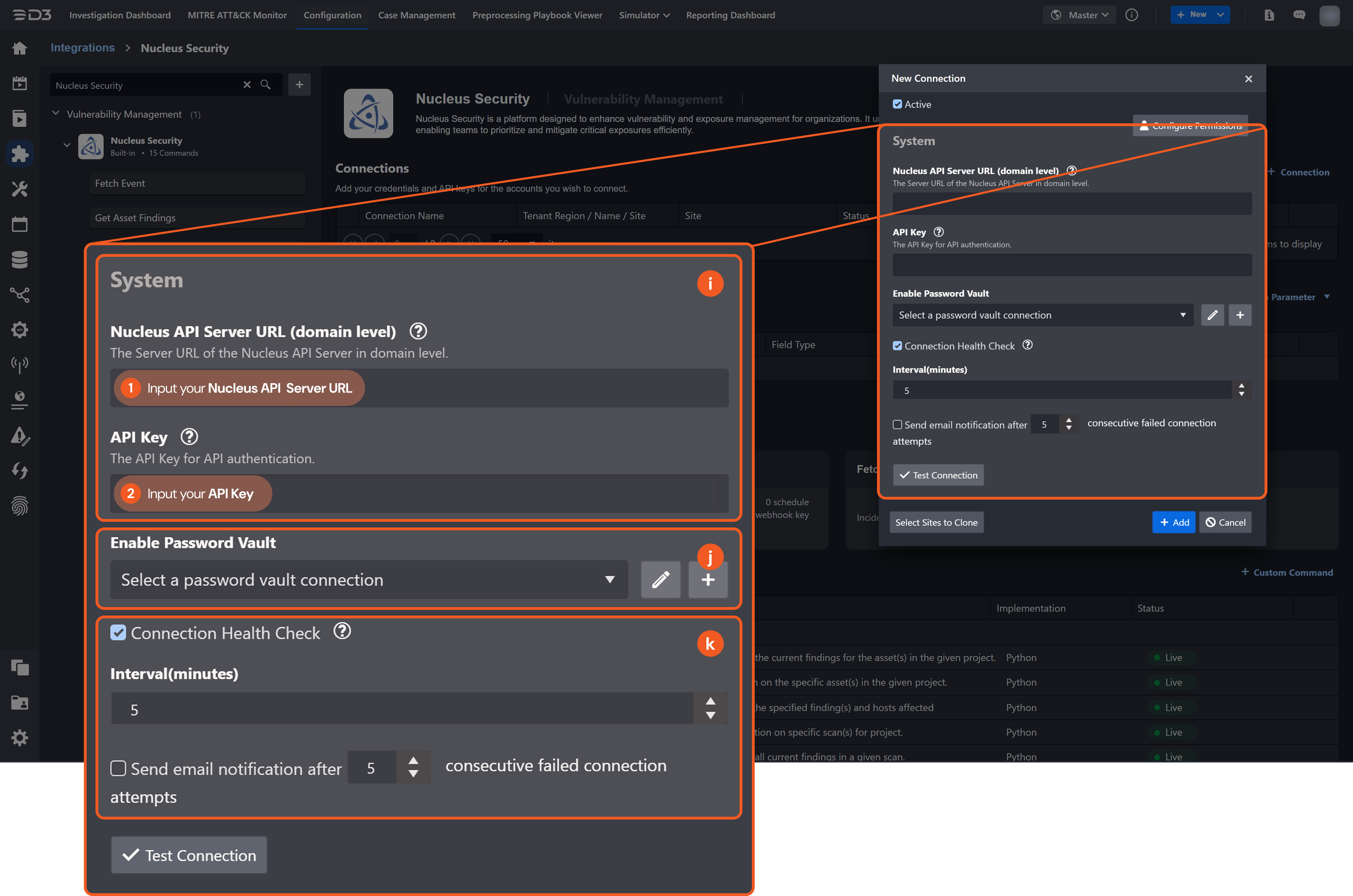

9. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
  1. Input the Nucleus API server URL.
  2. Paste the API key obtained from the Nucleus Security platform (see step 3 for user accounts or step 7 for API accounts in the Configuring Nucleus Security to Work with D3 SOAR section).
10. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Refer to the password vault connection guide if needed.
11. Connection Health Check: Periodically checks the connection status by scheduling the Test Connection command at the specified interval (in minutes). Available only for active connections, this feature also allows configuring email notifications for failed attempts.

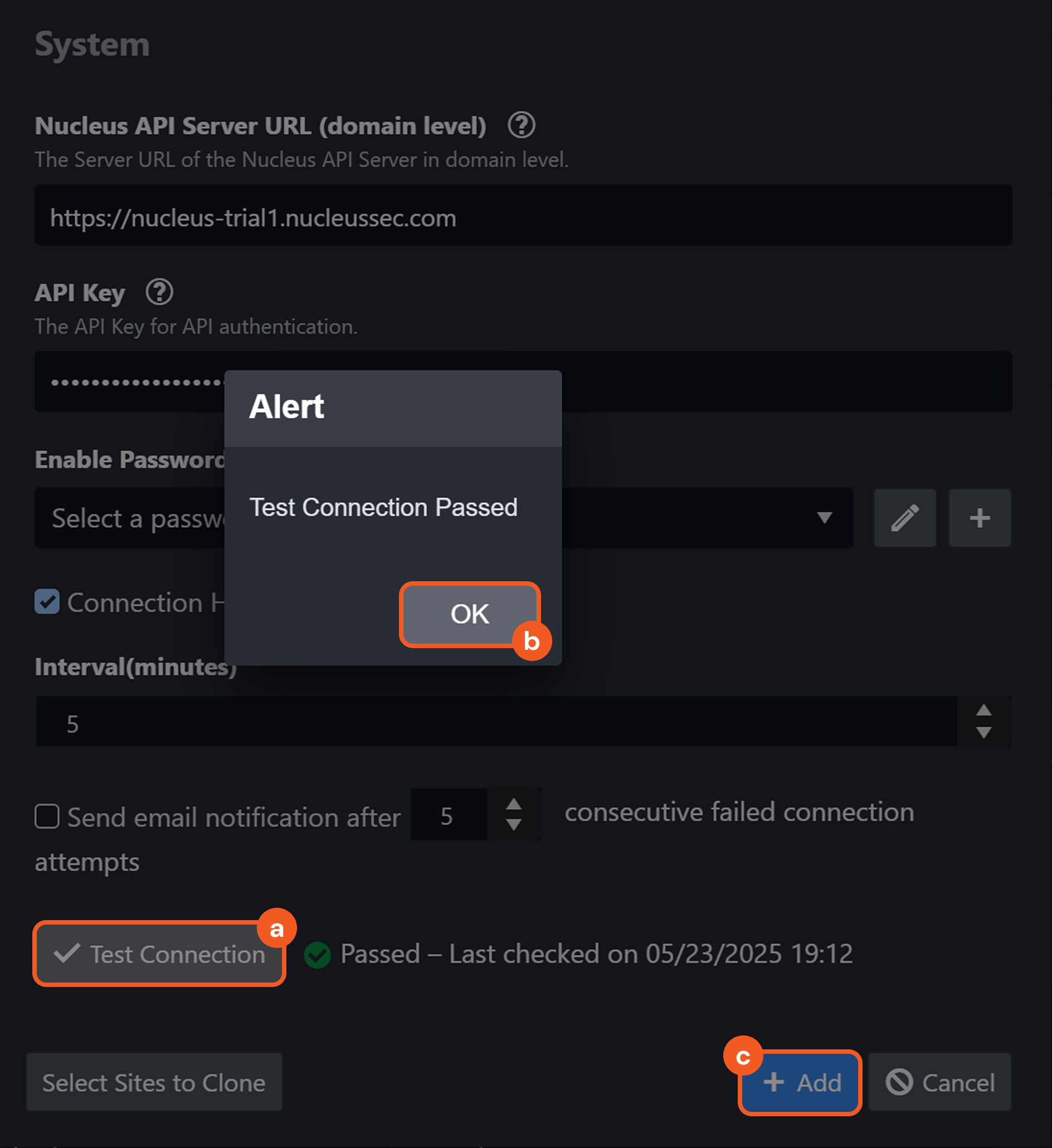

Test the connection.
1. Click on the Test Connection button to verify credentials and connectivity. A success alert displays Passed with a green checkmark. If the connection fails, review the parameters and retry.
2. Click OK to close the alert window.
3. Click + Add to create and add the configured connection.

Commands

Nucleus Security includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command function, users can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the Nucleus Security API, refer to the Nucleus Security API reference.
Note for Time-related parameters

The input format of time-related parameters may vary based on user account settings, which may cause the sample data in commands to differ from what is displayed. To adjust the time format, follow these steps:

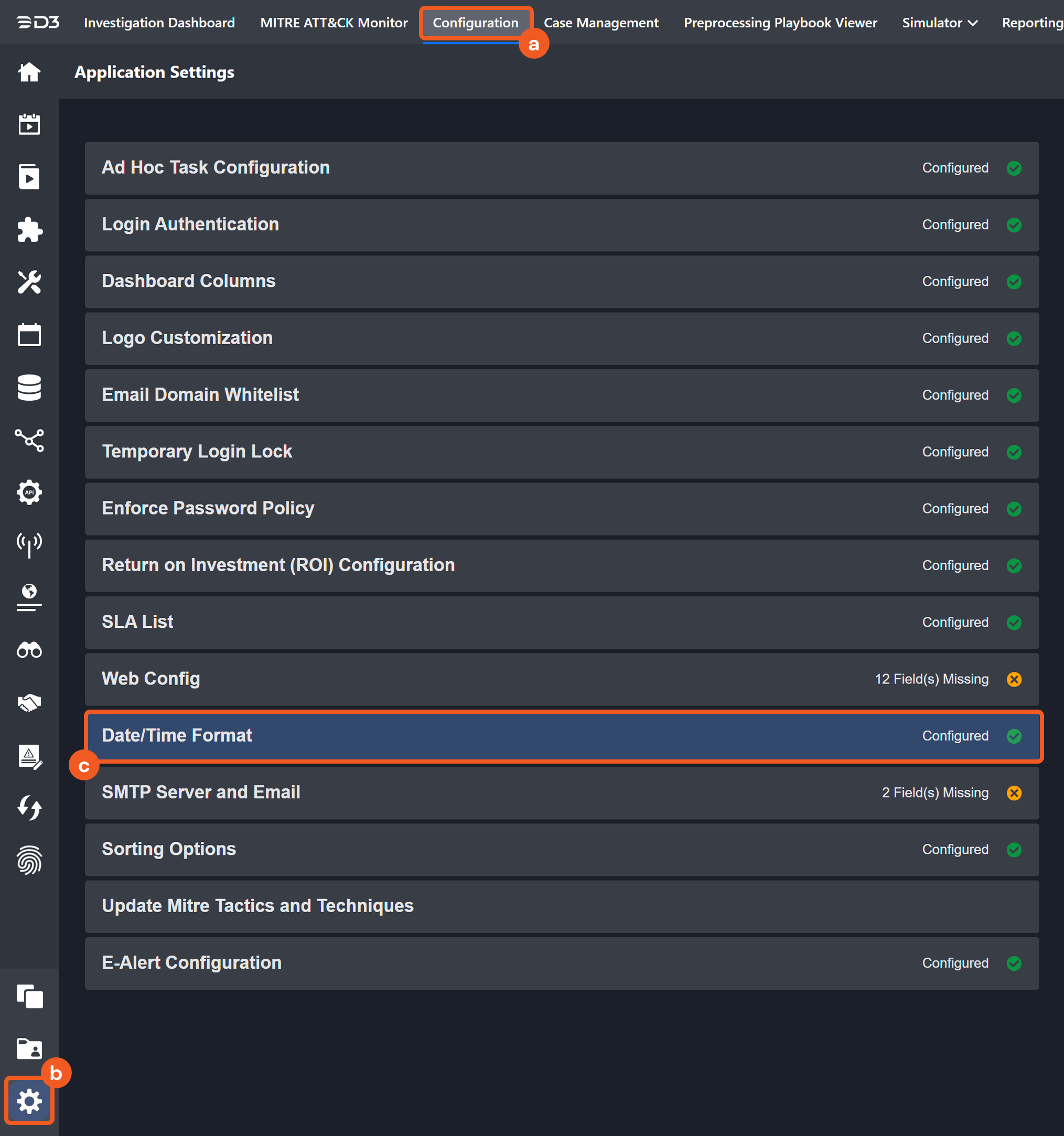

Navigate to Configuration > Application Settings. Select Date/Time Format.

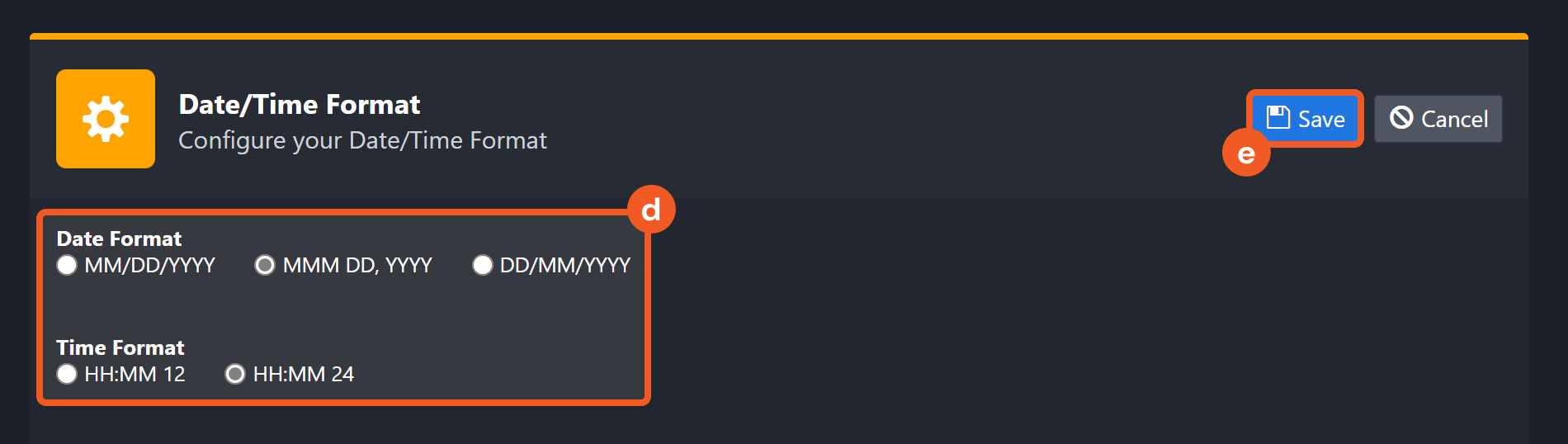

Choose the desired date and time format, then click on the Save button.

The selected time format will now be visible when configuring Date/Time command input parameters.

Fetch Event

Ingests project findings into VSOC platform as events. The returned findings are sorted by Finding ID in ascending order.

READER NOTE

Project ID is a required parameter to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The IDs of the projects from which findings are retrieved. Project IDs can be obtained using the List Projects command.	JSON `["*****"]`
Start Time	Optional	The start of the time range for retrieving findings (in UTC). Findings with a scan date after this time are returned. By default, the value is 24 hours before the End Time.	12/20/2024 10:30 AM
End Time	Optional	The end of the time range for retrieving findings (in UTC). Findings with a scan date before this time are returned. By default, the value is the current time.	12/23/2024 07:23 PM
Number of Event(s) Fetched	Optional	The maximum number of events returned per project. By default, all findings matching the criteria are returned. Valid values range from 1 to 1000.	10
Mandiant Risk Ratings	Optional	Filters findings by Mandiant risk ratings. Available ratings are CRITICAL, HIGH, MEDIUM and LOW. By default, findings regardless of their risk rating will be returned. This parameter is ignored if both Mandiant Risk Ratings and Minimum EPSS Score parameters are provided.	JSON `[ "CRITICAL", "HIGH" ]`
Finding CVEs	Optional	Filters findings by CVE IDs. Wildcard characters * or % may be used when supplying a single value.	JSON `[ "CVE-1999-052*" ]`
Finding Severities	Optional	The severities of the findings to filter. Available options include Critical, High, Medium, Low, and Informational.	JSON `[ "Critical" ]`
Minimum EPSS Score	Optional	The minimum EPSS score of the findings to filter. Findings with an EPSS score equal to or greater than this value will be returned.	0.8
Additional Filters	Optional	Additional filters to refine the findings query. For available filter keys and syntax, refer to the Nucleus API documentation.	JSON `{ "is_active": true, "scan_type": "string" }`

Output

To view the sample output data for all commands, refer to this article.

Field Mapping

Fetch Event commands require event field mapping. Field mapping plays a key role for data normalization within the event pipeline. Field mapping converts the original data fields from the different providers to standardized D3 fields as defined by the D3 Model. Refer to Event and Incident Intake Field Mapping for details.

To add a custom field, click on the + Add Field button. Users can also remove built-in field mappings by clicking x. Note that two underscore characters will automatically prefix the defined Field Name as the System Name for a custom field mapping. Additionally, if an input Field Name contains any spaces, they will automatically be replaced with underscores for the corresponding System Name.

As a system integration, the Nucleus Security integration has some pre-configured field mappings for default field mapping.

Default Event Source

The Default Event Source is the default set of field mappings that are applied when this fetch event command is executed. For out-of-the-box integrations, users will find a set of field mappings provided by the system. Default event source provides field mappings for common fields from the fetched data. The default event source has a "Main Event JSON Path" (i.e. $.Results) that is used to extract a batch of events from the response raw data. View the "Main Event JSON Path" by clicking on the Edit Main JSON Path button.

Main Event JSON Path: $.Results

The Main Event JSON Path determines the root path where the system starts parsing raw response data into D3 event data. The JSON path begins with $, representing the root element. The path is formed by appending a sequence of child elements to $, each separated by a dot (.). Square brackets with nested quotation marks ([‘...’]) should be used to separate child elements in JSON arrays.

For example, the root node of a JSON Path is $.Results. The child node denoting the Unique Event Key field would be id. Putting it together, the JSON Path expression to extract the Unique Event Key is $.Results.id.

The pre-configured field mappings are detailed below:

Field Name	Source Field
Analysis	.mandiant_analysis
Asset ID	.asset_id
Asset Name	.asset_name
Assigned Teams	.justification_assigned_teams
Assigned Users	.justification_assigned_users
Date Date	.due_date
EPSS Score	.epss_score
Exploit Vectors	.mandiant_exploit_vectors
Exploitation Consequence	.mandiant_exploitation_consequence
Finding Justification Key	.finding_justification_key
Finding Number	.finding_number
Finding Output	.finding_output
Finding Package	.finding_package
Finding Path	.finding_path
Finding Port	.finding_port
Finding Recommendation	.finding_recommendation
Finding References	.finding_references
Finding Result	.finding_result
IP Address	.ip_address
Justification Text	.justification_text
Justification Time	.justification_datetime
Mitigations	.mandiant_mitigations
Project ID	.ProjectID
Risk Rating	.mandiant_risk_rating
Scan ID	.scan_id
Scan Type	.scan_type
Vulnerable Products	.mandiant_vulnerable_products
Unique Event Key	.finding_id
Event name	.finding_name
Start Time	.finding_discovered
Description	.finding_description
Severity	.finding_severity
Status	.justification_status_name
CVE	.finding_cve

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Fetch Event failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

Fetch Event failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

Get Asset Findings

Returns the current findings for the specified assets in the project.

READER NOTE

Project ID and Asset IDs are required parameters to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.
Run the Fetch Event command to obtain the Asset IDs. Asset IDs can be found in the raw data at $.Results[*].asset_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to retrieve asset findings. Project ID can be obtained using the List Projects command.	*****
Asset IDs	Required	The IDs of the assets for which to retrieve findings. Asset IDs can be obtained using the Fetch Event command.	JSON `[ "*****" ]`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Asset Findings failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

Get Asset Findings failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

Get Asset Information

Retrieves information about specific assets in a given project.

READER NOTE

Project ID and Asset IDs are required parameters to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.
Run the Fetch Event command to obtain the Asset IDs. Asset IDs can be found in the raw data at $.Results[*].asset_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to retrieve asset information. Project ID can be obtained using the List Projects command.	*****
Asset IDs	Required	The IDs of the assets for which to retrieve information. Asset IDs can be obtained using the Fetch Event command.	JSON `[ "*****" ]`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Asset Information failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

Get Asset Information failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

Get Finding Details

Retrieves details about specified findings and the affected hosts.

READER NOTE

Project ID, Finding Numbers, and Scan Type are required parameters to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.
Run the Search Project Findings command to obtain the Finding Numbers. Finding Numbers can be found in the raw data at $.Results[*].finding_number.
Run the Search Project Findings command to obtain the Scan Type. Scan Types can be found in the raw data at $.Results[*].scan_type.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to retrieve finding details. Project ID can be obtained using the List Projects command.	*****
Finding Numbers	Required	The numbers of the findings for which to retrieve details. Finding numbers can be obtained using the Search Project Findings or Fetch Event command.	JSON `[ "*****" ]`
Scan Type	Required	The scan type of the findings. Scan type can be obtained using the Search Project Findings or Fetch Event command.	QUALYS

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Finding Details failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

Get Finding Details failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

Get Project Scans

Returns information on specific scans for the project.

READER NOTE

Project ID and Scan IDs are required parameters to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.
Run the List Project Scans command to obtain the Scan IDs. Scan IDs can be found in the raw data at $.Results[*].scan_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to retrieve scans. Project ID can be obtained using the List Projects command.	*****
Scan IDs	Required	The IDs of the scans. Scan IDs can be obtained using the List Project Scans command.	JSON `[ 0 ]`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Project Scans failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

Get Project Scans failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

Get Scan Finding Summary

Returns a list of all current findings in a given scan.

READER NOTE

Project ID and Scan ID are required parameters to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.
Run the List Project Scans command to obtain the Scan IDs. Scan IDs can be found in the raw data at $.Results[*].scan_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The project ID for obtaining the scan finding summary. The Project ID can be obtained using the List Projects command.	*****
Scan ID	Required	The scan ID for retrieving the finding summary. The Scan ID can be obtained using the List Project Scans command.	0
Filter	Optional	Filters results based on string comparison of any field. Some properties accept filtering by an array of values. The exactMatch key determines whether to apply exact matching. When finding severity is unspecified in the filter, only findings of highest severity are returned.	JSON `[ { "property": "finding_severities", "value": [ "Critical" ], "exactMatch": false }, { "property": "scan_type", "value": "string", "exactMatch": true } ]`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Scan Finding Summary failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

Get Scan Finding Summary failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

List Assets

Returns a list of assets filtered by the specified parameters within the given project.

READER NOTE

Project ID is a required parameter to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to retrieve assets. Project ID can be obtained using the List Projects command.	*****
Asset Name or IP	Optional	Filters assets by asset name or IP address.	*...*
Asset Groups	Optional	Filters assets by asset groups.	JSON `[ "D3Lab_Group" ]`
Asset Type	Optional	Filters assets by asset type. By default, assets are returned regardless of their type.	Host
Unscanned Assets	Optional	Requests only unscanned assets when set to True, and only scanned assets when set to False. By default, both are returned.	True
Assets with Findings	Optional	Requests only assets with findings when set to True, and only assets without findings when set to False. By default, both are returned.	True
Inactive Assets	Optional	Requests only inactive assets when set to True, and only active assets when set to False. By default, both are returned.	True

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Assets failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

List Assets failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

List Mitigation Statuses

Returns a list of mitigation statuses available for updating a finding.

READER NOTE

Project ID is a required parameter to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to retrieve mitigation statuses. Project ID can be obtained using the List Projects command.	*****

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Mitigation Statuses failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

List Mitigation Statuses failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

List Projects

Returns a list of all projects along with their current statuses.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Projects failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

List Projects failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

List Project Scans

Returns a list of scans for the specified project.

READER NOTE

Project ID is a required parameter to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to retrieve scans. Project ID can be obtained using the List Projects command.	*****

Output

To view the sample output data for all commands, refer to this article

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Project Scans failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

List Project Scans failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

List Teams

Returns a list of all teams within the specified project.

READER NOTE

Project ID is a required parameter to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to list teams. Project ID can be obtained using the List Projects command.	*****

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Teams failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

List Teams failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

List Users

Returns a list of all users for a project.

READER NOTE

Project ID is a required parameter to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to list users. Project ID can be obtained using the List Projects command.	*****

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Users failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

List Users failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

Search Project Findings

Returns a list of findings for the specified project.

READER NOTE

Project ID is a required parameter to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to retrieve findings. Project ID can be obtained using the List Projects command.	*****
Mandiant Risk Ratings	Optional	Filters findings by Mandiant risk ratings. Available ratings include CRITICAL, HIGH, MEDIUM, and LOW. By default, findings are returned regardless of risk rating. If both Mandiant Risk Ratings and Minimum EPSS Score parameters are provided, this parameter is ignored.	JSON `[ "CRITICAL", "HIGH" ]`
Finding CVEs	Optional	Filters findings by CVE IDs. Wildcards * or % may be used if only one value is provided.	JSON `[ "CVE-1999-052*" ]`
Finding Severities	Optional	Filters findings by severities. Available severities include Critical, High, Medium, Low, and Informational.	JSON `[ "Critical" ]`
Minimum EPSS Score	Optional	Filters findings by minimum EPSS score. Findings with EPSS scores equal to or greater than this value are returned.	9
Scan Date After	Optional	Returns findings with scan dates after the specified time.	2025-01-01 00:00:00
Additional Filters	Optional	Supports additional filters for querying project findings. Refer to Nucleus API Docs for available filter options.	JSON `{ "is_active": true, "scan_type": "string" }`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Search Project Findings failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

Search Project Findings failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

Update Project Findings

Updates the specified findings’ status, severity, assigned team, assigned user, due date, or comment. Updates apply to all specified Finding Numbers. At least one of Finding Severity, Finding Status, Team ID, User ID, Due Date, or Comment must be provided.

READER NOTE

Project ID, Finding Numbers, and Scan Type are required parameters to run this command.

Run the List Projects command to obtain the Project ID. Project IDs can be found in the raw data at $.Results[*].project_id.
Run the Search Project Findings command to obtain the Finding Numbers. Finding Numbers can be found in the raw data at $.Results[*].finding_number.
Run the Search Project Findings command to obtain the Scan Type. Scan Types can be found in the raw data at $.Results[*].scan_type.

Asset ID, Finding Justification Key, Finding Status, User ID and Team ID are optional parameters to run this command.

Run the Search Project Findings command to obtain the Asset ID and Finding Justification Key.
- Asset IDs can be found in the raw data at $.Results[*].asset_id.
- Finding Justification Keys can be found in the raw data at $.Results[*].finding_justification_key.
Run the List Mitigation Statuses command to obtain statuses for Finding Status. These statuses can be found in the raw data at $.Results[*].justification_status_name.
Run the List Users command to obtain the User ID. User IDs can be found in the raw data at $.Results[*].user_id.
Run the List Teams command to obtain the Team ID. Team IDs can be found in the raw data at $.Results[*].team_id.

Input

Input Parameter	Required/Optional	Description	Example
Project ID	Required	The ID of the project from which to update findings. Project ID can be obtained using the List Projects command.	*****
Finding Numbers	Required	The finding numbers to update. Finding numbers can be obtained using the Search Project Findings command.	JSON `[ "*****" ]`
ScanType	Required	The scan type of the findings. Scan Type can be obtained using the Search Project Findings command. All findings to be updated must share the same scan type.	QUALYS
Asset ID	Optional	The Asset ID to which status, due date, and comment updates apply. Ignored for severity updates unless the instance severity feature is enabled. Asset ID can be obtained using the Search Project Findings command. By default, updates apply to all instances. Asset ID applies to all findings. Findings with different Asset IDs must be updated using separate command executions.	*****
Finding Justification Key	Optional	Required when updating specific asset values with Asset ID. Finding Justification Key can be obtained using the Search Project Findings command.	8200*****f550
Finding Status	Optional	The new status of the findings. Statuses can be obtained using the List Mitigation Statuses command.	False Positive
Due Date	Optional	The due date for the findings in YYYY-MM-DD format. If Asset ID and Finding Justification Key are omitted, all instances receive the update. If both are provided, only the matching instance is updated. Use 'N/A' to remove the due date.	2025-02-28
Finding Severity	Optional	The new severity of the findings. If instance level severity is disabled, Asset ID and Finding Justification Key are ignored and update applies to unique findings.	Critical
Comment	Optional	A comment added to the findings.	Test comment
Severity Update Comment	Optional	The comment added when updating the severity of the findings. Used only for severity updates.	Severity Update test comment
User ID	Optional	The ID of the user to whom the findings are assigned. User ID can be obtained using the List Users command.	*****
Team ID	Optional	The ID of the team to which the findings are assigned. Team ID can be obtained using the List Teams command. Enter 'N/A' to unassign the team.	*****

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Update Project Findings failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid Support account to call this API.

Error Sample Data

Update Project Findings failed.

Status Code: 403.

Message: You must have a valid Support account to call this API.

Test Connection

Allows users to perform a health check on an integration connection. Users can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Output Type

Description

Return Data Type

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

More details about an error can be viewed in the Error tab.

String

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Test Connection failed. Failed to check the connector.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Nucleus Security portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: You must have a valid support account to call this API.

Error Sample Data

Test Connection failed. Failed to check the connector.

Status Code: 403.

Message: You must have a valid Support account to call this API
