Netskope

Overview

Netskope Security provides unrivaled visibility and real-time data and threat protection. The integration with Netskope helps users to manage events and alerts.

D3 SOAR is providing REST operations to function with Netskope.

Netskope is available for use in:

D3 SOAR	V12.7.83.0+
Category	Network Security
Deployment Options	Option II, Option IV

Connection

To connect to Netskope from D3 SOAR, please follow this part to collect the required information below:

Parameter	Description	Example
Server URL	The server URL of the Netskope.	https://alliances.goskope.com
Token	The token used for Netskope to establish the API connection.	c4*****a8
API Version	The version of the API to use for the connection.	v1

Configuring Netskope to Work with D3 SOAR

Login to Netskope with your credentials.

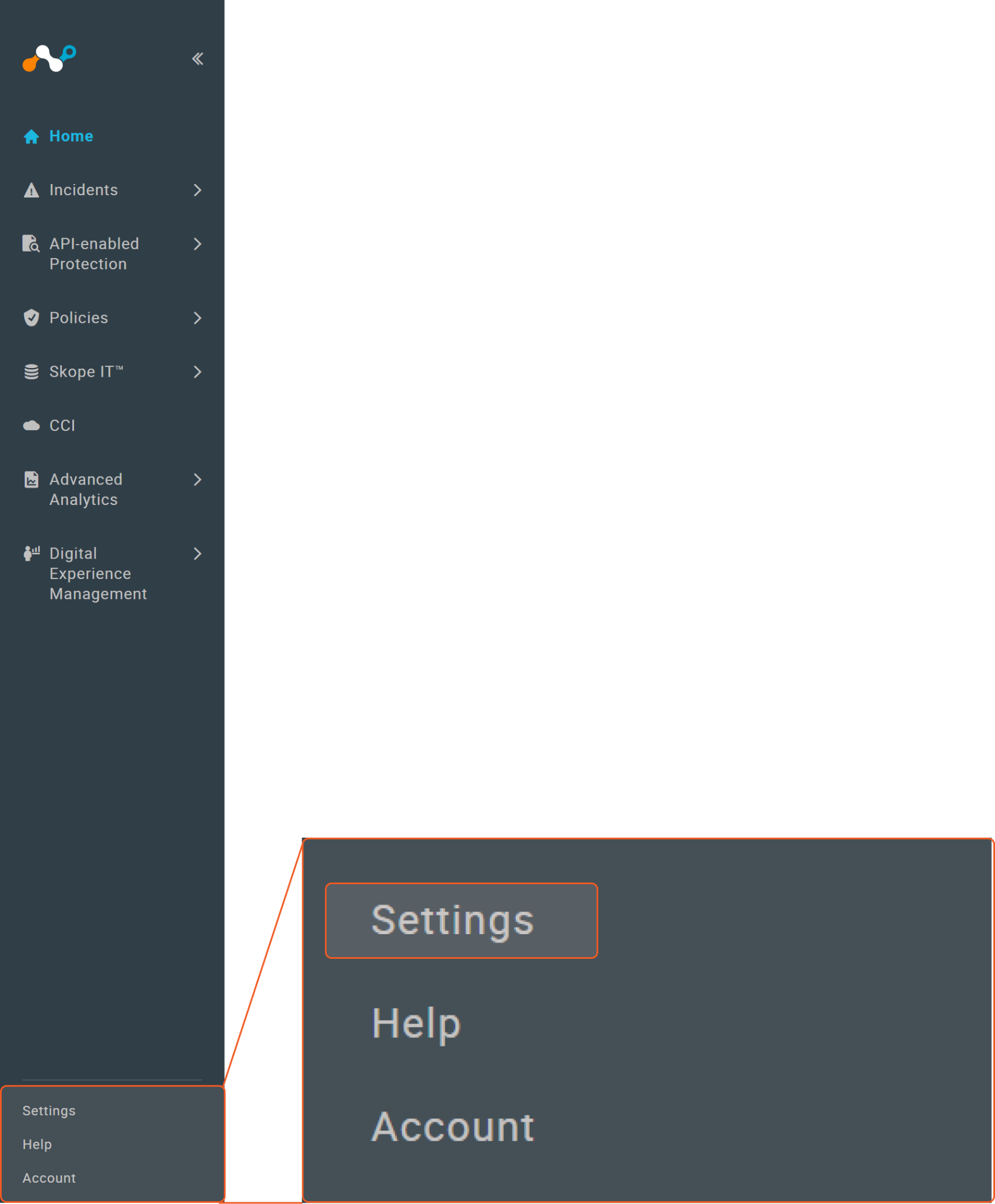

Find your app, then navigate to Settings.

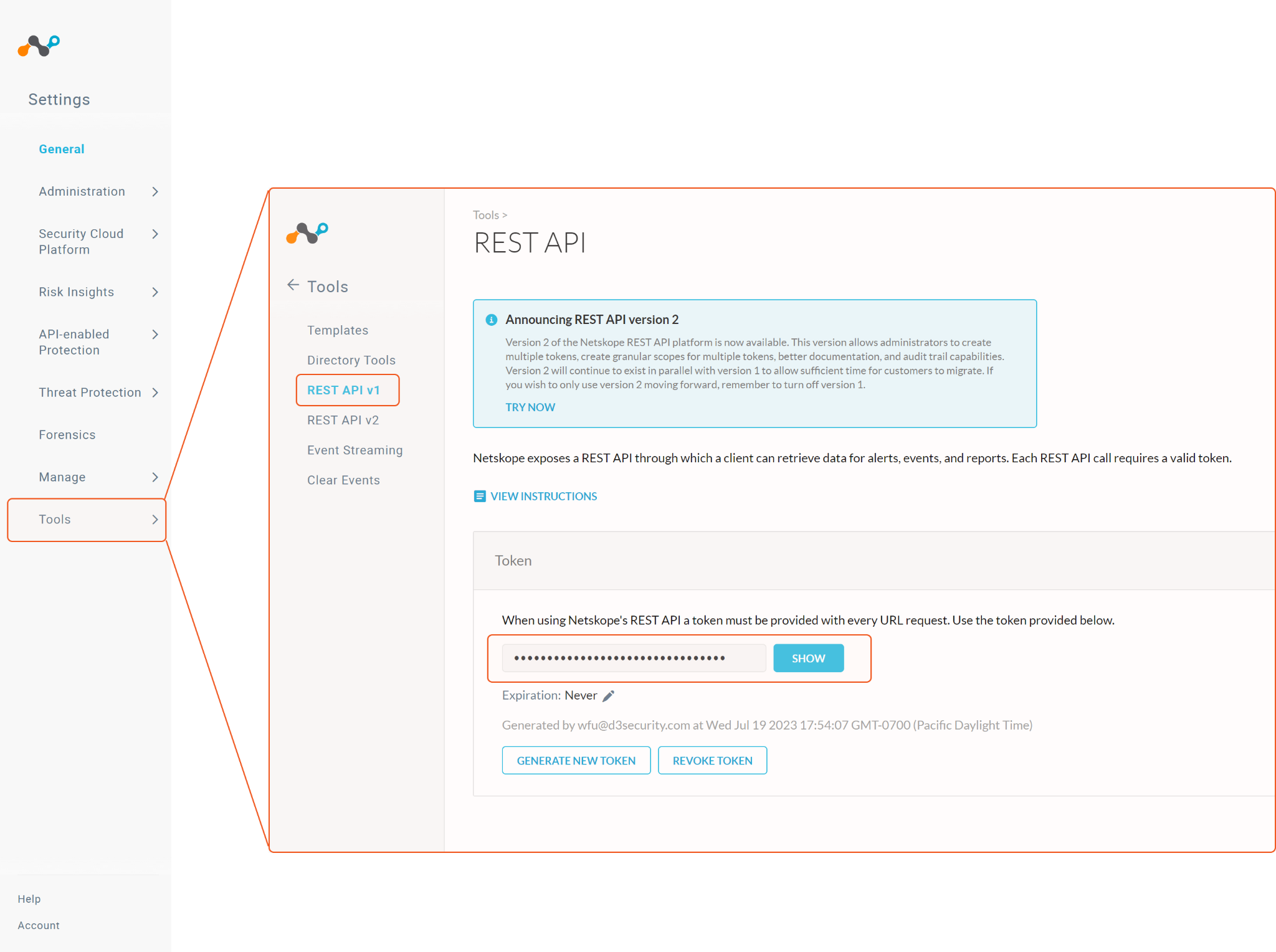

Then click Tools.
Click REST API v1, then choose to GENERATE NEW TOKEN or click SHOW to view the existing token.

Configuring D3 SOAR to Work with Netskope

Log in to D3 SOAR.

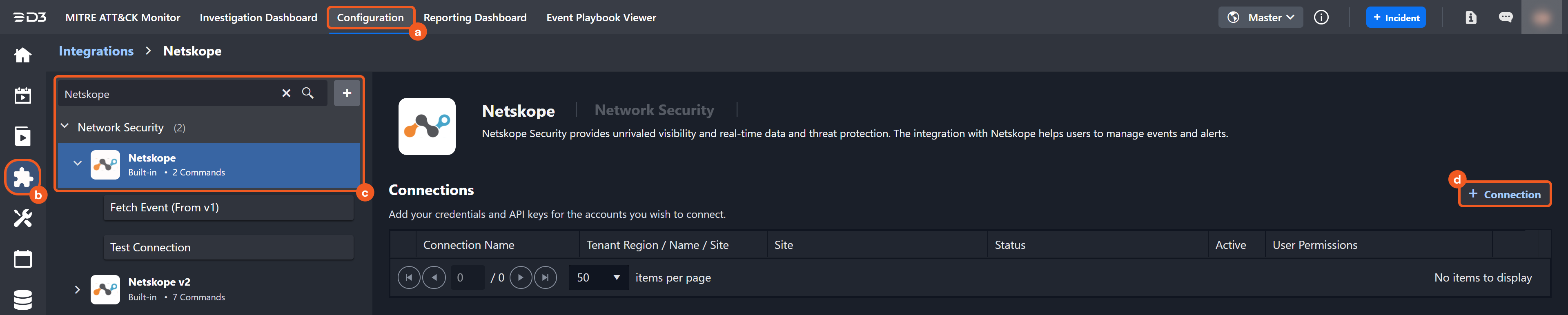

Find the Netskope integration.
1. Navigate to Configuration on the top header menu.
2. Click on the Integration icon on the left sidebar.
3. Type Netskope in the search box to find the integration, then click it to select it.
4. Click + New Connection, on the right side of the Connections section. A new connection window will appear.

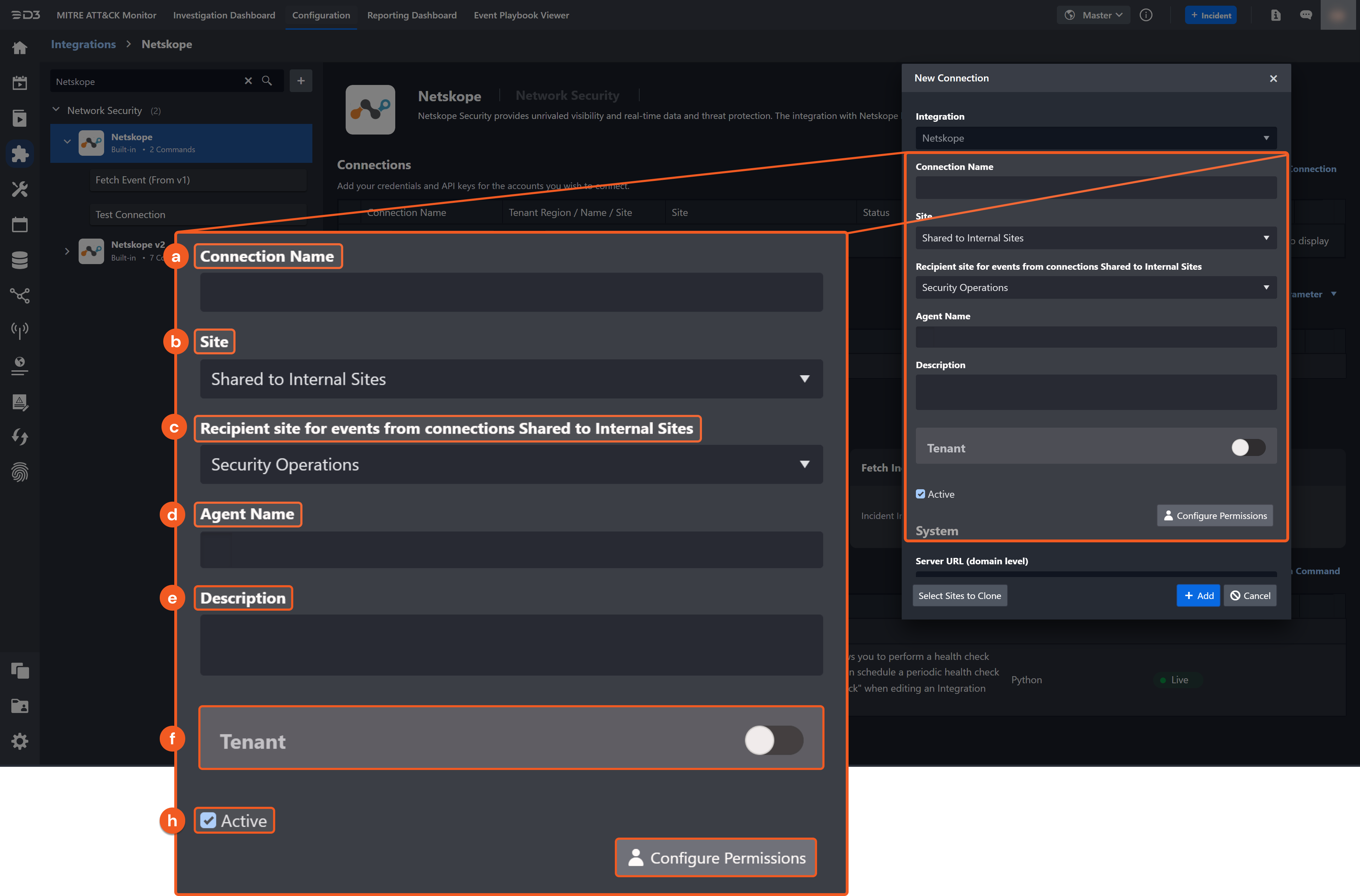

Configure the following fields to create a connection to Netskope.
1. Connection Name: The desired name for the connection.
2. Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
3. Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.
4. Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
5. Description (Optional): Add your desired description for the connection.
6. Tenant (Optional): When configuring the connection from a master tenant site, you have the option to choose the specific tenant sites you want to share the connection with. Once you enable this setting, you can filter and select the desired tenant sites from the dropdowns to share the connection.
7. Configure User Permissions: Defines which users have access to the connection.
8. Active: Check the tick box to ensure the connection is available for use.

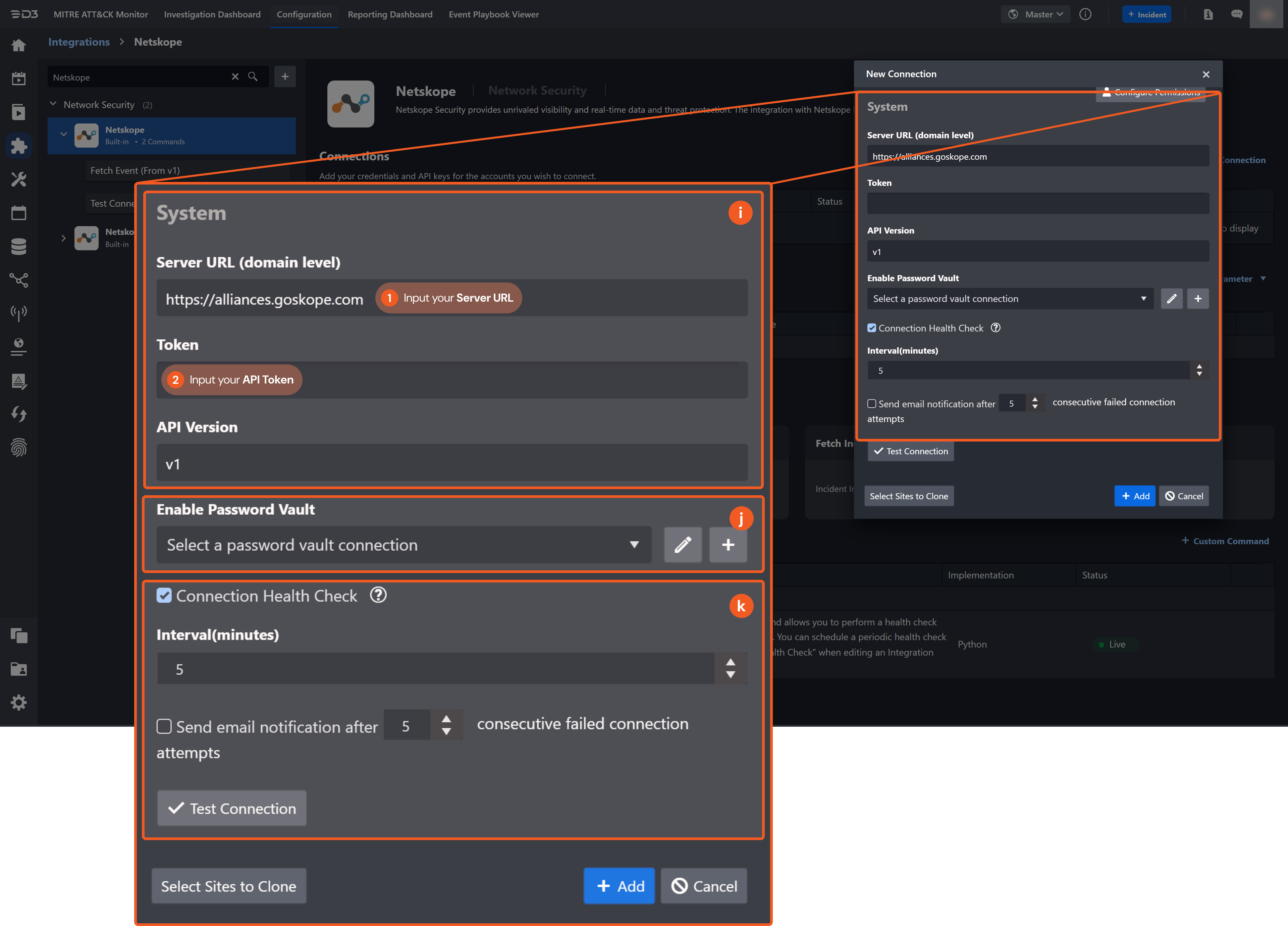

9. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
  1. Input your domain level Server URL.
  2. Copy the Token from the Netskope platform. Refer to step 5 of Configuring Netskope to Work with D3 SOAR.
  3. Input the API Version. The default value is v1.
10. Connection Health Check: Updates the connection status you have created. A connection health check is done by scheduling the Test Connection command of this integration. This can only be done when the connection is active.
  To set up a connection health check, check the Connection Health Check tickbox. You can customize the interval (minutes) for scheduling the health check. An email notification can be set up after a specified number of failed connection attempts.
11. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Please refer to the password vault connection guide if needed.

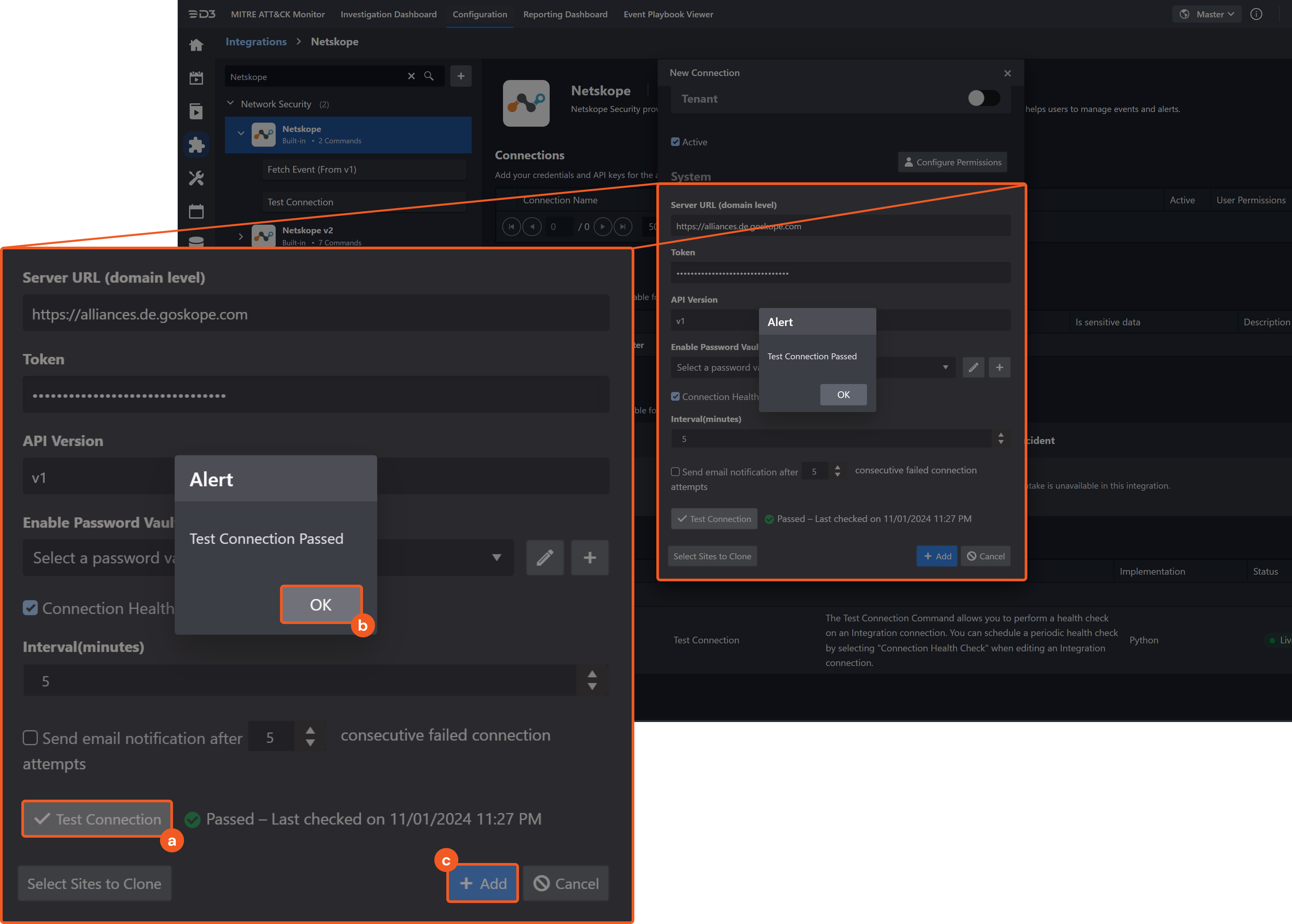

Test the connection.
1. Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green checkmark appear beside the Test Connection button. If the test connection fails, please check your connection parameters and try again.
2. Click OK to close the alert window.
3. Click + Add to create and add the configured connection.

Commands

Netskope includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.

Integration API Note

For more information about the Netskope API, please refer to the Netskope API reference.

Note for Time-related parameters

The input format of time-related parameters may vary based on your account settings. As a result, the sample data provided in our commands is different from what you see. To set your preferred time format, follow these steps:

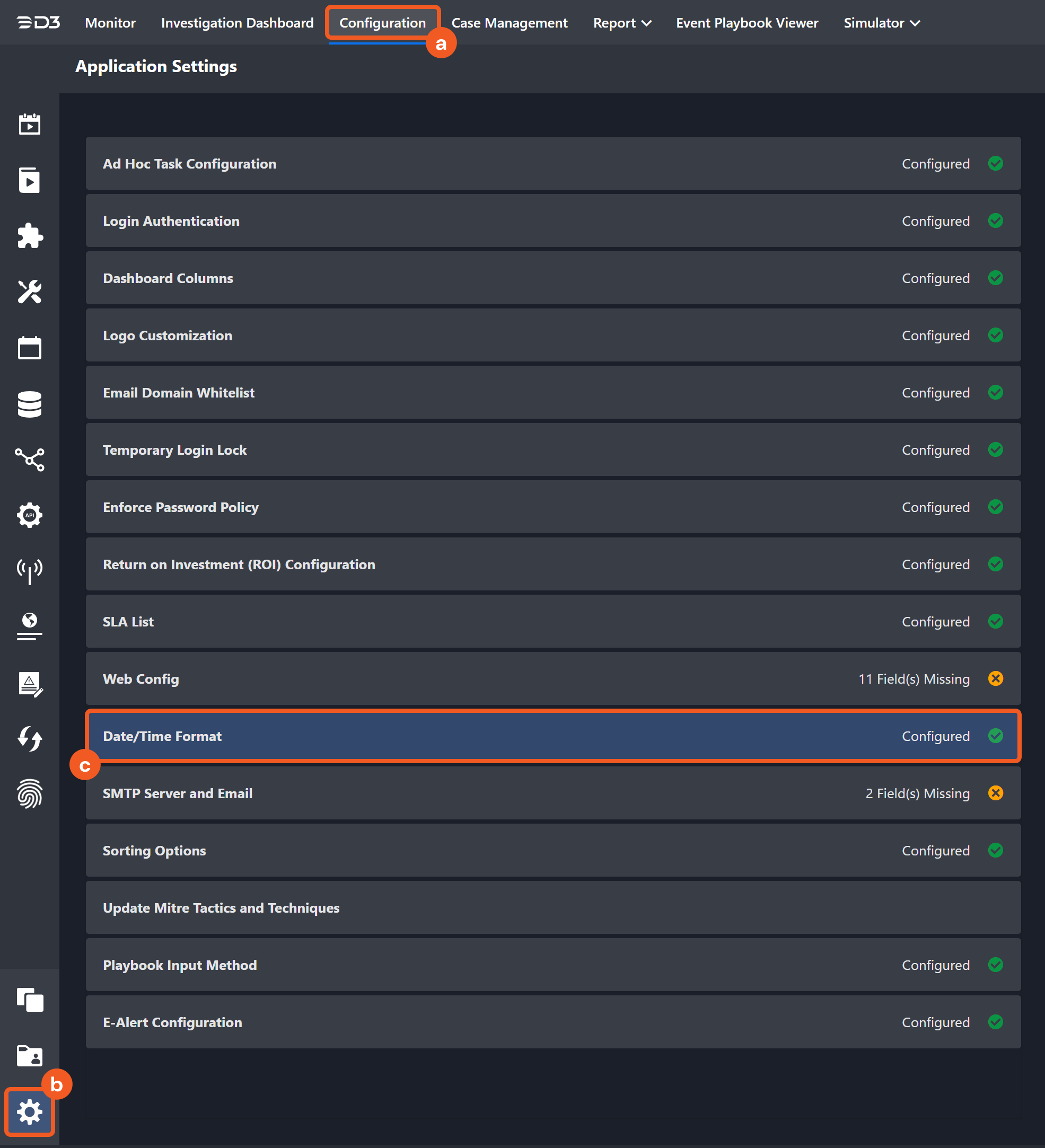

Navigate to Configuration > Application Settings. Select Date/Time Format.
Choose your desired date and time format.

After that, you will be able to view your preferred time format when configuring the DateTime input parameters for commands.

Fetch Event

Returns events or alerts generated by Netskope with the specified search condition.

Reader Note

Please ensure that the value of the Type parameter aligns with the Is Alert parameter. In other words, if the selected type pertains to an alert, the Is Alert parameter must be set to True. Otherwise, errors will be returned.

Input

Input Parameter	Required/Optional	Description	Example
Start Time	Required	The start time of the time range to fetch events or alerts after the specified timestamp, in UTC time.	2021-07-07 00:00
End Time	Required	The end time of the time range to fetch events or alerts before the specified timestamp, in UTC time.	2021-07-08 00:00
Number of Event(s) Fetched	Optional	The maximum number of events or alerts to return. The default value is 50.	50
Search Condition	Optional	The query string defining the search condition in the following format: Field Operator 'Value'. The Value should be enclosed in single quotation marks (e.g., app eq 'Google Gmail'). For detailed syntax information, please refer to the Netskope API documentation available at: https://alliances.goskope.com/docs/Netskope_Help/en/get-alerts-data.html	app eq 'Google Gmail'
Type	Required	The desired alert or event type for filtering. The available event types include Page, Application, Audit, Infrastructure, and Network. For alerts, choose from the following valid options: Anomaly, Compromised Credential, Policy, Legal Hold, Malsite, Malware, DLP (Data Loss Prevention), Security Assessment, Watchlist, Quarantine, and Remediation.	Page
Is Alert	Optional	The option to indicate whether the command fetches alerts. The available options are True or False, with the default setting as False.	False

Output

Raw Data

The primary response data from the API request.

D3 customizes the returned raw data by adding "isAlert" and "utcTime" fields.

SAMPLE DATA

JSON

{
  "status": "success",
  "msg": "",
  "data": [
      {
          "access_method": "API Connector",
          "type": "nspolicy",
          "category": "IaaS/PaaS",
          "alert": "yes",
          "alert_type": "Security Assessment",
          "activity": "Introspection Scan",
          "action": "alert",
          "app": "Google Cloud Platform",
          "instance_id": "***@example.com",
          "region_id": "us-central1",
          "region_name": "Council Bluffs, Iowa, USA",
          "sa_rule_id": -*****,
          "sa_rule_name": "Remote access: Ensure \"Block Project-wide SSH keys\" enabled for VM instances",
          "compliance_standards": [
              {
                  "id": -*****,
                  "standard": "CSA-CCM-3.0.1",
                  "section": "IAM",
                  "control": "04",
                  "reference_url": "https://cloudsecurityalliance.org/research/cloud-controls-matrix/",
                  "description": "Identity & Access Management: Policies and Procedures | Policies and procedures shall be established to store and manage identity information about every person who accesses IT infrastructure and to determine their level of access. Policies shall also be developed to control access to network resources based on user identity."
              }
          ],
          "asset_id": "projects/mateo-burillo-ns/zones/us-central1-a/instances/gke-promhub-default-pool-*****-*****",
          "resource_group": null,
          "sa_rule_severity": "High",
          "resource_category": "Compute",
          "object": "gke-promhub-default-pool-*****-*****",
          "object_type": "Compute Instance",
          "account_id": "mateo-burillo-ns",
          "account_name": "mateo-burillo-ns",
          "iaas_asset_tags": [
              {
                  "name": "goog-gke-node",
                  "value": ""
              }
          ],
          "asset_object_id": "*****",
          "iaas_remediated": "false",
          "user": "***@example.com",
          "timestamp": 1628551373,
          "policy_id": 1,
          "policy": "Sysdig GCP Asesment",
          "sa_profile_id": -*****,
          "sa_profile_name": "NIST CSF v1.1 (GCP)",
          "alert_name": "Remote access: Ensure \"Block Project-wide SSH keys\" enabled for VM instances",
          "os": "unknown",
          "device": "other",
          "browser": "unknown",
          "count": 1,
          "organization_unit": "",
          "userkey": "***@example.com",
          "ur_normalized": "***@example.com",
          "site": "Google Cloud Platform",
          "traffic_type": "CloudApp",
          "ccl": "excellent",
          "acked": "false",
          "_insertion_epoch_timestamp": 1628551674,
          "_id": "d7*****94",
          "cci": 93,
          "sa_rule_remediation": "\n\nUsing Console:\n1. Go to the VM instances page using https://console.cloud.google.com/compute/instances?. It will list all the instances from project\n2. Click on the name of the Impacted instance\n3. Click Edit in the toolbar\n4. Under SSH Keys, go to the Block project-wide SSH keys checkbox\n5. To block users with project-wide SSH keys from connecting to this instance, select\n      Block project-wide SSH keys\n6. click Save at the bottom of the page\n7. Repeat steps for every impacted Instance\n\nvia CLI gcloud:\nBlock project-wide public SSH keys, set the metadata value to TRUE:\ngcloud compute instances add-metadata [INSTANCE_NAME] --metadata block- project-ssh-keys=TRUE\n\nwhere [INSTANCE_NAME] is the name of the instance that you want to block project-wide public SSH keys.\n\nImpact:\nUsers already having Project-wide ssh key pairs and using third party SSH clients will lose access to the impacted Instances. For Project users using gcloud or GCP Console based SSH option, no manual key creation and distribution is required and will be handled by GCE (Google compute Engine) itself. To access Instance using third party SSH clients Instance specific SSH key pairs needs to be created and distributed to the required users.\n\nDefault Value:\nBy Default Block Project-wide SSH keys is not enabled.\n\n\n",
          "appcategory": "IaaS/PaaS",
          "isAlert": true,
          "utcTime": "2021-08-09T23:22:53Z"
      }
  ]
}

Context Data

The data extracted from Raw Data converted into JSON format. Context Data may be identical to Raw Data in some cases.

D3 customizes the Context Data by extracting the data from path $.data in API returned JSON.

It is recommended to refer to the Raw Data instead of Context Data, since it contains the complete API response data. D3 will deprecate Context Data in the future, and playbook tasks using Context Data will be replaced with Raw Data.

SAMPLE DATA

CODE

[
      {
          "access_method": "API Connector",
          "type": "nspolicy",
          "category": "IaaS/PaaS",
          "alert": "yes",
          "alert_type": "Security Assessment",
          "activity": "Introspection Scan",
          "action": "alert",
          "app": "Google Cloud Platform",
          "instance_id": "***@example.com",
          "region_id": "us-central1",
          "region_name": "Council Bluffs, Iowa, USA",
          "sa_rule_id": -*****,
          "sa_rule_name": "Remote access: Ensure \"Block Project-wide SSH keys\" enabled for VM instances",
          "compliance_standards": [
              {
                  "id": -*****,
                  "standard": "CSA-CCM-3.0.1",
                  "section": "IAM",
                  "control": "04",
                  "reference_url": "https://cloudsecurityalliance.org/research/cloud-controls-matrix/",
                  "description": "Identity & Access Management: Policies and Procedures | Policies and procedures shall be established to store and manage identity information about every person who accesses IT infrastructure and to determine their level of access. Policies shall also be developed to control access to network resources based on user identity."
              }
          ],
          "asset_id": "projects/mateo-burillo-ns/zones/us-central1-a/instances/gke-promhub-default-pool-*****-*****",
          "resource_group": null,
          "sa_rule_severity": "High",
          "resource_category": "Compute",
          "object": "gke-promhub-default-pool-*****-*****",
          "object_type": "Compute Instance",
          "account_id": "mateo-burillo-ns",
          "account_name": "mateo-burillo-ns",
          "iaas_asset_tags": [
              {
                  "name": "goog-gke-node",
                  "value": ""
              }
          ],
          "asset_object_id": "*****",
          "iaas_remediated": "false",
          "user": "***@example.com",
          "timestamp": 1628551373,
          "policy_id": 1,
          "policy": "Sysdig GCP Asesment",
          "sa_profile_id": -*****,
          "sa_profile_name": "NIST CSF v1.1 (GCP)",
          "alert_name": "Remote access: Ensure \"Block Project-wide SSH keys\" enabled for VM instances",
          "os": "unknown",
          "device": "other",
          "browser": "unknown",
          "count": 1,
          "organization_unit": "",
          "userkey": "***@example.com",
          "ur_normalized": "***@example.com",
          "site": "Google Cloud Platform",
          "traffic_type": "CloudApp",
          "ccl": "excellent",
          "acked": "false",
          "_insertion_epoch_timestamp": 1628551674,
          "_id": "d7*****94",
          "cci": 93,
          "sa_rule_remediation": "\n\nUsing Console:\n1. Go to the VM instances page using https://console.cloud.google.com/compute/instances?. It will list all the instances from project\n2. Click on the name of the Impacted instance\n3. Click Edit in the toolbar\n4. Under SSH Keys, go to the Block project-wide SSH keys checkbox\n5. To block users with project-wide SSH keys from connecting to this instance, select\n      Block project-wide SSH keys\n6. click Save at the bottom of the page\n7. Repeat steps for every impacted Instance\n\nvia CLI gcloud:\nBlock project-wide public SSH keys, set the metadata value to TRUE:\ngcloud compute instances add-metadata [INSTANCE_NAME] --metadata block- project-ssh-keys=TRUE\n\nwhere [INSTANCE_NAME] is the name of the instance that you want to block project-wide public SSH keys.\n\nImpact:\nUsers already having Project-wide ssh key pairs and using third party SSH clients will lose access to the impacted Instances. For Project users using gcloud or GCP Console based SSH option, no manual key creation and distribution is required and will be handled by GCE (Google compute Engine) itself. To access Instance using third party SSH clients Instance specific SSH key pairs needs to be created and distributed to the required users.\n\nDefault Value:\nBy Default Block Project-wide SSH keys is not enabled.\n\n\n",
          "appcategory": "IaaS/PaaS",
          "isAlert": true,
          "utcTime": "2021-08-09T23:22:53Z"
      }
]

Key Fields

Common cyber security indicators such as unique IDs, file hash values, CVE numbers, IP addresses, etc., will be extracted from Raw Data as Key Fields.
The system stores these key fields in the path $.[playbookTask].outputData. You can use these key-value pairs as data points for playbook task inputs.

SAMPLE DATA

CODE

{
    "IDs": "\"[\\\"*****\\\"]\""
}

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

You can view more details about an error in the Error tab.

Return Data can be passed down directly to a subsequent command or used to create conditional tasks in playbooks.

SAMPLE DATA

CODE

Successful

Result

Provides a brief summary of outputs in an HTML formatted table.

SAMPLE DATA

ACCESS_METHOD	TYPE	CATEGORY	ALERT	ALERT_TYPE	ACTIVITY	ACTION	APP	INSTANCE_ID	REGION_ID	REGION_NAME	SA_RULE_ID	SA_RULE_NAME	COMPLIANCE_STANDARDS	ASSET_ID	RESOURCE_GROUP	SA_RULE_SEVERITY	RESOURCE_CATEGORY	OBJECT	OBJECT_TYPE	ACCOUNT_ID	ACCOUNT_NAME	IAAS_ASSET_TAGS	ASSET_OBJECT_ID	IAAS_REMEDIATED	USER	TIMESTAMP	POLICY_ID	POLICY	SA_PROFILE_ID	SA_PROFILE_NAME	ALERT_NAME	OS	DEVICE	BROWSER	COUNT	ORGANIZATION_UNIT	USERKEY	UR_NORMALIZED	SITE	TRAFFIC_TYPE	CCL	ACKED	_INSERTION_EPOCH_TIMESTAMP	_ID	CCI	SA_RULE_REMEDIATION	APPCATEGORY	ISALERT	UTCTIME
API Connector	nspolicy	IaaS/PaaS	yes	Security Assessment	Introspection Scan	alert	Google Cloud Platform	***@example.com	us-***	Council Bluffs, Iowa, USA	-***	Remote access: Ensure ";Block Project-wide SSH keys"; enabled for VM instances		projects/mateo-burillo-ns/zones/us-central1-a/instances/gke-promhub-default-pool-***-chcr		High	Compute	gke-promhub-default-pool-***-chcr	Compute Instance	mateo-burillo-ns	mateo-burillo-ns	[ { ";name";: ";goog-gke-node";, ";value";: ";"; } ]	***	false	test@example.com	1628551373	1	Sysdig GCP Asesment	-***	NIST CSF v1.1 (GCP)	Remote access: Ensure ";Block Project-wide SSH keys"; enabled for VM instances	unknown	other	unknown	1		test@example.com	test@example.com	Google Cloud Platform	CloudApp	excellent	false	1628551674	d*****45a94	93		IaaS/PaaS	True	8/9/2021 11:22:53 PM

Fetch Event Field Mapping

Please note that Fetch Event commands require event field mapping. Field mapping plays a key role in the data normalization process part of the event pipeline. Field mapping converts the original data fields from the different providers to the D3 fields which are standardized by the D3 Model. Please refer to Event and Incident Intake Field Mapping for details.

If you require a custom field mapping, click + Add Field to add a custom field mapping. You may also remove built-in field mappings by clicking x. Please note that two underscore characters will automatically prefix the defined Field Name as the System Name for a custom field mapping. Additionally, if an input Field Name contains any spaces, they will automatically be replaced with underscores for the corresponding System Name.

As a system integration, the Netskope integration has some pre-configured field mappings for default field mapping.

Default Event Source
The Default Event Source is the default set of field mappings that are applied when this fetch event command is executed. For out-of-the-box integrations, you will find a set of field mapping provided by the system. Default event source provides field mappings for common fields from fetched events . The default event source has a “Main Event JSON Path” (i.e., $.data) that is used to extract a batch of events from the response raw data. Click Edit Event Source to view the “Main Event JSON Path”.

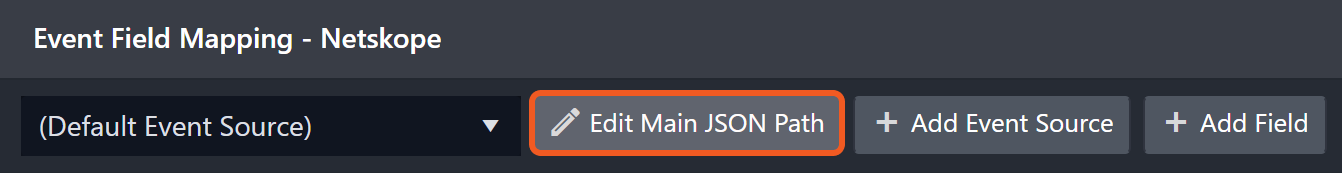

- Main Event JSON Path: $.data
  The Main Event JSON Path determines the root path where the system starts parsing raw response data into D3 event data. The JSON path begins with $, representing the root element. The path is formed by appending a sequence of child elements to $, each separated by a dot (.). Square brackets with nested quotation marks ([‘...’]) should be used to separate child elements in JSON arrays.
  For example, the root node of a JSON Path is data. The child node denoting the Unique Event Key field would be _id. Putting it together, the JSON Path expression to extract the Unique Event Key is $.data._id.

The pre-configured field mappings are detailed below:

Field Name	Source Field
Unique Event Key	._id
Event Type	.type
Alert Timestamp	.timestamp
Username	.user
Source IP address	.srcip
Destination IP address	.dstip
Device IP address	.userip
App	.app
Event category	.category
Aggregated / Correlated Event count	.count
URL	.url
Host FQDN	.domain
Hostname	.hostname
SourceTime	.src_time
Severity	.severity
Operating system	.os
File Hash MD5	.md5
Filesize	.file_size
object	.object
object category	.object_type
Destination port	.dstport
CloudConfidenceLevel	.ccl
CloudConfidenceIndex	.cci
SourceCountry	.src_country
DestinationCountry	.dst_country
SourceRegion	.src_region
DestinationRegion	.dst_region
EpochTimestamp	._insertion_epoch_timestamp
Browser	.browser
SourceLocation	.src_location
DestinationLocation	.dst_location
Activity	.activity
Start Time	.utcTime

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Fetch Event failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Netskope portal. Refer to the HTTP Status Code Registry for details.	Status Code: 400.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: The type \"Page\" of the alerts to filter by is not valid.

Error Sample Data

Fetch Event failed.

Status Code: 400.

Message: The type \"Page\" of the alerts to filter by is not valid.

Test Connection

Allows you to perform a health check on an integration connection. You can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration

The API returned an error message

No response from the API

You can view more details about an error in the Error tab.

SAMPLE DATA

CODE

Successful

Error Handling

If the Return Data is Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Test Connection failed. Failed to check the connector.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Netskope portal. Refer to the HTTP Status Code Registry for details.	Status Code: 403.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: no Route matched with those values.

Error Sample Data

Test Connection failed. Failed to check the connector.

Status Code: 403.

Message: no Route matched with those values.
