Microsoft 365 Defender (Email & collaboration)
Overview
Microsoft 365 Defender, part of Microsoft's XDR solution, leverages the Microsoft 365 security portfolio to automatically analyze threat data across domains, building a complete picture of each attack in a single dashboard. This integration allows organizations to fetch security incidents, update security incidents and run advanced hunting queries to inspect unusual activity, detect possible threats, and even respond to attacks.
D3's integration for Microsoft 365 Defender (Email & collaboration) is using Exchange Online PowerShell to provide the operation on the Tenant Allow/Block list, which allows the user to Allow/Block email addresses, domains, URLs, and files.
D3 SOAR is providing REST operations to function with Microsoft 365 Defender (Email & collaboration).
Microsoft 365 Defender (Email & collaboration) is available for use in:
Connection
To connect to Microsoft 365 Defender (Email & collaboration) from D3 SOAR, please follow this part to collect the required information below:
Parameter | Description | Example |
Username | The username to connect Microsoft Office 365 | ***@***.onmicrosoft.com |
Password | The password to connect Microsoft Office 365 | l8J*******************hr1 |
Permission Requirements
Each endpoint in the Microsoft 365 Defender (Email & collaboration) API requires a certain permission scope. The following are required scopes for the commands in this integration:
Command | Required Permission |
Add Items To Blocklist | Security Administrator |
Block File Hashes | Security Administrator |
Block Senders | Security Administrator |
List Items In Blocklist | Global Reader + Security Reader |
Remove Items From Blocklist | Global Reader + Security Reader |
Test Connection | Security Administrator |

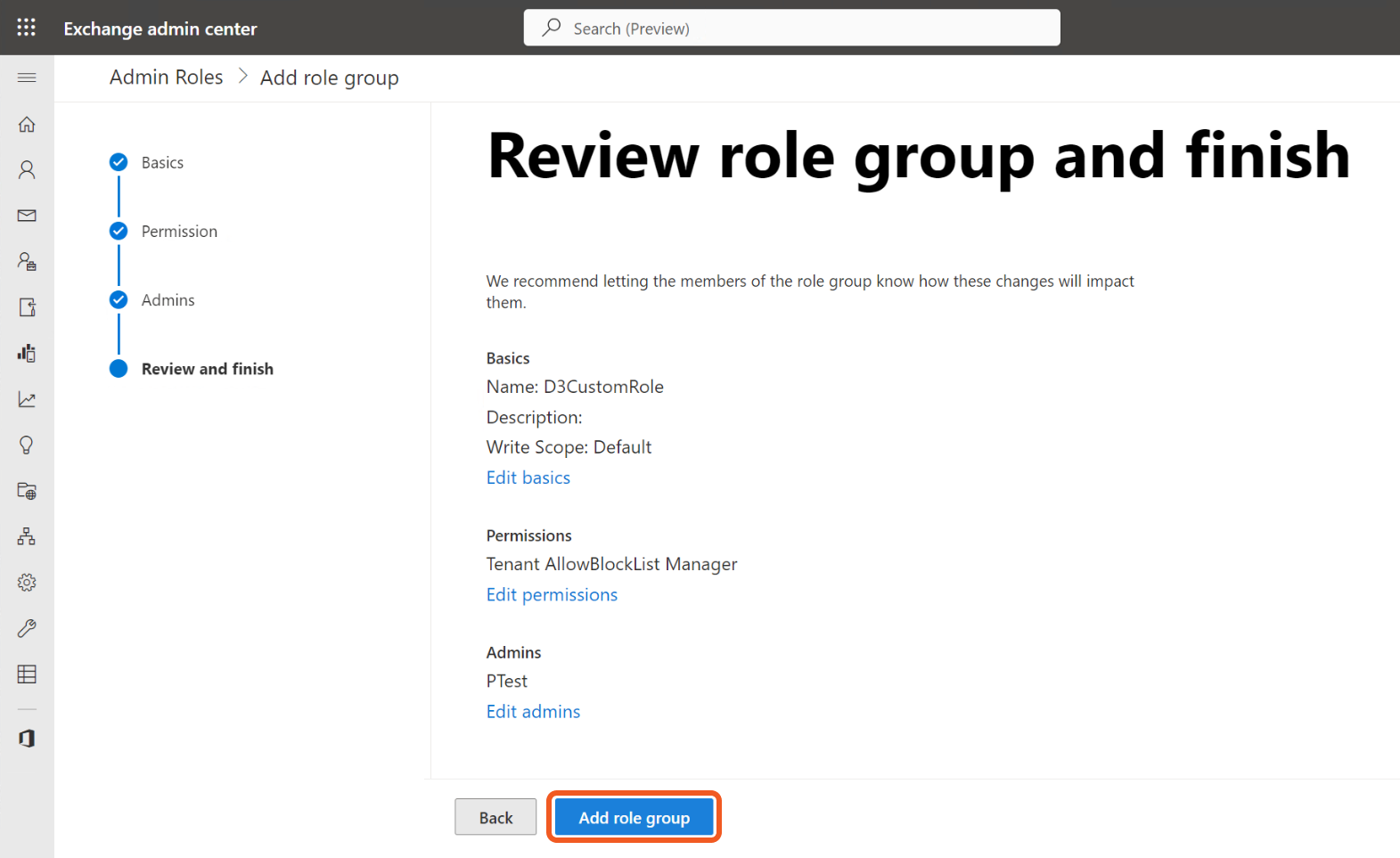

As Microsoft 365 Defender (Email & collaboration) is using role-based access control (RBAC), the D3 connector will be generated based on a specific user account and the application. Therefore, the command permissions are inherited from the user account’s role. Users need to configure their user profile from the Microsoft 365 Defender (Email & collaboration) console for each command in this integration.
Configuring Microsoft 365 Defender (Email & collaboration) to Work with D3 SOAR
Reader Note
Before proceeding with the integration, ensure that the pwsh library is installed in your environment, be it on Windows or a Linux container.
Navigate to the Azure portal and log in with your credentials.

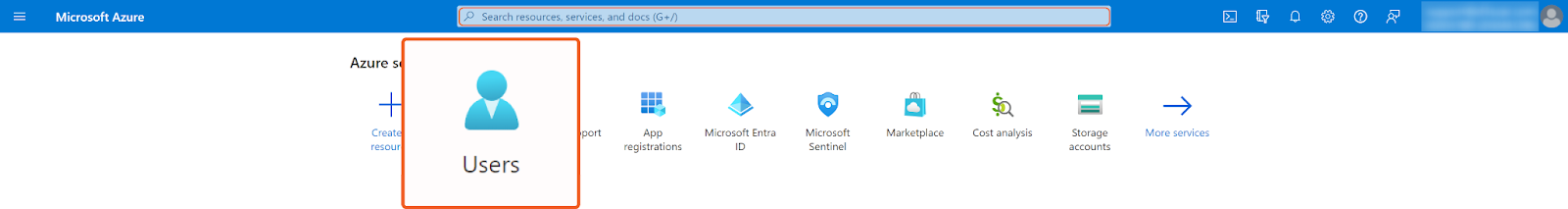

Click on Users or use the search bar at the top to search for "Users."

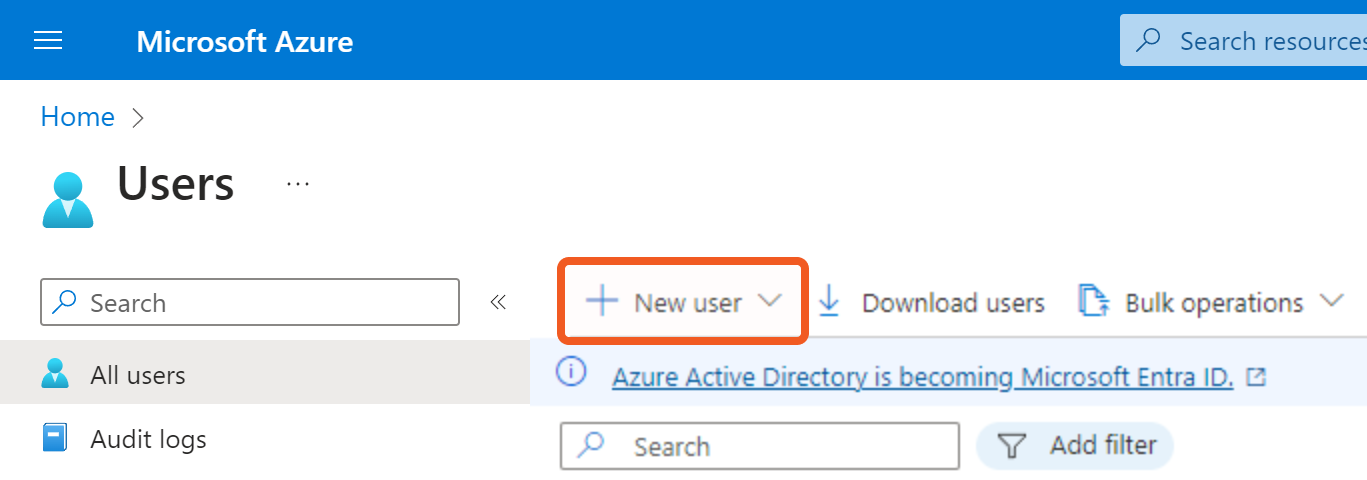

To use an existing user, locate the desired user from the list. To create a new user, click on + New User at the top of the page. In this example, we'll create and use a user named "D3 Support."

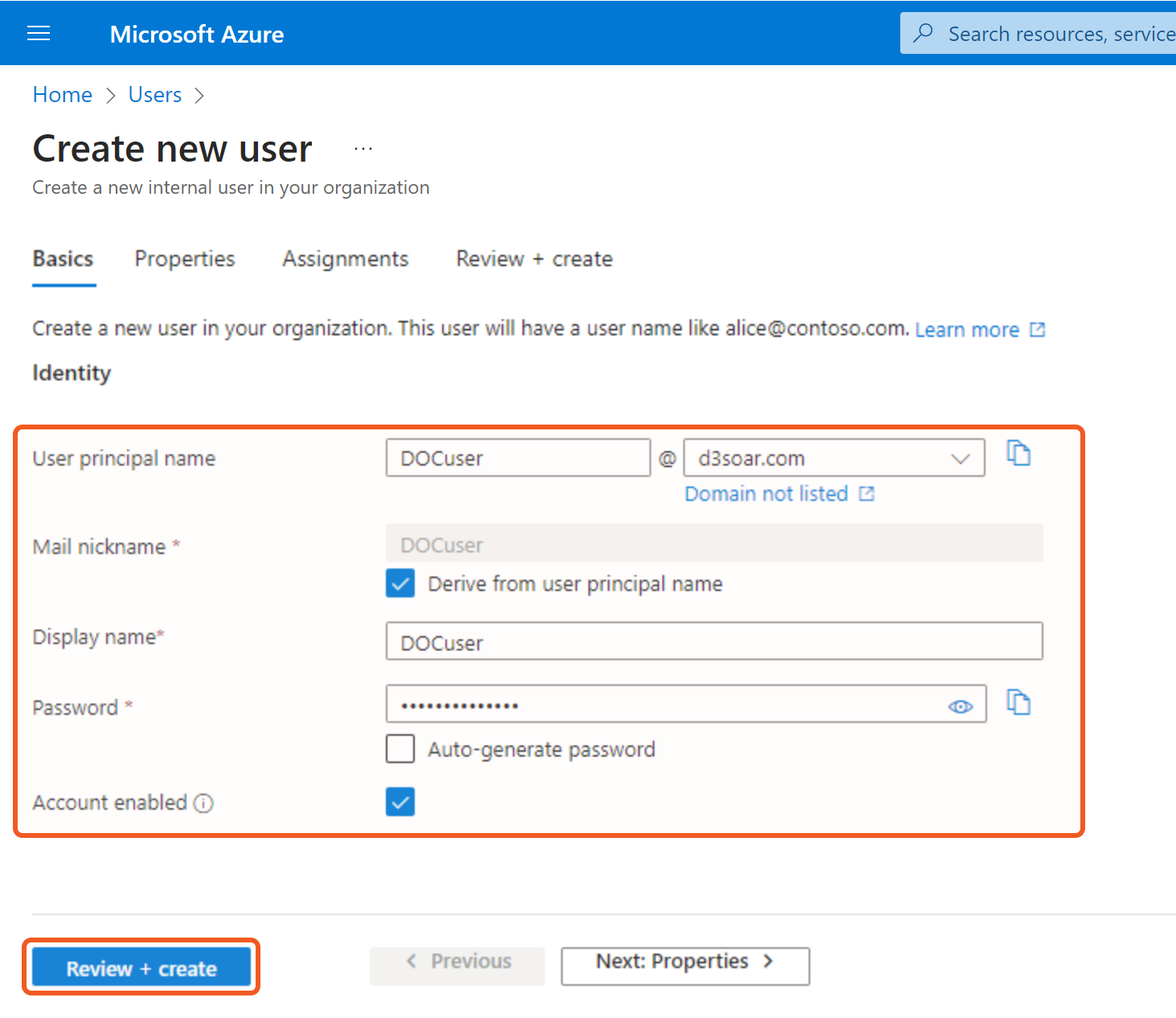

If you're creating a new user, complete the required fields and click on Review + create.

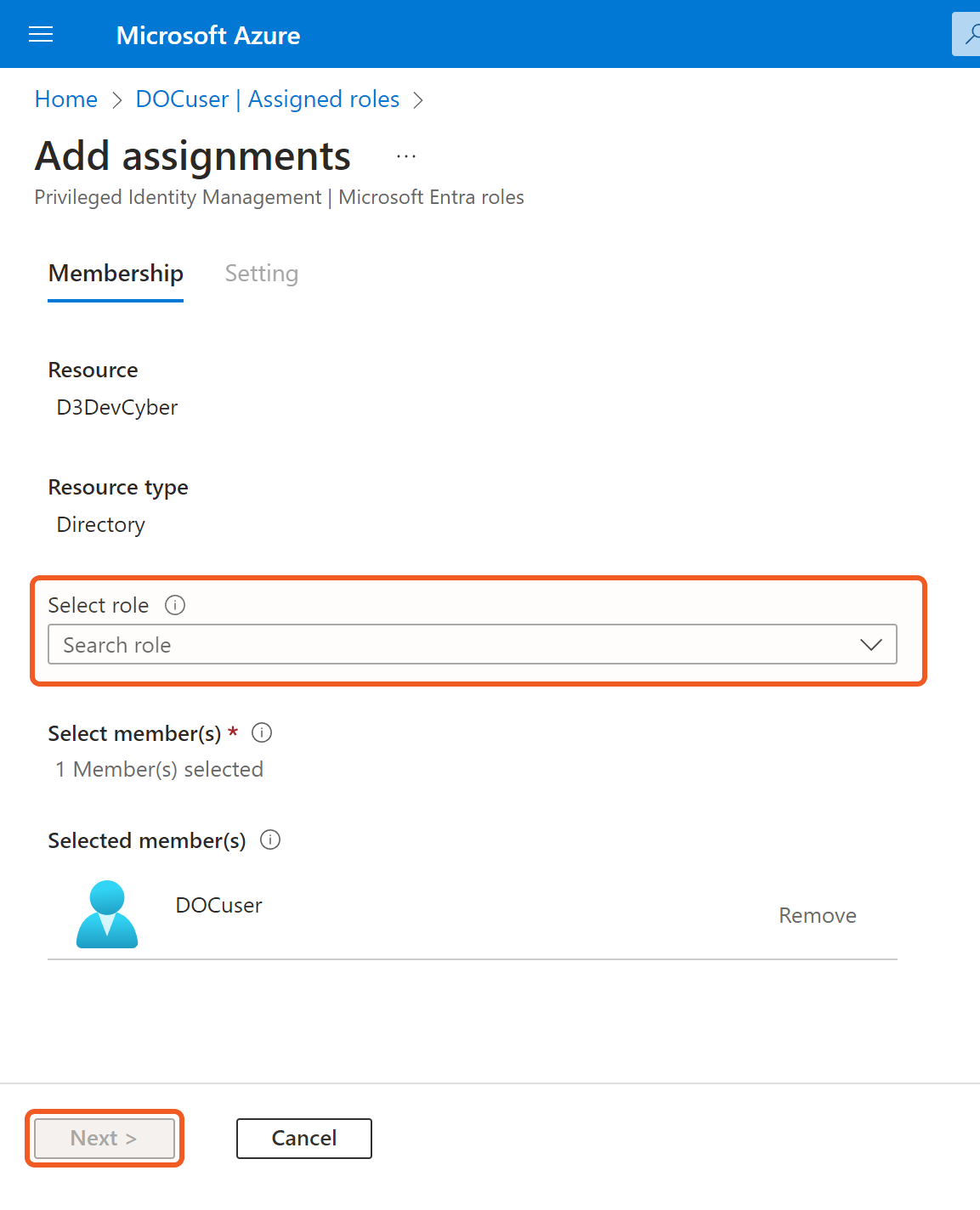

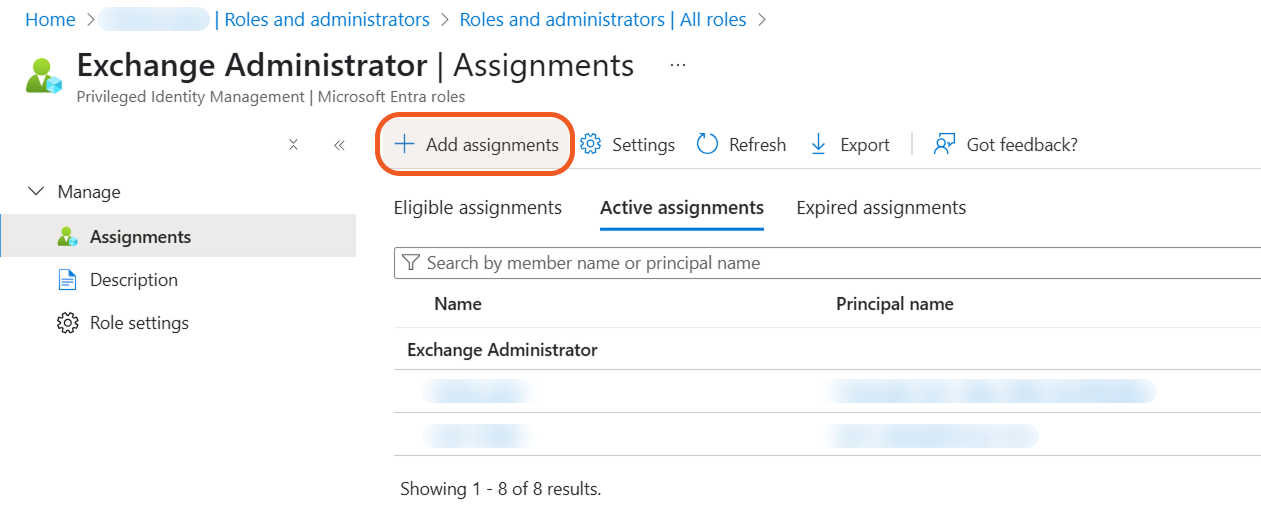

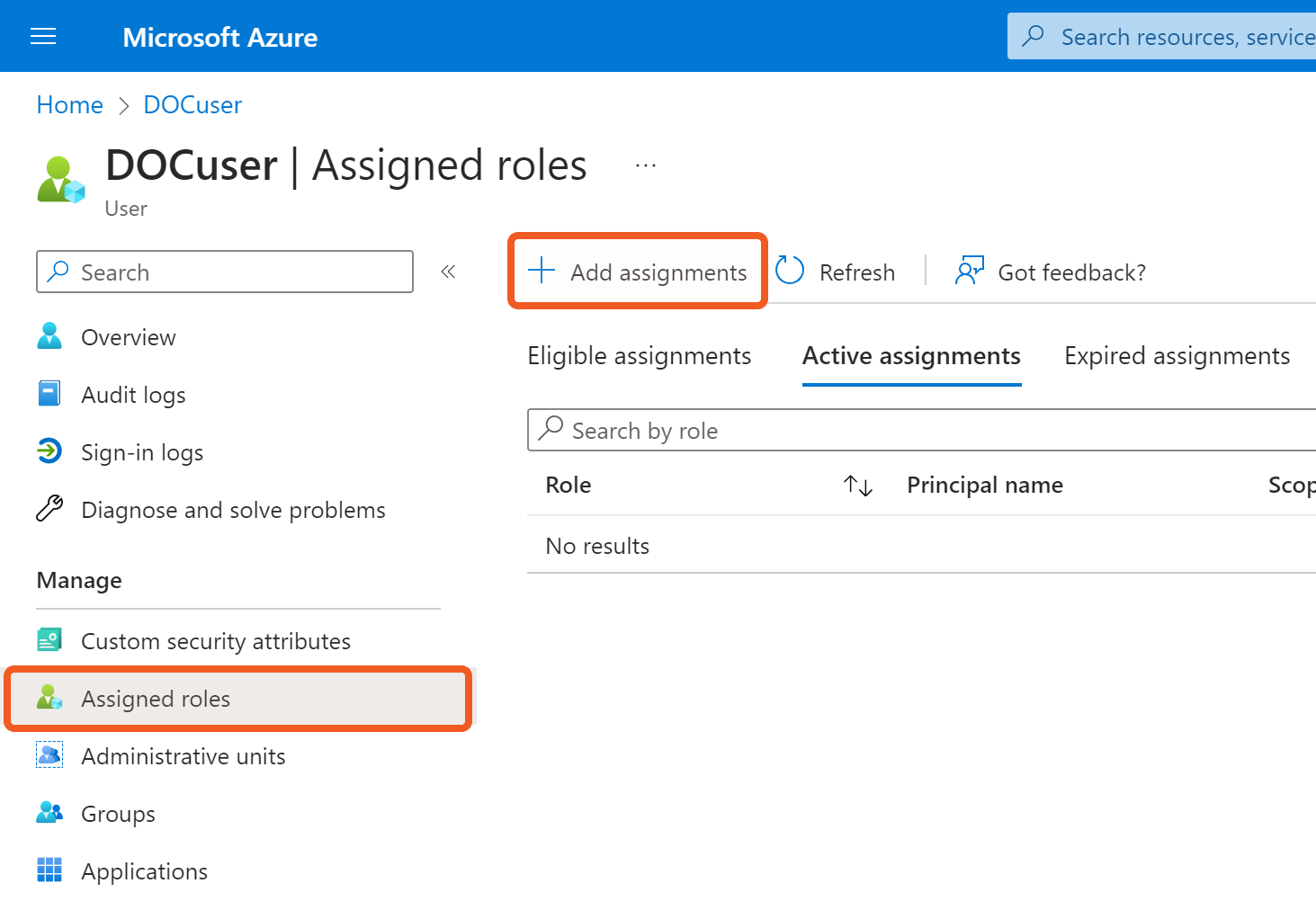

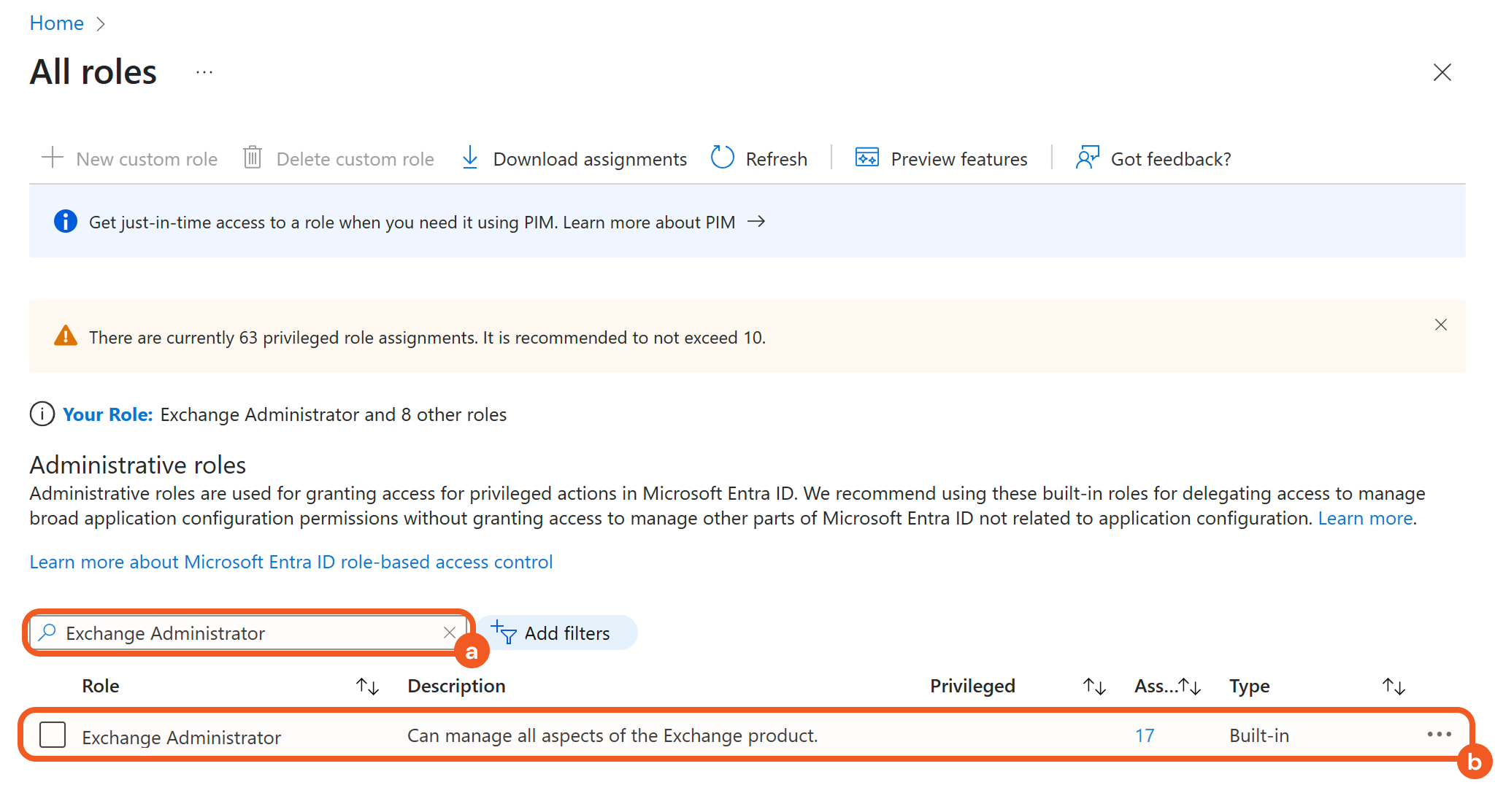

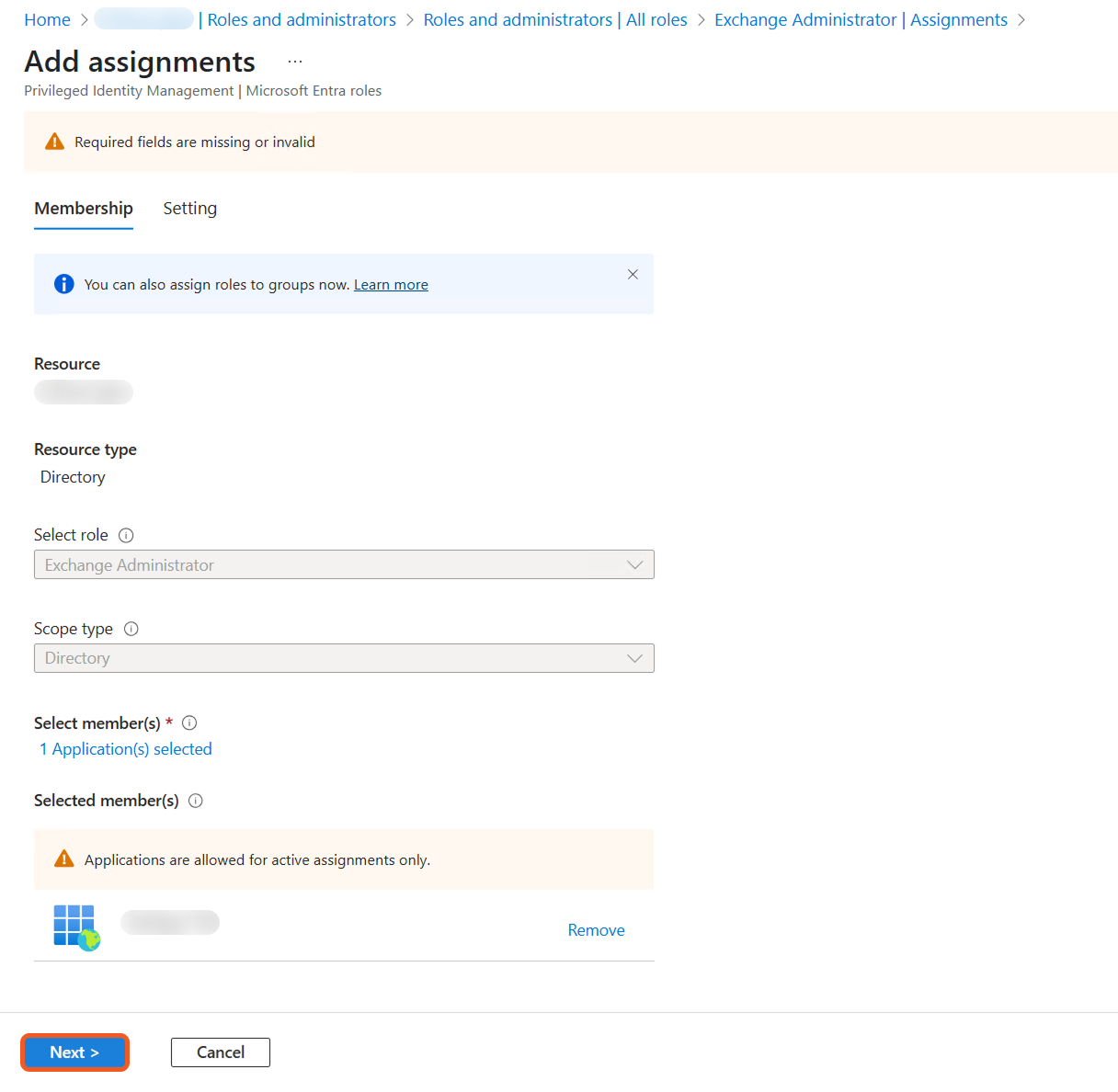

Once the user is selected or created, navigate to Assigned roles and click on + Add assignments.

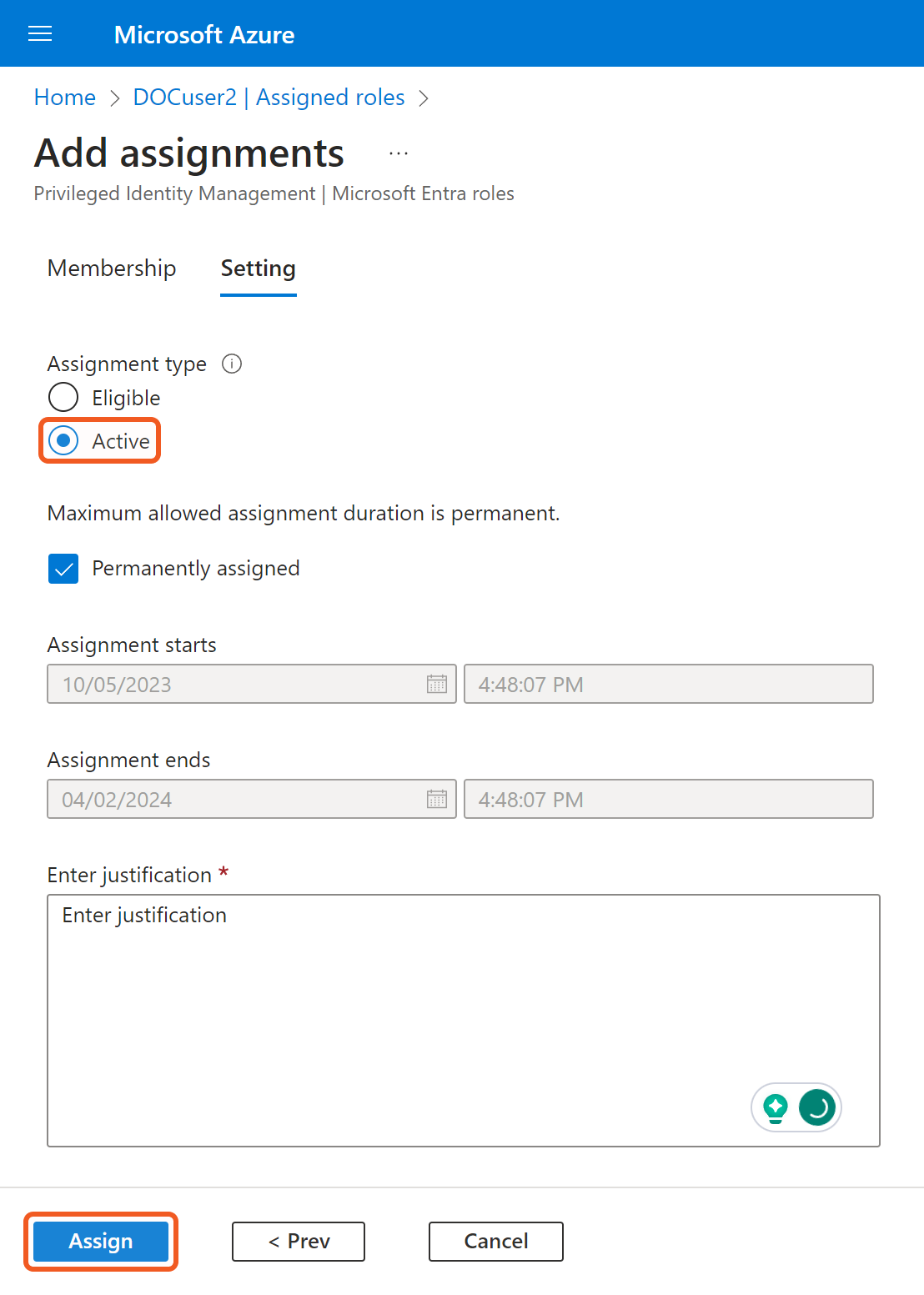

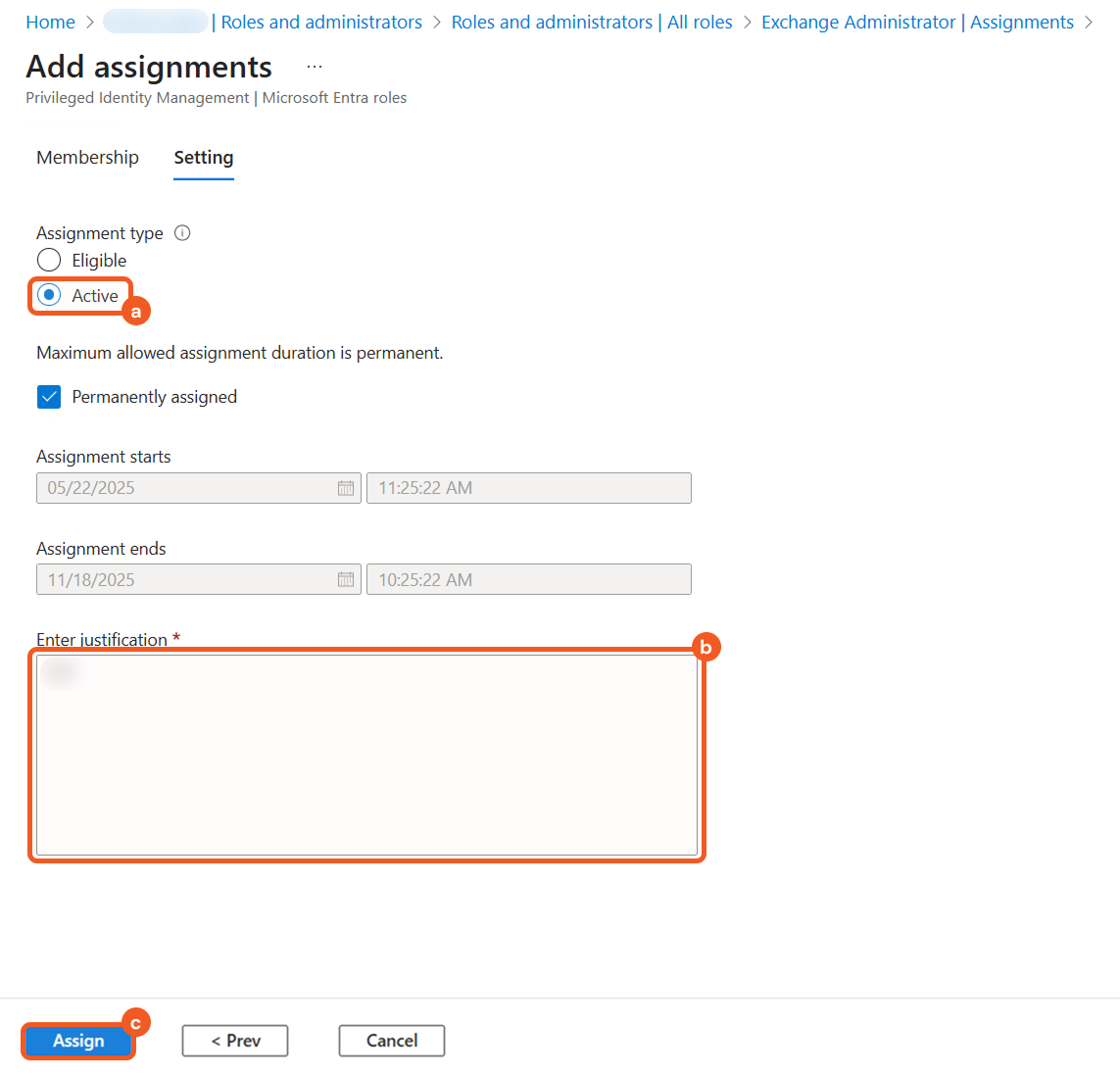

Select the roles for this user, ensuring that Active is selected as the assignment type. The assigned role must be Security Administrator or another role with higher privileges than the Security Administrator role.

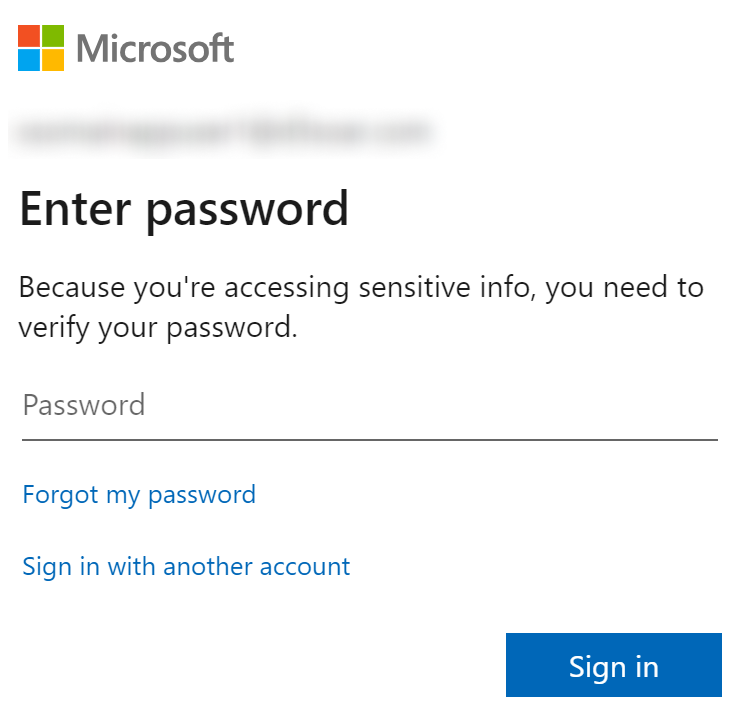

Upon creating the new user, ensure you log out of the current account, then log in using the newly created account credentials. You will be prompted to update your password; please follow the on-screen instructions to complete this step.
Store the updated username and password in a secure location, as they are required to build a connector in D3 SOAR. When configuring the connector parameters in D3 SOAR, remember that the username corresponds to the email address provided earlier.
Configuring D3 SOAR to Work with Microsoft 365 Defender (Email & collaboration)
Log in to D3 SOAR.

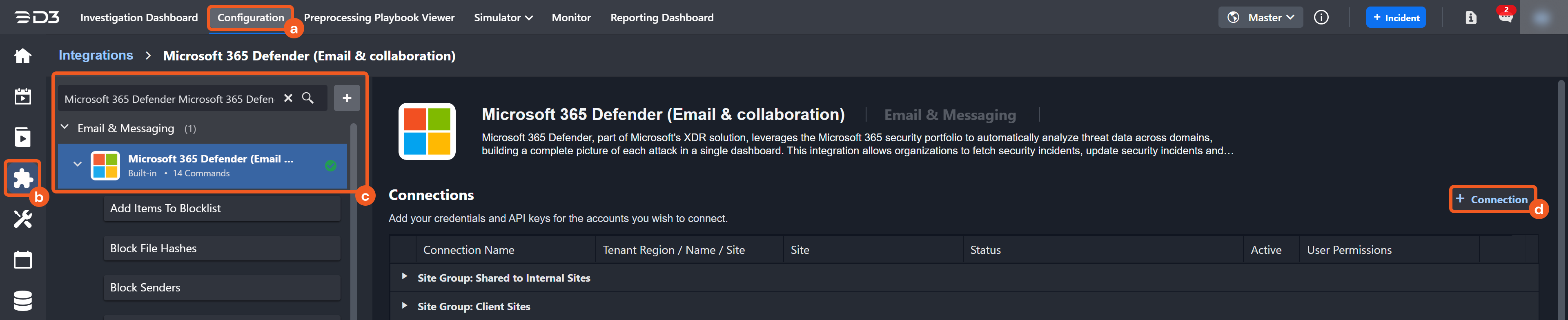

Find the Microsoft 365 Defender (Email & collaboration) integration.
Navigate to Configuration on the top header menu.
Click on the Integration icon on the left sidebar.
Type Microsoft 365 Defender (Email & collaboration) in the search box to find the integration, then click it to select it.
Click + Connection, on the right side of the Connections section. A new connection window will appear.

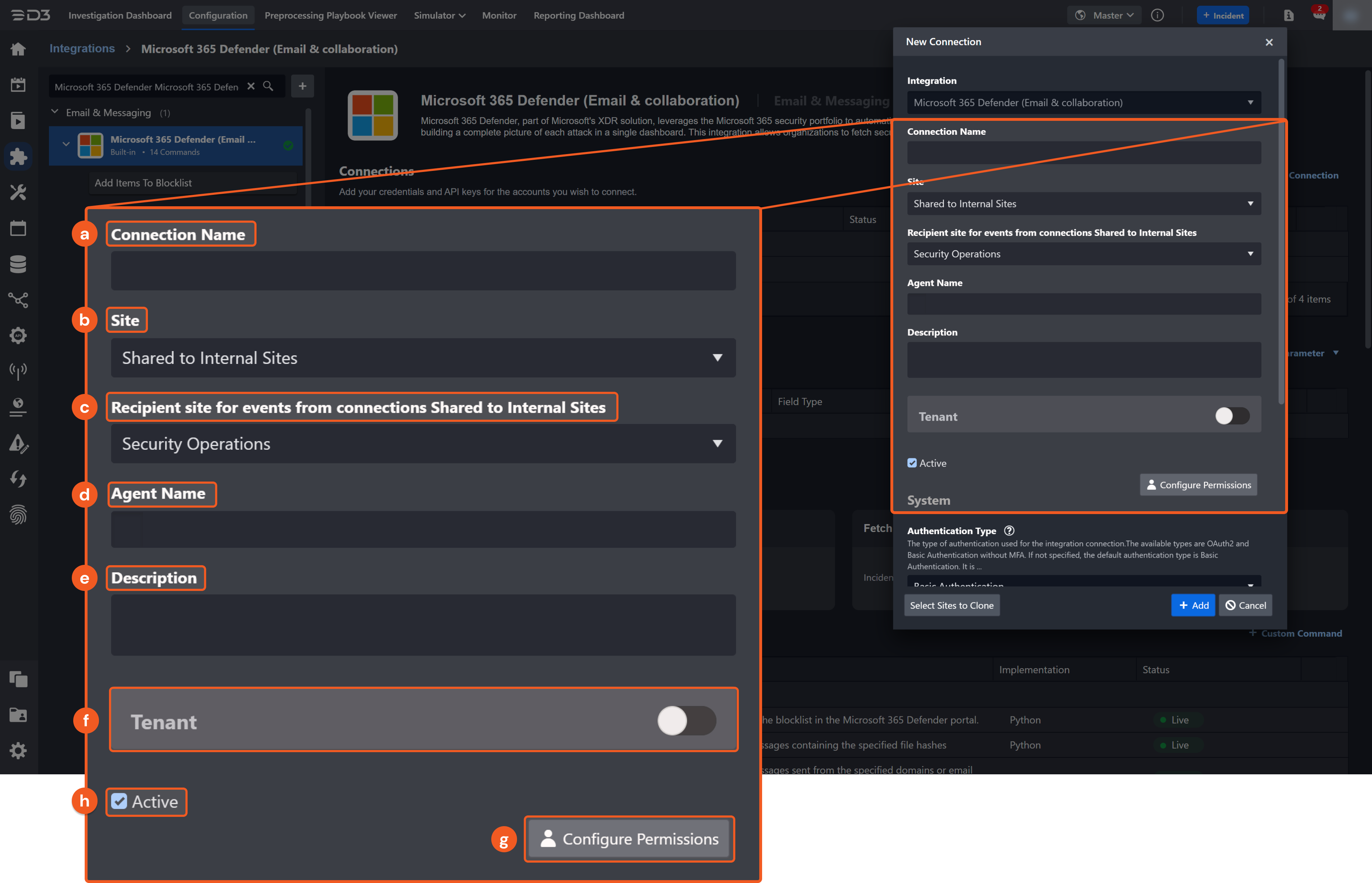

Configure the following fields to create a connection to Microsoft 365 Defender (Email & collaboration).
Connection Name: The desired name for the connection.
Site: Specifies the site to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all sites defined as internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
Recipient site for events from connections Shared to Internal Sites: This field appears if you selected Share to Internal Sites for Site to let you select the internal site to deploy the integration connection.
Agent Name (Optional): Specifies the proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
Description (Optional): Add your desired description for the connection.
Tenant (Optional): When configuring the connection from a master tenant site, you have the option to choose the specific tenant sites you want to share the connection with. Once you enable this setting, you can filter and select the desired tenant sites from the dropdowns to share the connection.
Configure User Permissions: Defines which users have access to the connection.
Active: Check the tick box to ensure the connection is available for use.

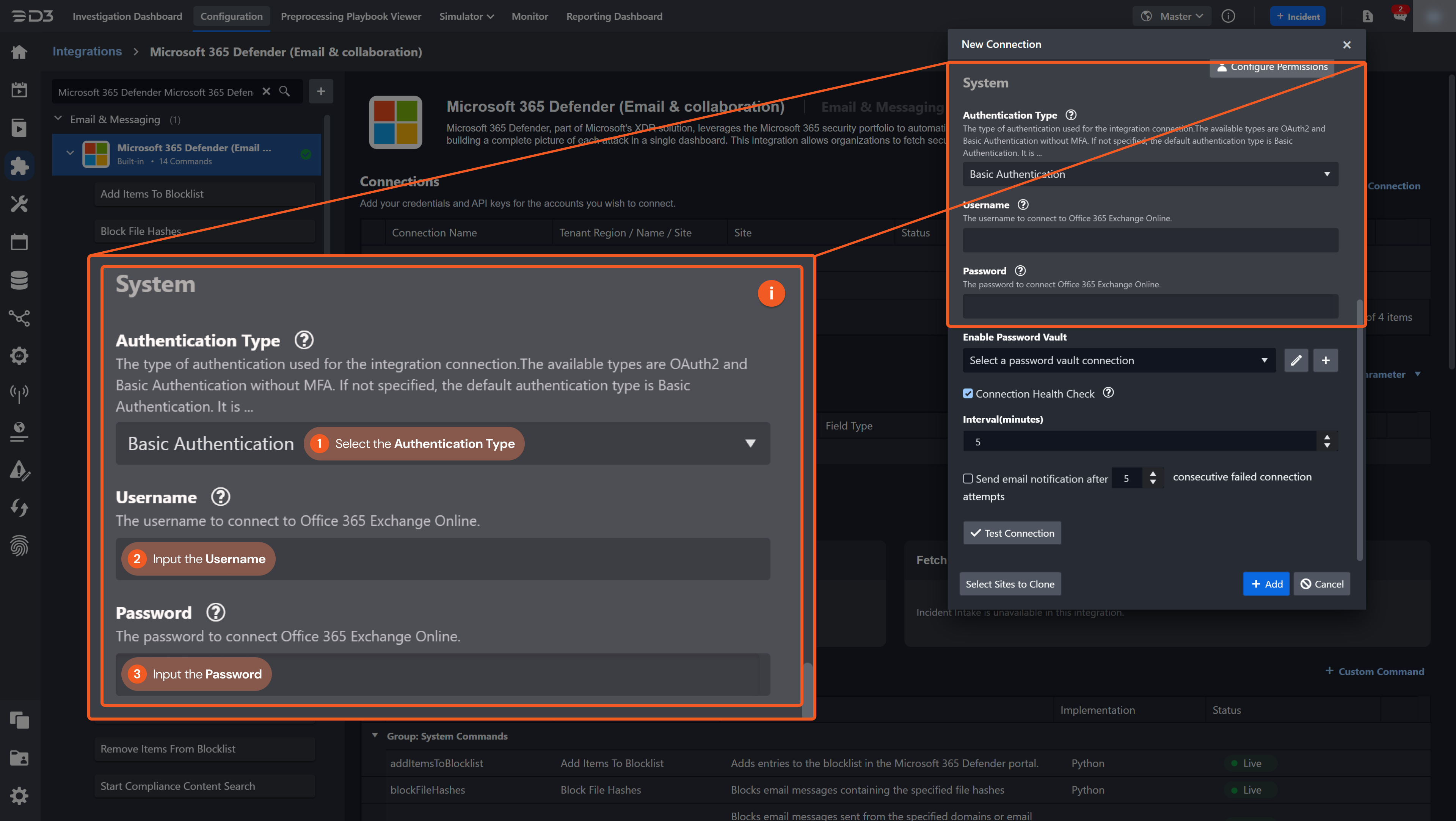

System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
1. Input the Username. Please note this should be the email address of the user.

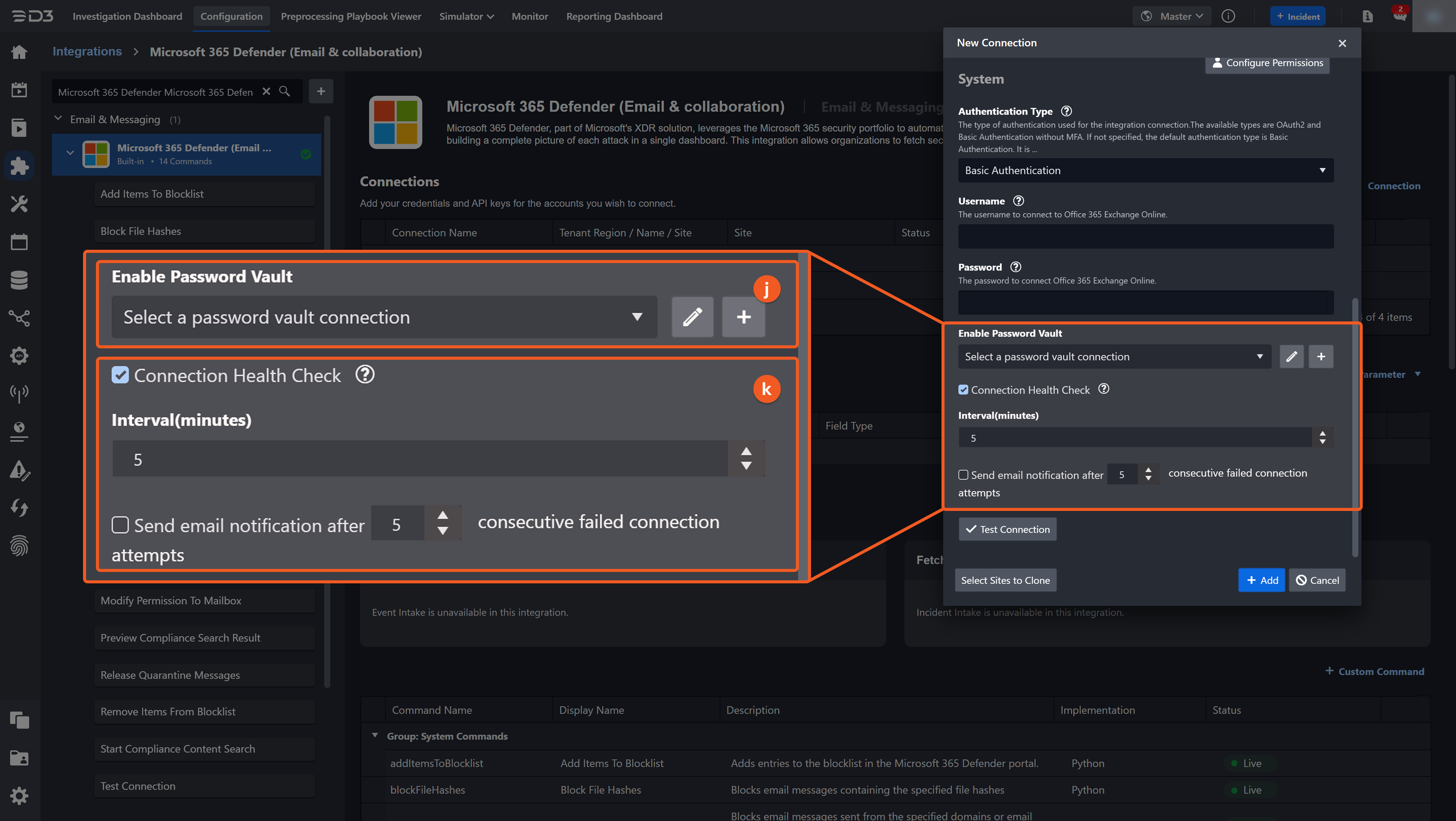

2. Input the Password.Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Please refer to the password vault connection guide if needed.
Connection Health Check: Updates the connection status you have created. A connection health check is done by scheduling the Test Connection command of this integration. This can only be done when the connection is active.
To set up a connection health check, check the Connection Health Check tickbox. You can customize the interval (minutes) for scheduling the health check. An email notification can be set up after a specified number of failed connection attempts.

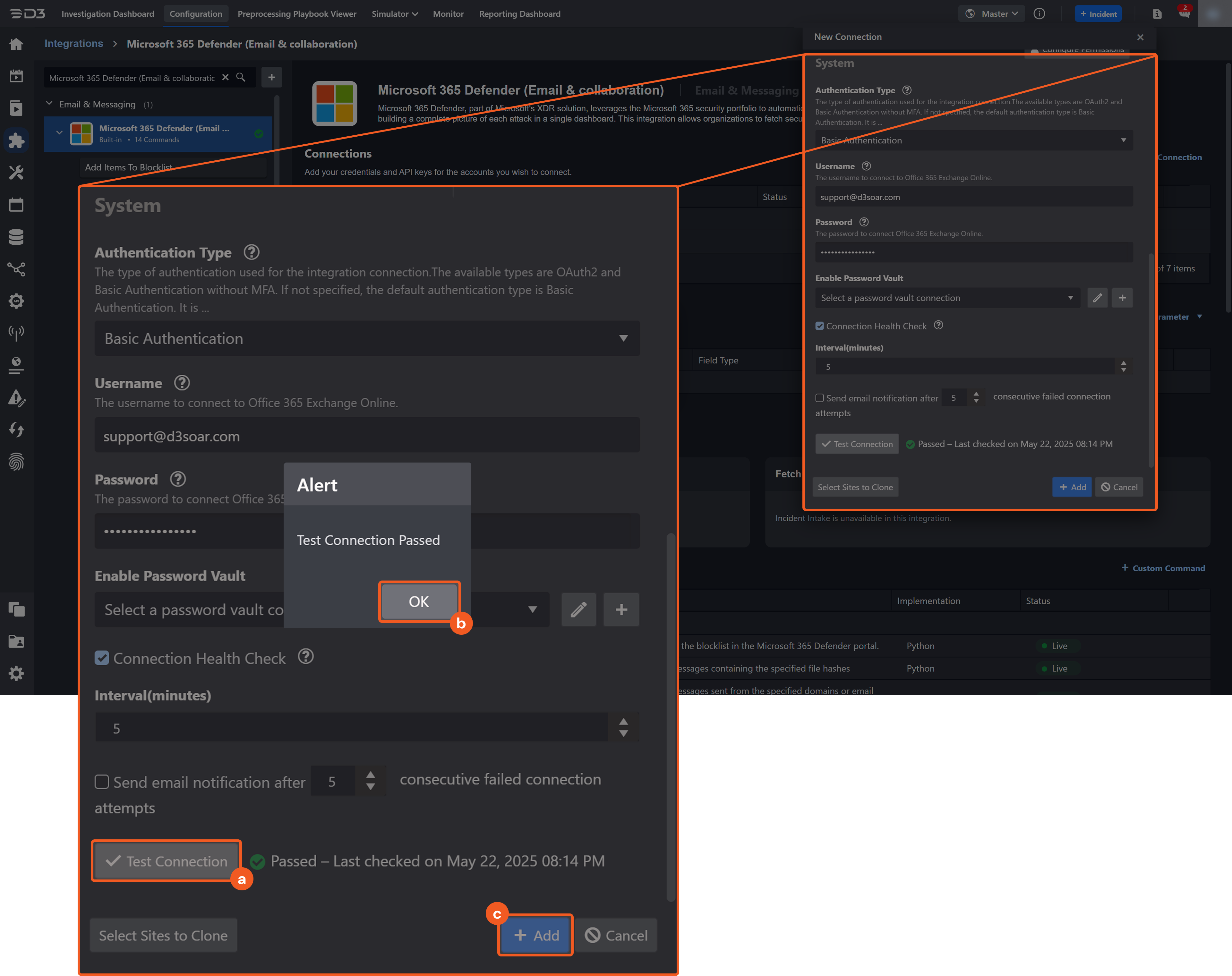

Test the connection.
Click Test Connection to verify the account credentials and network connection. If the Test Connection Passed alert window appears, the test connection is successful. You will see Passed with a green checkmark appear beside the Test Connection button. If the test connection fails, please check your connection parameters and try again.
Click OK to close the alert window.
Click + Add to create and add the configured connection.
Commands
Microsoft 365 Defender (Email & collaboration) includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command, you can execute these commands independently for playbook troubleshooting.
Integration API Note
For more information about the Microsoft 365 Defender (Email & collaboration) API, please refer to the Microsoft 365 Defender (Email & collaboration) API reference.
Reader Note
Certain permissions are required for each command. Please refer to the Permission Requirements and Configuring Microsoft 365 Defender (Email & collaboration) to Work with D3 SOAR for details.
Note for Time-related parameters
The input format of time-related parameters may vary based on your account settings. As a result, the sample data provided in our commands is different from what you see. To set your preferred time format, follow these steps:

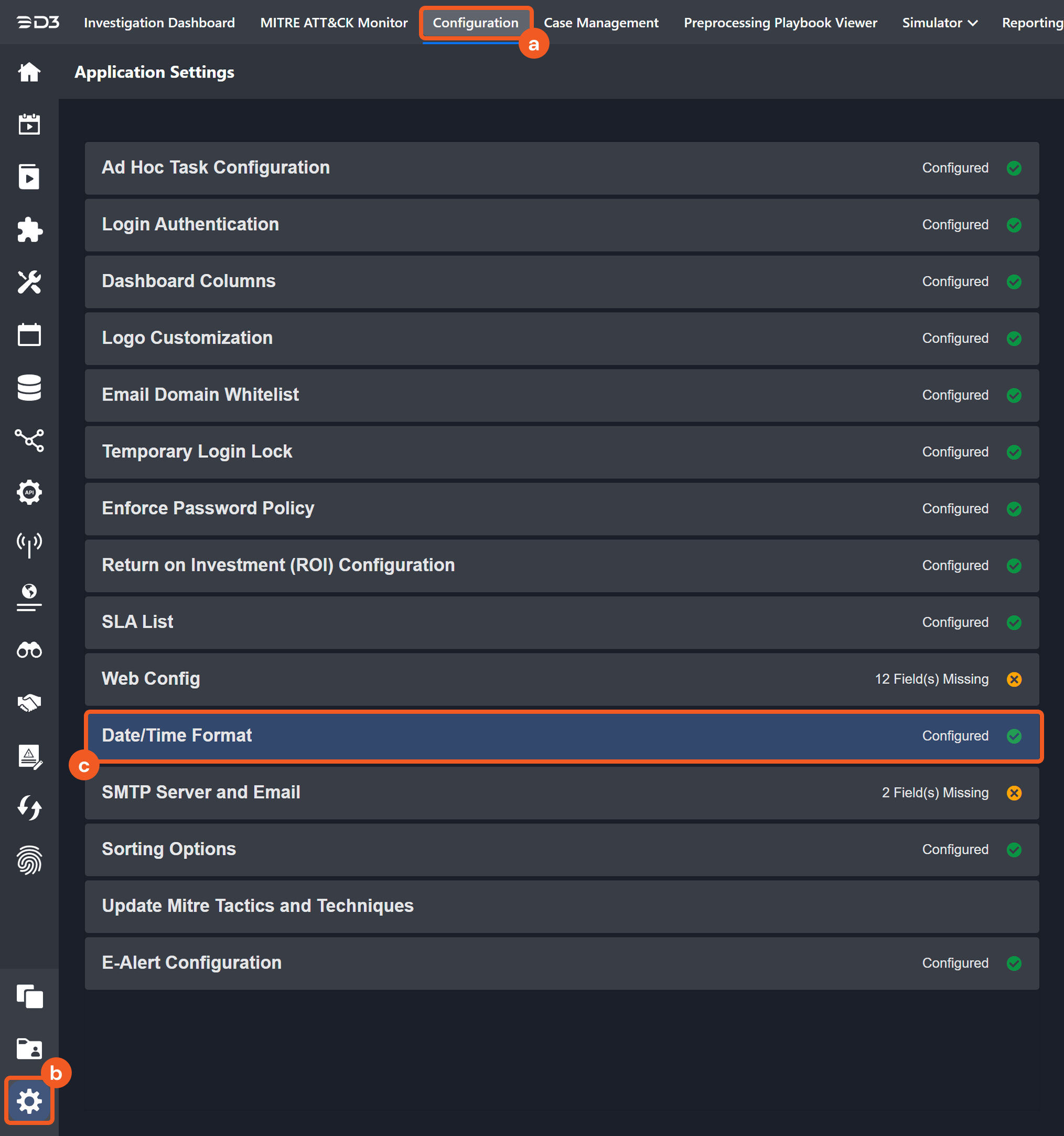

Navigate to Configuration > Application Settings. Select Date/Time Format.
Choose your desired date and time format.
After that, you will be able to view your preferred time format when configuring the DateTime input parameters for commands.
Add Items To Blocklist
Adds entries to the blocklist in the Microsoft 365 Defender portal.
Input
Input Parameter | Required /Optional | Description | Example |
Entries | Required | The entries in the blocklist, with allowed value types being email addresses, domains, file hashes, or URLs. However, different types of entries cannot be set simultaneously. For URL entries, the maximum allowable length is 250 characters. Wildcard characters such as tilde (~) and asterisk (*) are supported for URL entries. For a comprehensive understanding of the URL syntax, refer to Allow or block URLs using the Tenant Allow/Block List | Microsoft Learn from Microsoft's documentation. | [ "***@example.com","example.com" ] |
List Type | Required | The blocklist type for the entries. The available types are Emails, Domains, File Hashes, and URLs. | Emails & Domains |
Expiration Date | Optional | The expiration date in UTC time. If not defined, the expiration date remains unset by default. | 2021-12-15 00:00 |
Note | Optional | A note providing additional information about the list. | The list was created by a tester. |
Output
Error Handling
If the Return Data is Failed, an Error tab will appear in the Test Result window.
The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error | Description | Example |
Failure Indicator | Indicates the command failure that happened at a specific input and/or API call. | Add Items To Blocklist failed. |
Status Code | The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft 365 Defender (Email & collaboration) portal. Refer to the HTTP Status Code Registry for details. | Status Code: 400. |
Message | The raw data or captured key error message from the integration API server about the API request failure. | Message: Invalid user name and password. |
Error Sample Data Add Items To Blocklist failed. Status Code: 400. Message: Invalid user name and password. |
Block File Hashes
Blocks email messages containing the specified file hashes.
Input
Input Parameter | Required /Optional | Description | Example |
File Hashes | Required | The list of SHA256 hashes corresponding to files that are to be blocked when detected in email attachments. | ["**********************"] |
Expiration Date | Optional | The expiration date in UTC time. If not defined, the expiration date remains unset by default. | 2021-12-15 00:00 |
Note | Optional | A note providing additional information about the list. | The list was created by a tester. |
Output
Error Handling
If the Return Data is Failed, an Error tab will appear in the Test Result window.
The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error | Description | Example |
Failure Indicator | Indicates the command failure that happened at a specific input and/or API call. | Block File Hashes failed. |
Status Code | The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft 365 Defender (Email & collaboration) portal. Refer to the HTTP Status Code Registry for details. | Status Code: 400. |
Message | The raw data or captured key error message from the integration API server about the API request failure. | Message: Invalid user name and password. |
Error Sample Data Block File Hashes failed. Status Code: 400. Message: Invalid user name and password. |
Block Senders
Blocks email messages sent from the specified domains or email addresses.
Input
Input Parameter | Required /Optional | Description | Example |
Senders | Required | The list of domains or email addresses from which email messages should be blocked. | [ "***@***.com", "***@***.com" ] |
Expiration Date | Optional | The expiration date in UTC time. If not defined, the expiration date remains unset by default. | 2021-12-15 00:00 |
Note | Optional | A note providing additional information about the list. | The list was created by a tester. |
Output
Error Handling
If the Return Data is Failed, an Error tab will appear in the Test Result window.
The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error | Description | Example |
Failure Indicator | Indicates the command failure that happened at a specific input and/or API call. | Block Senders failed. |
Status Code | The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft 365 Defender (Email & collaboration) portal. Refer to the HTTP Status Code Registry for details. | Status Code: 400. |
Message | The raw data or captured key error message from the integration API server about the API request failure. | Message: Invalid user name and password. |
Error Sample Data Block Senders failed. Status Code: 400. Message: Invalid user name and password. |
List Items In Blocklist
Retrieves items from the specified blocklist type.
Input
Input Parameter | Required /Optional | Description | Example |
Entry | Optional | The entry to retrieve item details. Entries can be specified as an email address, a domain, a file hash or a URL. | ***@example.com |
List Type | Required | The blocklist type for the entry. The available types are Emails, Domains, File Hashes, and URLs. | URLs |
Output
Error Handling
If the Return Data is Failed, an Error tab will appear in the Test Result window.
The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error | Description | Example |
Failure Indicator | Indicates the command failure that happened at a specific input and/or API call. | List Items In Blocklist failed. |
Status Code | The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft 365 Defender (Email & collaboration) portal. Refer to the HTTP Status Code Registry for details. | Status Code: 400. |
Message | The raw data or captured key error message from the integration API server about the API request failure. | Message: Invalid user name and password. |
Error Sample Data List Items In Blocklist failed. Status Code: 400. Message: Invalid user name and password. |
Remove Items From Blocklist
Removes items from the specified blocklist type.
Reader Note
The parameter Entries is required to run this command.
Run the List Items In Blocklist command to obtain entry IDs. Entry IDs can be found in the returned raw data at the path $.value[*].Identity.
Input
Input Parameter | Required /Optional | Description | Example |
Entries | Required | The entries or entry IDs to remove from the blocklist, with allowed value types being email addresses, domains, file hashes, or URLs. However, different types of entries cannot be set simultaneously. Entry IDs can be obtained using the List Items In Blocklist command. | ["**********************"] |
Entity Type | Optional | The entity type for the entries. The available types are Entries or Entry IDs. The default value is Entries. | Entry IDs |
List Type | Required | The blocklist type for the entries. The available types are Emails, Domains, File Hashes, and URLs. | URLs |
Output
Error Handling
If the Return Data is Failed, an Error tab will appear in the Test Result window.
The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error | Description | Example |
Failure Indicator | Indicates the command failure that happened at a specific input and/or API call. | Remove Items From Blocklist failed. |
Status Code | The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft 365 Defender (Email & collaboration) portal. Refer to the HTTP Status Code Registry for details. | Status Code: 400. |
Message | The raw data or captured key error message from the integration API server about the API request failure. | Message: Invalid user name and password. |
Error Sample Data Remove Items From Blocklist failed. Status Code: 400. Message: Invalid user name and password. |
Test Connection
Allows you to perform a health check on an integration connection. You can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.
Input
N/A
Output
Error Handling
If the Return Data is Failed, an Error tab will appear in the Test Result window.
The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help you locate the root cause of a command failure.
Parts in Error | Description | Example |
Failure Indicator | Indicates the command failure that happened at a specific input and/or API call. | Test Connection failed. Failed to check the connector. |
Status Code | The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Microsoft 365 Defender (Email & collaboration) portal. Refer to the HTTP Status Code Registry for details. | Status Code: 400. |
Message | The raw data or captured key error message from the integration API server about the API request failure. | Message: Invalid user name and password. |
Error Sample Data Test Connection failed. Failed to check the connector. Status Code: 400. Message: Invalid user name and password. |
