Colortokens Xshield

LAST UPDATED: OCTOBER 20, 2025

Overview

ColorTokens Xshield is a Zero Trust microsegmentation platform that provides asset visibility, dynamic policy enforcement, and real-time quarantine. It helps organizations isolate threats, reduce lateral movement, and strengthen security across cloud and on-prem environments.

D3 SOAR is providing REST operations to function with Colortokens Xshield.

Colortokens Xshield is available for use in:

Connection

To connect to Colortokens Xshield from D3 SOAR, follow this part to collect the required information below:

Configuring D3 SOAR to Work with Colortokens Xshield

1. Log in to D3 SOAR.

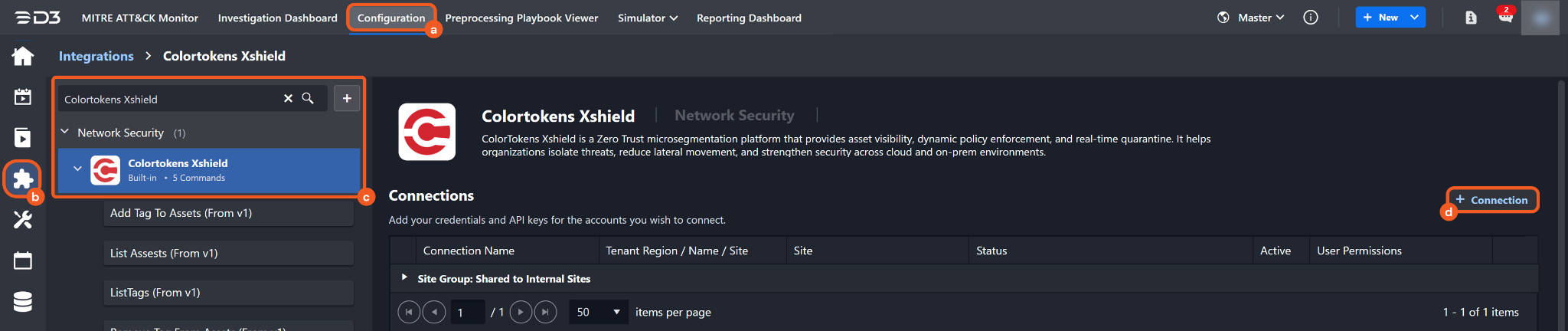

2. Find the Colortokens Xshield integration.



   1. Navigate to Configuration on the top header menu.

   2. Click on the Integration icon on the left sidebar.

   3. Type Colortokens Xshield in the search box to find the integration, then click it to select it.

   4. Click on the + Connection button on the right side of the Connections section. A new connection window will appear.

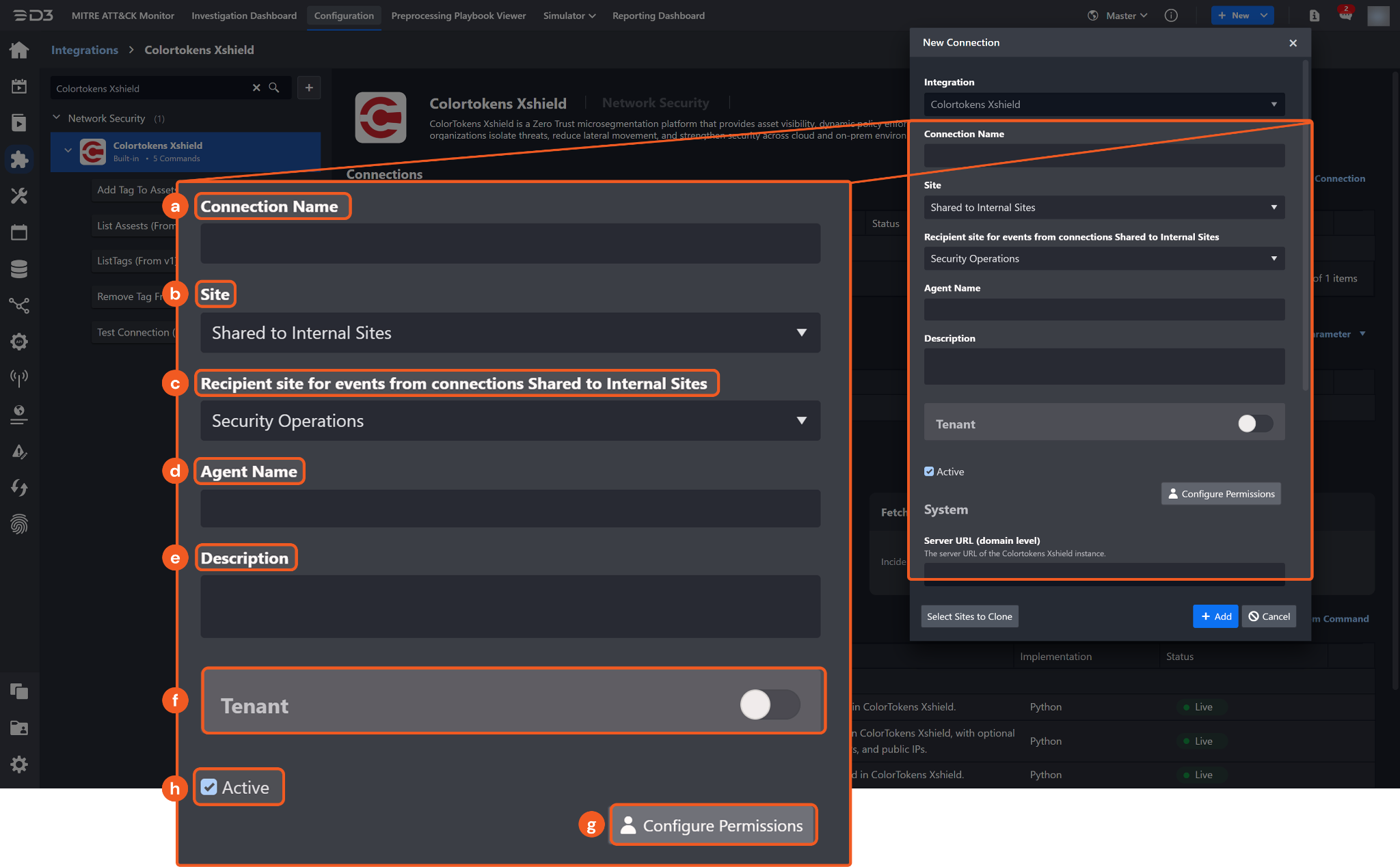

3. Configure the following fields to create a connection to Colortokens Xshield.



   1. Connection Name: The desired name for the connection.

   2. Site: The site on which to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.

   3. Recipient site for events from connections Shared to Internal Sites: This field is displayed when Share to Internal Sites is selected for the Site field, allowing selection of the internal site for deploying the integration connection.

   4. Agent Name (Optional): The proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.

   5. Description (Optional): The description for the connection.

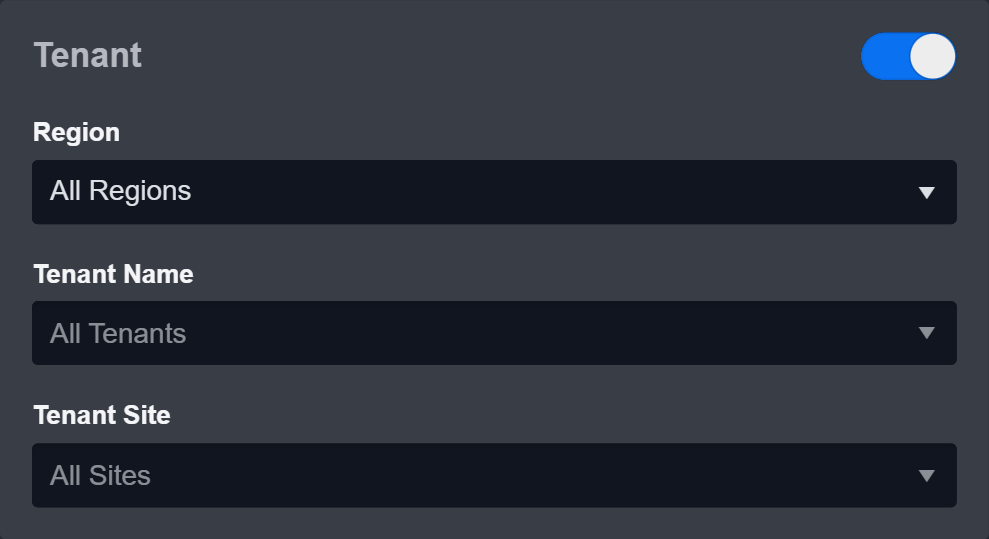

   6. Tenant (Optional): When configuring the connection from a master tenant site, users can choose the specific tenant sites with which to share the connection. Once this setting is enabled, users can filter and select the desired tenant sites from the dropdowns to share the connection.



   7. Configure User Permissions: Defines which users have access to the connection.

   8. Active: The checkbox that enables the connection to be used when selected.

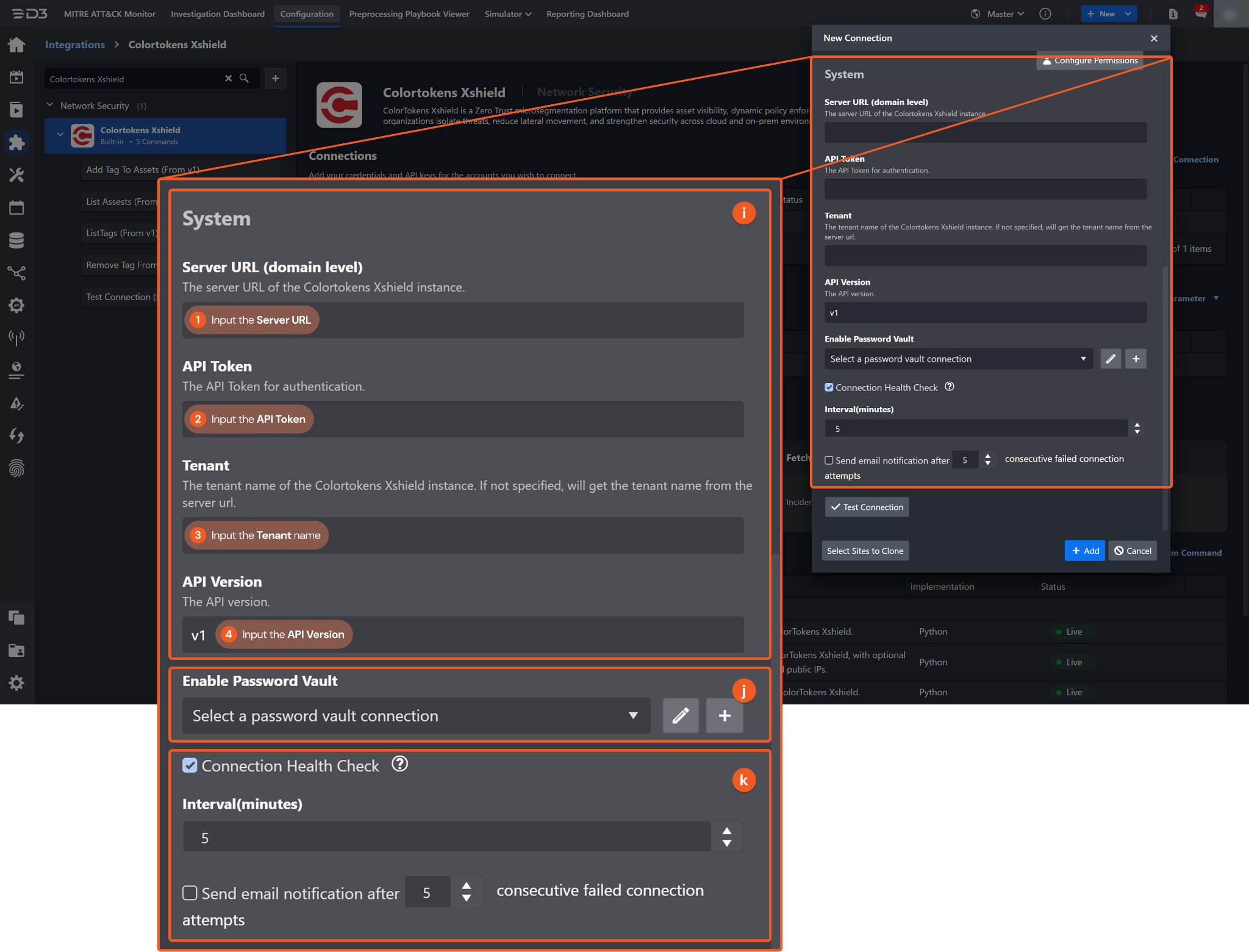

   9. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.



      1. Input the Server URL in the https://{tenant}.spectrum.colortokens.com format.

      2. Input the API Token obtained from the Colortokens Xshield platform.

      3. Input the Tenant name. By default, the tenant name is derived from the server URL.

      4. Input the API Version. The default value is v1.

   10. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Refer to the password vault connection guide if needed.

   11. Connection Health Check: Periodically checks the connection status by scheduling the Test Connection command at the specified interval (in minutes). Available only for active connections, this feature also allows configuring email notifications for failed attempts.

4. Test the connection.

   1. Click on the Test Connection button to verify credentials and connectivity. A success alert displays Passed with a green checkmark. If the connection fails, review the parameters and retry.

   2. Click OK to close the alert window.

   3. Click + Add to create and add the configured connection.

Commands

Colortokens Xshield includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command function, users can execute these commands independently for playbook troubleshooting.

Add Tag to Assets

Adds a tag to specified assets in ColorTokens Xshield.

READER NOTE

Assets, Tag Key, and Tag Value are required parameters to run this command.

• Run the List Assets command to obtain the Assets. Assets is referring to the asset ID or hostname, which can be found in the raw data at:

  • $.data[*].id for asset ID

  • $.data[*].hostname for hostname

• Run the List Tags command to obtain the Tag Key and Tag Value. Tag Keys and Tag Values can be found in the raw data at:

  • $.data[*].key for Tag Key

  • $.data[*].values for Tag Value

Input

[
  "*****"
]

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

List Assets

Retrieves all assets from a ColorTokens Xshield tenant.

Input

[
  "*****"
]

[
  "***.***.***.***"
]

[
  "***.***.***.***"
]

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

List Tags

Retrieves all available tags defined in ColorTokens Xshield.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Remove Tag From Assets

Removes a tag from specified assets in ColorTokens Xshield.

READER NOTE

Assets, Tag Key, and Tag Value are required parameters to run this command.

• Run the List Assets command to obtain the Assets. Assets is referring to the asset ID or hostname, which can be found in the raw data at:

  • $.data[*].id for asset ID

  • $.data[*].hostname for hostname

• Run the List Tags command to obtain the Tag Key and Tag Value. Tag Keys and Tag Values can be found in the raw data at:

  • $.data[*].key for Tag Key

  • $.data[*].values for Tag Value

Input

[
  "*****"
]

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Test Connection

Allows users to perform a health check on an integration connection. Users can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.
