Playbook UX Enhancements

LAST UPDATED: OCTOBER 20, 2025

D3 has introduced several enhancements to its playbook for improved usability and operational efficiency.

Feature 1 - Revamped Task Nodes

RELEASED

This has been released in vSOC 17.1. Refer to the release notes for further information:

• Modernized Styling for Playbook Task Nodes

Feature 2 - Adding In-Between Tasks

RELEASED

This has been released in vSOC 17.1. Refer to the release notes for further information:

• Insert Task Nodes Between Existing Ones

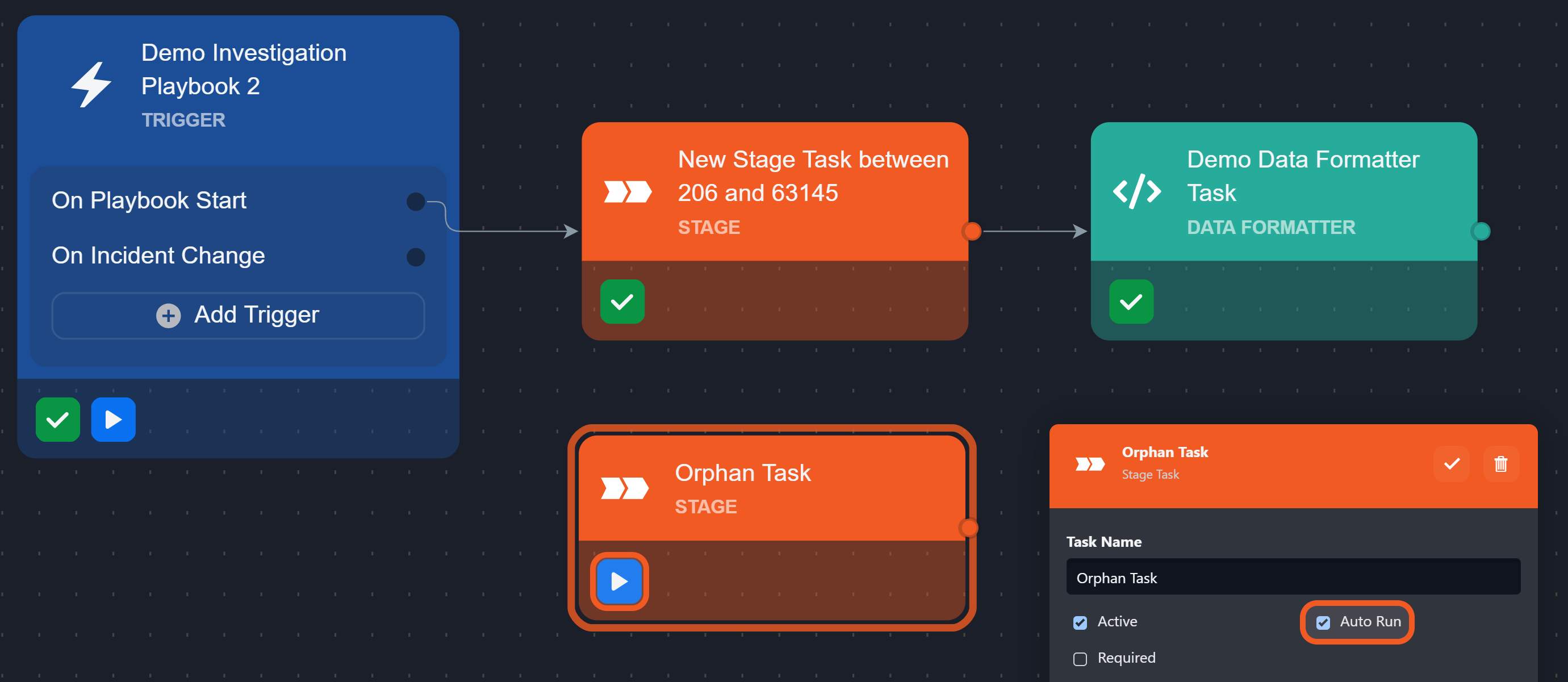

Feature 3 - Orphan Node

Users can now drag and drop commands onto the playbook canvas as orphan nodes, with their positions automatically saved. Orphan nodes can remain in a live playbook but will not execute (even if the auto-run option is enabled).

Feature 4 - Node Action Bar

RELEASED

This has been released in vSOC 17.1. Refer to the release notes for further information:

• Task Node Action Bar

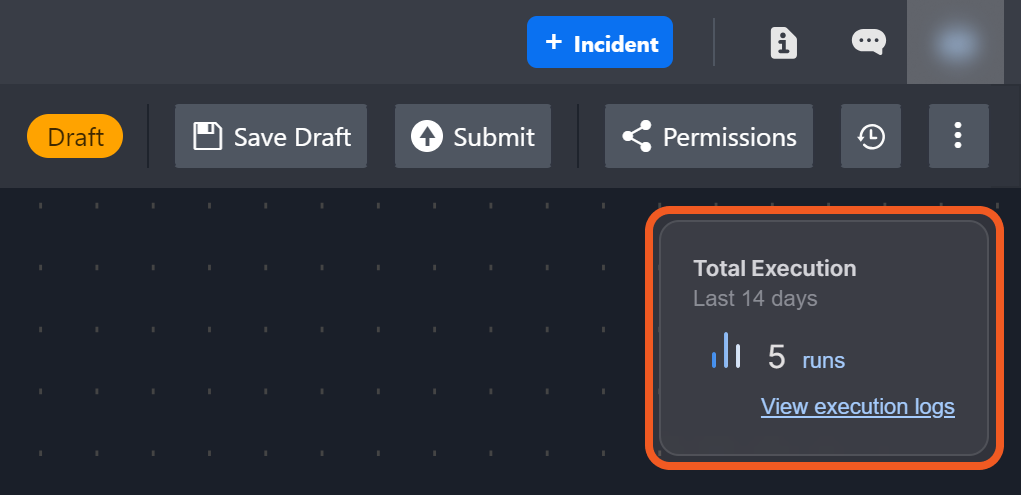

Feature 5 - Playbook Execution History

The playbook execution summary panel provides a quick overview of the playbook's execution activity over the past 1, 7, 14, or 30 days (adjusted within the Execution Logs page). It displays:

• Run Count: The number of times the playbook has been executed within a timeframe.

• View Execution Logs: A link to detailed execution logs.

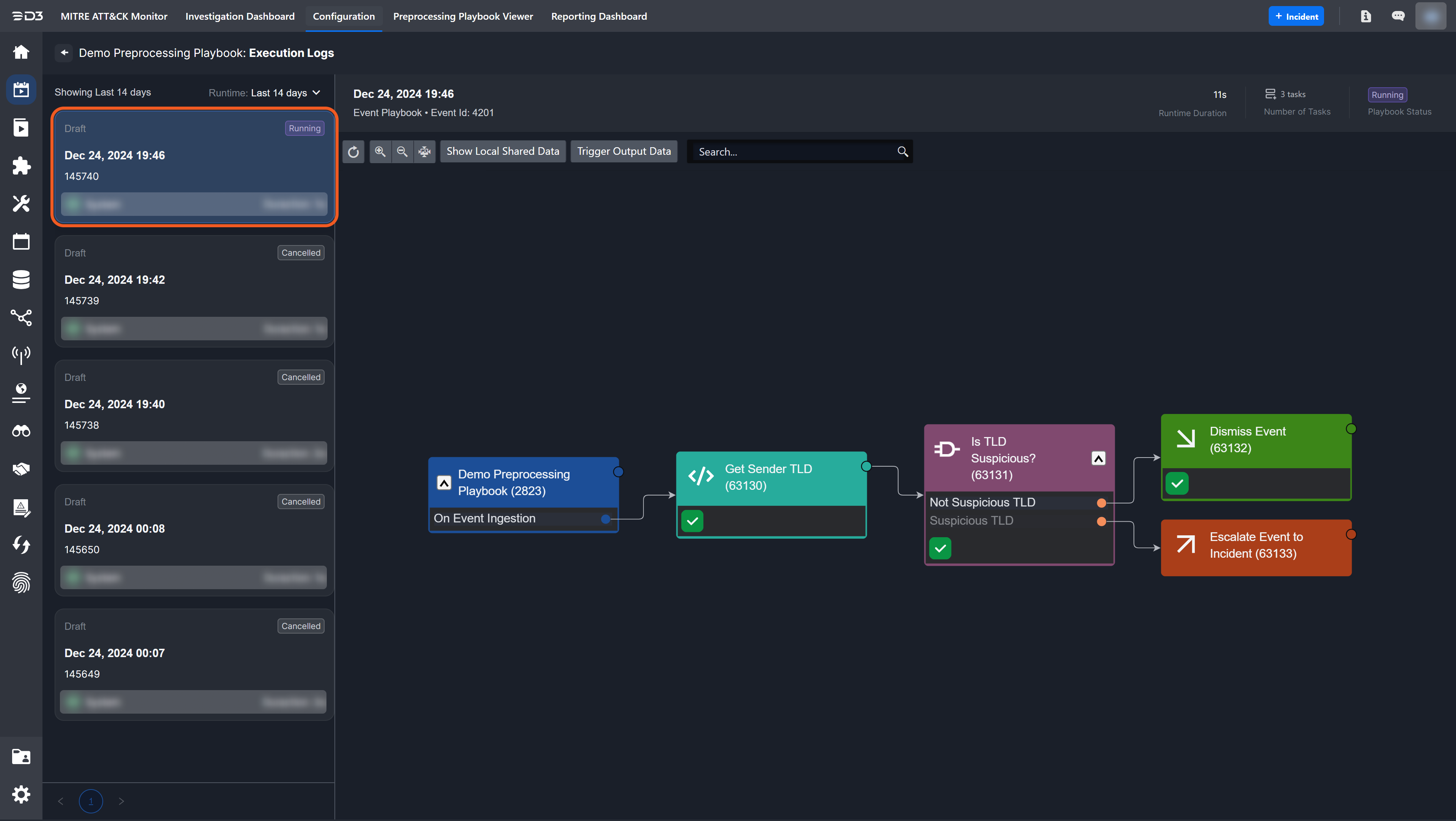

Feature 6 - New Preprocessing Playbook Task Types

RELEASED

This has been released in vSOC 17.1. Refer to the release notes for further information:

• Escalate and Dismiss Task Nodes
