RD Widgets

LAST UPDATED: MAY 14, 2025

Widgets are visual representations of queries made from one of three system data sources, including Artifact, Event, and Incident. Once widgets are created, they can be added to and displayed in dashboards.

Widget List

PIE & DONUT CHARTS

Event Count By Dismiss Reason
Event Count By Severity
Event Count By Status
Incident Count By Severity
Total Incident Count By Incident Type

LINE CHARTS

Closed Incidents Count By Date
Closed Incidents Count By Date & Owner
Daily Event Count By Event Status
Daily Incident Count By Incident Status
Detect Time By Day
Resolved Incidents Count By Day
Total Dismissed Events Count By Day
Total Event Count By Day
Total Event Count By Day & Event Integration
Total Event Count By Day & Event Type
Total Event Count By Event Integration & Month
Total Event Ingestion Count By Day
Total Incident Count By Day
Total Incident Count By Day & Incident Type

SAVING TRACKER

Monthly Money Saved by Commands NEW
Monthly Money Saved by Playbooks NEW

BAR CHARTS

Event Detect Time By Severity
Investigator Performance Summary
Max Task Execution Time by Playbook Name in Last 24 Hours
Mean Time to Detect By Incident Type
Mean Time to Resolve By Owner
Open Incident Count By Owner & Severity
Pending Task Count By Investigator
Playbook Error Rate By Creator
Top 10 Event Count By High-risk Artifact Name
Top 10 Event Count by Integration
Top 10 Incident Count By High-risk Artifact Name
Top 10 Most Frequent Artifact Names
Top 10 Tactics & Techniques in Incident
Total Task Execution Hours by Playbook Name in Last 24 Hours
Top 10 Commands (all sites) By Total Saved Money (USD) NEW
Top 10 Commands (all sites) By Total Saved Time NEW
Top 10 Playbooks By Total Saved Money (USD) NEW
Top 10 Playbooks By Total Saved Time NEW

COLUMN CHARTS

Closed Incidents Count By Incident Type & Month
Closed Incidents Count By Month
Critical Incident Count By Owner
Critical Incidents Count By Closed By
Event Count By Artifact Name
Event Count By Tactic & Technique
Event Playbook Error Rate By Playbook Name
Failed Connection Count by Integration Name
Incident Count By Artifact Name
Incident Playbook Error Rate By Playbook Name
Mean Time to Resolve By Incident Type
Open Event Count By Investigator & Severity
Playbook Error Rate By Incident Type
Playbook Execution Count by Playbook Name in Last 24 Hours
Top 10 Average Detect Time By Incident Type
Top 10 Command Error Rate By Command Name
Total Event Count By Event Integration & Severity
Total Incident Count By Incident Type & Month
Total Incident Count By Owner & Severity
Total Incidents Count By Closed By & Severity

NUMBER WIDGETS

Average Detect Time
Average Resolve Time
Event Auto-Dismissal Rate
Event Escalation Rate
Total Command Execution in last 24 hours
Total Event Count
Total Incident Count
Total Saved Hours
Total Saved Money (USD)
Total Money Saved by Commands from All Sites NEW
Total Time Saved by Commands from All Sites NEW
Total Money Saved by Playbooks NEW
Total Time Saved by Playbooks NEW

LIST WIDGETS

Task Execution Count Per Minute by Playbook Name in Last 24 Hours
Top 10 Compromised Hostnames
Top 10 Compromised Users
Top 50 Long Running Incidents

DATA TABLE WIDGETS

All Events
All Incidents
Pending Tasks Assigned to Me

Creating a Widget

Step 1: Defining a Query

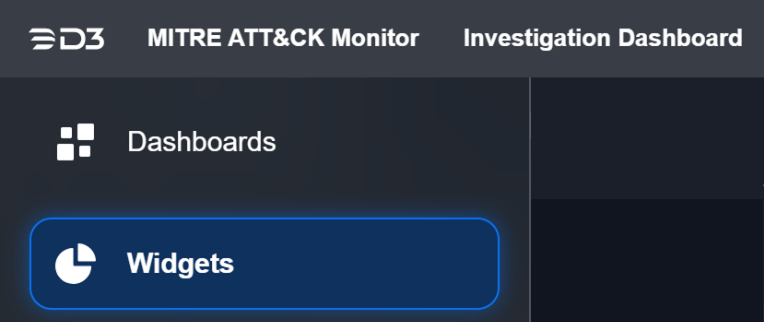

Open the Widgets tab from the left sidebar.

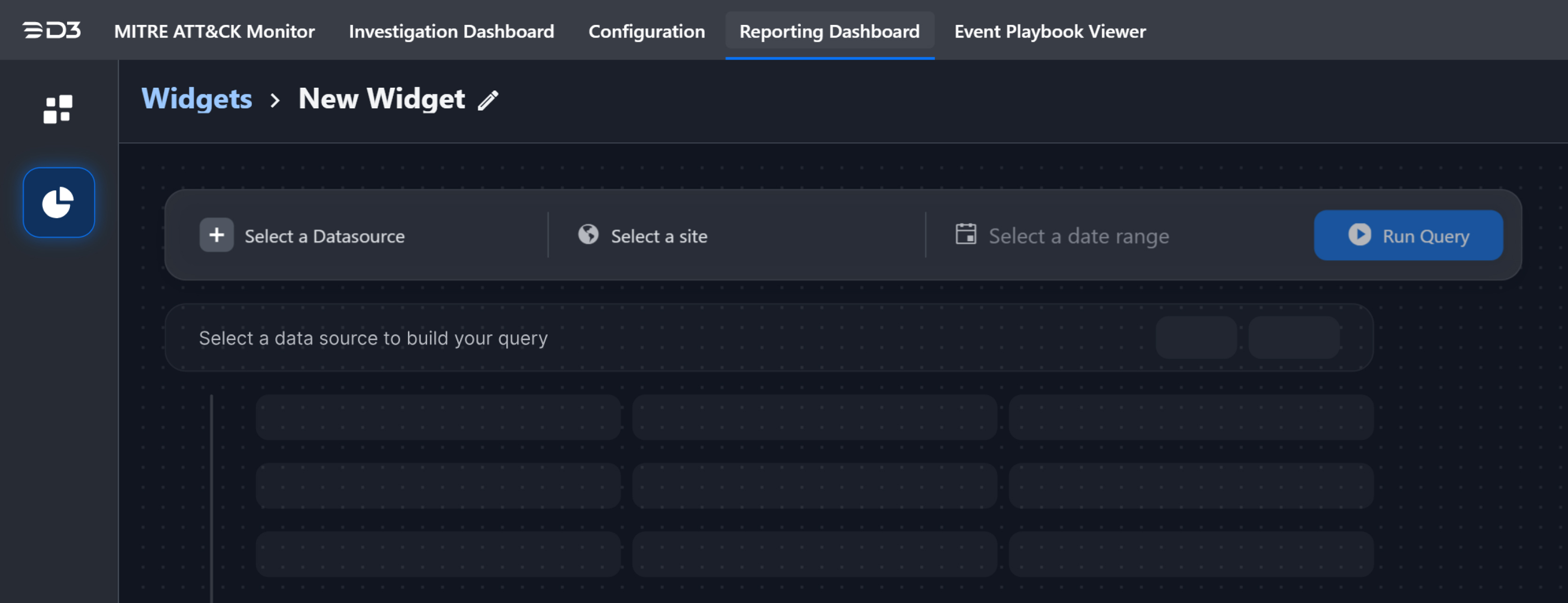

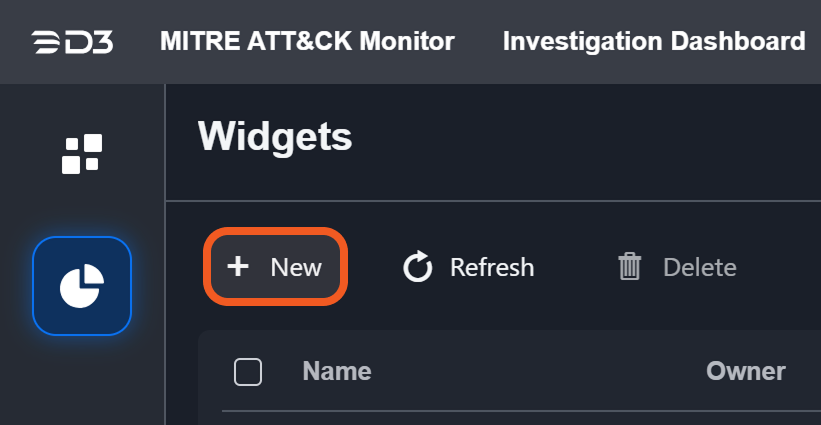

Click on the +New button on the widgets page to begin creating a new widget.
The query builder will appear.

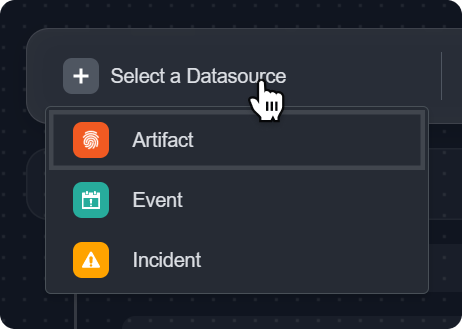

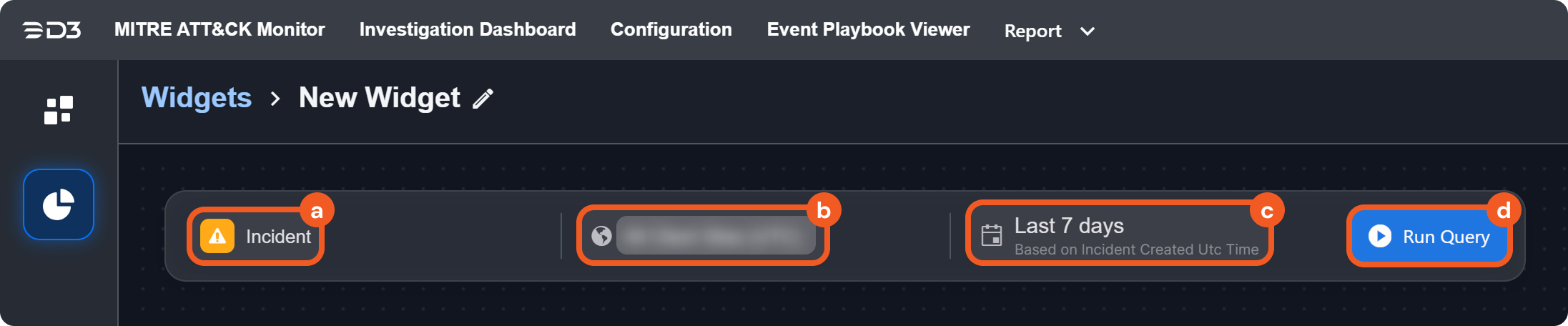

Choose a data source for the widget from the available options (Artifact, Event, or Incident).

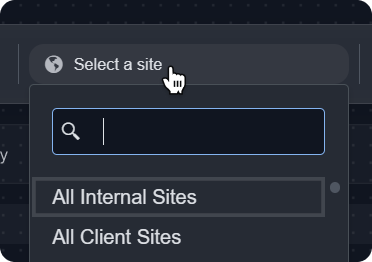

Select the site from which to retrieve the data.

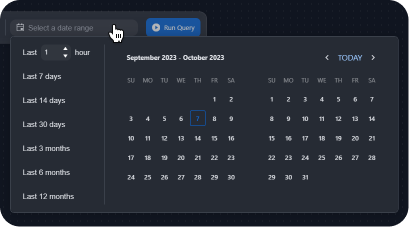

Set the desired time range for the query.
(Optional) Configure expression blocks, fields and groups to construct your query.

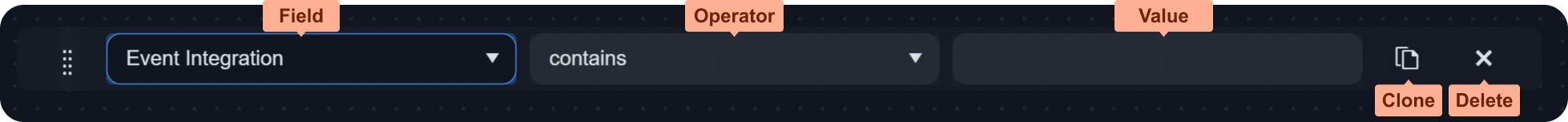

Expression Blocks

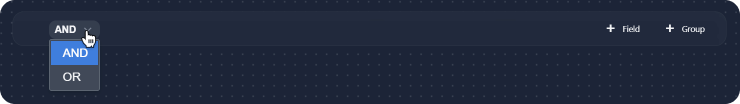

The option to add expression blocks will appear. You can use these to define filters for your widget. Each expression block consists of fields and/or groups with logic defined as AND or OR, indicated by the dropdown on the left of the expression block.

Fields

To add a field, click on the +Field button on the right of the expression block. You can add multiple fields to each expression block. Use the dropdown menu to select from a list of fields relevant to the previously selected data source. Then select an operator for each field. Please note that the available operators will differ depending on the selected field type.

Groups

Groups are nested expression blocks. They work the same way as a level one expression block. To create a group, set up the logic of the group (i.e., AND or OR), and add fields the same way. You can also add more groups within a group. To duplicate a group, click the Clone button.

Step 2: Running and Editing the Query

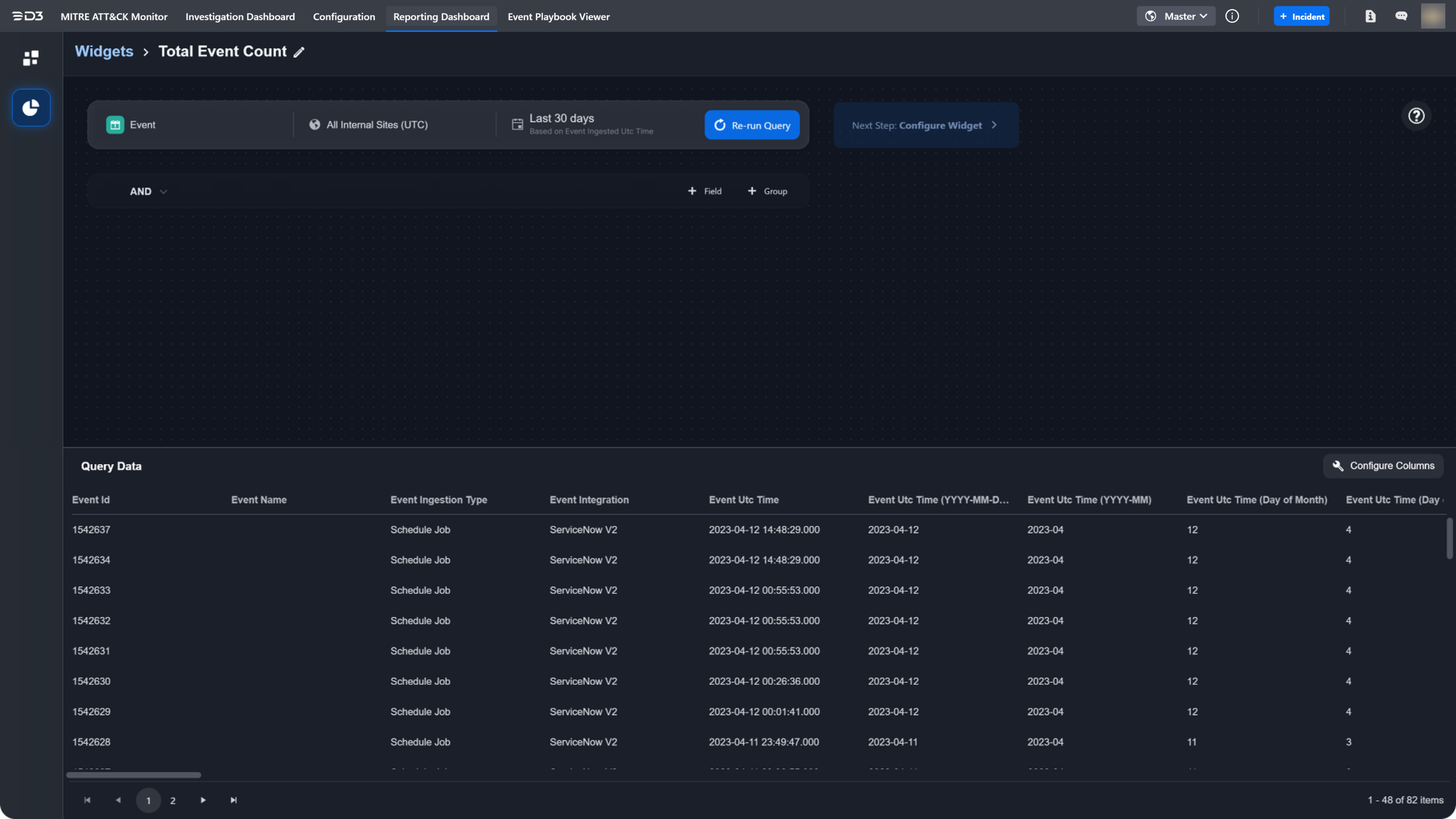

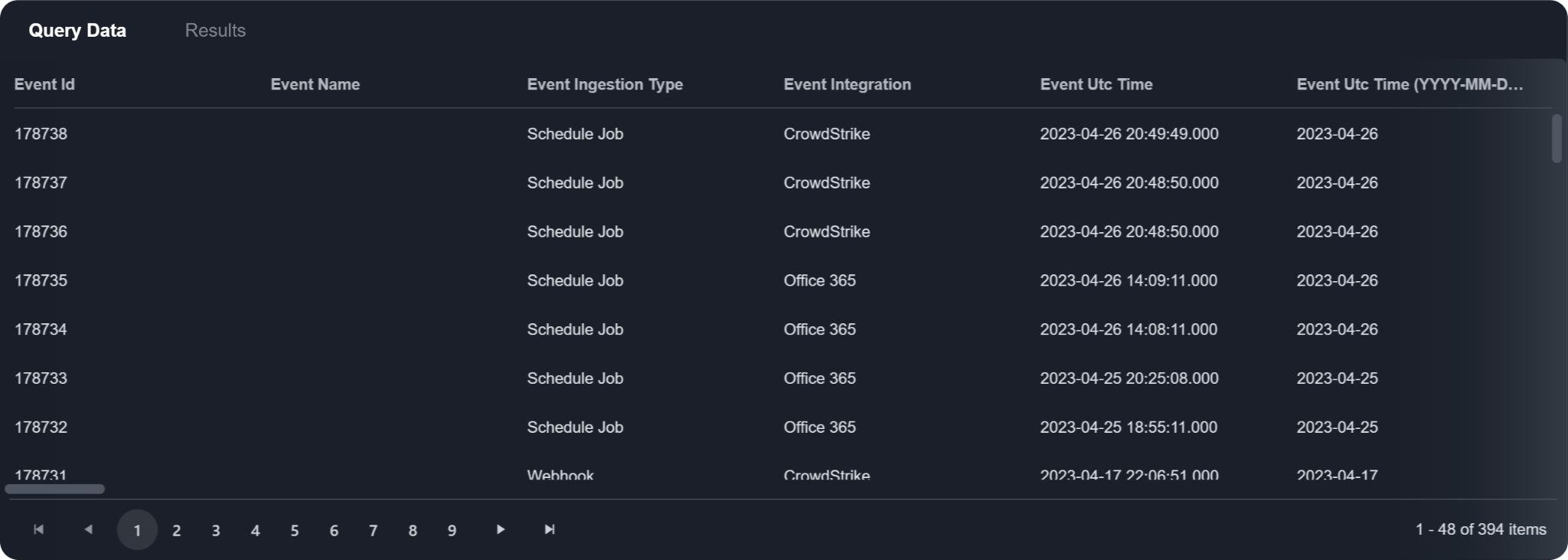

After defining your query, click Run Query to view the query data. The data will populate in the lower pane of the query builder. You have the option to edit, add or remove the columns returned by the query. To do this, click Configure Columns. You can add or remove columns to display different sets of data. To change the ordering, drag and drop the handles of a field. The ID field is not editable. After making changes, click Save to view your changes to the query data.

READER NOTE

You must run the query before you can proceed to the next step of configuring the widget. If the query configurations are modified, you must re-run the query before proceeding to the next step.

Step 3: Configuring the Widget

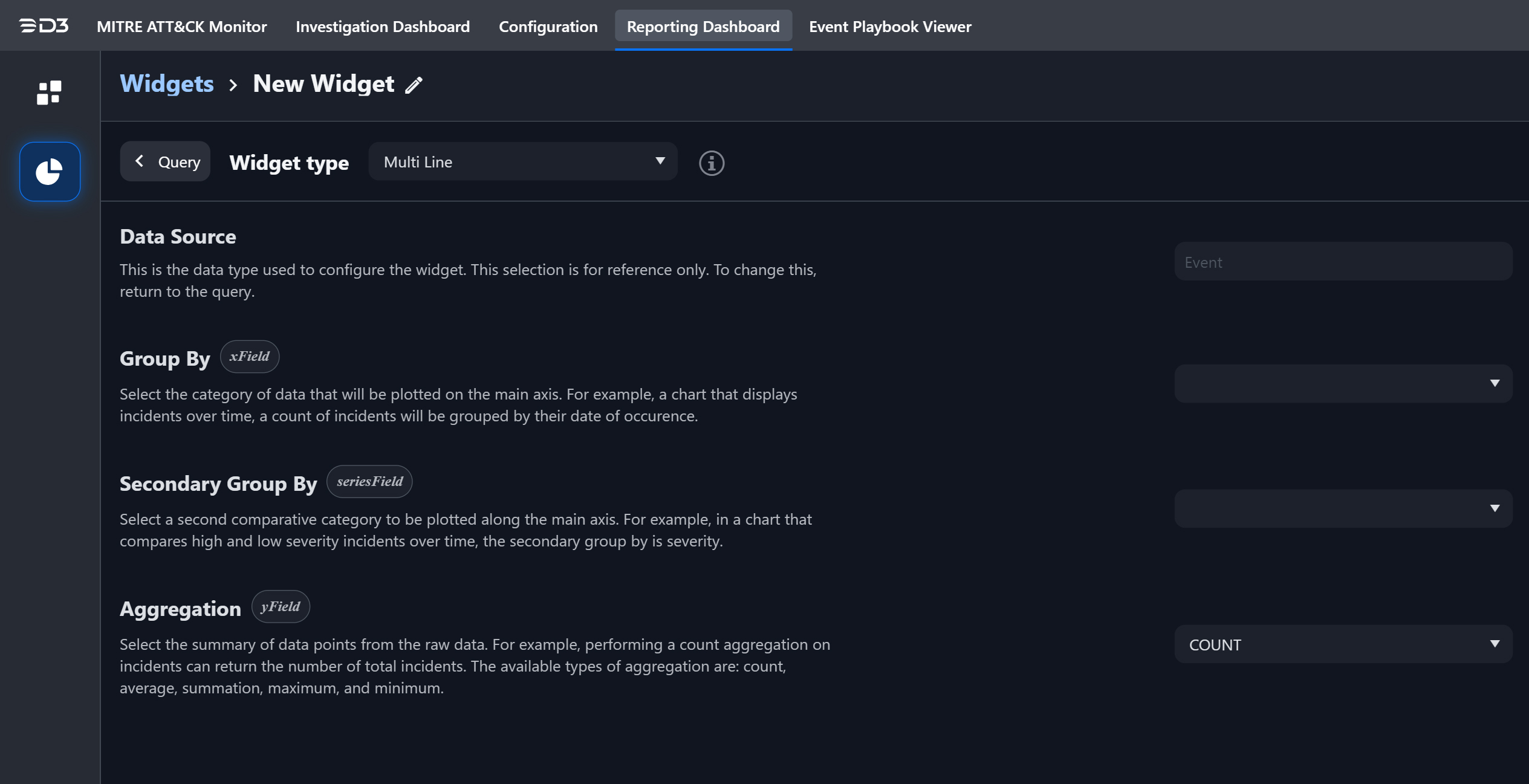

Next, configure the visualization type for the widget. Use the Widget type dropdown to select the visualization for your query. The available widget types are summarized below.

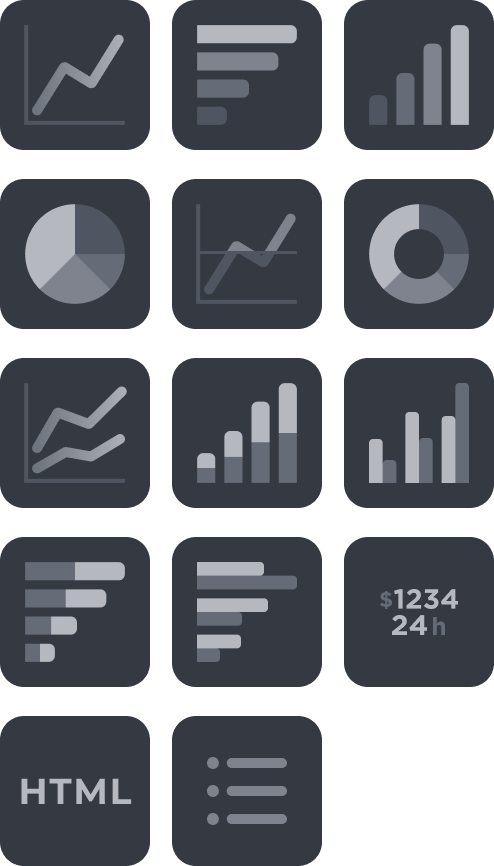

Widget Types

	Widget Type	Description
Charts	Line	Displays information as a series of data points connected by straight lines. Used to show trends over time or to compare different sets of data.
	Bar	Uses rectangular bars to represent data. Used to compare different categories of data, such as sales figures or population sizes.
	Column	Uses vertical bars to represent data. Similar to a bar chart, but with bars oriented vertically.
	Pie	Uses slices of a circle to represent data. Often used to show how a whole is divided into parts or to compare different parts of a single dataset.
	Line & Median	Combines a line chart with a horizontal line that represents the median value of the data. Used to show how a dataset is distributed around its median.
	Donut	Similar to a pie chart, but with a hole in the center. Often used to show how a whole is divided into parts, but can also be used to compare different parts of a single dataset.
Series Charts	Multi Line	Displays multiple lines to represent different datasets. Used to compare trends over time or to compare different sets of data.
	Stacked Column	Uses vertical bars to represent data, with each bar broken down into smaller sections that represent different categories of data. Used to show how a whole is divided into parts and how those parts relate to each other.
	Grouped Column	Uses vertical bars to represent data, with each bar representing a different category of data. Often used to compare different categories of data side by side.
	Stacked Bar	Uses horizontal bars to represent data, with each bar broken down into smaller sections that represent different categories of data. Used to show how a whole is divided into parts and how those parts relate to each other.
	Grouped Bar	Uses horizontal bars to represent data, with each bar representing a different category of data. Often used to compare different categories of data side by side.
Table	Table	Displays data in a tabular format with rows and columns.
Others	Numbers	Displays a single fact, or a single data point. This is used when a single number is the most important thing you want to track in your dashboard or report, such as total incident count, auto-escalated rate, or total saved hours.
	HTML	Uses HTML to display information as text or tables.
	List	Displays a list of data points, often used for ranking data.

Each type of widget offers various configuration options. Refer to the descriptions provided for each configurable field in the table below to assist you in building your widget type. In most cases, you can select values from a dropdown menu for the widget fields. However, the HTML editor field is an exception, as it provides a rich text field box for inputting HTML values.

For example, if you want to create a multi-line chart widget to display the daily event count by event status, you would set the Group By field to "Event Utc Time (YYYY-MM-DD)", the Secondary Group By field to "Event Status", and the Aggregation field to "COUNT".

Widget Fields

Widget Fields	Description	Applicable Widget Types
Group By	The category of data that will be plotted on the main axis. For example, a chart that displays incidents over time, a count of incidents will be grouped by their date of occurrence.
Secondary Group By	A second comparative category to be plotted along the main axis. For example, in a chart that compares high and low severity incidents over time, the secondary group by is severity.
Aggregation	The summary of data points from the raw data. For example, performing a count aggregation on incidents can return the number of total incidents. The available types of aggregation are: count, average, summation, maximum, minimum, median and mode.
Colour Field	The category to be displayed as sections. For example, in a chart that shows the occurrence of incident types, the colour field will be the incident type.
Angular Field	The category to be aggregated. For example, in a chart that shows the occurrence of incident types, the angular field is the proportion of each incident type.

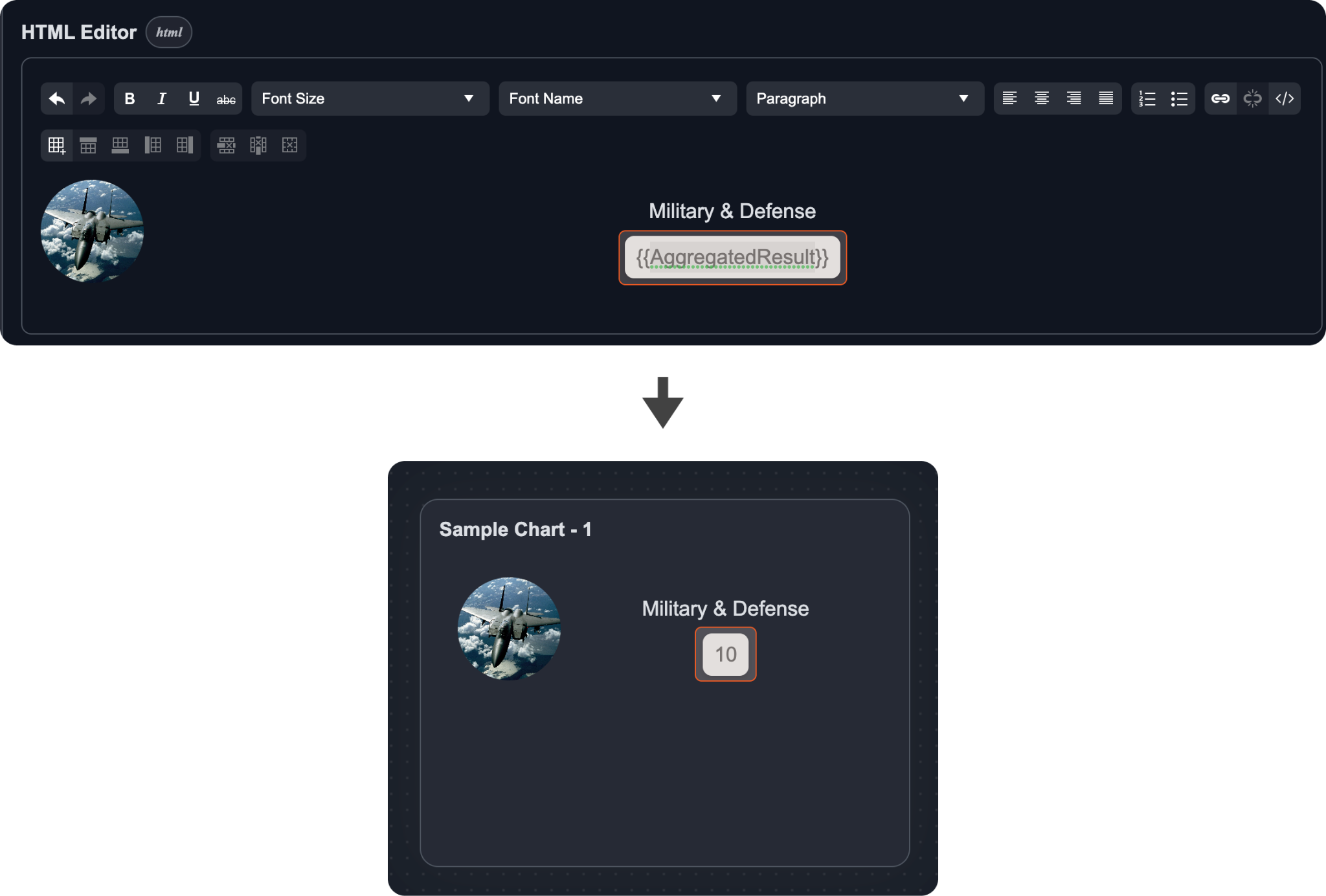

HTML Editor	Edit the HTML rich text content to display. You can incorporate the dynamic value of the aggregation field with `{{AggregatedResult}}`. For example, if you have an HTML widget that displays the overall count of events in the previous month, the input value should be "The total number of events in the past month is `{{AggregatedResult}}`".
Primary Field	The field to be displayed first in a list item.
Secondary Field	The field to be displayed second in a list item.

Once you have configured the widget fields, you will find the queried data and the aggregated data displayed in the bottom pane. The Query Data tab shows the queried data, which is returned from the query set defined in the previous query stage. The Results tab displays the aggregated data, which is derived from the configured widget fields.

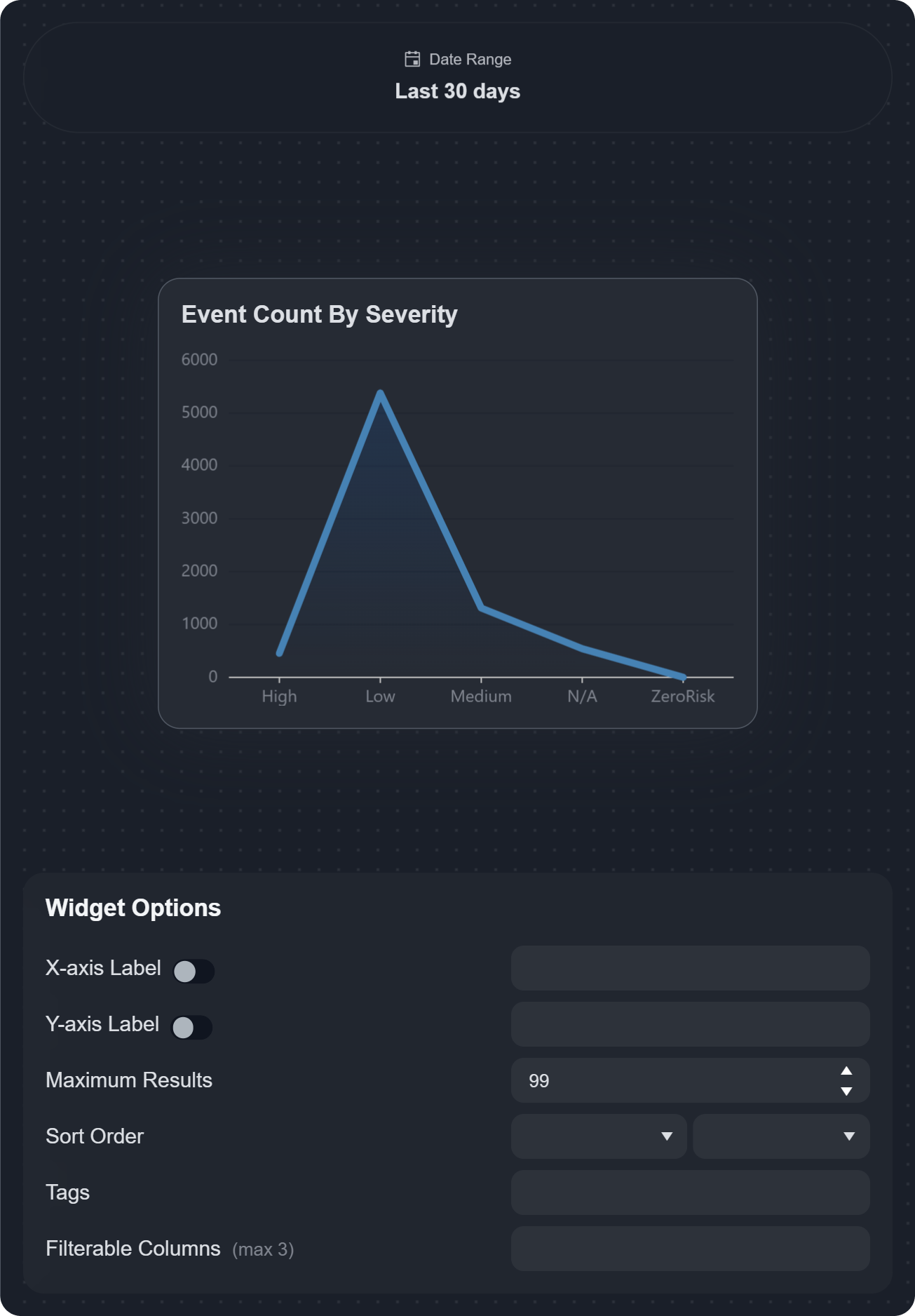

A live preview of the widget is shown on the right pane, with further configurable widget options available to fine-tune the widget. Refer to the full list of configurable widget options below for more information.

Widget Options

Widget Options	Description	Applicable Widget Types
X-axis label	Enables and defines a label for the x-axis on the chart.
Y-axis label	Enables and defines a label for the y-axis on the chart.
Maximum Results	Sets the maximum number of aggregated results to display as data points on the chart.
Sort Order	Sets the sorting order (ascending or descending) of data points displayed on the chart. You can sort by widget-specific fields or choose no sorting.
Tags	Allows you to add custom tags for organizing widgets.
Filterable Columns	Add up to 3 extra data points to further filter data within a widget. These filters are accessible directly on widgets in the dashboard to help you narrow down the data to display in a chart on the fly. READER NOTE The added filters will only be visible when the configured widget is on a completed dashboard.
Unit	Specifies the unit of measurement for numerical data displayed on the chart. The unit can be placed before (e.g. $15,000) or after (e.g. 15,000 USD) the numerical value.

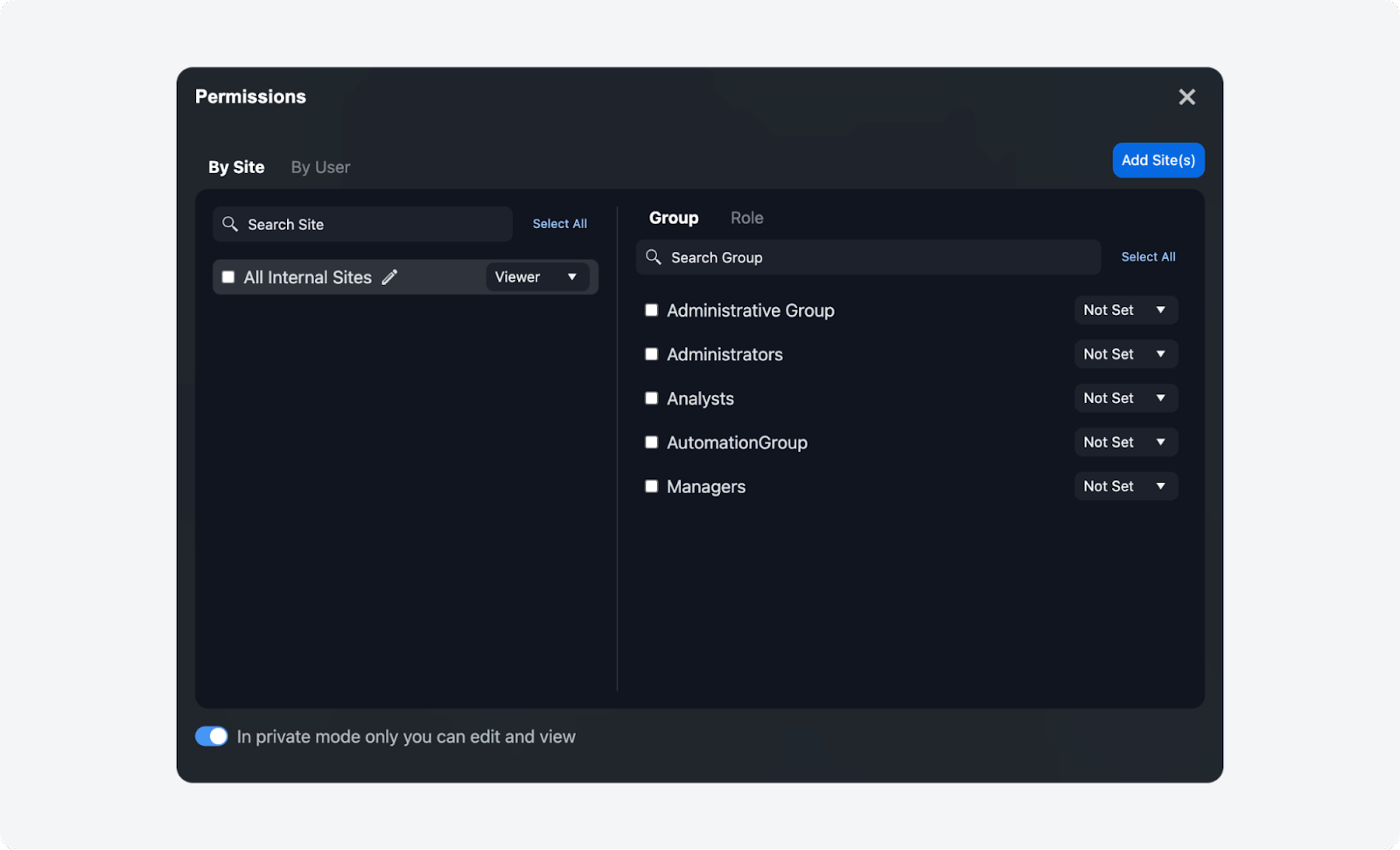

Permissions

After configuring your widget type, set the viewing permissions for the widget. Click Permissions in the upper right corner.

There are two main ways to configure permissions:

By Site:
- Default Role Configuration: Each added site allows you to specify a default permission role, which can be set to either "Viewer", "Editor", or "Not Set". When a new site is added to the list, its default role is automatically set to "Viewer".
- Role or Group within a Site: Roles or groups that are defined under a site can override the site's default permission role. The more specific configuration will always take precedence over a general one. For example, if Site A's default is set to "Viewer", but Group A within Site A is designated as "Editor", then users within Group A will have editor permissions.
By User:
- Each added user allows you to specify a permission role, which can be set to either "Viewer", "Editor", or "Not Set". When a new user is added to the list, its default role is automatically set to "Viewer".

Understanding the Permission Roles

Editors: Can edit and modify widgets, and set up email schedules for sharing.
Viewers: Limited to viewing the widget.

Private Mode

When Private Mode is activated, only the original creator of the widget will have the permissions to view and edit it.

Widget Examples

Example 1 - Incident Volume by Severity

OBJECTIVE

Setting up a widget to track incident creation trends by severity over time, using data from the last 7 days.

Configure the widget to display incidents from a selected site or all sites within the past specified number of days, then click on the Run Query button.

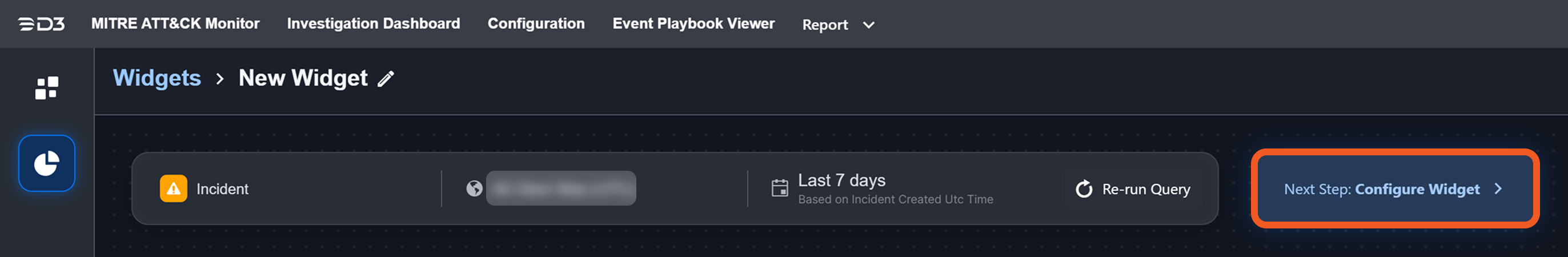

Click on the Next Step button.

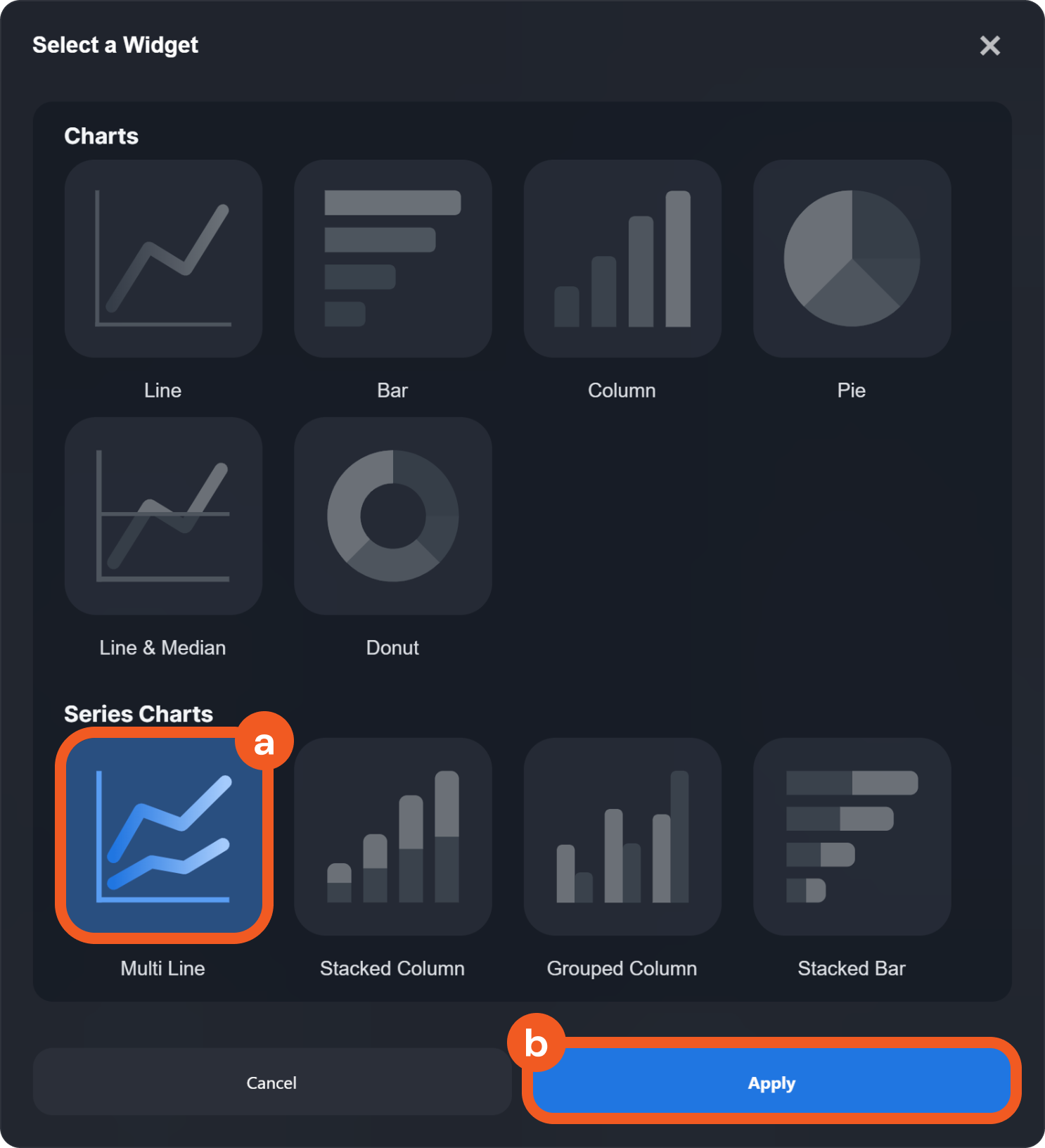

Select the Multi Line chart type, then click on the Apply button.

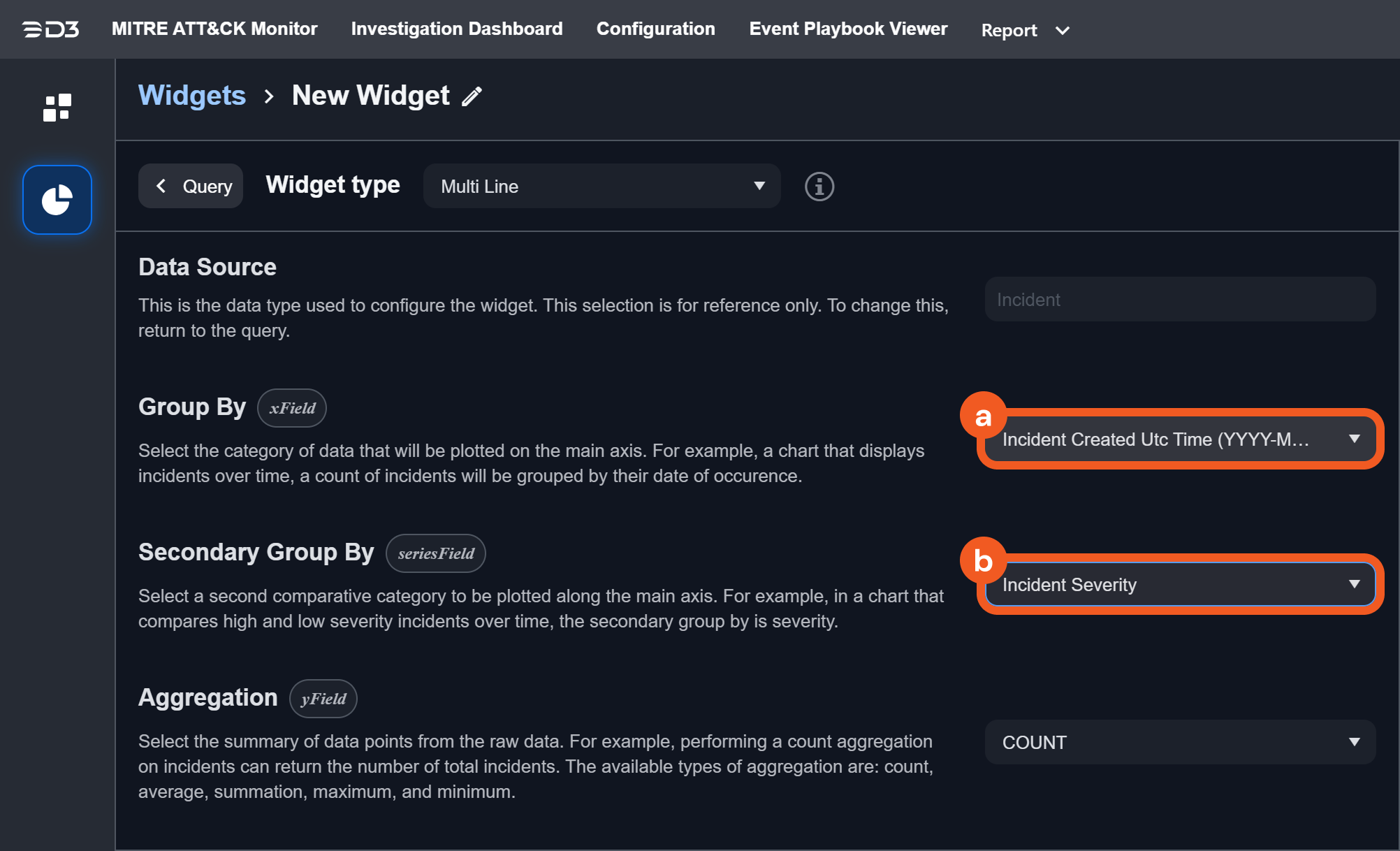

Set the Group By field to Incident Created Utc Time (YYYY-MM-DD), then set the Secondary Group By field to Incident Severity.

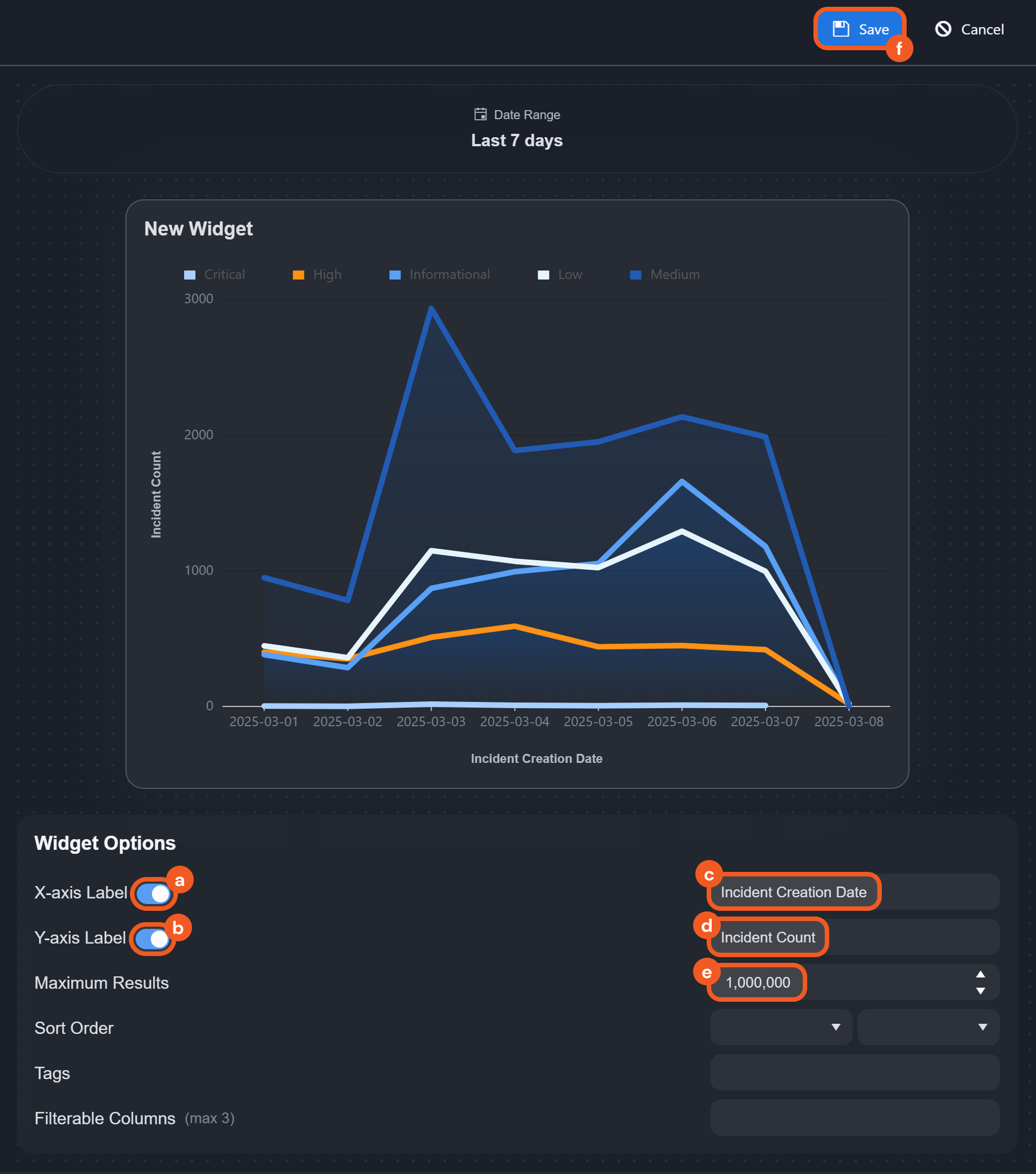

Define labels for the X- and Y-axis and set the maximum number of data points to include.

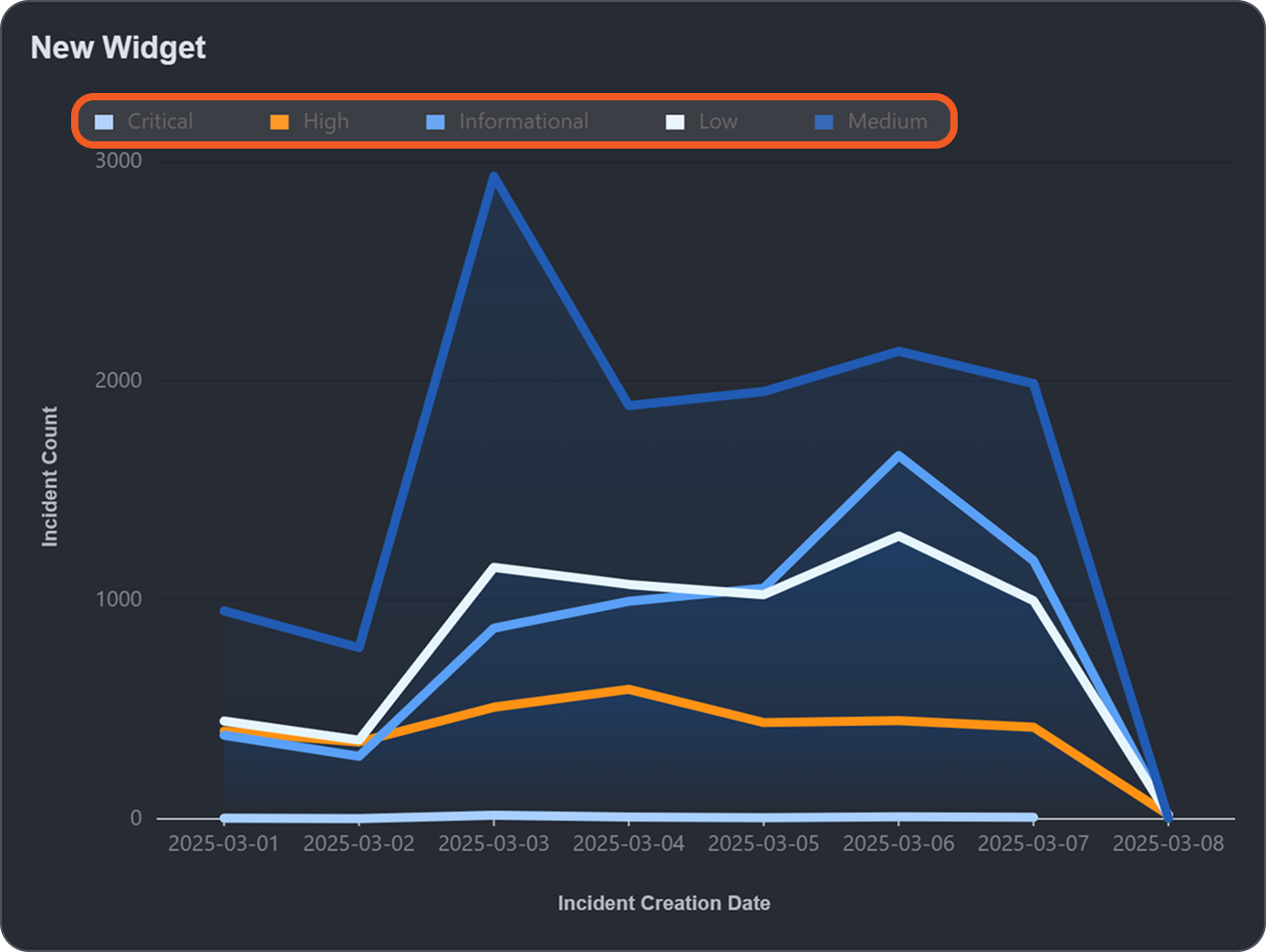

Click on legend items to toggle the visibility of severity categories (Critical, High, Medium, Low, Informational) on the graph.

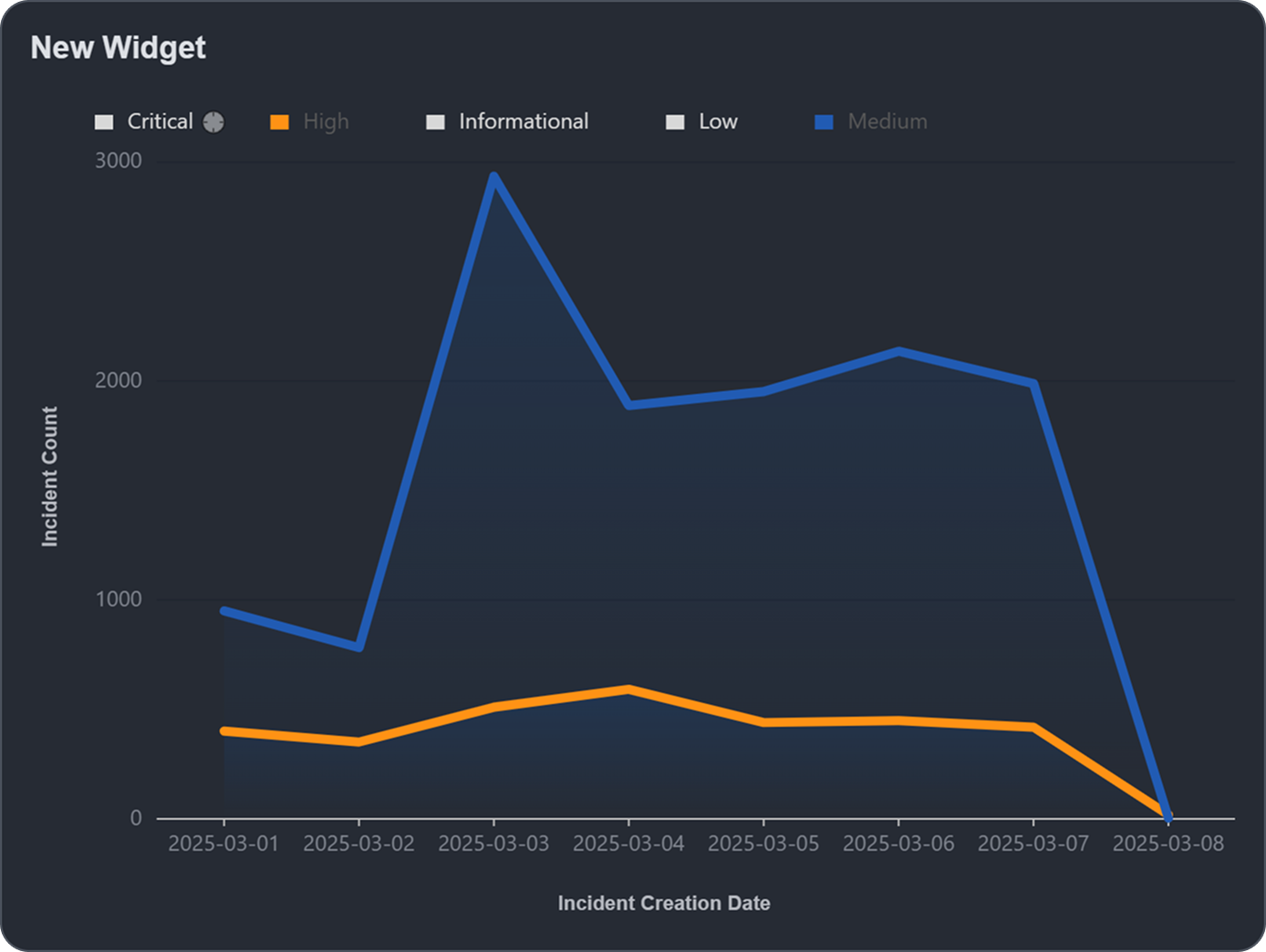

If Informational, Low, and Critical severities are toggled off, the graph will appear as follows:

Example 2 - Incident Volume by Hour for a Specific Integration

OBJECTIVE

Setting up a widget to track Microsoft Sentinel incident volume by hour of the day, using data from the last 7 days.

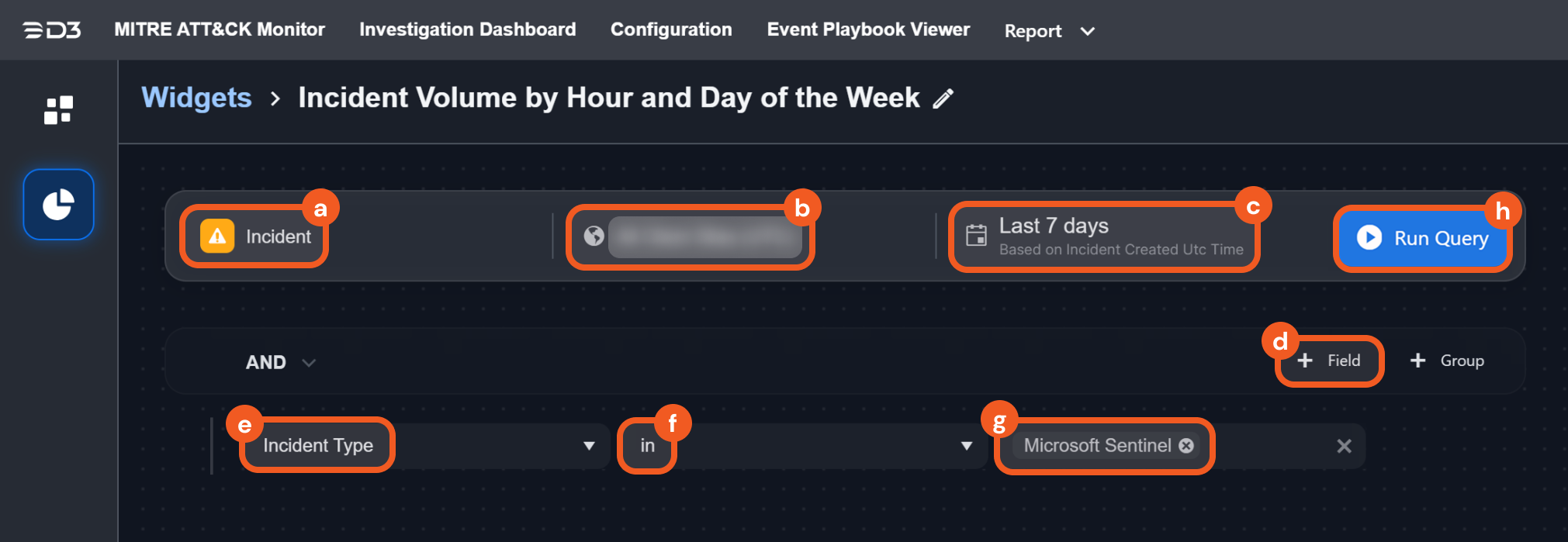

Configure the widget to display Microsoft Sentinel incidents from a selected site or all sites within the past specified number of days, then click on the Run Query button.

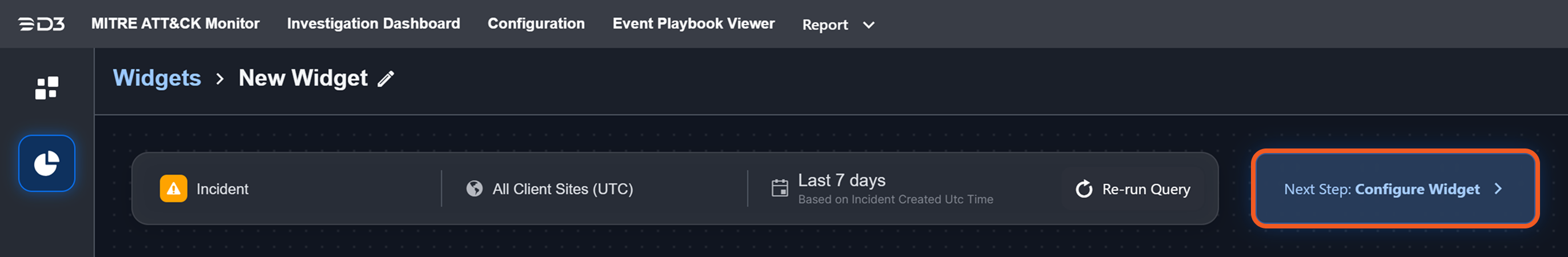

Click on the Next Step button.
Select the Multi Line chart type, then click on the Apply button.

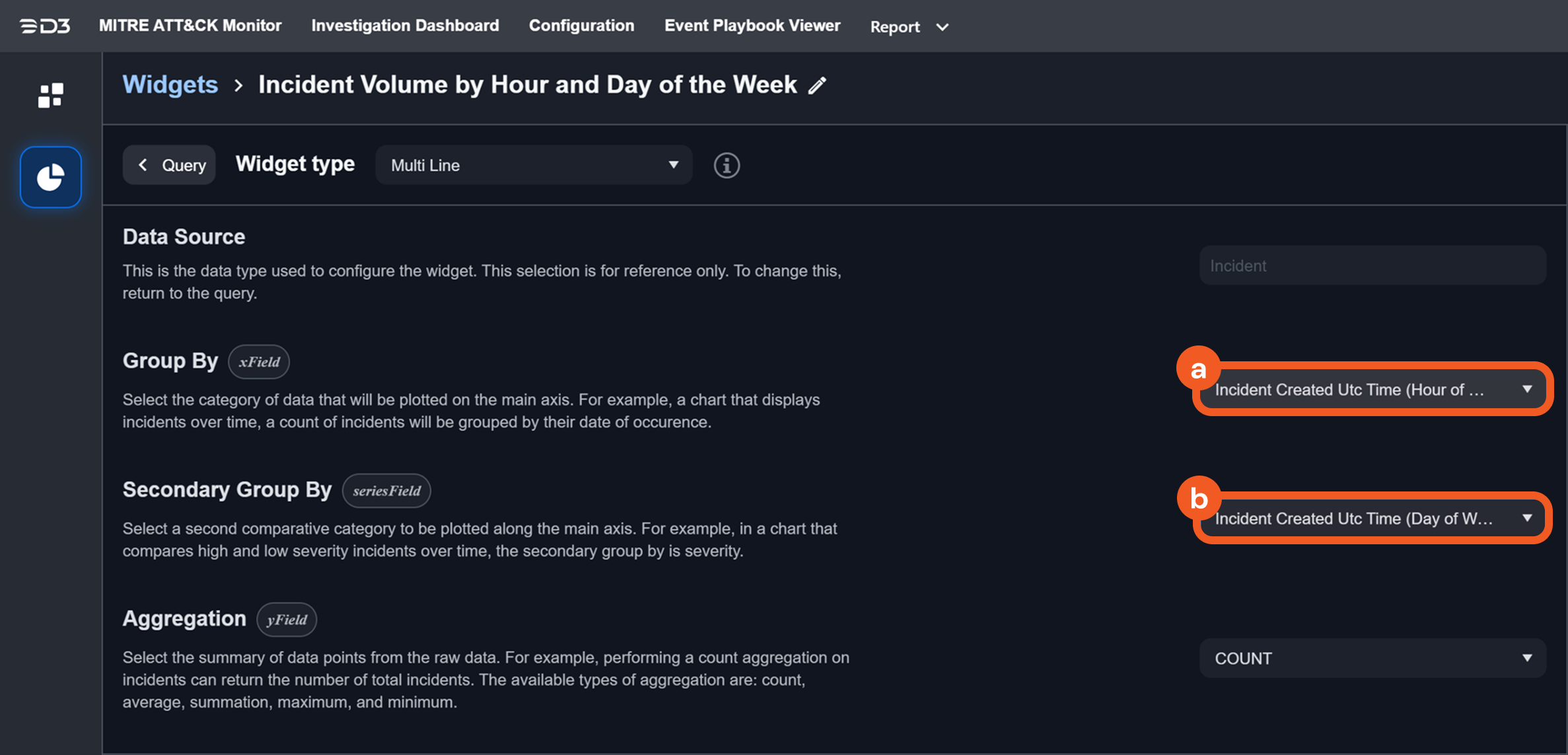

Set the Group By field to Incident Created Utc Time (Hour of Day), then set the Secondary Group By field to Incident Created Utc Time (Day of Week).

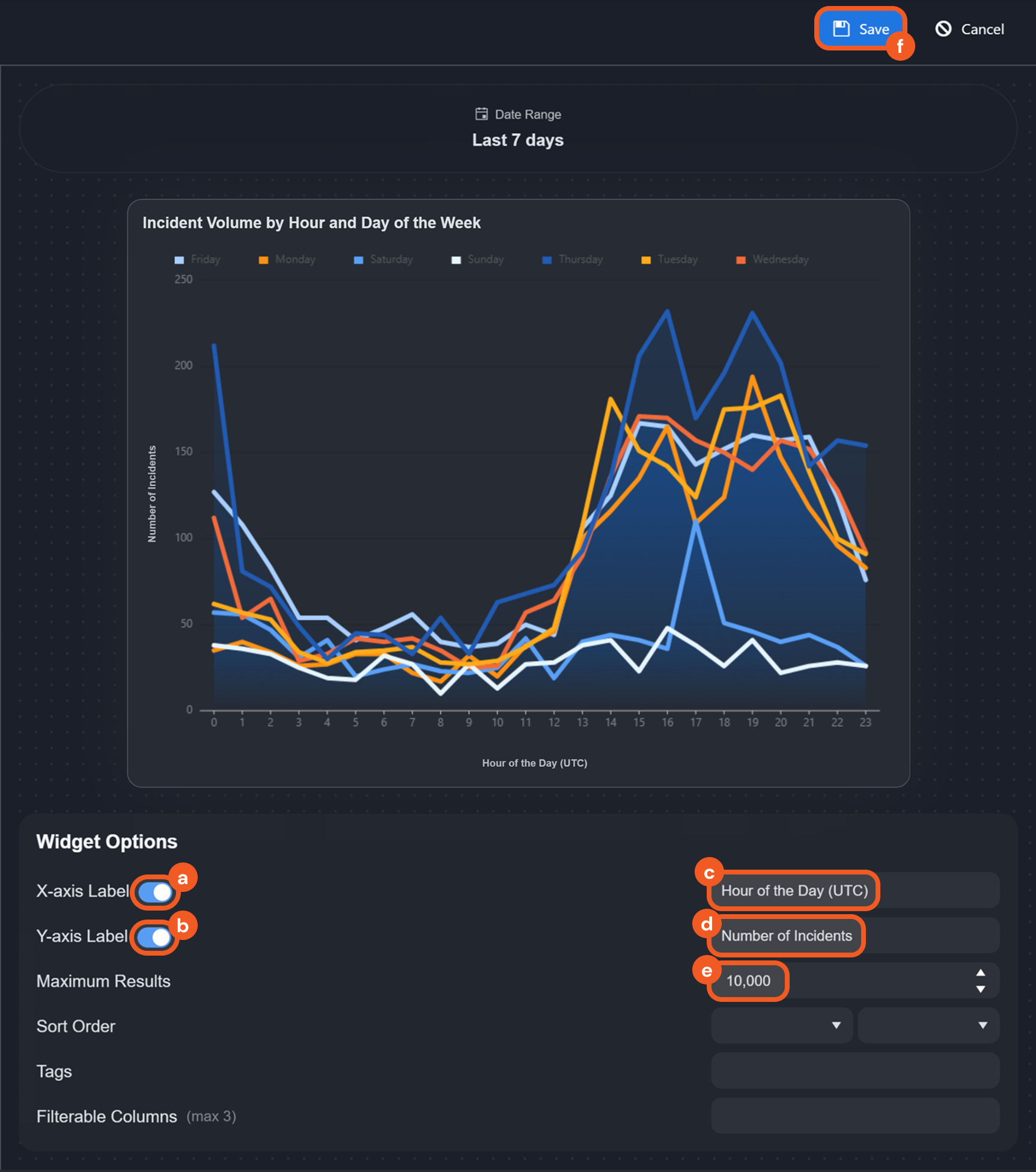

Define labels for the X- and Y-axis and set the maximum number of data points to include.
Click on legend items to toggle the visibility of day categories (Monday-Sunday) on the graph.

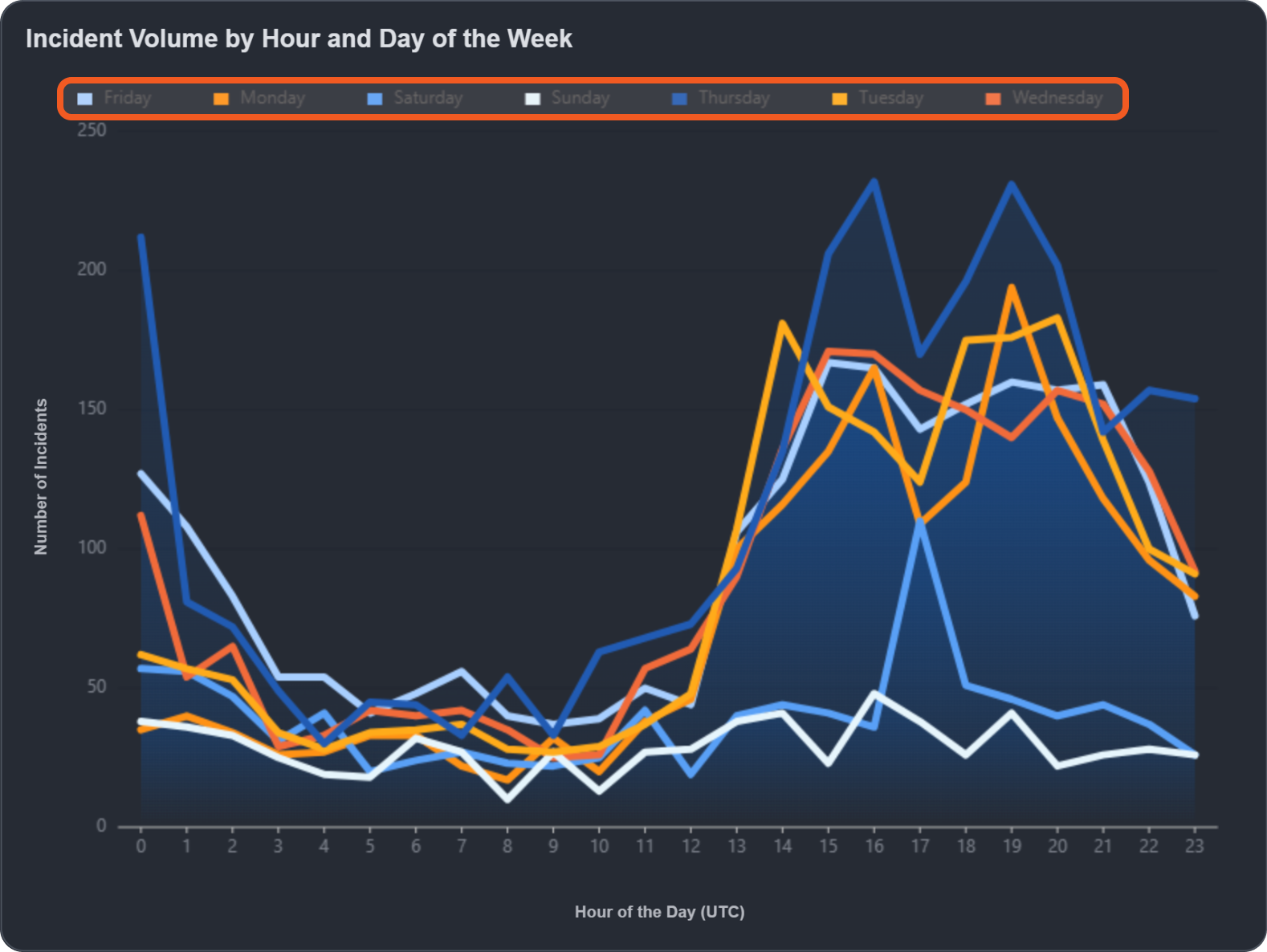

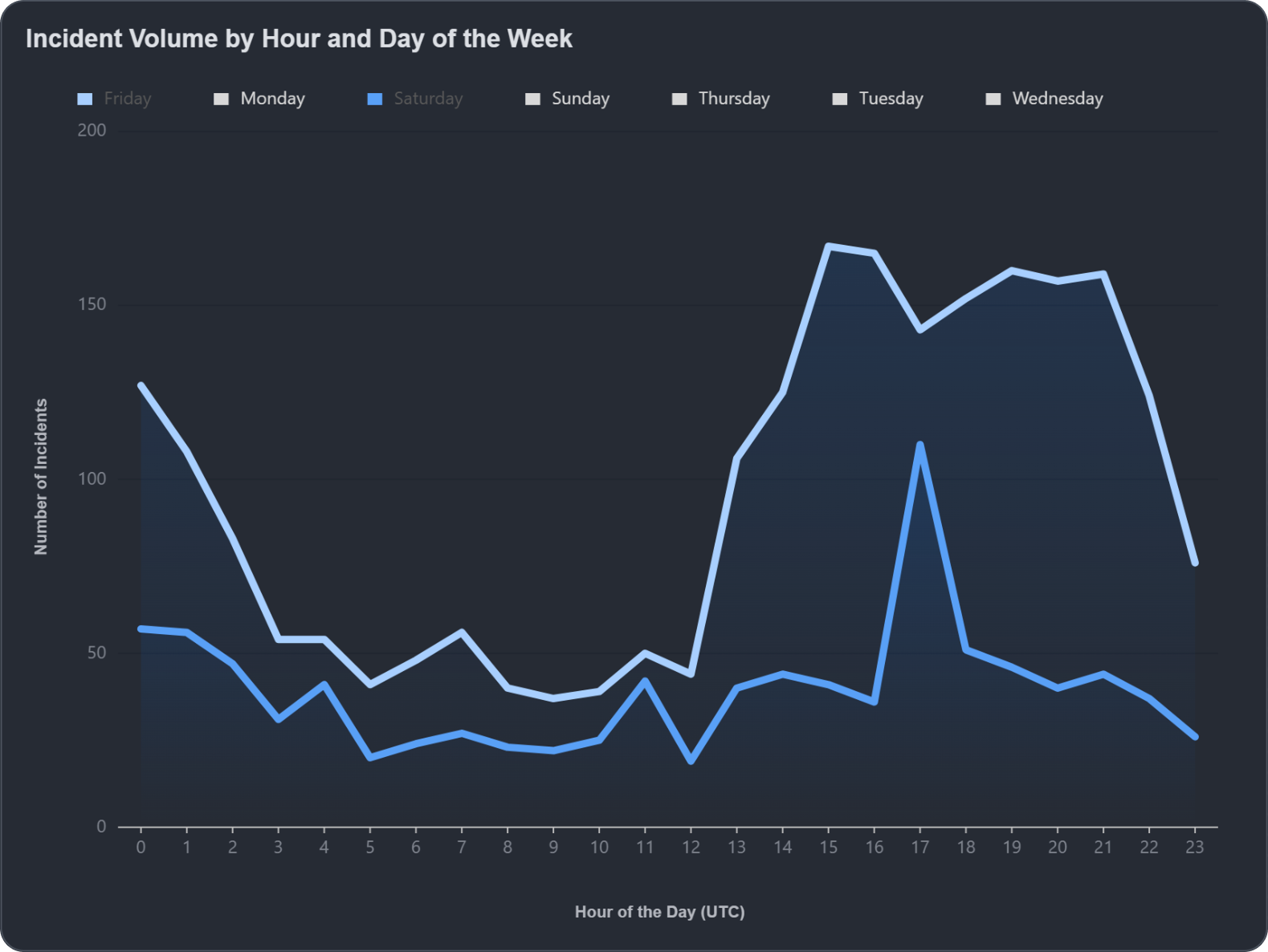

If only Friday and Saturday are toggled on, the graph will appear as follows:

Cloning a Widget

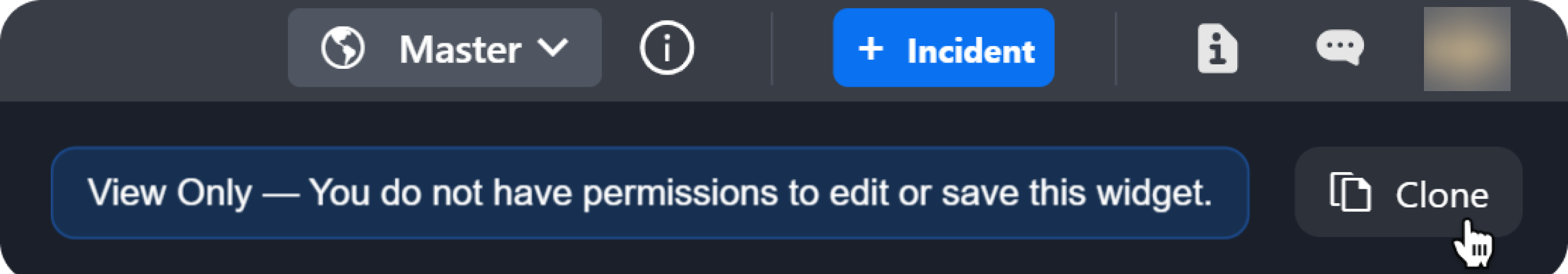

To clone an existing widget, users must select it from the list of dashboards. If the selected dashboard was not created by the user but is viewable based on permissions, the Clone button will appear near the upper right corner.

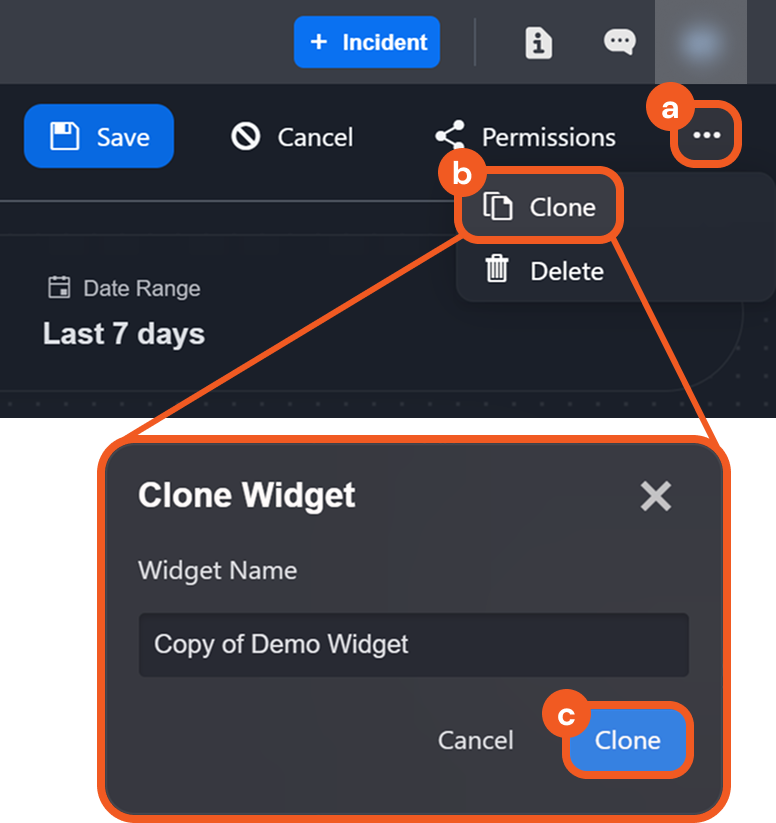

For widgets created by the user, the Clone option is located within the ellipsis menu in the upper right corner.

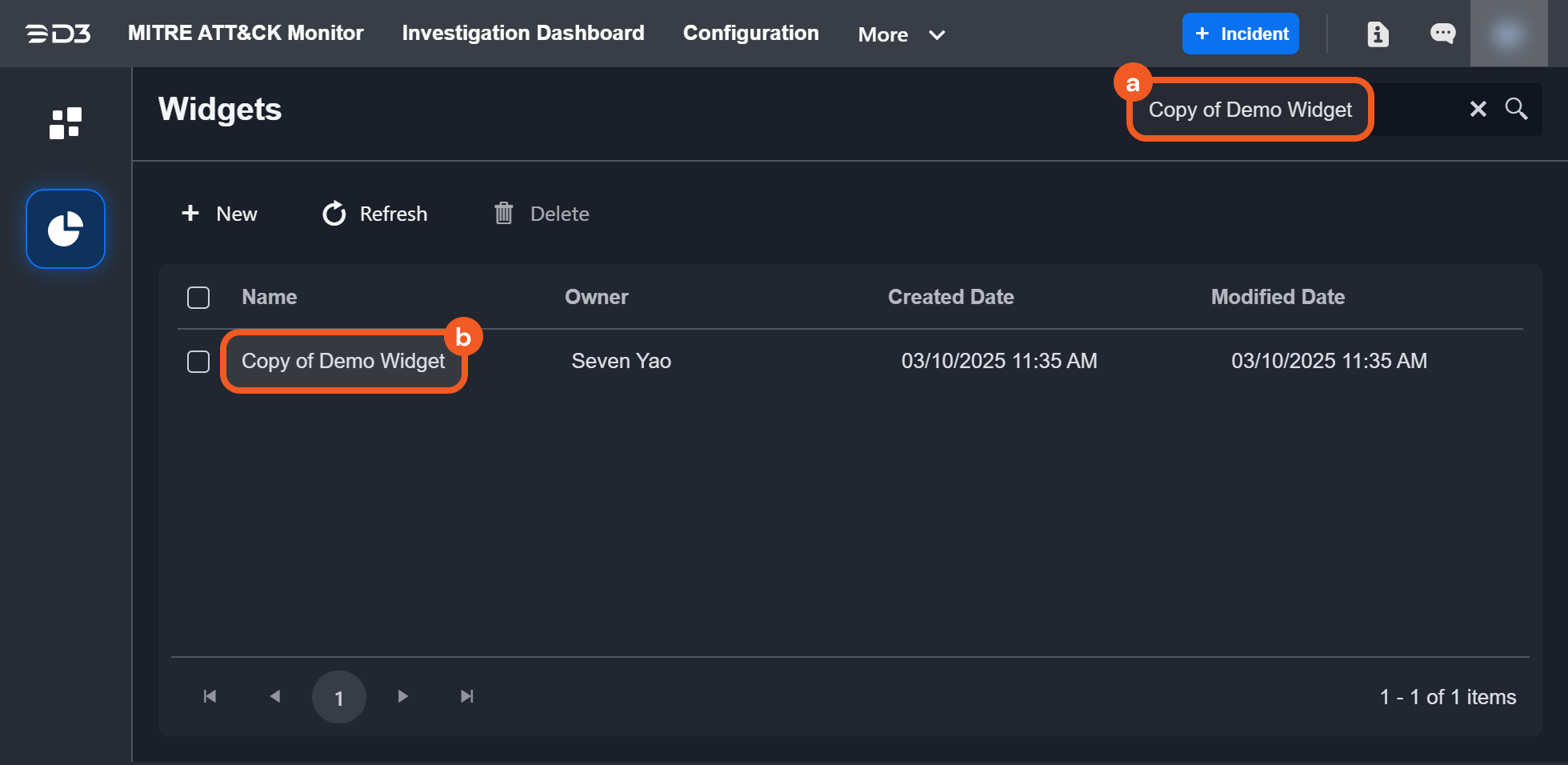

The cloned widget will appear in the overview page of the Widgets tab.
