Deep Instinct V2

LAST UPDATED: DECEMBER 22, 2025

Overview

Deep Instinct V2 uses the Deep Instinct REST API, version v1. Deep Instinct is an endpoint security platform that prevents, detects, and responds to zero-day malware, ransomware, and other advanced threats before they can compromise endpoints or networks. It provides endpoint detection and response (EDR) capabilities, among other features, for modern security operations.

D3 SOAR is providing REST operations to function with Deep Instinct V2.

Deep Instinct V2 is available for use in:

D3 SOAR	V17.0+
Category	SIEM XDR
Deployment Options	Option II, Option IV

Connection

Gather the following information to connect D3 SOAR to Deep Instinct V2.

Parameter	Description	Example
Server URL	The server URL of the Deep Instinct instance.	https://<Replace_With_Your-deepinstinct-instance>
API Key	The API key used to authenticate the connection.	*****
API Version	The version of the API used for the connection. By default, the value is v1.	v1

Configuring D3 SOAR to Work with Deep Instinct V2

Log in to D3 SOAR.

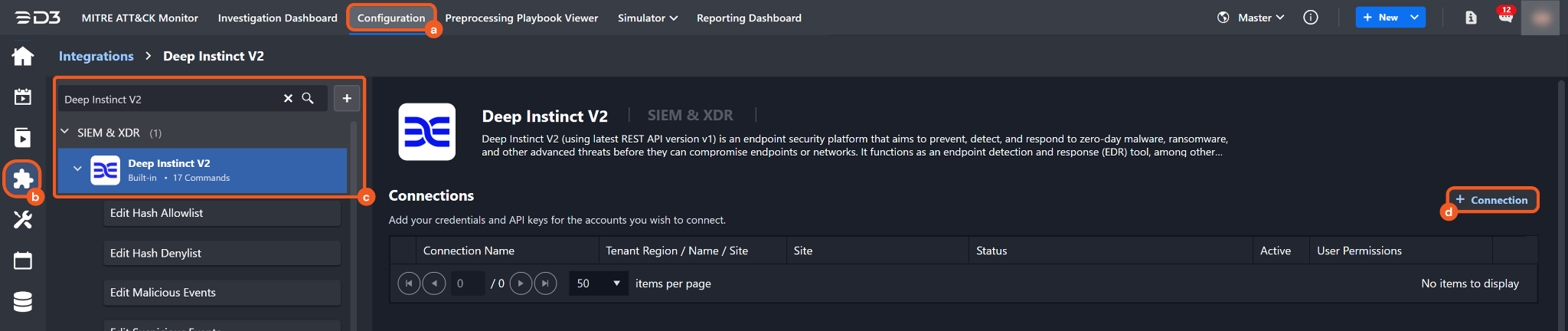

Find the Deep Instinct V2 integration.
1. Navigate to Configuration on the top header menu.
2. Click on the Integration icon on the left sidebar.
3. Type Deep Instinct V2 in the search box to find the integration, then click it to select it.
4. Click on the + Connection button on the right side of the Connections section. A new connection window will appear.

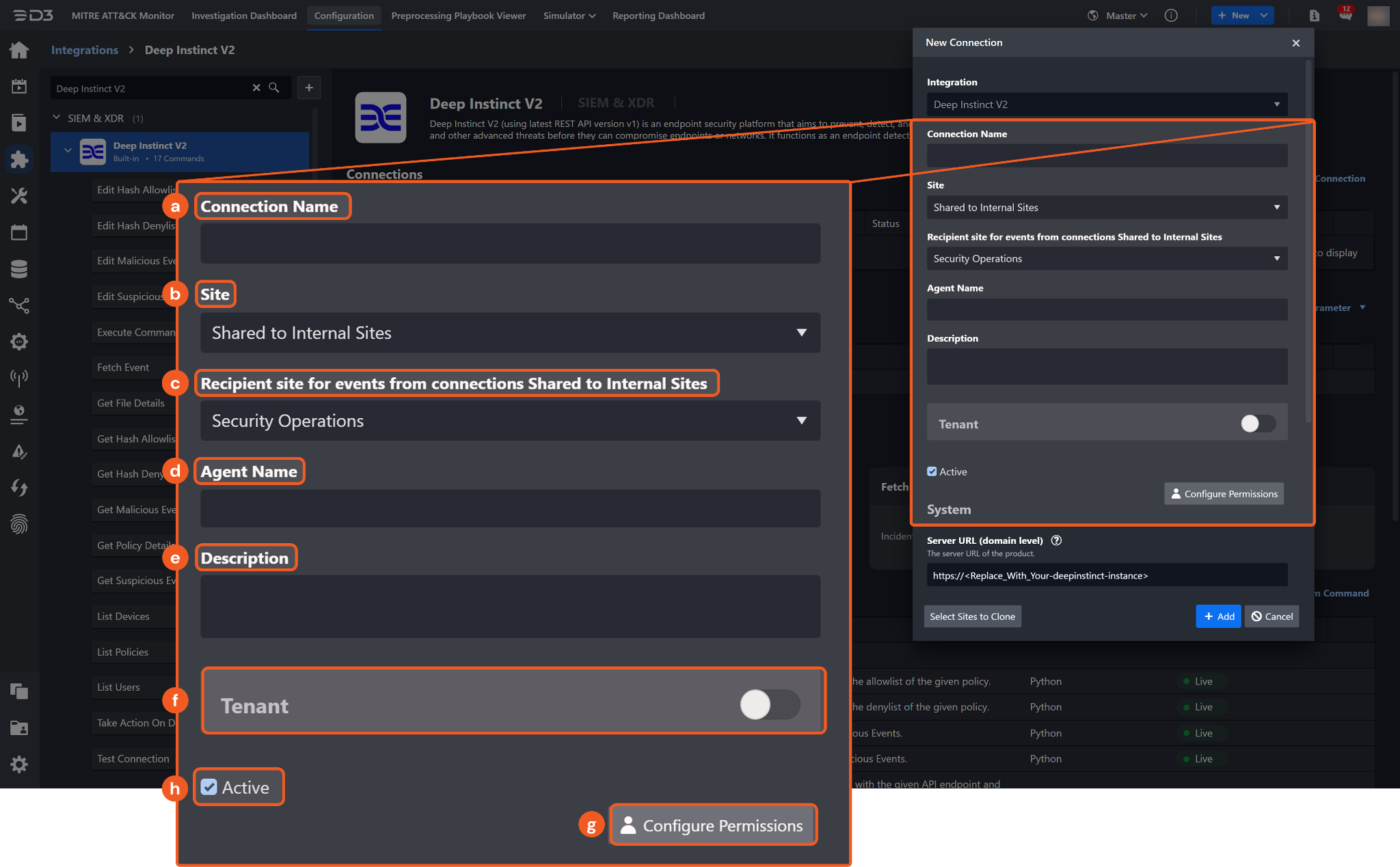

Configure the following fields to create a connection to Deep Instinct V2.
1. Connection Name: The desired name for the connection.
2. Site: The site on which to use the integration connection. Use the drop-down menu to select the site. The Share to Internal Sites option enables all internal sites to use the connection. Selecting a specific site will only enable that site to use the connection.
3. Recipient site for events from connections Shared to Internal Sites: This field is displayed when Share to Internal Sites is selected for the Site field, allowing selection of the internal site for deploying the integration connection.
4. Agent Name (Optional): The proxy agent required to build the connection. Use the dropdown menu to select the proxy agent from a list of previously configured proxy agents.
5. Description (Optional): The description for the connection.
6. Tenant (Optional): When configuring the connection from a master tenant site, users can choose the specific tenant sites with which to share the connection. Once this setting is enabled, users can filter and select the desired tenant sites from the dropdowns to share the connection.
7. Configure User Permissions: Defines which users have access to the connection.
8. Active: The checkbox that enables the connection to be used when selected.

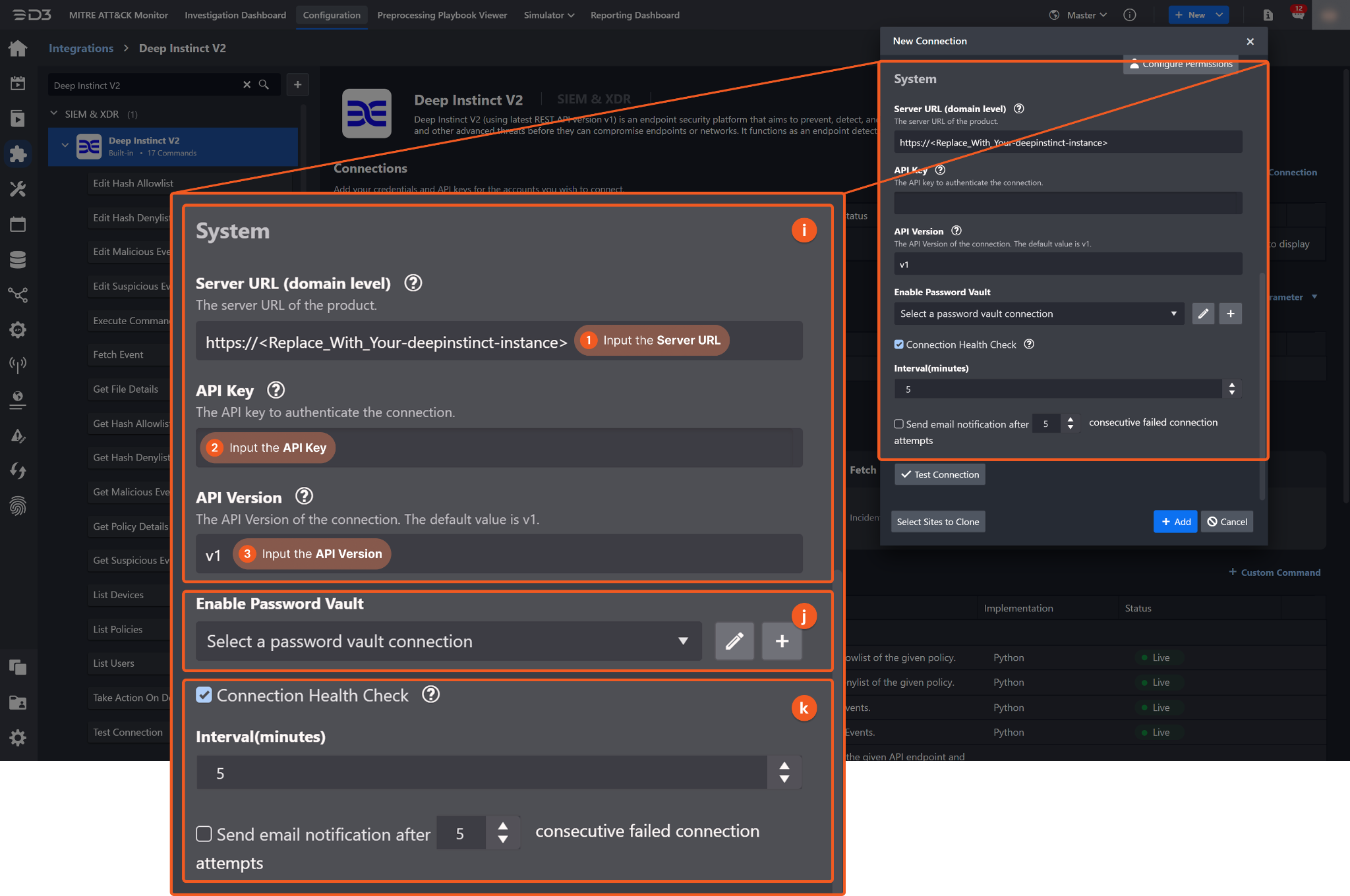

9. System: This section contains the parameters defined specifically for the integration. These parameters must be configured to create the integration connection.
  1. Input the Server URL. The default value is https://<Replace_With_Your-deepinstinct-instance>.
  2. Input the API Key from the Deep Instinct V2 platform.
  3. Input the API Version. The default value is v1.
10. Enable Password Vault: An optional feature that allows users to take the stored credentials from their own password vault. Refer to the password vault connection guide if needed.
11. Connection Health Check: Periodically checks the connection status by scheduling the Test Connection command at the specified interval (in minutes). Available only for active connections, this feature also allows configuring email notifications for failed attempts.
Test the connection.
1. Click on the Test Connection button to verify credentials and connectivity. A success alert displays Passed with a green checkmark. If the connection fails, review the parameters and retry.
2. Click OK to close the alert window.
3. Click + Add to create and add the configured connection.

Commands

Deep Instinct V2 includes the following executable commands for users to set up schedules or create playbook workflows. With the Test Command function, users can execute these commands independently for playbook troubleshooting.

Note for Time-related parameters

The input format of time-related parameters may vary based on user account settings, which may cause the sample data in commands to differ from what is displayed. To adjust the time format, follow these steps:

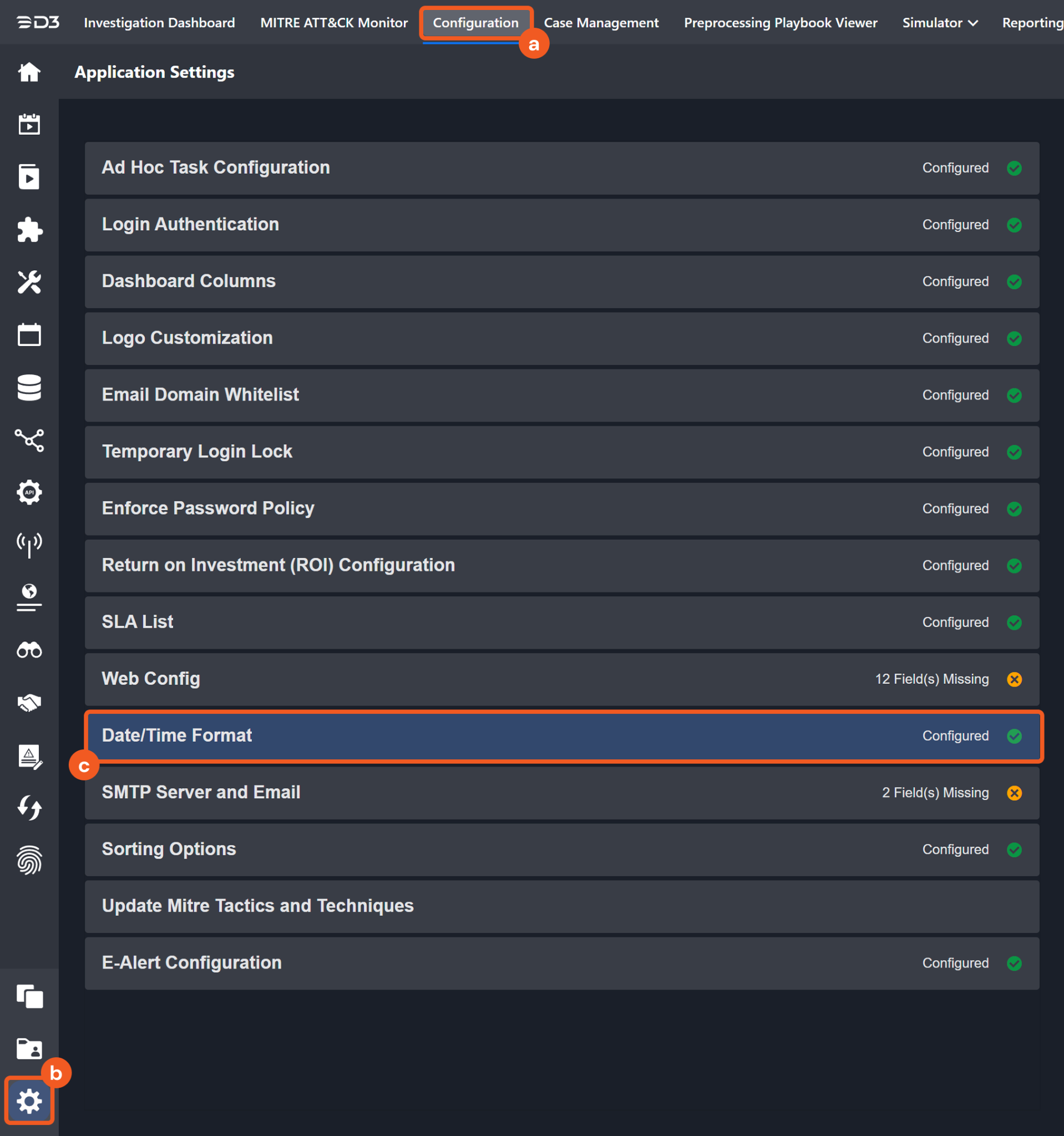

Navigate to Configuration Application Settings. Select Date/Time Format.

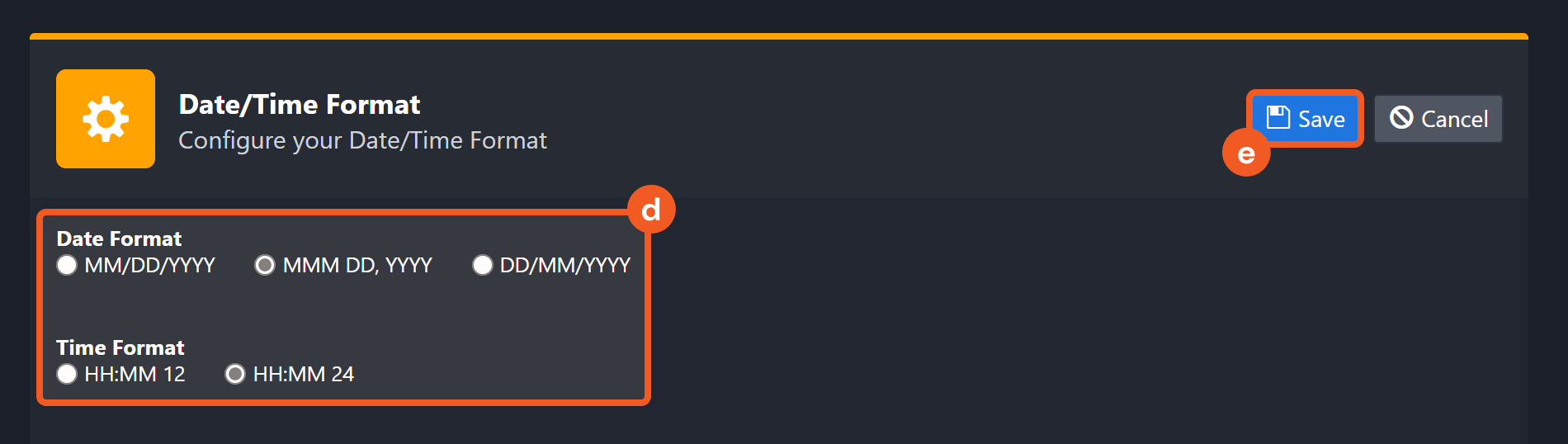

Choose the desired date and time format, then click on the Save button.
The selected time format will now be visible when configuring Date/Time command input parameters.

Edit Hash Allowlist

Adds or removes file hashes in the hash allowlist of a specified policy.

READER NOTE

Policy ID is a required parameter to run this command.

Run the List Policies command to obtain the Policy ID. Policy IDs can be found in the raw data at $.Results[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Policy ID	Required	The unique identifier of the policy whose hash allowlist will be updated. Policy IDs can be obtained using the List Policies command.	*****
Action	Optional	The allowlist operation to perform. Valid values are: Add Remove By default, the value is set to Add.	Add
Items	Required	The file hashes to add to or remove from the hash allowlist.	JSON `[ "6ef9*****4d0c" ]`
Comment	Optional	An optional comment describing the allowlist change.	Bulk add hashes to the allowlist.

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Edit Hash Allowlist failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Edit Hash Allowlist failed.

Status Code: 401.

Message: Unauthorized.

Edit Hash Denylist

Adds or removes file hashes in the hash denylist of a specified policy.

READER NOTE

Policy ID is a required parameter to run this command.

Run the List Policies command to obtain the Policy ID. Policy IDs can be found in the raw data at $.Results[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Policy ID	Required	The unique identifier of the policy whose hash denylist will be updated. Policy IDs can be obtained using the List Policies command.	*****
Action	Optional	The denylist operation to perform. Valid values are: Add Remove By default, the value is set to Add.	Add
Items	Required	The file hashes to add to or remove from the hash denylist.	JSON `[ "6ef9*****4d0c" ]`
Comment	Optional	An optional comment describing the denylist change.	Bulk add hashes to the denylist.

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Edit Hash Denylist failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Edit Hash Denylist failed.

Status Code: 401.

Message: Unauthorized.

Edit Malicious Events

Performs batch actions on specified malicious events.

READER NOTE

Malicious Event IDs is a required parameter to run this command.

Run the Fetch Event command with Retrieve Event Type set to Malicious Event to obtain the Malicious Event IDs. Malicious Event IDs can be found in the raw data at $.events[*].id.

Input

Input Parameter

Required/Optional

Description

Example

Malicious Event IDs

Required

The unique identifiers of malicious events on which the selected action will be performed. Malicious Event IDs can be obtained using the Fetch Event command with Retrieve Event Type set to Malicious Event.

JSON

[
  *****,
  *****
]

Action

Required

The action to perform on the specified malicious events. Valid values are:

Archive
Close
Open
Unarchive

Close

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Edit Malicious Events failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Edit Malicious Events failed.

Status Code: 401.

Message: Unauthorized.

Edit Suspicious Events

Performs batch actions on specified suspicious events.

READER NOTE

Suspicious Event IDs is a required parameter to run this command.

Run the Fetch Event command with Retrieve Event Type set to Suspicious Event to obtain the Suspicious Event IDs. Suspicious Event IDs can be found in the raw data at $.events[*].id.

Input

Input Parameter

Required/Optional

Description

Example

Suspicious Event IDs

Required

The unique identifiers of suspicious events on which the selected action will be performed. Suspicious Event IDs can be obtained using the Fetch Event command with Retrieve Event Type set to Suspicious Event.

JSON

[
  *****,
  *****
]

Action

Required

The action to perform on the specified suspicious events. Valid values are:

Archive
Close
Unarchive

Close

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Edit Suspicious Events failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Edit Suspicious Events failed.

Status Code: 401.

Message: Unauthorized.

Execute Command

Executes a custom request against a specified API endpoint. Endpoint permissions must be configured correctly before the command is executed.

Input

Input Parameter	Required/Optional	Description	Example
API Endpoint	Required	The API request path to invoke.	/health_check
HTTP Request Method	Optional	The HTTP method used for the request. Valid values are: GET POST PUT PATCH DELETE By default, the value is set to GET.	POST
HTTP Query Parameters	Optional	A JSON object containing query parameters to include in the request.	JSON `{ "size": 10 "offset": 1 }`
HTTP Request Body	Optional	A JSON object containing the request payload. This parameter is required when the HTTP request method is POST, PUT, PATCH, or DELETE. By default, the value is an empty object.	JSON `{ "items": [ { "comment": "This is my comment", "item": "6ef9*****4d0c" } ] }`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Execute Command failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Execute Command failed.

Status Code: 401.

Message: Unauthorized.

Fetch Event

Ingests malicious or suspicious events into the vSOC platform as events.

Input

Input Parameter	Required/Optional	Description	Example
Start Time	Optional	The start of the time range for retrieving events (in UTC). Events generated after this time will be retrieved. The time range between Start Time and End Time must not exceed four hours for command performance reasons.	01/15/2024 04:00 PM
End Time	Optional	The end of the time range for retrieving events (in UTC). Events generated before this time will be retrieved. When this parameter has a value and Start Time is not provided, Start Time will be set to four hours before End Time. By default, the value is the current time (in UTC). The time range between Start Time and End Time must not exceed four hours.	01/15/2024 04:00 PM
Filters For Malicious Events	Optional	A JSON object containing field-value pairs used to filter malicious events. Filter properties are defined by the POST /events/search endpoint.	JSON `{ "status": [ "OPEN", "REOPEN" ], "action": [ "PREVENTED", "DETECTED" ], "threat_severity": [ "HIGH", "VERY_HIGH" ], "tenant_name": "My Tenant1", "tenant_id": ***** }`
Filters For Suspicious Events	Optional	A JSON object containing field-value pairs used to filter suspicious events. Filter properties are defined by the POST /suspicious-events/search endpoint.	JSON `{ "status": [ "OPEN", "REOPEN" ], "action": [ "PREVENTED", "DETECTED", "REMEDIATED" ], "threat_severity": [ "HIGH", "VERY_HIGH" ], "tenant_name": "My Tenant1", "tenant_id": ***** }`
Retrieve Event Type	Optional	The event type to return. Valid options are: Suspicious Event Malicious Event All When Suspicious Event is selected, Filters for Malicious Events will be ignored. When Malicious Event is selected, Filters for Suspicious Events will be ignored. By default, the value is set to Suspicious Event.	Malicious Event

Output

To view the sample output data for all commands, refer to this article.

Fetch Event Field Mapping

See Field Mappings.

The Deep Instinct V2 system integration includes pre-configured field mappings for the default event source.

The Default Event Source is the default system-provided set of field mappings applied when the fetch event command is executed. It includes a Main Event JSON Path, which is the JSONPath expression that points to the base array of event objects. The source field path continues from this array to locate the required data.

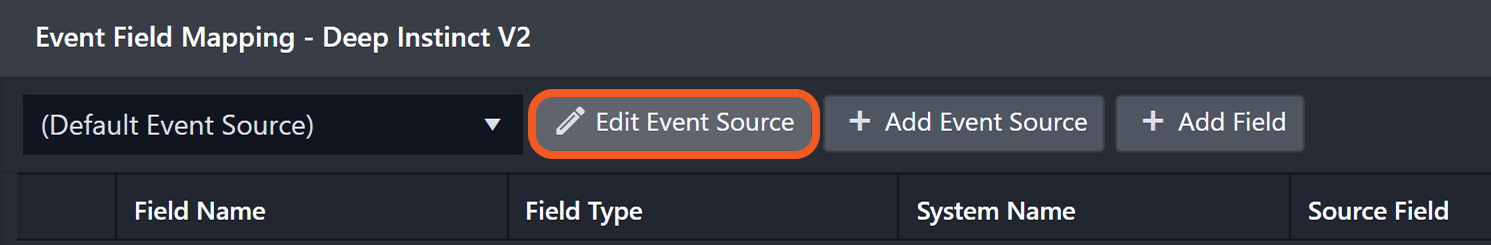

The Main Event JSON Path can be viewed by clicking on the Edit Event Source button.

Main Event JSON Path: $.events
The events array contains the event objects. Within each object, the key type denotes the Event Type field. As such, the full JSONPath expression to extract the Event Type is $.events.type.

The pre-configured field mappings are detailed below:

Field Name	Source Field
Comments	.comment
Device ID	.device_id
Remediation	.remediation
Destination IP address	.destination_ip
Destination port	.destination_port
Device	.device_name
Event Type	.type
File Hash SHA256	.file_sha_256
Filepath	.path
Hostname	.recorded_device_info.hostname
Start Time	.timestamp
Description	.description
New registry path	.new_registry_key
Parent process commandline	.parent_process_command_line
Parent process image path	.parent_process_path
Process command line	.process_command_line
Process ID	.process_id
Registry key name	.old_registry_key
Registry value type	.registry_data_type
Source IP address	.source_ip
Source port	.source_port
Source type	.SourceType
Status	.status
Threat handled	.action
Username	.username

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Fetch Event failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Fetch Event failed.

Status Code: 401.

Message: Unauthorized.

Get File Details

Retrieves file details for specified file hashes. Archive hashes are supported.

Input

Input Parameter	Required/Optional	Description	Example
File Hashes	Required	The file hashes for which details will be retrieved.	JSON `[ "***", "***" ]`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get File Details failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Get File Details failed.

Status Code: 401.

Message: Unauthorized.

Get Hash Allowlist Items

Retrieves hash allowlist items for a specified policy.

READER NOTE

Policy ID is a required parameter to run this command.

Run the List Policies command to obtain the Policy ID. Policy IDs can be found in the raw data at $.Results[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Policy ID	Required	The unique identifier of the policy for which hash allowlist items will be retrieved. Policy IDs can be obtained using the List Policies command.	*****

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Hash Allowlist Items failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Get Hash Allowlist Items failed.

Status Code: 401.

Message: Unauthorized.

Get Hash Denylist Items

Retrieves hash denylist items for a specified policy.

READER NOTE

Policy ID is a required parameter to run this command.

Run the List Policies command to obtain the Policy ID. Policy IDs can be found in the raw data at $.Results[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Policy ID	Required	The unique identifier of the policy for which hash denylist items will be retrieved. Policy IDs can be obtained using the List Policies command.	*****

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Hash Denylist Items failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Get Hash Denylist Items failed.

Status Code: 401.

Message: Unauthorized.

Get Malicious Events

Retrieves detailed information for specified malicious events.

READER NOTE

Malicious Event IDs is a required parameter to run this command.

Run the Fetch Event command with Retrieve Event Type set to Malicious Event to obtain the Malicious Event IDs. Malicious Event IDs can be found in the raw data at $.events[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Malicious Event IDs	Required	The unique identifiers of malicious events for which details will be retrieved. Malicious Event IDs can be obtained using the Fetch Event command with Retrieve Event Type set to Malicious Event.	JSON `[ ***, *** ]`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Malicious Events failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Get Malicious Events failed.

Status Code: 401.

Message: Unauthorized.

Get Policy Details

Retrieves detailed information for specified policies.

READER NOTE

Policy IDs is a required parameter to run this command.

Run the List Policies command to obtain the Policy IDs. Policy IDs can be found in the raw data at $.Results[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Policy IDs	Required	The unique identifiers of policies for which details will be retrieved. Policy IDs can be obtained using the List Policies command.	JSON `[ ***, *** ]`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Partially Successful or Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Policy Details failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Get Policy Details failed.

Status Code: 401.

Message: Unauthorized.

Get Suspicious Events

Retrieves detailed information for specified suspicious events.

READER NOTE

Suspicious Event IDs is a required parameter to run this command.

Run the Fetch Event command with Retrieve Event Type set to Suspicious Event to obtain the Suspicious Event IDs. Suspicious Event IDs can be found in the raw data at $.events[*].id.

Input

Input Parameter	Required/Optional	Description	Example
Suspicious Event IDs	Required	The unique identifiers of suspicious events for which details will be retrieved. Suspicious Event IDs can be obtained using the Fetch Event command with Retrieve Event Type set to Suspicious Event.	JSON `[ ***, *** ]`

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Get Suspicious Events failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Get Suspicious Events failed.

Status Code: 401.

Message: Unauthorized.

List Devices

Retrieves devices based on the specified filters. When no input parameters are provided, all devices will be returned.

Input

Input Parameter	Required/Optional	Description	Example
Hostname	Optional	Filters devices by hostname.	WINDOWS-SERVER-01
IP Address	Optional	Filters devices by IP address.	111.123.145.241
Filters For Devices	Optional	A JSON object containing device property field-value pairs used to filter results.	JSON `{ "os": [ "WINDOWS" ], "domain": "acme.local", "comment": "My comment", "license_status": [ "ACTIVATED" ], "group_name": "Windows Default Group", "tenant_name": "Tenant 1" }`
Last Device ID	Optional	The identifier of the last device returned in the previous request. This parameter is used for pagination. A maximum of 50 devices will be returned per request.	*****

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Devices failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

List Devices failed.

Status Code: 401.

Message: Unauthorized.

List Policies

Retrieve the original version of the specified artifact.

Input

N/A

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Policies failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

List Policies failed.

Status Code: 401.

Message: Unauthorized.

List Users

Retrieves users based on the specified filters. When no input parameters are provided, all users will be returned.

Input

Input Parameter	Required/Optional	Description	Example
User IDs	Optional	The unique identifiers of users for which details will be retrieved. When provided, Record Size and Offset are ignored.	JSON `[ ***, *** ]`
Record Size	Optional	The maximum number of users to return per request. By default, the value is 500.	50
Offset	Optional	The number of users to skip before returning results. By default, the value is 0.	50

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	List Users failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

List Users failed.

Status Code: 401.

Message: Unauthorized.

Take Action On Devices

Performs a remediation action on specified devices.

READER NOTE

Device IDs is a required parameter to run this command.

Run the List Devices command to obtain the Device IDs. Device IDs can be found in the raw data at $.Results[*].id.

Input

Input Parameter

Required/Optional

Description

Example

Device IDs

Required

The unique identifiers of devices on which the selected action will be performed. Device IDs can be obtained using the List Devices command.

JSON

[
  *****,
  *****,
  *****
]

Remediation Action

Required

The action to perform on the specified devices. Valid values are:

Isolate From Network
Release From Isolation
Terminate Remote Process

Isolate From Network

Output

To view the sample output data for all commands, refer to this article.

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Take Action On Devices failed.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Take Action On Devices failed.

Status Code: 401.

Message: Unauthorized.

Test Connection

Allows users to perform a health check on an integration connection. Users can schedule a periodic health check by selecting Connection Health Check when editing an integration connection.

Input

N/A

Output

Output Type

Description

Return Data Type

Return Data

Indicates one of the possible command execution states: Successful or Failed.

The Failed state can be triggered by any of the following errors:

A connection issue with the integration
The API returned an error message
No response from the API

More details about an error can be viewed in the Error tab.

String

Error Handling

If the Return Data displays Failed, an Error tab will appear in the Test Result window.

The error tab contains the details responded from D3 SOAR or third-party API calls, including Failure Indicator, Status Code, and Message. This can help locate the root cause of a command failure.

Parts in Error	Description	Example
Failure Indicator	Indicates the command failure that happened at a specific input and/or API call.	Test Connection failed. Failed to check the connector.
Status Code	The response code issued by the third-party API server or the D3 SOAR system that can be used to locate the corresponding error category. For example, if the returned status code is 401, the selected connection is unauthorized to run the command. The user or system support would need to check the permission setting in the Deep Instinct V2 portal. Refer to the HTTP Status Code Registry for details.	Status Code: 401.
Message	The raw data or captured key error message from the integration API server about the API request failure.	Message: Unauthorized.

Error Sample Data

Test Connection failed. Failed to check the connector.

Status Code: 401.

Message: Unauthorized.
